Ram 3500 2016 Diesel Supplement

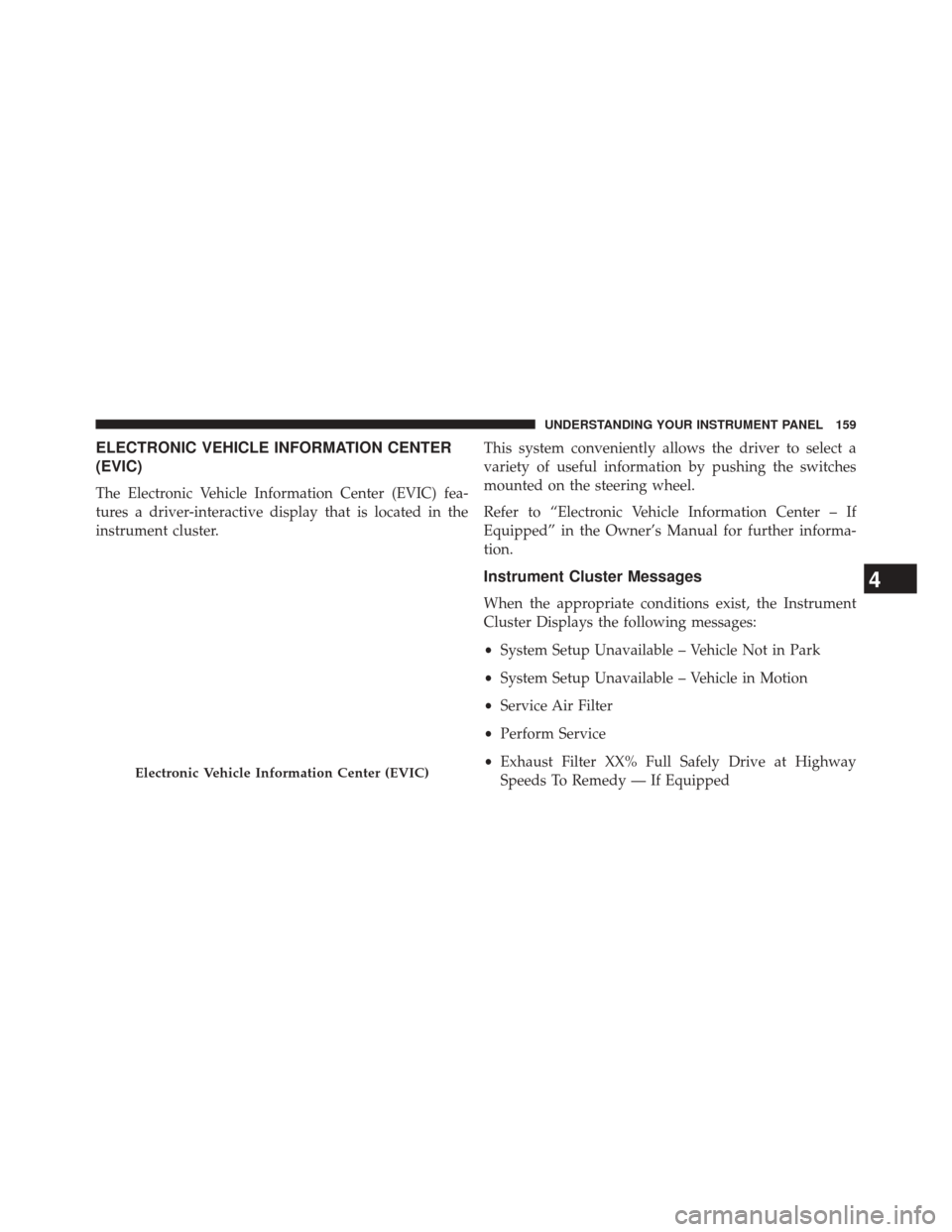

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.This system conveniently allows the driver to select a
variety of useful information by pushing the switches
mounted on the steering wheel.
Refer to “Electronic Vehicle Information Center – If
Equipped” in the Owner’s Manual for further informa-
tion.
Instrument Cluster Messages
When the appropriate conditions exist, the Instrument
Cluster Displays the following messages:
•
System Setup Unavailable – Vehicle Not in Park
• System Setup Unavailable – Vehicle in Motion
• Service Air Filter
• Perform Service
• Exhaust Filter XX% Full Safely Drive at Highway
Speeds To Remedy — If Equipped
Electronic Vehicle Information Center (EVIC)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

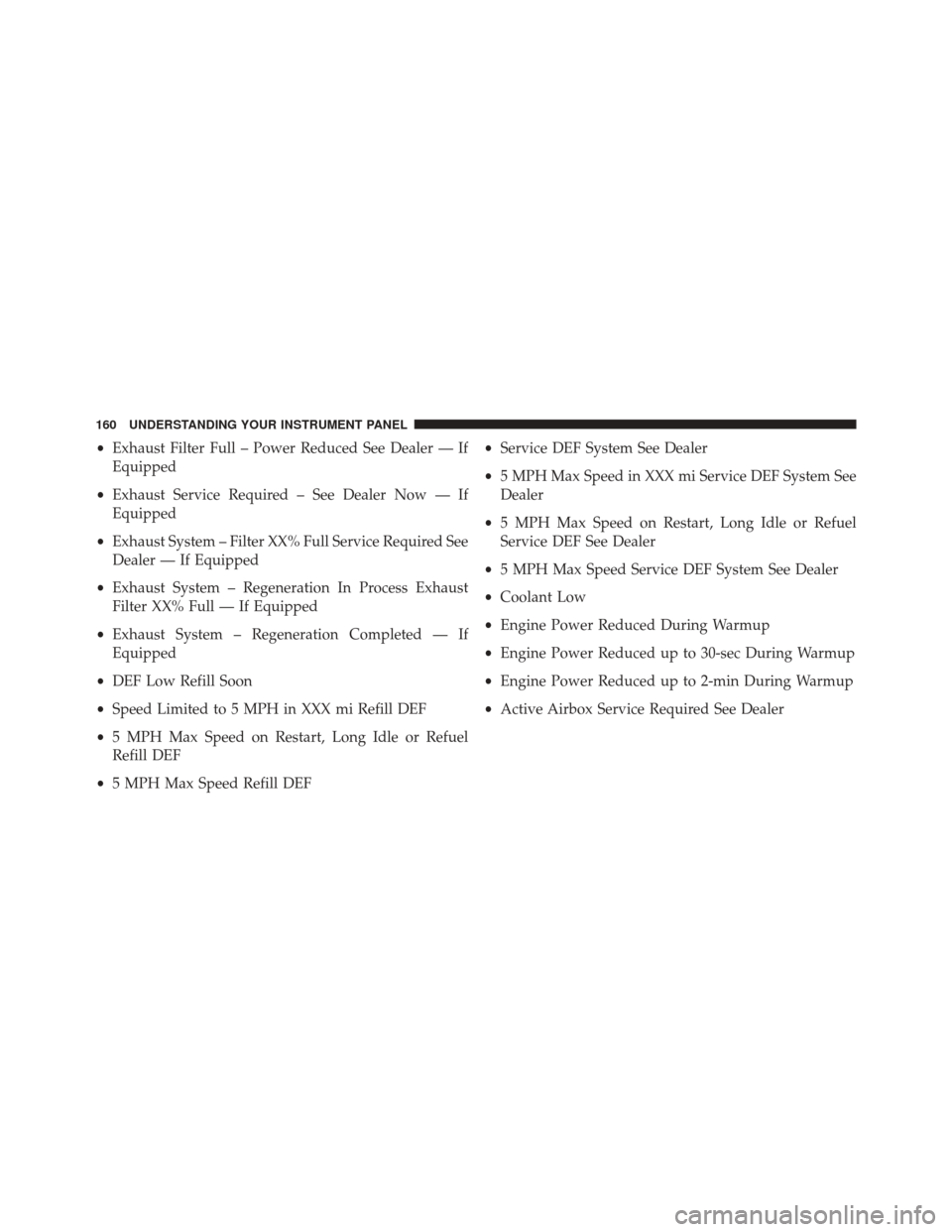

•Exhaust Filter Full – Power Reduced See Dealer — If
Equipped
• Exhaust Service Required – See Dealer Now — If
Equipped
• Exhaust System – Filter XX% Full Service Required See
Dealer — If Equipped
• Exhaust System – Regeneration In Process Exhaust
Filter XX% Full — If Equipped
• Exhaust System – Regeneration Completed — If
Equipped
• DEF Low Refill Soon
• Speed Limited to 5 MPH in XXX mi Refill DEF
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Refill DEF
• 5 MPH Max Speed Refill DEF •
Service DEF System See Dealer
• 5 MPH Max Speed in XXX mi Service DEF System See
Dealer
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Service DEF See Dealer
• 5 MPH Max Speed Service DEF System See Dealer
• Coolant Low
• Engine Power Reduced During Warmup
• Engine Power Reduced up to 30-sec During Warmup
• Engine Power Reduced up to 2-min During Warmup
• Active Airbox Service Required See Dealer
160 UNDERSTANDING YOUR INSTRUMENT PANEL

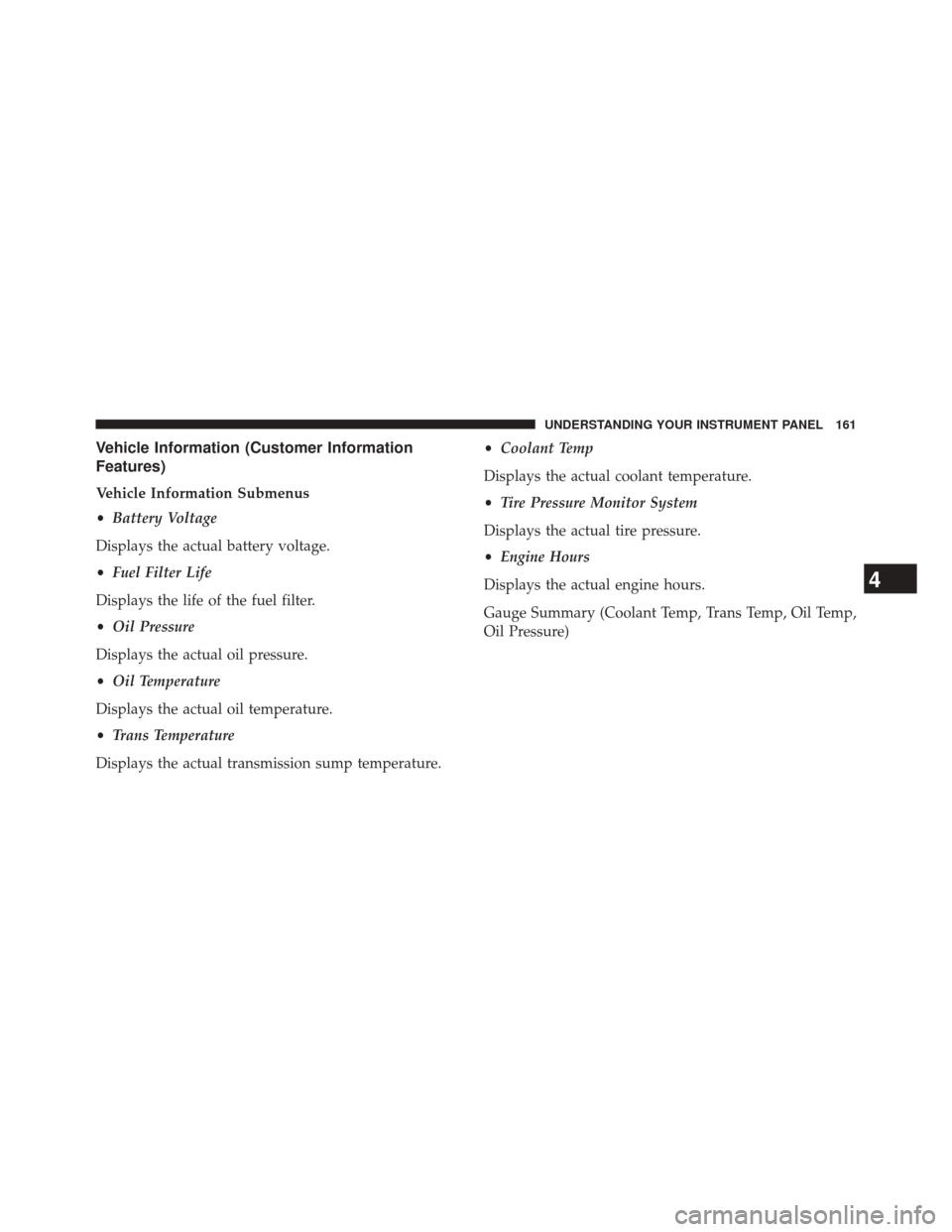

Vehicle Information (Customer Information
Features)
Vehicle Information Submenus
•Battery Voltage
Displays the actual battery voltage.
• Fuel Filter Life
Displays the life of the fuel filter.
• Oil Pressure
Displays the actual oil pressure.
• Oil Temperature
Displays the actual oil temperature.
• Trans Temperature
Displays the actual transmission sump temperature. •
Coolant Temp
Displays the actual coolant temperature.
• Tire Pressure Monitor System
Displays the actual tire pressure.
• Engine Hours
Displays the actual engine hours.
Gauge Summary (Coolant Temp, Trans Temp, Oil Temp,
Oil Pressure)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

•UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and sub-
menus (Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up). •
DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus (Fuel Economy, Trip A, Trip B, Au-
dio, Stored Messages, Screen Set Up).
• RIGHT Arrow Button
Push and release the RIGHTarrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHTarrow button for two seconds
to reset displayed/selected features that can be reset.
• LEFT Arrow Button
Push the LEFTarrow button to return to the
main menu from an info screen or submenu
item.
EVIC Controls
162 UNDERSTANDING YOUR INSTRUMENT PANEL

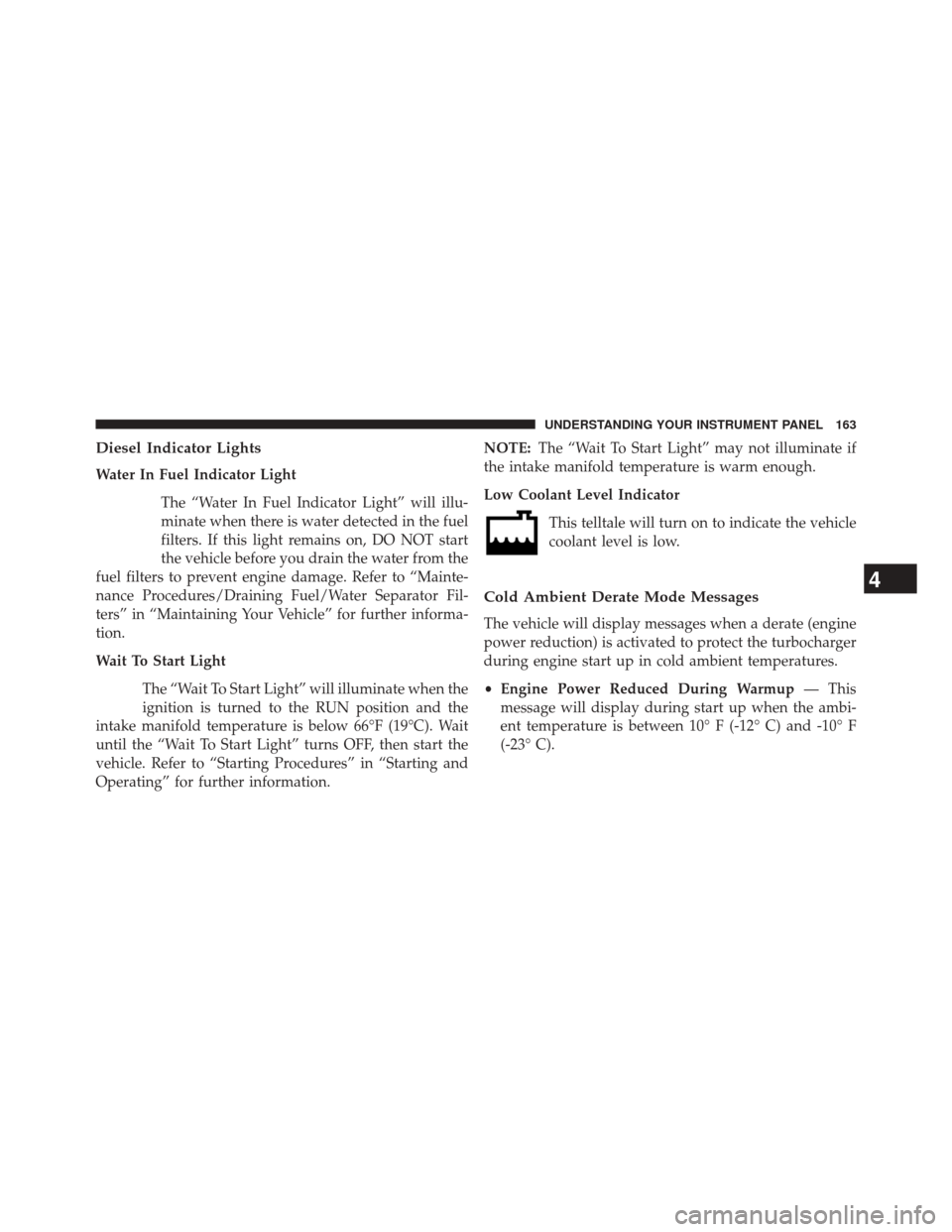

Diesel Indicator Lights
Water In Fuel Indicator LightThe “Water In Fuel Indicator Light” will illu-
minate when there is water detected in the fuel
filters. If this light remains on, DO NOT start
the vehicle before you drain the water from the
fuel filters to prevent engine damage. Refer to “Mainte-
nance Procedures/Draining Fuel/Water Separator Fil-
ters” in “Maintaining Your Vehicle” for further informa-
tion.
Wait To Start Light
The “Wait To Start Light” will illuminate when the
ignition is turned to the RUN position and the
intake manifold temperature is below 66°F (19°C). Wait
until the “Wait To Start Light” turns OFF, then start the
vehicle. Refer to “Starting Procedures” in “Starting and
Operating” for further information. NOTE:
The “Wait To Start Light” may not illuminate if
the intake manifold temperature is warm enough.
Low Coolant Level Indicator
This telltale will turn on to indicate the vehicle
coolant level is low.
Cold Ambient Derate Mode Messages
The vehicle will display messages when a derate (engine
power reduction) is activated to protect the turbocharger
during engine start up in cold ambient temperatures.
•Engine Power Reduced During Warmup — This
message will display during start up when the ambi-
ent temperature is between 10° F (-12° C) and -10° F
(-23° C).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 163

•Engine Power Reduced Up To 30 Sec (Seconds)
During Warmup — This message will display during
start up when the ambient temperature is between
-10° F (-23° C) and -25 F (-32° C).
• Engine Power Reduced Up To 2 Min (Minutes)
During Warmup — This message will display during
start up when the ambient temperature is -25° F
(-32°C) and below.
• Coolant Low — This telltale will turn on to indicate
the vehicle coolant level is low. See “Adding Coolant”
under the section “Maintaining Your Vehicle” for more
information.
Diesel Particulate Filter (DPF) Messages
The Cummins diesel engine meets all diesel emissions
standards, resulting in one of the lowest emitting diesel
engines ever produced. To achieve these emissions stan-
dards, your vehicle is equipped with a state-of-the-art engine and exhaust system. These systems are seamlessly
integrated into your vehicle and managed by the Pow-
ertrain Control Module (PCM). The PCM manages en-
gine combustion to allow the exhaust system’s catalyst to
trap and burn Particulate Matter (PM) pollutants, with no
input or interaction on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

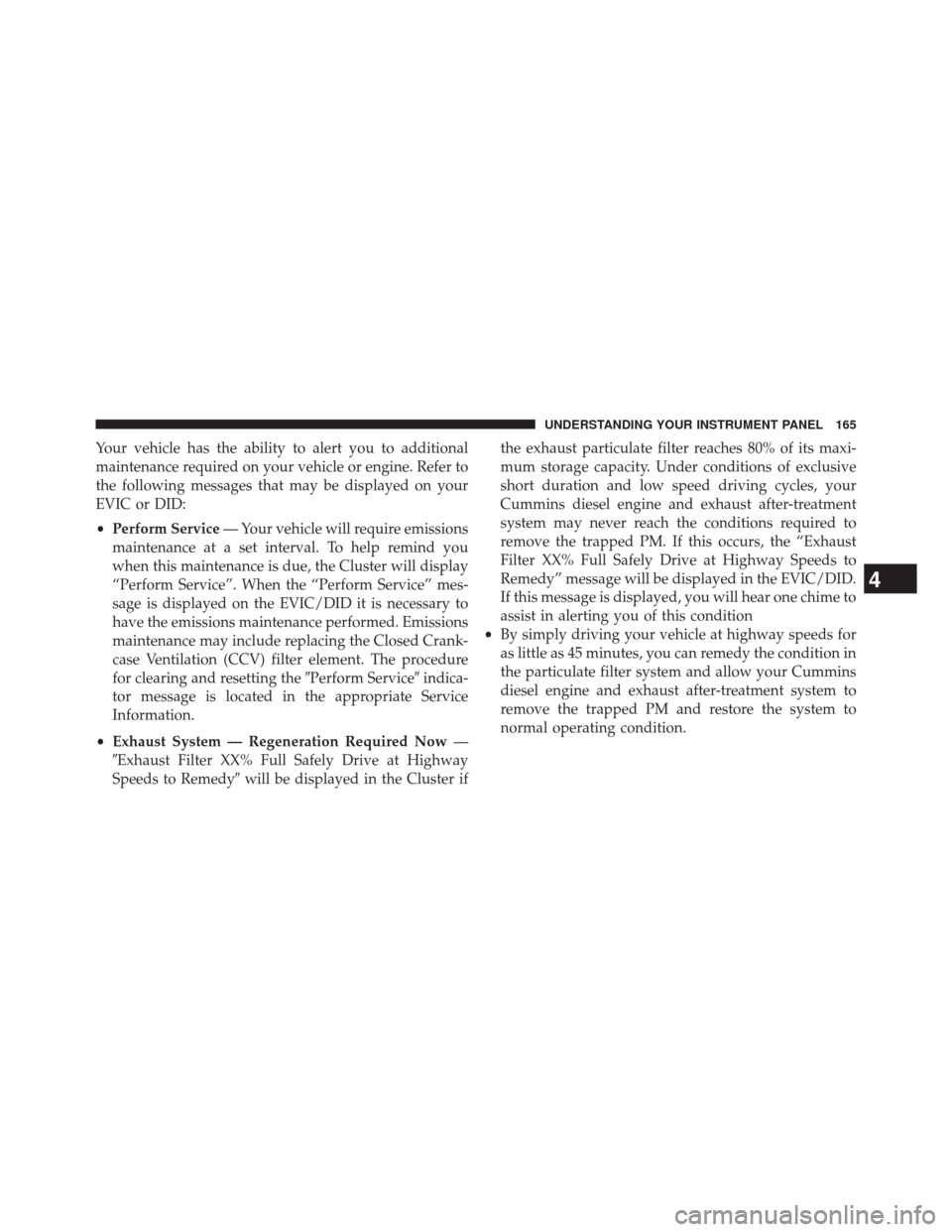

Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
EVIC or DID:
•Perform Service — Your vehicle will require emissions
maintenance at a set interval. To help remind you
when this maintenance is due, the Cluster will display
“Perform Service”. When the “Perform Service” mes-
sage is displayed on the EVIC/DID it is necessary to
have the emissions maintenance performed. Emissions
maintenance may include replacing the Closed Crank-
case Ventilation (CCV) filter element. The procedure
for clearing and resetting the Perform Serviceindica-
tor message is located in the appropriate Service
Information.
• Exhaust System — Regeneration Required Now —
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy will be displayed in the Cluster if the exhaust particulate filter reaches 80% of its maxi-
mum storage capacity. Under conditions of exclusive
short duration and low speed driving cycles, your
Cummins diesel engine and exhaust after-treatment
system may never reach the conditions required to
remove the trapped PM. If this occurs, the “Exhaust
Filter XX% Full Safely Drive at Highway Speeds to
Remedy” message will be displayed in the EVIC/DID.
If this message is displayed, you will hear one chime to
assist in alerting you of this condition
• By simply driving your vehicle at highway speeds for
as little as 45 minutes, you can remedy the condition in
the particulate filter system and allow your Cummins
diesel engine and exhaust after-treatment system to
remove the trapped PM and restore the system to
normal operating condition.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

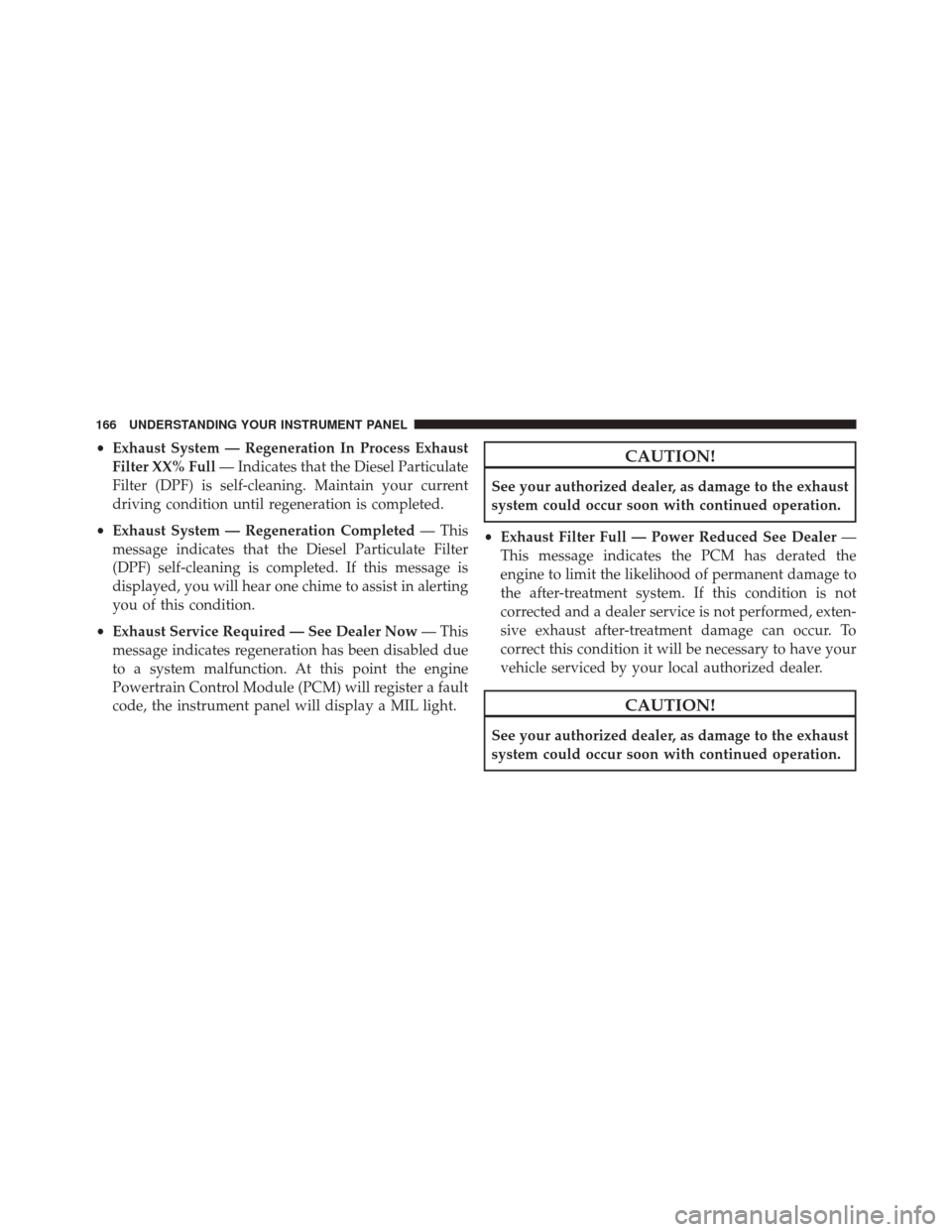

•Exhaust System — Regeneration In Process Exhaust
Filter XX% Full — Indicates that the Diesel Particulate
Filter (DPF) is self-cleaning. Maintain your current
driving condition until regeneration is completed.
• Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter
(DPF) self-cleaning is completed. If this message is
displayed, you will hear one chime to assist in alerting
you of this condition.
• Exhaust Service Required — See Dealer Now — This
message indicates regeneration has been disabled due
to a system malfunction. At this point the engine
Powertrain Control Module (PCM) will register a fault
code, the instrument panel will display a MIL light.CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
• Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the
engine to limit the likelihood of permanent damage to
the after-treatment system. If this condition is not
corrected and a dealer service is not performed, exten-
sive exhaust after-treatment damage can occur. To
correct this condition it will be necessary to have your
vehicle serviced by your local authorized dealer.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
166 UNDERSTANDING YOUR INSTRUMENT PANEL

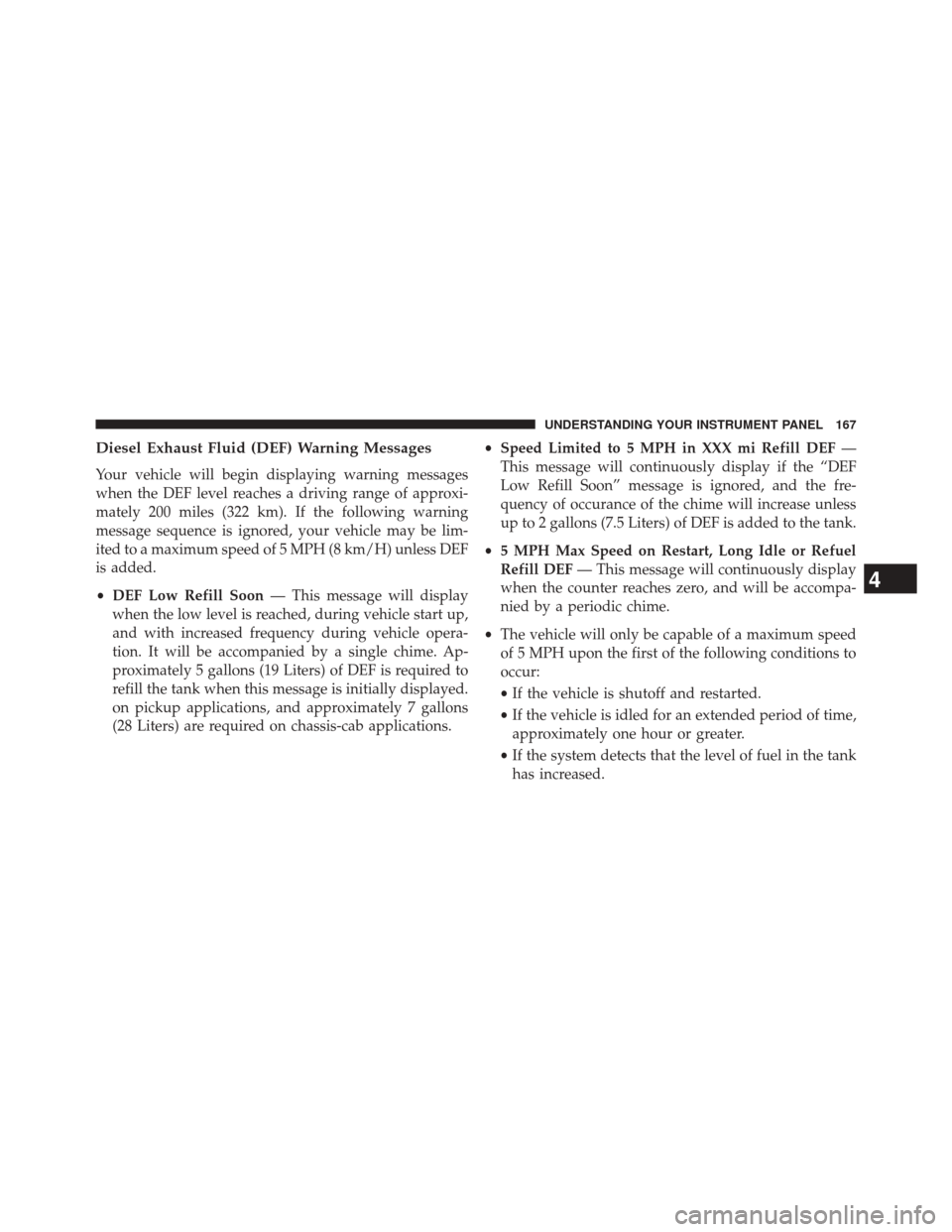

Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages
when the DEF level reaches a driving range of approxi-
mately 200 miles (322 km). If the following warning
message sequence is ignored, your vehicle may be lim-
ited to a maximum speed of 5 MPH (8 km/H) unless DEF
is added.
•DEF Low Refill Soon — This message will display
when the low level is reached, during vehicle start up,
and with increased frequency during vehicle opera-
tion. It will be accompanied by a single chime. Ap-
proximately 5 gallons (19 Liters) of DEF is required to
refill the tank when this message is initially displayed.
on pickup applications, and approximately 7 gallons
(28 Liters) are required on chassis-cab applications. •
Speed Limited to 5 MPH in XXX mi Refill DEF —
This message will continuously display if the “DEF
Low Refill Soon” message is ignored, and the fre-
quency of occurance of the chime will increase unless
up to 2 gallons (7.5 Liters) of DEF is added to the tank.
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Refill DEF — This message will continuously display
when the counter reaches zero, and will be accompa-
nied by a periodic chime.
• The vehicle will only be capable of a maximum speed
of 5 MPH upon the first of the following conditions to
occur:
• If the vehicle is shutoff and restarted.
• If the vehicle is idled for an extended period of time,
approximately one hour or greater.
• If the system detects that the level of fuel in the tank
has increased.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

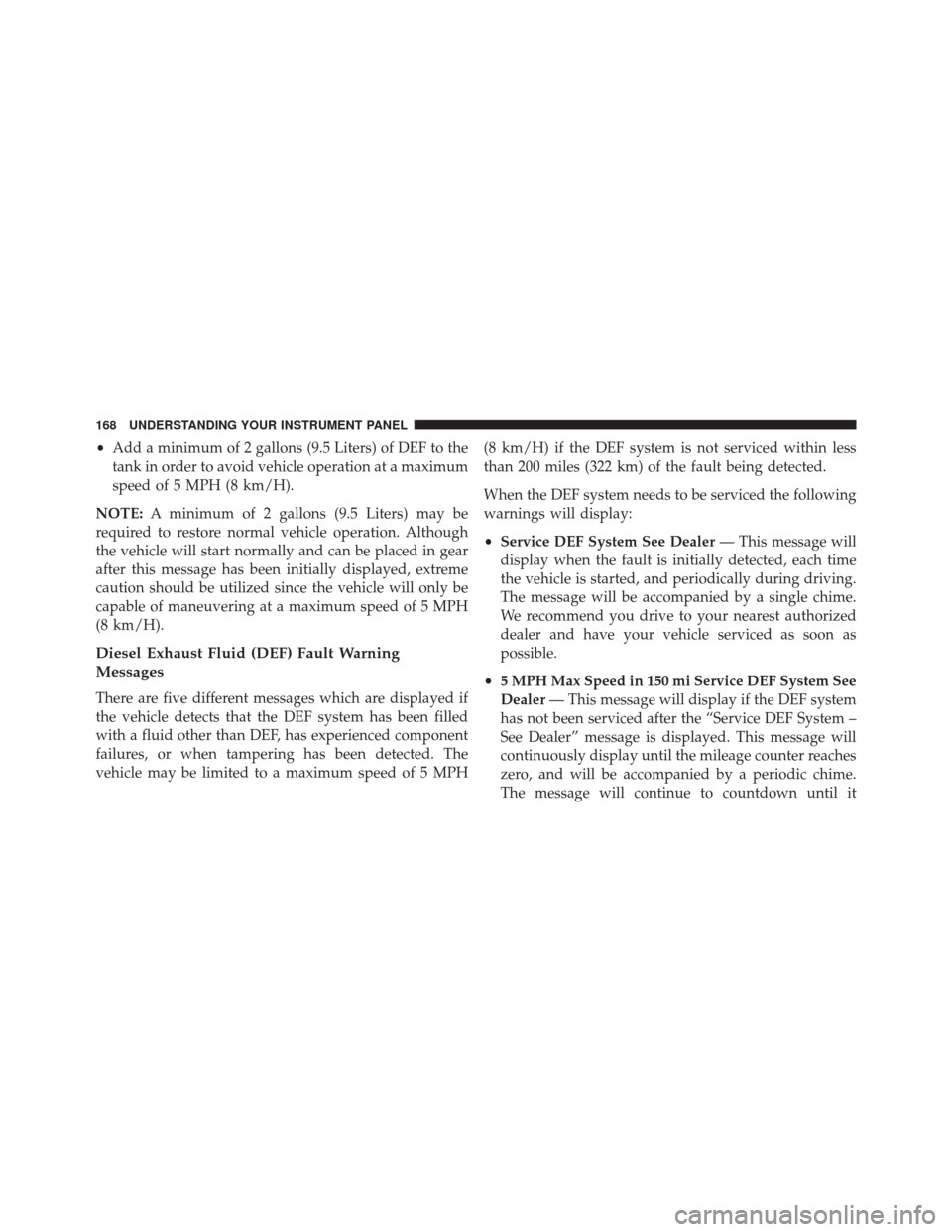

•Add a minimum of 2 gallons (9.5 Liters) of DEF to the
tank in order to avoid vehicle operation at a maximum
speed of 5 MPH (8 km/H).
NOTE: A minimum of 2 gallons (9.5 Liters) may be
required to restore normal vehicle operation. Although
the vehicle will start normally and can be placed in gear
after this message has been initially displayed, extreme
caution should be utilized since the vehicle will only be
capable of maneuvering at a maximum speed of 5 MPH
(8 km/H).
Diesel Exhaust Fluid (DEF) Fault Warning
Messages
There are five different messages which are displayed if
the vehicle detects that the DEF system has been filled
with a fluid other than DEF, has experienced component
failures, or when tampering has been detected. The
vehicle may be limited to a maximum speed of 5 MPH (8 km/H) if the DEF system is not serviced within less
than 200 miles (322 km) of the fault being detected.
When the DEF system needs to be serviced the following
warnings will display:
•
Service DEF System See Dealer — This message will
display when the fault is initially detected, each time
the vehicle is started, and periodically during driving.
The message will be accompanied by a single chime.
We recommend you drive to your nearest authorized
dealer and have your vehicle serviced as soon as
possible.
• 5 MPH Max Speed in 150 mi Service DEF System See
Dealer — This message will display if the DEF system
has not been serviced after the “Service DEF System –
See Dealer” message is displayed. This message will
continuously display until the mileage counter reaches
zero, and will be accompanied by a periodic chime.
The message will continue to countdown until it
168 UNDERSTANDING YOUR INSTRUMENT PANEL
