Ram 3500 2016 Diesel Supplement
Manufacturer: RAM, Model Year: 2016, Model line: 3500, Model: Ram 3500 2016Pages: 338, PDF Size: 1.63 MB
Page 51 of 338
managed by the Powertrain Control Module (PCM). The
PCM manages engine combustion to allow the exhaust
system’s catalyst to trap and burn Particulate Matter
(PM) pollutants, with no input or interaction on your
part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
DID: •
Perform Service — Your vehicle will require emissions
maintenance at a set interval. To help remind you
when this maintenance is due, the Cluster will display
“Perform Service”. When the “Perform Service” mes-
sage is displayed on the DID it is necessary to have the
emissions maintenance performed. Emissions mainte-
nance may include replacing the Closed Crankcase
Ventilation (CCV) filter element. The procedure for
clearing and resetting the Perform Serviceindicator
message is located in the appropriate Service Informa-
tion.
• Exhaust System — Regeneration Required Now —
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy will be displayed in the Cluster if
the exhaust particulate filter reaches 80% of its maxi-
mum storage capacity. Under conditions of exclusive
short duration and low speed driving cycles, your
diesel engine and exhaust after-treatment system may
never reach the conditions required to remove the
3
UNDERSTANDING YOUR INSTRUMENT PANEL 49
Page 52 of 338
trapped PM. If this occurs, the “Exhaust Filter XX%
Full Safely Drive at Highway Speeds to Remedy”
message will be displayed in the DID. If this message
is displayed, you will hear one chime to assist in
alerting you of this condition
• By simply driving your vehicle at highway speeds for
as little as 45 minutes, you can remedy the condition in
the particulate filter system and allow your diesel
engine and exhaust after-treatment system to remove
the trapped PM and restore the system to normal
operating condition.
• Exhaust System — Regeneration In Process Exhaust
Filter XX% Full — Indicates that the Diesel Particulate
Filter (DPF) is self-cleaning. Maintain your current
driving condition until regeneration is completed.
• Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter (DPF) self-cleaning is completed. If this message is
displayed, you will hear one chime to assist in alerting
you of this condition.
• Exhaust Service Required — See Dealer Now — This
messages indicates regeneration has been disabled due
to a system malfunction. At this point the engine
Powertrain Control Module (PCM) will register a fault
code, the instrument panel will display a MIL light.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
• Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the
engine to limit the likelihood of permanent damage to
the after-treatment system. If this condition is not
50 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 53 of 338
corrected and a dealer service is not performed, exten-
sive exhaust after-treatment damage can occur. To
correct this condition it will be necessary to have your
vehicle serviced by your local authorized dealer.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages
when the DEF level reaches a driving range of approxi-
mately 500 miles (800 km). If the following warning
message sequence is ignored, your vehicle may not
restart unless DEF is added with in the displayed mileage
shown in the Cluster message.•
Engine Will Not Restart in XXXX mi DEF Low Refill
Soon — This message will display when DEF driving
range is less than 500 miles, DEF fluid top off is
required with in the displayed mileage. The message
will be displayed in the cluster during vehicle start up
with the current allowed mileage and accompanied by
a single chime. The remaining mileage can be pulled
up anytime by way of the “Messages” list within the
EVIC/DID
• Engine Will Not Restart in XXXX mi Refill DEF —
This message will display when DEF driving range is
less than 200 miles. It is also displayed at 150 miles and
100 miles. DEF fluid top off is required with in the
displayed mileage. The message will be displayed in
the EVIC/DID during vehicle start up with an up-
dated distance mileage, and it will be accompanied by
a single chime. Starting at 100 miles, remaining range
will be continuously displayed while operating the
vehicle. Chimes will also accompany the 75, 50 and 25
3
UNDERSTANDING YOUR INSTRUMENT PANEL 51

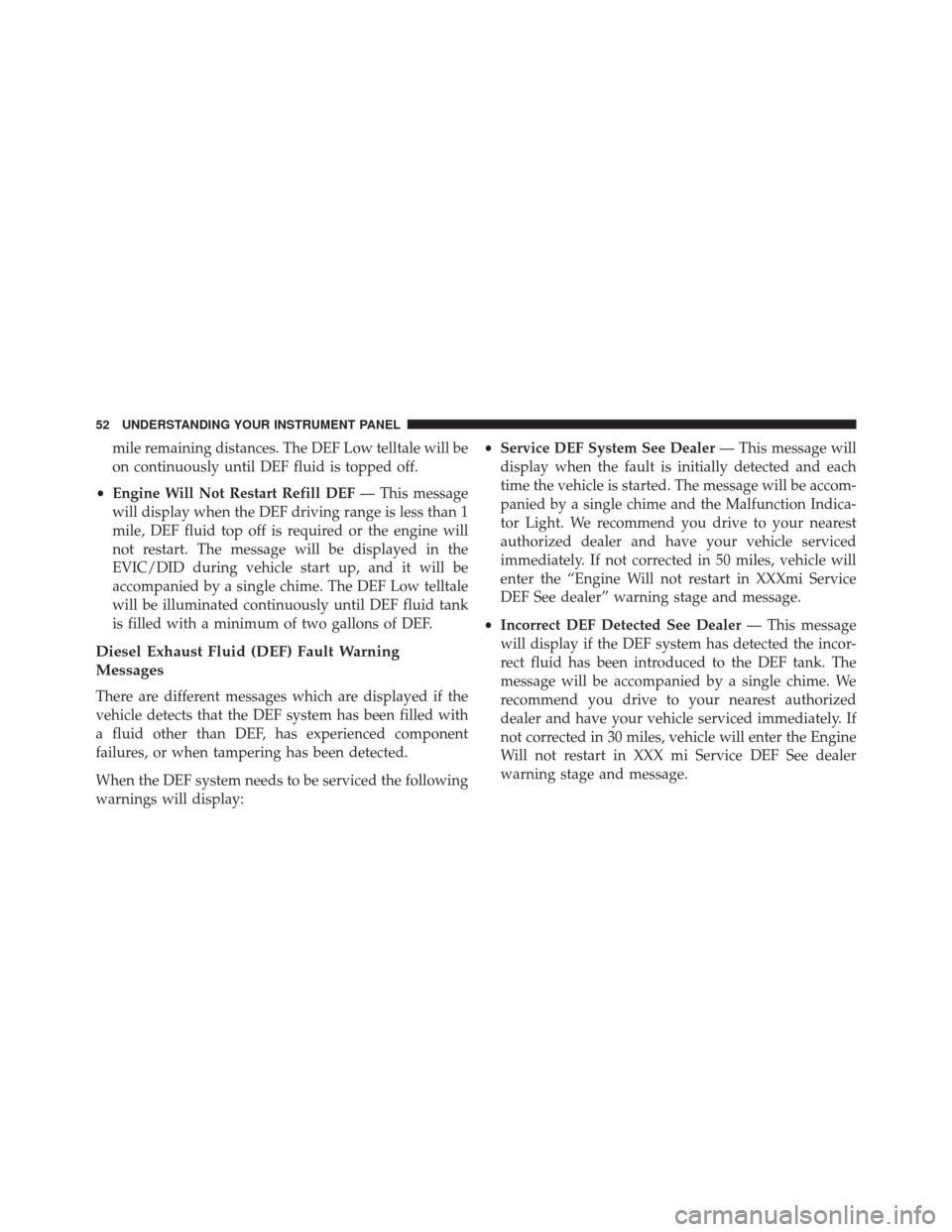

Page 54 of 338
mile remaining distances. The DEF Low telltale will be
on continuously until DEF fluid is topped off.
• Engine Will Not Restart Refill DEF — This message
will display when the DEF driving range is less than 1
mile, DEF fluid top off is required or the engine will
not restart. The message will be displayed in the
EVIC/DID during vehicle start up, and it will be
accompanied by a single chime. The DEF Low telltale
will be illuminated continuously until DEF fluid tank
is filled with a minimum of two gallons of DEF.
Diesel Exhaust Fluid (DEF) Fault Warning
Messages
There are different messages which are displayed if the
vehicle detects that the DEF system has been filled with
a fluid other than DEF, has experienced component
failures, or when tampering has been detected.
When the DEF system needs to be serviced the following
warnings will display: •
Service DEF System See Dealer — This message will
display when the fault is initially detected and each
time the vehicle is started. The message will be accom-
panied by a single chime and the Malfunction Indica-
tor Light. We recommend you drive to your nearest
authorized dealer and have your vehicle serviced
immediately. If not corrected in 50 miles, vehicle will
enter the “Engine Will not restart in XXXmi Service
DEF See dealer” warning stage and message.
• Incorrect DEF Detected See Dealer — This message
will display if the DEF system has detected the incor-
rect fluid has been introduced to the DEF tank. The
message will be accompanied by a single chime. We
recommend you drive to your nearest authorized
dealer and have your vehicle serviced immediately. If
not corrected in 30 miles, vehicle will enter the Engine
Will not restart in XXX mi Service DEF See dealer
warning stage and message.
52 UNDERSTANDING YOUR INSTRUMENT PANEL

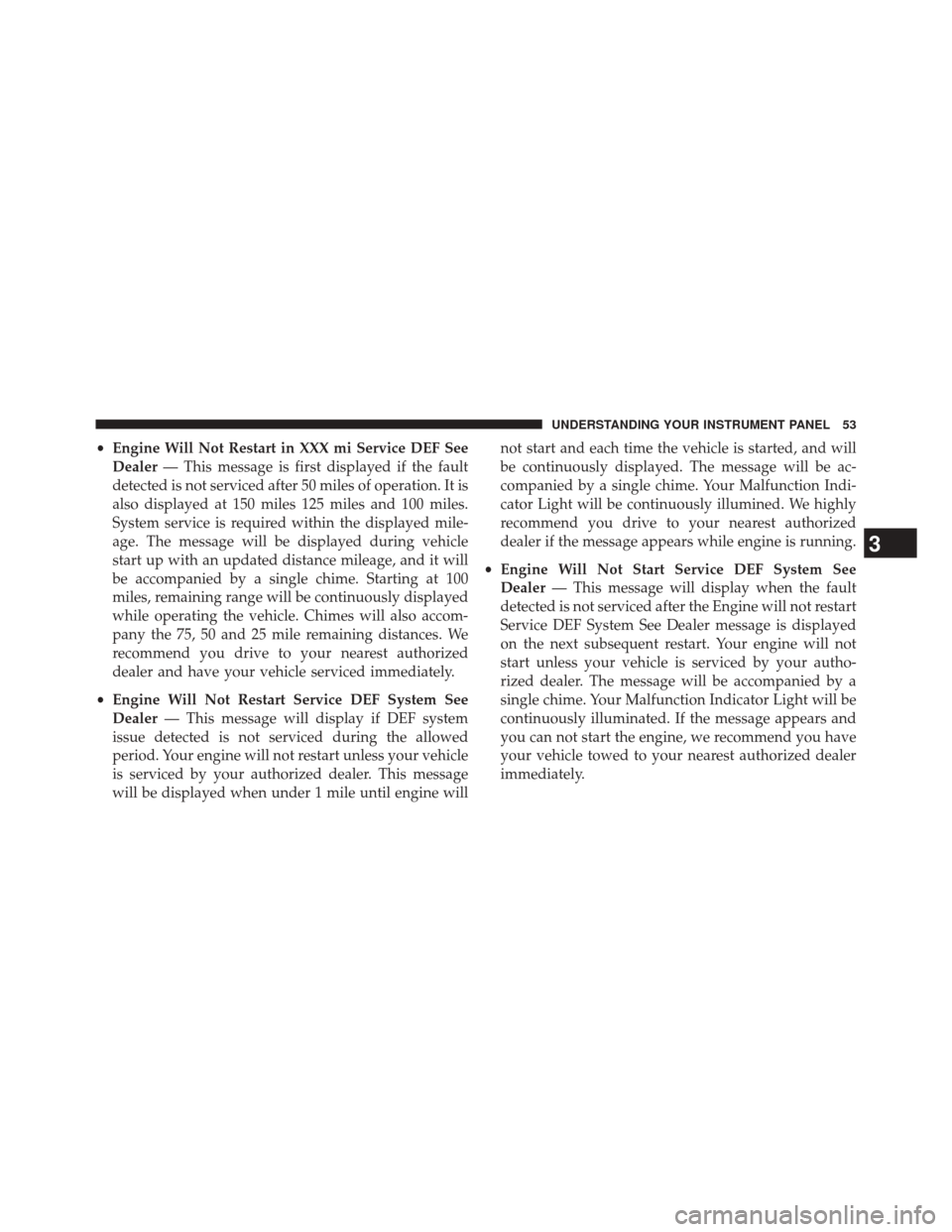

Page 55 of 338
•Engine Will Not Restart in XXX mi Service DEF See
Dealer — This message is first displayed if the fault
detected is not serviced after 50 miles of operation. It is
also displayed at 150 miles 125 miles and 100 miles.
System service is required within the displayed mile-
age. The message will be displayed during vehicle
start up with an updated distance mileage, and it will
be accompanied by a single chime. Starting at 100
miles, remaining range will be continuously displayed
while operating the vehicle. Chimes will also accom-
pany the 75, 50 and 25 mile remaining distances. We
recommend you drive to your nearest authorized
dealer and have your vehicle serviced immediately.
• Engine Will Not Restart Service DEF System See
Dealer — This message will display if DEF system
issue detected is not serviced during the allowed
period. Your engine will not restart unless your vehicle
is serviced by your authorized dealer. This message
will be displayed when under 1 mile until engine will not start and each time the vehicle is started, and will
be continuously displayed. The message will be ac-
companied by a single chime. Your Malfunction Indi-
cator Light will be continuously illumined. We highly
recommend you drive to your nearest authorized
dealer if the message appears while engine is running.
• Engine Will Not Start Service DEF System See
Dealer — This message will display when the fault
detected is not serviced after the Engine will not restart
Service DEF System See Dealer message is displayed
on the next subsequent restart. Your engine will not
start unless your vehicle is serviced by your autho-
rized dealer. The message will be accompanied by a
single chime. Your Malfunction Indicator Light will be
continuously illuminated. If the message appears and
you can not start the engine, we recommend you have
your vehicle towed to your nearest authorized dealer
immediately.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 53
Page 56 of 338

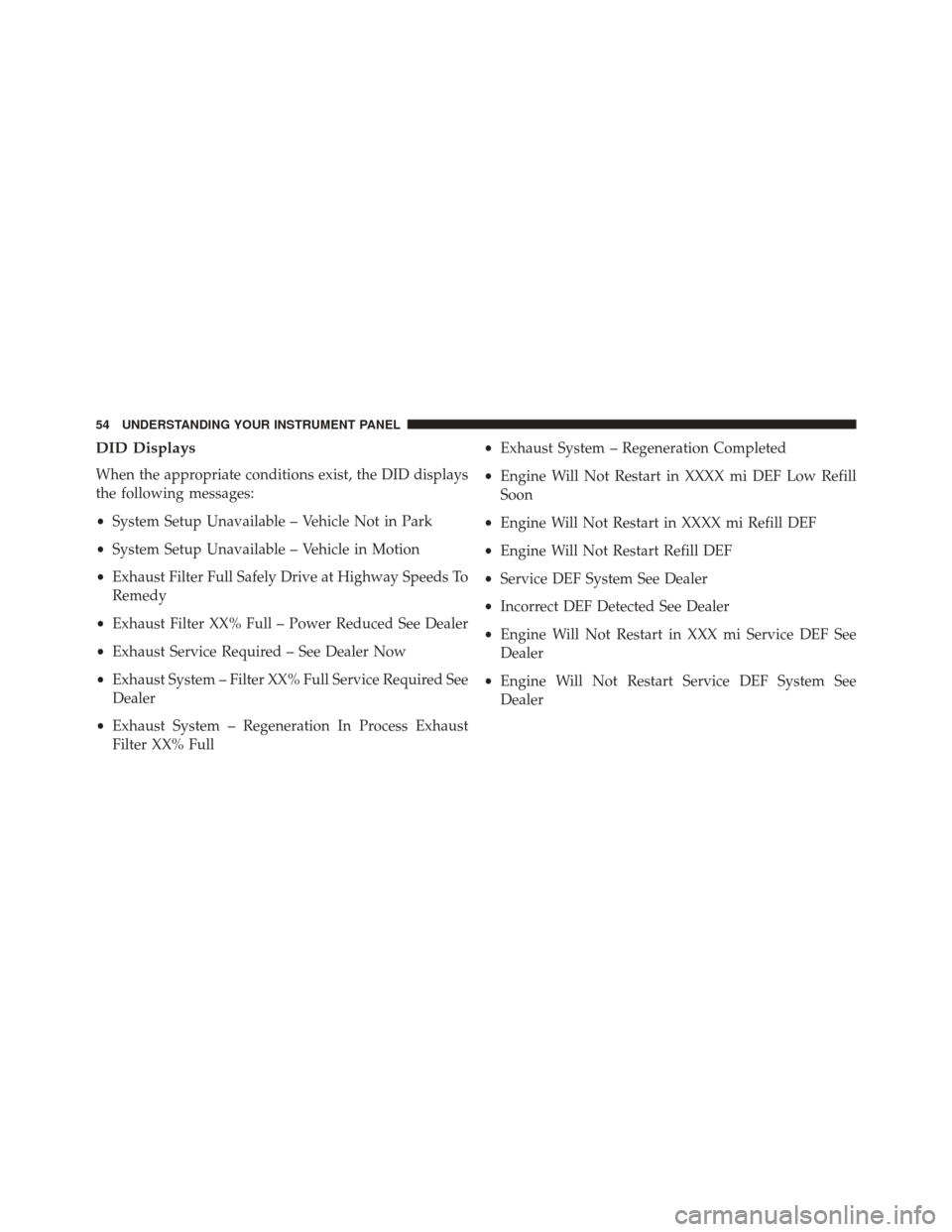

DID Displays
When the appropriate conditions exist, the DID displays
the following messages:
•System Setup Unavailable – Vehicle Not in Park
• System Setup Unavailable – Vehicle in Motion
• Exhaust Filter Full Safely Drive at Highway Speeds To
Remedy
• Exhaust Filter XX% Full – Power Reduced See Dealer
• Exhaust Service Required – See Dealer Now
• Exhaust System – Filter XX% Full Service Required See
Dealer
• Exhaust System – Regeneration In Process Exhaust
Filter XX% Full •
Exhaust System – Regeneration Completed
• Engine Will Not Restart in XXXX mi DEF Low Refill
Soon
• Engine Will Not Restart in XXXX mi Refill DEF
• Engine Will Not Restart Refill DEF
• Service DEF System See Dealer
• Incorrect DEF Detected See Dealer
• Engine Will Not Restart in XXX mi Service DEF See
Dealer
• Engine Will Not Restart Service DEF System See
Dealer
54 UNDERSTANDING YOUR INSTRUMENT PANEL

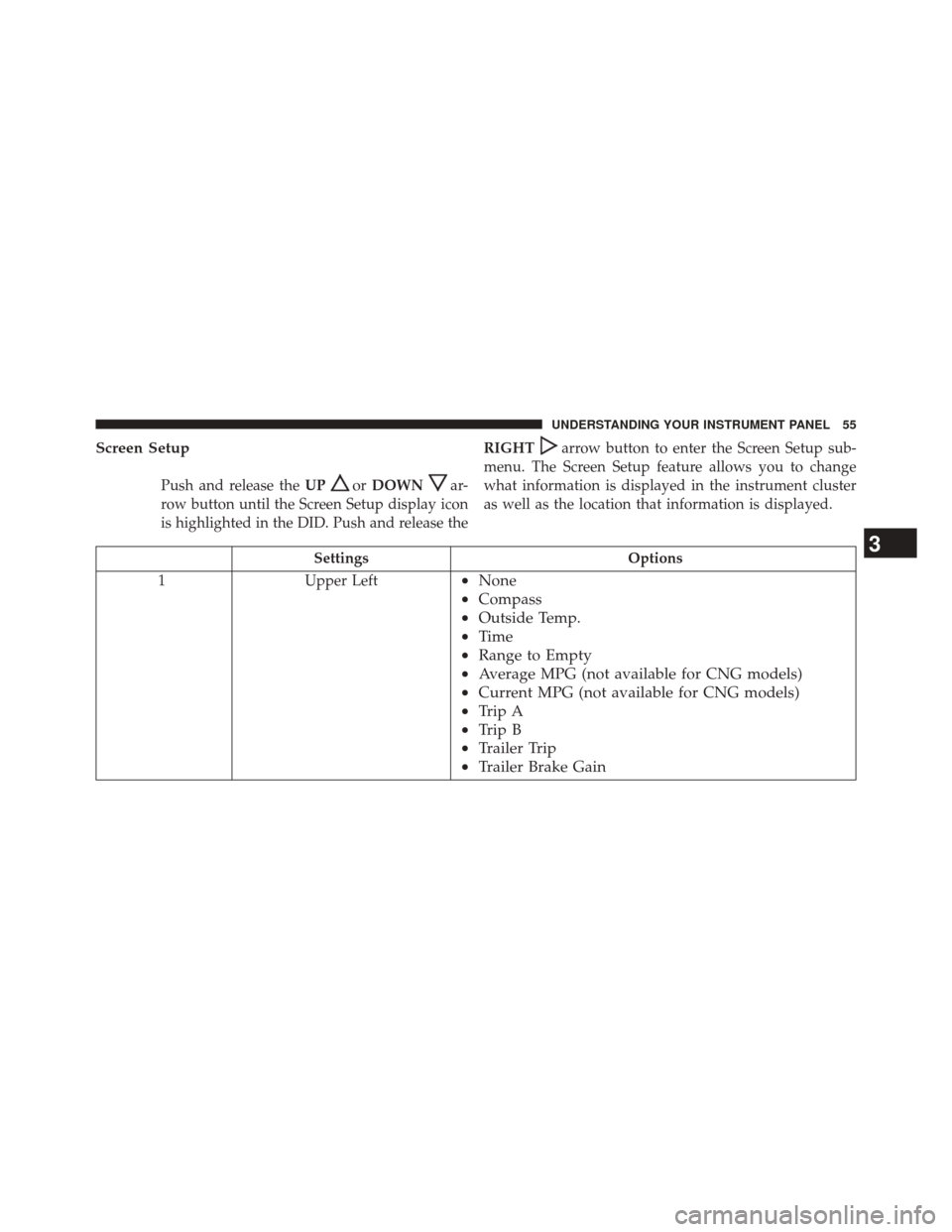

Page 57 of 338
Screen Setup
Push and release theUPorDOWNar-
row button until the Screen Setup display icon
is highlighted in the DID. Push and release the RIGHT
arrow button to enter the Screen Setup sub-
menu. The Screen Setup feature allows you to change
what information is displayed in the instrument cluster
as well as the location that information is displayed.
Settings Options
1 Upper Left
•None
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trip A
• Trip B
• Trailer Trip
• Trailer Brake Gain
3
UNDERSTANDING YOUR INSTRUMENT PANEL 55

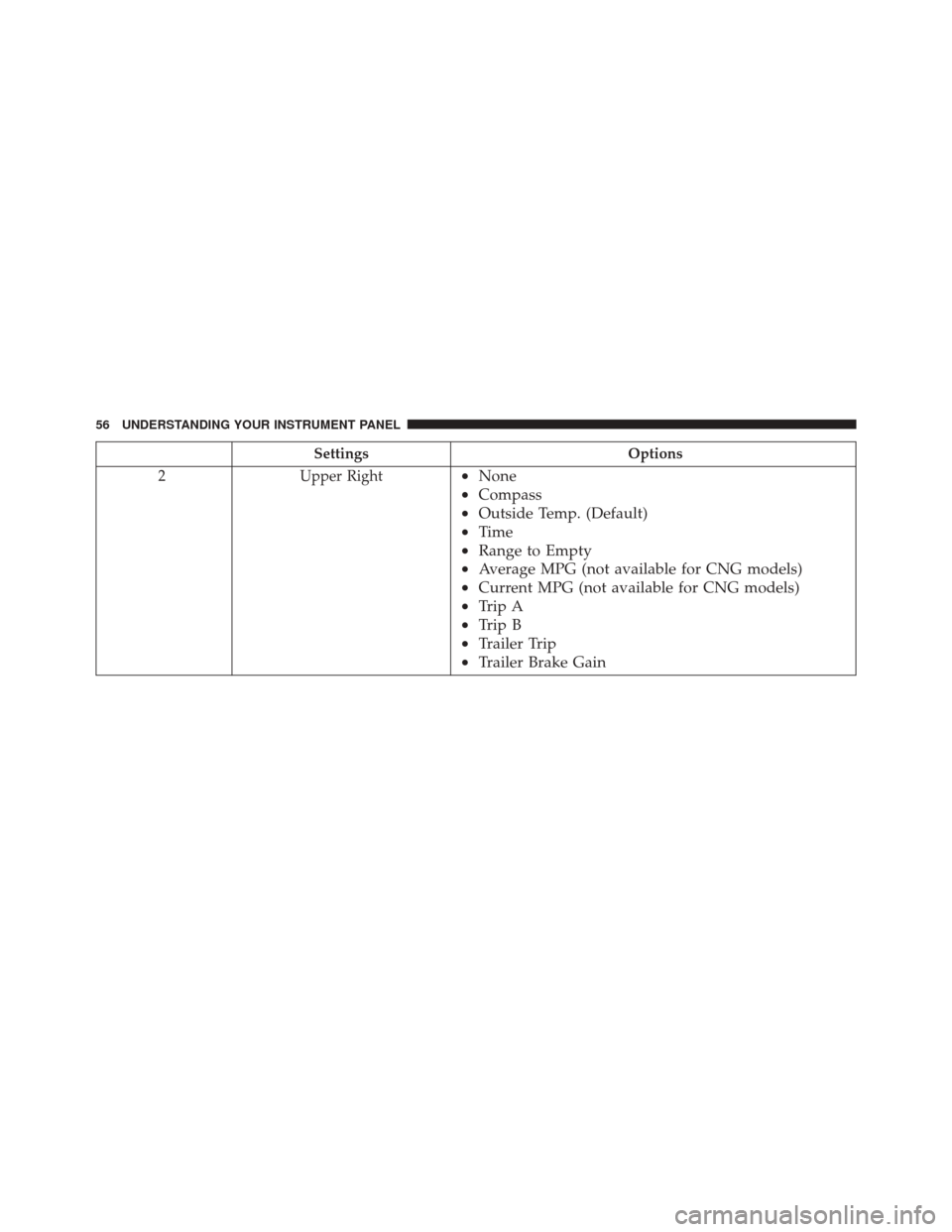

Page 58 of 338
SettingsOptions
2 Upper Right
•None
• Compass
• Outside Temp. (Default)
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trip A
• Trip B
• Trailer Trip
• Trailer Brake Gain
56 UNDERSTANDING YOUR INSTRUMENT PANEL

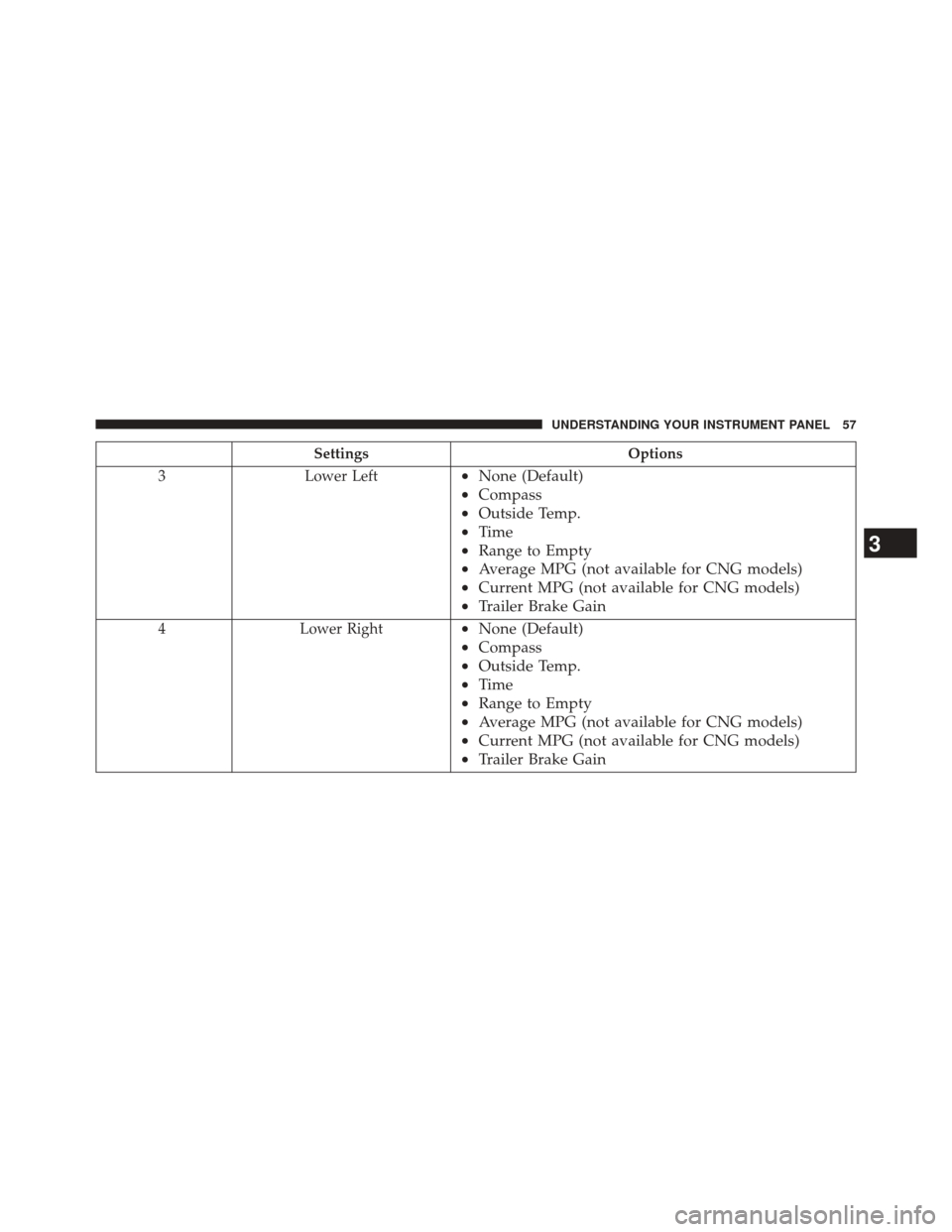

Page 59 of 338
SettingsOptions
3 Lower Left
•None (Default)
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
4 Lower Right•None (Default)
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
3
UNDERSTANDING YOUR INSTRUMENT PANEL 57
Page 60 of 338

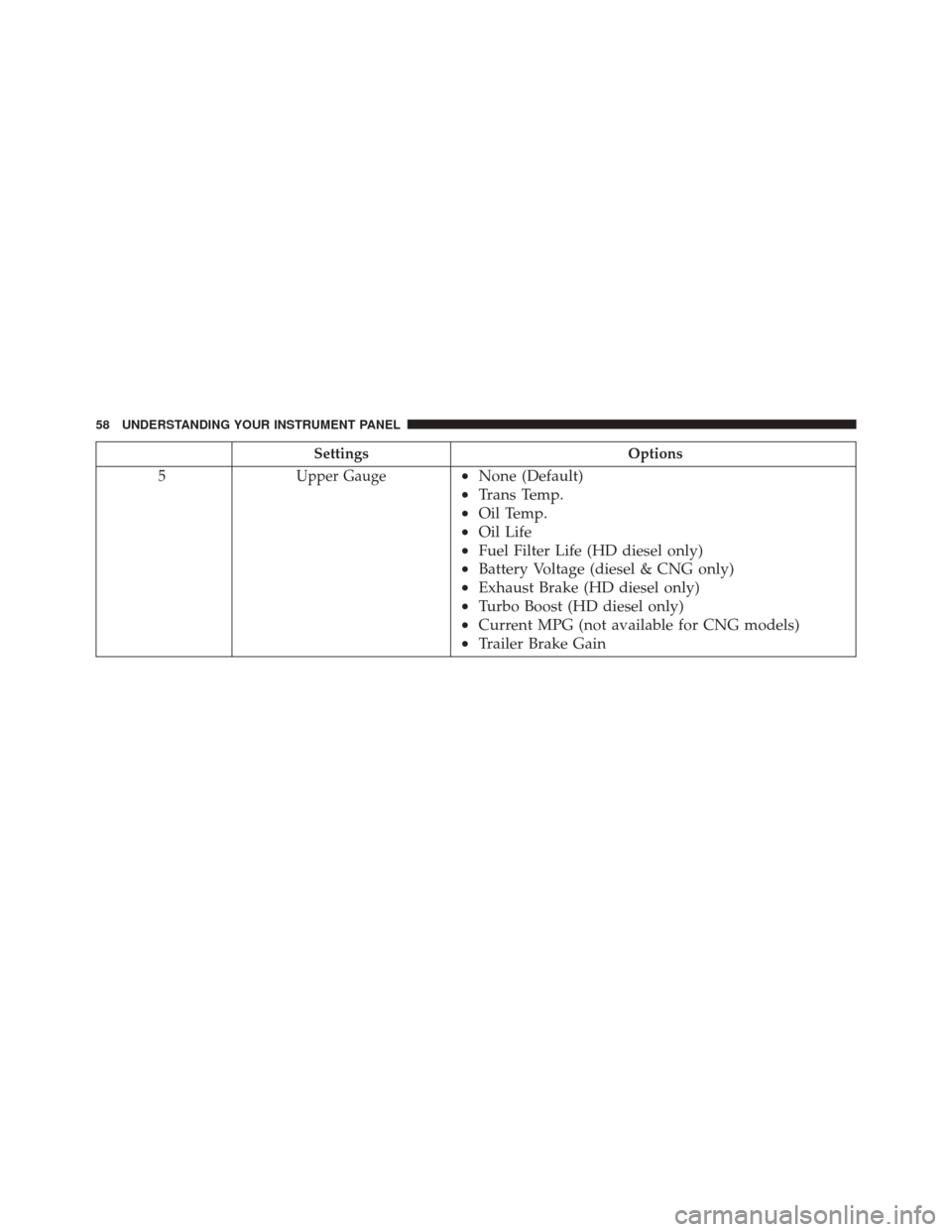

SettingsOptions
5 Upper Gauge
•None (Default)
• Trans Temp.
• Oil Temp.
• Oil Life
• Fuel Filter Life (HD diesel only)
• Battery Voltage (diesel & CNG only)
• Exhaust Brake (HD diesel only)
• Turbo Boost (HD diesel only)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
58 UNDERSTANDING YOUR INSTRUMENT PANEL
