Power Sliding Rear Window — If Equipped
The switch for the power sliding rear window is located
on the overhead console.
Push the switch to the right to open the glass. Pull the
switch to the left to close the glass.
Manual Sliding Rear Window — If Equipped
A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the
lock to release the window.
FOLD FLAT LOAD FLOOR — IF EQUIPPED
Quad Cab and Crew Cab models with a 60/40 rear seat
may be equipped with a folding load floor.
WARNING!
Do not operate the vehicle with loose items stored on
the load floor. While driving or in an accident you
may experience abrupt stopping, rapid acceleration,
or sharp turns. Loose objects stored on the load floor
may move around with force and strike occupants,
resulting in serious or fatal injury.
Rear Window Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 249

Unfolding The Load Floor/Quad Cab
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Grasp the knob on the load floor and lift the knob untilthe load floor unfolds into position. 3. Reverse the procedure to store the load floor.
Unfolding The Load Floor
Load Floor In Open Position
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Unfolding The Load Floor/Crew Cab
1. Lift the 60/40 seat cushion(s) to the upward position.2. Unfold both the legs using the straps.
Load Floor Legs In Stowed Position
Load Floor Legs In Opened Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

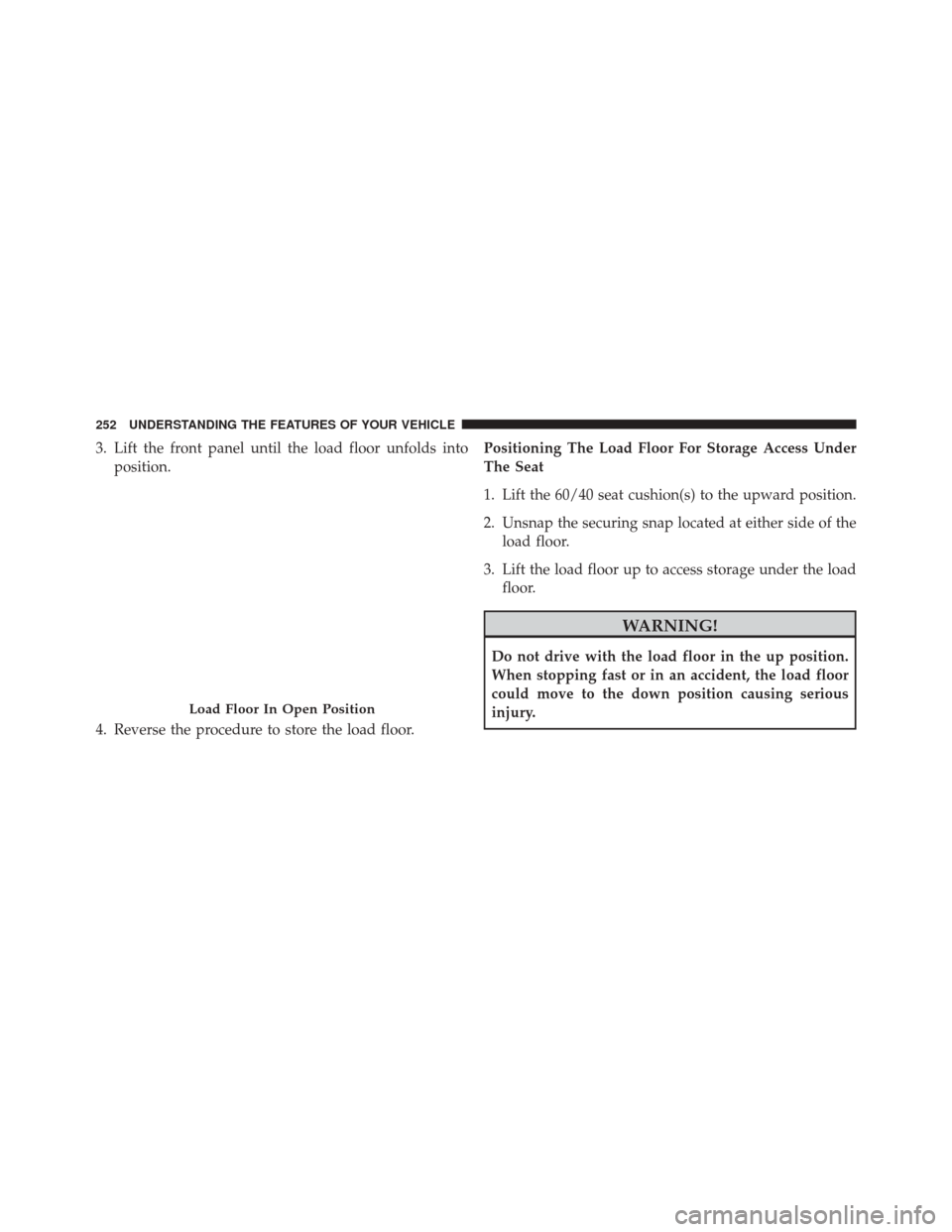

3. Lift the front panel until the load floor unfolds intoposition.
4. Reverse the procedure to store the load floor. Positioning The Load Floor For Storage Access Under
The Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the
load floor.
3. Lift the load floor up to access storage under the load floor.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.
Load Floor In Open Position
252 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Quad Cab — If EquippedCrew Cab — If Equipped
4. Reverse the procedure to put the load floor back in the secured down position before you operate the vehicle.
Load Floor Securing Straps/Quad CabLoad Floor Securing Straps/Crew Cab
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253

PICKUP BOX
The pickup box has many features designed for utility
and convenience.
Pick Up Box Features
1 — Upper Load Floor Indents
2 — Bulk Head Dividers
3 — Cleats
254 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

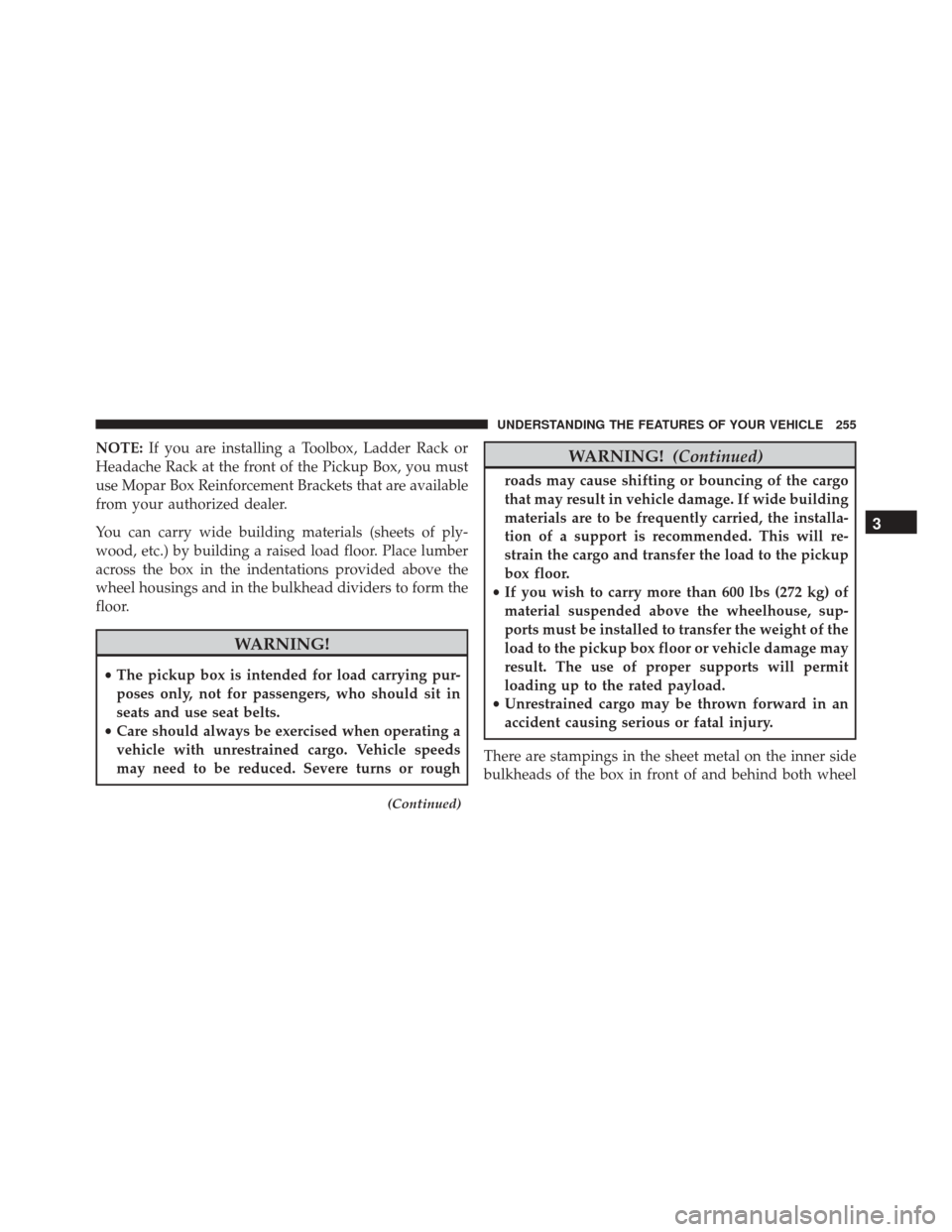

NOTE:If you are installing a Toolbox, Ladder Rack or
Headache Rack at the front of the Pickup Box, you must
use Mopar Box Reinforcement Brackets that are available
from your authorized dealer.
You can carry wide building materials (sheets of ply-
wood, etc.) by building a raised load floor. Place lumber
across the box in the indentations provided above the
wheel housings and in the bulkhead dividers to form the
floor.
WARNING!
• The pickup box is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.
• Care should always be exercised when operating a
vehicle with unrestrained cargo. Vehicle speeds
may need to be reduced. Severe turns or rough
(Continued)
WARNING! (Continued)
roads may cause shifting or bouncing of the cargo
that may result in vehicle damage. If wide building
materials are to be frequently carried, the installa-
tion of a support is recommended. This will re-
strain the cargo and transfer the load to the pickup
box floor.
• If you wish to carry more than 600 lbs (272 kg) of
material suspended above the wheelhouse, sup-
ports must be installed to transfer the weight of the
load to the pickup box floor or vehicle damage may
result. The use of proper supports will permit
loading up to the rated payload.
• Unrestrained cargo may be thrown forward in an
accident causing serious or fatal injury.
There are stampings in the sheet metal on the inner side
bulkheads of the box in front of and behind both wheel
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 255

housings. Place wooden boards across the box from side
to side to create separate load compartments in the
pickup box.
There are four tie-down cleats bolted to the lower sides of
the pickup box that can sustain loads up to 1000 lbs
(450 kg) total.
Cargo Camera — If Equipped
Your vehicle may be equipped with the Cargo Camera
that allows you to see an image of the inside of the
pickup box. The image will be displayed in the Uconnect
screen.
A display timer is initiated when the cargo camera image
is displayed. The image will continue to be displayed
until the display timer exceeds 10 seconds and the vehicle
speed is above 8 mph (13 km/h) or the touchscreen
buttonXto disable display of the Cargo Camera image
is pressed. NOTE:
If the vehicle speed remains below 8 mph
(13 km/h), the cargo camera image will be displayed
continuously until the touchscreen button Xto disable
display of the Cargo Camera image is pressed.
The Cargo Camera is located in the bottom center area of
the center high-mounted stoplamp (CHMSL).
A touchscreen button
to indicate the current active
Camera image being displayed is made available
whenever the Cargo camera image is displayed.
Also, a touchscreen buttonto switch the display to
Rear View camera image is made available whenever
the Cargo camera image is displayed.
A touchscreen button Xto disable display of the camera
image is made available when the vehicle is not in
REVERSE gear.
256 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water,
and dry with a soft cloth. Do not cover the lens.
Turning Cargo Camera On Or Off — With
Uconnect 8.4A/8.4AN
1. Press the “Controls” button located on the bottom of the Uconnect display.
2. Press the “Cargo Camera” button
to turn the
Cargo Camera system ON.
NOTE: Once initiated by the Cargo Camerabutton, the
Cargo Camera image may be deactivated by pressing the
X soft button. On deactivation, the previous selected
screen will appear.
RAMBOX — IF EQUIPPED
The RamBox system is an integrated pickup box storage
and cargo management system consisting of three fea-
tures:
• Integrated box side storage bins
• Cargo extender/divider
• Bed rail tie-down system
RamBox Integrated Box Side Storage Bins
Cargo storage bins are located on both sides of the pickup
box. The cargo storage bins provide watertight, lockable,
illuminated storage for up to 150 lbs (68 kg) for 1500
series vehicles or 300 lbs (136 kg) for 2500 and 3500 series
vehicles of evenly distributed cargo.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

CAUTION!
Failure to follow the following items could cause
damage to the vehicle:
•Assure that all cargo inside the storage bins is
properly secured.
• Do not exceed cargo weight rating of 150 lb (68 kg)
1500 series vehicles or 300 lbs (136 kg) for 2500 and
3500 series vehicles per bin.
To open a storage bin with the RamBox unlocked, push
and release the button located on the lid. The RamBox lid
will open upward to allow hand access. Lift the lid to
fully open.
NOTE: RamBox will not open when the pushbutton is
pushed if the RamBox is locked.
RamBox Cargo Storage Bins
