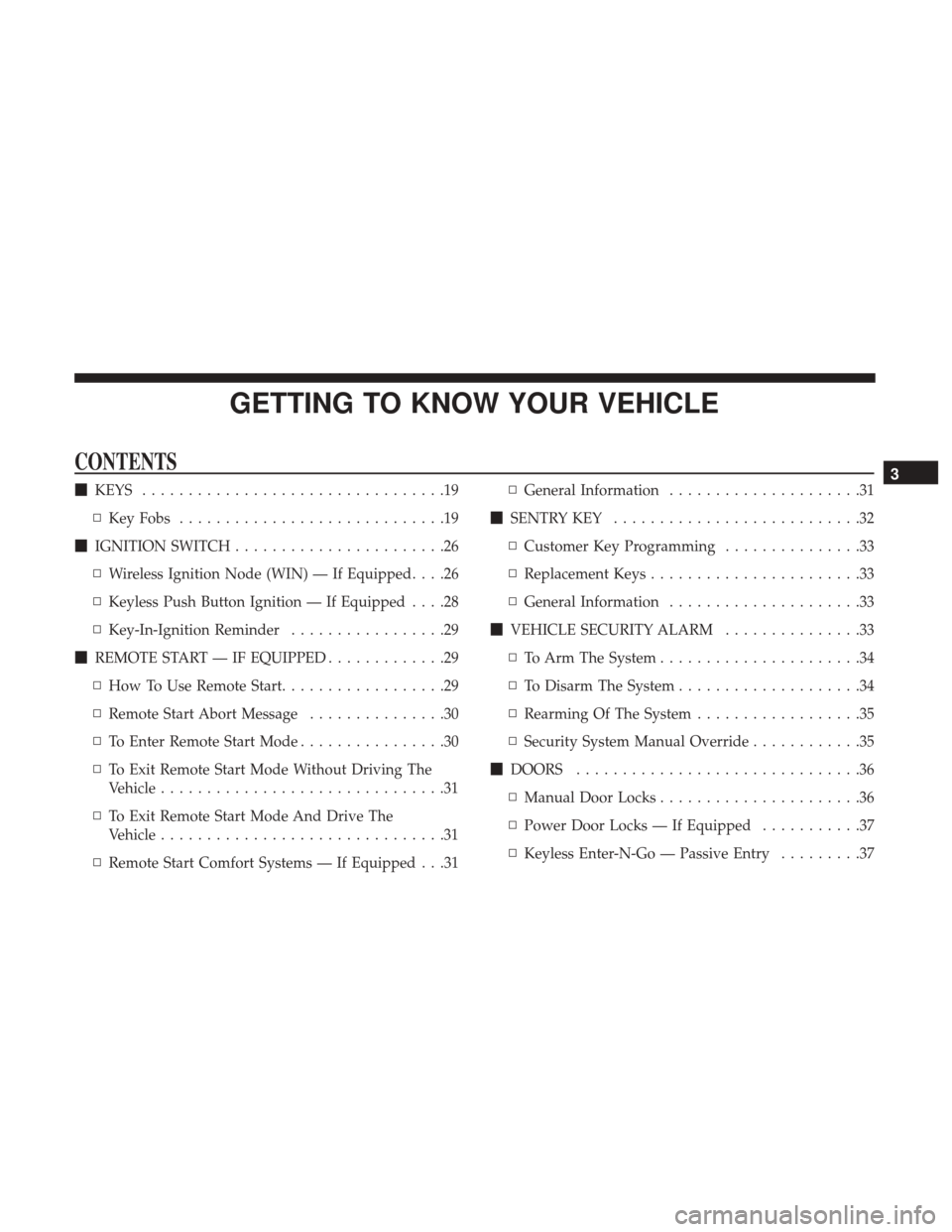

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS .................................19
▫ Key Fobs .............................19
 IGNITION SWITCH .......................26
▫ Wireless Ignition Node (WIN) — If Equipped ....26
▫ Keyless Push Button Ignition — If Equipped ....28
▫ Key-In-Ignition Reminder .................29
 REMOTE START — IF EQUIPPED .............29
▫ How To Use Remote Start ..................29
▫ Remote Start Abort Message ...............30
▫ To Enter Remote Start Mode ................30
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................31
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................31
▫ Remote Start Comfort Systems — If Equipped . . .31 ▫
General Information .....................31
 SENTRY KEY ...........................32
▫ Customer Key Programming ...............33
▫ Replacement Keys .......................33
▫ General Information .....................33
 VEHICLE SECURITY ALARM ...............33
▫ To Arm The System ......................34
▫ To Disarm The System ....................34
▫ Rearming Of The System ..................35
▫ Security System Manual Override ............35
 DOORS ...............................36
▫ Manual Door Locks ......................36
▫ Power Door Locks — If Equipped ...........37
▫ Keyless Enter-N-Go — Passive Entry .........373

The fourth position is START, during start RUN will
illuminate. It also contains the key fob and an emergency
key, which stores in the rear of the key fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.
To remove the emergency key, slide the mechanical latch
on the backside of the key fob sideways with your thumb
and then pull the key out with your other hand.
NOTE:When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Put the nose side (side opposite of the emer-
gency key) of the key fob against the ENGINE START/
STOP button and push to disarm the security system. NOTE:
You can insert the double-sided emergency key
into the door lock cylinder with either side up.
The Remote Keyless Entry system allows you to lock or
unlock all doors, and the tailgate as well as activate the
Panic Alarm from distances up to approximately 66 ft (20
m) using a key fob with integrated key. The key fob does
not need to be pointed at the vehicle to activate the system.
Push and release the lock button on the key fob to lock all
doors, and the tailgate. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
Key Fob Emergency Key
20 GETTING TO KNOW YOUR VEHICLE

WARNING!(Continued)
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
• If your vehicle battery becomes low or dead, your
key fobs will become locked in the ignition.
• Do not attempt to remove the key fobs while in this
condition, damage could occur to the key fobs or
ignition module. Only remove the emergency key for
locking and unlocking the doors.
• Leave the key fob in the ignition and either:
• Jump Start the vehicle.
• Charge the battery.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all doors when
leaving the vehicle unattended.
Keyless Push Button Ignition — If Equipped
This feature allows the driver to operate the ignition switch
with the push of a button as long as the Remote Keyless
Entry key fob is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start RUN
will illuminate.
NOTE: In case the ignition switch does not change with
the push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side (side opposite
of the emergency key) of the key fob against the ENGINE
START/STOP button, with your foot applied on the brake
pedal, and push to operate the ignition switch.
28 GETTING TO KNOW YOUR VEHICLE

Key-In-Ignition Reminder
Opening the driver’s door when the key fob is in the
ignition and the ignition switch position is OFF or ACC, a
chime will sound to remind you to remove the key fob.NOTE:
•
Keyed Ignition systems will chime in OFF or ACC
when the driver door is open.
• “Keyless Ignition systems will chime in ACC or RUN
when the driver door is open.
• The instrument cluster display will display “Key In
Ignition.”
REMOTE START — IF EQUIPPED
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
• Gear selector in PARK
• Doors closed
• Hood closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pushed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• PANIC button not pushedKeyless Push Button Ignition
1 — OFF
2 — ACC (Accessory)
3 — ON/RUN
3
GETTING TO KNOW YOUR VEHICLE 29

•Fuel meets minimum requirement
• System not disabled from previous remote start event
• Vehicle security alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Cancelled — Door Open
• Remote Start Cancelled — Hood Open
• Remote Start Cancelled — Fuel Low
• Remote Start Cancelled — System Fault •
Remote Start Disabled — Start Vehicle to Reset
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start Mode
Push and release the Remote Start button on the key fob
twice within five seconds. The parking lights will flash,
vehicle doors will lock, and the horn will chirp twice (if
programmed). Once the vehicle has started, the engine will
run for 15 minutes.
NOTE:
• If your power door locks were unlocked, Remote Start
will automatically lock the doors.
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
30 GETTING TO KNOW YOUR VEHICLE

•The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion must be placed in the ON/RUN position before you
can repeat the start sequence for a third cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shutdowns, the system will
disable with a one time push of the remote start button for
two seconds after receiving a valid remote start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, push and release the
unlock button on the key fob to unlock the doors and
disarm the vehicle security alarm system (if equipped).
Then, prior to the end of the 15-minute cycle, cycle the
ignition to the ON/RUN position.
Remote Start Comfort Systems — If Equipped
When Remote Start is activated, the heated steering wheel
and driver heated seat features will automatically turn on
in cold weather. In warm weather, the driver vented seat
feature will automatically turn on when the remote start is activated. These features will stay on through the duration
of Remote Start or until the ignition switch is placed in the
ON/RUN mode.
NOTE:
The Remote Start Comfort System can be activated
and deactivated through the Uconnect System. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion on Remote Start Comfort System operation.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
3
GETTING TO KNOW YOUR VEHICLE 31

SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses a key fob, an Ignition Node Module,
Keyless Push Button Ignition and a RF receiver to prevent
unauthorized vehicle operation. Therefore, only key fobs
that are programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine to
crank if an invalid key fob is used to start and operate the
vehicle. The system will shut the engine off in two seconds
if an invalid key fob is used to start the engine.
NOTE:A key fob that has not been programmed is also
considered an invalid key.
During normal operation, after placing the keyless ignition
in the ON/RUN position, the vehicle security light will
turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is a
problem with the electronics. In addition, if the light begins
to flash after the bulb check, it indicates that someone used an invalid key fob to try to start the engine. Either of these
conditions will result in the engine being shut off after two
seconds.
If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.
CAUTION!
The Sentry Key Immobilizer system is not compatible
with some aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.
32 GETTING TO KNOW YOUR VEHICLE

WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
Power Door Locks — If Equipped
The power door lock switches are on each front door trim
panel. Use these switches to lock or unlock the doors.
NOTE: The key fob may not be able to be detected by the
vehicle Keyless Enter-N-Go system if it is located next to a
mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal and prevent
the Keyless Enter-N-Go system from starting the vehicle. If you push the power door lock switch while the key fob
is in the ignition, and any front door is open, the power
locks will not operate. This prevents you from accidentally
locking your key fob in the vehicle. Removing the key fob
or closing the door will allow the locks to operate. A chime
will sound if the key fob is in the ignition switch and a door
is open, as a reminder to remove the key fob.
Keyless Enter-N-Go — Passive Entry
The Passive Entry system is an enhancement to the vehi-
cle’s Remote Keyless Entry system and a feature of Keyless
Power Door Lock Switch
3
GETTING TO KNOW YOUR VEHICLE 37

Programming The Memory Feature
To create a new memory profile, perform the following:
1. Cycle the vehicle’s ignition to the ON/RUN position (donot start the engine).
2. Adjust all memory profile settings to desired prefer- ences (i.e., driver ’s seat, outside mirrors and radio
station presets).
3. Push and release the set (S) button on the memory switch. 4. Within five seconds, push and release either of the
memory buttons (1) or (2). The instrument cluster dis-
play will show which memory position has been set.
NOTE:
• Memory profiles can be set without the vehicle in PARK,
but the vehicle must be in PARK to recall a memory
profile.
• To set a memory profile to your key fob, refer to
“Linking And Unlinking The Remote Keyless Entry Key
Fob To Memory” in this section.
Linking And Unlinking The Remote Keyless Entry
Key Fob To Memory
Your key fobs can be programmed to recall one of two
pre-programmed memory profiles by pushing the unlock
button on the key fob.
NOTE: Before programming your key fobs to memory the
feature has to be selected.
• If your vehicle is equipped with a touchscreen, you must
select the “Memory To Fob” feature through the
Uconnect system. Refer to “Uconnect Settings” in “Mul-
timedia” for further information.
Memory Seat Buttons
3
GETTING TO KNOW YOUR VEHICLE 49

Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
seats can be programed to come on during a remote start.
If your vehicle is equipped with a touchscreen, this feature
can be programmed through the Uconnect system. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.
Rear Heated Seats
On some models, the two outboard seats are equipped
with heated seats. The heated seat switches for these seats
are located on the rear of the center console.
There are two heated seat switches that allow the rear
passengers to operate the seats independently. You can
choose from HI, LO or OFF heat settings. Amber indicator
lights in each switch indicate the level of heat in use. Two
indicator lights will illuminate for HI, one for LO and none
for OFF.Push the switch once to select HI-level heating.
Push the switch a second time to select LO-level
heating. Push the switch a third time to shut the
heating elements OFF. NOTE:
•
Once a heat setting is selected, heat will be felt within
two to five minutes.
• The engine must be running for the heated seats to
operate.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 60
minutes of continuous operation. At that time, the number
of illuminated LEDs changes from two to one, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 45 minutes.
Ventilated Seats — If Equipped
Located in the seat cushion are small fans that draw the air
from the passenger compartment and pull air through fine
perforations in the seat cover to help keep the driver and
front passenger cooler in higher ambient temperatures. The
fans operate at two speeds, HI and LO.
3
GETTING TO KNOW YOUR VEHICLE 53
