Ram 5500 Chassis Cab 2012 Diesel Supplement

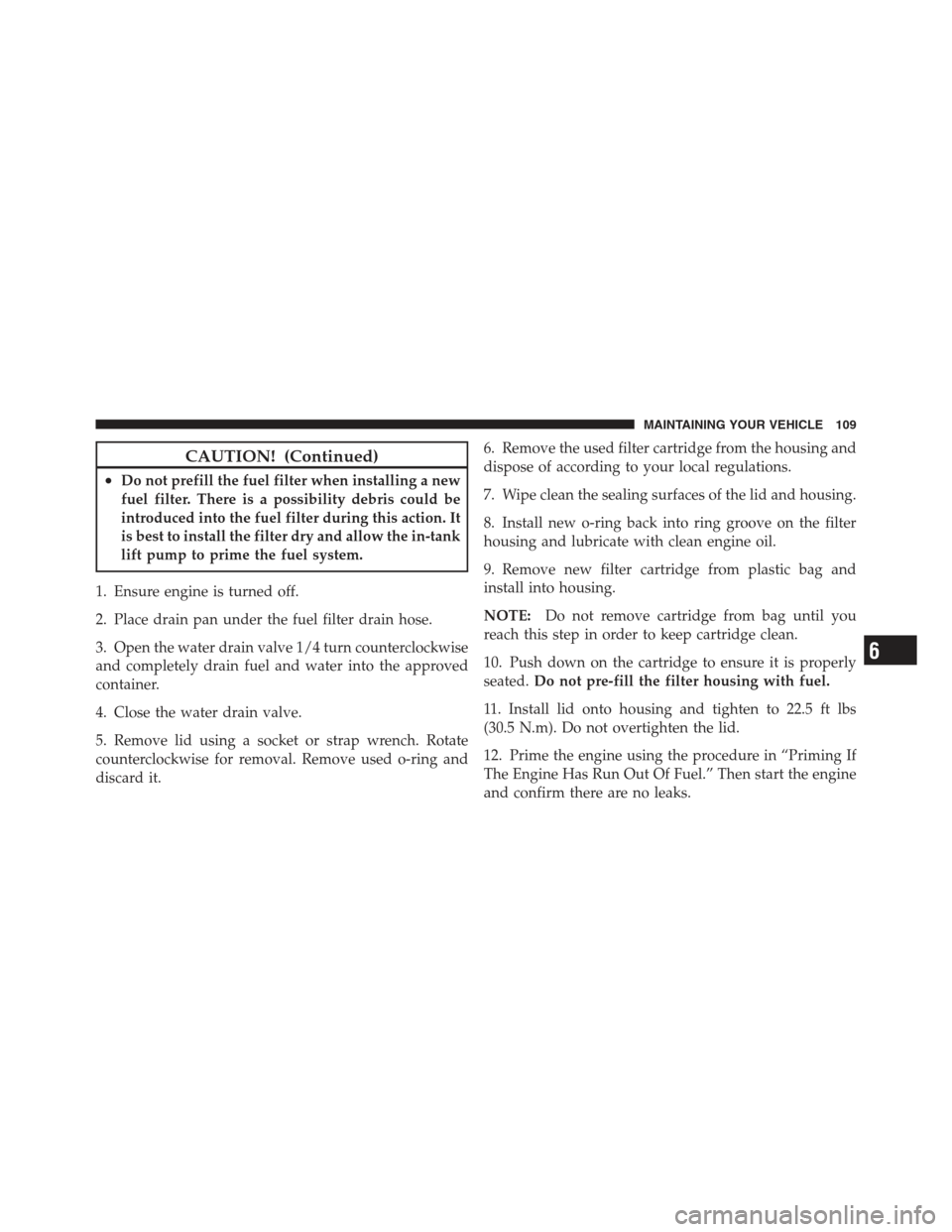

CAUTION! (Continued)
•Do not prefill the fuel filter when installing a new
fuel filter. There is a possibility debris could be
introduced into the fuel filter during this action. It
is best to install the filter dry and allow the in-tank
lift pump to prime the fuel system.
1. Ensure engine is turned off.
2. Place drain pan under the fuel filter drain hose.
3. Open the water drain valve 1/4 turn counterclockwise
and completely drain fuel and water into the approved
container.
4. Close the water drain valve.
5. Remove lid using a socket or strap wrench. Rotate
counterclockwise for removal. Remove used o-ring and
discard it. 6. Remove the used filter cartridge from the housing and
dispose of according to your local regulations.
7. Wipe clean the sealing surfaces of the lid and housing.
8. Install new o-ring back into ring groove on the filter
housing and lubricate with clean engine oil.
9. Remove new filter cartridge from plastic bag and
install into housing.
NOTE:
Do not remove cartridge from bag until you
reach this step in order to keep cartridge clean.
10. Push down on the cartridge to ensure it is properly
seated. Do not pre-fill the filter housing with fuel.
11. Install lid onto housing and tighten to 22.5 ft lbs
(30.5 N.m). Do not overtighten the lid.
12. Prime the engine using the procedure in “Priming If
The Engine Has Run Out Of Fuel.” Then start the engine
and confirm there are no leaks.
6
MAINTAINING YOUR VEHICLE 109

Priming If The Engine Has Run Out Of Fuel
WARNING!
Do not open the high pressure fuel system with the
engine running. Engine operation causes high fuel
pressure. High pressure fuel spray can cause serious
injury or death.
1. Add a substantial amount of fuel to the tank, approxi-
mately 5 to 10 gal (19L to 38L).
2. Turn the ignition switch to the RUN position, wait for
four seconds, then turn the ignition switch back to the
OFF position. Repeat this step four times.
3. Start the engine using the “Normal Starting” proce-
dure. Refer to “Starting Procedures” in “Starting and
Operating” for further information.
CAUTION!
Do not engage the starter motor for more than 15 sec-
onds at a time. Allow two minutes between the
cranking intervals.
NOTE: The engine may run rough until the air is forced
from all the fuel lines.
WARNING!
Do not use alcohol or gasoline as a fuel blending
agent. They can be unstable under certain conditions
and be hazardous or explosive when mixed with
diesel fuel.
110 MAINTAINING YOUR VEHICLE

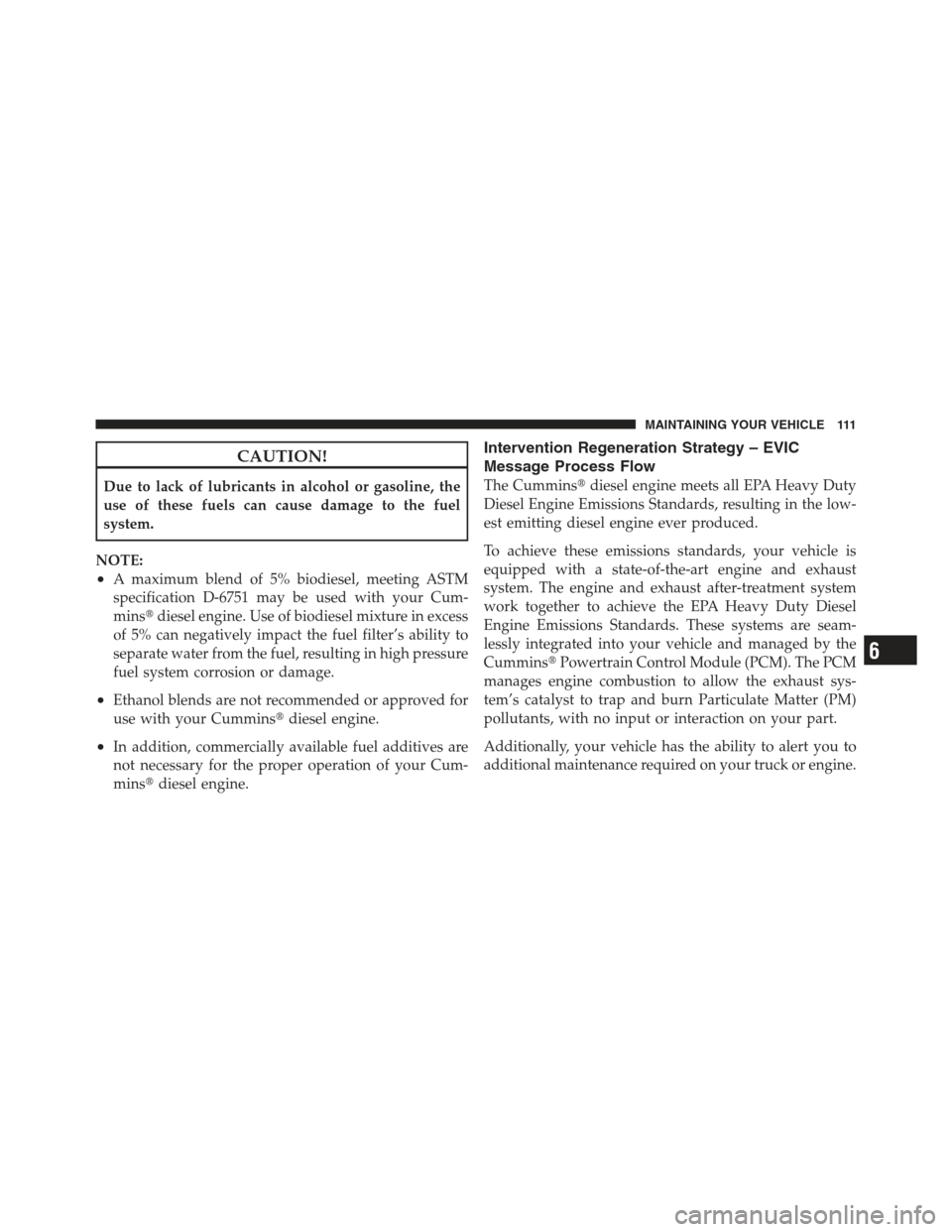

CAUTION!
Due to lack of lubricants in alcohol or gasoline, the
use of these fuels can cause damage to the fuel
system.
NOTE:
•A maximum blend of 5% biodiesel, meeting ASTM
specification D-6751 may be used with your Cum-
mins diesel engine. Use of biodiesel mixture in excess
of 5% can negatively impact the fuel filter’s ability to
separate water from the fuel, resulting in high pressure
fuel system corrosion or damage.
•Ethanol blends are not recommended or approved for
use with your Cummins diesel engine.
•In addition, commercially available fuel additives are
not necessary for the proper operation of your Cum-
minsdiesel engine.
Intervention Regeneration Strategy – EVIC
Message Process Flow
The Cummins diesel engine meets all EPA Heavy Duty
Diesel Engine Emissions Standards, resulting in the low-
est emitting diesel engine ever produced.
To achieve these emissions standards, your vehicle is
equipped with a state-of-the-art engine and exhaust
system. The engine and exhaust after-treatment system
work together to achieve the EPA Heavy Duty Diesel
Engine Emissions Standards. These systems are seam-
lessly integrated into your vehicle and managed by the
Cummins Powertrain Control Module (PCM). The PCM
manages engine combustion to allow the exhaust sys-
tem’s catalyst to trap and burn Particulate Matter (PM)
pollutants, with no input or interaction on your part.
Additionally, your vehicle has the ability to alert you to
additional maintenance required on your truck or engine.
6
MAINTAINING YOUR VEHICLE 111

Refer to the following messages that may be displayed on
your Electronic Vehicle Information Center (EVIC):
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Perform Service
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC)
will display “Perform Service”. When the “Perform Ser-
vice” message is displayed on the EVIC it is necessary to
have the emissions maintenance performed. Emissionsmaintenance may include replacing the Closed Crank-
case Ventilation (CCV) filter element, and cleaning of the
EGR Cooler. The procedure for clearing and resetting the
Perform Service
indicator message is located in the
appropriate Service Information.
Exhaust System – Regeneration Required Now
“Exhaust System — Regeneration Required Now” will be
displayed on the Electronic Vehicle Information Center
(EVIC) if the exhaust particulate filter reaches 80% of its
maximum storage capacity. Under conditions of exclu-
sive short duration and low speed driving cycles, your
Cummins diesel engine and exhaust after-treatment
system may never reach the conditions required to re-
move the trapped PM. If this occurs, the “Exhaust System
— Regeneration Required Now” message will be dis-
played in the EVIC. If this message is displayed, you will
hear one chime to assist in alerting you of this condition.
112 MAINTAINING YOUR VEHICLE

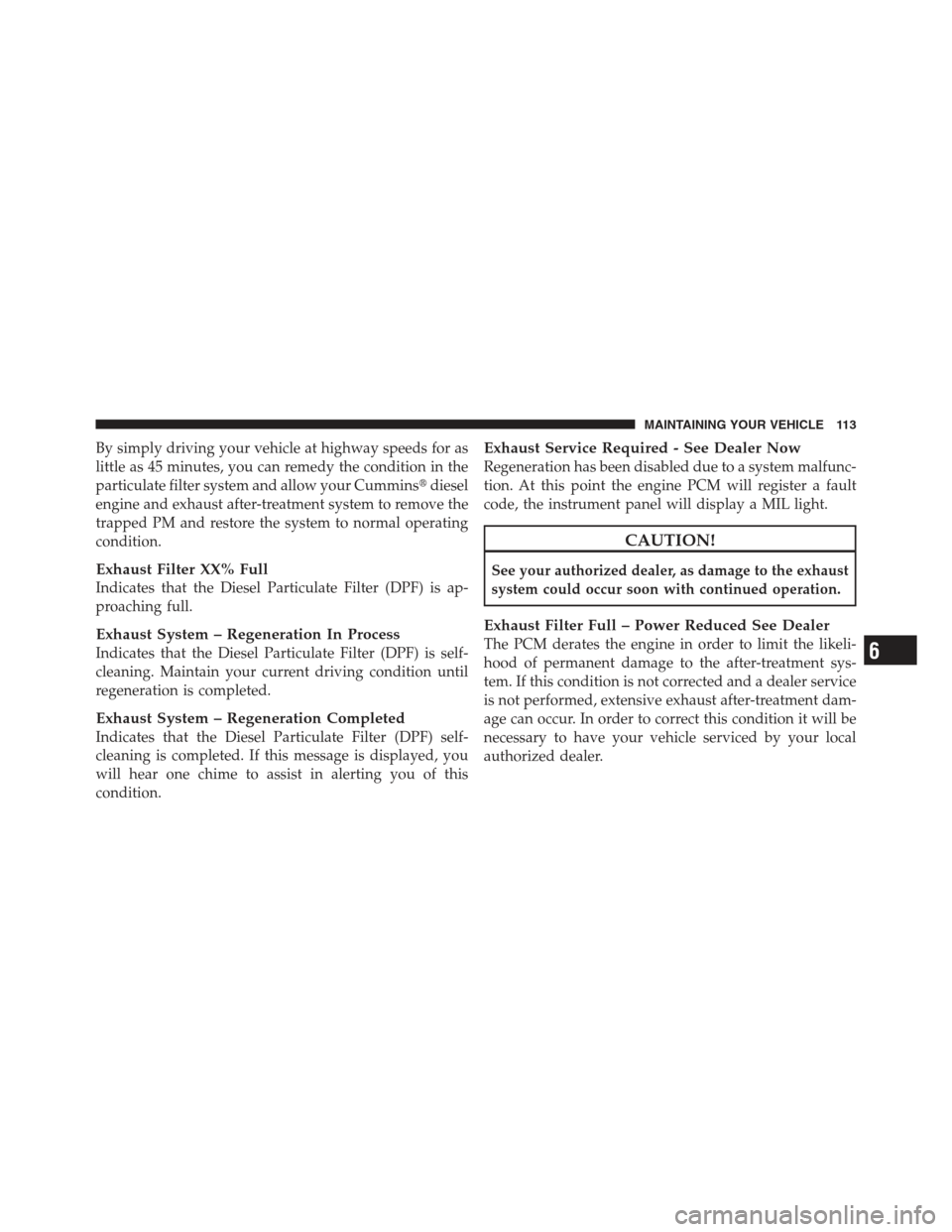

By simply driving your vehicle at highway speeds for as
little as 45 minutes, you can remedy the condition in the
particulate filter system and allow your Cumminsdiesel
engine and exhaust after-treatment system to remove the
trapped PM and restore the system to normal operating
condition.
Exhaust Filter XX% Full
Indicates that the Diesel Particulate Filter (DPF) is ap-
proaching full.
Exhaust System – Regeneration In Process
Indicates that the Diesel Particulate Filter (DPF) is self-
cleaning. Maintain your current driving condition until
regeneration is completed.
Exhaust System – Regeneration Completed
Indicates that the Diesel Particulate Filter (DPF) self-
cleaning is completed. If this message is displayed, you
will hear one chime to assist in alerting you of this
condition.
Exhaust Service Required - See Dealer Now
Regeneration has been disabled due to a system malfunc-
tion. At this point the engine PCM will register a fault
code, the instrument panel will display a MIL light.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Exhaust Filter Full – Power Reduced See Dealer
The PCM derates the engine in order to limit the likeli-
hood of permanent damage to the after-treatment sys-
tem. If this condition is not corrected and a dealer service
is not performed, extensive exhaust after-treatment dam-
age can occur. In order to correct this condition it will be
necessary to have your vehicle serviced by your local
authorized dealer.6
MAINTAINING YOUR VEHICLE 113

CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Diesel Exhaust Fluid – Chassis Cab Only
Diesel Exhaust Fluid (DEF) sometimes known simply by
the name of its active component, UREA—is a key
component of selective catalytic reduction (SCR) systems,
which help diesel vehicles meet stringent emission regu-
lations. DEF is a liquid reducing agent that reacts with
engine exhaust in the presence of a catalyst to convert
smog-forming nitrogen oxides (NOx) into harmless ni-
trogen and water vapor.
Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information.
You can receive assistance in locating DEF by calling
866-RAM-INFO (866-726-4636).
Maintenance-Free Batteries
The top of the maintenance-free batteries are perma-
nently sealed. You will never have to add water, nor is
periodic maintenance required.
NOTE:Replacement batteries should both be of equal
capacity to prevent damage to the vehicle’s charging
system.
CAUTION!
It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to the
negative post. Battery posts are marked (+) positive
and negative (-) and are identified on the battery
case. Also, if a “fast charger” is used while the battery
is in vehicle, disconnect both vehicle battery cables
before connecting the charger to the battery. Do not
use a “fast charger” to provide starting voltage.
114 MAINTAINING YOUR VEHICLE

WARNING!
Battery posts, terminals, and related accessories con-
tain lead and lead compounds. Always wash hands
after handling the battery.
Battery Blanket Usage
A battery loses 60% of its cranking power as the battery
temperature decreases to 0°F (-18°). For the same de-
crease in temperature, the engine requires twice as much
power to crank at the same RPM. The use of 120 Volt AC
powered battery blankets will greatly increase starting
capability at low temperatures. Suitable battery blankets
are available from your authorized MOPARdealer.
Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator is hot.
Engine Coolant Checks
Check the engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed and refilled with fresh engine coolant (anti-
freeze). Check the front of the A/C condenser for any6
MAINTAINING YOUR VEHICLE 115

accumulation of bugs, leaves, etc. If dirty, clean by gently
spraying water from a garden hose vertically down the
face of the condenser.
Check the coolant recovery bottle tubing for brittle rub-
ber, cracking, tears, cuts and tightness of the connection
at the bottle and radiator. Inspect the entire system for
leaks.
With the engine at normal operating temperature (but
not running), check the cooling system pressure cap for
proper vacuum sealing by draining a small amount of
engine coolant (antifreeze) from the radiator drain cock.
If the cap is sealing properly, the engine coolant (anti-
freeze) will begin to drain from the coolant recovery
bottle. DO NOT REMOVE THE COOLANT PRESSURE
CAP WHEN THE COOLING SYSTEM IS HOT.Cooling System – Drain, Flush, And Refill
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
If the engine coolant (antifreeze) is dirty or contains a
considerable amount of sediment, clean and flush with a
reliable cooling system cleaner. Follow with a thorough
rinsing to remove all deposits and chemicals. Properly
dispose of the old engine coolant (antifreeze) solution.
Selection Of Coolant
Use only the manufacturers recommended engine cool-
ant (antifreeze). Refer to “Fluids, Lubricants, and Genu-
ine Parts” in “Maintaining Your Vehicle” for further
information.
116 MAINTAINING YOUR VEHICLE

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified HOAT engine coolant (antifreeze), may
result in engine damage and may decrease corro-
sion protection. If a non-HOAT engine coolant
(antifreeze) is introduced into the cooling system
in an emergency, it should be replaced with the
specified engine coolant (antifreeze) as soon as
possible.
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use addi-
tional rust inhibitors or antirust products, as they
may not be compatible with the radiator engine
coolant (antifreeze) and may plug the radiator.
CAUTION! (Continued)
•This vehicle has not been designed for use with
Propylene Glycol based engine coolant (anti-
freeze). Use of Propylene Glycol based engine
coolant (antifreeze) is not recommended.
Adding Coolant
Your vehicle has been built with an improved engine
coolant (antifreeze) that allows extended maintenance
intervals. This engine coolant (antifreeze) can be used up
to 5 Years or 105,000 miles (168 000 km) before replace-
ment. To prevent reducing this extended maintenance
period, it is important that you use the same engine
coolant (antifreeze) throughout the life of your vehicle.
Please review these recommendations for using Hybrid
Organic Additive Technology (HOAT) engine coolant
(antifreeze).
6
MAINTAINING YOUR VEHICLE 117

When adding engine coolant (antifreeze):
•The manufacturer recommends using MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula
HOAT (Hybrid Organic Additive Technology) or
equivalent.
•Mix a minimum solution of 50% HOAT engine coolant
(antifreeze) and distilled water. Use higher concentra-
tions (not to exceed 70%) if temperatures below -34°F
(-37°C) are anticipated.
•Use only high purity water such as distilled or deion-
ized water when mixing the water/engine coolant
(antifreeze) solution. The use of lower quality water
will reduce the amount of corrosion protection in the
engine cooling system. Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.
NOTE:
Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (antifreeze) and
will require more frequent engine coolant (antifreeze)
changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of engine
coolant (antifreeze), and to ensure that engine coolant
(antifreeze) will return to the radiator from the coolant
recovery bottle.
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
118 MAINTAINING YOUR VEHICLE
