Page 83 of 173

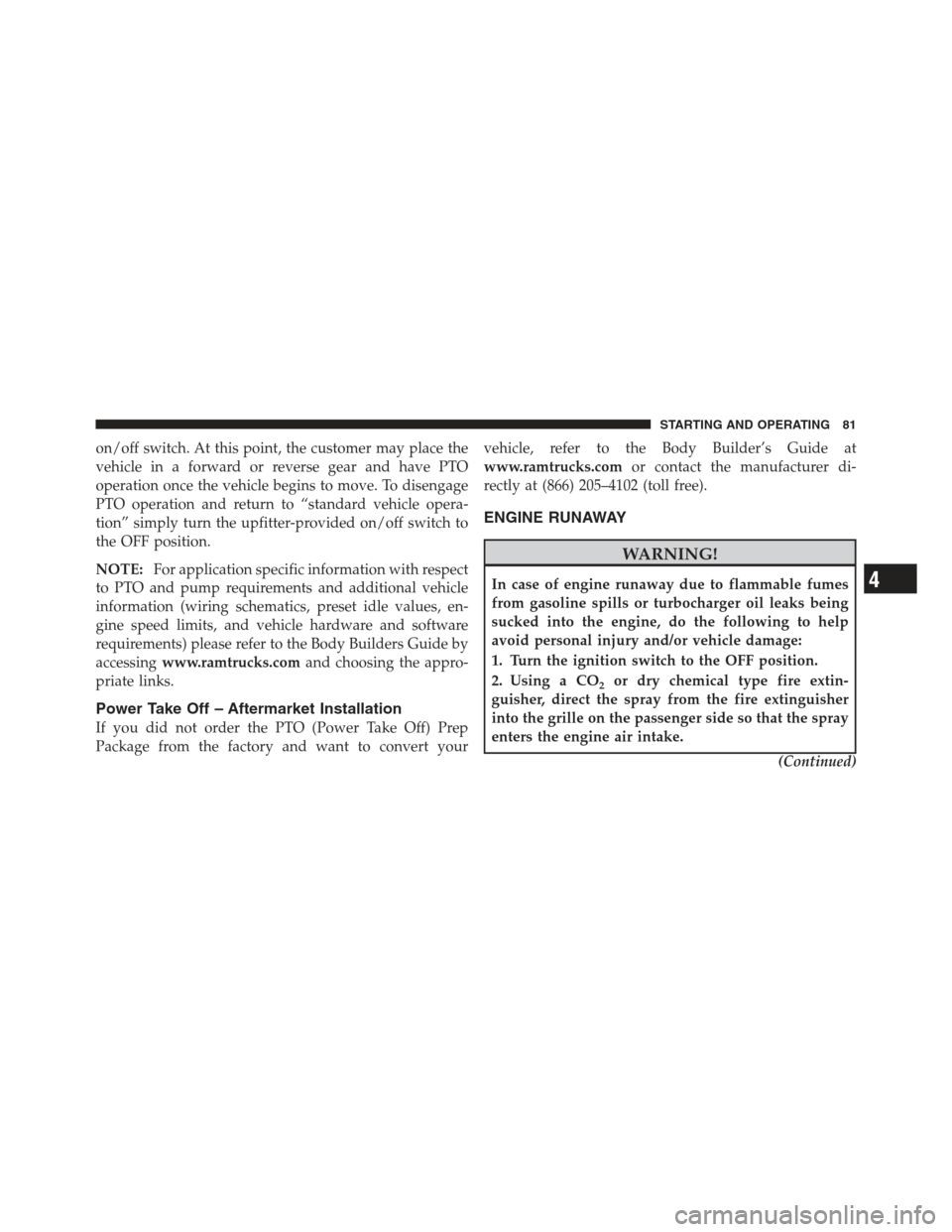

on/off switch. At this point, the customer may place the
vehicle in a forward or reverse gear and have PTO
operation once the vehicle begins to move. To disengage
PTO operation and return to “standard vehicle opera-
tion” simply turn the upfitter-provided on/off switch to
the OFF position.
NOTE:For application specific information with respect
to PTO and pump requirements and additional vehicle
information (wiring schematics, preset idle values, en-
gine speed limits, and vehicle hardware and software
requirements) please refer to the Body Builders Guide by
accessing www.ramtrucks.com and choosing the appro-
priate links.
Power Take Off – Aftermarket Installation
If you did not order the PTO (Power Take Off) Prep
Package from the factory and want to convert your vehicle, refer to the Body Builder’s Guide at
www.ramtrucks.com
or contact the manufacturer di-
rectly at (866) 205–4102 (toll free).
ENGINE RUNAWAY
WARNING!
In case of engine runaway due to flammable fumes
from gasoline spills or turbocharger oil leaks being
sucked into the engine, do the following to help
avoid personal injury and/or vehicle damage:
1. Turn the ignition switch to the OFF position.
2. Using a CO
2or dry chemical type fire extin-
guisher, direct the spray from the fire extinguisher
into the grille on the passenger side so that the spray
enters the engine air intake.
(Continued)
4
STARTING AND OPERATING 81
Page 104 of 173

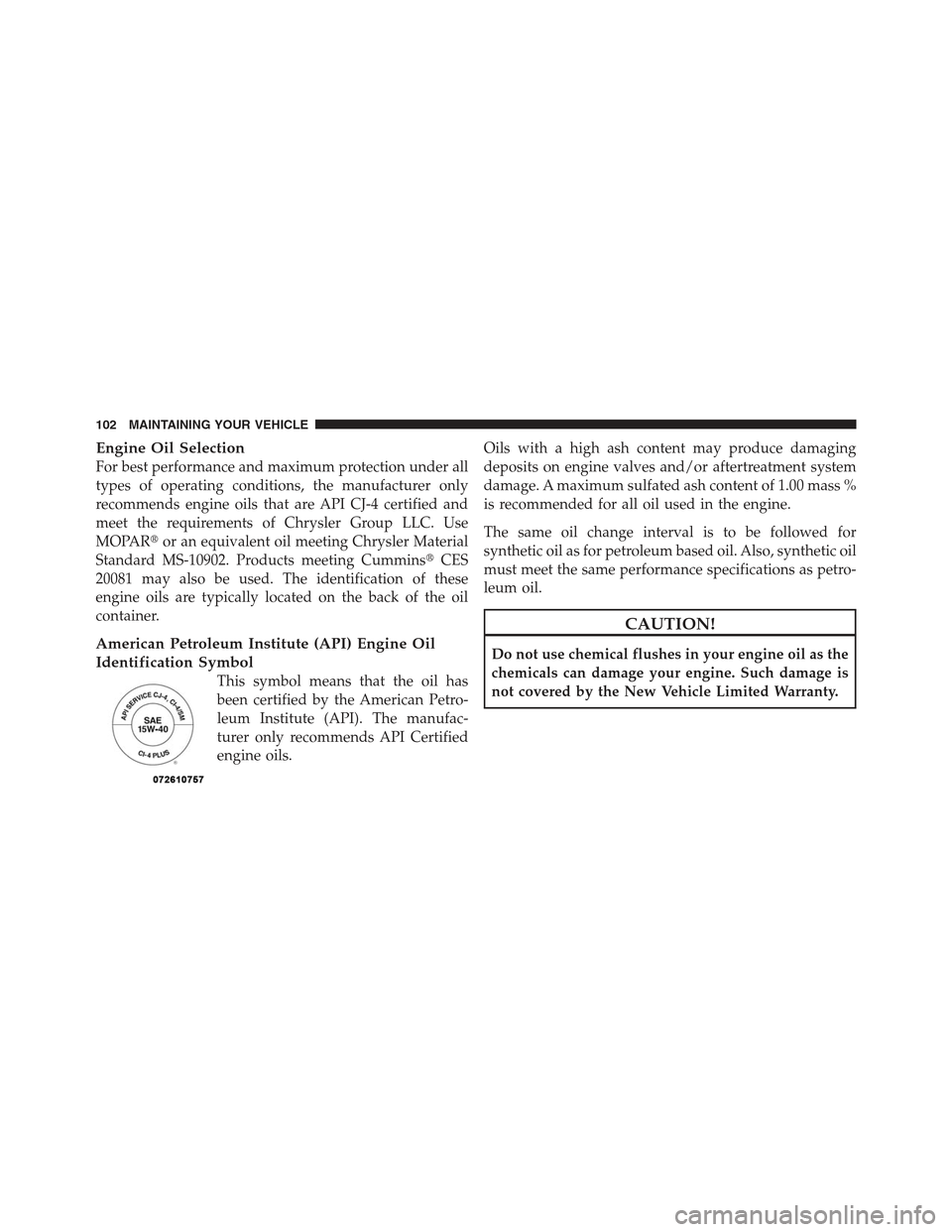

Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer only
recommends engine oils that are API CJ-4 certified and
meet the requirements of Chrysler Group LLC. Use
MOPARor an equivalent oil meeting Chrysler Material
Standard MS-10902. Products meeting Cummins CES
20081 may also be used. The identification of these
engine oils are typically located on the back of the oil
container.
American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has
been certified by the American Petro-
leum Institute (API). The manufac-
turer only recommends API Certified
engine oils. Oils with a high ash content may produce damaging
deposits on engine valves and/or aftertreatment system
damage. A maximum sulfated ash content of 1.00 mass %
is recommended for all oil used in the engine.
The same oil change interval is to be followed for
synthetic oil as for petroleum based oil. Also, synthetic oil
must meet the same performance specifications as petro-
leum oil.
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
102 MAINTAINING YOUR VEHICLE
Page 141 of 173

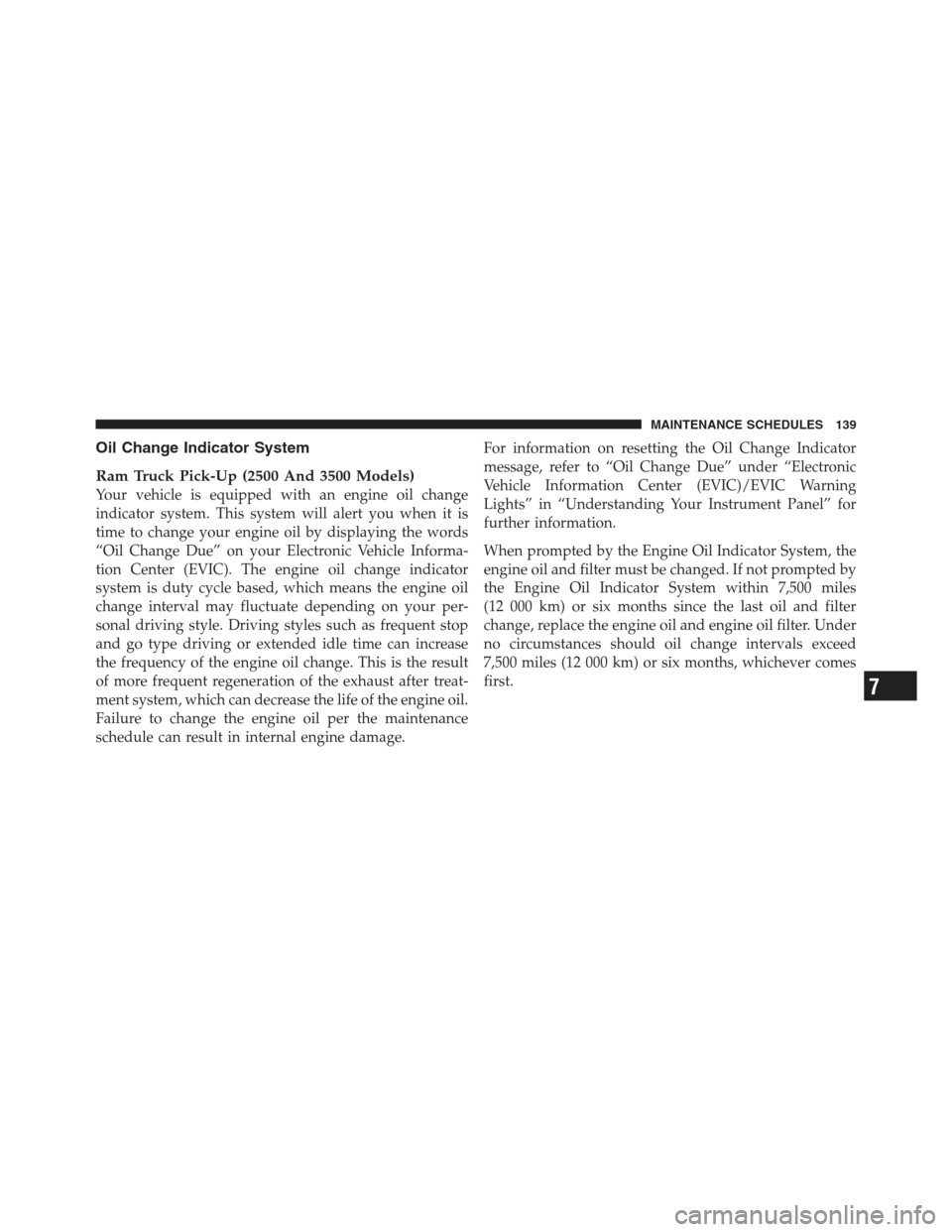

Oil Change Indicator System
Ram Truck Pick-Up (2500 And 3500 Models)
Your vehicle is equipped with an engine oil change
indicator system. This system will alert you when it is
time to change your engine oil by displaying the words
“Oil Change Due” on your Electronic Vehicle Informa-
tion Center (EVIC). The engine oil change indicator
system is duty cycle based, which means the engine oil
change interval may fluctuate depending on your per-
sonal driving style. Driving styles such as frequent stop
and go type driving or extended idle time can increase
the frequency of the engine oil change. This is the result
of more frequent regeneration of the exhaust after treat-
ment system, which can decrease the life of the engine oil.
Failure to change the engine oil per the maintenance
schedule can result in internal engine damage.For information on resetting the Oil Change Indicator
message, refer to “Oil Change Due” under “Electronic
Vehicle Information Center (EVIC)/EVIC Warning
Lights” in “Understanding Your Instrument Panel” for
further information.
When prompted by the Engine Oil Indicator System, the
engine oil and filter must be changed. If not prompted by
the Engine Oil Indicator System within 7,500 miles
(12 000 km) or six months since the last oil and filter
change, replace the engine oil and engine oil filter. Under
no circumstances should oil change intervals exceed
7,500 miles (12 000 km) or six months, whichever comes
first.
7
MAINTENANCE SCHEDULES 139
Page 166 of 173
Adding Fuel............................ 83
Air Cleaner, Engine (Engine Air Cleaner
Filter) ............................. 104,129
Air Filter .............................. 104
Airbag Light ............................ 24
Alarm Light ............................ 17
Anti-Lock Warning Light ................... 21
Antifreeze (Engine Coolant) .............. 116,117
Capacities .......................... 133
Disposal ........................... 119
Automatic Transmission .................... 64
Adding Fluid ....................... 125
Fluid Level Check .................... 124
Fluid Type ...................... 124,136
Shifting ............................ 54
Axle Fluid ............................. 136
Battery ............................... 114
Blanket .......................... 43,115Emergency Starting
.................... 92
Brake Fluid ............................ 136
Brake System ........................... 121
Fluid Check ........................ 121
Master Cylinder ..................... 121
Warning Light ....................... 19
Brake/Transmission Interlock ................ 53
Capacities, Antifreeze (Engine Coolant) ........ 133
Capacities, Fluid ........................ 133
Caps, Filler Oil (Engine) ........................ 103
Radiator (Coolant Pressure) ............. 118
Charge Air Cooler ....................... 121
Check Engine Light (Malfunction Indicator
Light) ................................. 23
Coolant Pressure Cap (Radiator Cap) .......... 118
Cooling System ......................... 115
Adding Coolant (Antifreeze) ............. 117
164 INDEX
