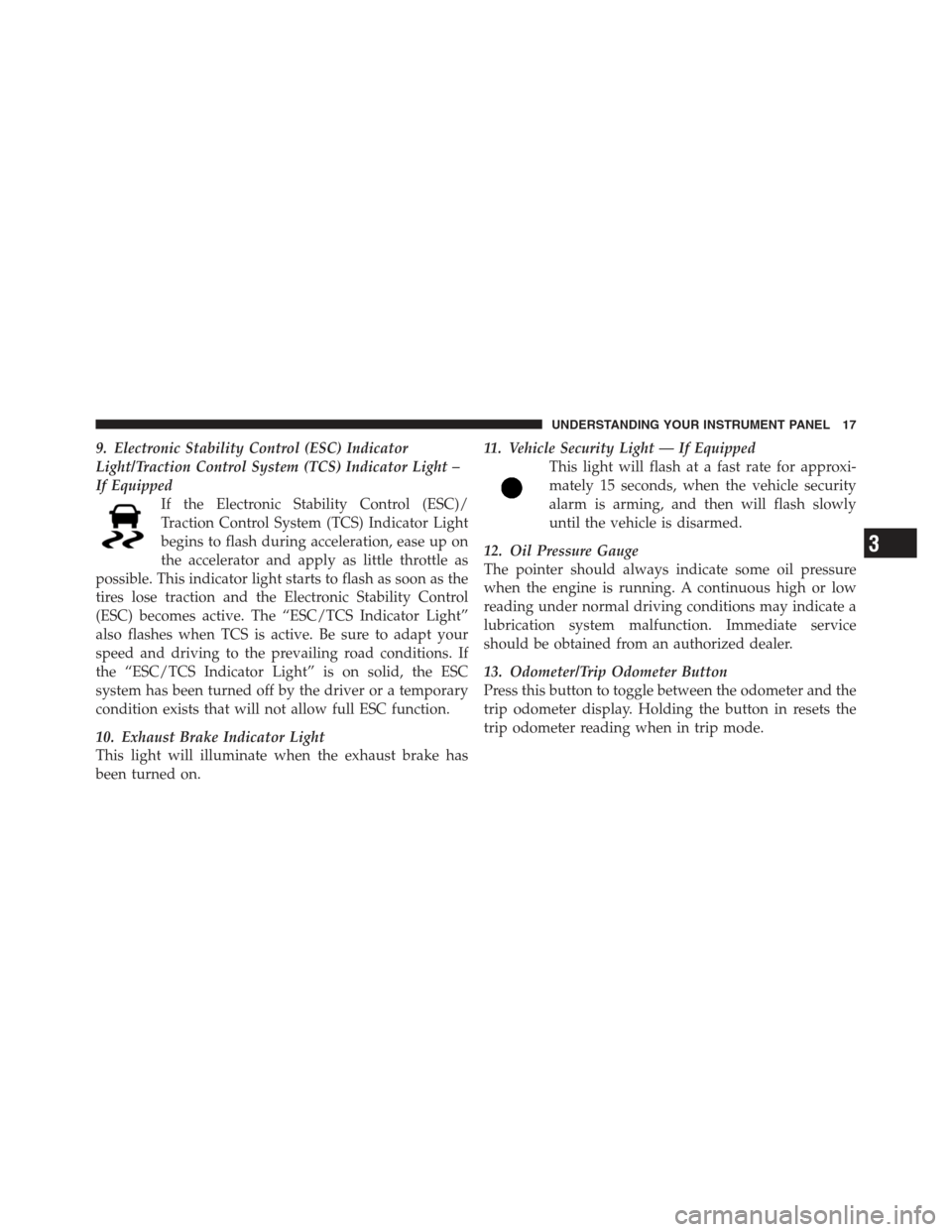

9. Electronic Stability Control (ESC) Indicator
Light/Traction Control System (TCS) Indicator Light –
If EquippedIf the Electronic Stability Control (ESC)/
Traction Control System (TCS) Indicator Light
begins to flash during acceleration, ease up on
the accelerator and apply as little throttle as
possible. This indicator light starts to flash as soon as the
tires lose traction and the Electronic Stability Control
(ESC) becomes active. The “ESC/TCS Indicator Light”
also flashes when TCS is active. Be sure to adapt your
speed and driving to the prevailing road conditions. If
the “ESC/TCS Indicator Light” is on solid, the ESC
system has been turned off by the driver or a temporary
condition exists that will not allow full ESC function.
10. Exhaust Brake Indicator Light
This light will illuminate when the exhaust brake has
been turned on. 11. Vehicle Security Light — If Equipped
This light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
12. Oil Pressure Gauge
The pointer should always indicate some oil pressure
when the engine is running. A continuous high or low
reading under normal driving conditions may indicate a
lubrication system malfunction. Immediate service
should be obtained from an authorized dealer.
13. Odometer/Trip Odometer Button
Press this button to toggle between the odometer and the
trip odometer display. Holding the button in resets the
trip odometer reading when in trip mode.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 17

14. Odometer/Electronic Vehicle Information Center
(EVIC) Display
Odometer
The odometer shows the total distance the vehicle has
been driven. U.S. federal regulations require that upon
transfer of vehicle ownership, the seller certify to the
purchaser the correct mileage that the vehicle has been
driven. Therefore, if the odometer reading is changed
during repair or replacement, be sure to keep a record of
the reading before and after the service so that the correct
mileage can be determined.
The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the TRIP ODOMETER button.
To reset a trip odometer, display the desired trip odom-
eter to be reset then push and hold the button for
approximately two seconds until the display resets.15. Shift Lever Indicator
This display indicator shows the transmission shift lever
selection.
16. High Beam Indicator Light
This indicator shows that headlights are on high
beam. Push the multifunction lever forward to
switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
17. Voltmeter
When the engine is running, the gauge indicates the
electrical system voltage. The pointer should stay within
the normal range if the battery is charged. If the pointer
moves to either extreme left or right and remains there
during normal driving, the electrical system should be
serviced.
18 UNDERSTANDING YOUR INSTRUMENT PANEL

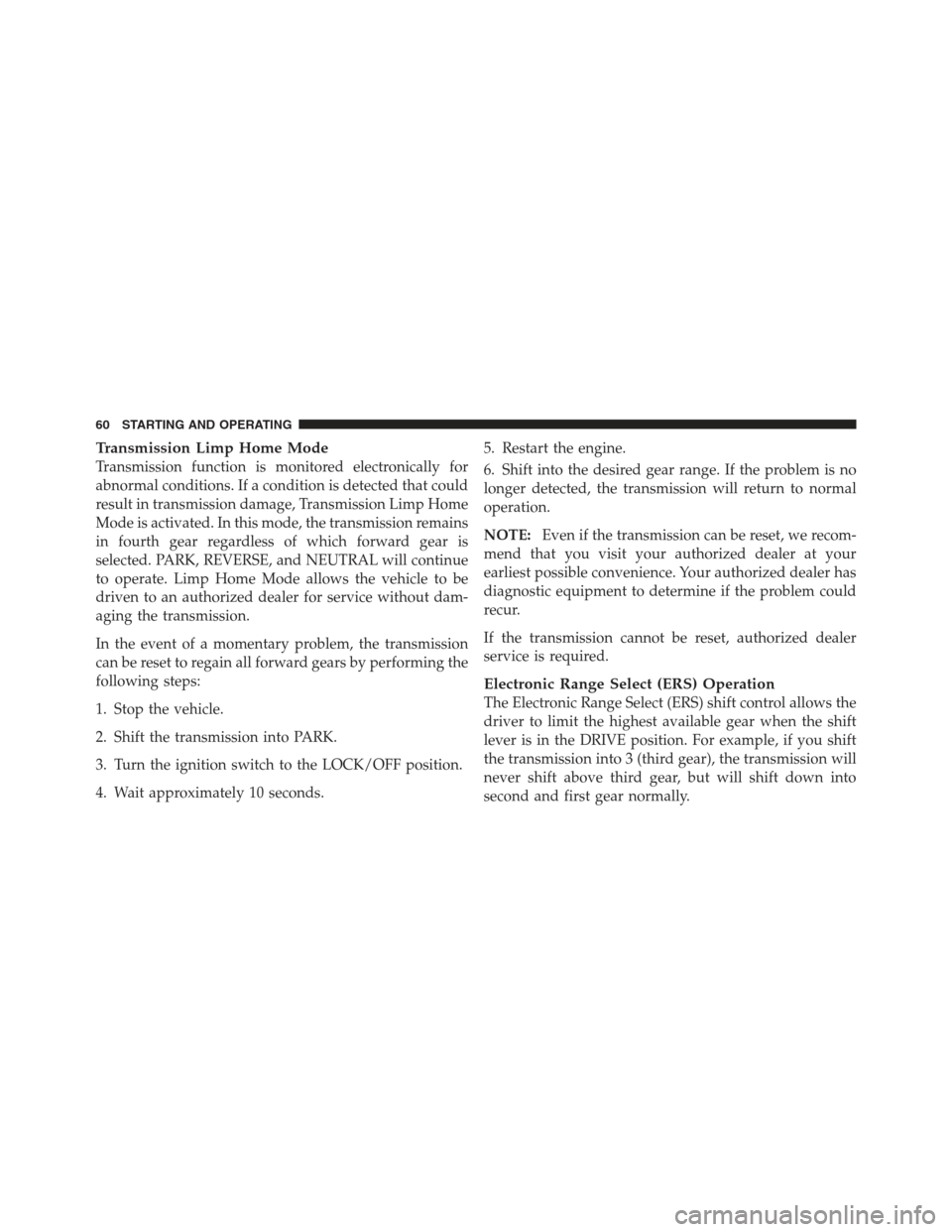

Transmission Limp Home Mode
Transmission function is monitored electronically for
abnormal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission remains
in fourth gear regardless of which forward gear is
selected. PARK, REVERSE, and NEUTRAL will continue
to operate. Limp Home Mode allows the vehicle to be
driven to an authorized dealer for service without dam-
aging the transmission.
In the event of a momentary problem, the transmission
can be reset to regain all forward gears by performing the
following steps:
1. Stop the vehicle.
2. Shift the transmission into PARK.
3. Turn the ignition switch to the LOCK/OFF position.
4. Wait approximately 10 seconds.5. Restart the engine.
6. Shift into the desired gear range. If the problem is no
longer detected, the transmission will return to normal
operation.
NOTE:
Even if the transmission can be reset, we recom-
mend that you visit your authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.
If the transmission cannot be reset, authorized dealer
service is required.
Electronic Range Select (ERS) Operation
The Electronic Range Select (ERS) shift control allows the
driver to limit the highest available gear when the shift
lever is in the DRIVE position. For example, if you shift
the transmission into 3 (third gear), the transmission will
never shift above third gear, but will shift down into
second and first gear normally.
60 STARTING AND OPERATING

gear (when climbing a grade), or shifting to NEUTRAL
(when stopped in heavy traffic) can help to reduce this
excess heat generation.
During cold temperatures, transmission operation may
be modified depending on engine and transmission
temperature as well as vehicle speed. This feature im-
proves warm up time of the engine and transmission to
achieve maximum efficiency. Engagement of the torque
converter clutch is inhibited until the transmission fluid
is warm (refer to the “Note” under “Torque Converter
Clutch” in this section). On cold starts below 41°F (5°C),
fifth and sixth gears may be inhibited briefly. During very
cold temperatures (-4°F [-20°C] or below), operation may
briefly be limited to third gear only. During this condi-
tion, the ability of the vehicle to accelerate under heavily
loaded conditions may be reduced. Normal operation
will resume once the transmission temperature has risen
to a suitable level.Transmission Limp Home Mode
Transmission function is monitored electronically for
abnormal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission remains
in third gear regardless of which forward gear is selected.
If the vehicle enters Limp Home Mode at highway
speeds, it will initially engage fifth gear, until the vehicle
slows to a speed where third gear can be engaged. PARK,
REVERSE, and NEUTRAL will continue to operate. Limp
Home Mode allows the vehicle to be driven to an
authorized dealer for service without damaging the
transmission.
In the event of a momentary problem, the transmission
can be reset to regain all forward gears by performing the
following steps:
1. Stop the vehicle.
70 STARTING AND OPERATING

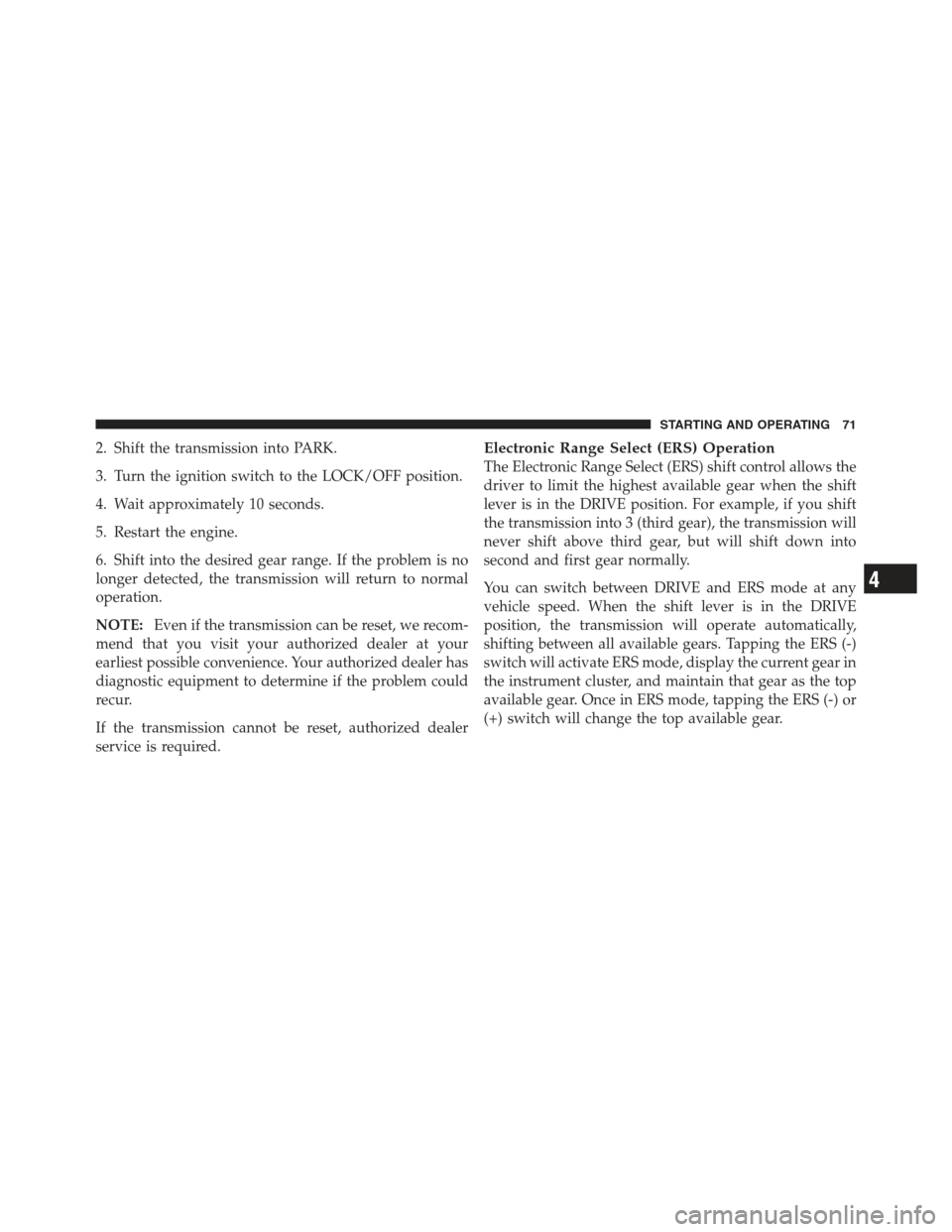

2. Shift the transmission into PARK.
3. Turn the ignition switch to the LOCK/OFF position.
4. Wait approximately 10 seconds.
5. Restart the engine.
6. Shift into the desired gear range. If the problem is no
longer detected, the transmission will return to normal
operation.
NOTE:Even if the transmission can be reset, we recom-
mend that you visit your authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.
If the transmission cannot be reset, authorized dealer
service is required.Electronic Range Select (ERS) Operation
The Electronic Range Select (ERS) shift control allows the
driver to limit the highest available gear when the shift
lever is in the DRIVE position. For example, if you shift
the transmission into 3 (third gear), the transmission will
never shift above third gear, but will shift down into
second and first gear normally.
You can switch between DRIVE and ERS mode at any
vehicle speed. When the shift lever is in the DRIVE
position, the transmission will operate automatically,
shifting between all available gears. Tapping the ERS (-)
switch will activate ERS mode, display the current gear in
the instrument cluster, and maintain that gear as the top
available gear. Once in ERS mode, tapping the ERS (-) or
(+) switch will change the top available gear.
4
STARTING AND OPERATING 71

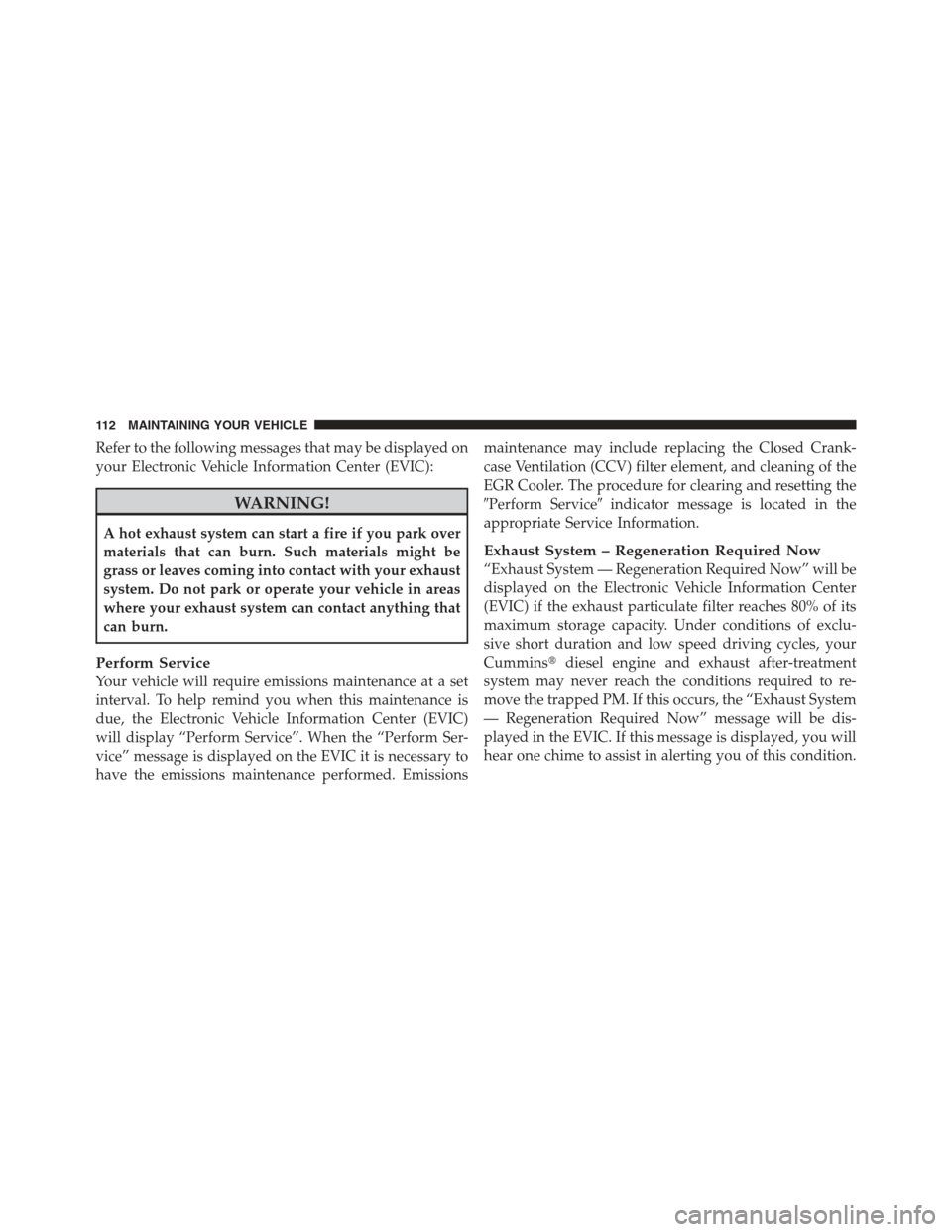

Refer to the following messages that may be displayed on
your Electronic Vehicle Information Center (EVIC):
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Perform Service
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC)
will display “Perform Service”. When the “Perform Ser-
vice” message is displayed on the EVIC it is necessary to
have the emissions maintenance performed. Emissionsmaintenance may include replacing the Closed Crank-
case Ventilation (CCV) filter element, and cleaning of the
EGR Cooler. The procedure for clearing and resetting the
Perform Service
indicator message is located in the
appropriate Service Information.
Exhaust System – Regeneration Required Now
“Exhaust System — Regeneration Required Now” will be
displayed on the Electronic Vehicle Information Center
(EVIC) if the exhaust particulate filter reaches 80% of its
maximum storage capacity. Under conditions of exclu-
sive short duration and low speed driving cycles, your
Cummins diesel engine and exhaust after-treatment
system may never reach the conditions required to re-
move the trapped PM. If this occurs, the “Exhaust System
— Regeneration Required Now” message will be dis-
played in the EVIC. If this message is displayed, you will
hear one chime to assist in alerting you of this condition.
112 MAINTAINING YOUR VEHICLE

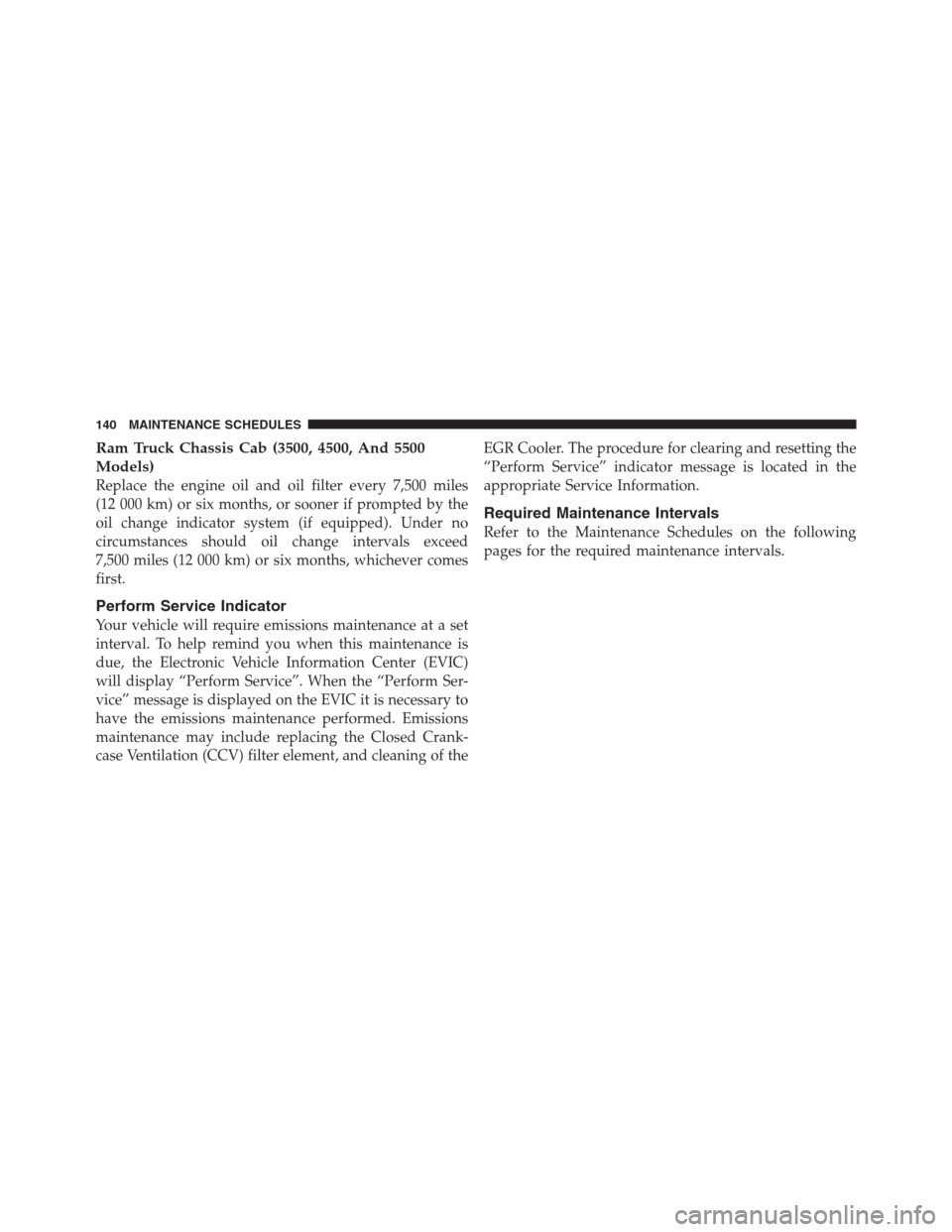

Ram Truck Chassis Cab (3500, 4500, And 5500
Models)
Replace the engine oil and oil filter every 7,500 miles
(12 000 km) or six months, or sooner if prompted by the
oil change indicator system (if equipped). Under no
circumstances should oil change intervals exceed
7,500 miles (12 000 km) or six months, whichever comes
first.
Perform Service Indicator
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC)
will display “Perform Service”. When the “Perform Ser-
vice” message is displayed on the EVIC it is necessary to
have the emissions maintenance performed. Emissions
maintenance may include replacing the Closed Crank-
case Ventilation (CCV) filter element, and cleaning of theEGR Cooler. The procedure for clearing and resetting the
“Perform Service” indicator message is located in the
appropriate Service Information.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
140 MAINTENANCE SCHEDULES

Trip .............................17,18
Oil Change Indicator ..................... 139
Oil, Engine ............................ 134
Capacity ........................... 133
Change Interval ..................... 101
Dipstick ........................... 100
Disposal ........................... 104
Filter ........................ 100,104,134
Identification Logo ................... 102
Materials Added to ................... 104
Pressure Gauge ....................... 17
Recommendation ..................... 102
Synthetic .......................... 104
Viscosity ........................... 103
Overdrive ............................ 62,72
Overdrive OFF Switch ................... 62,72
Perform Service Indicator, Reset ............. 140Power
Take-Off Adapter ..................... 78
Take-Off Operation .................... 78
Power Steering Fluid ..................... 136
PTO (Power Take-Off) ..................... 78
Radiator Cap (Coolant Pressure Cap) ....... 116,118
Remote Control Starting System ....................... 8
Remote Starting System ..................... 8
Resetting Perform Service Indicator ........... 140
Seat Belts Reminder ........................... 24
Selection of Coolant (Antifreeze) .......... 116,134
Shifting ............................... 52
Automatic Transmission ................ 54
Manual Transmission .................. 75
168 INDEX
