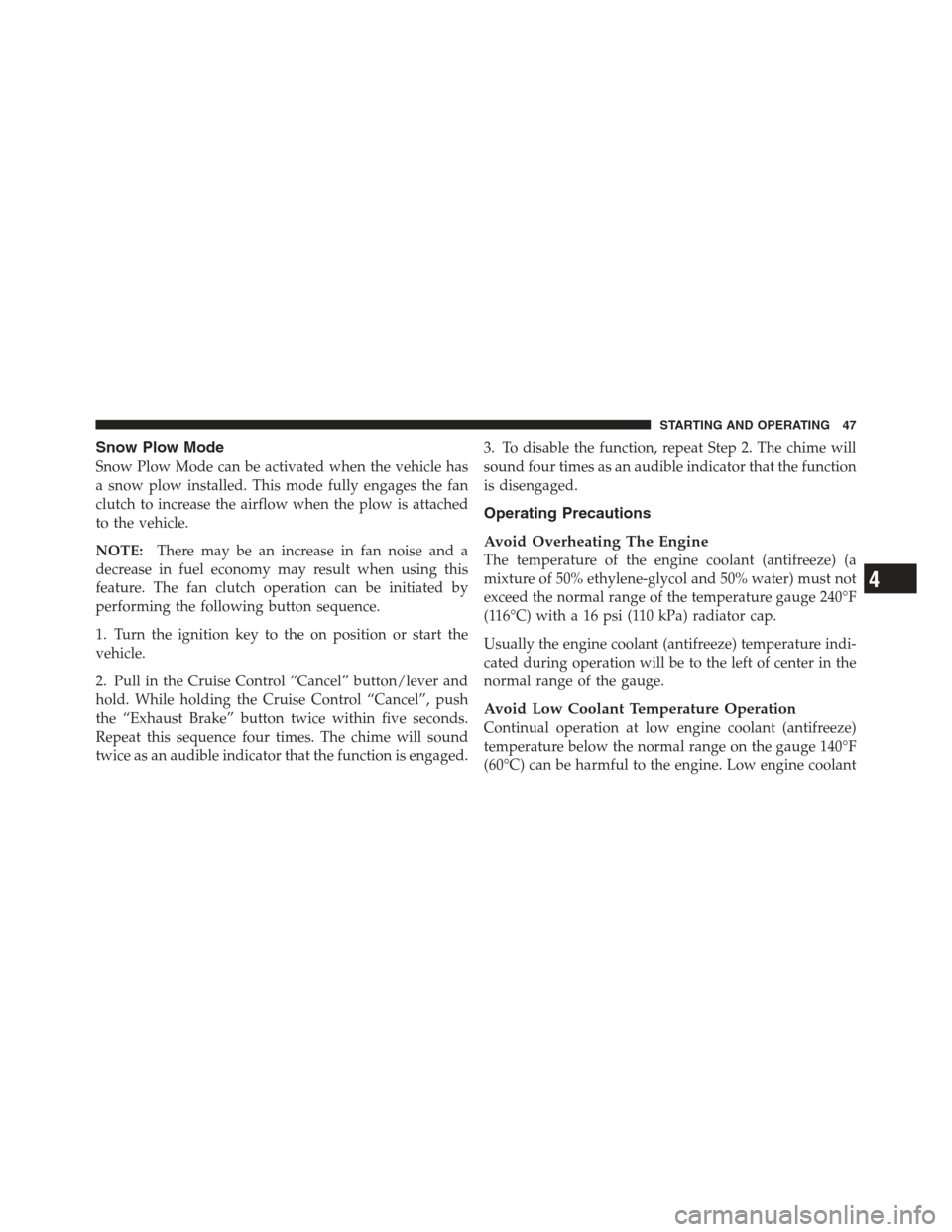

Page 49 of 173
Snow Plow Mode
Snow Plow Mode can be activated when the vehicle has
a snow plow installed. This mode fully engages the fan
clutch to increase the airflow when the plow is attached
to the vehicle.
NOTE:There may be an increase in fan noise and a
decrease in fuel economy may result when using this
feature. The fan clutch operation can be initiated by
performing the following button sequence.
1. Turn the ignition key to the on position or start the
vehicle.
2. Pull in the Cruise Control “Cancel” button/lever and
hold. While holding the Cruise Control “Cancel”, push
the “Exhaust Brake” button twice within five seconds.
Repeat this sequence four times. The chime will sound
twice as an audible indicator that the function is engaged. 3. To disable the function, repeat Step 2. The chime will
sound four times as an audible indicator that the function
is disengaged.
Operating Precautions
Avoid Overheating The Engine
The temperature of the engine coolant (antifreeze) (a
mixture of 50% ethylene-glycol and 50% water) must not
exceed the normal range of the temperature gauge 240°F
(116°C) with a 16 psi (110 kPa) radiator cap.
Usually the engine coolant (antifreeze) temperature indi-
cated during operation will be to the left of center in the
normal range of the gauge.
Avoid Low Coolant Temperature Operation
Continual operation at low engine coolant (antifreeze)
temperature below the normal range on the gauge 140°F
(60°C) can be harmful to the engine. Low engine coolant
4
STARTING AND OPERATING 47
Page 81 of 173
Stationary Mode
To operate the PTO in this mode the vehicle must meet
the following conditions:
•Be in PARK position (vehicles equipped with auto-
matic transmission)
•Upfitter provider (on/off) switch has been activated
•Parking brake applied (vehicles equipped with
manual transmission)
•Brake pedal must not be applied
•Vehicle engine must be running
•No vehicle, brake or clutch switch faults present
•PTO must be correctly installed using the vehicle
provided circuits
The customer has the choice to operate the PTO by
utilizing the cruise control switches or by utilizing a remote control (provided by the PTO supplier). To oper-
ate the feature using the cruise control switches, the
customer must first activate the upfitter-provided on/off
switch which will turn on the PTO. In order to increase or
decrease the engine idle speed, to optimize the PTO
function, the “RESUME/ACCEL” and “DECEL” cruise
switches can be used respectively. To disengage PTO
operation and return to “standard vehicle operation”
simply turn the upfitter-provided on/off switch to the
OFF position.
The torque converter lockup clutch will automatically
engage at engine speeds above 1,200 RPM (engine speed)
in PTO stationary mode. Once engaged, the lockup clutch
will remain on and not disengage until the engine speed
is below 1,000 RPM. Lockup clutch engagement is desir-
able for certain types of PTO applications (AS68RC
Six-Speed Automatic Transmission Only).
4
STARTING AND OPERATING 79
