warning RAM CHASSIS CAB 2007 Owner's Manual

airbag unless the airbag is turned off (Standard Cab
Vehicles Only). An airbag deployment can cause se-
vere injury or death to infants in that position. See the
Passenger Airbag On/Off Switch (If Equipped) sec-
tion.
• If your vehicle does not have a rear seat, see the
Passenger Airbag On/Off Switch (If Equipped) sec-
tion.
• Children that are not big enough to properly wear the
vehicle seat belt (see section on Child Restraints)
should be secured in the rear seat in child restraints or
belt-positioning booster seats. Older children who do
not use child restraints or belt-positioning booster
seats should ride properly buckled up in the rear seat.
Never allow children to slide the shoulder belt behind
them or under their arm.
• All occupants should use their seat belts properly. • The driver and front passenger seats should be moved
back as far as practical to allow the airbag room to
inflate.
WARNING!• Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you
have airbags.
• Being too close to the steering wheel or instru-
ment panel during airbag deployment could cause
serious injury. Airbags need room to inflate. Sit
back, comfortably extending your arms to reach
the steering wheel or instrument panel.50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• If it detects a malfunction in any part of the
system, it turns on the light either momen-
tarily or continuously. The instrument clus-
ter will flash the seat belt indicator if it
detects a fault with the airbag indicator.
WARNING!Ignoring the AIR BAG light in your instrument
panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked
right away.
• When the airbag control module detects a collision
requiring the airbags, it signals the inflator units. A
large quantity of nontoxic gas is generated to inflate
the airbags. The airbag covers separate and fold out of the way as the airbags inflate to their full size. The
airbags fully inflate in milliseconds. This is less time
than it takes you to blink your eyes. The airbags then
quickly deflate while helping to restrain the driver and
front passenger (if equipped with passenger side air-
bag). The driver’s front airbag deflates through vents
towards the instrument panel. The passenger’s front
airbag (if equipped) is deflated through vent holes in
the sides of the airbag. In this way the airbags do not
interfere with your control of the vehicle.
• The knee impact bolsters help protect the knees and
position you for the best interaction with the front
airbag.52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!Whenever an airbag is turned off, even a lap/
shoulder belted passenger may hit their head, neck,
or chest on the dashboard (instrument panel) or
windshield in a crash. This may result in serious
injury or death.
To Shut Off the Passenger Airbag (Standard Cab Ve-
hicles Only) (If Equipped)
Place the ignition key in the Passenger Airbag On/Off
Switch (if equipped), push the key in and turn clockwise,
and remove the key from the switch. This will shut off the
passenger airbag (if equipped). The “Off” light near the
switch will illuminate when the ignition switch is turned
to the ON position. To Turn On the Passenger Airbag (Standard Cab Ve-
hicles Only) (If Equipped)
Place the ignition key in the Passenger Airbag On/Off
Switch (If Equipped), push the key in and turn counter-
clockwise, and remove the key from the switch. This will
turn on the passenger airbag (if equipped). The “Off”
light near the switch will be off when the ignition switch
is turned to the ON position.
If A Deployment Occurs
The airbag system is designed to deploy when the air bag
control module detects a moderate-to-severe frontal col-
lision, and then immediately to deflate.
NOTE: A frontal collision that is not severe enough to
need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

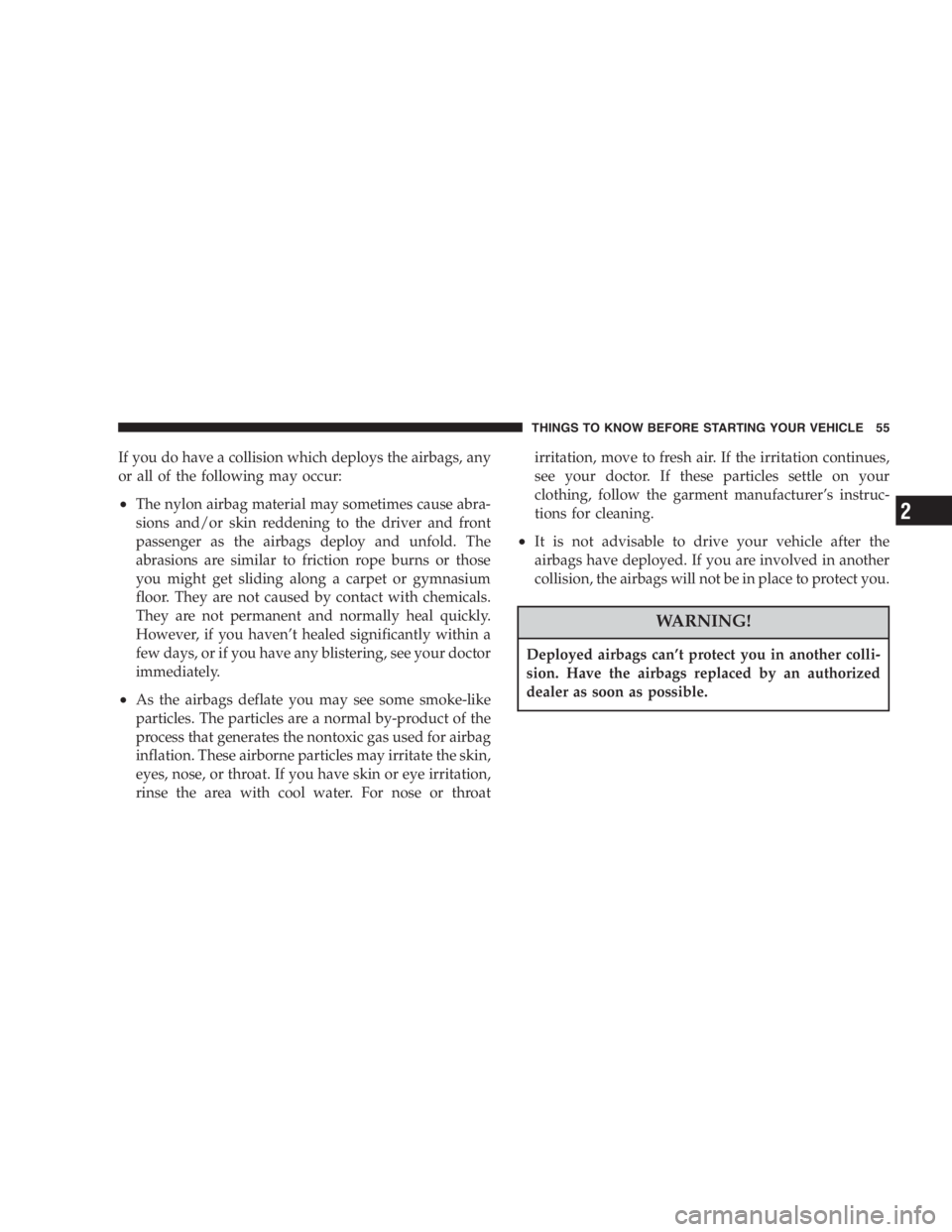

If you do have a collision which deploys the airbags, any
or all of the following may occur:
• The nylon airbag material may sometimes cause abra-
sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.
• As the airbags deflate you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc-
tions for cleaning.
• It is not advisable to drive your vehicle after the
airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protect you.
WARNING!Deployed airbags can’t protect you in another colli-
sion. Have the airbags replaced by an authorized
dealer as soon as possible. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
2

Enhanced Accident Response System
If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. In addition,
approximately 10 seconds after the vehicle has stopped
moving, the interior lights will light until the ignition
switch is turned off. Maintaining Your Airbag Systems
WARNING!• Modifications to any part of the airbag system
could cause it to fail when you need it. You could be
injured because the airbags are not there to protect
you. Do not modify the components or wiring,
including adding any kind of badges or stickers to
the steering wheel hub trim cover or the upper right
side of the instrument panel. Do not modify the
front bumper, vehicle body structure, or frame.
• You need proper knee impact protection in a colli-
sion. Do not mount or locate any aftermarket equip-
ment on or behind the knee bolster.
• It is dangerous to try to repair any part of the airbag
system yourself. Be sure to tell anyone who works
on your vehicle that it has airbags.56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Used in defense of litigation involving a
DaimlerChrysler Corporation product
3. Requested by police under a legal warrant
4. Otherwise required by law
Data Parameters that May Be Recorded:
• Diagnostic trouble code(s) and warning lamp status
for electronically-controlled safety systems, including
the airbag system
• Airbag disable lamp status (if equipped)
•  Ti m e  of airbag deployment (in terms of ignition
cycles and vehicle mileage)
• Airbag deployment level (if applicable)
• Impact acceleration and angle
• Seatbelt status • Brake status (service and parking brakes)
• Accelerator status (including vehicle speed)
• Engine control status (including engine speed)
• Transmission gear selection
• Cruise control status
• Traction/stability control status
• Tire pressure monitoring system status (if equipped)
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
2

Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.
WARNING!In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size. Infants and Small Children
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Use the restraint that is
correct for your child:
• Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and  convertible  child seats. Both types of
child restraints are held in the vehicle by the lap/
shoulder belt.
• The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg).  Convertible  child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

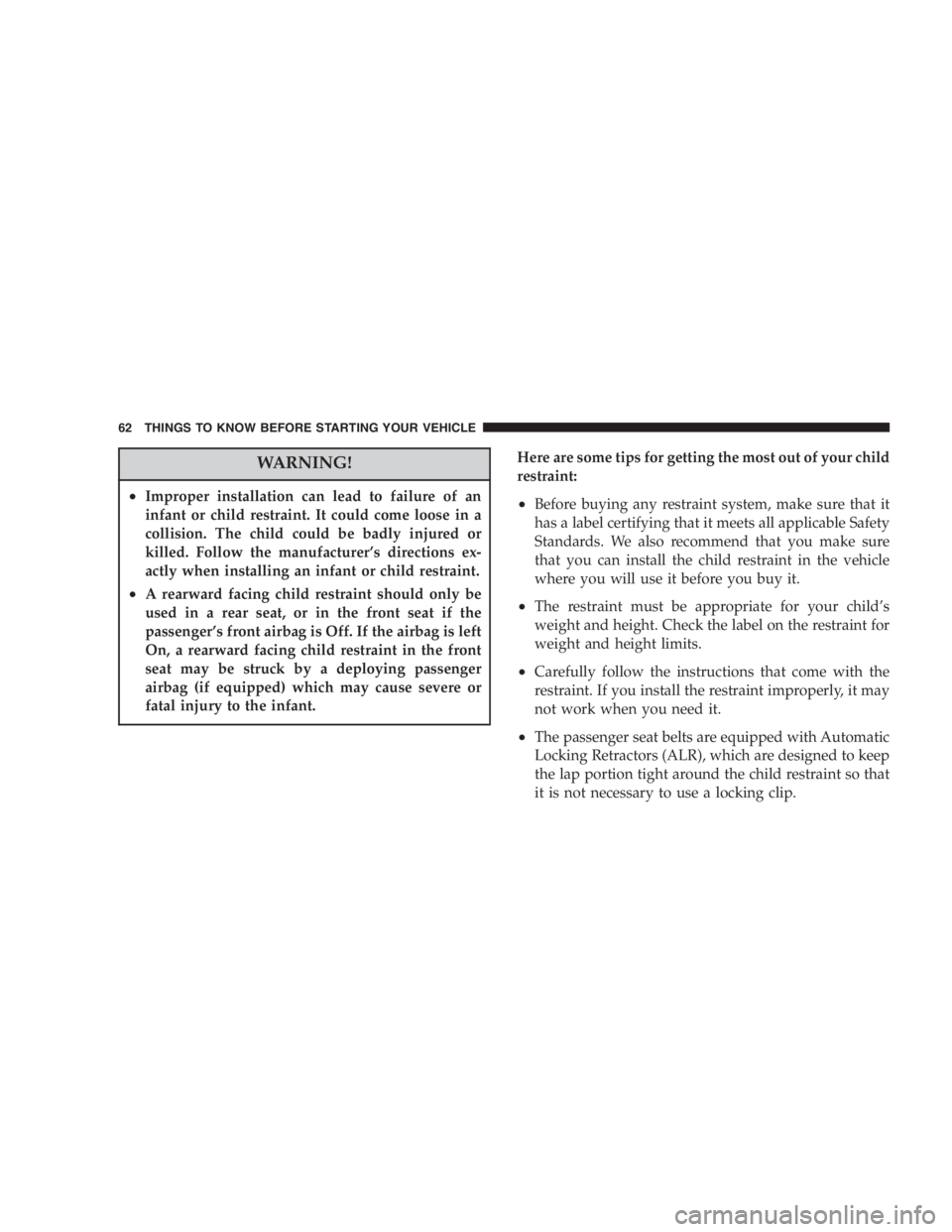

WARNING!• Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.
• A rearward facing child restraint should only be
used in a rear seat, or in the front seat if the
passenger’s front airbag is Off. If the airbag is left
On, a rearward facing child restraint in the front
seat may be struck by a deploying passenger
airbag (if equipped) which may cause severe or
fatal injury to the infant. Here are some tips for getting the most out of your child
restraint:
• Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
• The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
• Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
• The passenger seat belts are equipped with Automatic
Locking Retractors (ALR), which are designed to keep
the lap portion tight around the child restraint so that
it is not necessary to use a locking clip.62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Pull the belt from the retractor until there is enough to
allow you to pass through the child restraint and slide
the latch plate into the buckle. Then pull on the belt
until it is all removed from the retractor. Allow the belt
to return to the retractor, pulling on the excess web-
bing to tighten the lap portion about the child re-
straint. Refer to the  Automatic Locking Retractors
(ALR) Mode  earlier in this section.
• In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.
• If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the latch plate around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.
• Buckle the child into the seat according to the child
restraint manufacturer’s directions.
• When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.
WARNING!Improper installation can lead to failure of an infant
or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the manufacturer’s directions exactly when install-
ing an infant or child restraint. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
2

of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.
NOTE: If your child restraint seat is not LATCH com-
patible, install the restraint using the vehicle seat belting. Installing the Child Restraint System
WARNING!Do not install child restraint systems equipped with
LATCH attachments in the center position of a Quad
Cab model rear seat. The LATCH anchorages in this
seat are designed for the two outboard seating posi-
tions only. A child may be placed in the rear center
seating position of a Quad Cab model using the seat
belt and child tether anchorage. Failure to follow this
may result in serious or fatal injury.
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
