RAM CHASSIS CAB 2016 Owners Manual

(RKE) transmitter, if equipped. These lights are also
operated individually as reading lights by pushing on the
corresponding lens.
NOTE: The courtesy/reading lights will remain on until
the switch is pushed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the ignition is turned OFF, they will
automatically turn off after 15 minutes.Front Courtesy/Reading Lights Rear Passenger Courtesy/Reading Light 3UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

ELECTRICAL POWER OUTLETS
The auxiliary 12 Volt (13 Amp) power outlets can provide
power for in-cab accessories designed for use with the
standard “cigar lighter” plug. The 12 Volt power outlets
and USB Port (Charge Only) have a cap attached to the
outlet indicating “12V DC,” together with either a key
symbol, battery symbol, or USB symbol.
A key symbol indicates that the key must be in the
ON/RUN or ACC positions for the outlet to provide
power. The battery symbol indicates that the outlet is
connected to the battery, and can provide power at all
times.
NOTE: To ensure proper operation, a MOPAR knob and
element must be used. The auxiliary power outlets can be found in the following
locations:
CAUTION!• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watts (13 Amps) power
rating is exceeded, the fuse protecting the system
will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Lower left and lower right of the center stack when
equipped with a bench seat. • Center console when equipped with bucket seats.
Power Outlets — Center Stack1 — Power Outlet
2 — USB Port (Charge Only)
Power Outlet — Center Console 3UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

• Inside the upper lid of the center storage compartment
— if equipped. • Rear of the center console storage compartment —
Quad Cab or Crew Cab.
USB Port (Charge Only) — Upper Lid Power Outlet — Rear Center Console212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

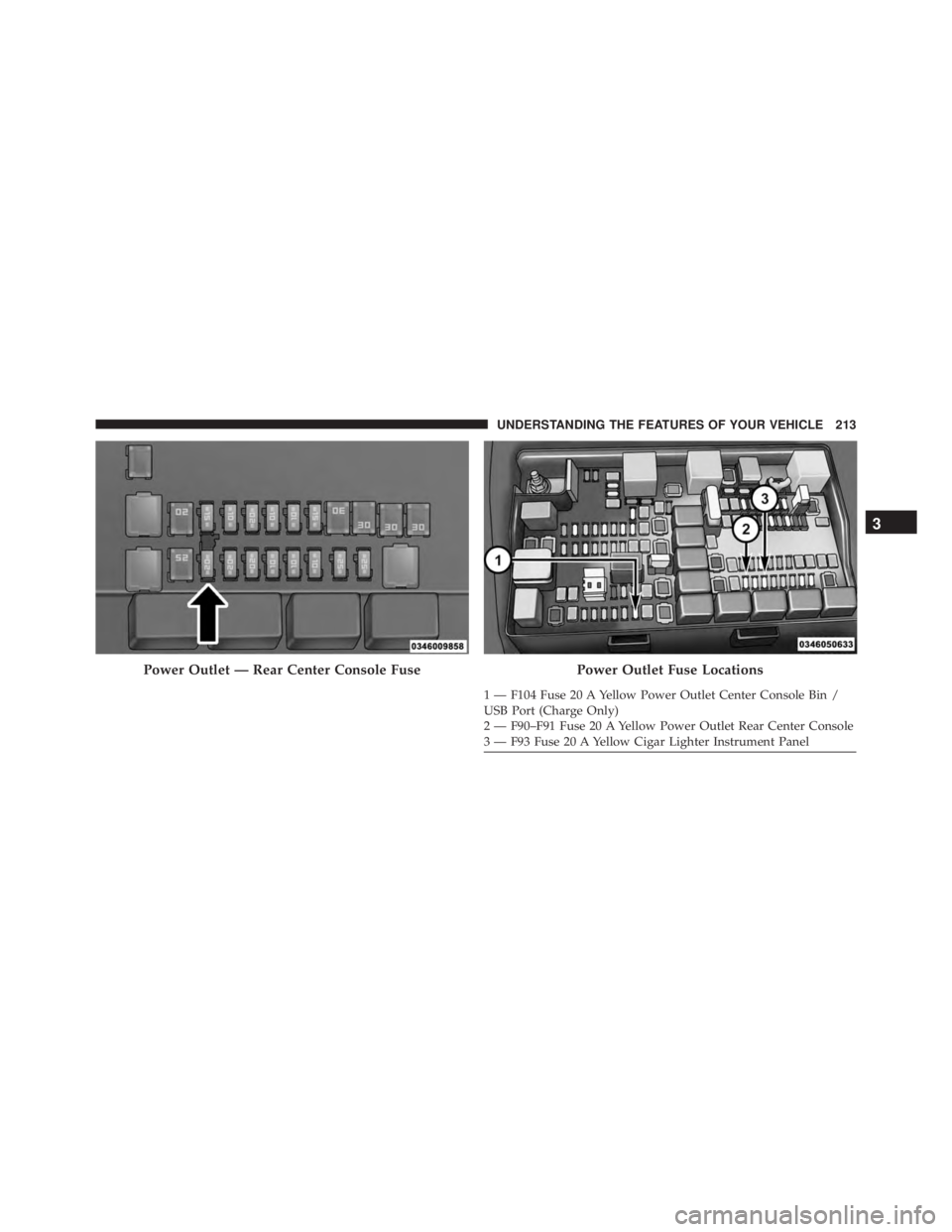

Power Outlet — Rear Center Console Fuse Power Outlet Fuse Locations1 — F104 Fuse 20 A Yellow Power Outlet Center Console Bin /
USB Port (Charge Only)
2 — F90–F91 Fuse 20 A Yellow Power Outlet Rear Center Console
3 — F93 Fuse 20 A Yellow Cigar Lighter Instrument Panel 3UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

The key symbol indicates that this outlet can supply
power when the key is in the ON/RUN or ACC posi-
tions.
All accessories connected to the outlet(s) should be
removed or turned off when the vehicle is not in use to
protect the battery against discharge.
WARNING!To avoid serious injury or death:
• Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure. CAUTION!• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

AUXILIARY SWITCHES — IF EQUIPPED
There can be up to five auxiliary switches located in the
lower switch bank of the instrument panel which can be
used to power various electronic devices and PTO
(Power Take Off) – If Equipped. If Power Take Off is
equipped, it will take the place of the fifth Auxiliary
switch. Connections to the switches are found under the
hood in the connectors attached to the auxiliary Power
Distribution Center.
You have the ability to configure the functionality of the
auxiliary switches via the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID). All
switches can now be configured for setting the switch
type operation to latching or momentary, power source of
either battery or ignition, and ability to hold last state
across key cycles. NOTE: Holding last state conditions are met when
switch type is set to latching and power source is set to
ignition.
For further information on using the auxiliary switches,
please refer to the Ram Body Builders Guide by accessing
www.rambodybuilder.com and choosing the appropriate
links.
CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED
A removable ash receiver and cigar lighter are available.
For vehicles with a bench seat the cupholder tray can be
used to hold the ash receiver.
For vehicles equipped with a floor console, the cuphold-
ers may be used. 3UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

POWER INVERTER — IF EQUIPPED
A 115 Volt (150 Watts Maximum) outlet is located on the
center stack of the instrument panel, to the right of the
radio. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video game consoles will exceed
this power limit, as will most power tools.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset.
To turn on the power outlet, simply plug in the device.
The outlet automatically turns off when the device is
unplugged.
NOTE: Due to built-in overload protection, the power
inverter will shut down if the power rating is exceeded. Power Inverter Outlet216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!To avoid serious injury or death:
• Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CUPHOLDERS
Front Seat Cupholders (40–20–40 Seats)
The cupholders are located on the backside of the center
portion of the front seat (20). Fold down the center
section of the front seat to gain access to the cupholders. Front Instrument Panel Cupholders — Floor
Storage Bin
For vehicles equipped with bucket seats two cupholders
are located next to the center console storage bin.
Front Cupholders For Bucket Seats 3UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

Rear Cupholders — If Equipped
Some vehicles are equipped with rear cupholders located
in the center armrest. Some vehicles may be equipped with a rear cupholder
that consists of two cup wells for rear passenger conve-
nience.
Rear Armrest Cupholder Rear Cup Wells218 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
