SERVICING AND MAINTENANCE349

1. Ensure engine is turned off.

2. Place drain pan under the fuel filter drain hose.
3. Open the water drain valve a quarter turn counterclockwise and completely drain fuel
and water into the approved container.
4. Close the water drain valve.
5. Remove lid using a socket or strap wrench. Rotate counterclockwise for removal. Remove
used o-ring and discard it.
6. Remove the used filter cartridge from the housing and dispose of according to your local
regulations.
7. Wipe clean the sealing surfaces of the lid and housing.
8. Install new o-ring back into ring groove on the filter housing and lubricate with clean engine
oil.
9. Remove new filter cartridge from plastic bag and install into housing.
NOTE:Do not remove cartridge from bag until you reach
this step in order to keep cartridge clean.
10. Push down on the cartridge to ensure it is properly seated. Do not pre-fill the filter
housing with fuel. 11. Install lid onto housing and tighten to 22.5 ft lb
(30.5 N.m). Do not overtighten the lid.
12. Prime the engine, then start the engine and confirm there are no leaks Ú page 350.
UNDERBODY MOUNTED FUEL FILTER
R
EPLACEMENT
NOTE:
Using a fuel filter that does not meet the manu -
facturer's filtration and water separating
requirements can severely impact fuel system
life and reliability.
The underbody mounted filter housing will
cause the engine not to run if:
a. No filter is installed.

Underbody Mounted Fuel Filter Assembly
1. Ensure engine is turned off.

2. Place drain pan under the fuel filter drain hose.
3. Open the water drain valve one full turn
counterclockwise and completely drain fuel
and water into the approved container.
4. Close the water drain valve.
5. Remove lid using a socket or strap wrench. Rotate counterclockwise for removal. Remove
used o-ring and discard it.
6. Remove the used filter cartridge from the housing and dispose of according to your local
regulations.
7. Wipe clean the sealing surfaces of the lid and housing.
1 — Drain Valve
CAUTION!
Diesel fuel will damage blacktop paving
surfaces. Drain the filter into an appropriate
container.
Do not prefill the fuel filter when installing a
new fuel filter. There is a possibility debris
could be introduced into the fuel filter during
this action. It is best to install the filter dry and
allow the in-tank lift pump to prime the fuel
system.
8

22_DPF_OM_EN_USC_t.book Page 349

SERVICING AND MAINTENANCE351
the EPA Heavy Duty Diesel Engine Emissions
Standards. These systems are seamlessly
integrated into your vehicle and managed by the
Cummins® Powertrain Control Module (PCM). The
PCM manages engine combustion to allow the
exhaust system’s catalyst to trap and burn
Particulate Matter (PM) pollutants, with no input or
interaction on your part.
If the engine is allowed to idle or the truck is driven
on low engine speed drive cycles for more than two
hours, the system will automatically enter an
emissions operating mode that will increase the
engine idle speed to 1,050 RPM. While in this
mode, which is designed to help maintain the
Diesel Particulate Filter, the engine idle speed will
return to normal when the brake pedal is applied.
A small change in engine tone or a slight change in
engine performance while accelerating may also
be noticeable at speeds below 20 mph (32 km/h).
This operating mode may last for up to an hour of
idle time, or around 20 minutes of driving time.
Additionally, your vehicle has the ability to alert you
to additional maintenance required on your truck
or engine Ú page 81.
DIESEL EXHAUST FLUID (DEF)
DEF sometimes known simply by the name of its
active component, UREA—is a key component of
Selective Catalytic Reduction (SCR) systems, which
help diesel vehicles meet stringent emission
regulations. DEF is a liquid reducing agent that
reacts with engine exhaust in the presence of a
catalyst to convert smog-forming nitrogen oxides
(NOx) into harmless nitrogen and water vapor
Úpage 404.
You can receive assistance in locating DEF by
contacting an authorized dealer.
BODY LUBRICATION
Locks and all body pivot points, including such
items as seat tracks, door hinge pivot points and
rollers, liftgate, tailgate, decklid, sliding doors and
hood hinges, should be lubricated periodically with
a lithium-based grease, such as Mopar® Spray
White Lube to ensure quiet, easy operation and to protect against rust and wear. Prior to the
application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit;
after lubricating excess, oil and grease should be
removed. Particular attention should also be given
to hood latching components to ensure proper
function. When performing other underhood
services, the hood latch, release mechanism and
safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated
twice a year, preferably in the Autumn and Spring.
Apply a small amount of a high quality lubricant,
such as Mopar® Lock Cylinder Lubricant directly
into the lock cylinder.
WINDSHIELD WIPER BLADES
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth
and a mild nonabrasive cleaner. This will remove
accumulations of salt or road film.
Operation of the wipers on dry glass for long
periods may cause deterioration of the wiper
blades. Always use washer fluid when using the
wipers to remove salt or dirt from a dry windshield.
Avoid using the wiper blades to remove frost or ice
from the windshield. Keep the blade rubber out of
contact with petroleum products such as engine
oil, gasoline, etc.
WARNING!
A hot exhaust system can start a fire if you park
over materials that can burn. Such materials
might be grass or leaves coming into contact
with your exhaust system. Do not park or oper
-
ate your vehicle in areas where your exhaust sys -
tem can contact anything that can burn.
8

22_DPF_OM_EN_USC_t.book Page 351

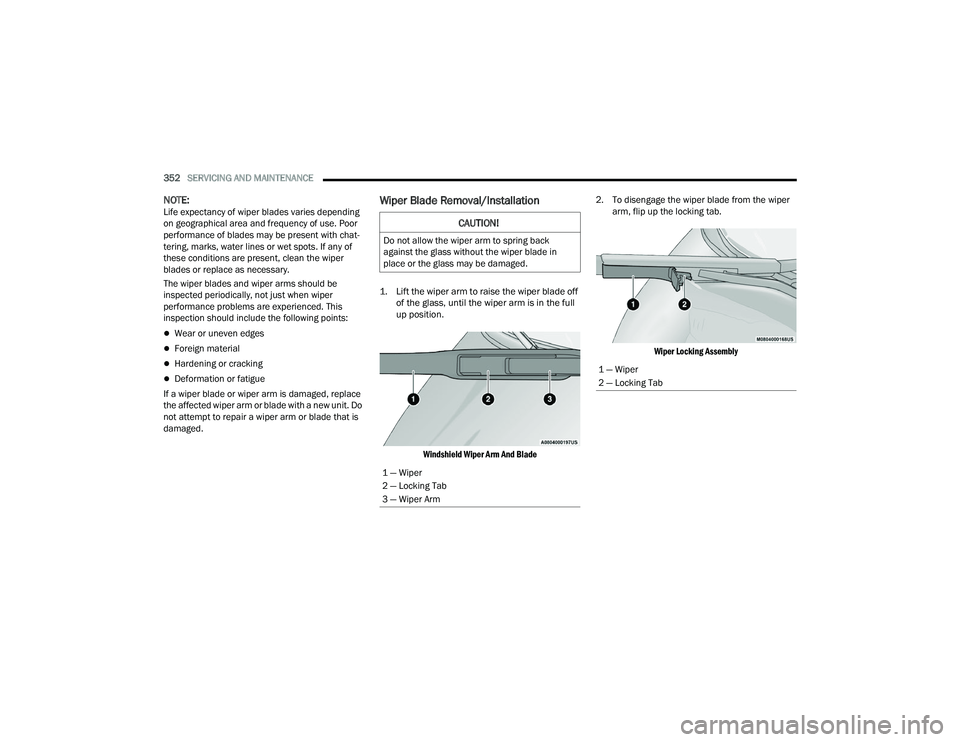

352SERVICING AND MAINTENANCE
NOTE:Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor
performance of blades may be present with chat -
tering, marks, water lines or wet spots. If any of
these conditions are present, clean the wiper
blades or replace as necessary.
The wiper blades and wiper arms should be
inspected periodically, not just when wiper
performance problems are experienced. This
inspection should include the following points:
Wear or uneven edges
Foreign material
Hardening or cracking
Deformation or fatigue
If a wiper blade or wiper arm is damaged, replace
the affected wiper arm or blade with a new unit. Do
not attempt to repair a wiper arm or blade that is
damaged.
Wiper Blade Removal/Installation

1. Lift the wiper arm to raise the wiper blade off of the glass, until the wiper arm is in the full
up position.

Windshield Wiper Arm And Blade
2. To disengage the wiper blade from the wiper
arm, flip up the locking tab.

Wiper Locking Assembly

CAUTION!
Do not allow the wiper arm to spring back
against the glass without the wiper blade in
place or the glass may be damaged.
1 — Wiper
2 — Locking Tab
3 — Wiper Arm
1 — Wiper
2 — Locking Tab

22_DPF_OM_EN_USC_t.book Page 352

SERVICING AND MAINTENANCE353
3. Tilt the lower end of the wiper blade away from the arm and with one finger, push the release
tab toward the wiper arm.

Wiper Disengaging

4. Slide the wiper blade down towards the base of the wiper arm.
5. With the wiper blade disengaged, remove the wiper blade from the wiper arm by holding the
wiper arm with one hand and separating the
wiper blade from the wiper arm with the other
hand (move the wiper blade down toward the
base of the wiper arm and away from the J
hook in the end of the wiper arm).
Removing Wiper From Wiper Arm

6. Gently lower the wiper arm onto the glass.
Installing The Front Wipers

1. Lift the wiper arm off of the glass, until the wiper arm is in the full up position.

2. Position the wiper blade under the hook on the tip of the wiper arm with the wiper locking tab
open.
3. Insert the receiver bracket on the wiper assembly into the hook on the tip of the arm
through the opening in the wiper blade under
the locking tab. 4. Slide the wiper blade up into the hook on the
wiper arm until it is latched (engagement will
be accompanied by an audible click). Fold
down the latch release tab and snap it into its
locked position.
5. Gently lower the wiper blade onto the glass.
EXHAUST SYSTEM
The best protection against carbon monoxide entry
into the vehicle body is a properly maintained
engine exhaust system.
If you notice a change in the sound of the exhaust
system; or if the exhaust fumes can be detected
inside the vehicle; or when the underside or rear of
the vehicle is damaged; have an authorized
technician inspect the complete exhaust system
and adjacent body areas for broken, damaged,
deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes
to seep into the passenger compartment. In
addition, have the exhaust system inspected each
time the vehicle is raised for lubrication or oil
change. Replace as required.
1 — Locking Tab
2 — Wiper
3 — Release Tab
1 — Wiper
2 — Locking Tab
3 — Wiper Arm J Hook
8

22_DPF_OM_EN_USC_t.book Page 353

366SERVICING AND MAINTENANCE
F05 40 Amp Green –Air Suspension Comp
F06 40 Amp Green –STOM
F07 40 Amp Green –Starter Solenoid
F08 20 Amp Blue –NOX Sensor *
F09 40 Amp Green –Diesel / Fuel Heater *
F09 30 Amp Pink –Gas / Brake Vacuum Pump *
F10 40 Amp Green –CBC #2 / Ext Lights
F11 40 Amp Green –Brake SYS MOD ECU& Valves
F12 40 Amp Green –CBC #3 / Pwr Locks
F13 40 Amp Green –HVAC Blwr Mtr
F14 40 Amp Green –CBC #4 / Ext Light
F15 30 Amp Pink –Power Side Step *
F16 30 Amp Pink –Smart-Bar Module *
F17 30 Amp Pink –Winch *
F18 ––Spare
F19 30 Amp Pink –Diesel SCR Feed *
F20 30 Amp Pink –Passenger Door Mod
F21 30 Amp Pink –DTCM
F22 20 Amp Blue –Gas - ECM *
F22 25 Amp White –Diesel - PCM *
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped

22_DPF_OM_EN_USC_t.book Page 366

368SERVICING AND MAINTENANCE
F43 –15 Amp Blue Heated Strng Wheel *
F44 –10 Amp Red Diagnostic Port
F45 ––Spare
F46 –10 Amp Red Upfitters Relay Coils *
F47 ––Spare
F48 ––Spare
F49 –10 Amp Red IP Cluster / CSG
F50 –20 Amp Yellow Air Suspension Mod *
F51 –10 Amp Red IGN Mod / KIN Mod/ RF Hub
F52 –5 Amp Tan Batt Snsr
F53 –20 Amp Yellow Trlr Tow – Lt Turn/Stop
F54 –20 Amp Yellow Non-Memory Adjustable Pedals *
F55 ––Spare
F56 –10 Amp Red Fuel Vapor Blocking Valve (VBV) *
F57 –20 Amp Yellow TCM / PCM / Trans PRSR SW
F58 –10 Amp Red Bed Lighting
F59 ––Spare
F60 ––Spare
F61 –10 Amp Red NH3 Sensor / PM Sensor *
F62 –10 Amp Red A/C Clutch
CavityCartridge Fuse Micro Fuse Description
* If Equipped

22_DPF_OM_EN_USC_t.book Page 368

SERVICING AND MAINTENANCE373
Replacing Exterior Bulbs
BASE QUAD: LOW BEAM HEADLAMP, HIGH
BEAM HEADLAMP, FRONT PARK AND TURN —
IF EQUIPPED
Low Beam
See below steps to replace:

1. Open the hood.

2. Disconnect and isolate the negative battery
cable.
3. Reach into the front wheel house ahead of the front wheel, remove the fastener, and lift the
cover over the access hole in the front of the
wheel house splash shield. Access to the rear
of the lamp can be gained through this access
hole.

Splash Shield Access Cover
4. Reach through the access hole of the wheel
house splash shield and disengage the bulb
access cover by rotating counterclockwise.

Bulb Access Cover

5. Disconnect the internal lamp wiring harness connector from the low beam bulb. 6. Rotate the bulb counterclockwise a quarter
turn to unlock the bulb from the lamp.
7. Pull the bulb straight out from the housing.
8. Reverse the procedure for installation of new bulb and covers.
High Beam
See below steps to replace:

1. Open the hood.

2. Disconnect and isolate the negative battery cable.

Bulb Access Cover

3. Look under the hood and behind the headlamp to find the high beam bulb access
cover.
4. Reach behind the headlamp and disengage the access cover by rotating counterclockwise.
CAUTION!
Do not contaminate the bulb glass by touching
it with your fingers or by allowing it to contact
other oily surfaces. Shortened bulb life will
result.
Always use the correct bulb size and type for
replacement. An incorrect bulb size or type
may overheat and cause damage to the lamp,
the bulb socket, or the lamp wiring.
8

22_DPF_OM_EN_USC_t.book Page 373

374SERVICING AND MAINTENANCE
5. Disconnect the internal lamp wiring harness connector from the high beam bulb.
6. Rotate the bulb counterclockwise a quarter turn to unlock the bulb from the lamp.
7. Pull the bulb straight out from the housing.
8. Reverse the procedure for installation of new bulb and covers.
Outer Park And Turn
See below steps to replace:

1. Open the hood.

2. Disconnect and isolate the negative battery cable.
3. Reach into the front wheel house ahead of the front wheel, remove the fastener, and lift the
cover over the access hole in the front of the
wheel house splash shield. Access to the rear of the lamp can be gained through this access
hole.

Splash Shield Access Cover

4. Reach through the access hole of the wheel house splash shield and disengage the side
marker socket by rotating counterclockwise a
quarter turn.

Park And Turn Sockets
5. Pull the socket and bulb straight out from the
housing.
6. Separate the bulb from the socket without twisting.
7. Reverse the procedure for installation of new bulb and covers.
FOG LAMPS — IF EQUIPPED
Halogen
See below steps to replace:

1. Reach under and behind the front fascia/bumper to access the back of the front fog
lamp housing.

2. Disconnect the fog lamp wiring harness connector from the fog lamp bulb.

Fog Lamp Bulb

3. Rotate the bulb counterclockwise a quarter turn to unlock the bulb from the housing.
CAUTION!
Do not contaminate the bulb glass by touching
it with your fingers or by allowing it to contact
other oily surfaces. Shortened bulb life will
result.
Always use the correct bulb size and type for
replacement. An incorrect bulb size or type
may overheat and cause damage to the lamp,
the bulb socket, or the lamp wiring.

22_DPF_OM_EN_USC_t.book Page 374

413
INDEX
A
Adaptive Cruise Control (ACC) (Cruise
Control)
................................................ 141, 143Adding Engine Coolant (Antifreeze)............... 355Adding Fuel.................................................... 169Additives, Fuel............................................... 399AdjustDown........................................................... 32Forward....................................................... 32Rearward..................................................... 32Up................................................................ 32Adjustable Pedals............................................ 37Advance Phone Connectivity......................... 231Air BagAir Bag Operation...................................... 286Air Bag Warning Light................................ 284Enhanced Accident Response......... 290, 327Event Data Recorder (EDR)....................... 327If Deployment Occurs................................ 289Knee Impact Bolsters................................ 286Maintaining Your Air Bag System.............. 291Maintenance............................................. 291Redundant Air Bag Warning Light.............285Transporting Pets...................................... 307Air Bag Light..................................95, 284, 307
Air Cleaner, Engine (Engine Air Cleaner
Filter)................................................... 342, 361Air Conditioner Maintenance........................ 344Air Conditioner Refrigerant........................... 344Air Conditioner System................................. 344Air Conditioning................................................ 58Air Conditioning Filter....................................... 61Air Conditioning System................................... 60Air Conditioning, Operating Tips....................... 60Air Filter........................................................ 342Air PressureTires......................................................... 383AlarmSecurity Alarm...................................... 23, 96Alterations/ModificationsVehicle......................................................... 10Antifreeze (Engine Coolant).......................... 355Capacities................................................. 403Disposal................................................... 356Anti-Lock Brake System (ABS)...................... 259Anti-Lock Warning Light................................ 100Assist, Hill Start............................................. 264Audio Settings............................................... 219Audio Systems (Radio).................................. 190Auto Down Power Windows............................. 71Automatic Door Locks...................................... 26
Automatic Headlights.......................................48Automatic Temperature Control (ATC)..............60Automatic Transmission....................... 122, 360Adding Fluid.............................................. 360Fluid And Filter Change............................. 360Fluid Change............................................. 360Fluid Level Check............................. 358, 359Fluid Type........................................ 360, 407Shifting..................................................... 126Special Additives...................................... 358Automatic Transmission Limp Home Mode... 125AutoPark....................................................... 105AUX Camera......................................... 165, 168Auxiliary Driving Systems.............................. 266Axle Fluid.....................................360, 361, 407Axle Lubrication................................... 360, 361
B
Back-Up......................................................... 159Back-Up Camera........................................... 159Battery................................................... 96, 340Blanket..................................................... 114Charging System Light.................................96Keyless Key Fob Replacement....................16Battery Saver Feature......................................51Belts, Seat.................................................... 307
11

22_DPF_OM_EN_USC_t.book Page 413

414
Bluetooth Connecting To A Particular Mobile PhoneOr Audio Device After Pairing
................227Body Builders Guide........................................ 10Body Mechanism Lubrication........................ 351B-Pillar Location............................................. 380Brake Assist System...................................... 260Brake Control System.................................... 260Brake Fluid.......................................... 358, 407Brake System...................................... 358, 397Fluid Check............................................... 358Master Cylinder......................................... 358Parking...................................................... 119Warning Light.............................................. 95Brake/Transmission Interlock....................... 122Bulb Replacement......................................... 371Bulbs, Light.......................................... 309, 371
C
Cab Top Clearance Lights.............................. 375Camera.......................................................... 159Camera, AUX........................................ 165, 168Camera, Rear...................................... 159, 161Camera, Trailer 360...................................... 165Capacities, Antifreeze (Engine Coolant)......... 403Capacities, Fluid............................................ 403Caps, FillerOil (Engine)................................................ 338Power Steering.......................................... 140Radiator (Coolant Pressure)...................... 356
Car Washes................................................... 394Carbon Monoxide Warning................... 309, 310Cargo Light....................................................... 50CD................................................................. 221Cellular Phone.............................................. 252Center High Mounted Stop Light................... 375Center Seat Storage Compartment.................. 62Changing A Flat Tire...................................... 315Charge Air Cooler.......................................... 357Chart, Tire Sizing........................................... 377Check Engine Light (Malfunction Indicator
Light)............................................................. 104Checking Your Vehicle For Safety................. 307Checks, Safety.............................................. 307Child Restraint.............................................. 291Child RestraintsBooster Seats........................................... 294Child Seat Installation..................... 300, 302How To Stow An unused ALR Seat Belt.... 299Infant And Child Restraints....................... 293Locating The LATCH Anchorages.............. 298Lower Anchors And Tethers For Children.. 295Older Children And Child Restraints......... 293Seating Positions...................................... 295Clean Air Gasoline......................................... 399CleaningWheels..................................................... 389Climate Control................................................ 54Automatic.................................................... 54Manual........................................................ 58
Cold Weather Operation................................ 108Compact Spare Tire...................................... 387Connected Services...................................... 233Connected Services FAQ............................... 247Connected Services Features....................... 236Connected Services, Getting Started............ 235Connected Services, Introduction................. 233Contract, Service........................................... 410Controls........................................................ 214Cooling Pressure Cap (Radiator Cap)............ 356Cooling System............................................. 354Adding Coolant (Antifreeze)...................... 355Coolant Level................................... 355, 357Cooling Capacity....................................... 403Disposal Of Used Coolant......................... 356Drain, Flush, And Refill............................. 355Inspection................................................. 357Points To Remember................................ 357Pressure Cap............................................ 356Radiator Cap............................................. 356Selection Of Coolant (Antifreeze)..... 355, 404Corrosion Protection..................................... 393Cruise Control (Speed Control)............. 141, 143Cruise Light................................................... 102Customer Assistance.................................... 409Cybersecurity................................................ 190

22_DPF_OM_EN_USC_t.book Page 414
