SERVICING AND MAINTENANCE377
FUSES
General Information
The fuses protect electrical systems against
excessive current.
When a device does not work, you must check the
fuse element inside the blade fuse for a break/
melt.
Also, please be aware that using power outlets for
extended periods of time with the engine off may
result in vehicle battery discharge.

Blade Fuses
Power Distribution Center
The Power Distribution Center is located in the
engine compartment near the battery. This center
contains cartridge fuses, micro fuses, relays, and
circuit breakers. A description of each fuse and
component may be stamped on the inside cover,
otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to
the following chart.
WARNING!
When replacing a blown fuse, always use an
appropriate replacement fuse with the same
amp rating as the original fuse. Never replace
a fuse with another fuse of higher amp rating.
The use of a fuse with a rating other than indi -
cated may result in a dangerous electrical
system overload. If a properly rated fuse
continues to blow, it indicates a problem in the
circuit that must be corrected. Never replace a
blown fuse with metal wires or any other mate -
rial. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use
proper fuses may result in serious personal
injury, fire and/or property damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.
If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety systems
(air bag system, braking system), power unit
systems (engine system, transmission
system) or steering system blows, contact an
authorized dealer.
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse
element
3 — Blade fuse with a bad/not functional fuse
element (blown fuse)
CAUTION!
When installing the power distribution center
cover, it is important to ensure the cover is
properly positioned and fully latched. Failure
to do so may allow water to get into the power
distribution center and possibly result in an
electrical system failure.
If it is necessary to wash the engine compart -
ment, take care not to directly hit the fuse box
or the windshield wiper motor with water.
8

23_DPF_OM_EN_USC_t.book Page 377

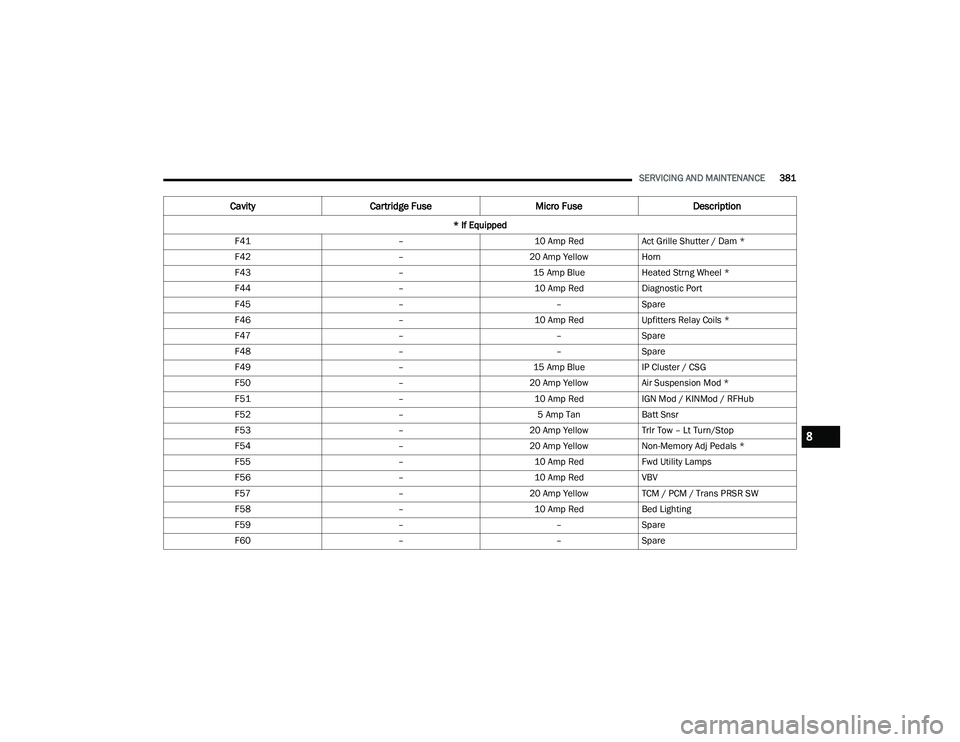

SERVICING AND MAINTENANCE381
F41 –10 Amp RedAct Grille Shutter / Dam *
F42 –20 Amp YellowHorn
F43 –15 Amp BlueHeated Strng Wheel *
F44 –10 Amp RedDiagnostic Port
F45 ––Spare
F46 –10 Amp RedUpfitters Relay Coils *
F47 ––Spare
F48 ––Spare
F49 –15 Amp BlueIP Cluster / CSG
F50 –20 Amp YellowAir Suspension Mod *
F51 –10 Amp RedIGN Mod / KINMod / RFHub
F52 –5 Amp TanBatt Snsr
F53 –20 Amp YellowTrlr Tow – Lt Turn/Stop
F54 –20 Amp YellowNon-Memory Adj Pedals *
F55 –10 Amp RedFwd Utility Lamps
F56 –10 Amp RedVBV
F57 –20 Amp YellowTCM / PCM / Trans PRSR SW
F58 –10 Amp RedBed Lighting
F59 ––Spare
F60 ––Spare
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped
8

23_DPF_OM_EN_USC_t.book Page 381

382SERVICING AND MAINTENANCE
F61 –10 Amp RedNH3 Sensor / PM Sensor *
F62 –10 Amp RedA/C Clutch
F63 –20 Amp YellowIgnition Coils / CAPS
F64 –25 Amp ClearFuel Injectors / PCM *
F65 –10 Amp RedRVDMP / MOD BLE *
F66 –10 Amp RedSunroof / USB RR * / RR Mirror/
Passenger Wind SW
F67 –10 Amp RedUCI / TRLR 360 Cam/ Tach *
F68 –10 Amp RedAEB RACAM HTR *
F69 –15 Amp BlueSCR Mod 12 Volt *
F70 –30 Amp GreenFuel Pump Mtr / Fuel Htr RLY
F71 –25 Amp ClearAmp / Act Noise Cnsl
F72 ––Spare
F73 –20 Amp YellowFuel Transfer Pump *
F74 –10 Amp RedBackup Alarm
F75 –10 Amp RedSCR RLY / ATMM *
F76 –10 Amp RedElectronic Stability Control (ESC) *
F77 –10 Amp RedDTCM / TCM / FAD MOD / STOM
F78 –15 Amp BlueECM / PCM / IRCM / AUX Relay
Feed / HRLS
F79 –15 Amp BlueID / Clearance Lt
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped

23_DPF_OM_EN_USC_t.book Page 382
