Ram ProMaster 2016 Diesel Supplement

Mileage or time passed
(whichever comes first)
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
16,000
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Check Transmission Actuation
System Oil and Hydraulic
Clutch Operating Oil XX X X X
Additional Maintenance
Replace fuel filter and drain
water from fuel. XX X X X
Replace engine air filter. X X X X X
Replace cabin/air conditioning
filter. XXX X X X X
Replace Brake Fluid every two
years. XXX X X X X
7
MAINTENANCE SCHEDULE 129

Mileage or time passed
(whichever comes first)
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
16,000
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000

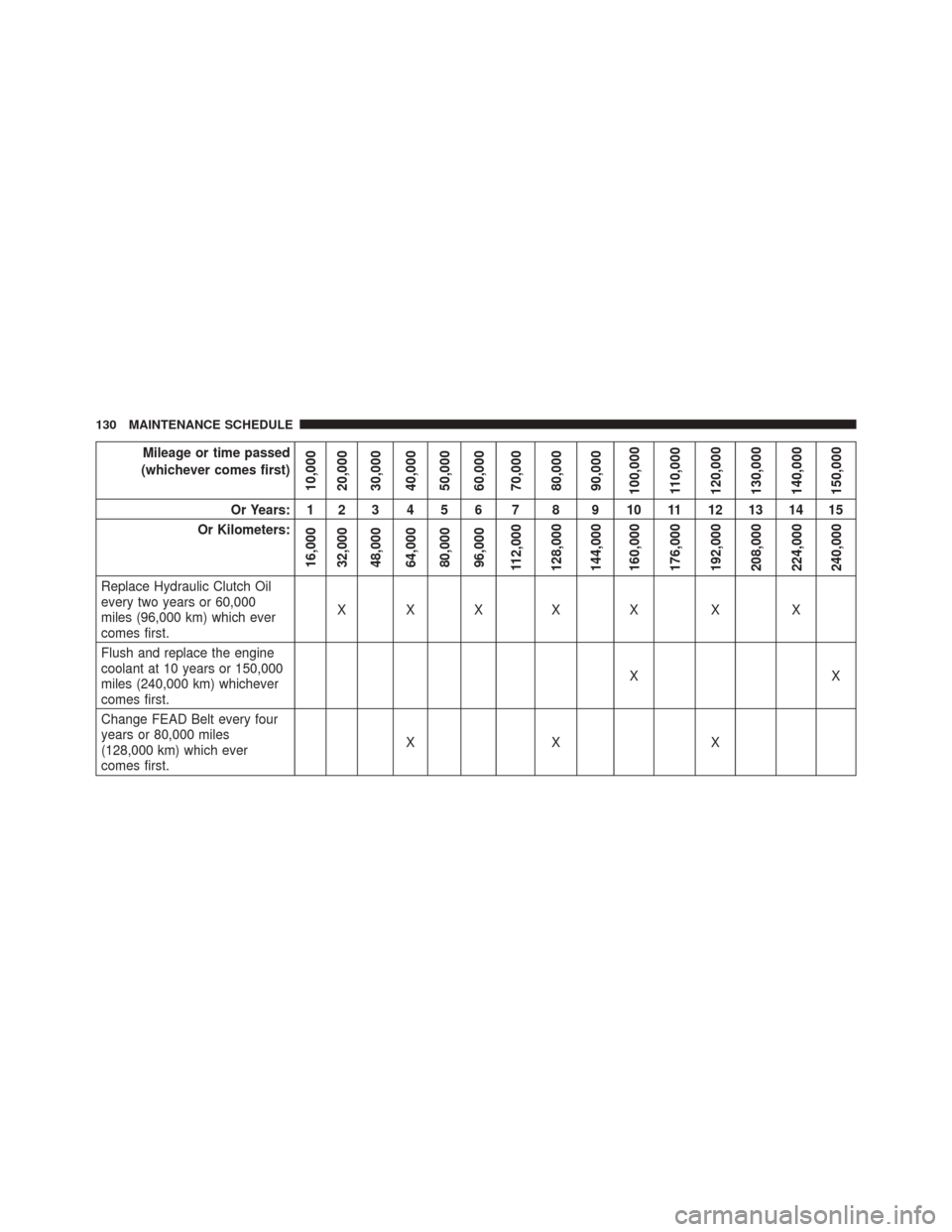

Replace Hydraulic Clutch Oil
every two years or 60,000
miles (96,000 km) which ever
comes first. XXX X X X X
Flush and replace the engine
coolant at 10 years or 150,000
miles (240,000 km) whichever
comes first. XX
Change FEAD Belt every four
years or 80,000 miles
(128,000 km) which ever
comes first. XX X
130 MAINTENANCE SCHEDULE

Mileage or time passed
(whichever comes first)
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
16,000
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000

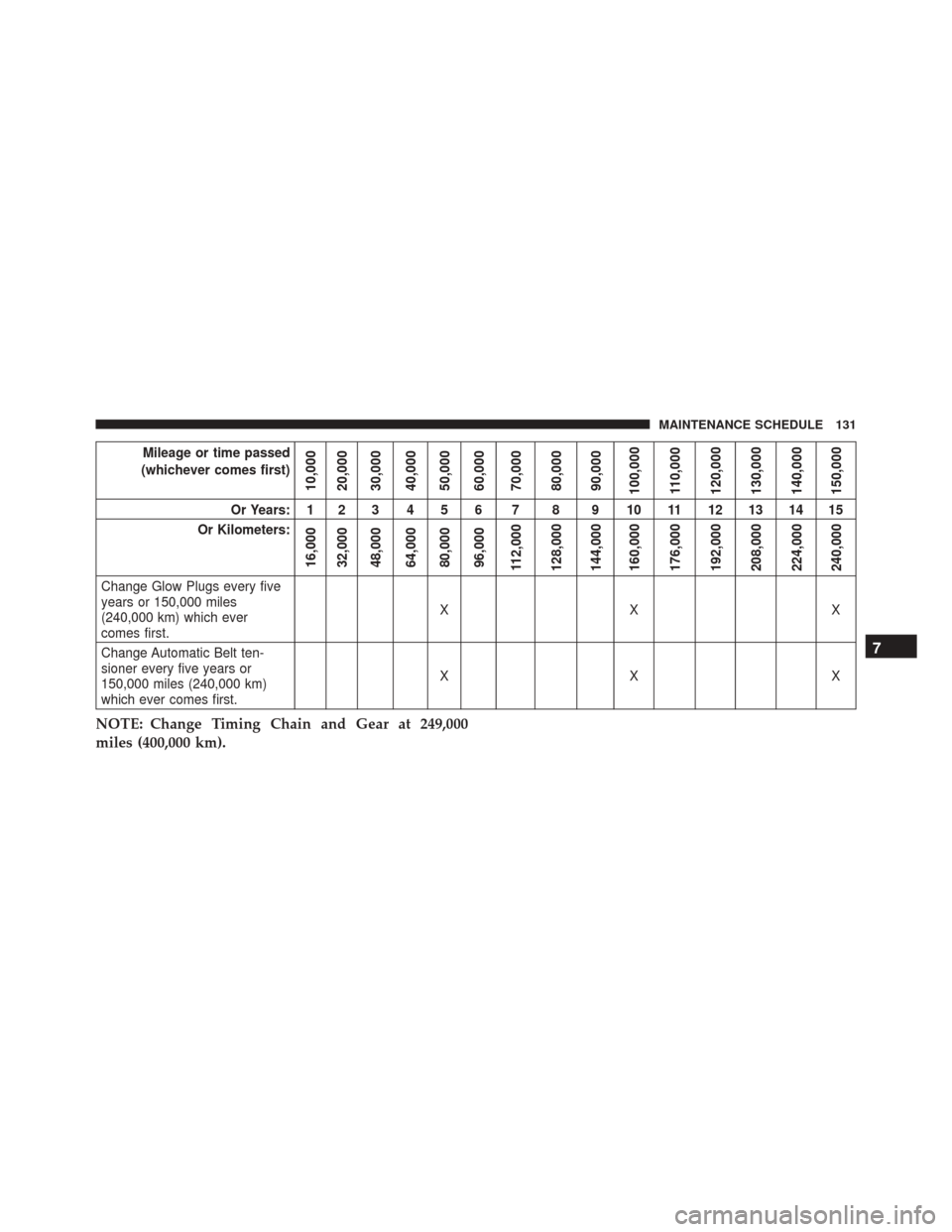

Change Glow Plugs every five
years or 150,000 miles
(240,000 km) which ever
comes first. XX X
Change Automatic Belt ten-
sioner every five years or
150,000 miles (240,000 km)
which ever comes first. XX X
NOTE: Change Timing Chain and Gear at 249,000
miles (400,000 km).
7
MAINTENANCE SCHEDULE 131

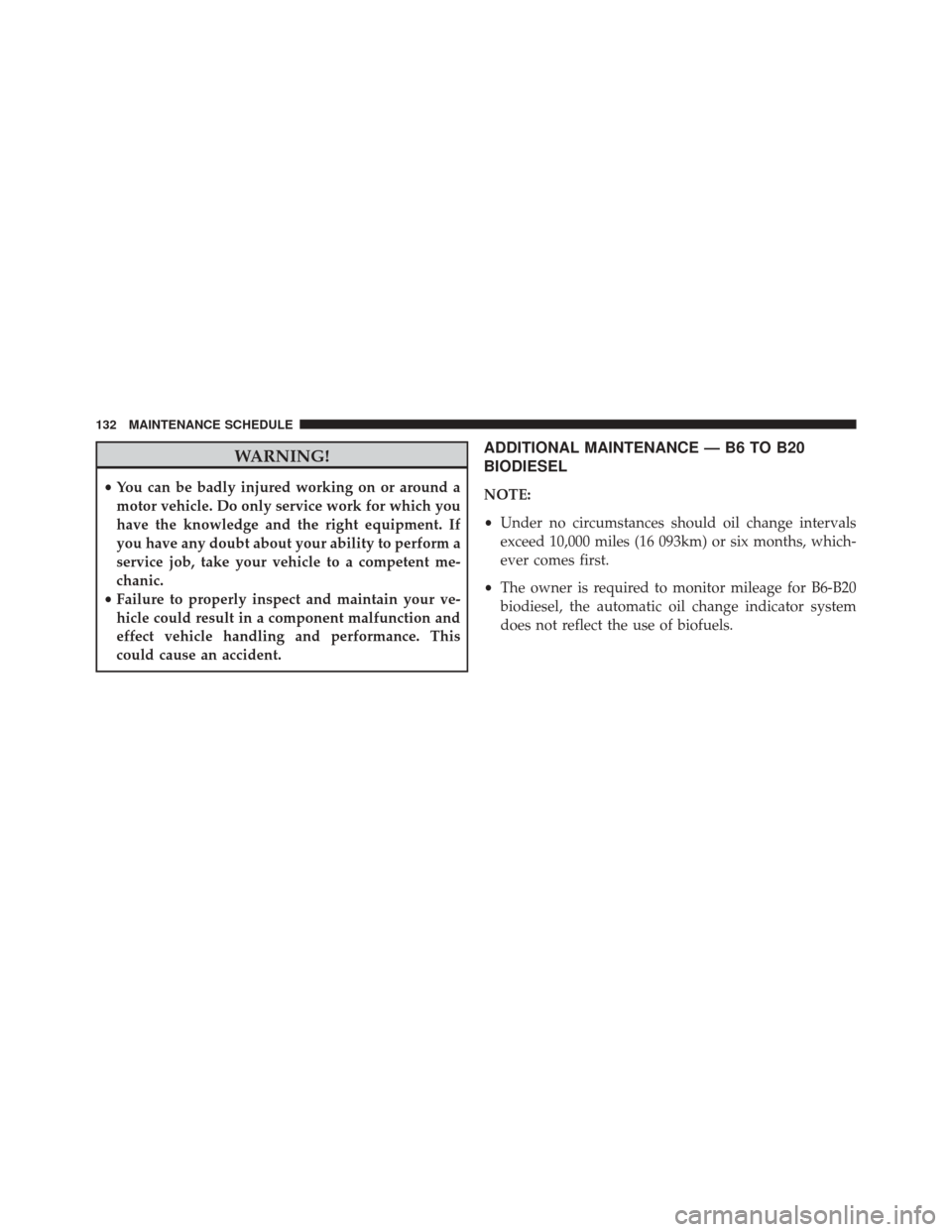

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
• Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
ADDITIONAL MAINTENANCE — B6 TO B20
BIODIESEL
NOTE:
• Under no circumstances should oil change intervals
exceed 10,000 miles (16 093km) or six months, which-
ever comes first.
• The owner is required to monitor mileage for B6-B20
biodiesel, the automatic oil change indicator system
does not reflect the use of biofuels.
132 MAINTENANCE SCHEDULE

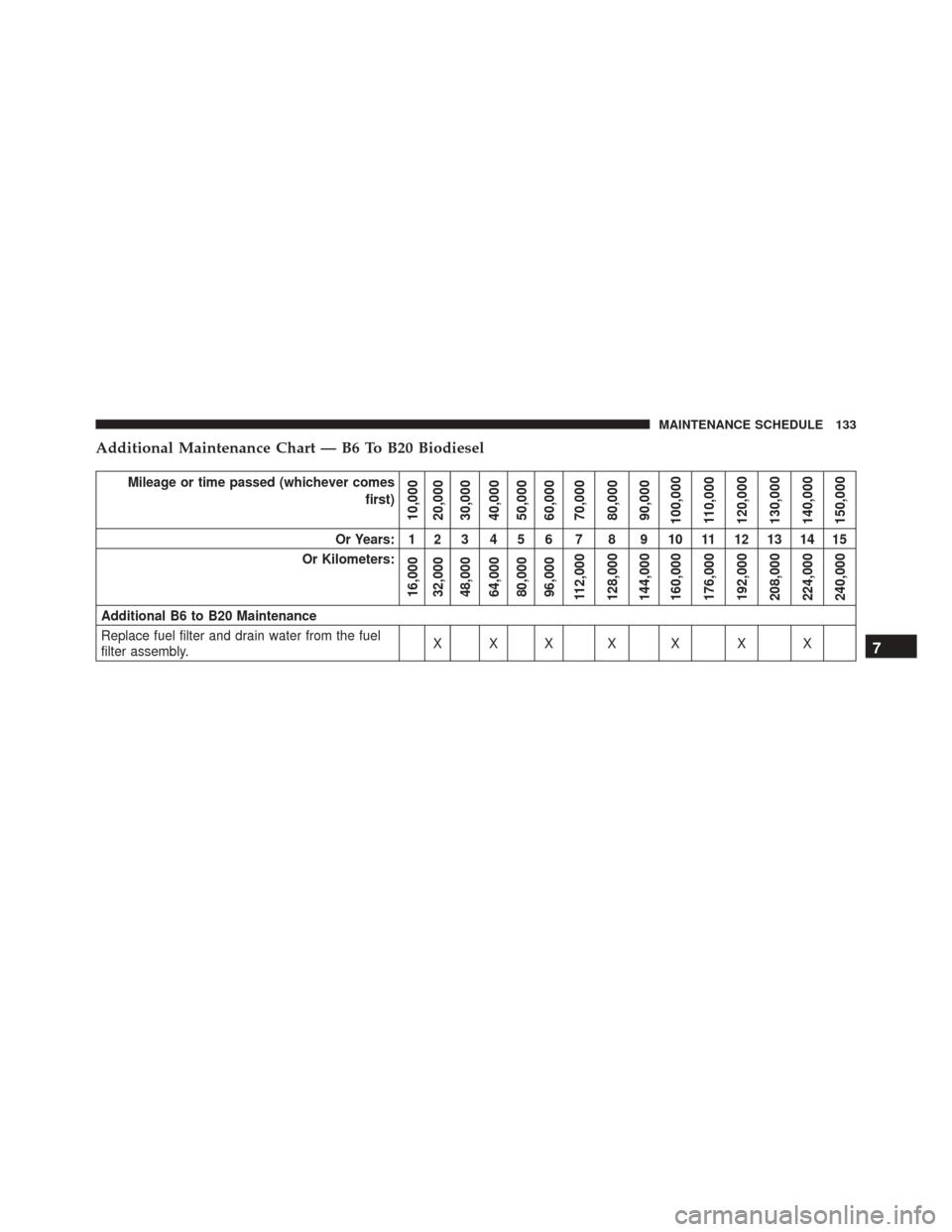

Additional Maintenance Chart — B6 To B20 Biodiesel
Mileage or time passed (whichever comesfirst)
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
16,000
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional B6 to B20 Maintenance
Replace fuel filter and drain water from the fuel
filter assembly. XXX X X X X
7
MAINTENANCE SCHEDULE 133

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
• Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
134 MAINTENANCE SCHEDULE

INDEX
8

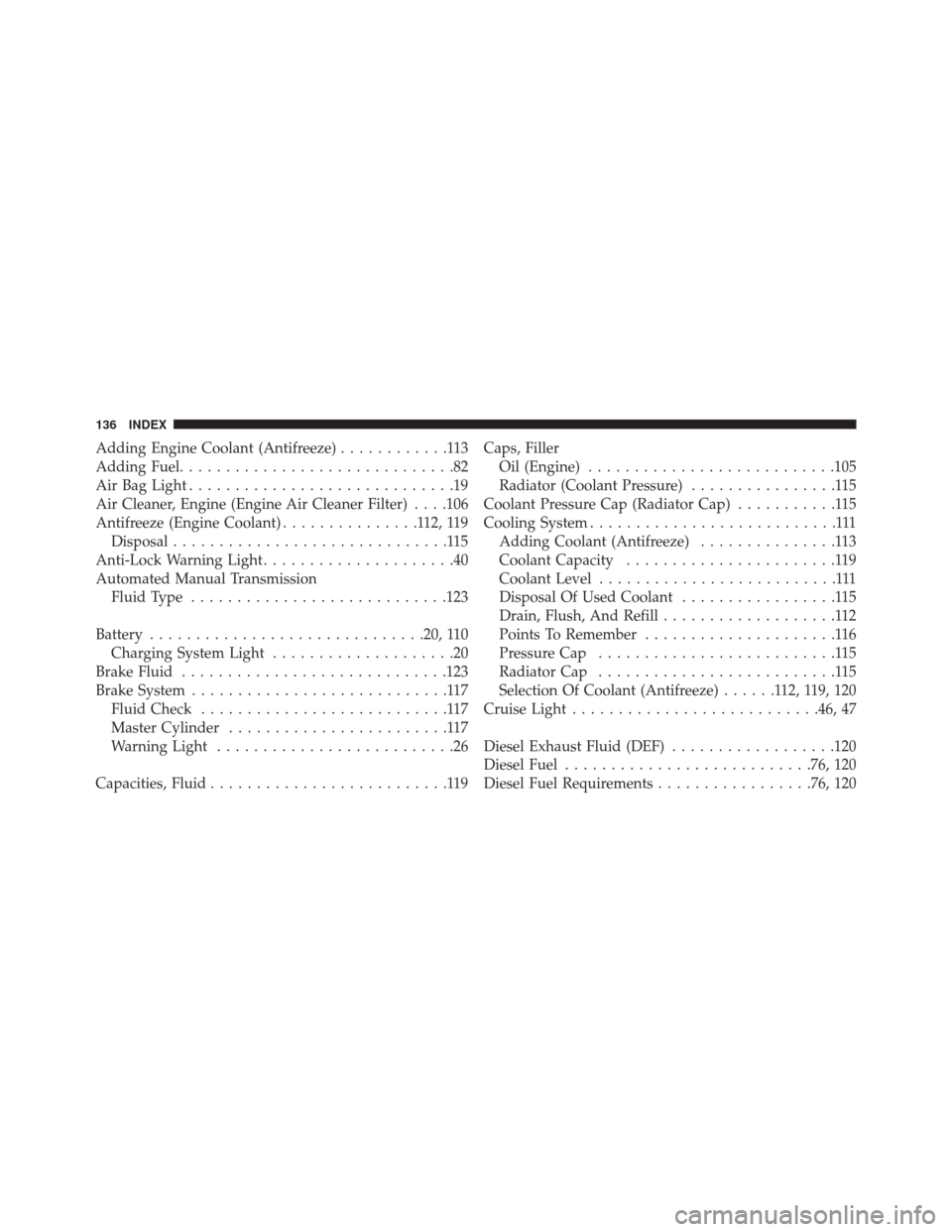

Adding Engine Coolant (Antifreeze)............113
Adding Fuel ..............................82
Air Bag Light .............................19
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .106
Antifreeze (Engine Coolant) ...............112,119
Disposal ..............................115
Anti-Lock Warning Light .....................40
Automated Manual Transmission Fluid Type ........................... .123
Battery ............................. .20, 110
Charging System Light ....................20
Brake Fluid ............................ .123
Brake System ............................117
Fluid Check ...........................117
Master Cylinder ........................117
Warning Light ..........................26
Capacities, Fluid ..........................119 Caps, Filler
Oil (Engine) .......................... .105
Radiator (Coolant Pressure) ................115
Coolant Pressure Cap (Radiator Cap) ...........115
Cooling System ...........................111
Adding Coolant (Antifreeze) ...............113
Coolant Capacity .......................119
Coolant Level ..........................111
Disposal Of Used Coolant .................115
Drain, Flush, And Refill ...................112
Points To Remember .....................116
Pressure Cap ..........................115
Radiator Cap ..........................115
Selection Of Coolant (Antifreeze) ......112,119,120
Cruise Light .......................... .46, 47
Diesel Exhaust Fluid (DEF) ..................120
Diesel Fuel .......................... .76, 120
Diesel Fuel Requirements .................76, 120
136 INDEX

Bulk Storage Of.........................83
Diesel Fuel System, Re-Priming ...............108
Disposal Antifreeze (Engine Coolant) ................115
Door Ajar ...............................20
Door Ajar Light ...........................20
Draining Fuel/Water Separator Filter ...........107
Electronic Speed Control (Cruise Control) .........11
Electronic Throttle Control Warning Light .........21
Electronic Vehicle Information Center (EVIC) ......48
Engine ................................ .102
Air Cleaner .......................... .106
Block Heater ...........................61
Break-In Recommendations ..................8
Compartment ......................... .102
Coolant (Antifreeze) .....................120
Fuel Requirements ......................119
Identification ......................... .102Idling
................................59
Oil .......................... .104, 119, 120
Oil Filler Cap ......................... .105
Oil Selection ...........................119
Filters Air Cleaner .......................... .106
Engine Fuel .......................... .107
Engine Oil ........................ .106, 120
Engine Oil Disposal .....................106
Flashers Turn Signal ............................44
Fluid Capacities ..........................119
Fluid Level Checks Brake ................................117
Fluids, Lubricants And Genuine Parts ...........120
Fuel ................................ .76, 82
Adding ...............................82
Diesel ......................... .76, 82, 120
8
INDEX 137

Filter............................ .107, 120
Requirements ....................... .76, 119
Specifications ...........................78
Tank Capacity ..........................119
Gear Ranges ..............................64
Gross Axle Weight Rating ....................89
Gross Vehicle Weight Rating ..................88
Hitches Trailer Towing ..........................91
Information Center, Vehicle ...................48
Instrument Cluster ..................14, 22, 24, 44
Intervention Regeneration Strategy .............110
Lights AirBag ...............................19
Brake Warning ..........................26 Cruise
............................ .46, 47
Engine Temperature Warning ................22
Malfunction Indicator (Check Engine) ..........37
Park .................................45
Seat Belt Reminder .......................18
Tire Pressure Monitoring (TPMS) .............32
Turn Signal ............................44
Warning (Instrument Cluster Description) . . . .22, 44
Maintenance Procedures ....................103
Maintenance Schedule ..................... .126
Malfunction Indicator Light (Check Engine) .......37
New Vehicle Break-In Period ...................8
Oil, Engine ......................... .104, 120
Capacity ..............................119
Change Interval ....................... .105
Dipstick ............................. .104
138 INDEX
