Ram ProMaster City 2015 Owner's Manual

position and the lights are always on. Leave the lens in
the center position, and the light is turned on and off
when the doors are opened or closed.Cargo Compartment Light — If Equipped
The cargo compartment light comes on automatically
when the swing doors are opened and turns off when the
doors are closed.
Rear Cargo Light
Cargo Compartment Light
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139

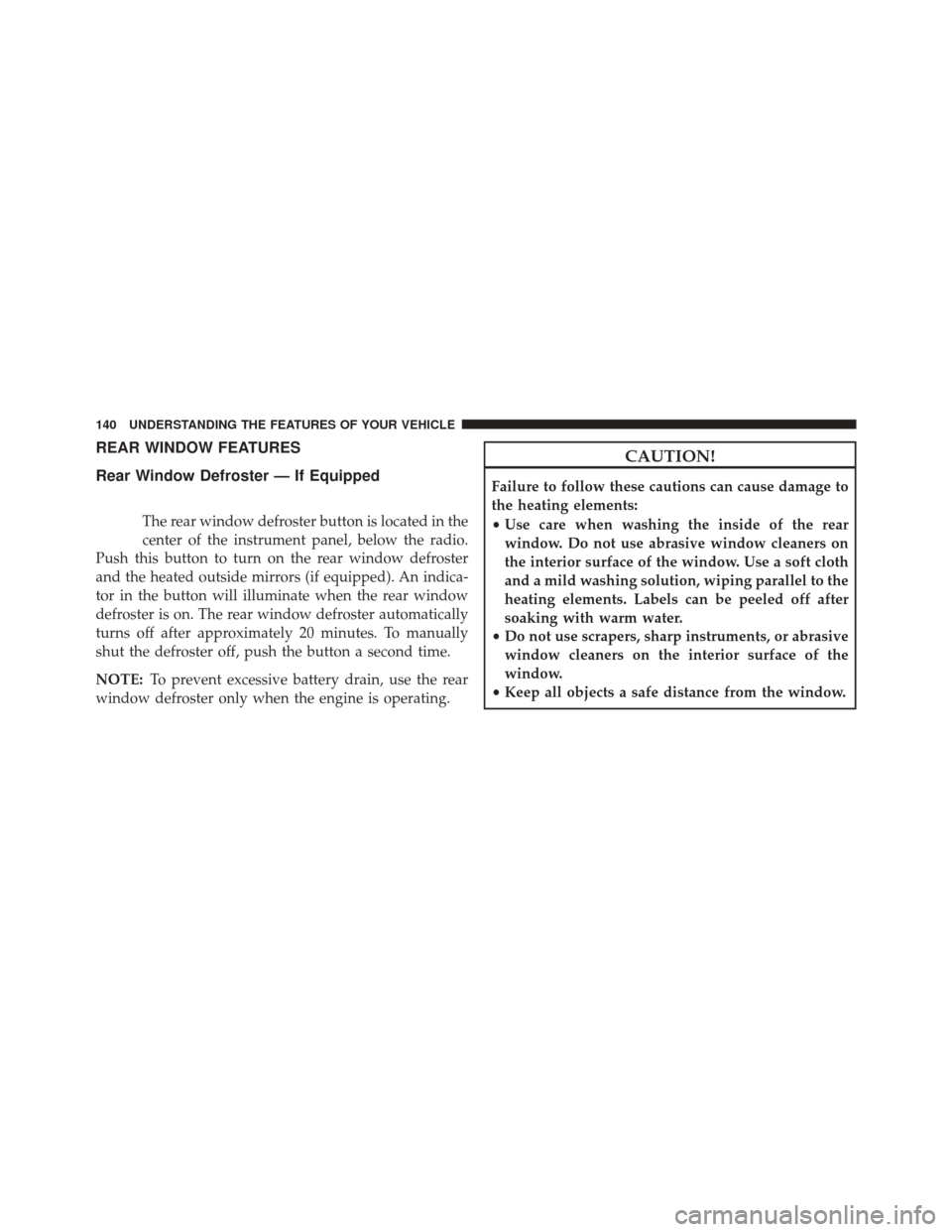

REAR WINDOW FEATURES
Rear Window Defroster — If Equipped
The rear window defroster button is located in the
center of the instrument panel, below the radio.
Push this button to turn on the rear window defroster
and the heated outside mirrors (if equipped). An indica-
tor in the button will illuminate when the rear window
defroster is on. The rear window defroster automatically
turns off after approximately 20 minutes. To manually
shut the defroster off, push the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

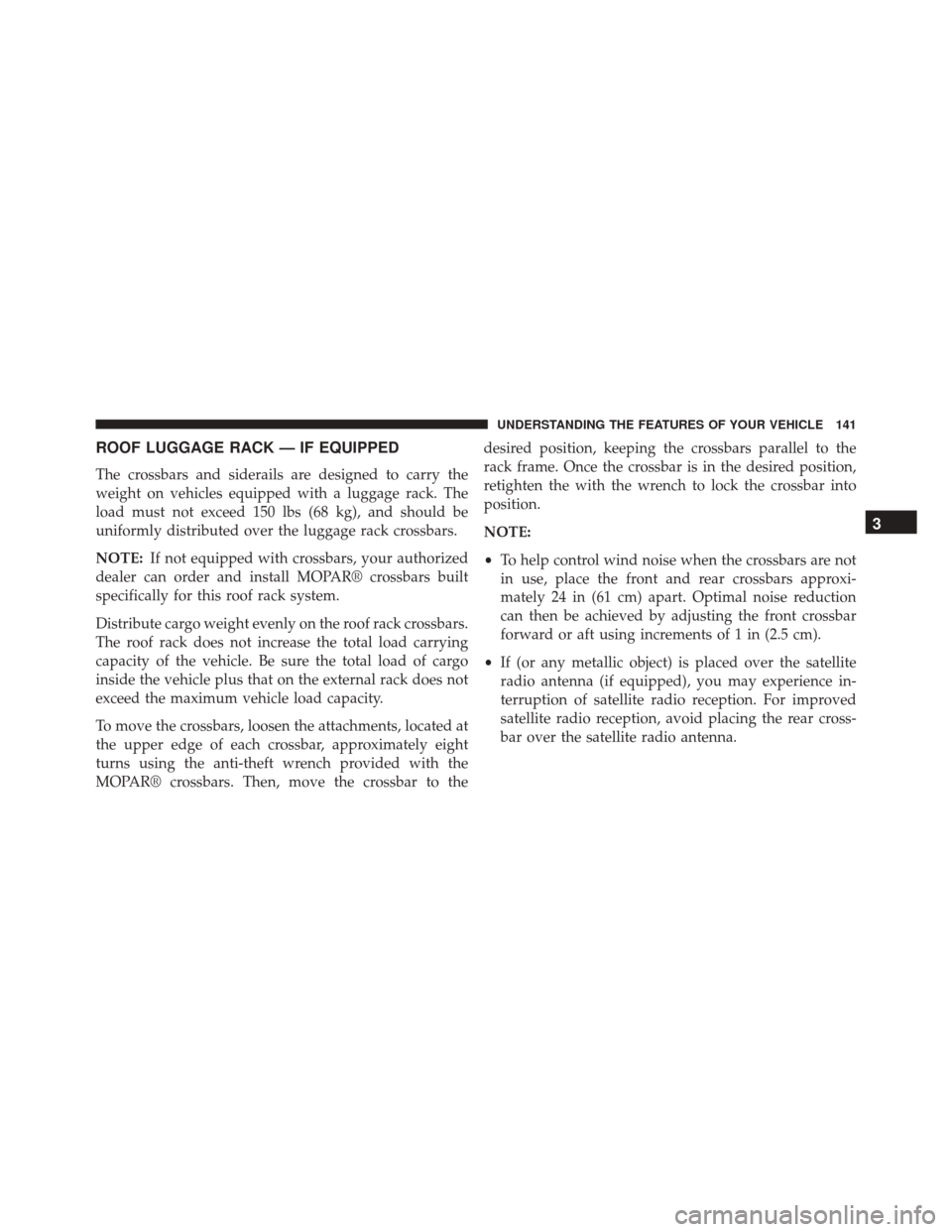

ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 150 lbs (68 kg), and should be
uniformly distributed over the luggage rack crossbars.
NOTE:If not equipped with crossbars, your authorized
dealer can order and install MOPAR® crossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
To move the crossbars, loosen the attachments, located at
the upper edge of each crossbar, approximately eight
turns using the anti-theft wrench provided with the
MOPAR® crossbars. Then, move the crossbar to the desired position, keeping the crossbars parallel to the
rack frame. Once the crossbar is in the desired position,
retighten the with the wrench to lock the crossbar into
position.
NOTE:
•
To help control wind noise when the crossbars are not
in use, place the front and rear crossbars approxi-
mately 24 in (61 cm) apart. Optimal noise reduction
can then be achieved by adjusting the front crossbar
forward or aft using increments of 1 in (2.5 cm).
• If (or any metallic object) is placed over the satellite
radio antenna (if equipped), you may experience in-
terruption of satellite radio reception. For improved
satellite radio reception, avoid placing the rear cross-
bar over the satellite radio antenna.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

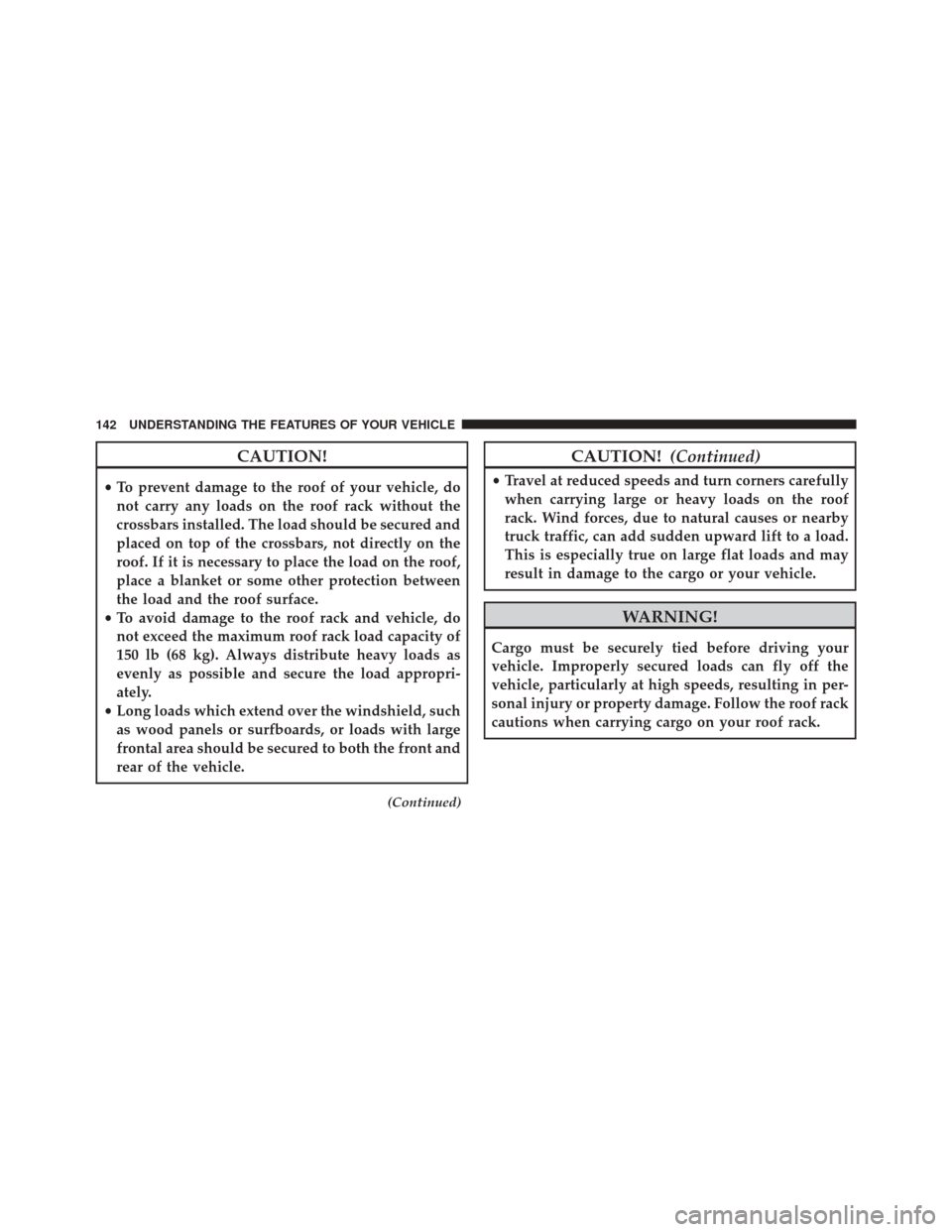

CAUTION!
•To prevent damage to the roof of your vehicle, do
not carry any loads on the roof rack without the
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between
the load and the roof surface.
• To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropri-
ately.
• Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
(Continued)
CAUTION! (Continued)
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

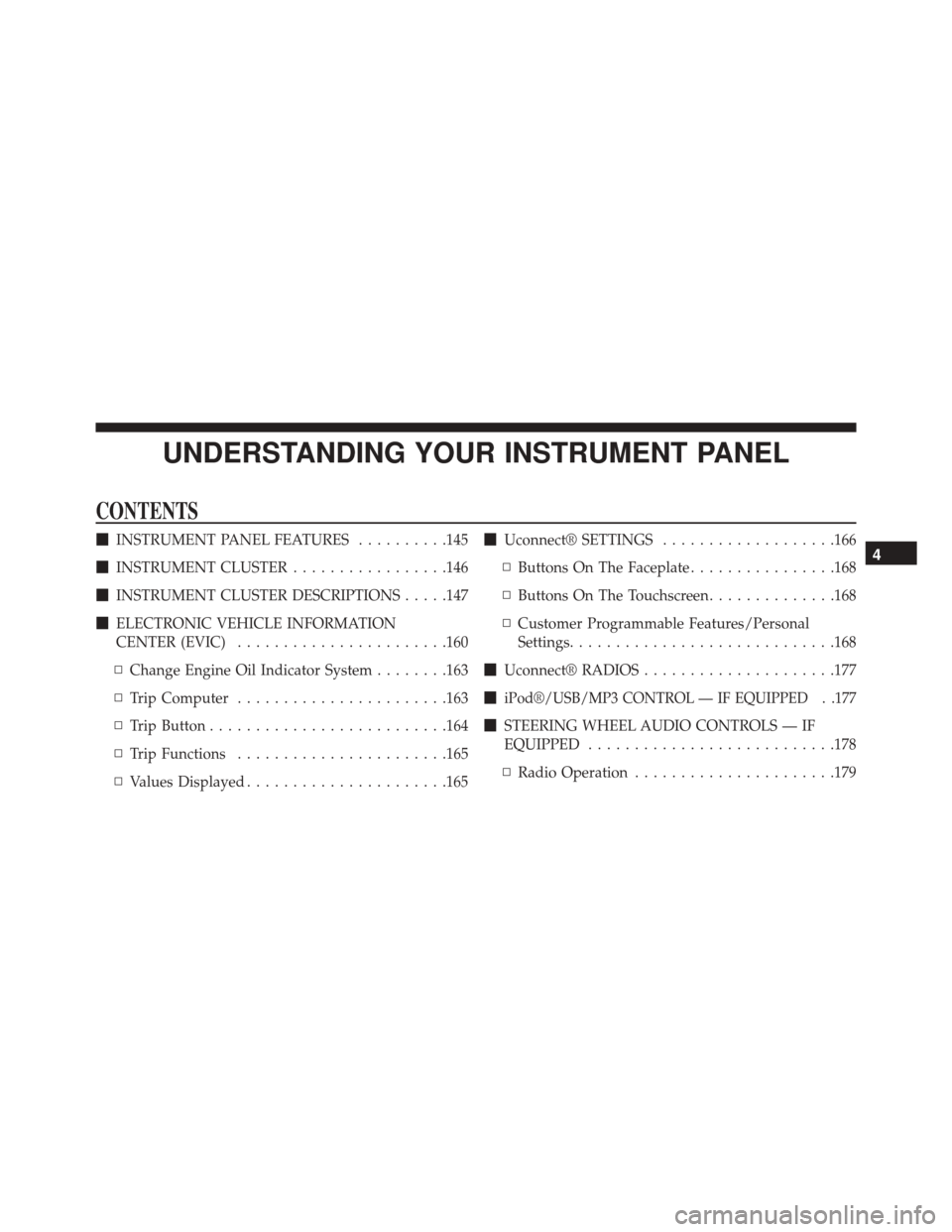

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........145
 INSTRUMENT CLUSTER .................146
 INSTRUMENT CLUSTER DESCRIPTIONS .....147
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................... .160
▫ Change Engine Oil Indicator System ........163
▫ Trip Computer ...................... .163
▫ Trip Button ......................... .164
▫ Trip Functions ...................... .165
▫ Values Displayed ..................... .165
Uconnect® SETTINGS ...................166
▫ Buttons On The Faceplate ................168
▫ Buttons On The Touchscreen ..............168
▫ Customer Programmable Features/Personal
Settings ............................ .168
 Uconnect® RADIOS .....................177

iPod®/USB/MP3 CONTROL — IF EQUIPPED . .177
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .178
▫ Radio Operation ..................... .179
4

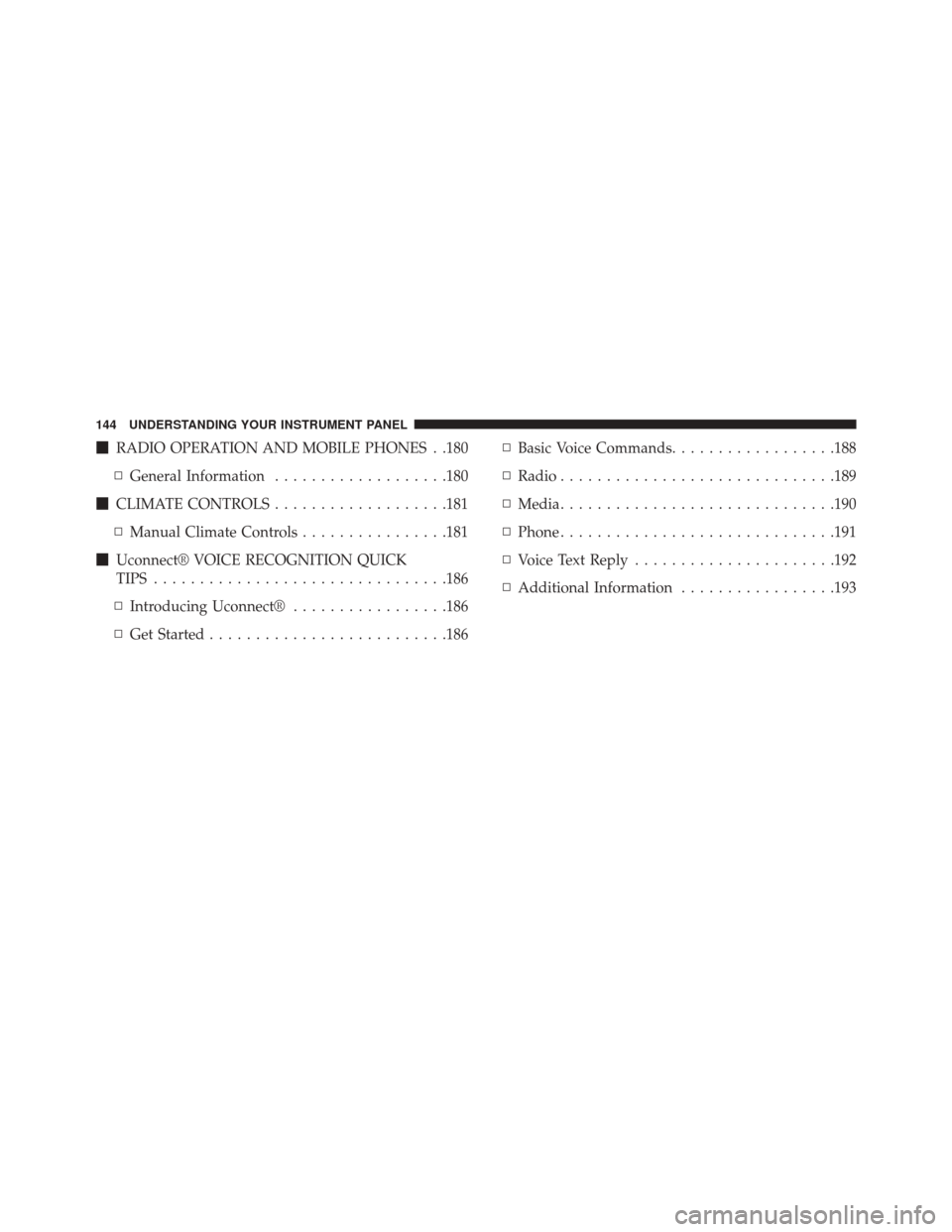

RADIO OPERATION AND MOBILE PHONES . .180
▫ General Information ...................180
 CLIMATE CONTROLS ...................181
▫ Manual Climate Controls ................181
 Uconnect® VOICE RECOGNITION QUICK
TIPS ............................... .186
▫ Introducing Uconnect® .................186
▫ Get Started ......................... .186▫
Basic Voice Commands ..................188
▫ Radio ............................. .189
▫ Media ............................. .190
▫ Phone ............................. .191
▫ Voice Text Reply ..................... .192
▫ Additional Information .................193
144 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Upper Dash Storage 13 — Climate Controls
2 — Multifunction Lever (External Lights 8 — Radio14 — USB Charger/AUX
3 — Instrument Cluster 9 — Passenger Air Bag15 — Driver Air Bag
4— Horn 10 — Lower Dash Storage 16 — Uconnect® Phone Buttons
5— Electronic Speed Control Switches 11 — Glove compartment 17 — Shift Lever
6— Multifunction Lever (Front/Rear Wiper, Trip Computer) 12 — Switch Bank
4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

INSTRUMENT CLUSTER
146 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Speedometer
The speedometer shows the vehicle speed in miles per
hour (MPH) and/or kilometers per hour (km/h).
2. Low Fuel Light
The Low Fuel Light will come on when approximately
2–6 gal (9–11 L) remains in the tank, the light will stay on
and a single chime will sound until fuel is added.
3. Fuel Gauge
When the ignition switch is in the ON/RUN position, the
pointer will show the level of fuel remaining in the fuel
tank.
4. Fuel Door Location ReminderThe fuel pump symbol points to the side of the
vehicle where the fuel door is located. 5. Turn Signal Indicators
The arrow will flash with the exterior turn
signal when the turn signal lever is operated.
NOTE: •A continuous chime will sound if the vehicle is
driven more than 1 mile (1.6 km) with either turn
signal on.
• Check for an inoperative outside light bulb if either
indicator remains on and does not flash, or flashes at
a rapid rate.
6. Park/Headlight ON Indicator — If Equipped
This indicator will illuminate when the park
lights or headlights are turned on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 147

7. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H” and you hear continuous chimes,
CAUTION!(Continued)
turn the engine off immediately and call an autho-
rized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle.” Follow the warnings under the “Cooling
System Pressure Cap” paragraph.
148 UNDERSTANDING YOUR INSTRUMENT PANEL
