Ram ProMaster City 2017 Owner's Manual

UCONNECT VOICE RECOGNITION QUICK TIPS —
IF EQUIPPED
Introducing Uconnect
Start using Uconnect Voice Recognition with these helpful
quick tips. It provides the key Voice Commands and tips
you need to know to control your Uconnect 5.0/5.0 NAV
system.
Key Features:
•5.0” Full Color Touchscreen Display
• Bluetooth With Integrated Voice Control
• GPS Navigation (If Equipped)
Get Started
All you need to control your Uconnect system with your
voice are the buttons on your steering wheel.
1. Visit UconnectPhone.com to check mobile device and
feature compatibility and to find phone pairing instruc-
tions.
2. Reduce background noise. Wind and passenger conver- sations are examples of noise that may impact recogni-
tion.
Uconnect 5.0/5.0 NAV
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

3. Speak clearly at a normal pace and volume while facingstraight ahead. The microphone is positioned on the
rearview mirror and aimed at the driver.
4. Each time you give a Voice Command, you must first push either the VR or Phone button, wait until afterthe
beep, then say your Voice Command.
5. You can interrupt the help message or system prompts by pushing the VR or Phone button and saying a Voice
Command from current category.
Radio
Use your voice to quickly get to the AM, FM or SiriusXM
Satellite Radio stations you would like to hear. (Subscrip-
tion or included SiriusXM Satellite Radio trial required.)
Push the VR button
. After the beep, say
Uconnect Voice Command
1 — Push to Mute
2 — Push To Begin Radio or Media functions.
3 — Push To Initiate Or To Answer A Phone Call, Send Or Receive
A Text
4 — Push To End Call
170 UNDERSTANDING YOUR INSTRUMENT PANEL

•Tune to ninety-five-point-five FM
• Tune to Satellite Channel Hits 1
TIP: At any time, if you are not sure of what to say or want
to learn a Voice Command, press the VR button
and say
“Help.” The system will provide you with a list of
commands.
Basic Voice Commands
The basic Voice Commands below can be given at any
point while using your Uconnect system. Push the VR button
. After the beep, say
•
Cancel to stop a current voice session
• Help to hear a list of suggested Voice Commands
• Repeat to listen to the system prompts again
Notice the visual cues that inform you of your voice
recognition system’s status. Cues appear on the touch-
screen.
Uconnect 5.0/5.0 NAV RadioUconnect 5.0/5.0 NAV
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

Media
Uconnect offers connections via USB, Bluetooth and auxil-
iary ports (if equipped). Voice operation is only available
for connected USB and iPod devices.
Push the VR button
. After the beep, say one of the
following commands and follow the prompts to switch
your media source or choose an artist.
• Change source to Bluetooth
• Change source to AUX
• Change source to USB
• Play artist Beethoven; Play album Greatest Hits; Play
song Moonlight Sonata; Play genreClassical
TIP: Press the Browse button on the touchscreen to see all
of the music on your iPod or USB device. Your Voice
Command must match exactlyhow the artist, album, song
and genre information is displayed.
Phone
Making and answering hands-free phone calls is easy with
Uconnect. When the Phonebook button is illuminated on
your touchscreen, your system is ready. Check
UconnectPhone.com for mobile phone compatibility and
pairing instructions.
Push the Phone button
. After the beep, say one of the
following commands
• Call John Smith
• Dial 123-456-7890 and follow the system prompts
Uconnect 5.0/5.0 NAV Media
172 UNDERSTANDING YOUR INSTRUMENT PANEL

•Redial (call previous outgoing phone number)
• Call back (call previous incoming phone number)
TIP: When providing a Voice Command, push the Phone
button
and say “Call,”then pronounce the name
exactly as it appears in your phone book. When a
contact has multiple phone numbers, you can say “Call
John Smith work.” Voice Text Reply
Uconnect will announce
incomingtext messages. Push the
Phone button
and say Listen.(Must have compatible
mobile phone paired to Uconnect system.)
1. Once an incoming text message is read to you, push the
Phone button
. After the beep, say: “Reply”.
2. Listen to the Uconnect prompts. After the beep, repeat
one of the pre-defined messages and follow the system
prompts.
PRE-DEFINED VOICE TEXT REPLY RESPONSES
Yes. Stuck in Traffic. See you later.
No. Start without
me. I’ll be Late.
Okay. Where are you? I will be
minutes late.
Call me. Are you there
yet?
I’ll call you later. I need
directions. See you in
of minutes.
I’m on my way. Can’t talk right
now.
I’m lost. Thanks.
Uconnect 5.0/5.0 NAV Phone
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

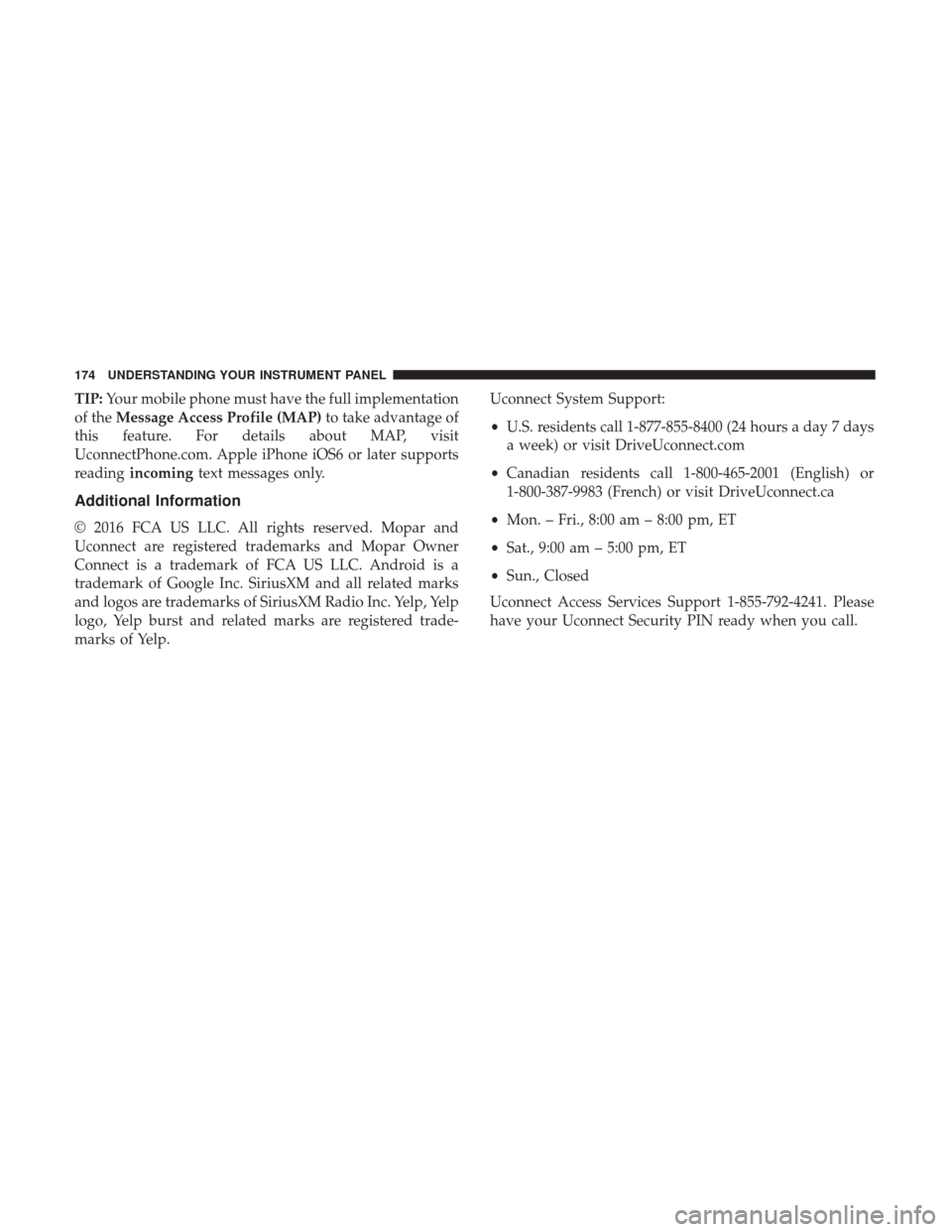

TIP:Your mobile phone must have the full implementation
of the Message Access Profile (MAP) to take advantage of
this feature. For details about MAP, visit
UconnectPhone.com. Apple iPhone iOS6 or later supports
reading incoming text messages only.
Additional Information
© 2016 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. Android is a
trademark of Google Inc. SiriusXM and all related marks
and logos are trademarks of SiriusXM Radio Inc. Yelp, Yelp
logo, Yelp burst and related marks are registered trade-
marks of Yelp. Uconnect System Support:
•
U.S. residents call 1-877-855-8400 (24 hours a day 7 days
a week) or visit DriveUconnect.com
• Canadian residents call 1-800-465-2001 (English) or
1-800-387-9983 (French) or visit DriveUconnect.ca
• Mon. – Fri., 8:00 am – 8:00 pm, ET
• Sat., 9:00 am – 5:00 pm, ET
• Sun., Closed
Uconnect Access Services Support 1-855-792-4241. Please
have your Uconnect Security PIN ready when you call.
174 UNDERSTANDING YOUR INSTRUMENT PANEL

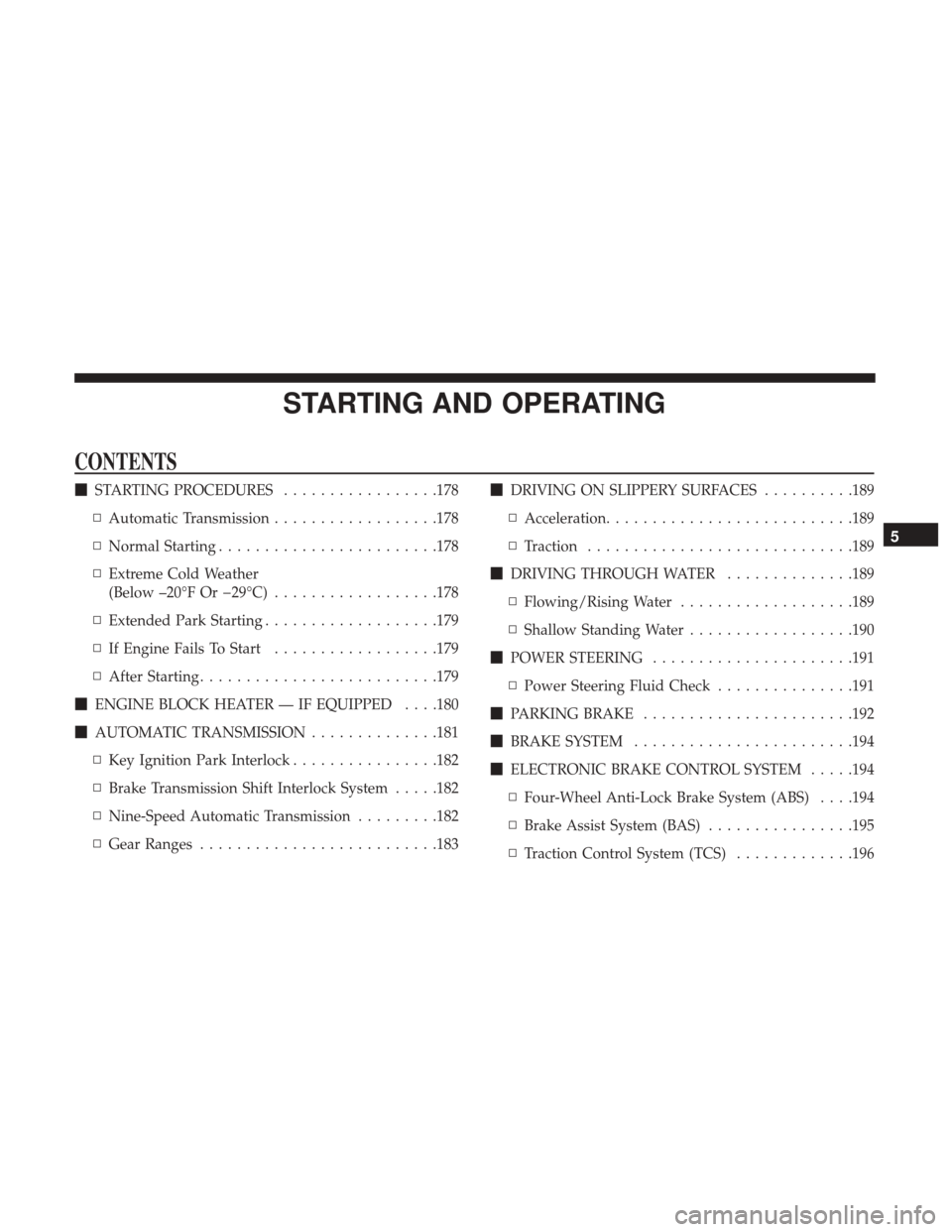

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES .................178
▫ Automatic Transmission ..................178
▫ Normal Starting ....................... .178
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ..................178
▫ Extended Park Starting ...................179
▫ If Engine Fails To Start ..................179
▫ After Starting ......................... .179
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .180
 AUTOMATIC TRANSMISSION ..............181
▫ Key Ignition Park Interlock ................182
▫ Brake Transmission Shift Interlock System .....182
▫ Nine-Speed Automatic Transmission .........182
▫ Gear Ranges ......................... .183
DRIVING ON SLIPPERY SURFACES ..........189
▫ Acceleration .......................... .189
▫ Traction ............................ .189
 DRIVING THROUGH WATER ..............189
▫ Flowing/Rising Water ...................189
▫ Shallow Standing Water ..................190
 POWER STEERING ..................... .191
▫ Power Steering Fluid Check ...............191
 PARKING BRAKE ...................... .192
 BRAKE SYSTEM ....................... .194
 ELECTRONIC BRAKE CONTROL SYSTEM .....194
▫ Four-Wheel Anti-Lock Brake System (ABS) . . . .194
▫ Brake Assist System (BAS) ................195
▫ T

raction Control System (TCS) .............196
5

▫Hill Start Assist (HSA) ...................196
▫ Electronic Stability Control (ESC) ...........197
▫ ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light ..............198
▫ Electronic Roll Mitigation (ERM) ...........199
 TIRE SAFETY INFORMATION ..............200
▫ Tire Markings ........................ .200
▫ Tire Identification Number (TIN) ............204
▫ Tire Terminology And Definitions ...........205
▫ Tire Loading And Tire Pressure ............206
 TIRES — GENERAL INFORMATION .........209
▫ Tire Pressure ......................... .209
▫ Tire Inflation Pressures ..................211
▫ Tire Pressures For High Speed Operation ......211
▫ Radial Ply Tires ....................... .212
▫ Tire Types ........................... .212▫
Run Flat Tires — If Equipped ..............214
▫ Spare Tires — If Equipped ................214
▫ Tire Spinning ........................ .216
▫ Tread Wear Indicators ...................217
▫ Life Of Tire .......................... .218
▫ Replacement Tires ..................... .218
 TIRE CHAINS (TRACTION DEVICES) .........219
 TIRE ROTATION RECOMMENDATIONS ......220
 DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES ..........220
▫ Treadwear ........................... .221
▫ Traction Grades ....................... .221
▫ T

emperature Grades .....................221
 TIRE PRESSURE MONITORING SYSTEM
(TPMS) .............................. .222
▫ System Operation ...................... .223
▫ General Information ....................225
176 STARTING AND OPERATING

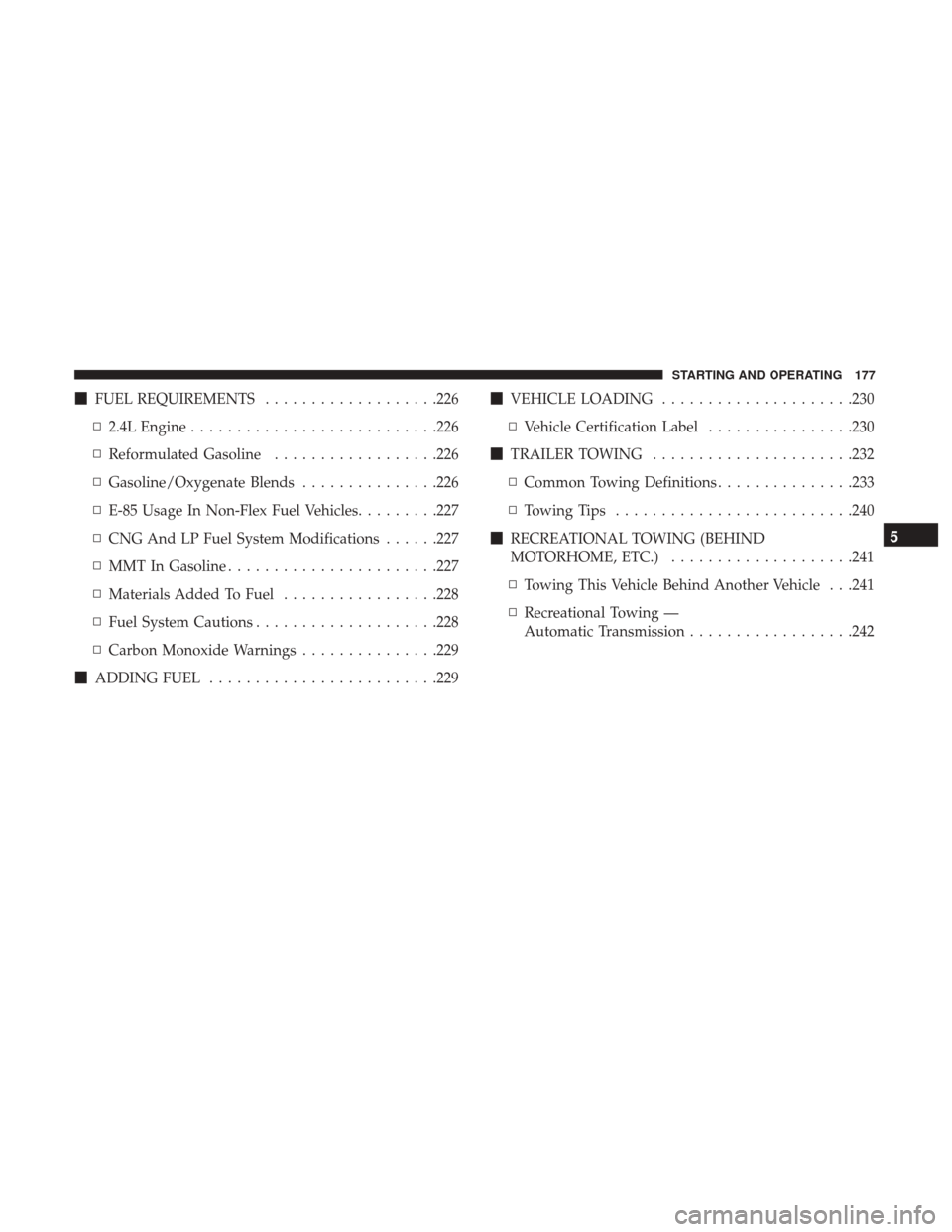

FUEL REQUIREMENTS ...................226
▫ 2.4L Engine .......................... .226
▫ Reformulated Gasoline ..................226
▫ Gasoline/Oxygenate Blends ...............226
▫ E-85 Usage In Non-Flex Fuel Vehicles .........227
▫ CNG And LP Fuel System Modifications ......227
▫ MMT In Gasoline ...................... .227
▫ Materials Added To Fuel .................228
▫ Fuel System Cautions ....................228
▫ Carbon Monoxide Warnings ...............229
 ADDING FUEL ........................ .229
VEHICLE LOADING .....................230
▫ Vehicle Certification Label ................230
 TRAILER TOWING ..................... .232
▫ Common Towing Definitions ...............233
▫ Towing Tips ......................... .240
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................241
▫ Towing This Vehicle Behind Another Vehicle . . .241
▫ Recreational Towing —
Automatic Transmission ..................242
5
STARTING AND OPERATING 177

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle (or in
a location accessible to children). A child could
operate power windows, other controls, or move the
vehicle.
Automatic Transmission
The gear selector must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
NOTE: You must press the brake pedal before shifting out
of PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Turn the ignition switch to the AVV/ACC (START) posi-
tion and release it when the engine starts. If the engine fails
to start within 10 seconds, turn the ignition switch to the
STOP (OFF/LOCK) position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
Extreme Cold Weather (Below –20°F Or 29°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
To prevent possible engine damage while starting at low
temperatures, this vehicle will inhibit engine cranking
when the ambient temperature is less than -31°F (-35° C)
and the oil temperature sensor reading indicates an engine
block heater has not been used. The message “plug in
engine heater” will be displayed in the instrument cluster
when the ambient temperature is below -25°F (-32° C) at
the time the engine is shut off as a reminder.
178 STARTING AND OPERATING
