Page 11 of 248

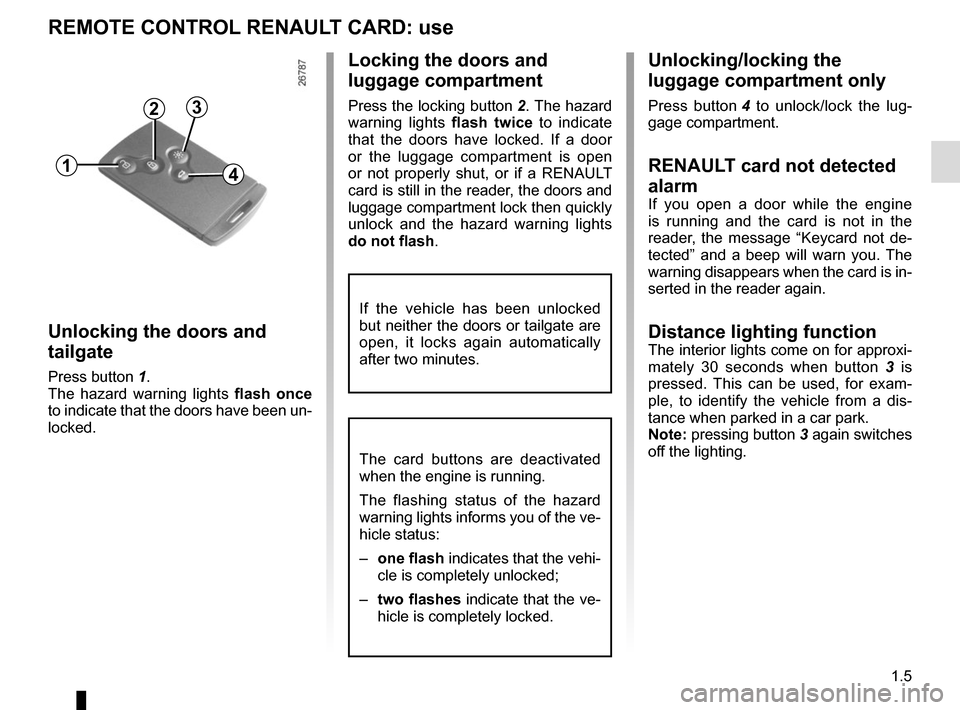

RENAULT CAPTUR 2017 1.G User Guide 1.5
Unlocking/locking the
luggage compartment only
Press button 4 to unlock/lock the lug-
gage compartment.
RENAULT card not detected
alarm
If you open a door while the engine
is running and the c

Page 12 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.6
HANDS-FREE RENAULT CARD: use (1/4)
1
2
43
Unlocking the vehicle
With the RENAULT card in zone 1 and
the vehicle locked, press button  3 on
handle  2 on one of the two front doors:
the vehicle w

Page 13 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.7
HANDS-FREE RENAULT CARD: use (2/4)
31
The hazard warning lights flash twice
and a beep sounds to indicate that the
doors have locked.
The beep may be switched off. Please
contact an authorised

Page 14 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.8
HANDS-FREE RENAULT CARD: use (3/4)
5
Locking using the RENAULT card
With the doors and luggage compart-
ment closed, press button 5: the vehi-
cle will lock.
The hazard warning lights  flash twice

Page 15 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.9
HANDS-FREE RENAULT CARD: use (4/4)
6
Special features
The vehicle will not lock if:
–  a door or the tailgate is open or not properly closed;
–  a card is still in zone  6 (or in the card
rea

Page 16 of 248

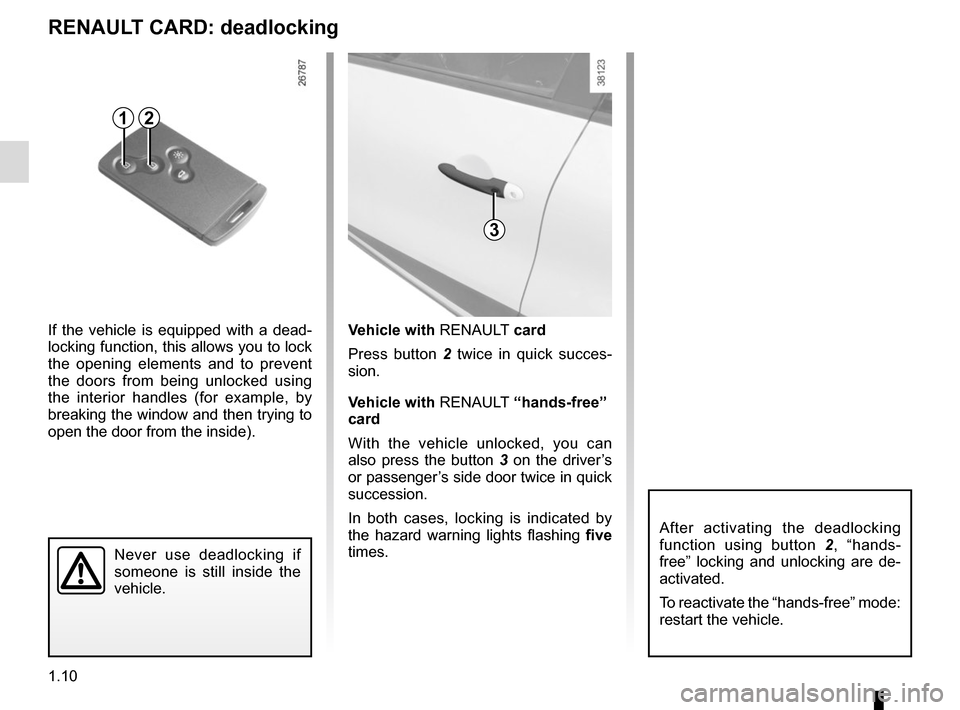

RENAULT CAPTUR 2017 1.G User Guide 1.10
Never use deadlocking if
someone is still inside the
vehicle.
Vehicle with RENAULT card
Press button 2  twice in quick succes-
sion.
Vehicle with  RENAULT “hands-free”
card
With the vehicl

Page 17 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.11
Opening from the inside
Pull handle 4.
Lights-on reminder buzzerIf you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Open

Page 18 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.12
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 5 on each door and check from
the inside that the doors are securely
locked.
OPENING AND CLOSING

Page 19 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.13
Locking the doors manually
Turn screw 2 with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be

Page 20 of 248

RENAULT CAPTUR 2017 1.G User Guide 1.14
LOCKING/UNLOCKING THE DOORS (2/2)
Door and tailgate status
indicator
With the ignition on, the warning light
integrated in switch  3 informs you of the
locking status of the opening elements:
