clock setting RENAULT CLIO 2000 X65 / 2.G Owners Manual

1
MH
3
2



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page39
1.31

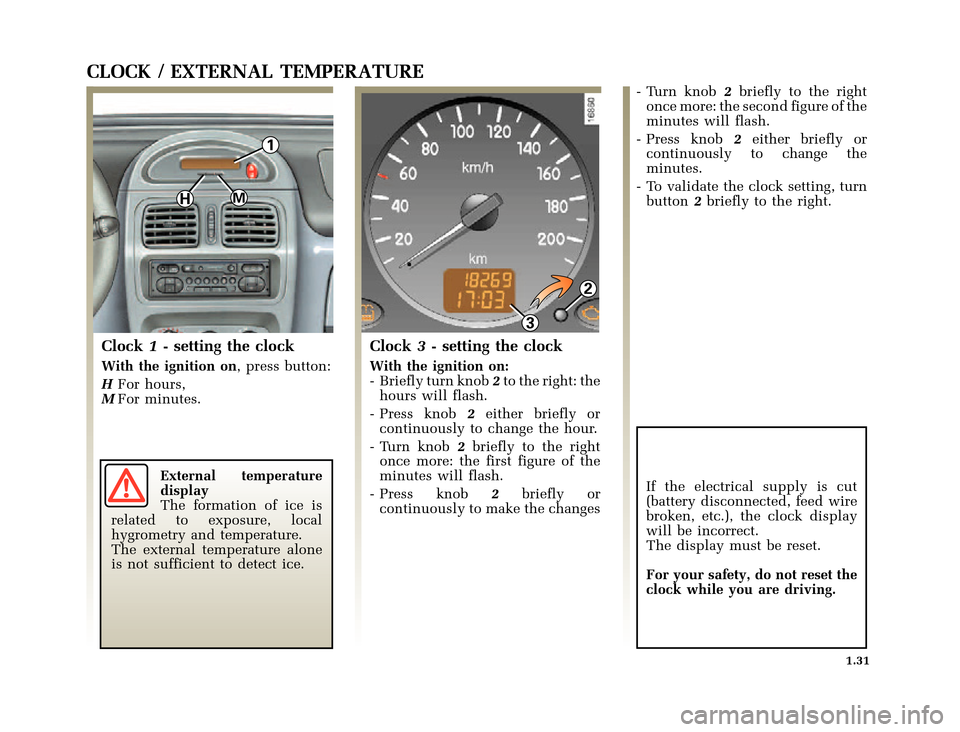

CLOCK / EXTERNAL TEMPERATURE
Clock1- setting the clock
With the ignition on, press button:
HFor hours,
MFor minutes.
External temperature
display
The formation of ice is
related to exposure, local
hygrometry and temperature.
The external temperature alone
is not sufficient to detect ice.
Clock3- setting the clock
With the ignition on:
- Briefly turn knob2to the right: the
hours will flash.
- Press knob2either briefly or
continuously to change the hour.
- Turn knob2brieflytotheright
once more: the first figure of the
minutes will flash.
- Press knob2briefly or
continuously to make the changes- Turn knob2briefly to the right
once more: the second figure of the
minutes will flash.
- Press knob2either briefly or
continuously to change the
minutes.
- To validate the clock setting, turn
button2briefly to the right.
If the electrical supply is cut
(battery disconnected, feed wire
broken, etc.), the clock display
will be incorrect.
The display must be reset.
For your safety, do not reset the
clock while you are driving.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page49
1.41
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
8Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
- If it is permanently lit, consult
your Renault Dealer as soon
as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the “Special features of
petrol version” in section 2.
9Multifunction key
Resetting the trip milometer
Press the button.
Setting the clock
Refertotheinformationonthe
clock in section 1.9Display selection keyfor total
and trip mileage
10Multifunction display
Oil level display function
The vehicle must be parked on
level ground and the engine
shouldhavebeenswitchedoff
for some time to obtain an
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(To gain a more precise
indication of the level, press
the trip melometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares in the display
indicate the level. These
squares disappear as the oil
level drops and they are
replaced by dashes.
To move to milometer
reading, press the button
again).10Multifunction display
(continued)
-if the level is at its minimum,
theword“OK”willnot
appear on the display, the
dashes and the word “oil”
will flash.
It is vital to top up with oil as
soon as possible.
General mileage and trip
mileage counter and clock
Can be read approximately 30
seconds after the ignition is
switched on.
11Low headlight
wash/wipe fluid level
warning light
Fill up with fuel as soon as
soon as possible.
Battery charge warning
light
It should go out as soon
as the engine starts. If it
illuminates while you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.
