AUTOMATIC AIR CONDITIONING(continued)
OSwitching the air
conditioning on and off
In automatic mode, the system
switches the air conditioning
system on or off, depending on
external weather conditions.
The automatic mode is switched
off by pressing button11;the
indicator light in button1will go
out.Button11allows you to switch the
air conditioning system on or off.
N.B.:switching on the
demisting/de-icing function
(buttons5and6) automatically
switches on the air conditioning.
OAltering blower speed
In automatic mode, the system
uses the most suitable amount of
air to reach and maintain the
desired temperature.
Press button4or7to switch off
automatic mode.
The indicator light on button1
will go out.
These buttons increase or
decrease the amount of air blown
into the passenger compartment.
In cold weather, the automatic
air conditioning system will not
start immediately at maximum
power but will increase
gradually until the engine
temperature is warm enough to
heat the passenger compartment
air. This may take between 30
seconds and several minutes.
Page 122 of 210
6
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page20
3.20
AUTOMATIC AIR CONDITIONING(continued)

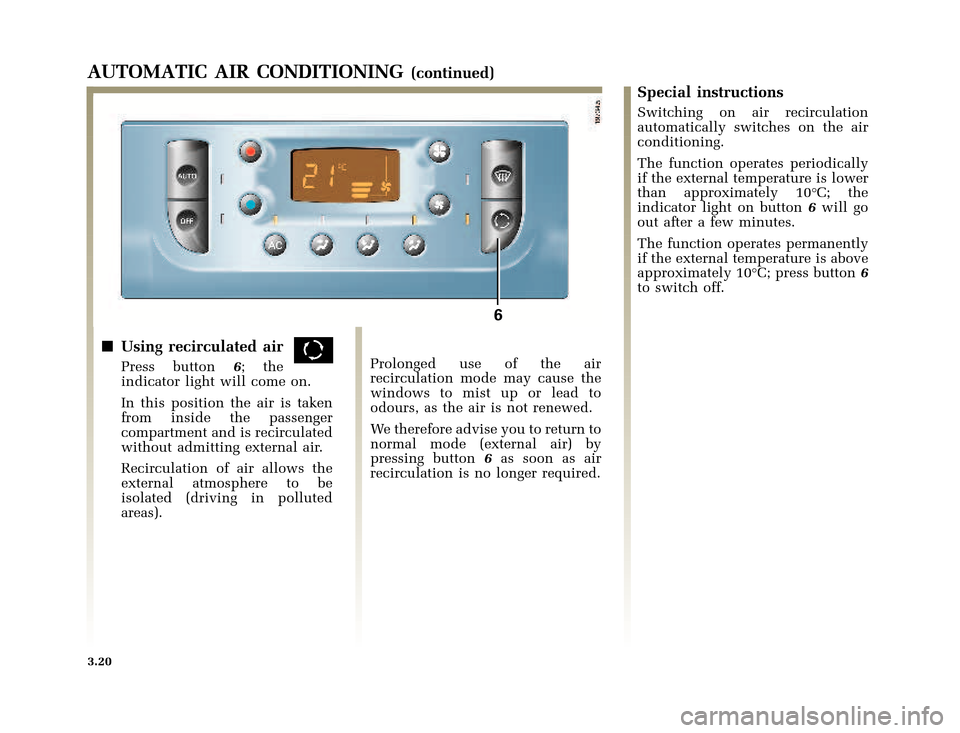

OUsing recirculated air
Press button6;the
indicator light will come on.
In this position the air is taken
from inside the passenger
compartment and is recirculated
without admitting external air.
Recirculation of air allows the
external atmosphere to be
isolated (driving in polluted
areas).Prolonged use of the air
recirculation mode may cause the
windows to mist up or lead to
odours, as the air is not renewed.
We therefore advise you to return to
normal mode (external air) by
pressing button6as soon as air
recirculation is no longer required.
Special instructions
Switching on air recirculation
automatically switches on the air
conditioning.
The function operates periodically
if the external temperature is lower
than approximately 10°C; the
indicator light on button6will go
out after a few minutes.
The function operates permanently
if the external temperature is above
approximately 10°C; press button6
to switch off.
Page 123 of 210
135
13
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page21
3.21
AUTOMATIC AIR CONDITIONING(continued)

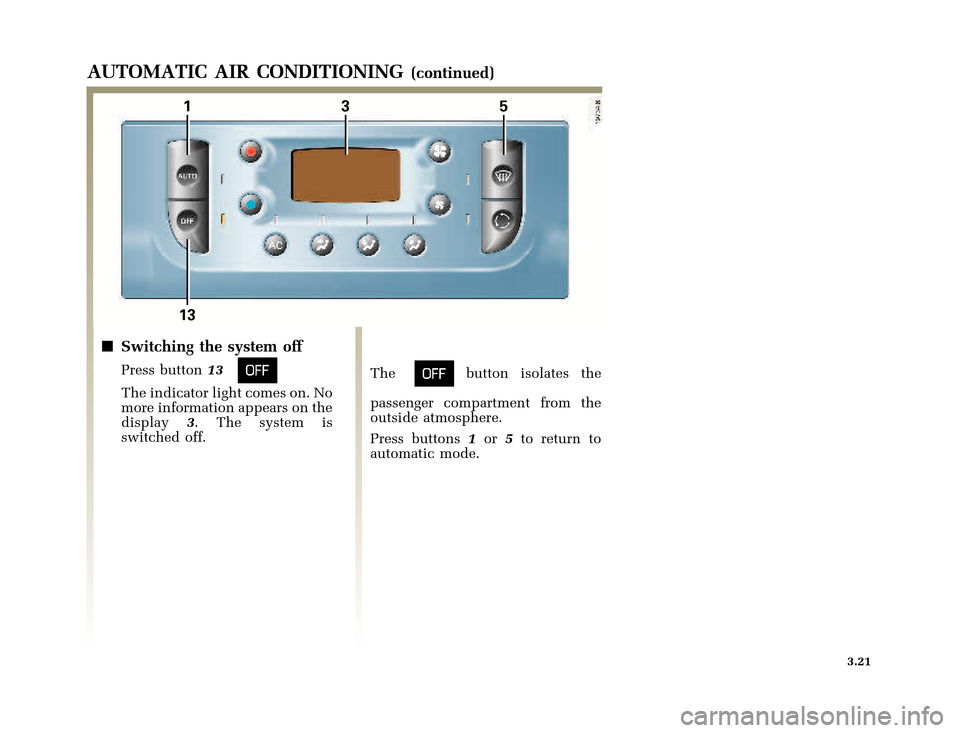

OSwitching the system off
Press button13
The indicator light comes on. No
more information appears on the
display3. The system is
switched off.The button isolates the
passenger compartment from the
outside atmosphere.
Press buttons1or5to return to
automatic mode.
Page 124 of 210
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page22
3.22

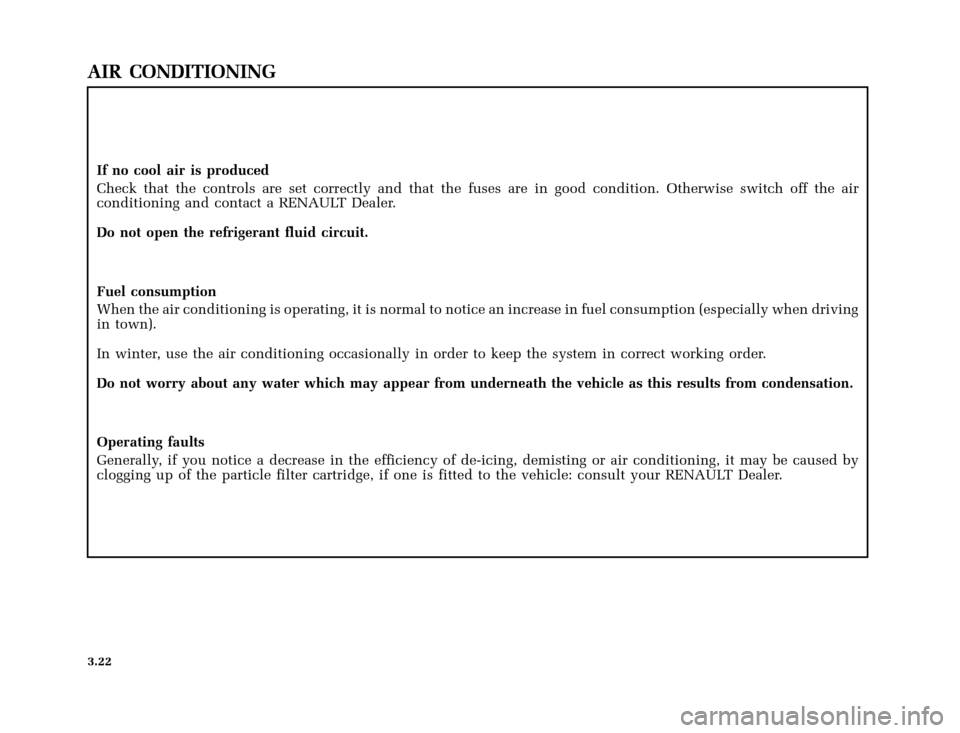

AIR CONDITIONING
If no cool air is produced
Check that the controls are set correctly and that the fuses are in good condition. Otherwise switch off the air
conditioning and contact a RENAULT Dealer.
Do not open the refrigerant fluid circuit.
Fuel consumption
When the air conditioning is operating, it is normal to notice an increase in fuel consumption (especially when driving
in town).
In winter, use the air conditioning occasionally in order to keep the system in correct working order.
Do not worry about any water which may appear from underneath the vehicle as this results from condensation.
Operating faults
Generally, if you notice a decrease in the efficiency of de-icing, demisting or air conditioning, it may be caused by
clogging up of the particle filter cartridge, if one is fitted to the vehicle: consult your RENAULT Dealer.
Page 125 of 210
13
2
A
B
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page23
3.23

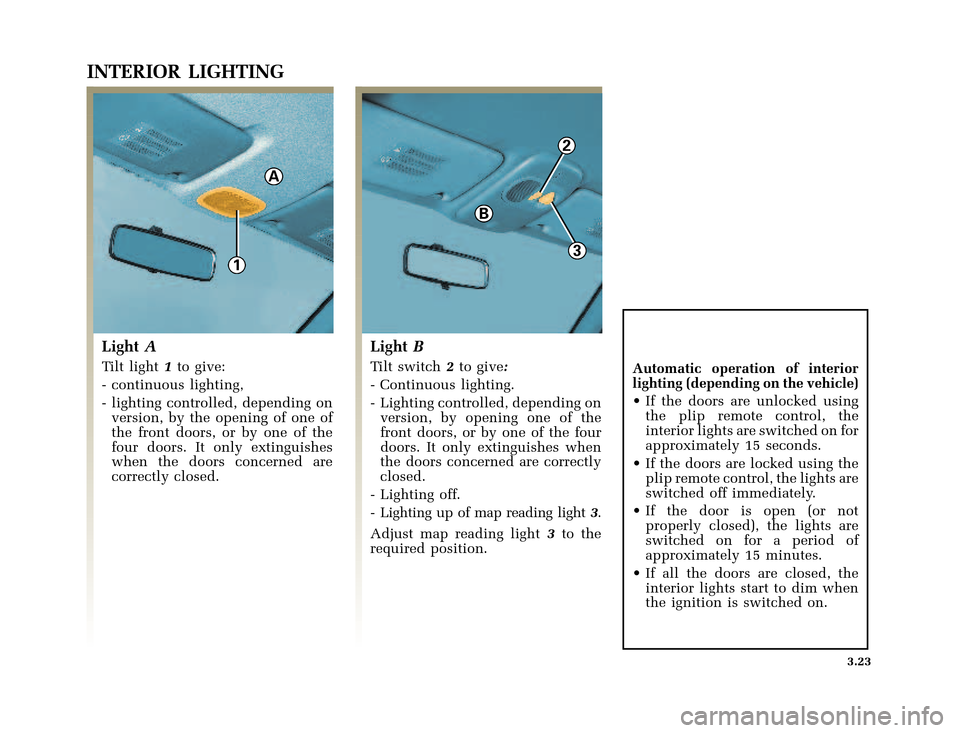

INTERIOR LIGHTING
LightA
Tilt light1to give:
- continuous lighting,
- lighting controlled, depending on
version, by the opening of one of
the front doors, or by one of the
four doors. It only extinguishes
when the doors concerned are
correctly closed.
LightB
Tilt switch2to give:
- Continuous lighting.
- Lighting controlled, depending on
version, by opening one of the
front doors, or by one of the four
doors. It only extinguishes when
the doors concerned are correctly
closed.
- Lighting off.
- Lighting up of map reading light3.
Adjust map reading light3to the
required position.Automatic operation of interior
lighting (depending on the vehicle)
•If the doors are unlocked using
the plip remote control, the
interior lights are switched on for
approximately 15 seconds.
• If the doors are locked using the
plip remote control, the lights are
switched off immediately.
• If the door is open (or not
properly closed), the lights are
switched on for a period of
approximately 15 minutes.
• If all the doors are closed, the
interior lights start to dim when
the ignition is switched on.
Page 126 of 210
4
5
6
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page24
3.24
INTERIOR LIGHTING(continued)

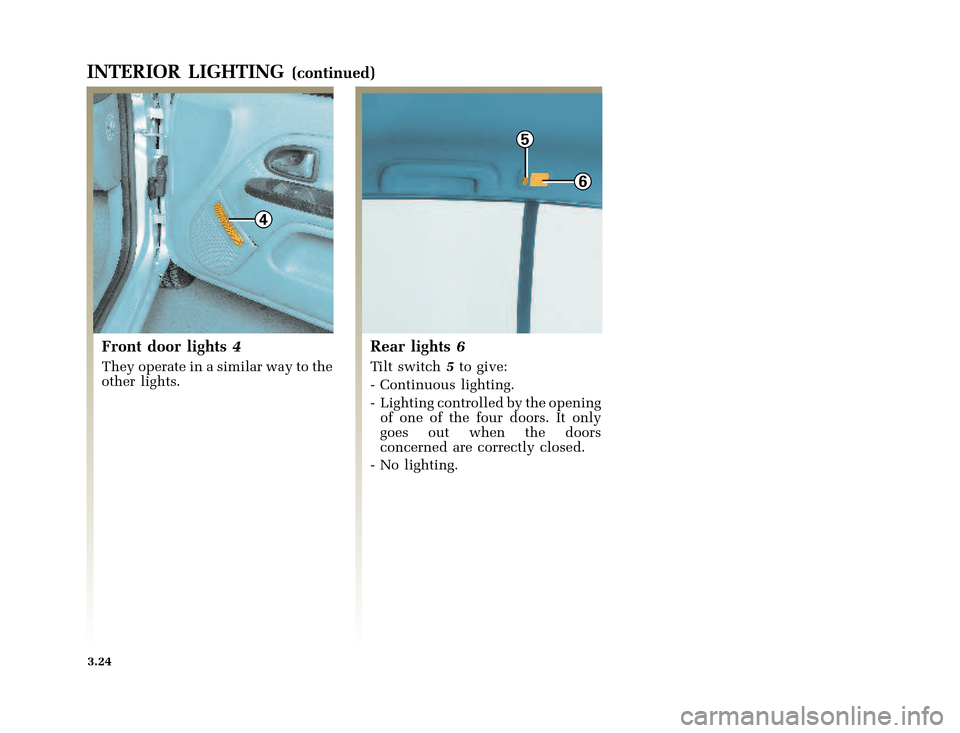

Front door lights4
They operate in a similar way to the
other lights.
Rear lights6
Tilt switch5to give:
- Continuous lighting.
- Lighting controlled by the opening
of one of the four doors. It only
goes out when the doors
concerned are correctly closed.
- No lighting.
Page 127 of 210
3
2
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page25
3.25
WINDOW RISERS
Front driver's side electric
window
With the ignition on or off and the
driver’s door closed:
Press switch1to open the window
or lift switch1to close it.
Front passenger's side electric
window
With the ignition on,press switch2
to open the window or lift switch2
to close it.Automatic operation
This is in addition to the driver’s
window operation described above.
When the engine is running,briefly
pressing switch1allows the
window to be fully closed or
opened.
Anyactiononswitch1during this
operation will stop the window
moving.
Manual window risers
Operate window winder3.
Child safety
Never leave the key in
the ignition when there
is a child in the car(or
an animal). It would be possible
to operate the electric windows
and there is a risk that the child
could trap a part of his/her body
in the window (neck, arm, hand,
etc.), causing serious injury.
Page 128 of 210
1
2
3
1
2
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page26
3.26
SUN VISOR WINDSCREEN

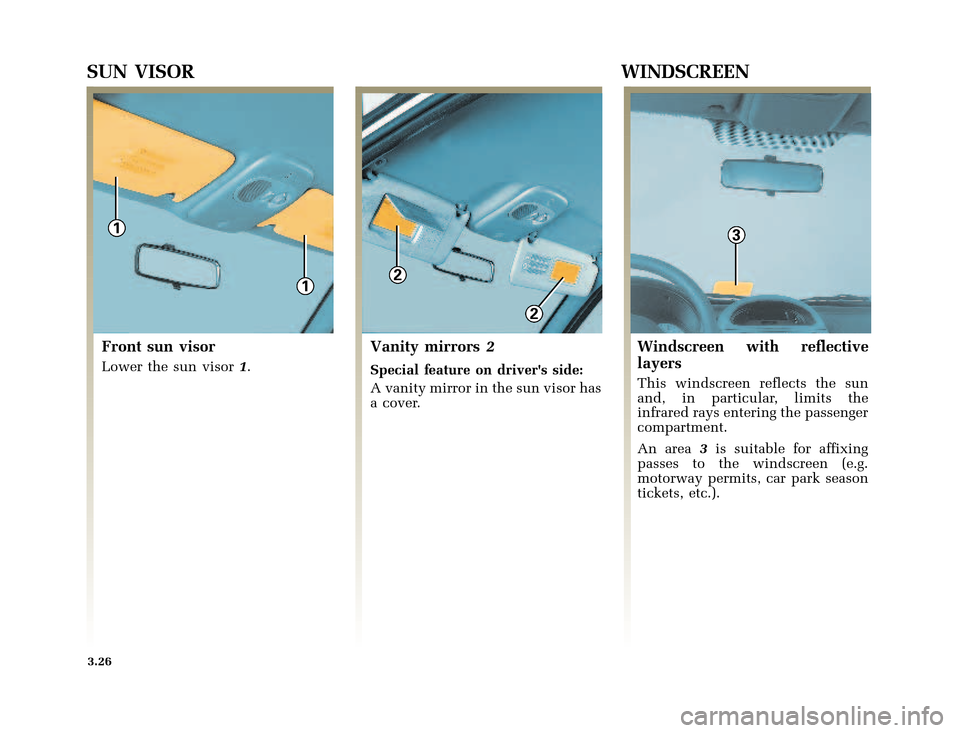

Front sun visor
Lower the sun visor1.
Vanity mirrors2
Special feature on driver's side:
A vanity mirror in the sun visor has
a cover.
Windscreen with reflective
layers
This windscreen reflects the sun
and, in particular, limits the
infrared rays entering the passenger
compartment.
An area3is suitable for affixing
passes to the windscreen (e.g.
motorway permits, car park season
tickets, etc.).
Page 129 of 210
2
1
43
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page27
3.27

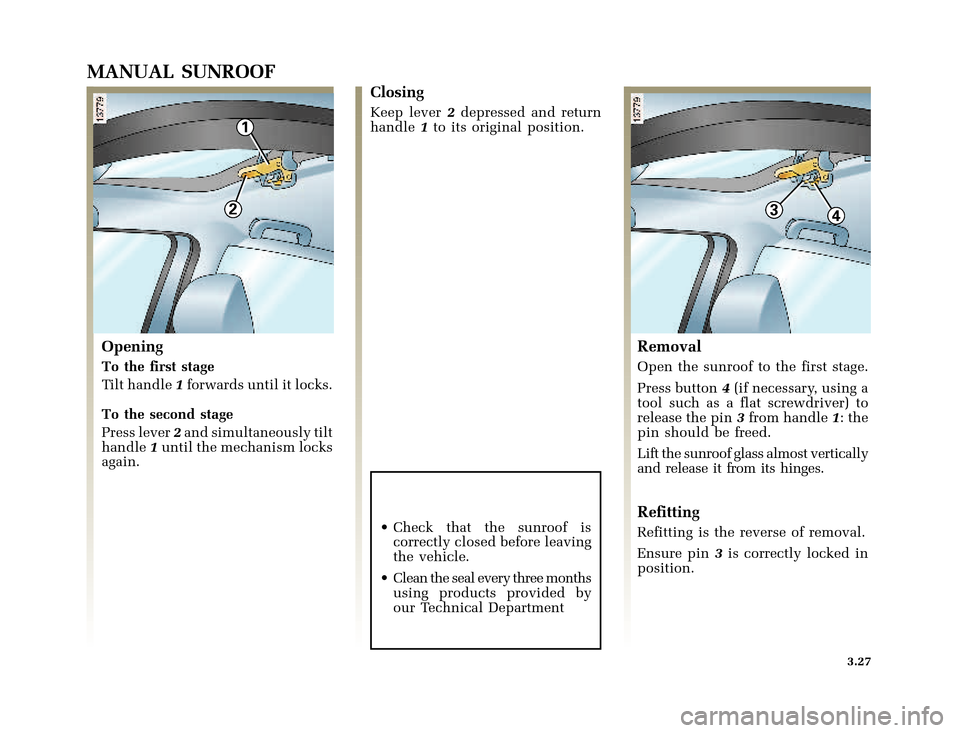

MANUAL SUNROOF
Opening
To the first stage
Tilt handle1forwards until it locks.
To the second stage
Press lever2and simultaneously tilt
handle1until the mechanism locks
again.
Closing
Keep lever2depressed and return
handle1to its original position.
• Check that the sunroof is
correctly closed before leaving
the vehicle.
• Clean the seal every three months
using products provided by
our Technical Department
Removal
Open the sunroof to the first stage.
Press button4(if necessary, using a
tool such as a flat screwdriver) to
release the pin3from handle1:the
pin should be freed.
Lift the sunroof glass almost vertically
and release it from its hinges.
Refitting
Refitting is the reverse of removal.
Ensure pin3is correctly locked in
position.
Page 130 of 210
1
Q X B I U D B * T [ G 3 D J H
nu654-6 - CLIO IIC:\Documentum\Checkout
u654-6_eng_T3.WIN 30/10/2002 12:12-page28
3.28
ELECTRIC SUNROOF
To tilt the sunroof
With the ignition on:
- Opening: tilt the switch1towards
the rear and keep it depressed
until the required tilt angle is
obtained.
- Closing: tilt the switch1towards
the front.To slide the sunroof
Tilted sunroof,
- Opening: tilt the switch1towards
the rear and keep it depressed
until the required tilt angle is
obtained.
- Closing: tilt the switch1towards
the front.
Child safety
Never leave the key in the
ignition when there is a
child in the car(or an
animal). It would be possible to
operate the sunroof and there is a
risk that the child could trap a part
of his/her body in the sunroof
(neck, arm, hand, etc.), causing
serious injury.
