Page 221 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.21

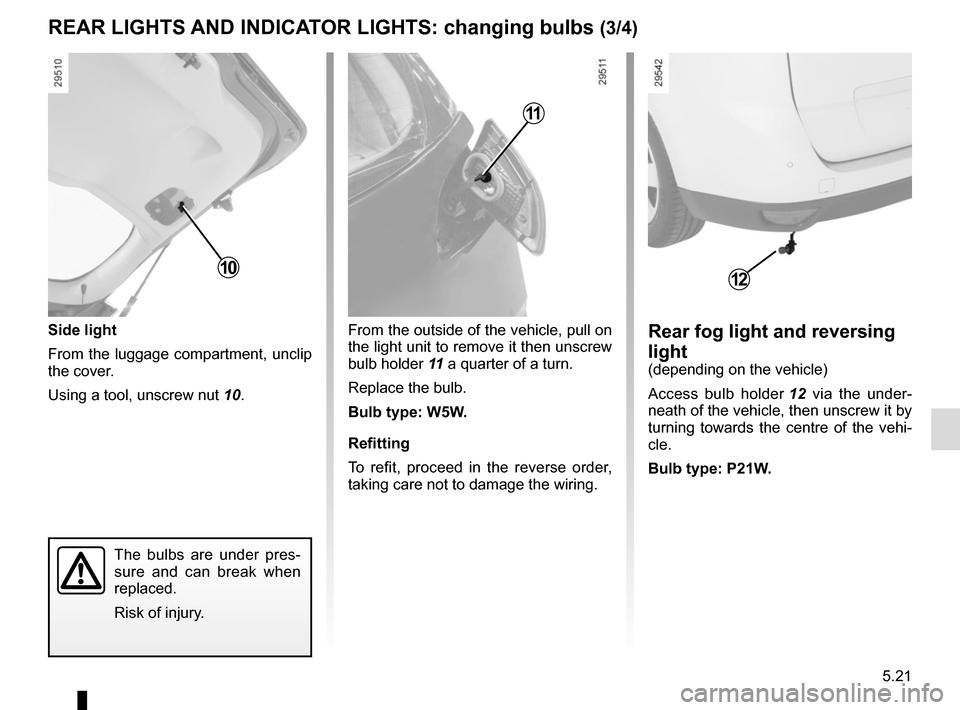

Rear fog light and reversing
light
(depending on the vehicle)
Access bulb holder 12 via the under-
neath of the vehicle, then unscrew it by
turning towards the centre of the vehi-
cle.
Bulb typ

Page 222 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.22

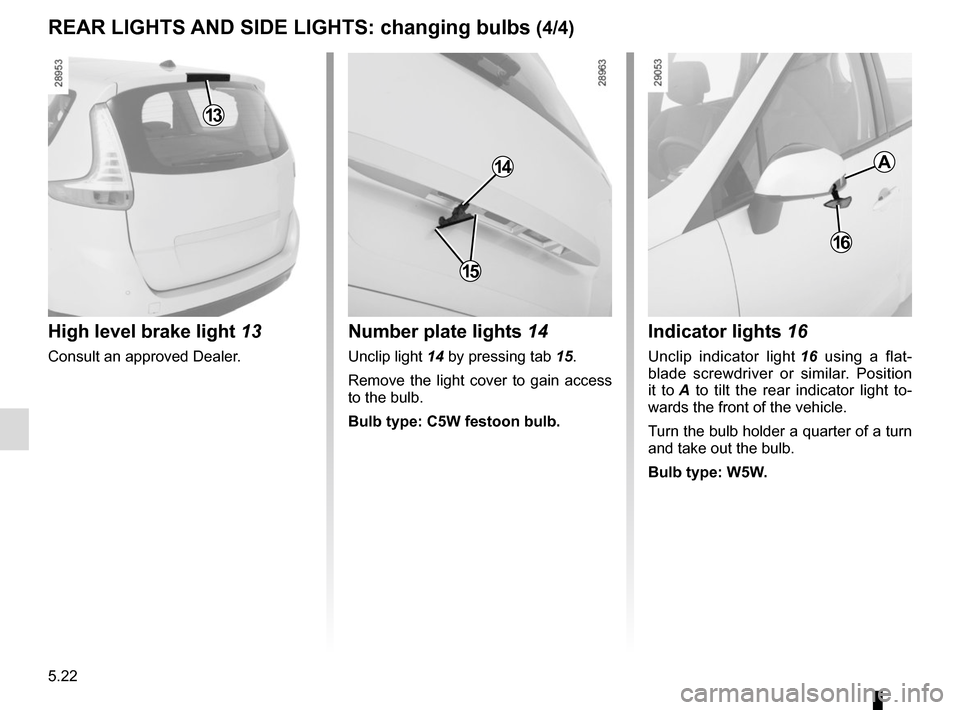

REAR LIGHTS AND SIDE LIGHTS: changing bulbs (4/4)Indicator lights  16
Unclip indicator light  16 using a flat-
blade screwdriver or similar. Position
it to  A to tilt the rear indicator light to

Page 223 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.23

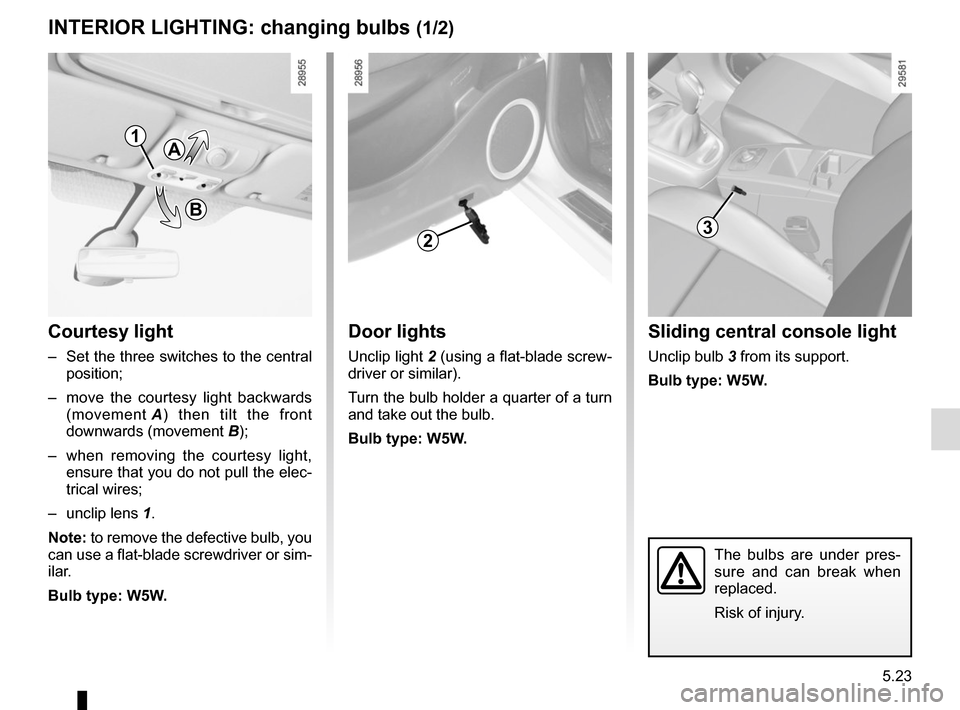

Door lights
Unclip light 2 (using a flat-blade screw-
driver or similar).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: W5W.
The bulbs are under pres-
sure and can b

Page 224 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.24
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

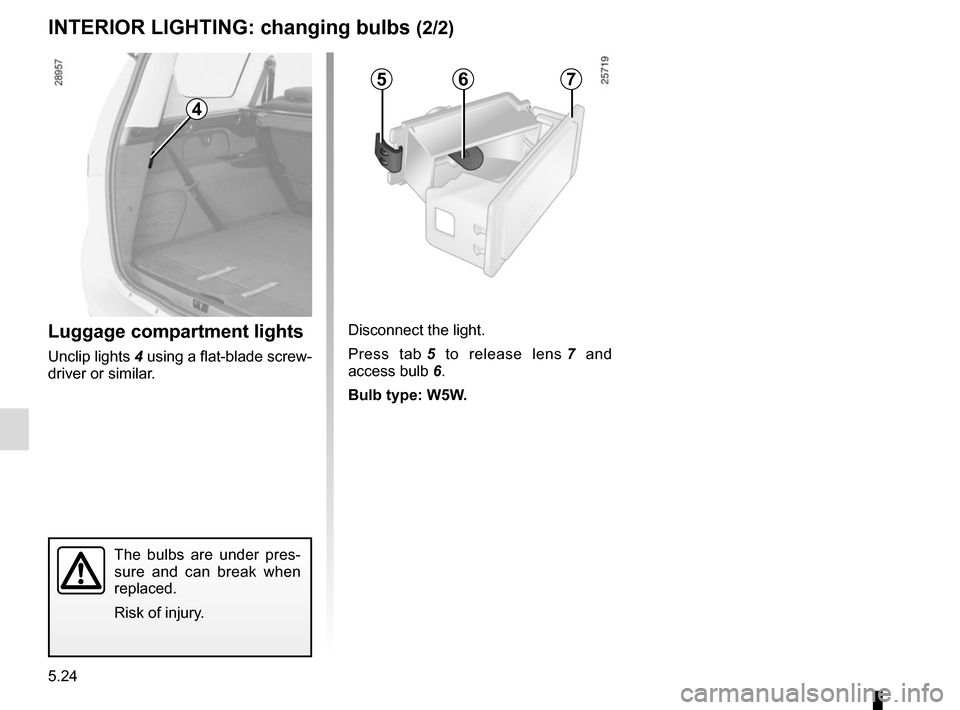

Luggage compartment lights
Unclip lights 4 using a flat-blade screw-
driver or similar. Disconnect the light.
Press ta

Page 225 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.25

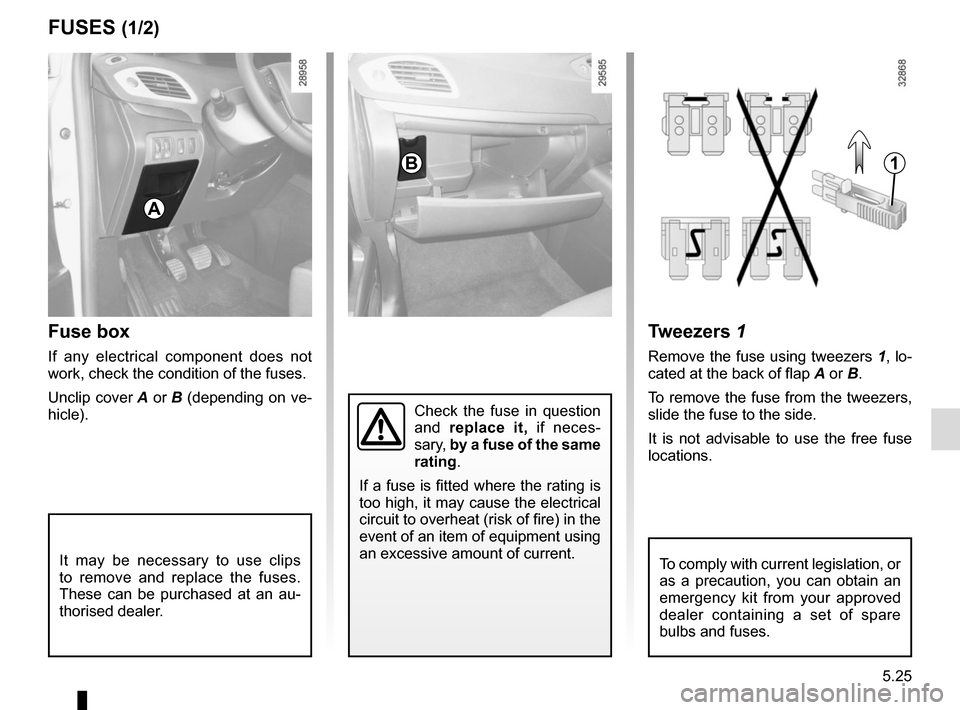

FUSES (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip cover  A or B (depending on ve-
hicle).
Tweezers 1
Remove the fuse using tweezers  1, lo-

Page 226 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.26
FUSES (2/2)
Some accessories are protected by
fuses located in the engine compart-
ment in fuse box C.
However, because of their reduced ac-
cessibility, we advise you to have your
fuses replac

Page 227 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.27

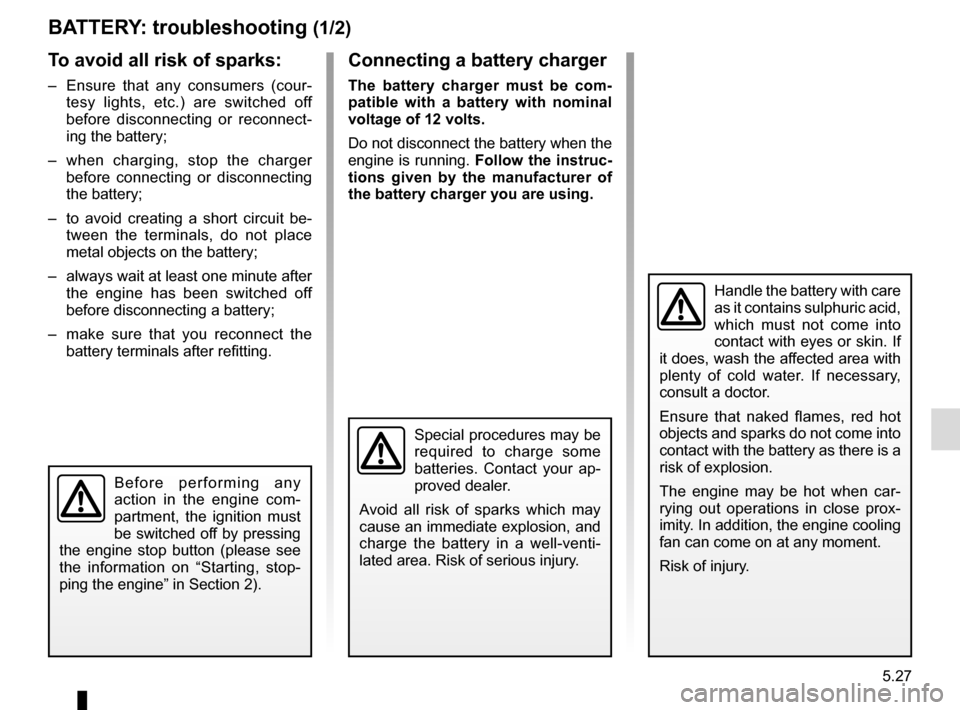

BATTERY: troubleshooting (1/2)
To avoid all risk of sparks:
–  Ensure that any consumers (cour-tesy lights, etc.) are switched off
before disconnecting or reconnect-
ing the battery;
–  when

Page 228 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.28

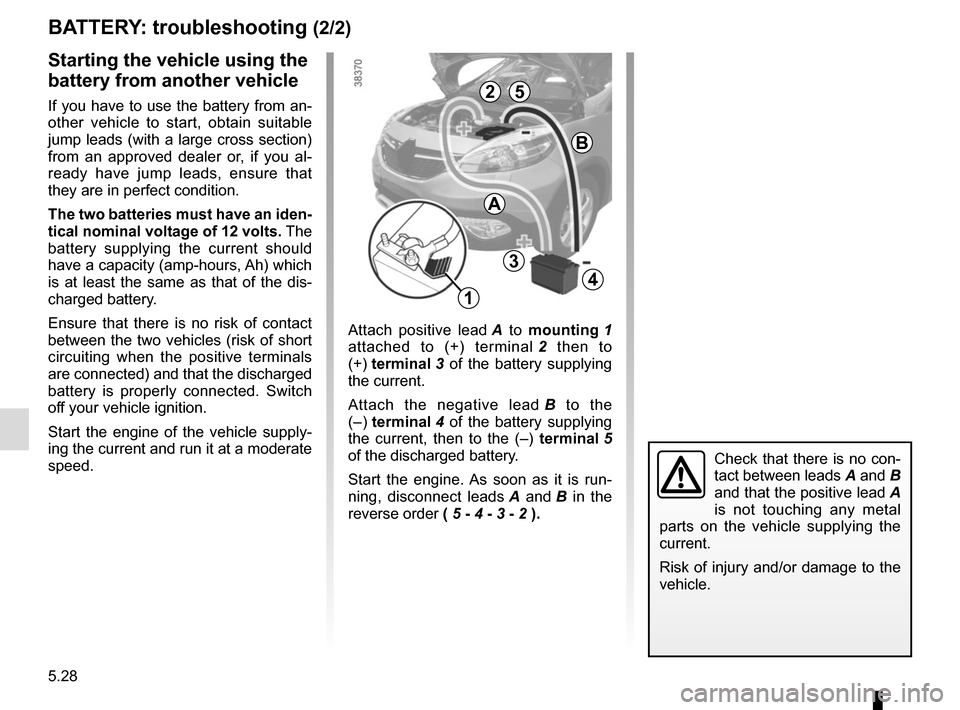

Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an appr

Page 229 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.29

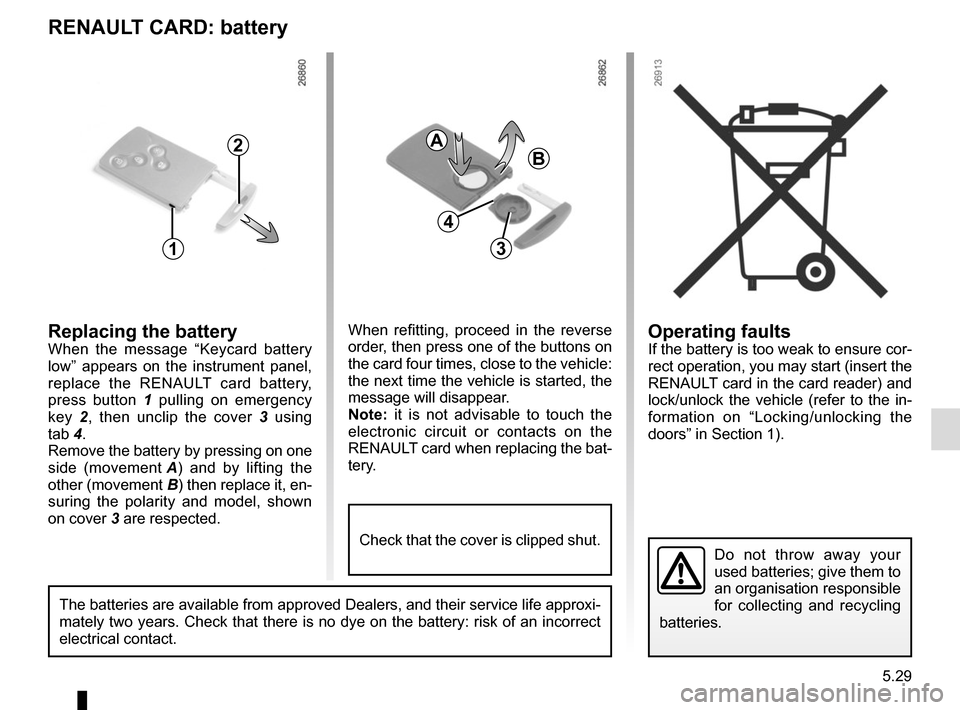

Operating faultsIf the battery is too weak to ensure cor-
rect operation, you may start (insert the
RENAULT card in the card reader) and
lock/unlock the vehicle (refer to the in-
formation on

Page 230 of 270

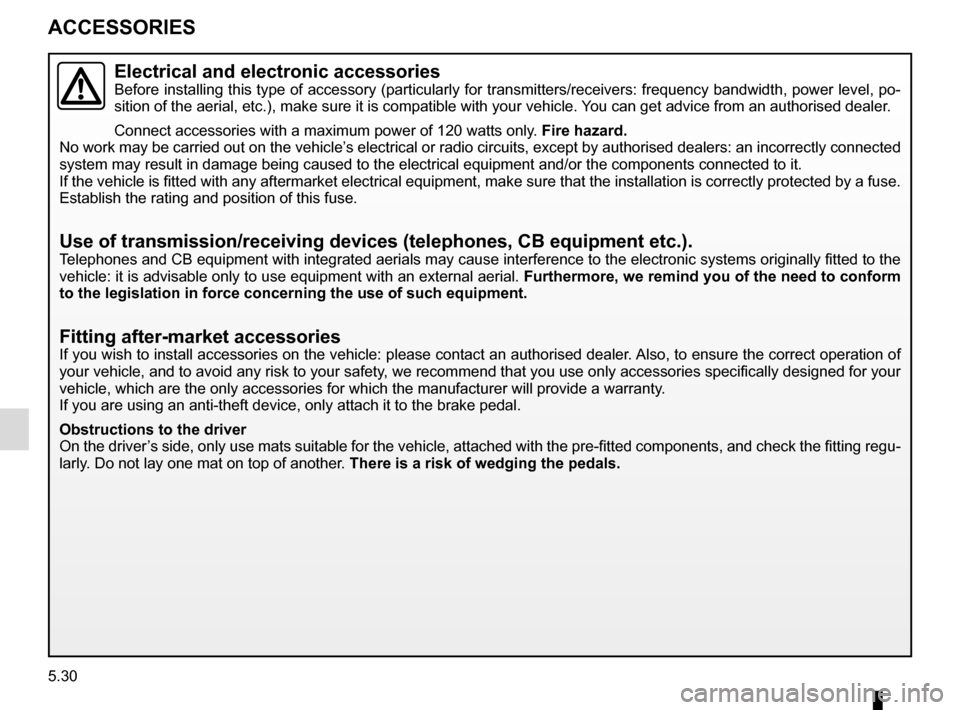

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.30
ACCESSORIES
Electrical and electronic accessoriesBefore installing this type of accessory (particularly for transmitters\
/receivers: frequency bandwidth, power level, po-
sition of the aerial, e
