Page 231 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.31

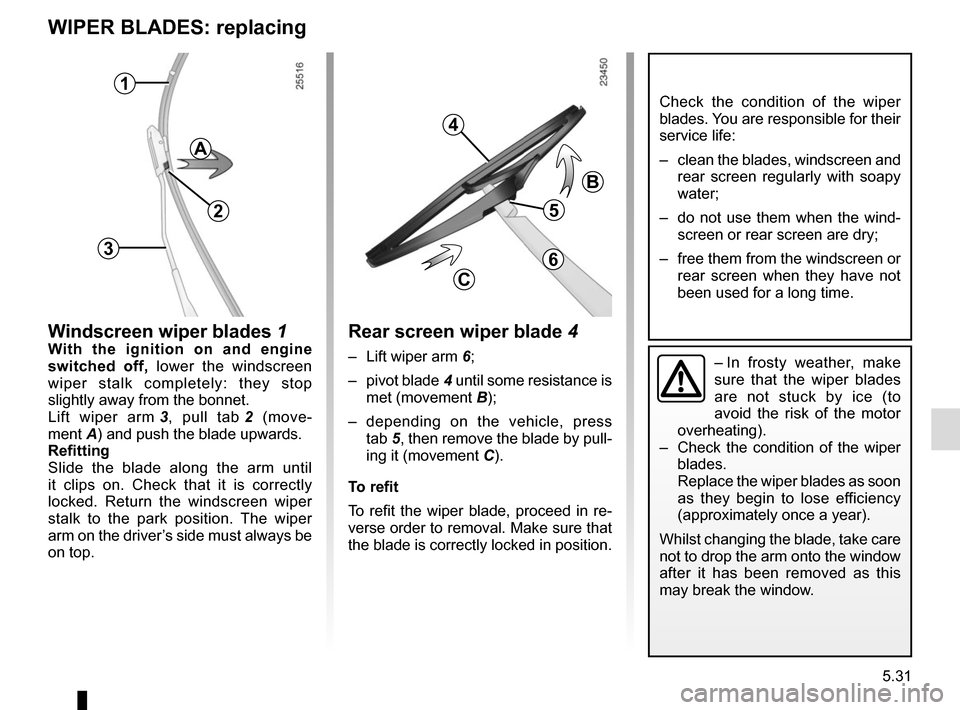

WIPER BLADES: replacing
Windscreen wiper blades 1With the ignition on and engine
switched off, lower the windscreen
wiper stalk completely: they stop
slightly away from the bonnet.
Lift wiper

Page 232 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.32

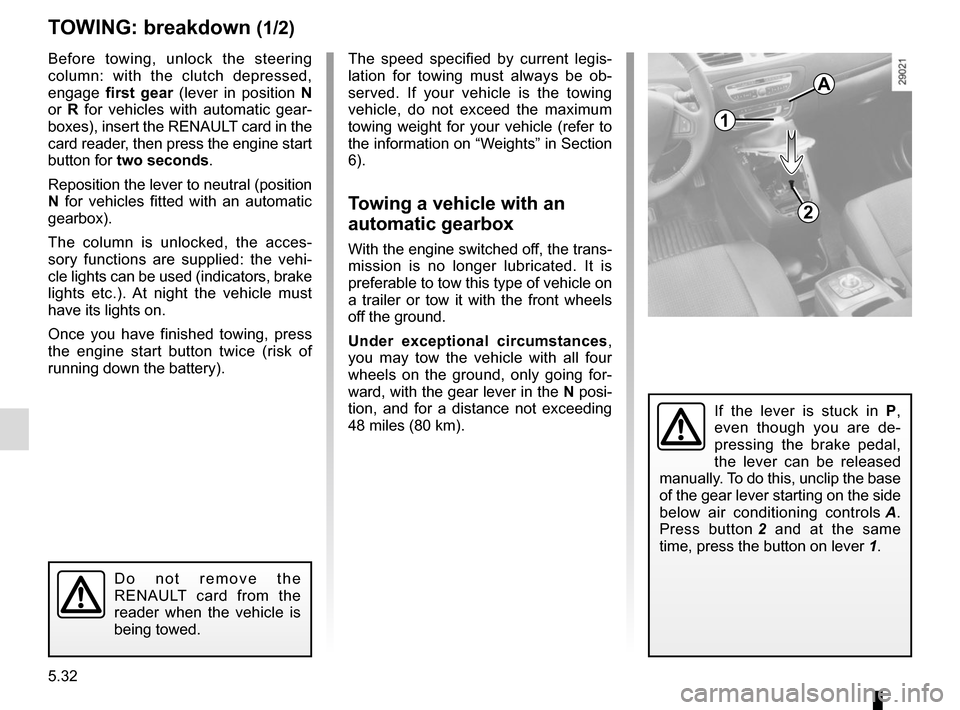

TOWING: breakdown (1/2)
1
2
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear  (lever in position  N
or  R for vehicles with automatic gear-
boxes), inser

Page 233 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.33

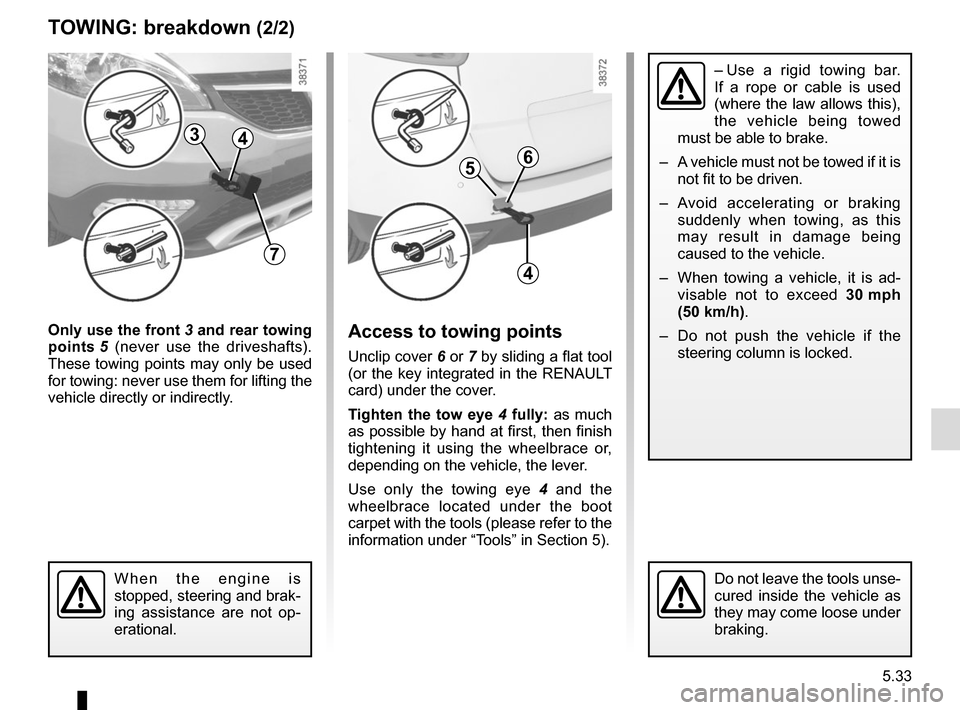

TOWING: breakdown (2/2)
Only use the front 3 and rear towing
points  5  (never use the driveshafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle di

Page 234 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.34

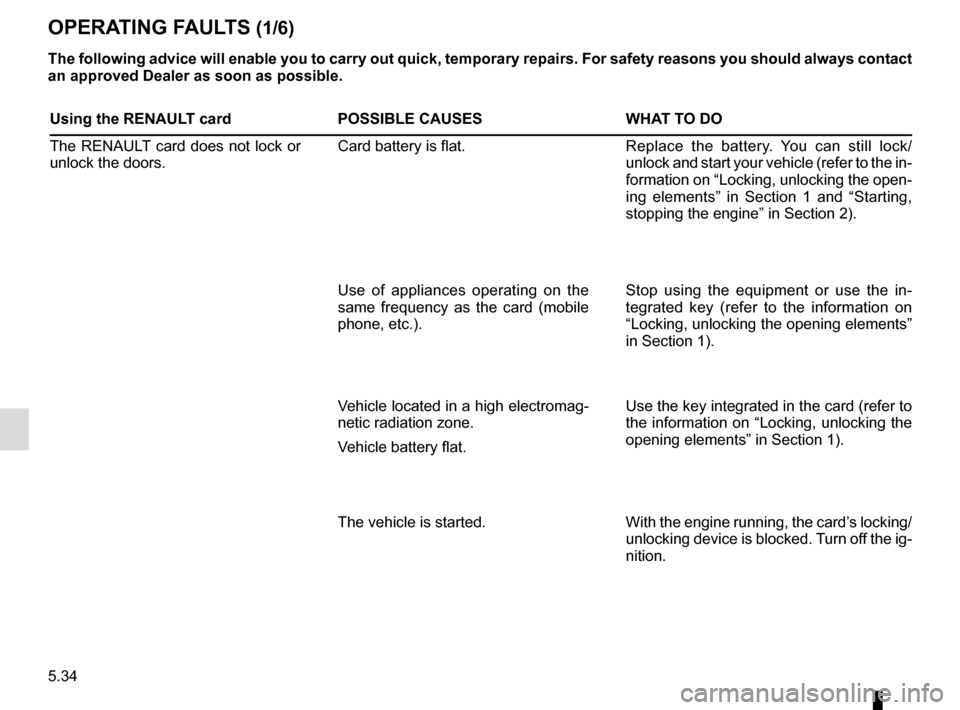

OPERATING FAULTS (1/6)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved Dealer as soon as possible.
Using th

Page 235 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.35

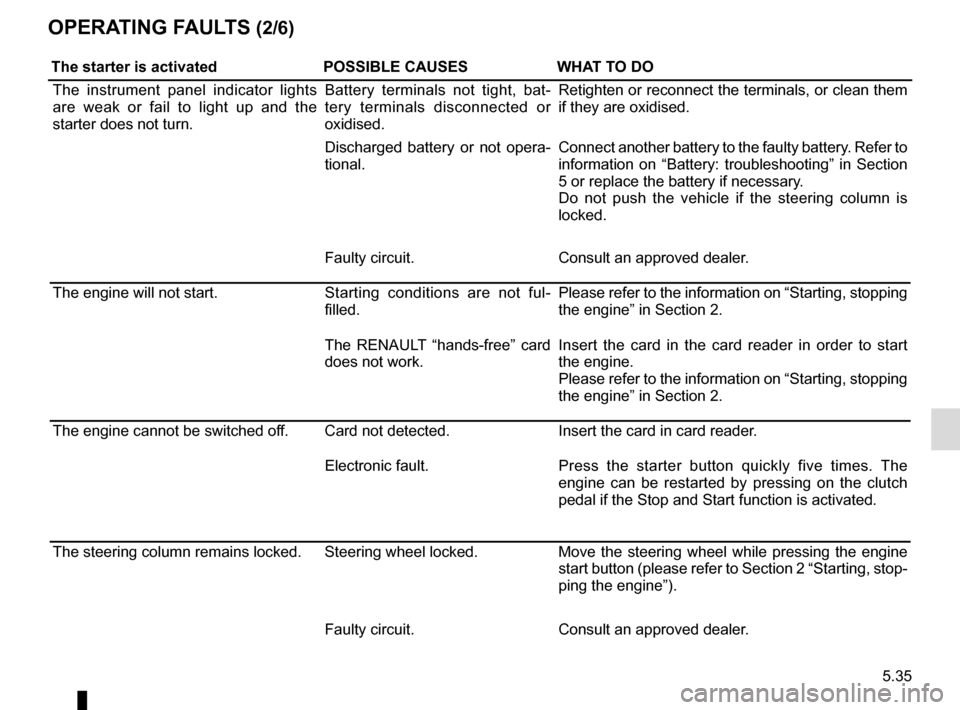

OPERATING FAULTS (2/6)
The starter is activatedPOSSIBLE CAUSESWHAT TO DO
The instrument panel indicator lights
are weak or fail to light up and the
starter does not turn. Battery terminals not

Page 236 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.36

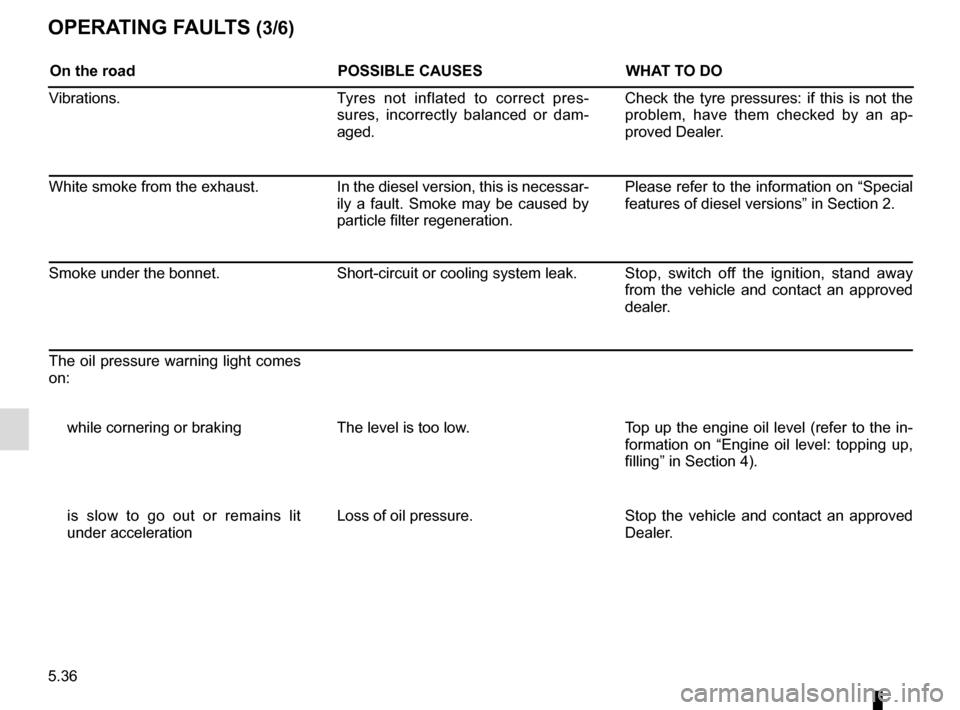

OPERATING FAULTS (3/6)
On the roadPOSSIBLE CAUSESWHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged. Check the tyre pressures: if this is not the

Page 237 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.37

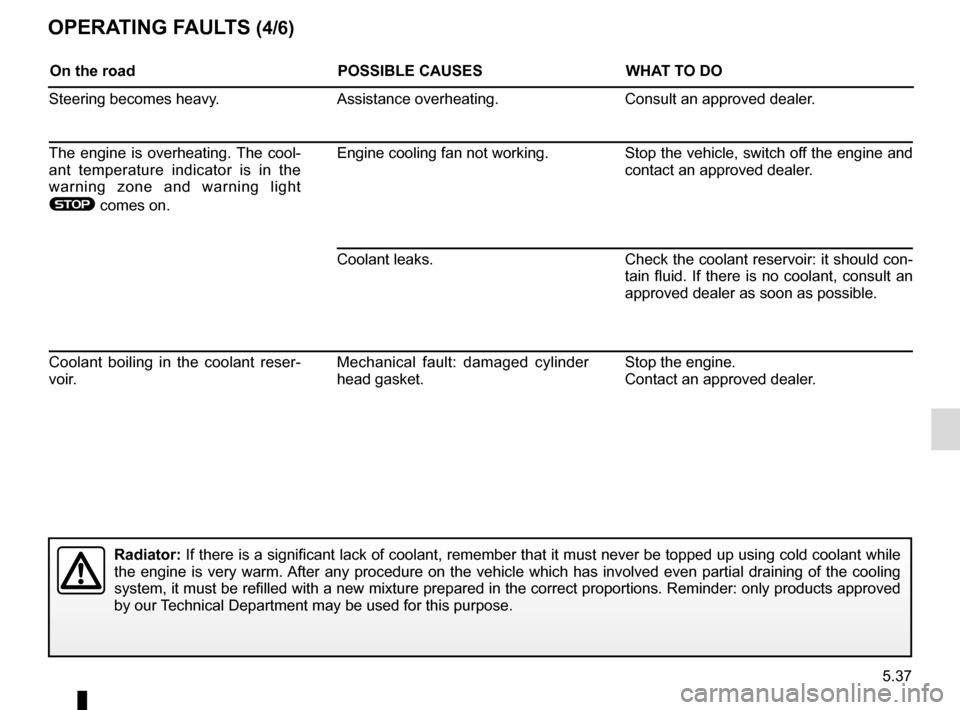

OPERATING FAULTS (4/6)
On the roadPOSSIBLE CAUSESWHAT TO DO
Steering becomes heavy. Assistance overheating. Consult an approved dealer.
The engine is overheating. The cool-
ant temperature indica

Page 238 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.38

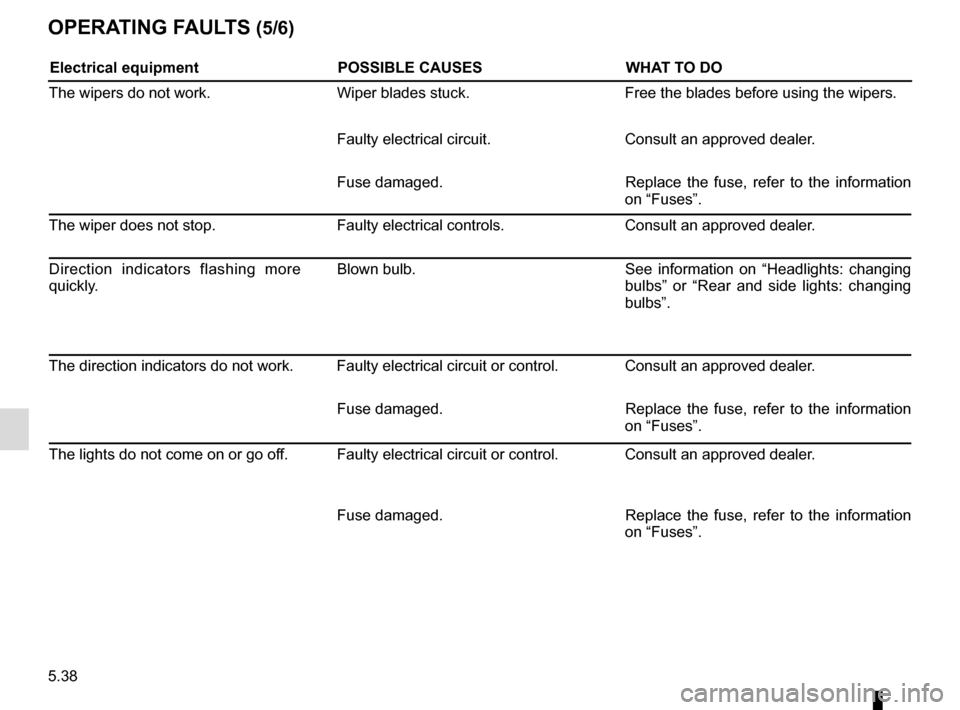

OPERATING FAULTS (5/6)
Electrical equipmentPOSSIBLE CAUSESWHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an app

Page 239 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.39

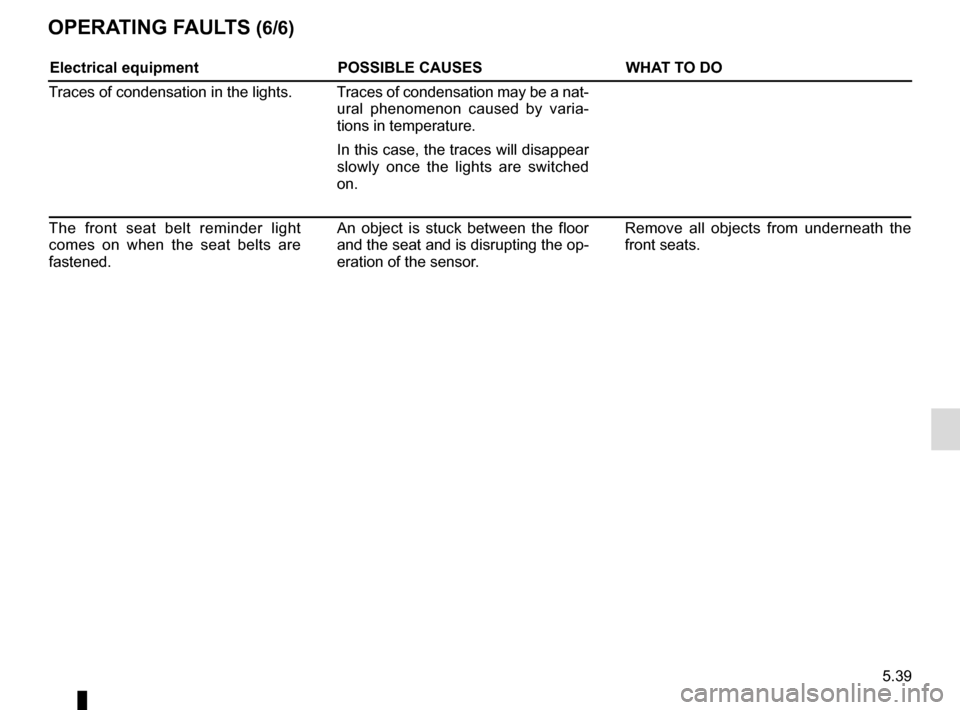

OPERATING FAULTS (6/6)
Electrical equipmentPOSSIBLE CAUSESWHAT TO DO
Traces of condensation in the lights. Traces of condensation may be a nat- ural phenomenon caused by varia-
tions in temperatu

Page 240 of 270

RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual 5.40
