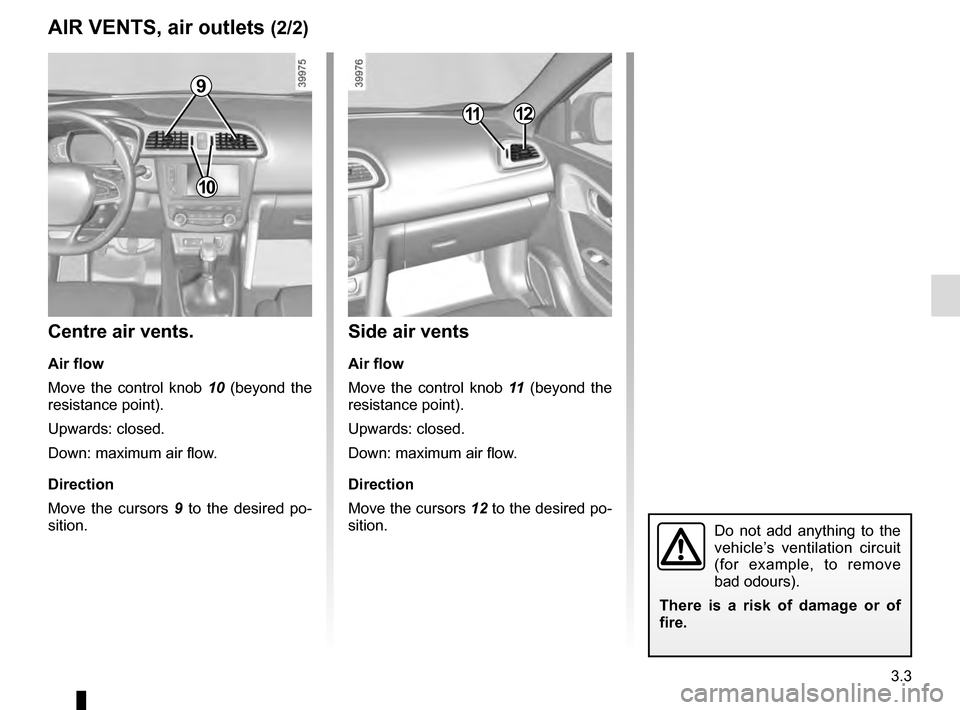

Page 181 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.3
Side air vents
Air flow
Move the control knob 11 (beyond the
resistance point).
Upwards: closed.
Down: maximum air flow.
Direction
Move the cursors 12 to the desired po-
sition.
Centre air vents.

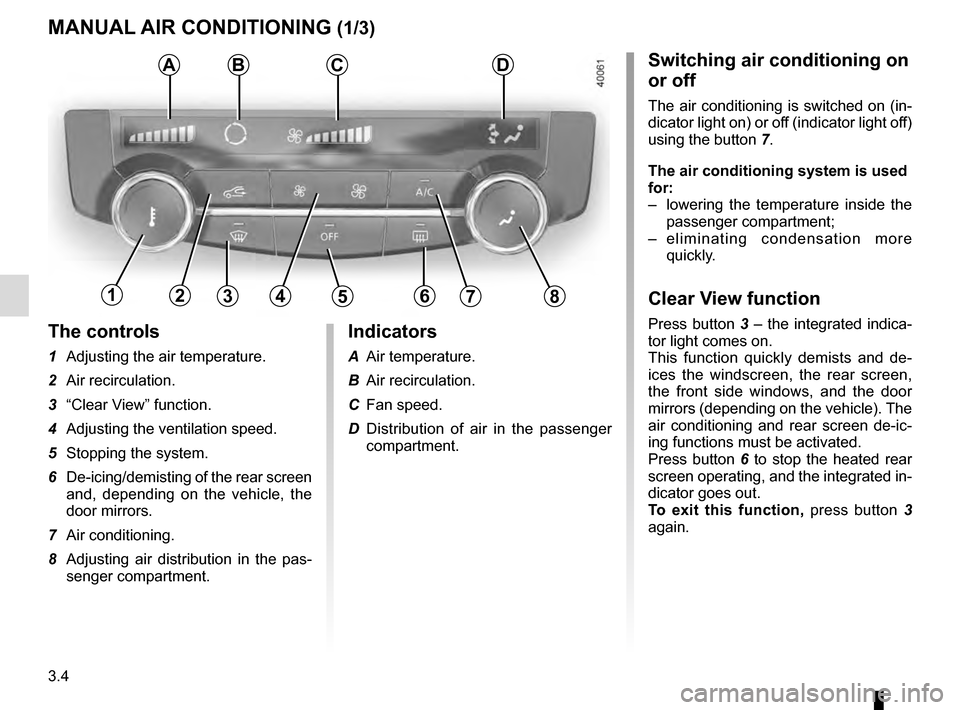

Page 182 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.4
The controls
1  Adjusting the air temperature.
2 Air recirculation.
3  “Clear View” function.
4  Adjusting the ventilation speed.
5  Stopping the system.
6  De-icing/demisting of the rear scre

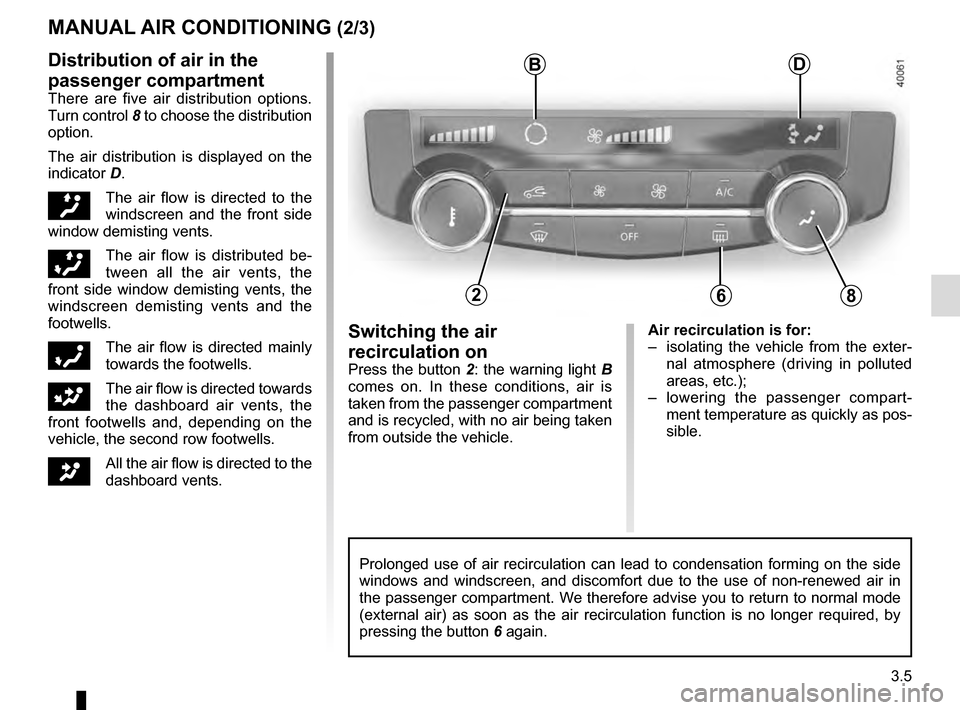

Page 183 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.5
Air recirculation is for:
–  isolating the vehicle from the exter-nal atmosphere (driving in polluted
areas, etc.);
–  lowering the passenger compart- ment temperature as quickly as pos-
sibl

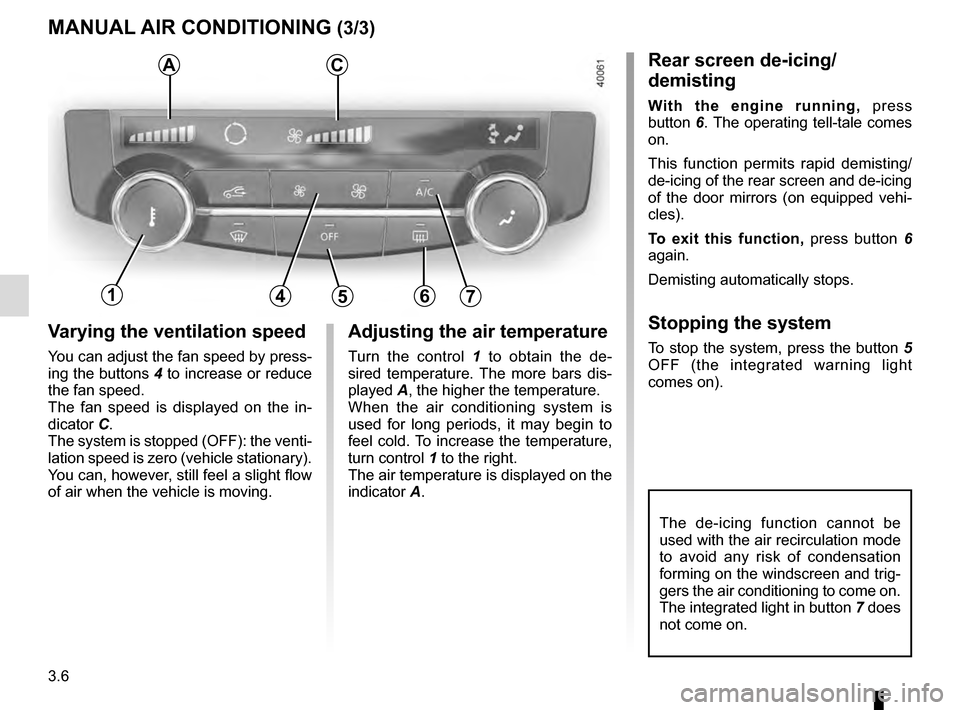

Page 184 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.6
Varying the ventilation speed
You can adjust the fan speed by press-
ing the buttons 4 to increase or reduce
the fan speed.
The fan speed is displayed on the in-
dicator C.
The system is stopped

Page 185 of 300

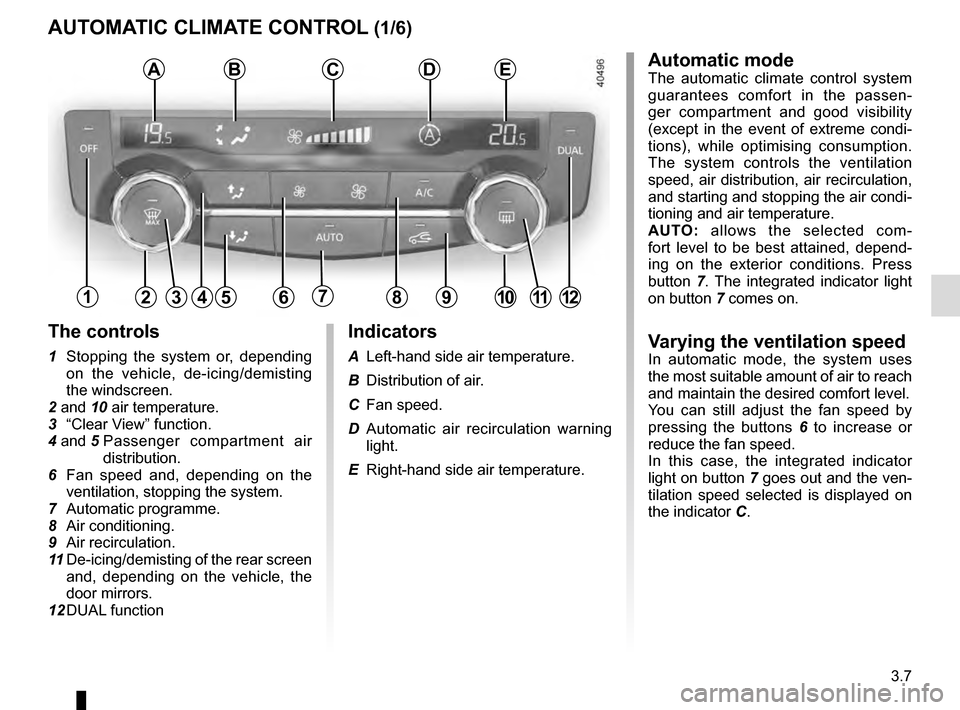

RENAULT KADJAR 2016 1.G Owners Manual 3.7
AUTOMATIC CLIMATE CONTROL (1/6)Automatic mode
The automatic climate control system
guarantees comfort in the passen-
ger compartment and good visibility
(except in the event of extreme condi-
ti

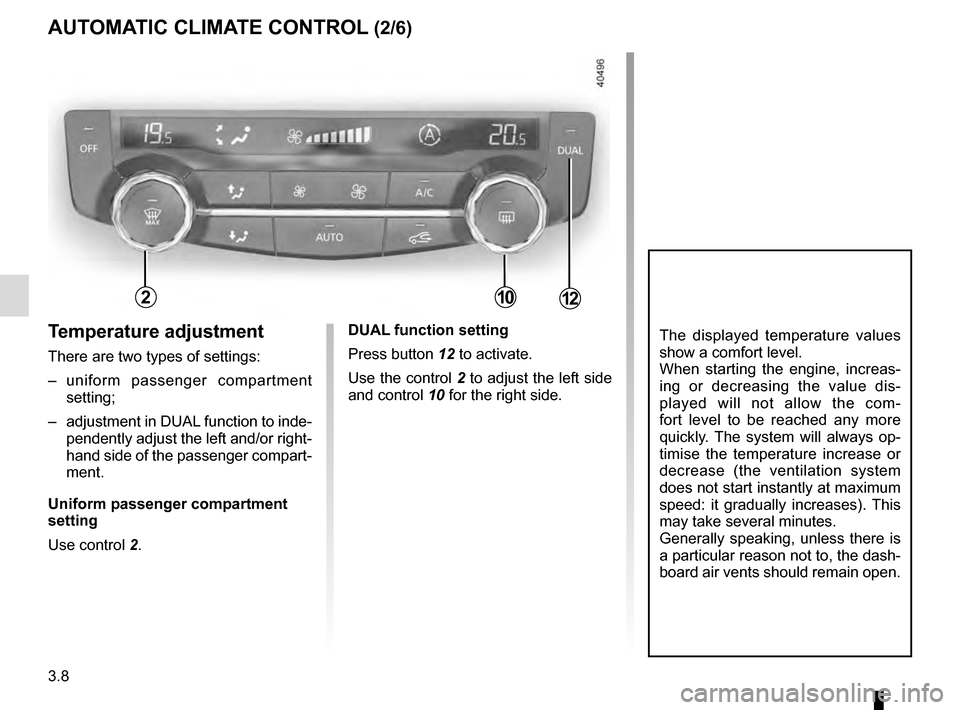

Page 186 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.8
AUTOMATIC CLIMATE CONTROL (2/6)
Temperature adjustment
There are two types of settings:
– uniform passenger compartment setting;
–  adjustment in DUAL function to inde- pendently adjust the le

Page 187 of 300

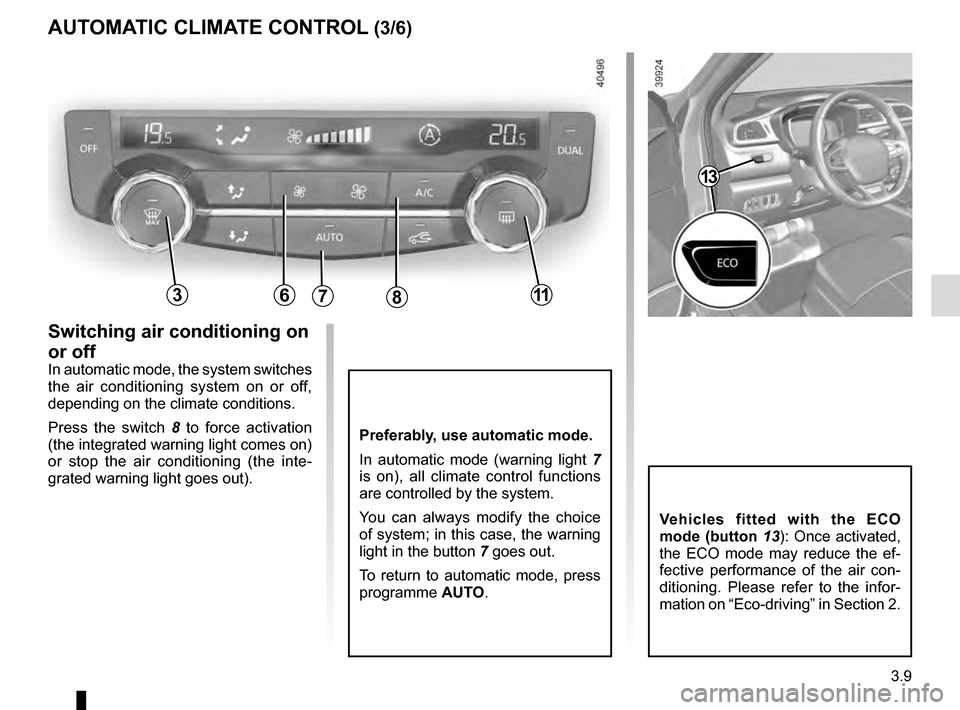

RENAULT KADJAR 2016 1.G Owners Manual 3.9
Preferably, use automatic mode.
In automatic mode (warning light 7
is on), all climate control functions
are controlled by the system.
You can always modify the choice
of system; in this case,

Page 188 of 300

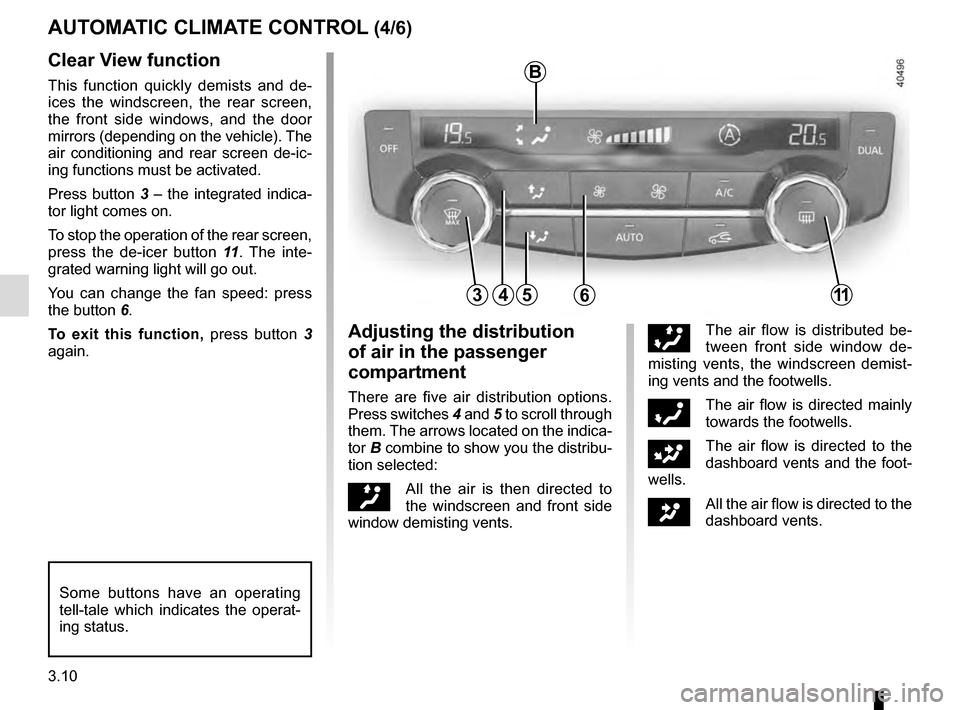

RENAULT KADJAR 2016 1.G Owners Manual 3.10
45
B
AUTOMATIC CLIMATE CONTROL (4/6)
6311
Clear View function
This function quickly demists and de-
ices the windscreen, the rear screen,
the front side windows, and the door
mirrors (depending

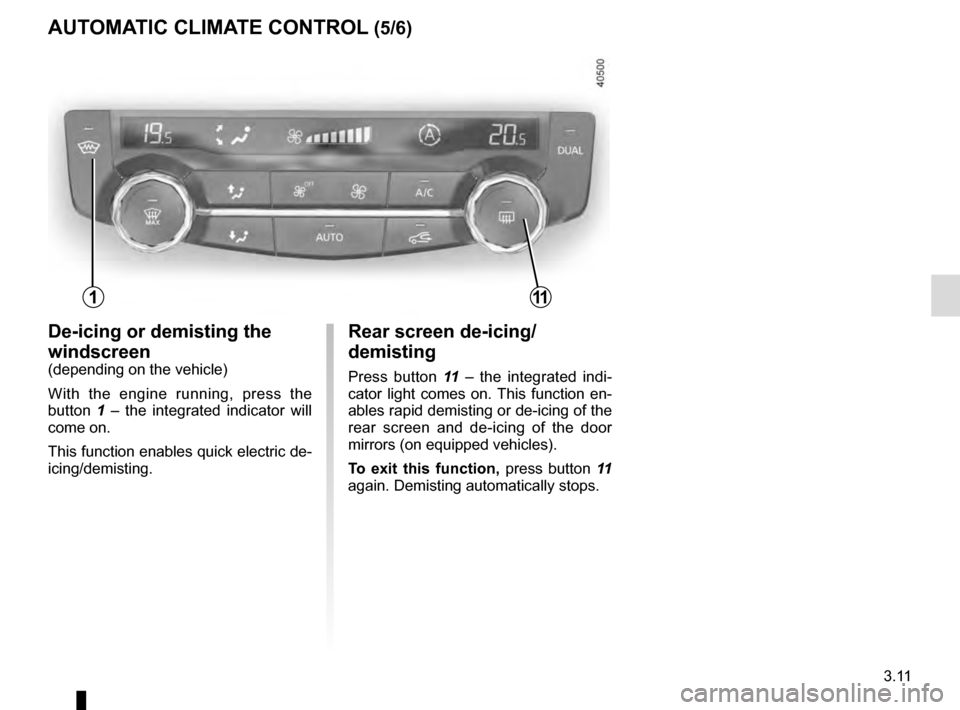

Page 189 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.11
AUTOMATIC CLIMATE CONTROL (5/6)
Rear screen de-icing/
demisting
Press button 11  – the integrated indi-
cator light comes on. This function en-
ables rapid demisting or de-icing of the
rear sc

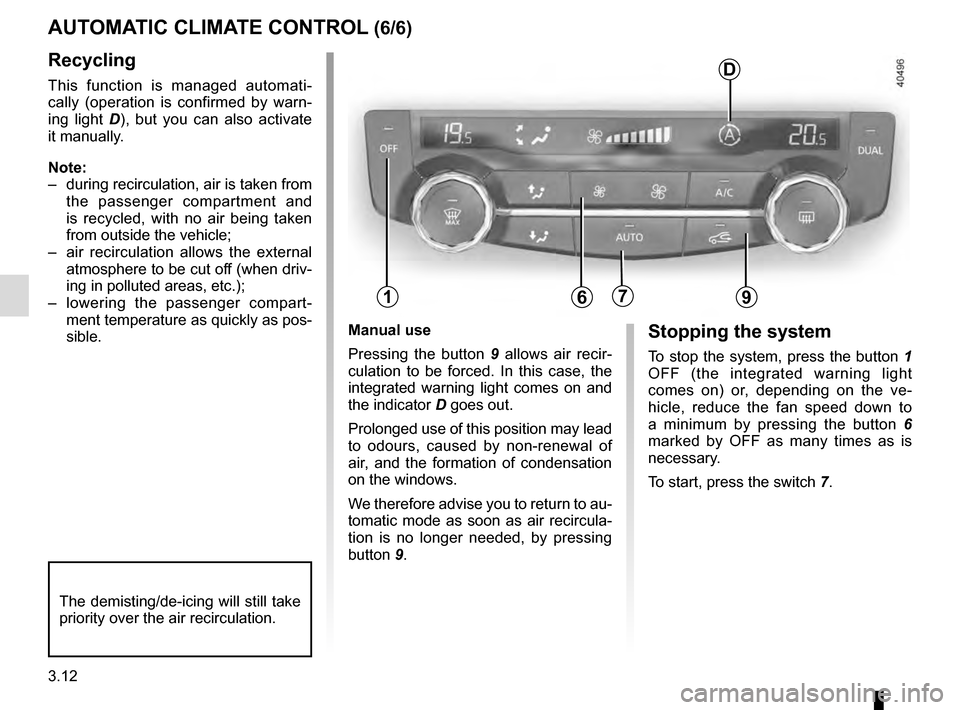

Page 190 of 300

RENAULT KADJAR 2016 1.G Owners Manual 3.12
Manual use
Pressing the button 9 allows air recir-
culation to be forced. In this case, the
integrated warning light comes on and
the indicator  D goes out.
Prolonged use of this position may l
