RENAULT KADJAR 2016 1.G Owners Manual

RENAULT KADJAR 2016 1.G Owners Manual https://www.carmanualsonline.info/img/7/1614/w960_1614-0.png RENAULT KADJAR 2016 1.G Owners Manual

Page 141 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.37
DRIVING CORRECTION DEVICES AND AIDS (9/10)
Active emergency braking
Limitation of the system operation
– The system will only respond to vehicles which are moving or which have \
been sensed as

Page 142 of 300

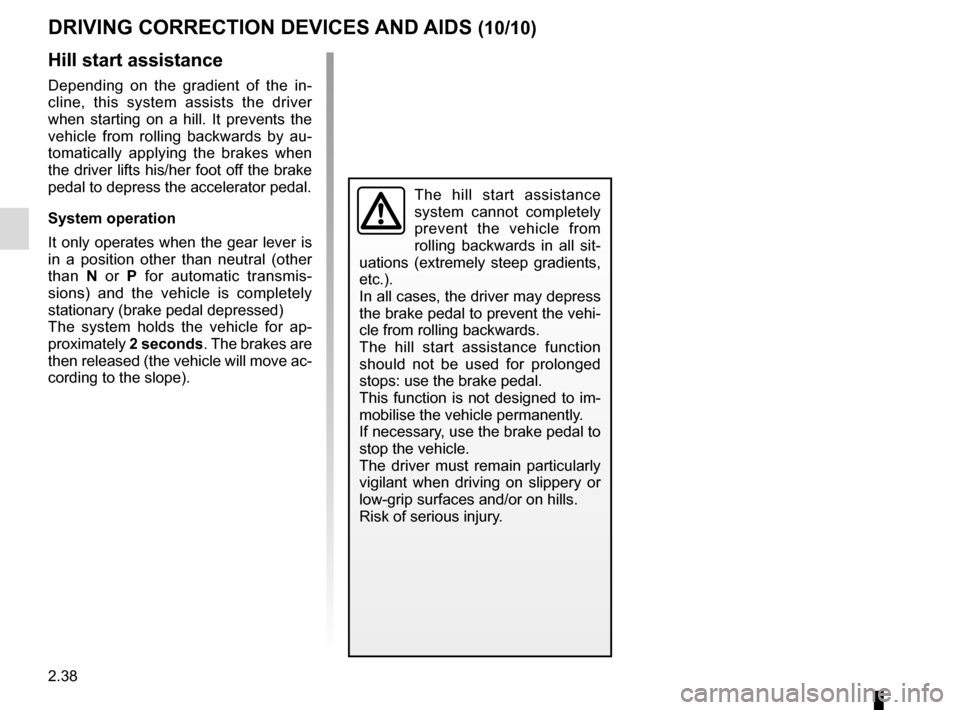

RENAULT KADJAR 2016 1.G Owners Manual 2.38
DRIVING CORRECTION DEVICES AND AIDS (10/10)
Hill start assistance
Depending on the gradient of the in-
cline, this system assists the driver
when starting on a hill. It prevents the
vehicle fro

Page 143 of 300

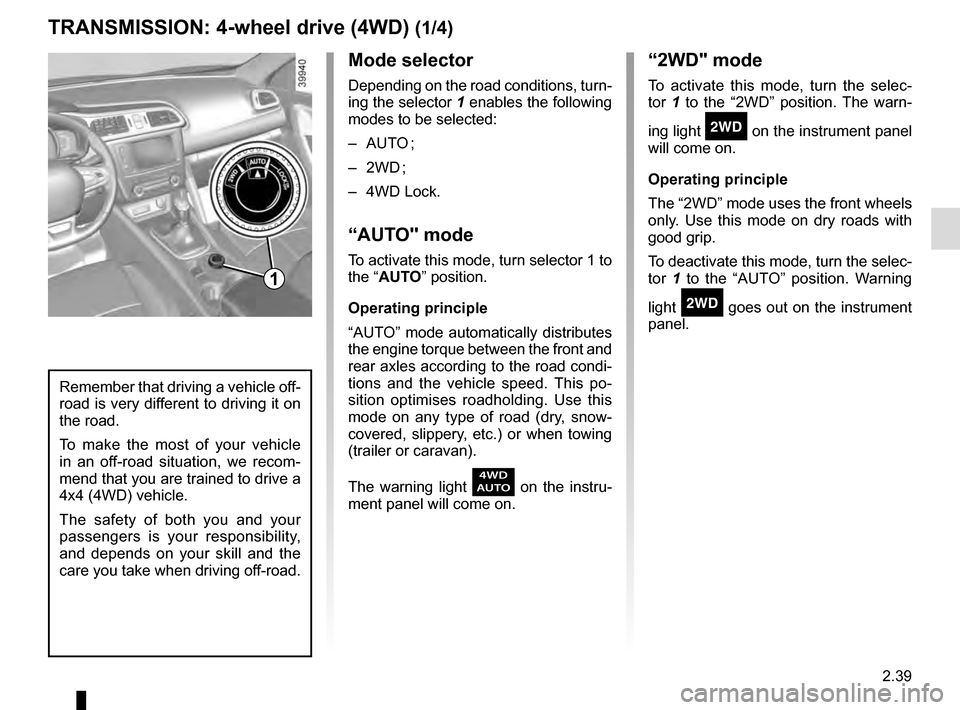

RENAULT KADJAR 2016 1.G Owners Manual 2.39
Mode selector
Depending on the road conditions, turn-
ing the selector 1 enables the following
modes to be selected:
– AUTO ;
– 2WD ;
– 4WD Lock.
“AUTO" mode
To activate this mode, turn

Page 144 of 300

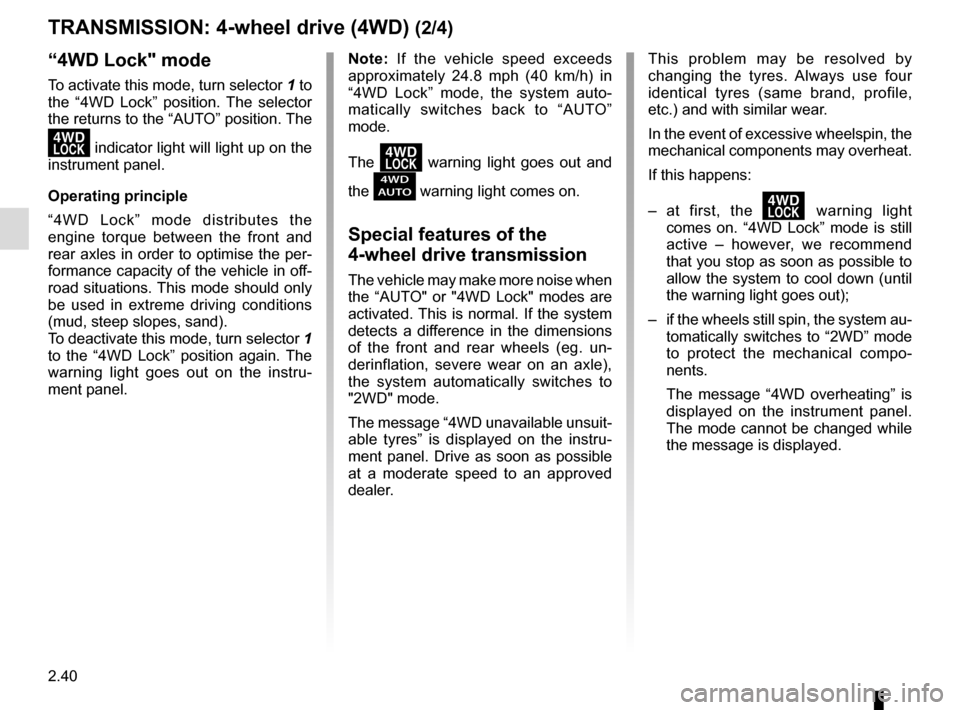

RENAULT KADJAR 2016 1.G Owners Manual 2.40
TRANSMISSION: 4-wheel drive (4WD) (2/4)
This problem may be resolved by
changing the tyres. Always use four
identical tyres (same brand, profile,
etc.) and with similar wear.
In the event of e

Page 145 of 300

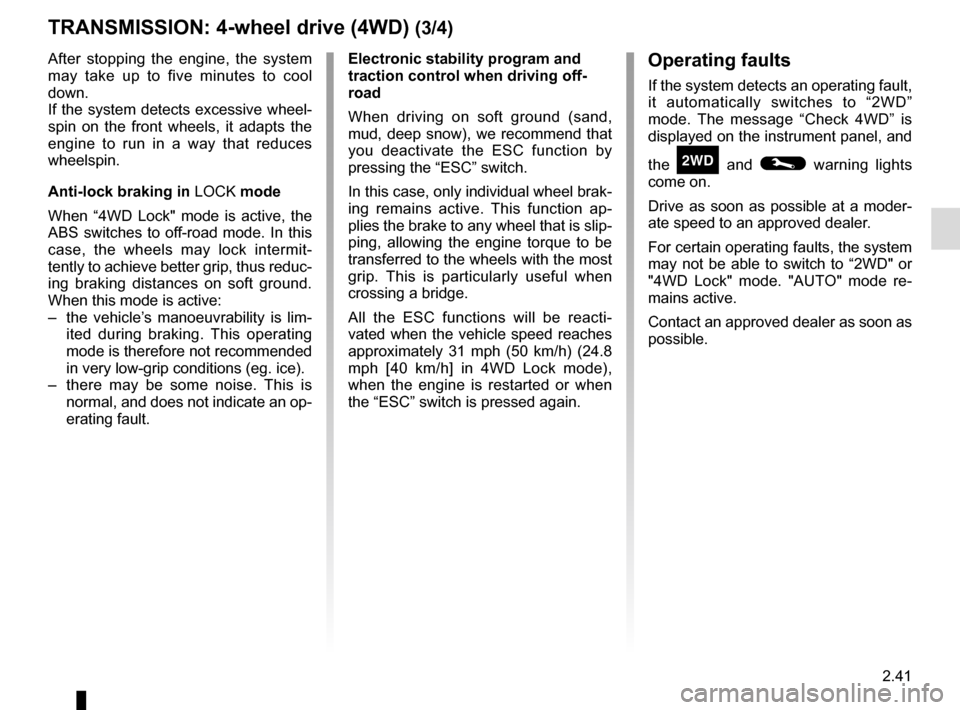

RENAULT KADJAR 2016 1.G Owners Manual 2.41
TRANSMISSION: 4-wheel drive (4WD) (3/4)
Electronic stability program and
traction control when driving off-
road
When driving on soft ground (sand,
mud, deep snow), we recommend that
you deact

Page 146 of 300

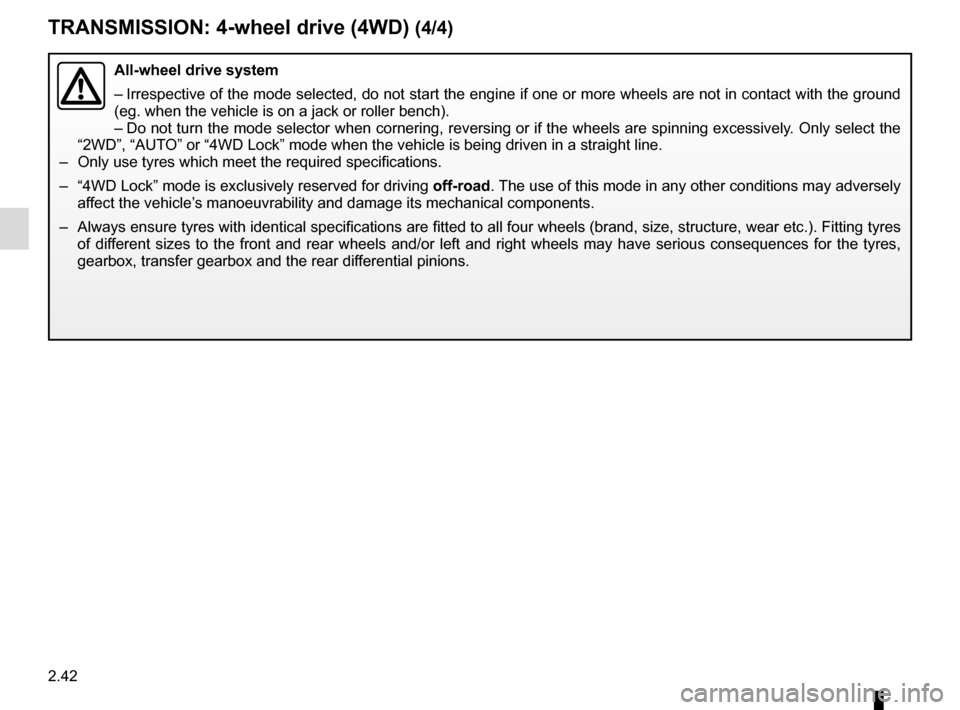

RENAULT KADJAR 2016 1.G Owners Manual 2.42
TRANSMISSION: 4-wheel drive (4WD) (4/4)
All-wheel drive system
– Irrespective of the mode selected, do not start the engine if one or mor\
e wheels are not in contact with the ground
(eg. when

Page 147 of 300

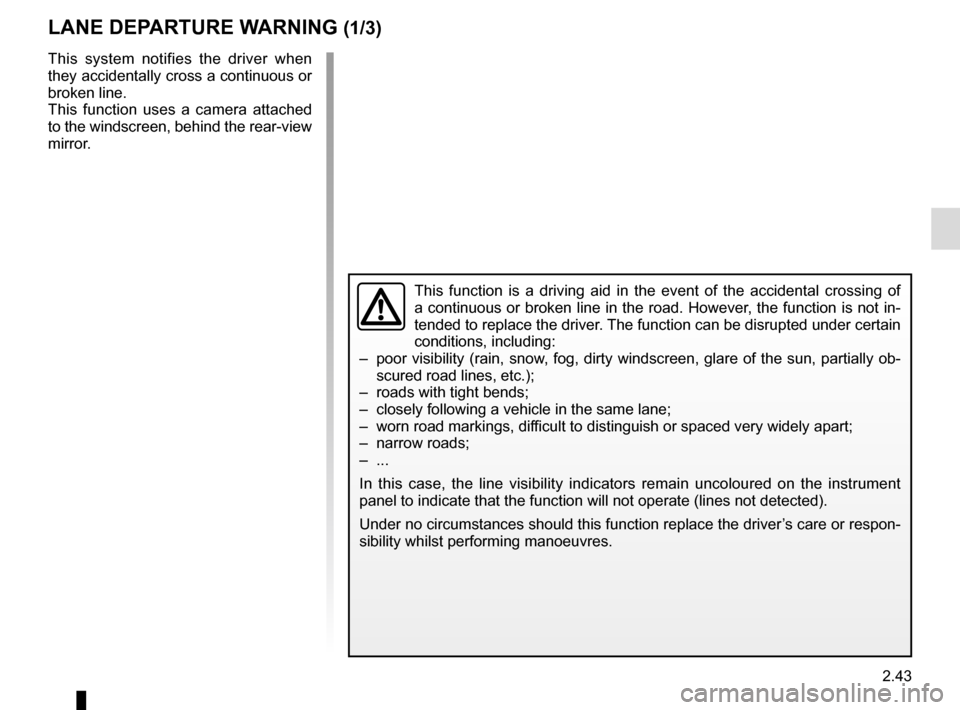

RENAULT KADJAR 2016 1.G Owners Manual 2.43
LANE DEPARTURE WARNING (1/3)
This function is a driving aid in the event of the accidental crossing o\
f
a continuous or broken line in the road. However, the function is not in-
tended to repla

Page 148 of 300

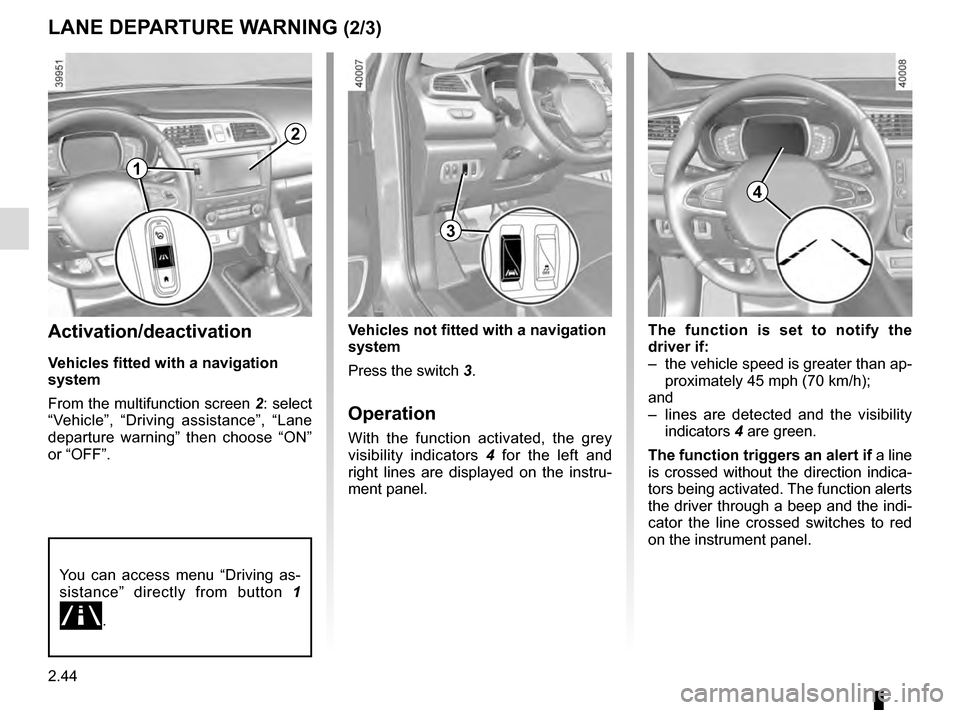

RENAULT KADJAR 2016 1.G Owners Manual 2.44
LANE DEPARTURE WARNING (2/3)
The function is set to notify the
driver if:
–  the vehicle speed is greater than ap-proximately 45 mph (70 km/h);
and
–  lines are detected and the visibility

Page 149 of 300

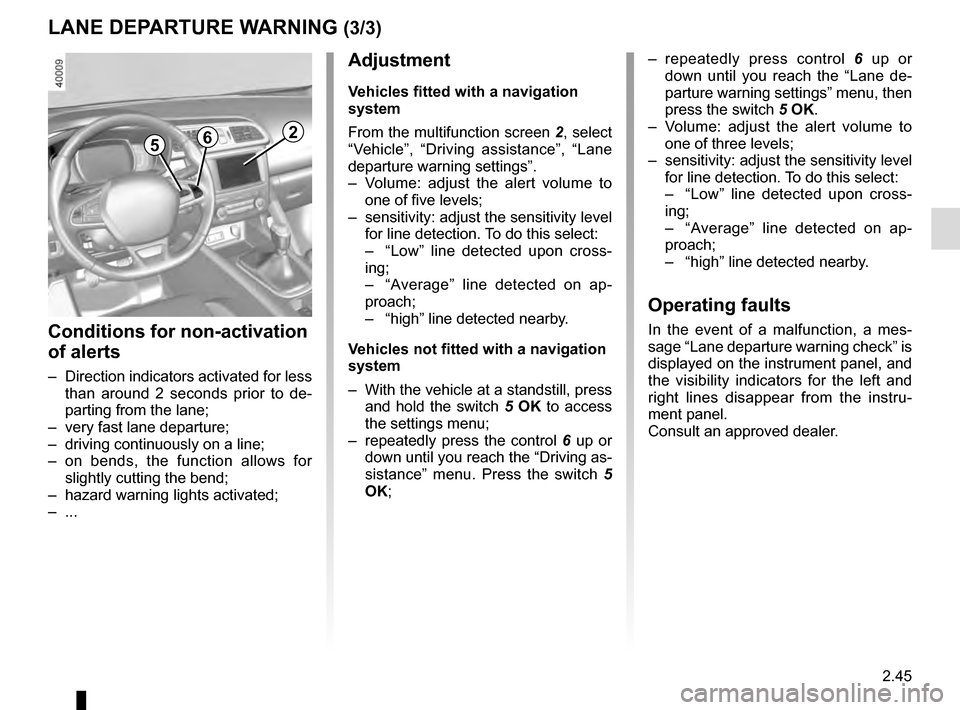

RENAULT KADJAR 2016 1.G Owners Manual 2.45
265
Adjustment
Vehicles fitted with a navigation
system
From the multifunction screen 2, select
“Vehicle”, “Driving assistance”, “Lane
departure warning settings”.
–  Volume: adj

Page 150 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.46
BLIND SPOT WARNING (1/4)
This system alerts the driver to other
vehicles in the detection zone A.
The system is activated when the vehi-
cle’s speed is between approximately
30 km/h (19 mph)
