RENAULT KADJAR 2016 1.G Owners Manual

RENAULT KADJAR 2016 1.G Owners Manual https://www.carmanualsonline.info/img/7/1614/w960_1614-0.png RENAULT KADJAR 2016 1.G Owners Manual

Page 171 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.67
ASSISTED PARKING (1/4)
This function assists with parking ma-
noeuvres.
Take your hands off the steering wheel.
You only control the pedals and the
gear lever.
You can retake control at any tim

Page 172 of 300

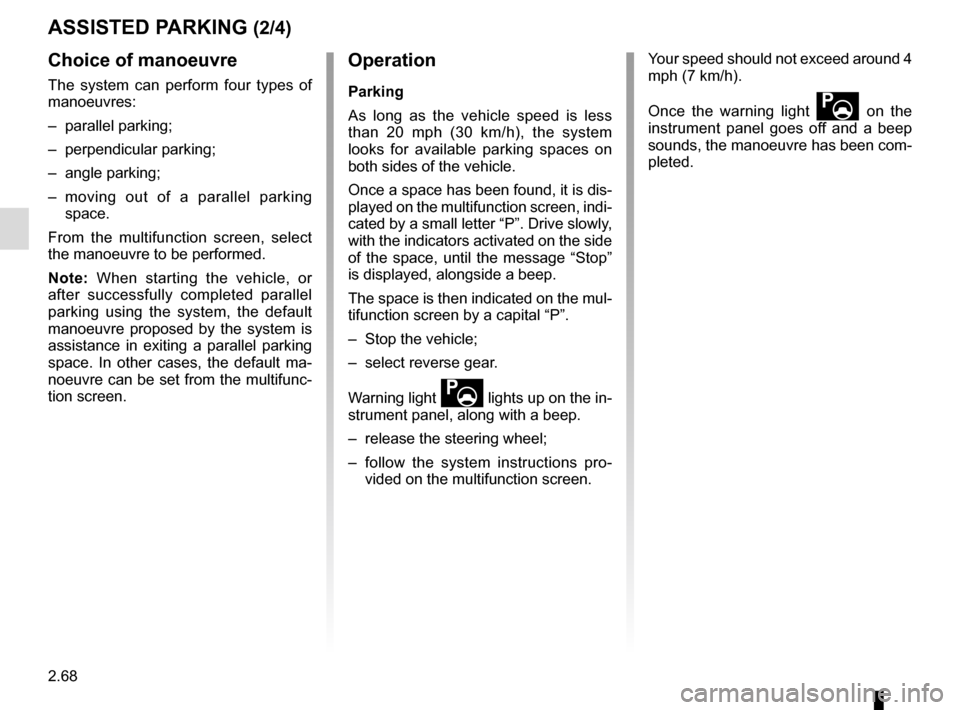

RENAULT KADJAR 2016 1.G Owners Manual 2.68
Choice of manoeuvre
The system can perform four types of
manoeuvres:
– parallel parking;
– perpendicular parking;
– angle parking;
– moving out of a parallel parking space.
From the mult

Page 173 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.69
ASSISTED PARKING (3/4)
Your speed should not exceed around
4 mph (7 km/h).
Once in position to exit the space, the
system will notify you of the end of the
manoeuvre.
Once the warning light

Page 174 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.70
ASSISTED PARKING (4/4)
This function is an additional driving aid. However, this function is not under any circumstances intended to replace the
due care and attention of the driver, who should

Page 175 of 300

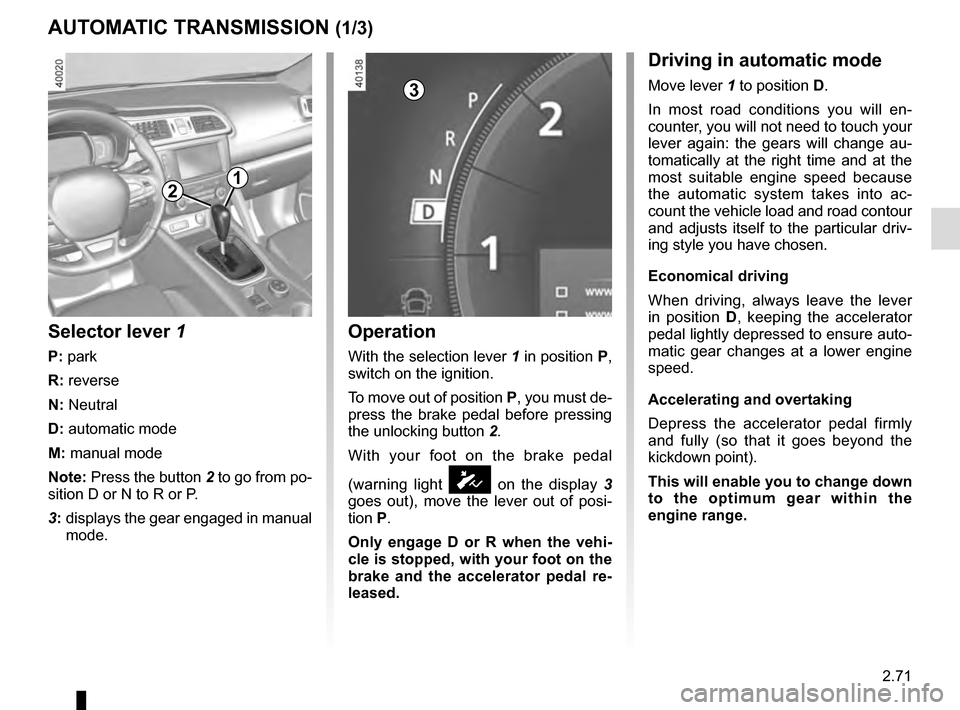

RENAULT KADJAR 2016 1.G Owners Manual 2.71
AUTOMATIC TRANSMISSION (1/3)
Operation
With the selection lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
the unlock

Page 176 of 300

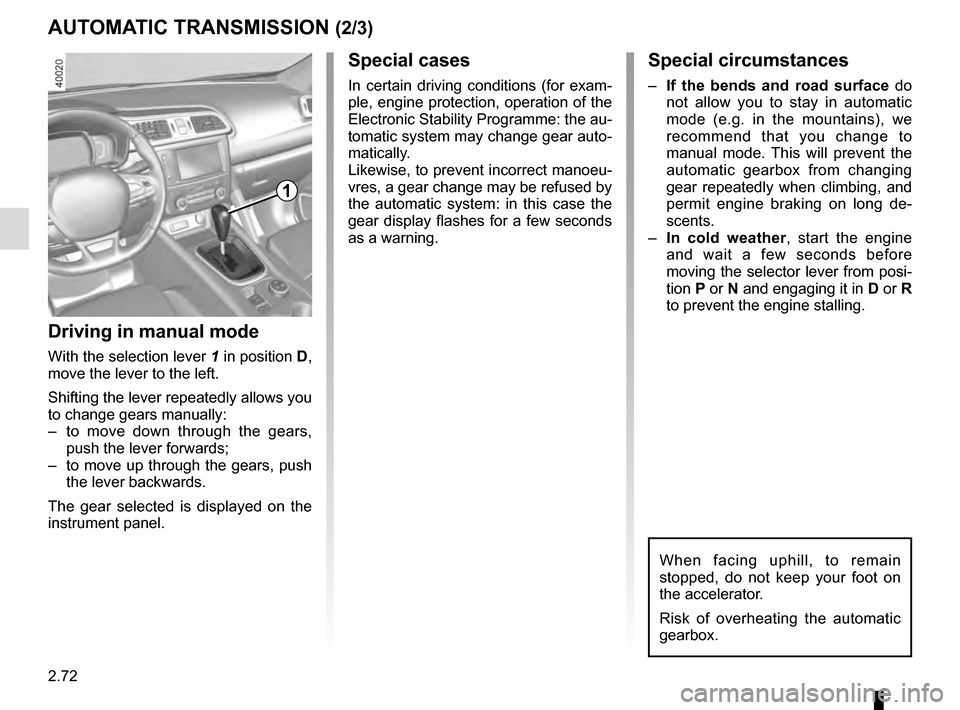

RENAULT KADJAR 2016 1.G Owners Manual 2.72
AUTOMATIC TRANSMISSION (2/3)
Special cases
In certain driving conditions (for exam-
ple, engine protection, operation of the
Electronic Stability Programme: the au-
tomatic system may change gea

Page 177 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.73
AUTOMATIC TRANSMISSION (3/3)
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive w

Page 178 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.74

Page 179 of 300

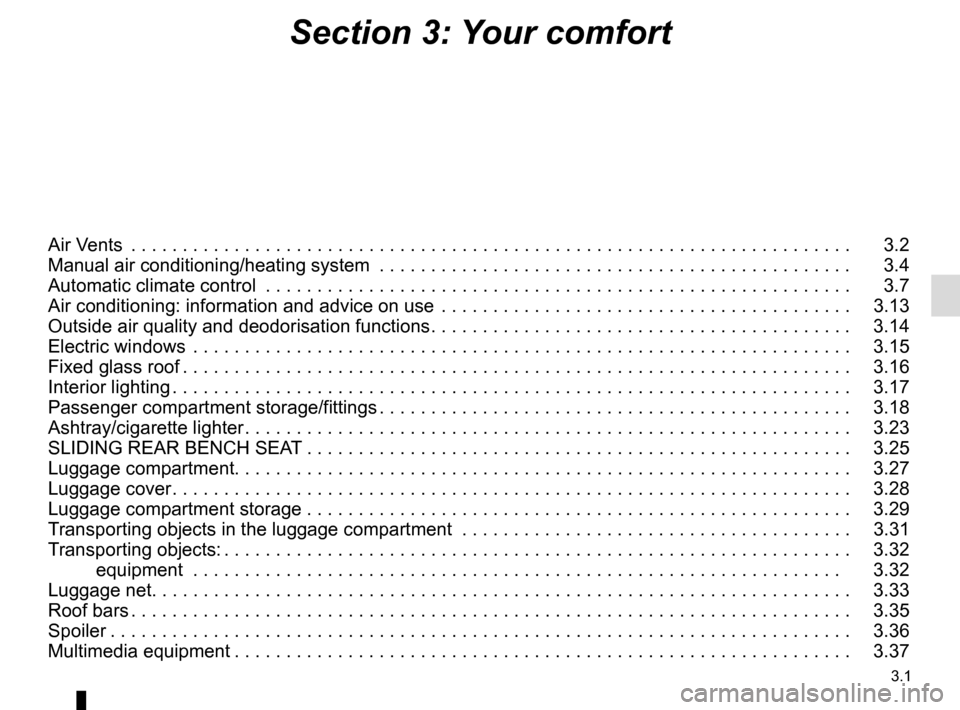

RENAULT KADJAR 2016 1.G Owners Manual 3.1
Section 3: Your comfort
Air Vents  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.2
Manual air co

Page 180 of 300

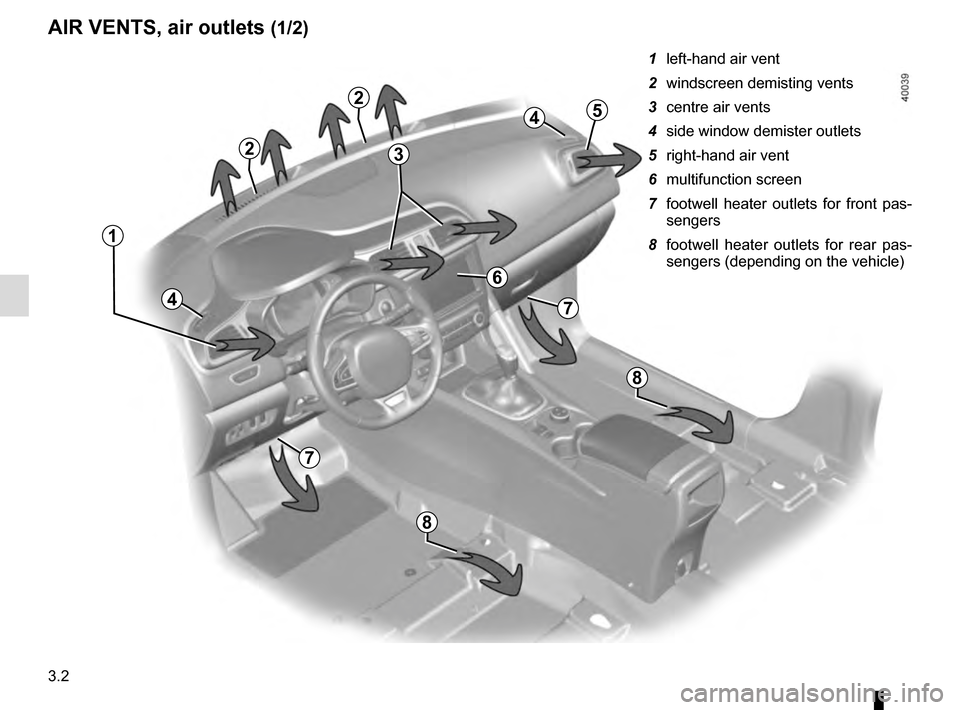

RENAULT KADJAR 2016 1.G Owners Manual 3.2
AIR VENTS, air outlets (1/2)
1  left-hand air vent
2  windscreen demisting vents
3  centre air vents
4  side window demister outlets
5  right-hand air vent
6 multifunction screen
7  footwell heate
