RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual Special Features of the 4x4
Mechanisms and accessories
Trim and upholstery
KC0L - KC0P - KC0S - KC0V
Refer to the Workshop Repair Manual for parts not mentioned in this manual. 326
77 11 306 182
"The

Page 2 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual Contents
Page
55
58
71
EXTERIOR PROTECTION
Front bumper 55-1
Side protective mouldings 55-3
Front wing extenders    55-5
Sill panel 55-6
UPPER INTERIOR ACCESSORIES
Storage compartment 58-1
BODY INT

Page 3 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Front bumper
55
155EXTERIOR PROTECTION
Front bumper
NOTE: The bumper is removed in the same way as on
the basic model, only dismantling is different.
DISMANTLING
Remove:
– the

Page 4 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Front bumper
55
55-2
Release:
– the clips (I) and (J), then remove the grilles,
– the clips (K), then remove the towing hitch access
cover.
A

Page 5 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Side protective mouldings
55
55-3

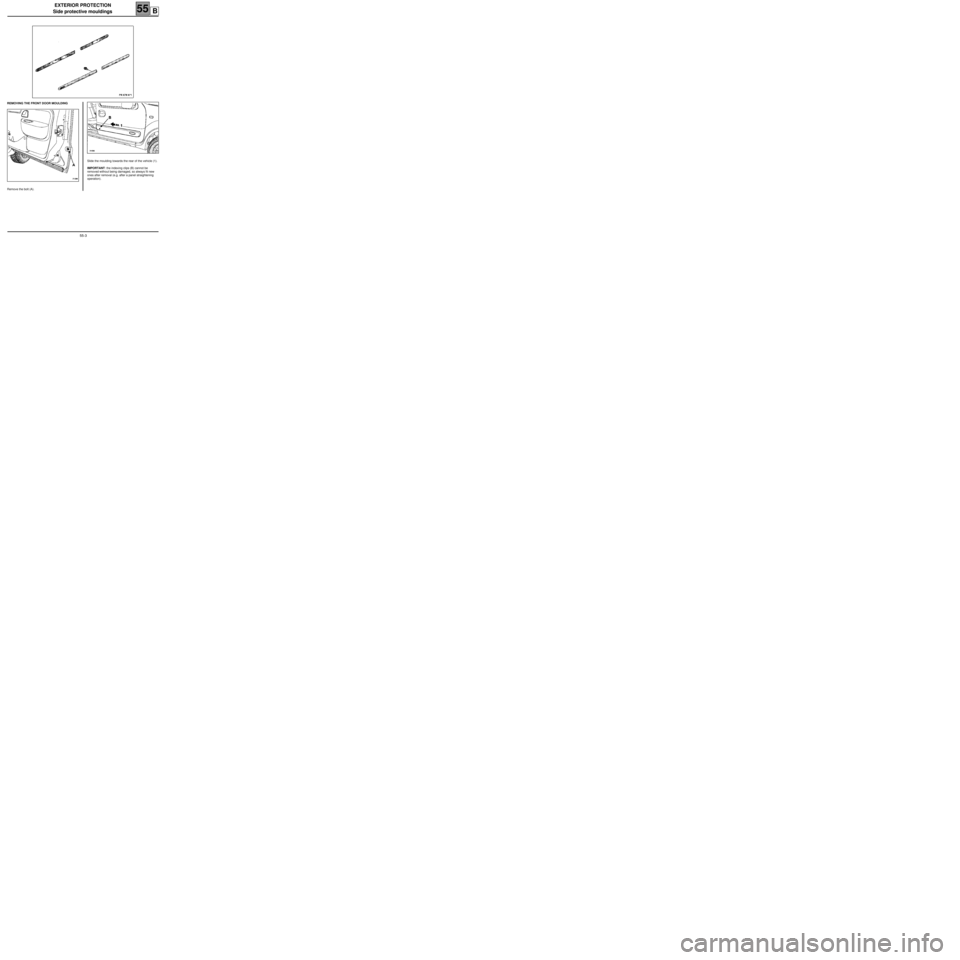

Side protective mouldings
REMOVING THE FRONT DOOR MOULDING
Remove the bolt (A).Slide the moulding towards the rear of the vehicle (1).
IMPORTANT:

Page 6 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Side protective mouldings
55
55-4
Release the two clips (C), then remove the badge.
REMOVING THE REAR DOOR MOULDING
Slide the moulding towards the front of the vehicle (2).Remove

Page 7 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Front wing extenders
55
55-5
Front wing extenders
REMOVAL
Unclip the upper section of the extender (1).
Release the three clips (A), then remove the extender.
C

Page 8 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual EXTERIOR PROTECTION
Sill panel
55
55-6
Sill panel
REMOVAL
Remove the front wing extender.
Unclip:
– the upper section of the sill panel (1),
– the lower section of the sill panel (A).Remove the nu

Page 9 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual UPPER INTERIOR ACCESSORIES
Storage compartment
58
158UPPER INTERIOR ACCESSORIES
Storage compartment
REMOVAL
Remove:
– the three bolts (A),
– the four clips (B),
– the bolt (C), then release the

Page 10 of 10

RENAULT KANGOO 2001 KC / 1.G 4x4 - Mechanism And Accessories And Trim And Upholstery Workshop Manual INTERIOR BODY LININGS
Side trim panels
71
171INTERIOR BODY LININGS
Side trim panels
REMOVAL
Remove:
– the rear parcel shelf,
– the emergency spare wheel,
– the jack,
– the four fastenings (A),
