85A-5V1 MR-376-X76-85A000$030.mif
85A
UCH
Vdiag No.: 0F
Windscreen wiper/washer:
• List of system components and associated component codes:
•Windscreen washing/wiping diagram: 645 Passenger compartment electrical control unit
260 Passenger compartment fuse box and relay
677 Front and rear bidirectional washer pump
145 Combined wiper-washer
212 Windscreen wiper motor
WIPERS - WASHERS
Fault finding – Operating diagram

85A-6V1 MR-376-X76-85A000$030.mif
WIPERS - WASHERS
Fault finding – Operating diagram85A
UCH
Vdiag No.: 0F
Rear screen washing/wiping:
• List of system components and associated component codes:
• Rear screen washing/wiping diagram:
*PDB/ARG - intermediate connector (dashboard/rear left-hand) 645Passenger compartment electrical control unit
260Passenger compartment fuse box and relay
677Front and rear bidirectional washer pump
145Combined wiper-washer
1041Rear screen wiper relay
211Rear screen wiper motor
PDB/ARG
(dashboard/rear
left-hand)*

85A-7V1 MR-376-X76-85A000$030.mif
WIPERS - WASHERS
Fault finding – Operating diagram85A
UCH
Vdiag No.: 0F
Heated rear screen
• List of system components and associated component codes:
• Heated rear screen diagram128Heated rear screen switch
235Heated rear screen relay
200Heated rear screen
260Passenger compartment fuse box and relay
247Instrument panel

85A-13
AFTER REPAIRFollow the instructions.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$070.mif
85A
UCH
Vdiag No.: 0F
DF040
PRESENT
OR
STOREDREAR SCREEN WIPER PARK POSITION
NOTESThe fault is declared present following operation of the rear screen wiper.
Special notes: random operation of screen wiping in intermittent speed position (time
delay not respected).
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check that the rear screen park position status ET097 Rear screen park position is ACTIVE each time the wiper
blade arrives at the park position and then changes back to INACTIVE.
Check the connection and condition of the connectors of the UCH, component code 645, of the passenger
compartment fuse and relay box, component code 260, of the rear screen wiper relay, component code 1041, of
the rear screen wiper motor, component code 21 and of the wiper stalk, component code 145.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
•AP7 between components 1041 and 260,
•36A between components 1041 and 645,
•36G of component 1041 and 36A of component 211,
•NA between component 1041 and earth,
•36C of component 645 and AP3 of component 211,
•MG between component 211 and earth.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the connection and condition of the rear screen wiper motor connector, component code 211.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the operation and fitting of the rear screen wiper motor.
The rear screen wiper motor may need to be replaced (see MR 374 Mechanical, 85A, Wiping - Washing, Rear
screen wiper motor: Removal - Refitting).
If the fault is still present, contact the Techline.
UCH_V0F_DF040
WIPERS - WASHERS
Fault finding – Interpretation of faults

85A-17
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
85A
UCH
Vdiag No.: 0F
ET492 WINDSCREEN WASHER SIGNAL
NOTESThere must be no present or stored faults.
Switch on the ignition.
Activate the windscreen washer control.
The status should be PRESENT.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
"ABSENT"Check for the presence and condition of fuses F14 (15A) and F15 (20A) on the passenger
compartment fuse and relay box, component code 260 (see MR 374, Mechanical, 81C,
Fuses, Fuses: List and location of components).
Check the condition and connection of the combined wiper-washer connector, component
code 145, and check the front and rear bidirectional washer pump connector, component
code 677 (bent, broken tabs etc.).
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the condition and connection of the UCH connector, component code 645 (tabs bent,
broken, etc.).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check for an earth on the following connection:
•NA of component 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace the wiring.
UCH_V0F_ET492
WIPERS - WASHERS
Fault finding – Interpretation of statuses

85A-19
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
WIPERS - WASHERS
Fault finding – Interpretation of statuses85A
UCH
Vdiag No.: 0F
ET555 REAR SCREEN WIPER SIGNAL
NOTESThere must be no present or stored faults.
Switch on the ignition.
Activate the rear screen wiper control.
The status should be PRESENT.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
"ABSENT"Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse
and relay box, component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and
location of components).
Check the connection and condition of the rear screen wiper relay connector, component
code 1041 and check the rear screen wiper motor connector, component code 211.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the operation of the rear screen wiper.
Check the continuity between connections 36G and AP7 of the rear screen wiper relay in the
intermittent speed position.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•AP7 between components 1041 and 260,
•36A between components 1041 and 645,
•36G of component 1041 and 36A of component 211,
•36C of component 645 and AP3 of component 211.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
If the fault is still present, contact the techline.
UCH_V0F_ET555

85A-20
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
WIPERS - WASHERS
Fault finding – Interpretation of statuses85A
UCH
Vdiag No.: 0F

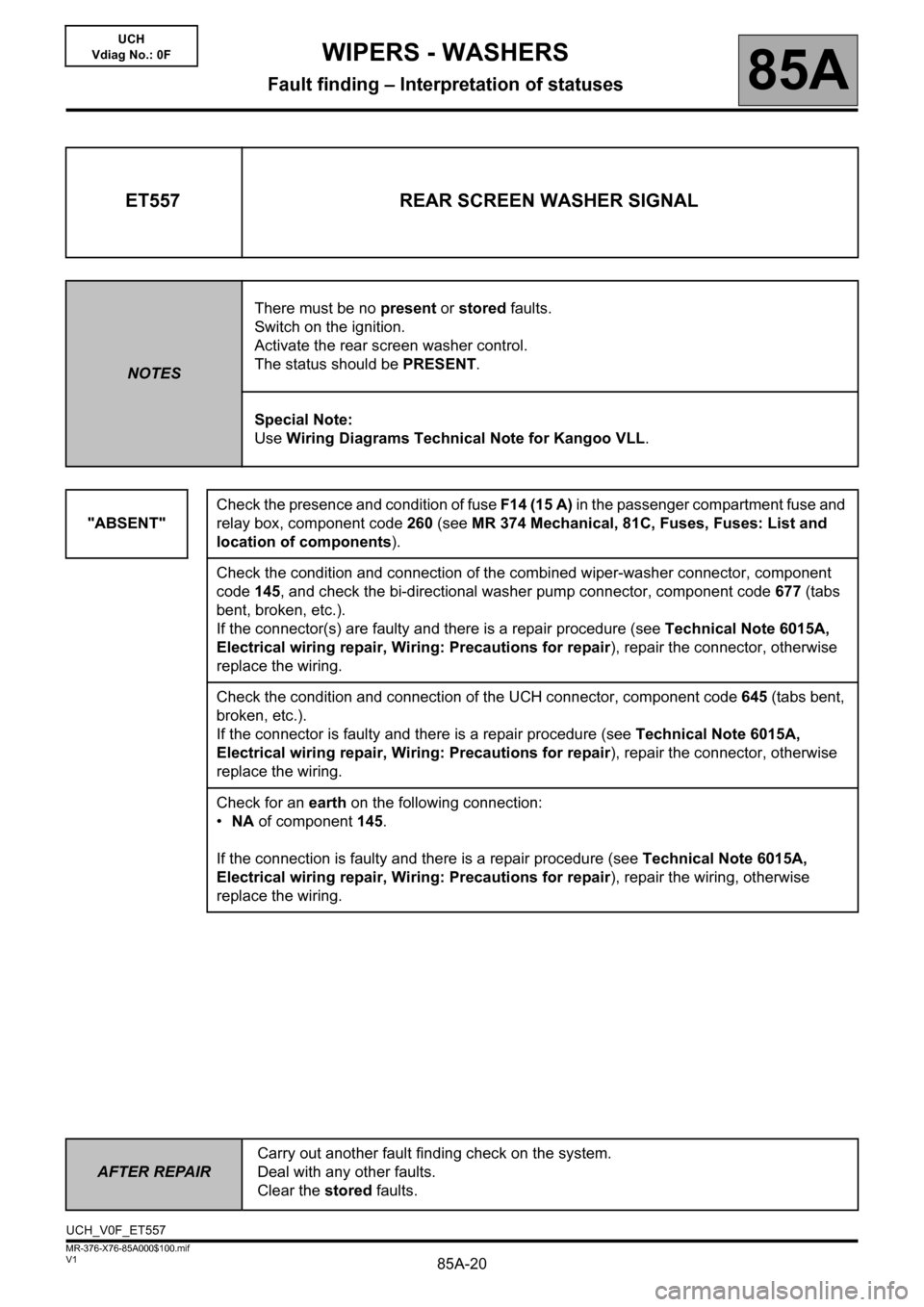

ET557 REAR SCREEN WASHER SIGNAL
NOTESThere must be no present or stored faults.
Switch on the ignition.
Activate the rear screen washer control.
The status should be PRESENT.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
"ABSENT"Check the presence and condition of fuse F14 (15 A) in the passenger compartment fuse and
relay box, component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and
location of components).
Check the condition and connection of the combined wiper-washer connector, component
code 145, and check the bi-directional washer pump connector, component code 677 (tabs
bent, broken, etc.).
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the condition and connection of the UCH connector, component code 645 (tabs bent,
broken, etc.).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check for an earth on the following connection:
•NA of component 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace the wiring.
UCH_V0F_ET557

85A-22
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
V1 MR-376-X76-85A000$100.mif
WIPERS - WASHERS
Fault finding – Interpretation of statuses85A
UCH
Vdiag No.: 0F
ET558 WINDSCREEN WIPER SPEED SETTING SELECTION
NOTESThere must be no present or stored faults.
Switch on the ignition.
Put the wiper stalk in the intermittent wipe position.
The status should be YES.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
ET558
"NO"Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse
and relay box, component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and
location of components).
Check the connection and condition of the combined wiper-washer connector, component
code 145 and check the windscreen wiper motor connector, component code 212.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the operation of the wiper control.
Check the continuity between connections 14E and AP7 of the screen wiper control in the
intermittent speed position.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14E between components 645 and 145,
•AP7 between components 145 and 260.
If the connection or connections are faulty and if there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace the wiring.
If the fault is still present, contact the techline.
UCH_V0F_ET558

85A-24
AFTER REPAIRCarry out a road test and then a check using the diagnostic tool.
V1 MR-376-X76-85A000$120.mif
85A
UCH
Vdiag No.: 0F
AC007REAR SCREEN WIPER
NOTESThis command activates the rear screen wiper.
There must be no present or stored faults.
Switch on the ignition.
Activate the rear screen wiper control.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 (20 A) in the passenger compartment fuse and relay box,
component code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and location of components).
Check the connection and condition of the rear screen wiper connector, component code 211 and the rear screen
wiper relay connector, component code 1041.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the + 12 V after ignition feed on connection AP7 of the rear screen wiper relay, component code 1041.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connections:
•AP7 between components 1041 and 260,
•MG between component 211 and the earth,
•36G of component 1041 and 36A of component 211.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the wiper mechanism or motor are not jammed.
If the fault is still present, contact the techline.
UCH_V0F_AC007
WIPERS - WASHERS
Fault finding – Interpretation of commands

85A-25
AFTER REPAIRCarry out a road test and then a check using the diagnostic tool.
V1 MR-376-X76-85A000$120.mif
WIPERS - WASHERS
Fault finding – Interpretation of commands85A
UCH
Vdiag No.: 0F
AC056LOW SPEED WIPER
NOTESThis command activates the low speed wiper.
There must be no present or stored faults.
Switch on the ignition.
Activate the low speed wiper command.
Special Note:
Use Wiring Diagrams Technical Note for Kangoo VLL.
Check for the presence and condition of fuse F15 on the passenger compartment fuse and relay box, component
code 260 (see MR 374 Mechanical, 81C, Fuses, Fuses: List and Location of components).
Check the connection and condition of the windscreen wiper connector, component code 212, and the combined
wiper-washer connector, component code 145.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the + 12 V after ignition feed on connection AP7 of the combined wiper-washer, component code 145.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•14A between components 145 and 212,
•MQ between component 212 and earth.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the wiper mechanism or motor are not jammed.
If the fault is still present, contact the techline.
UCH_V0F_AC056
