RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 8Electrical equipment
V1 MR-376-X76-88C000$TOC.mif
V1
88C
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The

Page 2 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-2V1 MR-376-X76-88C000$010.mif
88C
2nd generation
(AC4 phase II)
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding method applicable to all computers with the following specificat

Page 3 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-3V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
Special tooling required:
4. REMINDERS
During operations on the airbag/seat

Page 4 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-4V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
HOW TO START THE SESSION ASDE AIRBAG AC4 Kangoo VLL:

Page 5 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-5V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
5. FAULT FINDING PROCEDURE
Check the battery charge
and the condition of th

Page 6 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-6V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
5. FAULT FINDING PROCEDURE (continued)
5.1 Wiring check
Fault finding probl

Page 7 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-7V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
5.2 Connector check
Visual inspection of the connection:
– Check that the

Page 8 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-8V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
• Visual inspection of the metal contacts:
(The female contact is called

Page 9 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-9V1 MR-376-X76-88C000$010.mif
AIRBAGS AND PRETENSIONERS
Fault finding – Introduction88C
2nd generation
(AC4 phase II)
6. FAULT FINDING LOG
You will always be asked for this log:
– when reques

Page 10 of 40

RENAULT KANGOO 2013 X61 / 2.G Air Bags AC4 And Pretensioners Workshop Manual 88C-10V1 MR-376-X76-88C000$020.mif
88C
2nd generation
(AC4 phase II)

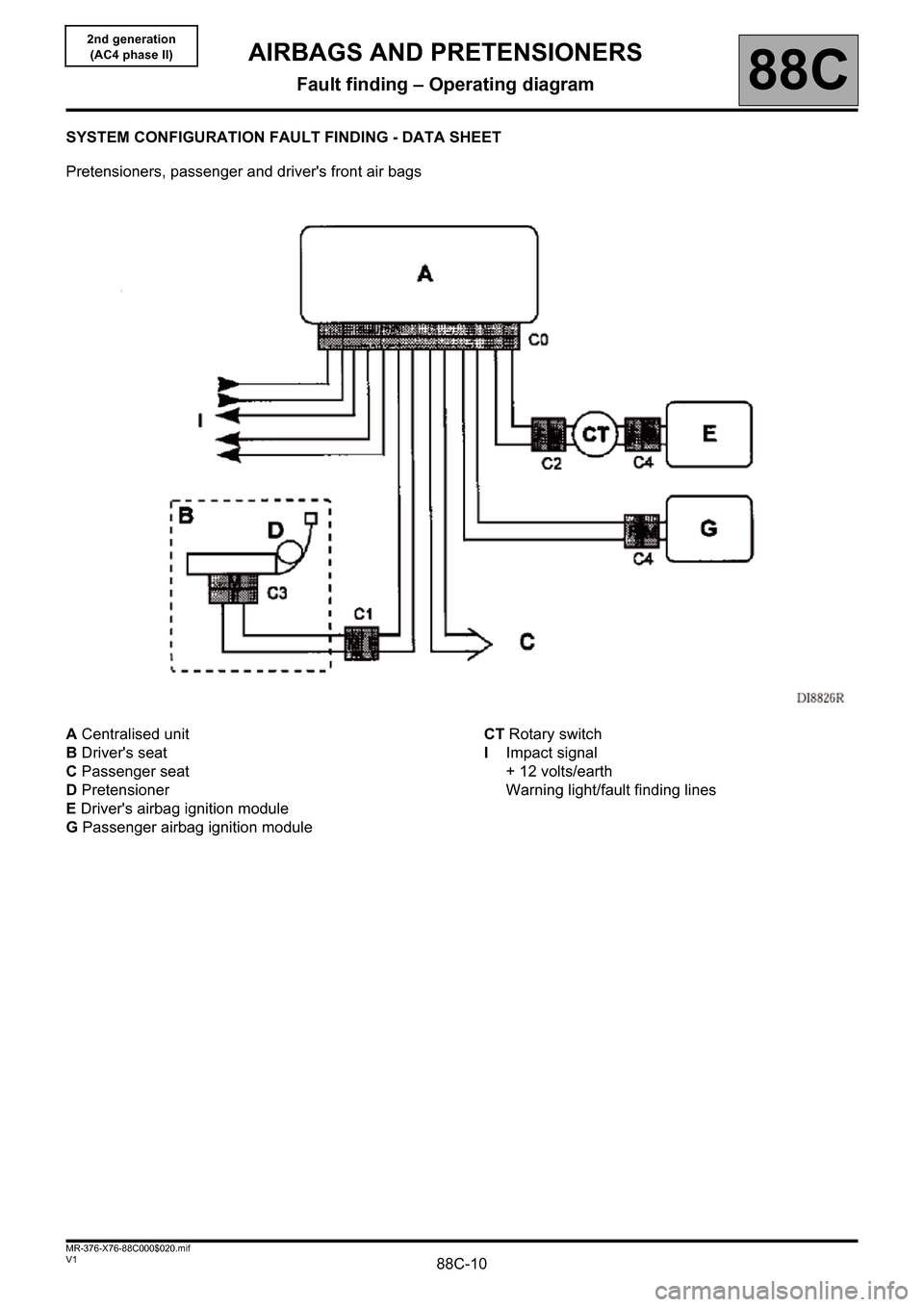

SYSTEM CONFIGURATION FAULT FINDING - DATA SHEET
Pretensioners, passenger and drivers front air bags
A Centralised unit
B Drivers
