1.5
ELECTRIC VEHICLE: introduction (4/5)
The A symbol identifies the electrical
elements in your vehicle which may
present health risks.
A
400 volt electrical circuit
The 400V electrical circuit can be rec-
ognised by the orange 4 cables and by
the elements signalled using the

symbol.
4
The vehicle drive system in
an electric vehicle uses an
alternating voltage of ap-
proximately 400 volts. This
system can get hot during and after
switching off the ignition. Respect
warning messages given on the
labels in the vehicle.
All interventions or modifications to
the 400V electrical system (com-
ponents, cables, connectors, trac-
tion battery) are strictly prohibited
due to the risks they present to your
safety. Please contact an authorised
dealer.
The risk of serious burns or elec-
tric shocks can lead to death.

1.10
ELECTRIC VEHICLE: charging (3/7)
Charging cord A
This cord, designed for specific wall
sockets or public terminals, enables the
standard charge of the traction battery.
A
Always read the charging cord instruc-
tions carefully before using it B.
B
Charging cord B
This cord allows:
– standard charge, on a socket used
only for the vehicle (14A charge);
– occasional charge using a domestic socket, when you are not at home,
for example (10A charge).
Sockets must be fitted as stated in the
instructions in the instructions supplied
with the charging cord B.
C
If a charging cord malfunctions
during the charging process (red
warning light on the unit D), stop
charging immediately. Please refer
to the cord instructions.
We recommend that you use a
charging cord that enables a stand-
ard charge to charge the traction
battery.
Each charging cord is stored in a
bag in the boot of the vehicle.
Never leave the socket hanging by
the cord. Use the hooks C to attach
it.
B
D

1.13
– open the charging flap 6;
– open the valve 7;
– grab the handle 8;
– plug in the vehicle cord;
– make sure you have clicked the charging cord in properly. Warning
light
 comes on the instrument
panel.
Recharging the traction
battery
With the ignition off, lever 5 in gear P
and opening elements unlocked:
– take the charging cord located in the boot of your vehicle;
– remove it from its storage bag;
– plug in the end of the cord to the power supply (terminal, domestic
plug socket, etc.);
ELECTRIC VEHICLE: charging (6/7)
The charging cord is automatically
locked with the vehicle. This will make it
impossible to unplug the cord from your
vehicle.
When charging commences, the hazard
warning lights will flash five times. A
message on the instrument panel will
tell you the remaining charging time.
You do not need to wait until the charge
is at reserve levels to recharge your
vehicle.
6
7
The charging cord cannot be plug-
ged in or removed while the opening
elements are locked.
8
Make sure you fully uncoil the char-
ging cord to limit its heating.
5
Do not use an extension
lead, multiple socket or
adapter.
Fire hazard.

1.14
Precautions to take when removing
from the socket
– Press the button 9 on the radio fre-
quency remote control or switch 10
to release the charging cord;
– grab the handle 8;– unplug the charging cord from the
vehicle. Warning light
 goes out
on the instrument panel;
– close valve 7;
– close the charging flap 6;
– unplug the cord from the power supply;
– store the cord in its storage bag and put away in the boot.
ELECTRIC VEHICLE: charging (7/7)
10
6
7
After pressing the charging cord re-
lease button, you will have around
30 seconds to unplug it before it is
locked once again.
Note:
Immediately after a long charge of the
traction battery, the cord may be hot.
Please use the handles.
8
It is imperative to follow the unplug-
ging steps in order.
9

1.17
RADIO FREQUENCY REMOTE CONTROL/KEY: use
The doors are locked and unlocked
using the remote control unit.
It is powered by a battery which must
be replaced (refer to the information on
the “Key, radio frequency remote con-
trol: batteries” in Section 5).
Locking the doors
Press locking button 1.
The hazard warning lights and side in-
dicator lights flash twice to indicate
that the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors and tailgate
lock then quickly unlock and the hazard
warning lights and side indicator lights
do not flash.
Unlocking the doors
Press unlocking button 2.
Pressing the button briefly unlocks all
the doors.
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have unlocked.
NB: unlocking the doors will unlock the
vehicle charging cord.
12
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).

1.18
Opening from the outside
Unlock the door and pull handle 1. For
information on unlocking the doors,
refer to the information on the “Key,
radio frequency remote control: use” in
Section 1.
Opening from the inside
Pull handle 2.
DOORS (1/5)
1
2
Child safety(depending on vehicle)
At the rear, to prevent the side door
from being opened from the inside,
move lever 3 using the end of the ve-
hicle key.
From the inside, check that the door is
correctly locked.
3
Lights-on reminder buzzer
If you have left the lights on after switch-
ing off the ignition, a reminder buzzer
will sound when a door is opened (to
prevent discharge of the 12 volt battery,
etc.).
2 This warning indicates that a door is
open or not properly closed.

1.20
Opening the doors to the maximum
position
For each door, pull handle 8 to release
the door check strap. Open the door as
far as possible.
Closing manually from the outside
First close the small door and then
close the large door.
Position each door so that it is almost
closed and then slam shut.Rear hinged doors
Opening from the outside
Unlock the door and pull handle 7. For
information on unlocking the doors,
refer to the information on the “Key,
radio frequency remote control: use” in
Section 1.
DOORS (3/5)
If the vehicle is parked on
the hard shoulder with tail-
gate open, the rear lights
may be obscured. You
should make other road-users
aware of your vehicle by using a
warning triangle or other equipment
specified by the road traffic regula-
tions of the country concerned.
Do not leave the hinged
rear doors open in case of
strong winds. Risk of injury.
7
8

1.23

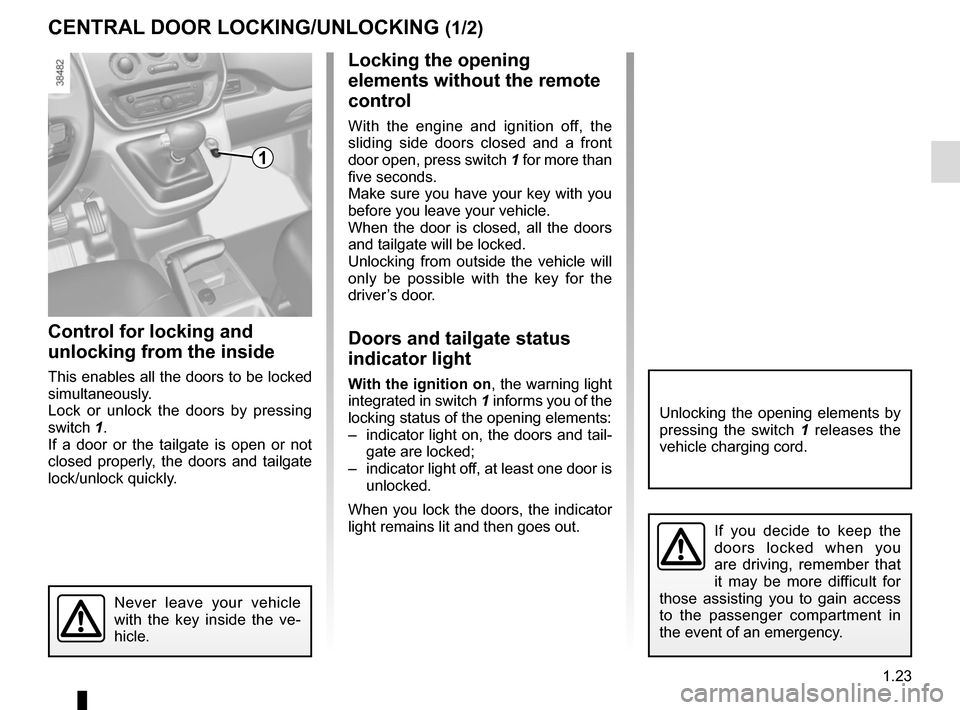

Locking the opening
elements without the remote
control
With the engine and ignition off, the
sliding side doors closed and a front
door open, press switch 1 for more than
five seconds.
Make sure you have your key with you
before you leave your vehicle.
When the door is closed, all the doors
and tailgate will be locked.
Unlocking from outside the vehicle will
only be possible with the key for the
driver’s door.
Doors and tailgate status
indicator light
With the ignition on , the warning light
integrated in switch 1 informs you of the
locking status of the opening elements:
– indicator light on, the doors and tail- gate are locked;
– indicator light off, at least one door is unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
Control for locking and
unlocking from the inside
This enables all the doors to be locked
simultaneously.
Lock or unlock the doors by pressing
switch 1.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
CENTRAL DOOR LOCKING/UNLOCKING (1/2)
Never leave your vehicle
with the key inside the ve-
hicle.
If you decide to keep the
doors locked when you
are driving, remember that
it may be more difficult for
those assisting you to gain access
to the passenger compartment in
the event of an emergency.
1
Unlocking the opening elements by
pressing the switch 1 releases the
vehicle charging cord.

1.29
FRONT SEATS (1/2)
1
2
534
2
ðHeated seats
With the engine running, activate
switch 5; a warning light comes on.
To tilt the seatback
Depending on the seat, lower or lift
lever 2 and tilt the seatback until it
reaches the required position.
To move forwards or
backwards
Depending on the seat, lift bar 1 or
handle 4 to release it. Release the
handle at the desired position and
make sure that it is locked.
Adjusting the height of the
driver’s seat
Move lever 3 as many times as neces-
sary:
– upwards to raise the seat,
– downwards to lower the seat.
For safety reasons, carry out any adjustments when the vehicle is not
being driven.
We would advise you not to recline the seatbacks too far to ensure that
the effectiveness of the seat belts is not reduced.
Make sure that the seatbacks are correctly locked in place.
Nothing should be placed on the floor (area in front of driver) as suc\
h objects may
slide under the pedal during braking manoeuvres, thus obstructing its us\
e.
