RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual

3.15

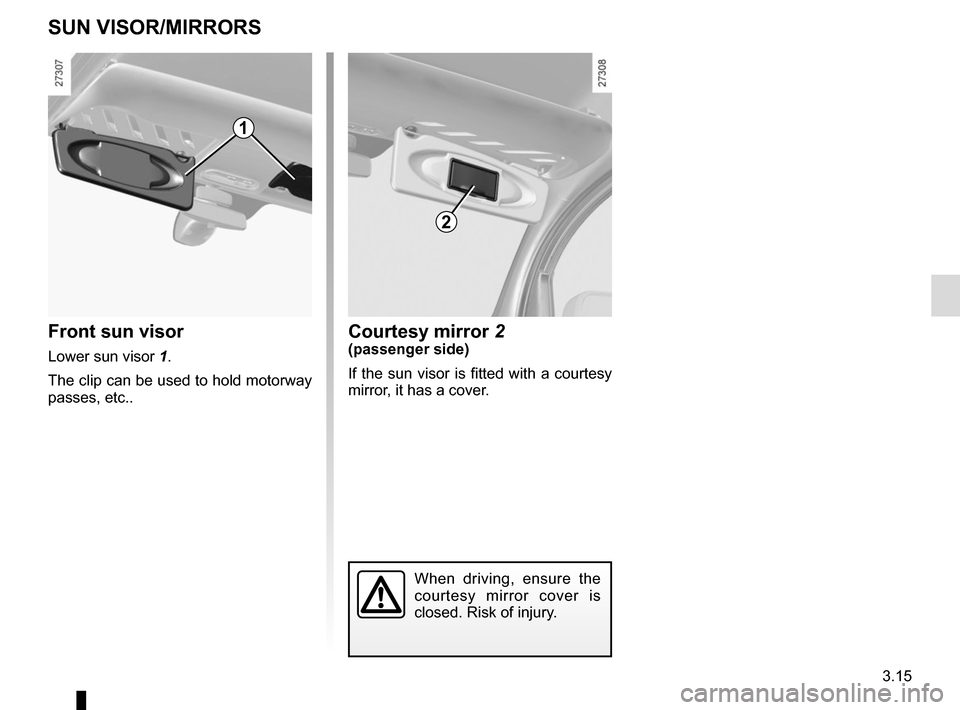

Front sun visor
Lower sun visor 1.
The clip can be used to hold motorway
passes, etc..
SUN VISOR/MIRRORS
1
Courtesy mirror 2(passenger side)
If the sun visor is fitted with a courtesy
mirror, it has a cover.
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
2

3.16

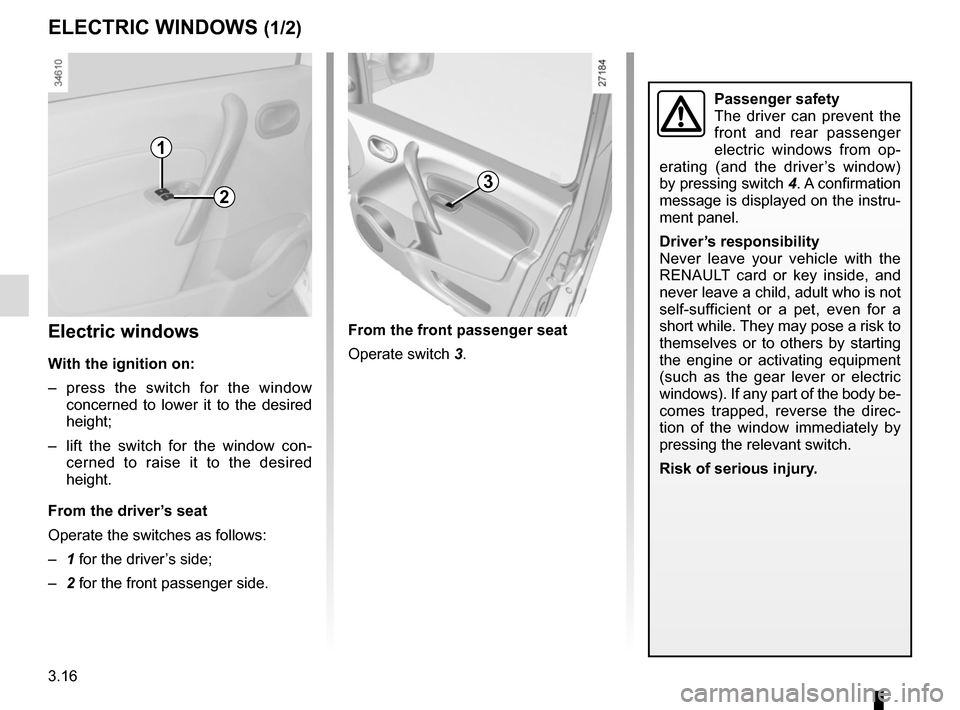

Electric windows
With the ignition on:
– press the switch for the window concerned to lower it to the desired
height;
– lift the switch for the window con- cerned to raise it to the desired
height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger side.
ELECTRIC WINDOWS (1/2)
From the front passenger seat
Operate switch 3.
1
23
Passenger safety
The driver can prevent the
front and rear passenger
electric windows from op-
erating (and the driver’s window)
by pressing switch 4. A confirmation
message is displayed on the instru-
ment panel.
Driver’s responsibility
Never leave your vehicle with the
RENAULT card or key inside, and
never leave a child, adult who is not
self-sufficient or a pet, even for a
short while. They may pose a risk to
themselves or to others by starting
the engine or activating equipment
(such as the gear lever or electric
windows). If any part of the body be-
comes trapped, reverse the direc-
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.

3.17
One-touch electric window(depending on vehicle)
The one-touch mode works in addition
to the operation of the electric windows
described previously.
It is fitted to the driver’s window and
is used for lowering only.
Briefly press switch 1: the window will
open completely.
Pressing the switch again while the
window is moving will stop its move-
ment.

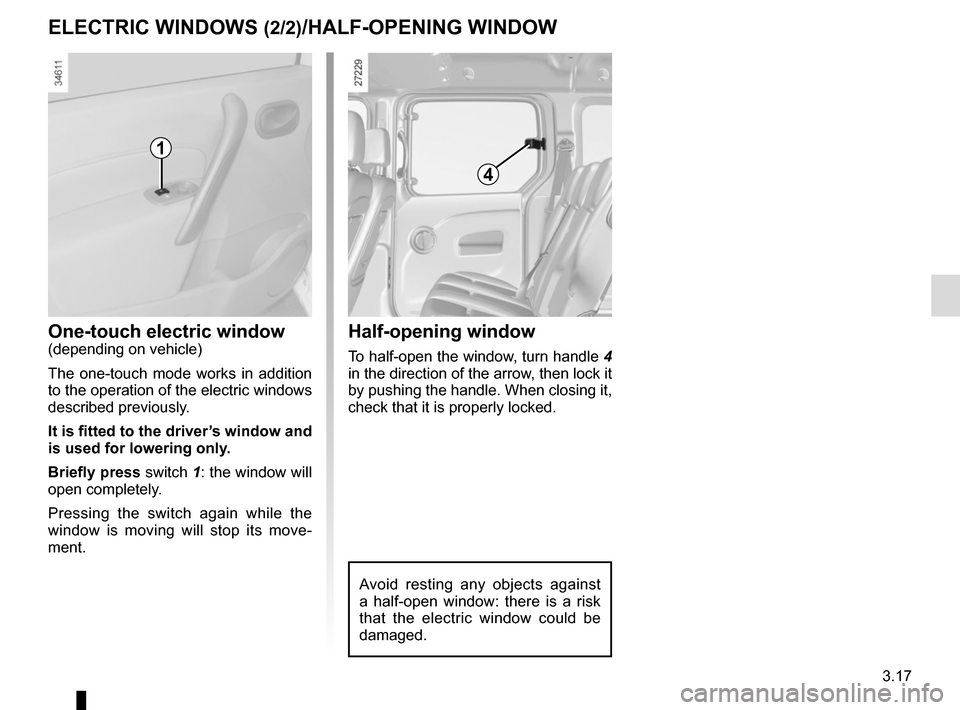

ELECTRIC WINDOWS (2/2)/HALF-OPENING WINDOW
4
Half-opening window
To half-open the window, turn handle 4
in the direction of the arrow, then lock it
by pushing the handle. When closing it,
check that it is properly locked.
1
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

3.18
Removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.

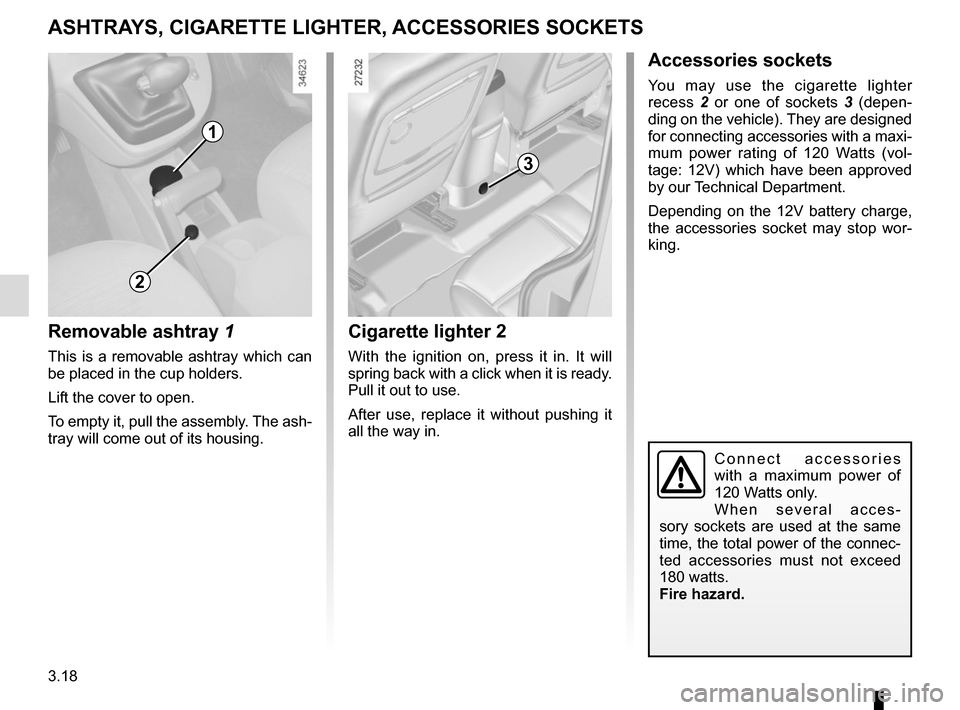

ASHTRAYS, CIGARETTE LIGHTER, ACCESSORIES SOCKETS
1
3
Accessories sockets
You may use the cigarette lighter
recess 2 or one of sockets 3 (depen-
ding on the vehicle). They are designed
for connecting accessories with a maxi-
mum power rating of 120 Watts (vol-
tage: 12V) which have been approved
by our Technical Department.
Depending on the 12V battery charge,
the accessories socket may stop wor-
king.
Cigarette lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
2
Connect accessories
with a maximum power of
120 Watts only.
When several acces-
sory sockets are used at the same
time, the total power of the connec-
ted accessories must not exceed
180 watts.
Fire hazard.

3.19

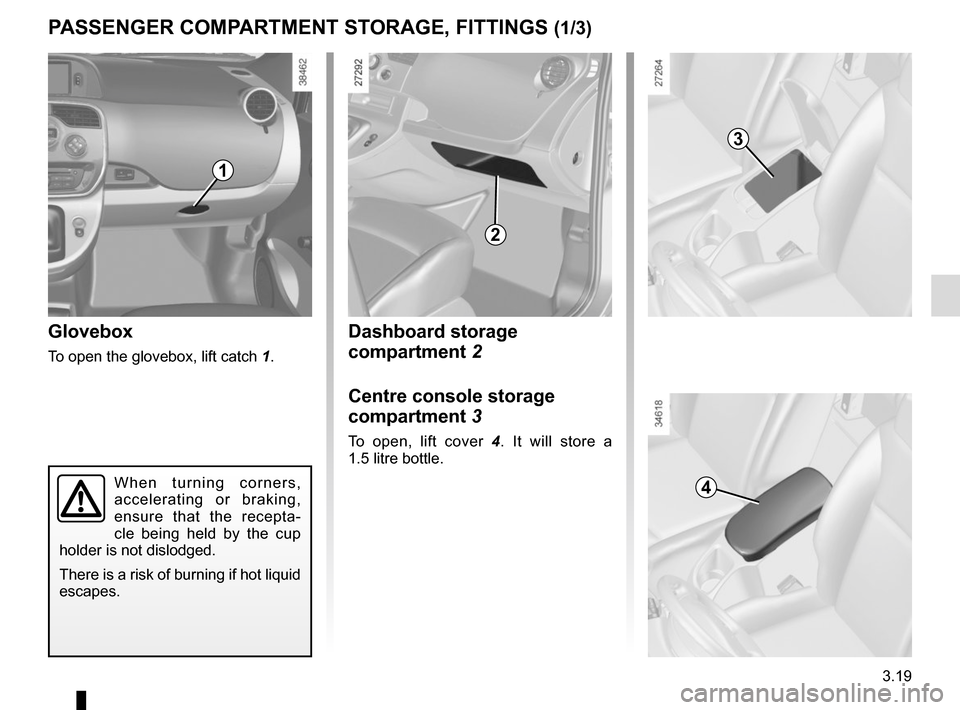

Dashboard storage
compartment 2
Centre console storage
compartment 3
To open, lift cover 4. It will store a
1.5 litre bottle.
Glovebox
To open the glovebox, lift catch 1.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/3)
1
2
4
3
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.

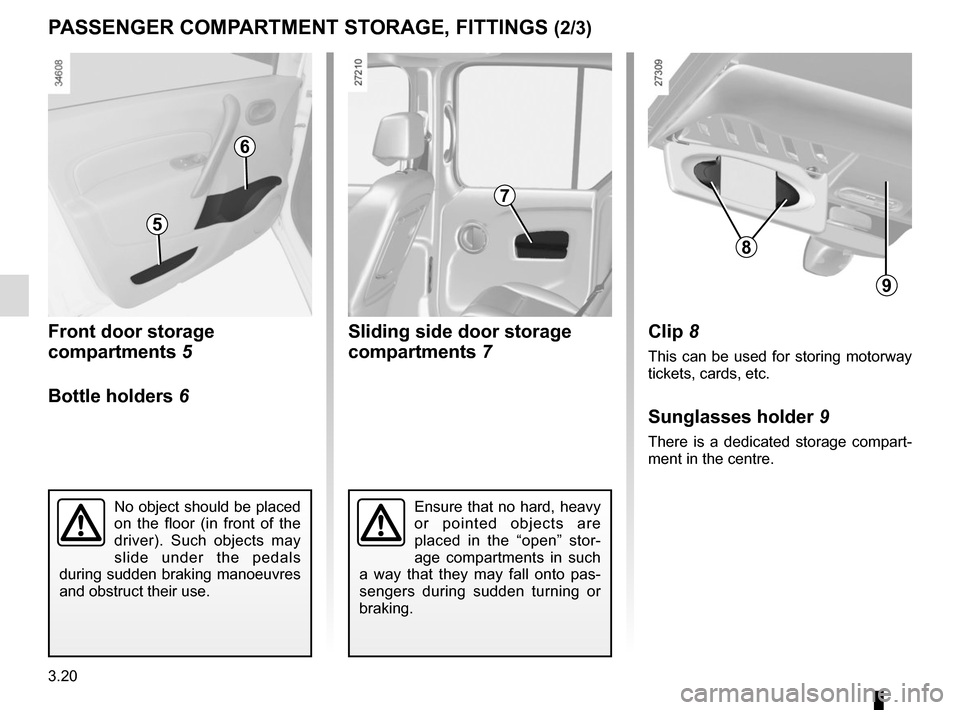

3.20
Sliding side door storage
compartments 7
Front door storage
compartments 5
Bottle holders
6
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/3)
No object should be placed
on the floor (in front of the
driver). Such objects may
slide under the pedals
during sudden braking manoeuvres
and obstruct their use.
Clip 8
This can be used for storing motorway
tickets, cards, etc.
Sunglasses holder 9
There is a dedicated storage compart-
ment in the centre.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
5
6
7
8
9

3.21

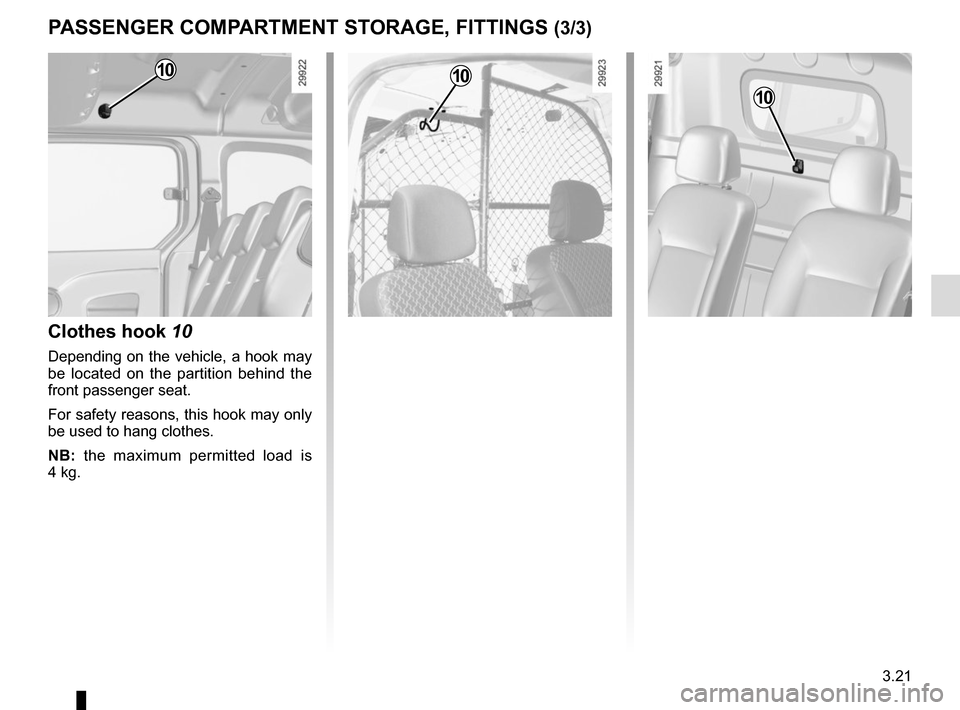

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)
10
Clothes hook 10
Depending on the vehicle, a hook may
be located on the partition behind the
front passenger seat.
For safety reasons, this hook may only
be used to hang clothes.
NB: the maximum permitted load is
4 kg.
10
10

3.22

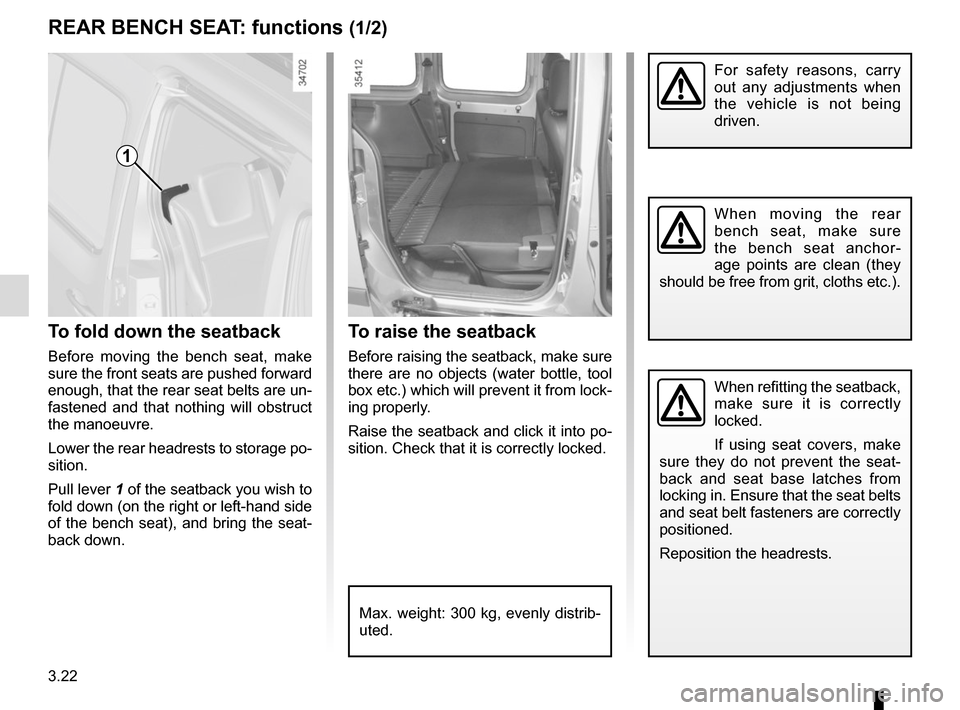

To raise the seatback
Before raising the seatback, make sure
there are no objects (water bottle, tool
box etc.) which will prevent it from lock-
ing properly.
Raise the seatback and click it into po-
sition. Check that it is correctly locked.
To fold down the seatback
Before moving the bench seat, make
sure the front seats are pushed forward
enough, that the rear seat belts are un-
fastened and that nothing will obstruct
the manoeuvre.
Lower the rear headrests to storage po-
sition.
Pull lever 1 of the seatback you wish to
fold down (on the right or left-hand side
of the bench seat), and bring the seat-
back down.
REAR BENCH SEAT: functions (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
bench seat, make sure
the bench seat anchor-
age points are clean (they
should be free from grit, cloths etc.).
When refitting the seatback,
make sure it is correctly
locked.
If using seat covers, make
sure they do not prevent the seat-
back and seat base latches from
locking in. Ensure that the seat belts
and seat belt fasteners are correctly
positioned.
Reposition the headrests.
Max. weight: 300 kg, evenly distrib-
uted.
1

3.23

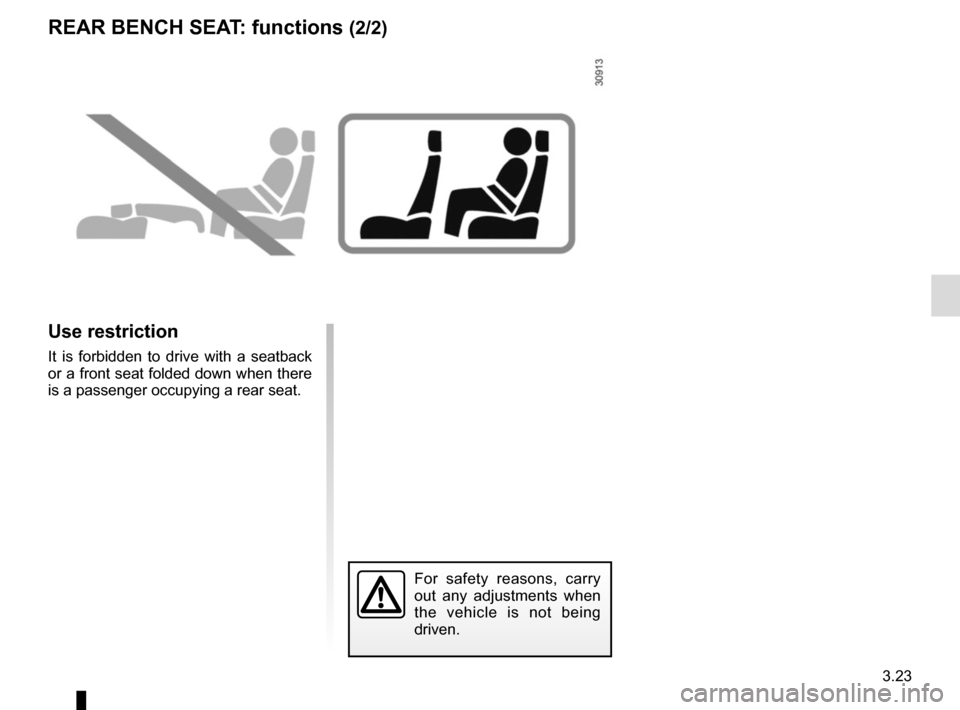

REAR BENCH SEAT: functions (2/2)
Use restriction
It is forbidden to drive with a seatback
or a front seat folded down when there
is a passenger occupying a rear seat.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

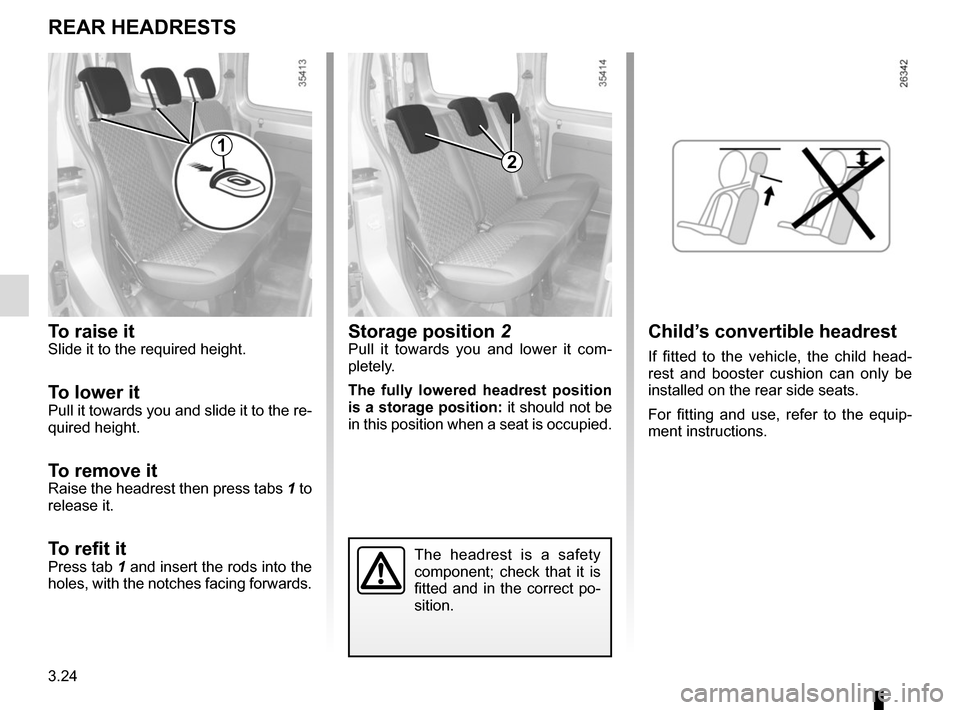

3.24
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition.
Storage position 2Pull it towards you and lower it com-
pletely.
The fully lowered headrest position
is a storage position: it should not be
in this position when a seat is occupied.To raise itSlide it to the required height.
To lower itPull it towards you and slide it to the re-
quired height.
To remove itRaise the headrest then press tabs 1 to
release it.
To refit itPress tab 1 and insert the rods into the holes, with the notches facing forwards.
REAR HEADRESTS
Child’s convertible headrest
If fitted to the vehicle, the child head-
rest and booster cushion can only be
installed on the rear side seats.
For fitting and use, refer to the equip-
ment instructions.
