Page 151 of 232

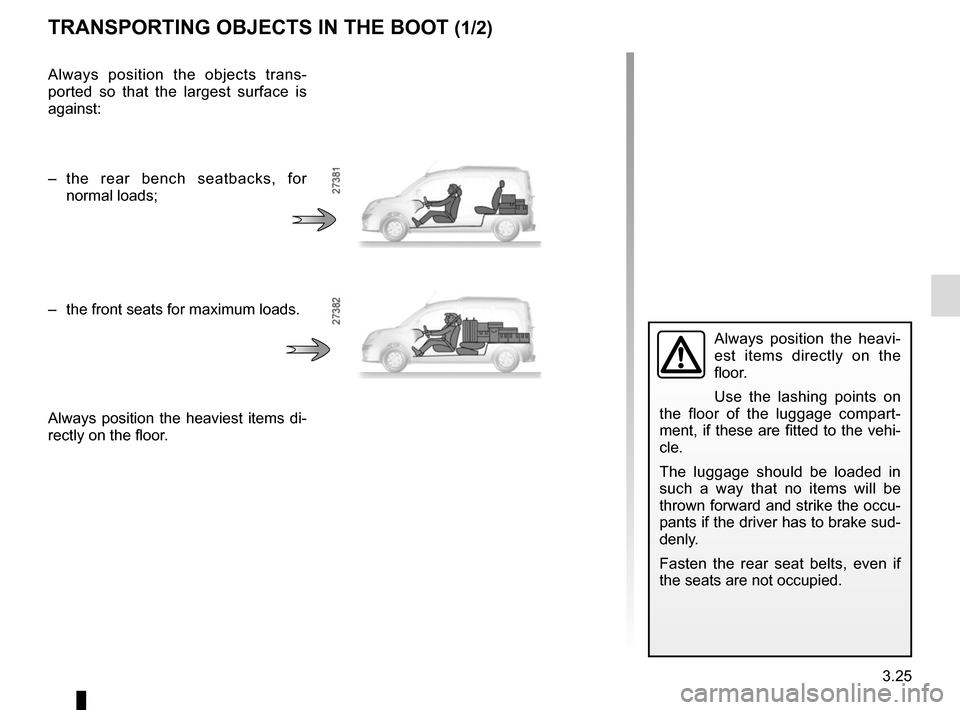

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 3.25
Always position the heavi-
est items directly on the
floor.
Use the lashing points on
the floor of the luggage compart-
ment, if these are fitted to the vehi-
cle.
The luggage should be loaded

Page 152 of 232

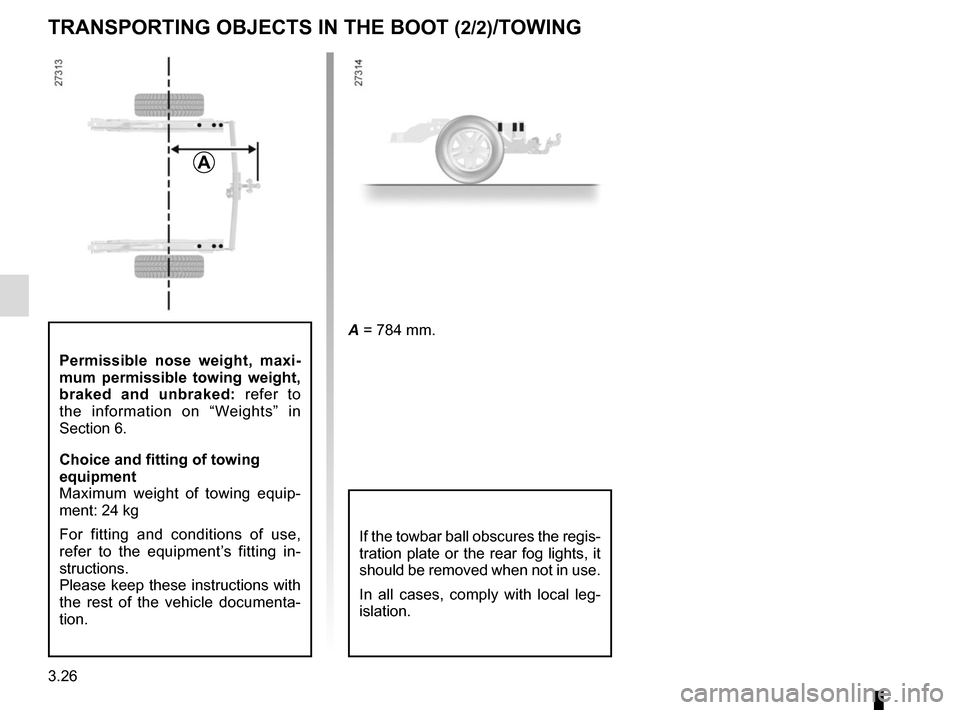

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 3.26
TRANSPORTING OBJECTS IN THE BOOT (2/2)/TOWING
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local l

Page 153 of 232

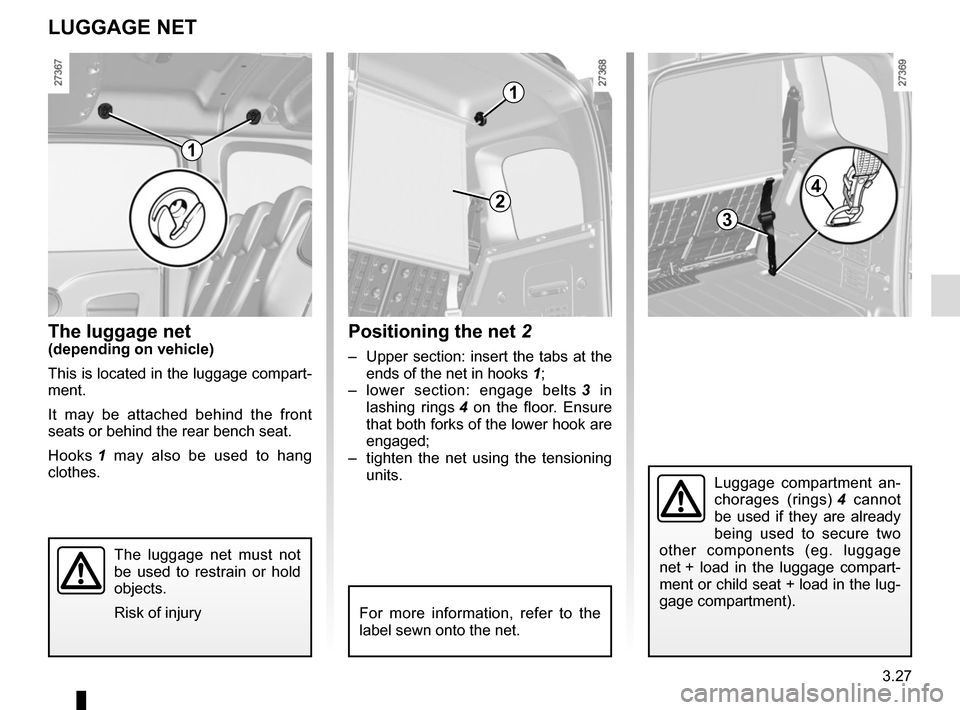

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 3.27
The luggage net(depending on vehicle)
This is located in the luggage compart-
ment.
It may be attached behind the front
seats or behind the rear bench seat.
Hooks 1 may also be used to hang
clo

Page 154 of 232

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 3.28

Page 155 of 232

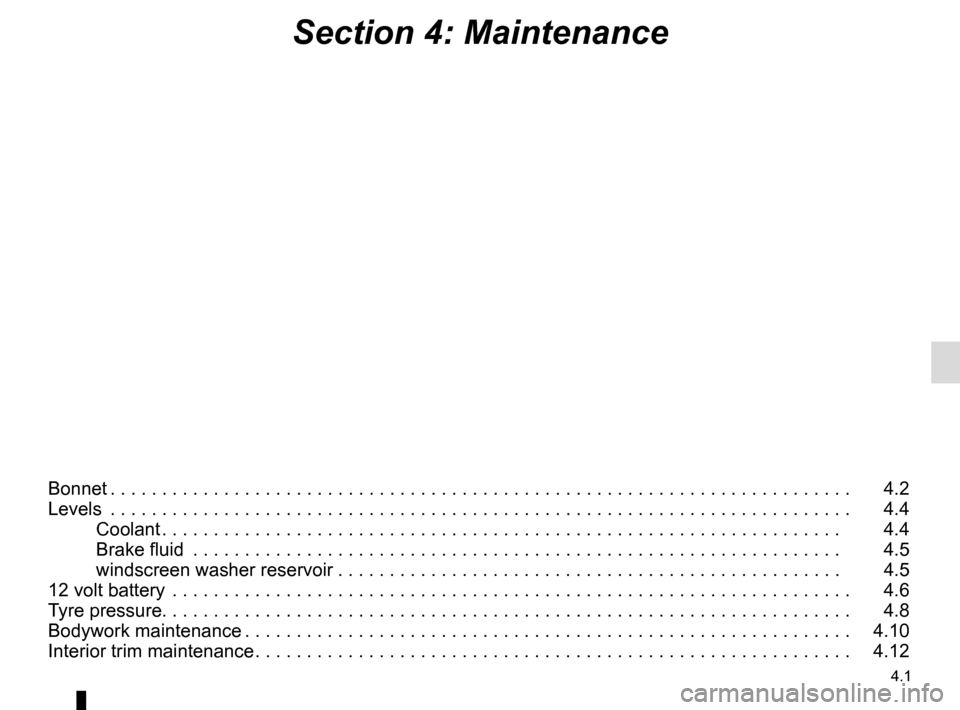

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.1
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   4.2
Levels  . . .

Page 156 of 232

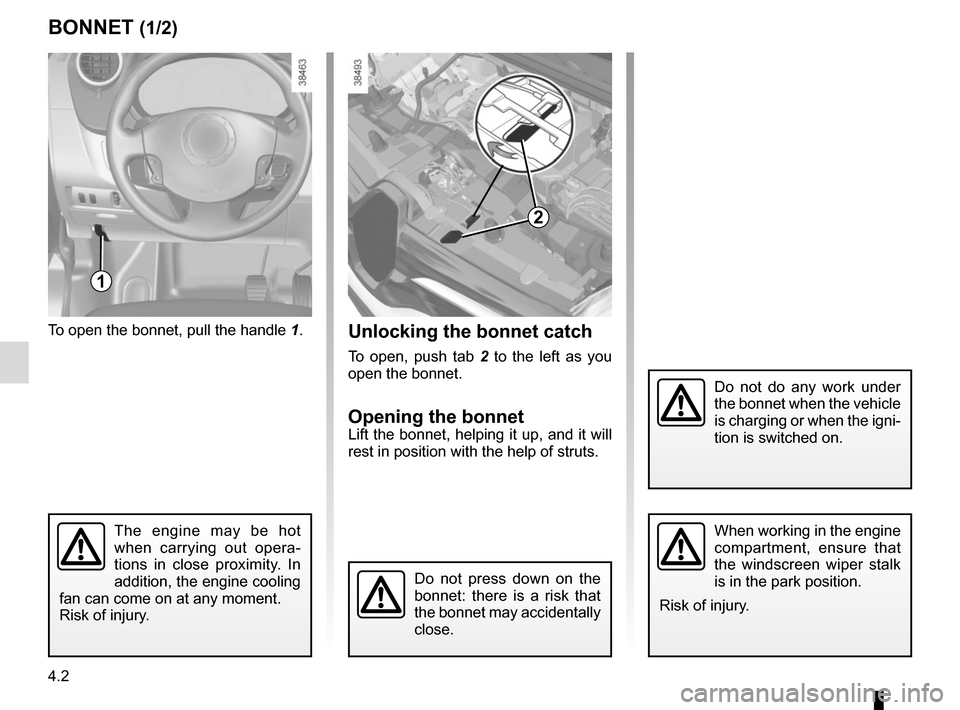

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.2
BONNET (1/2)
1
Do not do any work under
the bonnet when the vehicle
is charging or when the igni-
tion is switched on.
To open the bonnet, pull the handle 1.
The engine may be hot
when carrying

Page 157 of 232

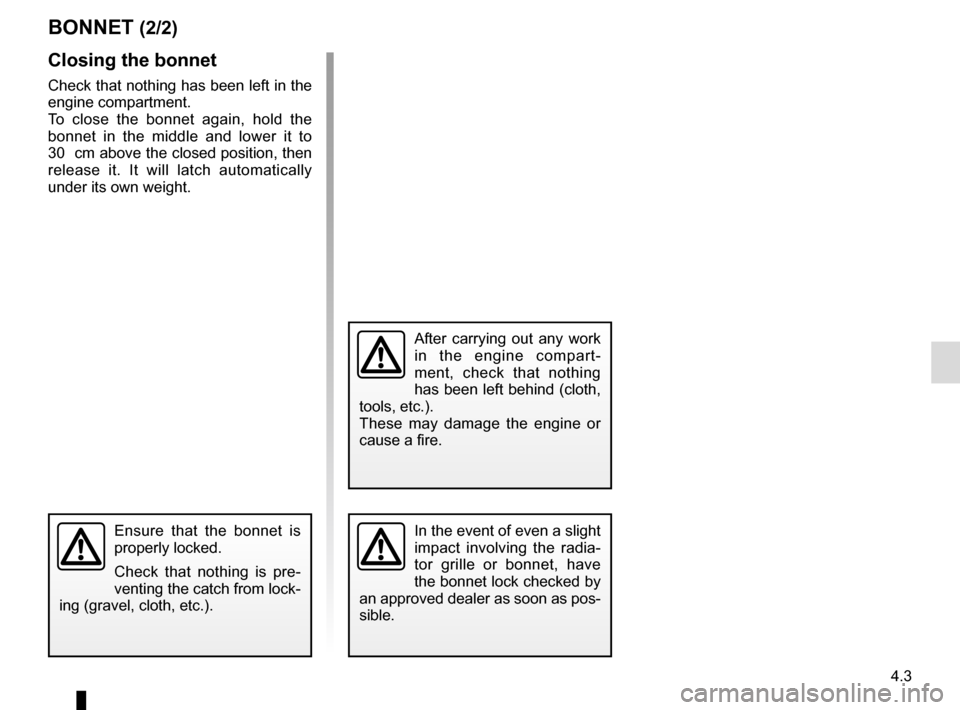

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.3
Ensure that the bonnet is
properly locked.
Check that nothing is pre-
venting the catch from lock-
ing (gravel, cloth, etc.).
BONNET (2/2)
Closing the bonnet
Check that nothing has been left in t

Page 158 of 232

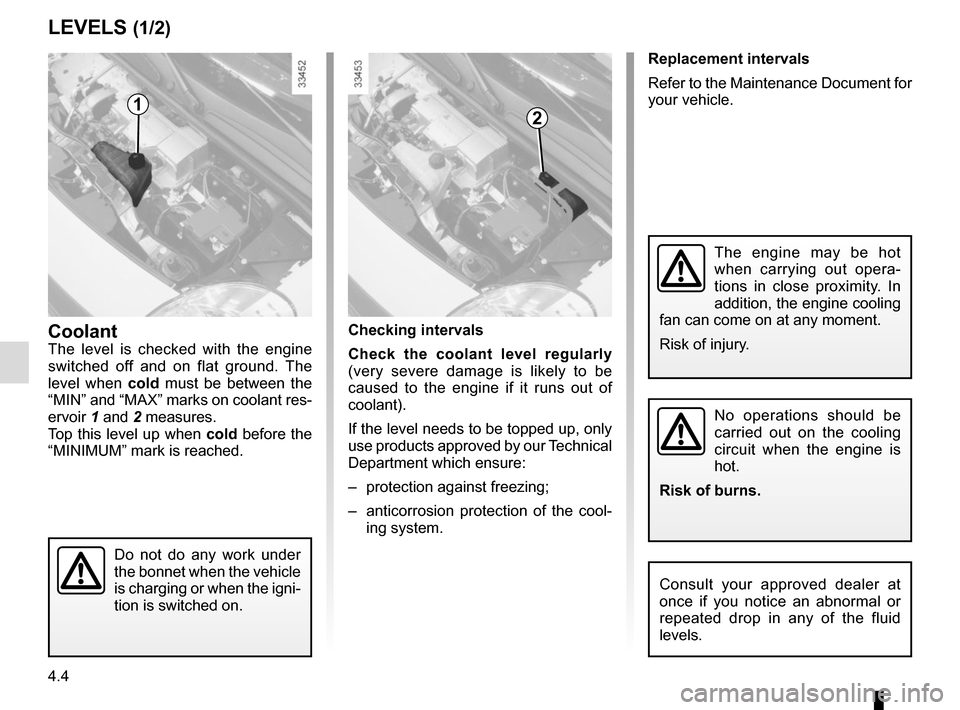

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.4
Replacement intervals
Refer to the Maintenance Document for
your vehicle.
LEVELS (1/2)
CoolantThe level is checked with the engine
switched off and on flat ground. The
level when cold must be b

Page 159 of 232

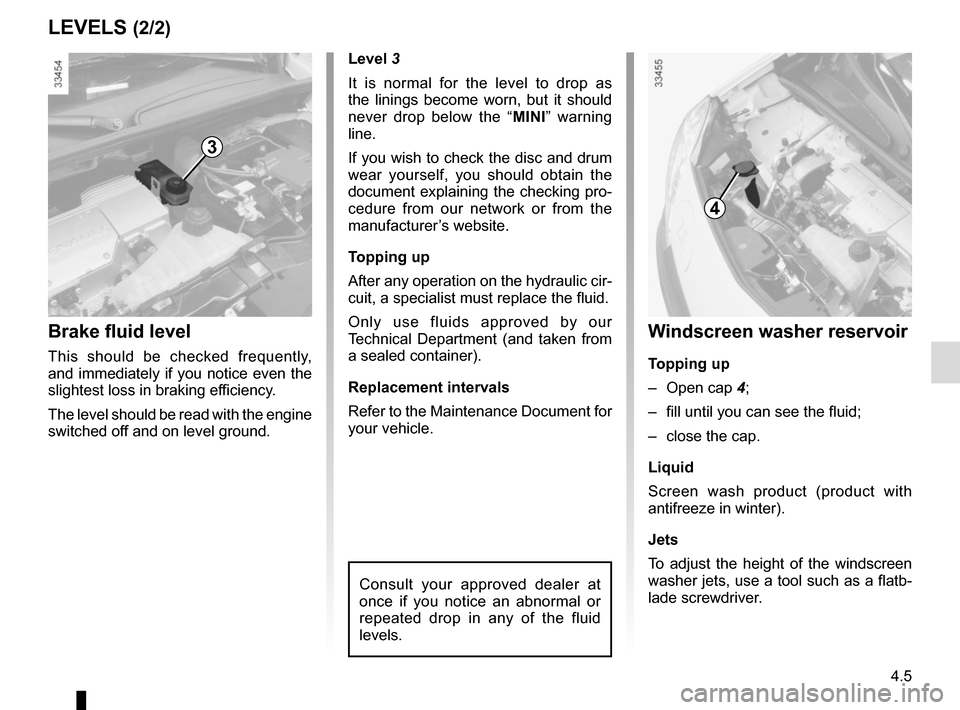

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.5
Windscreen washer reservoir
Topping up
– Open cap 4;
–  fill until you can see the fluid;
–  close the cap.
Liquid
Screen wash product (product with
antifreeze in winter).
Jets
To adjust th

Page 160 of 232

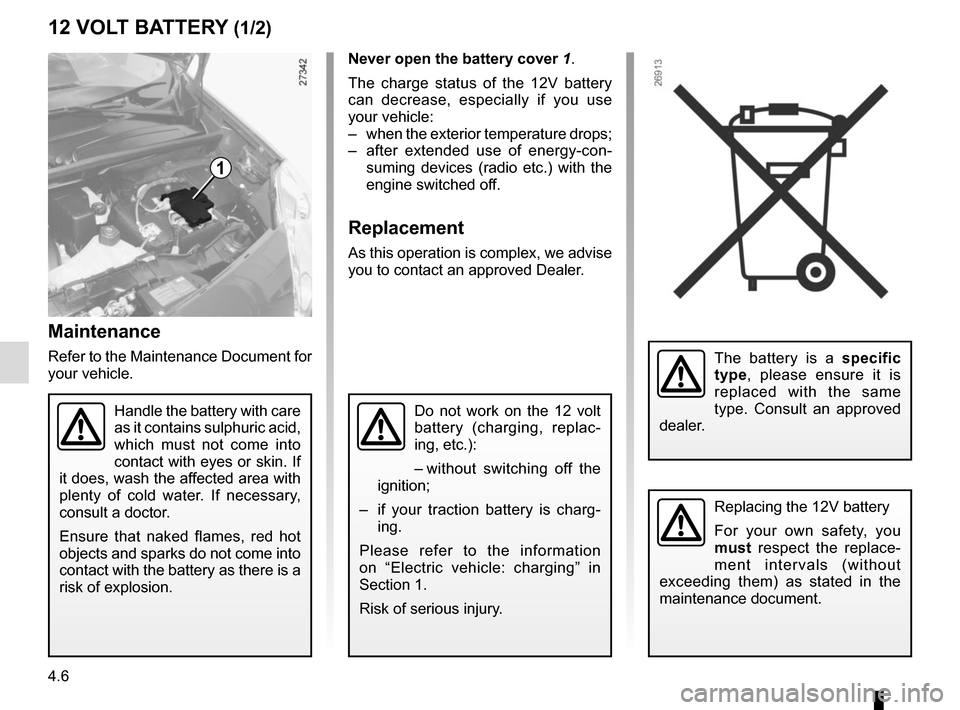

RENAULT KANGOO VAN ZERO EMISSION 2017 X61 / 2.G Owners Manual 4.6
Maintenance
Refer to the Maintenance Document for
your vehicle.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, was
