5.33

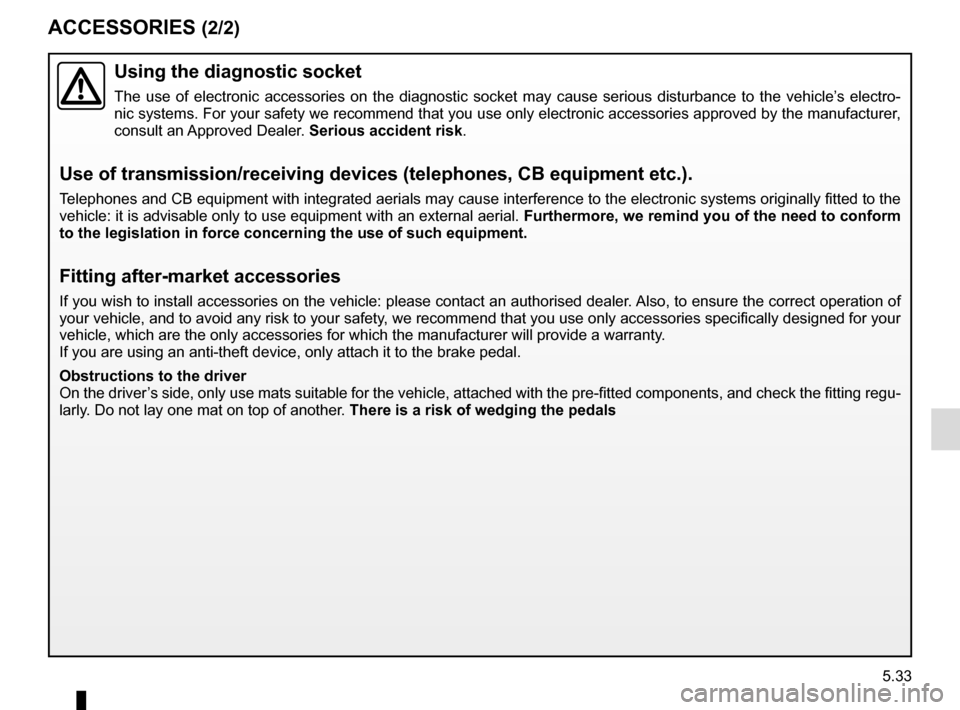

ACCESSORIES (2/2)
Using the diagnostic socket
The use of electronic accessories on the diagnostic socket may cause ser\
ious disturbance to the vehicle’s electro-
nic systems. For your safety we recommend that you use only electronic a\
ccessories approved by the manufacturer,
consult an Approved Dealer. Serious accident risk.
Use of transmission/receiving devices (telephones, CB equipment etc.).\
Telephones and CB equipment with integrated aerials may cause interferenc\
e to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. \
Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessories
If you wish to install accessories on the vehicle: please contact an aut\
horised dealer. Also, to ensure the correct operation o f
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for y\
our
vehicle, which are the only accessories for which the manufacturer will \
provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal\
.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fi\
tted components, and check the fitting re gu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals
Page 202 of 232
5.34

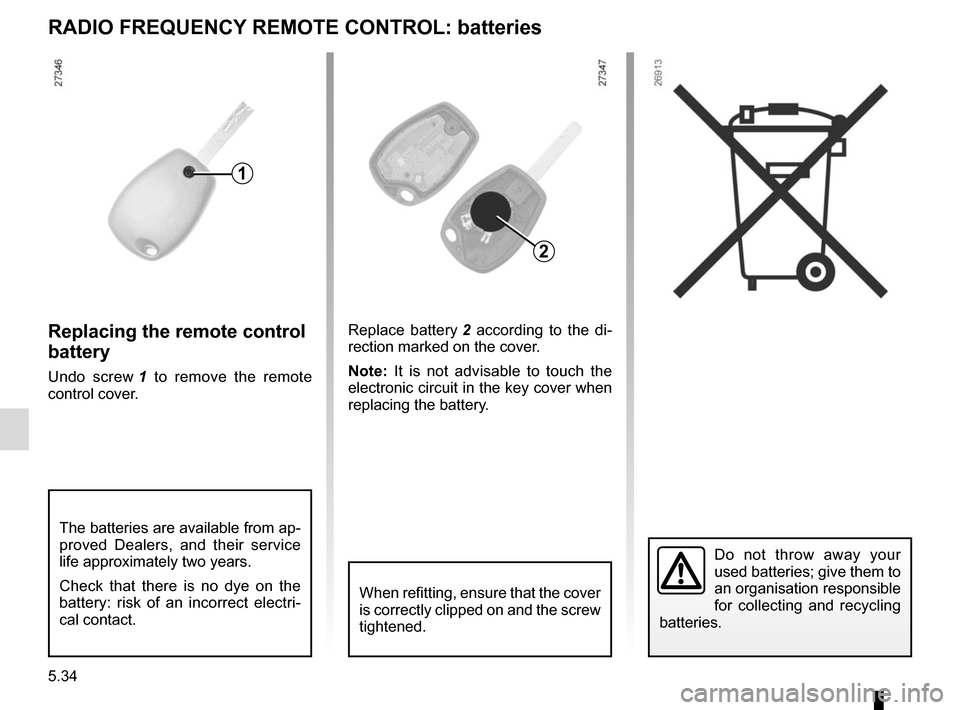

Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIO FREQUENCY REMOTE CONTROL: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
Page 203 of 232
5.35

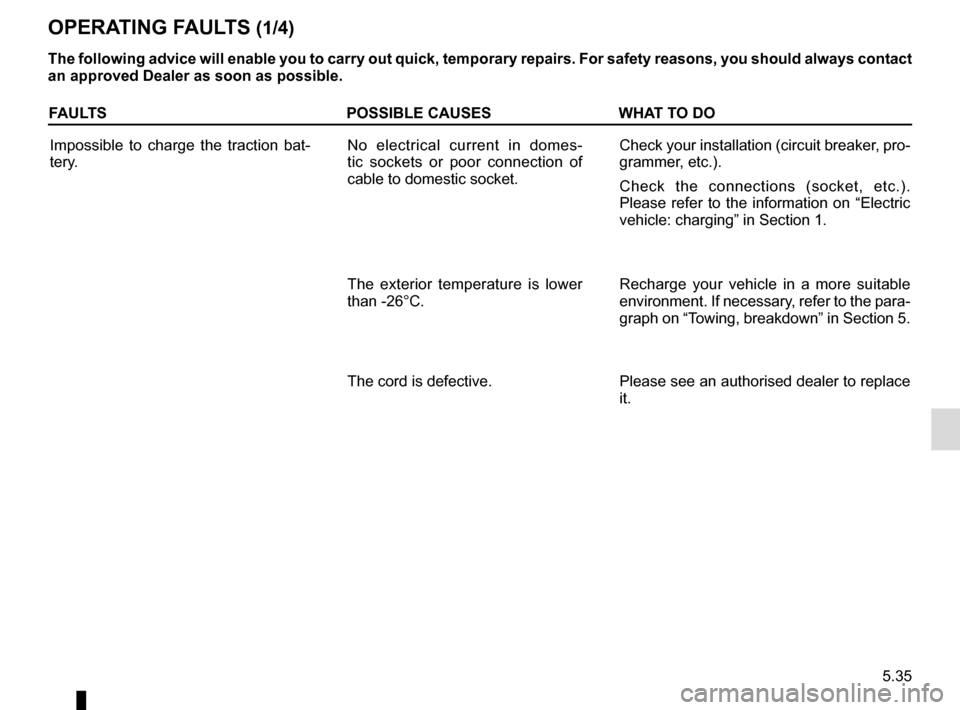

FAULTSPOSSIBLE CAUSESWHAT TO DO
Impossible to charge the traction bat-
tery. No electrical current in domes-
tic sockets or poor connection of
cable to domestic socket.Check your installation (circuit breaker, pro-
grammer, etc.).
Check the connections (socket, etc.).
Please refer to the information on “Electric
vehicle: charging” in Section 1.
The exterior temperature is lower
than -26°C. Recharge your vehicle in a more suitable
environment. If necessary, refer to the para-
graph on “Towing, breakdown” in Section 5.
The cord is defective. Please see an authorised dealer to replace
it.
OPERATING FAULTS (1/4)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons, you should always contact
an approved Dealer as soon as possible.
Page 204 of 232
5.36

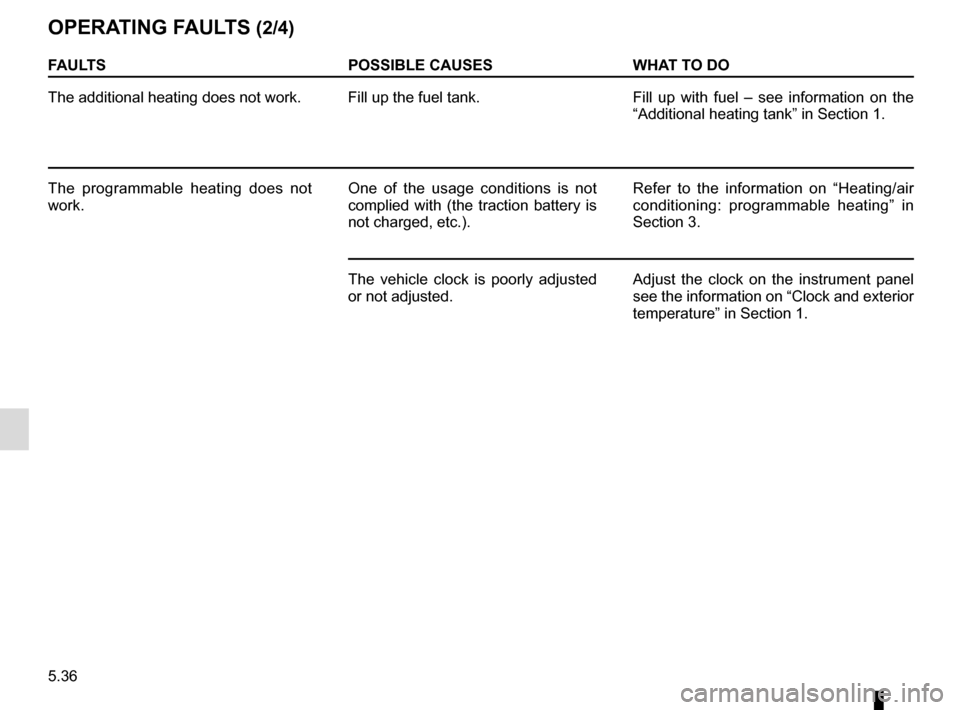

FAULTSPOSSIBLE CAUSESWHAT TO DO
The additional heating does not work. Fill up the fuel tank. Fill up with fuel – see information on the
“Additional heating tank” in Section 1.
The programmable heating does not
work. One of the usage conditions is not
complied with (the traction battery is
not charged, etc.).Refer to the information on “Heating/air
conditioning: programmable heating” in
Section 3.
The vehicle clock is poorly adjusted
or not adjusted. Adjust the clock on the instrument panel
see the information on “Clock and exterior
temperature” in Section 1.
OPERATING FAULTS (2/4)
Page 205 of 232
5.37

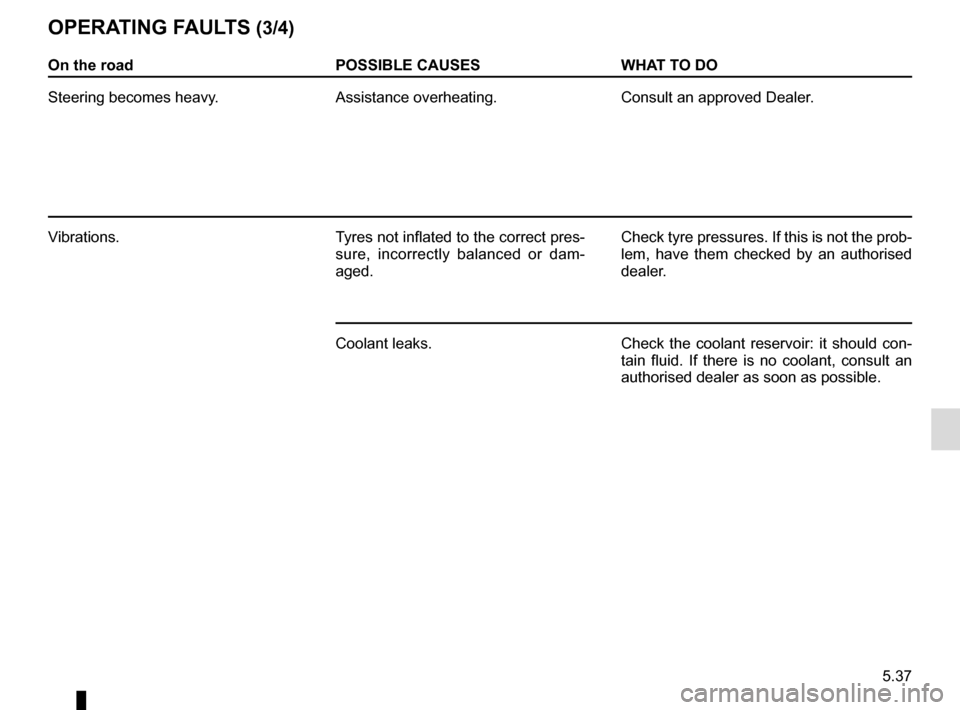

On the roadPOSSIBLE CAUSESWHAT TO DO
Steering becomes heavy. Assistance overheating.Consult an approved Dealer.
Vibrations. Tyres not inflated to the correct pres-
sure, incorrectly balanced or dam-
aged. Check tyre pressures. If this is not the prob-
lem, have them checked by an authorised
dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
authorised dealer as soon as possible.
OPERATING FAULTS (3/4)
Page 206 of 232
5.38
Electrical equipmentPOSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved Dealer.
Fuse damaged. Replace the fuse, refer to the information on
“Fuses”.
The wiper does not stop. Faulty electrical controls. Consult an approved Dealer.
Direction indicators flashing more
quickly. Blown bulb.
Replace the bulb.
The direction indicators do not
work. Faulty electrical circuit.
Consult an approved Dealer.
Fuse damaged. Replace the fuse, refer to the information on
“Fuses”.
The headlights do not switch on or
off. Faulty electrical circuit or control. Consult an approved Dealer.
Fuse damaged.
Replace the fuse, refer to the information on
“Fuses”.
Traces of condensation in the
lights. This is not a fault. Traces of condensation are a natural phenomenon caused by vari-
ations in temperature.
The traces will disappear slowly once the lights are switched on.
OPERATING FAULTS (4/4)
Page 207 of 232
6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 6.3
Engine specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.7
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.14
Page 208 of 232
6.2
VEHICLE IDENTIFICATION PLATES
A
B
A
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Manufacturer name.
2 EC design number or approval
number.
3 Identification number.
Depending on the vehicle, this
information is also given on
marking B.
4 MAM (Maximum Authorised
Mass).
5 GTW (Gross train weight: vehicle
fully loaded, with trailer).
6 MPAW (Maximim Permissible
Weight) for front axle.
7 MPAW on rear axle.
8 Reserved for related or additional
entries.
9 Paint reference (colour code).
7
8
96
5
4
3
2
1
Page 209 of 232
6.3

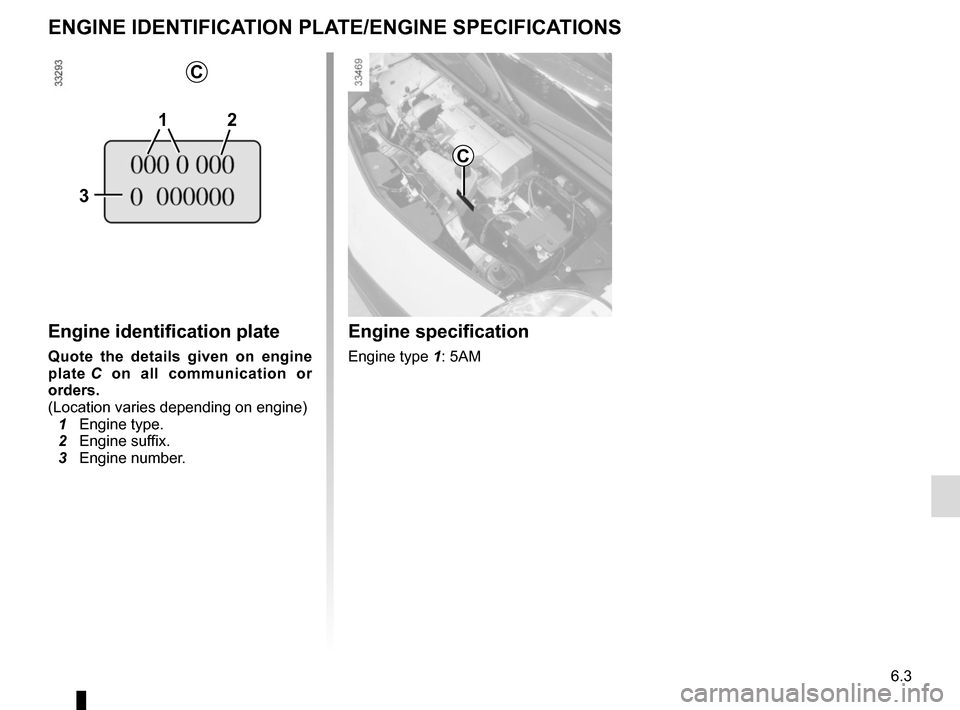

Engine identification plate
Quote the details given on engine
plate C on all communication or
orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
ENGINE IDENTIFICATION PLATE/ENGINE SPECIFICATIONS
2
3
1
C
C
Engine specification
Engine type 1: 5AM
Page 210 of 232
6.4

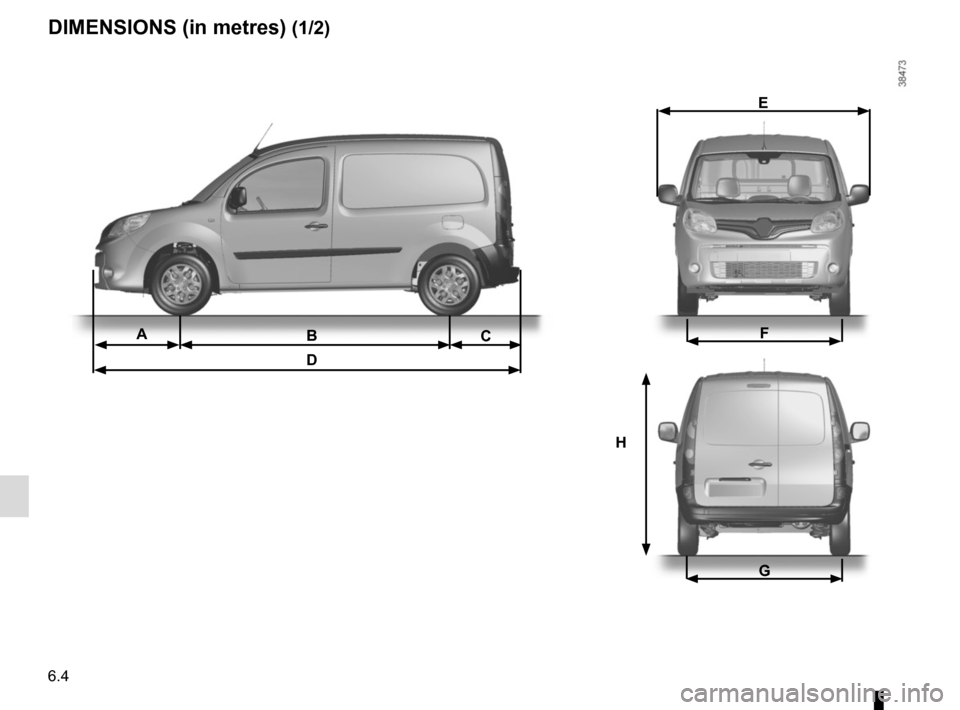

DIMENSIONS (in metres) (1/2)
H
B
DACF
G
E
