tOwIng, BreaKDOwn (3/3)
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
After use, check that all the tools
are correctly clipped into the tool kit,
then, depending on the vehicle, po-
sition it correctly in its housing.
Risk of injury.
Only use the front and rear towing
points (never use the driveshafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
5
3
access to towing points
Unclip cover 3 or 5.
t ighten towing hitch 4 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace.
Towing hitch 4 and wheelbrace are lo-
cated in the tool kit in the boot (please
see Section 5 “Tool kit”).
Do not remove the key from
the ignition when the vehi -
cle is being towed.
4
4

radio......................................................(up to the end of the DU)
multimedia equipment .......................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
5.33
ENG_UD21608_3
Equipement radio (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Fitted audio equipment
To operate this equipment: please
refer to the instructions for the equip-
ment which should be kept with the
other vehicle documentation.

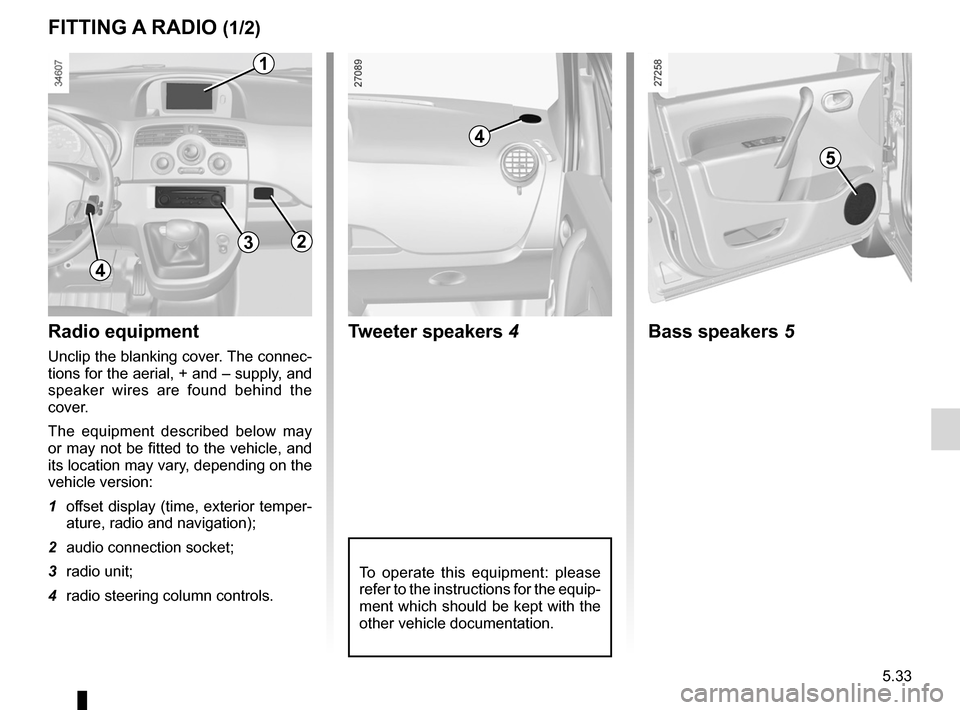

FIttIng a raDIO (1/2)
radio equipment
Unclip the blanking cover. The connec -
tions for the aerial, + and – supply, and
speaker wires are found behind the
cover.
The equipment described below may
or may not be fitted to the vehicle, and
its location may vary, depending on the
vehicle version:
1 offset display (time, exterior temper-
ature, radio and navigation);
2 audio connection socket;
3 radio unit;
4 radio steering column controls.
3
Bass speakers 5
t weeter speakers 4
5
4
32
1
4

speakers ............................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
5.34
ENG_UD21608_3
Equipement radio (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5

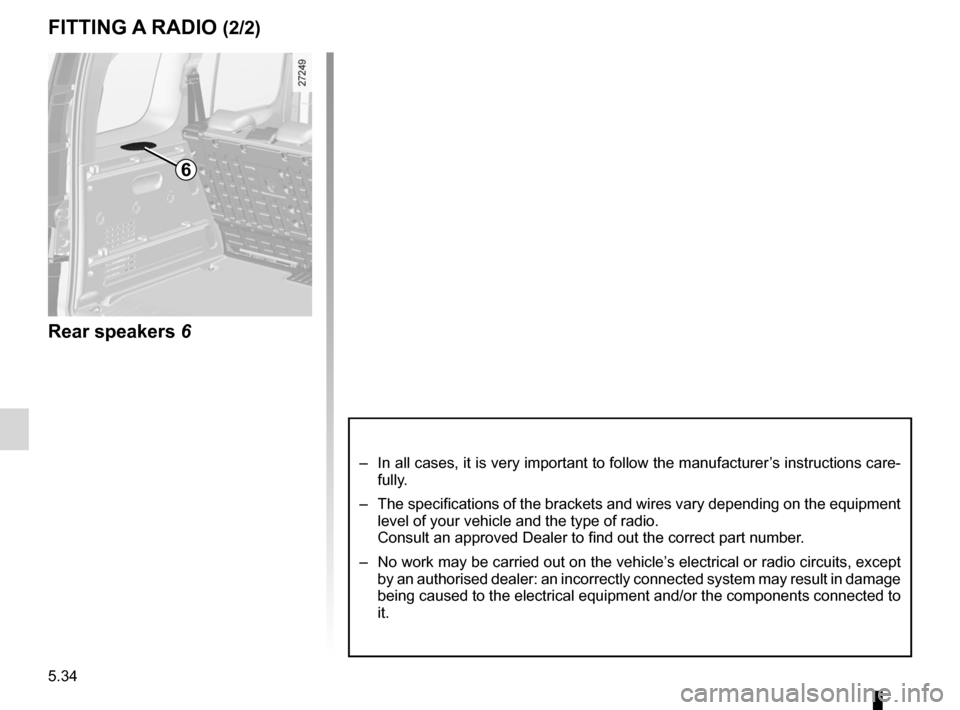

rear speakers 6
FIttIng a raDIO (2/2)
6
– In all cases, it is very important to follow the manufacturer’s instructions care-
fully.
– The specifications of the brackets and wires vary depending on the equipment
level of your vehicle and the type of radio.
Consult an approved Dealer to find out the correct part number.
– No work may be carried out on the vehicle’s electrical or radio circuits, except
by an authorised dealer: an incorrectly connected system may result in damage
being caused to the electrical equipment and/or the components connected to
it.

accessories...........................................(up to the end of the DU)
5.35
ENG_UD19141_1
Accessoires (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Accessories

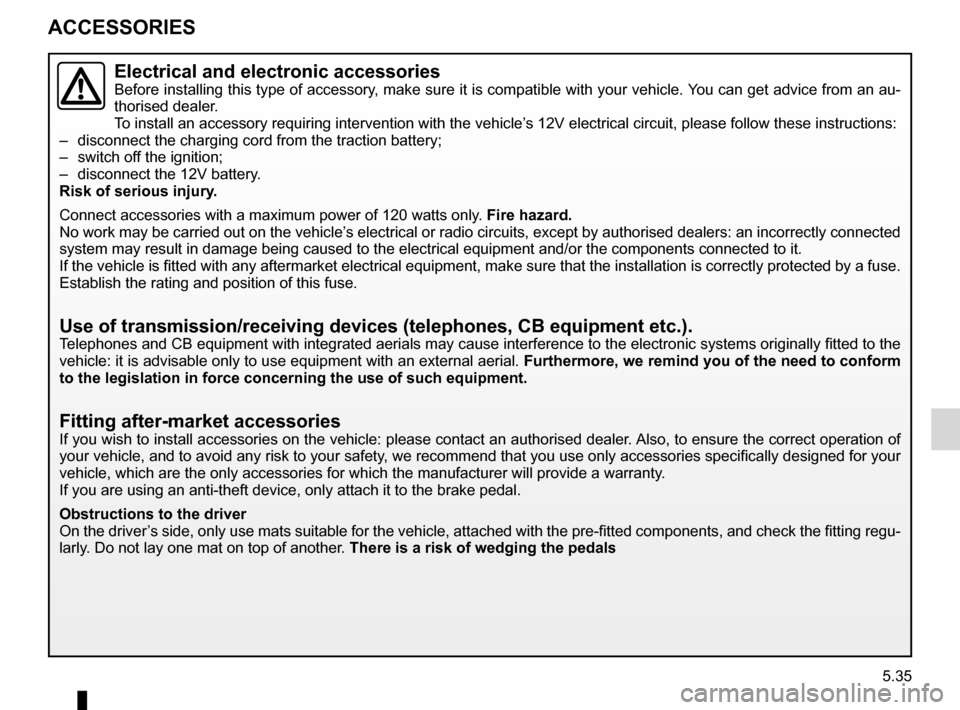

accessOrIes
electrical and electronic accessoriesBefore installing this type of accessory, make sure it is compatible with your vehicle. You can get advice from an au-
thorised dealer.
To install an accessory requiring intervention with the vehicle’s 12V electrical circuit, please follow these instructions:
– disconnect the charging cord from the traction battery;
– switch off the ignition;
– disconnect the 12V battery.
risk of serious injury.
Connect accessories with a maximum power of 120 watts only. Fire hazard.
No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
use of transmission/receiving devices (telephones, cB equipment etc.).Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessoriesIf you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will provide a warranty .
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. there is a risk of wedging the pedals

5.36
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_5

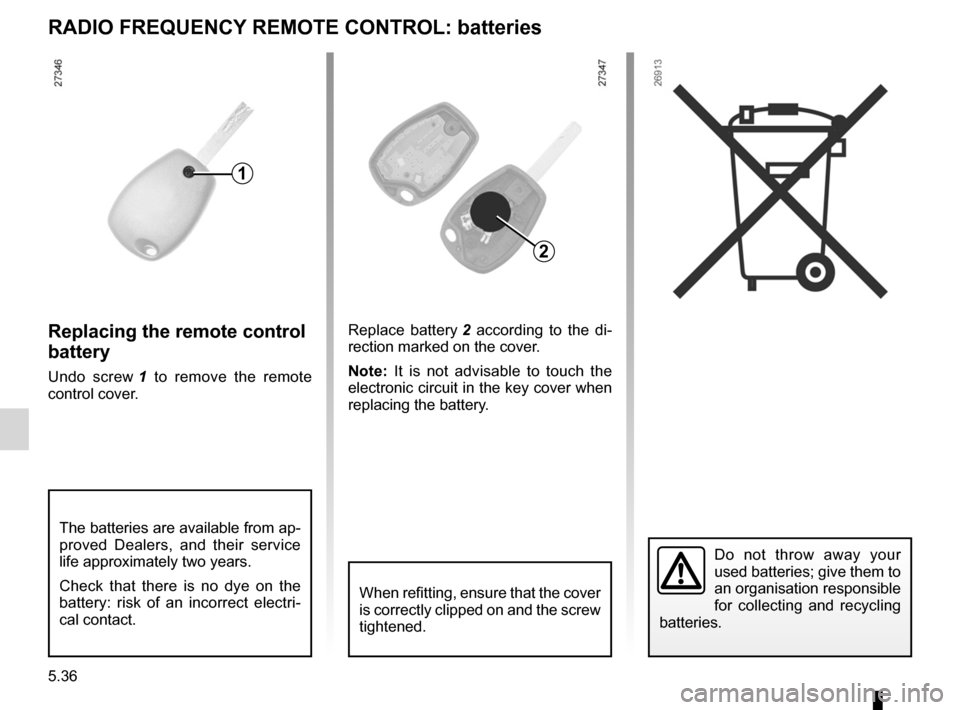

replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di -
rection marked on the cover.
n ote: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Radio frequency remote control: batteries
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
raDIO FreQuency remOte cOntrOl: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.

operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.37
ENG_UD28909_3
Anomalie de fonctionnement (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_5
Operating faults
F aults POssIBle causeswhat tO DO
Impossible to charge the traction bat -
tery. No electrical current in domes
-
tic sockets or poor connection of
cable to domestic socket. Check your installation (circuit breaker, pro-
grammer, etc.).
Check the connections (socket, etc.).
Please refer to the information on “Electric
vehicle: charging” in Section 1.
The exterior temperature is lower
than -26°C. Recharge your vehicle in a more suitable
environment. If necessary, refer to the para-
graph on “Towing, breakdown” in Section 5.
The cord is defective. Please see an authorised dealer to replace
it.

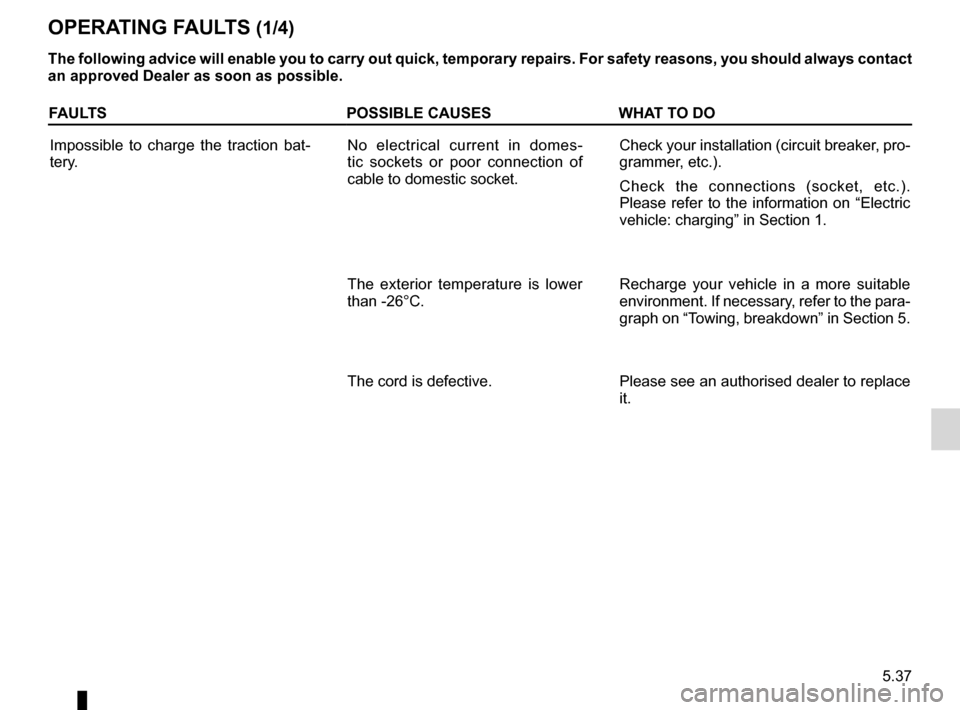

OPeratIng Faults (1/4)
the following advice will enable you to carry out quick, temporary repairs. For safety reasons, you should always contact
an approved Dealer as soon as possible.

5.38
ENG_UD28909_3
Anomalie de fonctionnement (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_5
Jaune NoirNoir texte
Faults POssIBle causeswhat tO DO
The additional heating does not work. Fill up the fuel tank.Fill up with fuel – see information on the
“Additional heating tank” in Section 1.
The programmable heating does not
work. One of the usage conditions is not
complied with (the traction battery is
not charged, etc.).Refer to the information on “Heating/air
conditioning: programmable heating” in
Section 3.
The vehicle clock is poorly adjusted
or not adjusted. Adjust the clock on the instrument panel
see the information on “Clock and exterior
temperature” in Section 1.

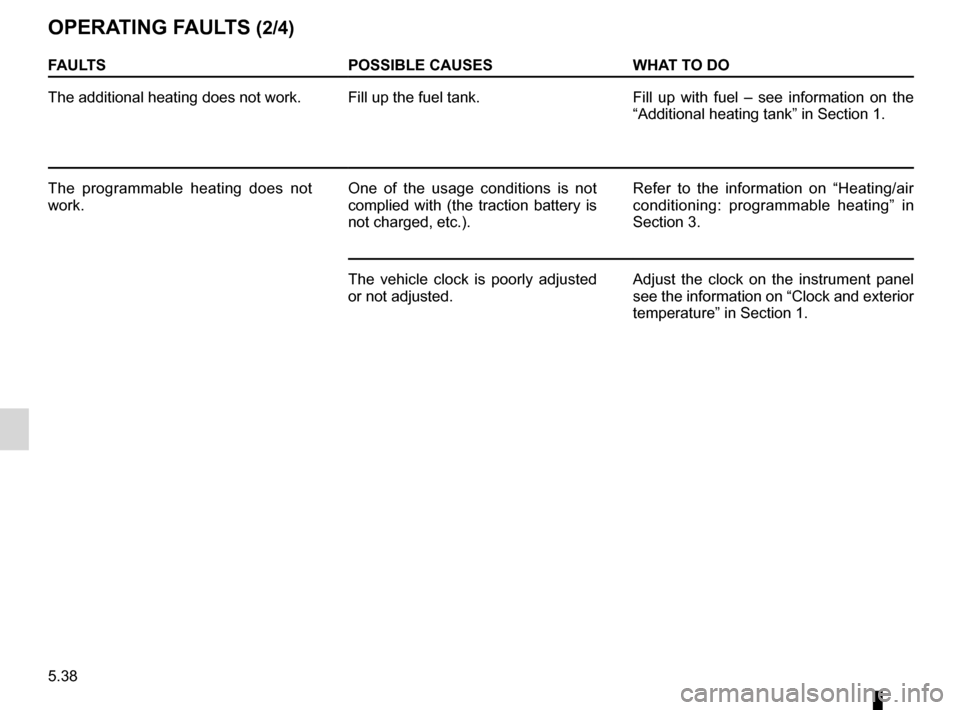

OPeratIng F
aults (2/4)

JauneNoirNoir texte
5.39
ENG_UD28909_3
Anomalie de fonctionnement (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_5
On the road POssIBle causeswhat tO DO
Steering becomes heavy. Assistance overheating.Consult an approved Dealer.
Vibrations. Tyres not inflated to the correct pres-
sure, incorrectly balanced or dam-
aged. Check tyre pressures. If this is not the prob-
lem, have them checked by an authorised
dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
authorised dealer as soon as possible.
OPeratIng Faults (3/4)

5.40
ENG_UD28909_3
Anomalie de fonctionnement (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_5
electrical equipment POssIBle causes what tO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved Dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved Dealer.
Direction indicators flashing more
quickly. Blown bulb.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved Dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved Dealer.
Traces of condensation in the lights. This is not a fault. Traces of condensa-
tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.

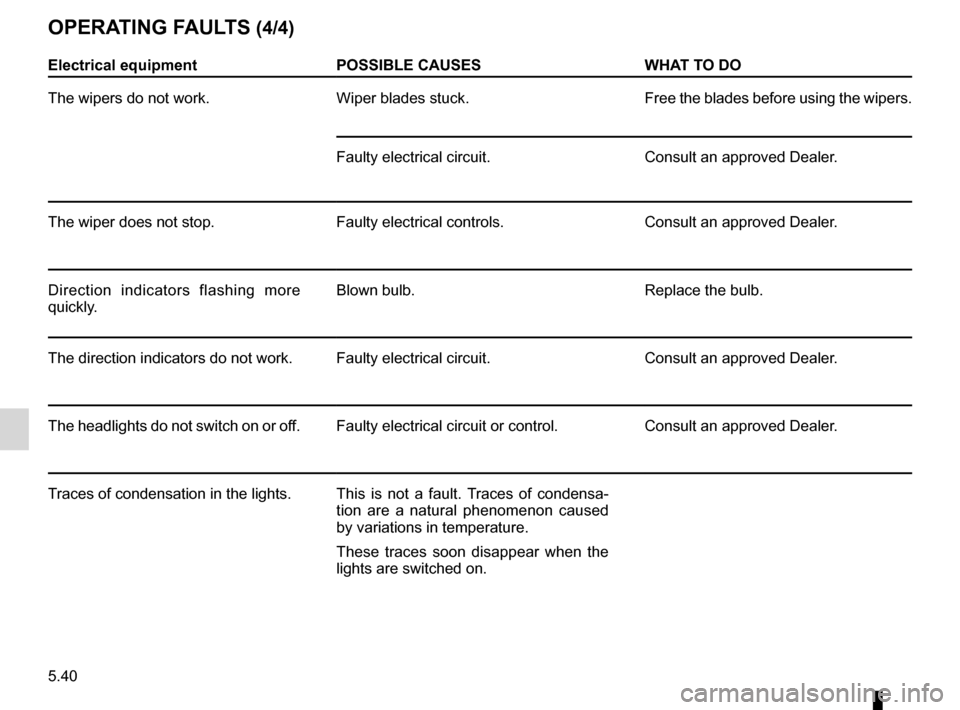

OPeratIng F aults (4/4)
