Page 71 of 233
lights:fog lights .......................................................... (current page)
JauneNoirNoir texte
1.65
ENG_UD23490_3
Eclairages et signalisations extérieures (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1

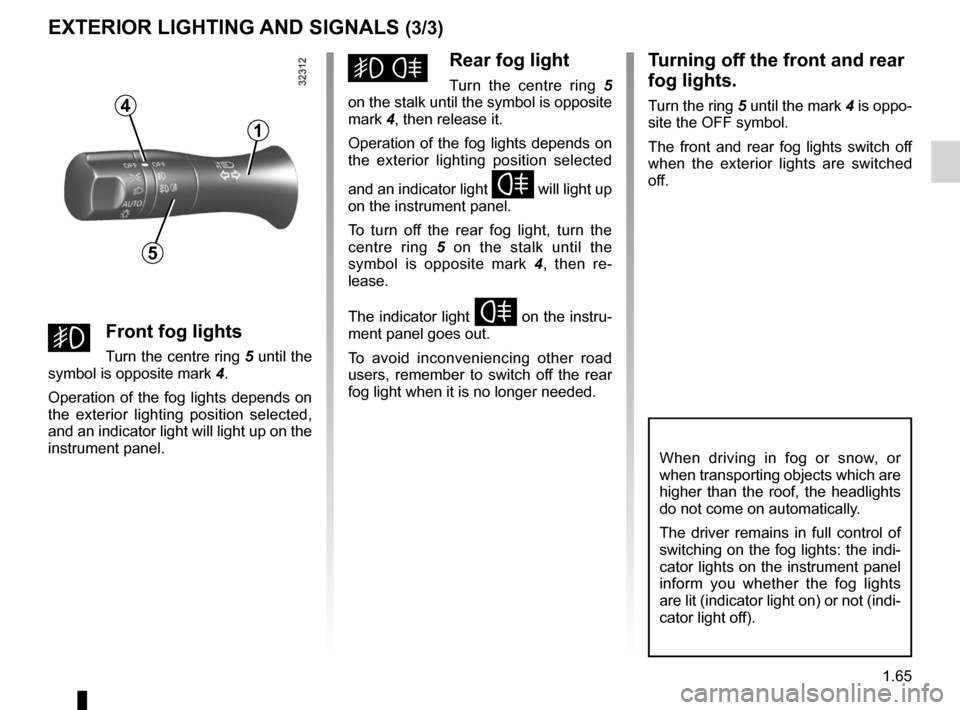

EXTERIOR LIghTINg ANd sIgNALs (3/3)
gfront fog lights
Turn the centre ring 5 until the
symbol is opposite mark 4.
Operation of the fog lights depends on
the exterior lighting position selected,
and an indicator light will light up on the
instrument panel.
hRear fog light
Turn the centre ring 5
on the stalk until the symbol is opposite
mark 4, then release it.
Operation of the fog lights depends on
the exterior lighting position selected
and an indicator light
f will light up
on the instrument panel.
To turn off the rear fog light, turn the
centre ring 5 on the stalk until the
symbol is opposite mark 4 , then re -
lease.
The indicator light
f on the instru-
ment panel goes out.
To avoid inconveniencing other road
users, remember to switch off the rear
fog light when it is no longer needed.
Turning off the front and rear
fog lights.
Turn the ring 5 until the mark 4 is oppo-
site the OFF symbol.
The front and rear fog lights switch off
when the exterior lights are switched
off.
When driving in fog or snow, or
when transporting objects which are
higher than the roof, the headlights
do not come on automatically.
The driver remains in full control of
switching on the fog lights: the indi-
cator lights on the instrument panel
inform you whether the fog lights
are lit (indicator light on) or not (indi-
cator light off).
4
1
5
Page 72 of 233
electric beam height adjustment ........... (up to the end of the DU)
lights: adjustment of headlight beam height
(up to the end of the DU)
lights adjustment ...................................... (up to the end of the DU)
external lights and signals .................... (up to the end of the DU)
headlight beam adjustment .................. (up to the end of the DU)
1.66
ENG_UD23570_3
Réglage électrique de la hauteur des faisceaux (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Electric beam height adjustment

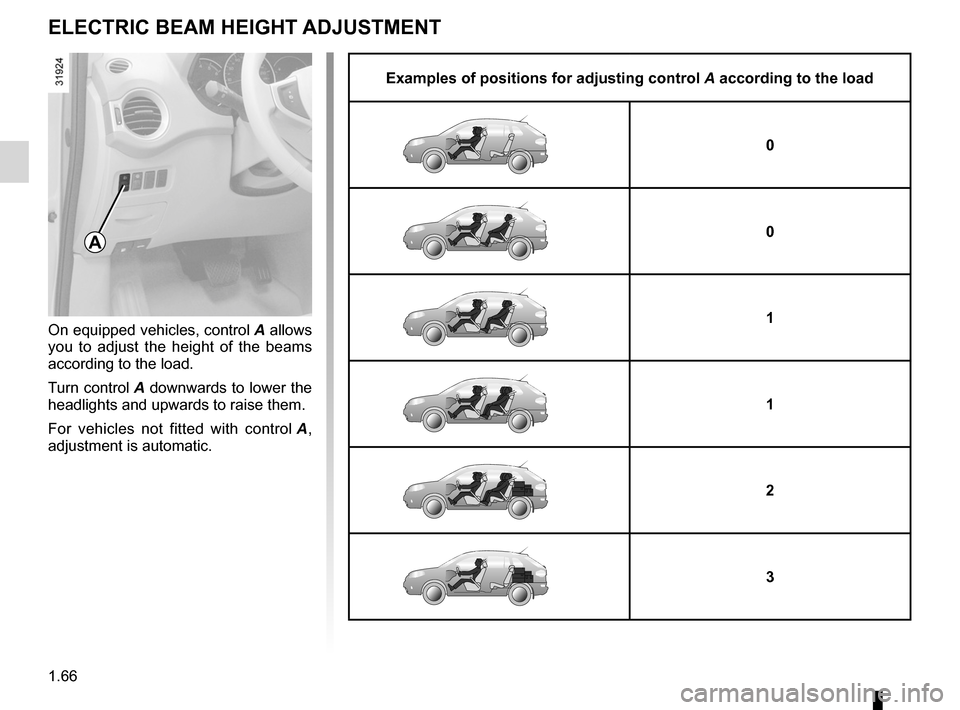

ELEcTRIc BEAM hEIghT AdJUsTMENT
Examples of positions for adjusting control A according to the load
0
0
1
1
2
3
On equipped vehicles, control A allows
you to adjust the height of the beams
according to the load.
Turn control A downwards to lower the
headlights and upwards to raise them.
For vehicles not fitted with control
A ,
adjustment is automatic.
A
Page 73 of 233
screen wash/wipe ................................. (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.67
ENG_UD27146_5
Essuie-vitre, lave-vitre avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Front windscreen wash/wiper
WINdscREEN WAsh, WIpE (1/2)
With the ignition on, move stalk 1.
A Wiping on request
The stalk returns to position B when
released.
B Off
C Intermittent wiping
The wipers will pause for several
seconds between sweeps. It is pos-
sible to change the time between
sweeps by turning ring 2.
D Normal wiping speed
E fast wiping speedspecial note
When driving, every time the vehicle
stops the fast wiping speed is reduced
to normal wiping speed.
As soon as the vehicle moves off,
wiping will return to the speed originally
selected.
If stalk 1 is operated, it overrides and
cancels the automatic function.
v ehicle fitted with front
windscreen wiper rain sensor
A Wiping on request
The stalk returns to position B when
released.
B Off
C Automatic wiper function
When this position is selected, the
system detects water on the wind -
screen and triggers the wipers at a
suitable wiping speed.
It is possible to change the time be-
tween sweeps by turning ring 2.
D Normal wiping speed
E fast wiping speed
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position B (off).
Risk of injury.
121A
B
c
d
E
Page 74 of 233
1.68
ENG_UD27146_5
Essuie-vitre, lave-vitre avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1

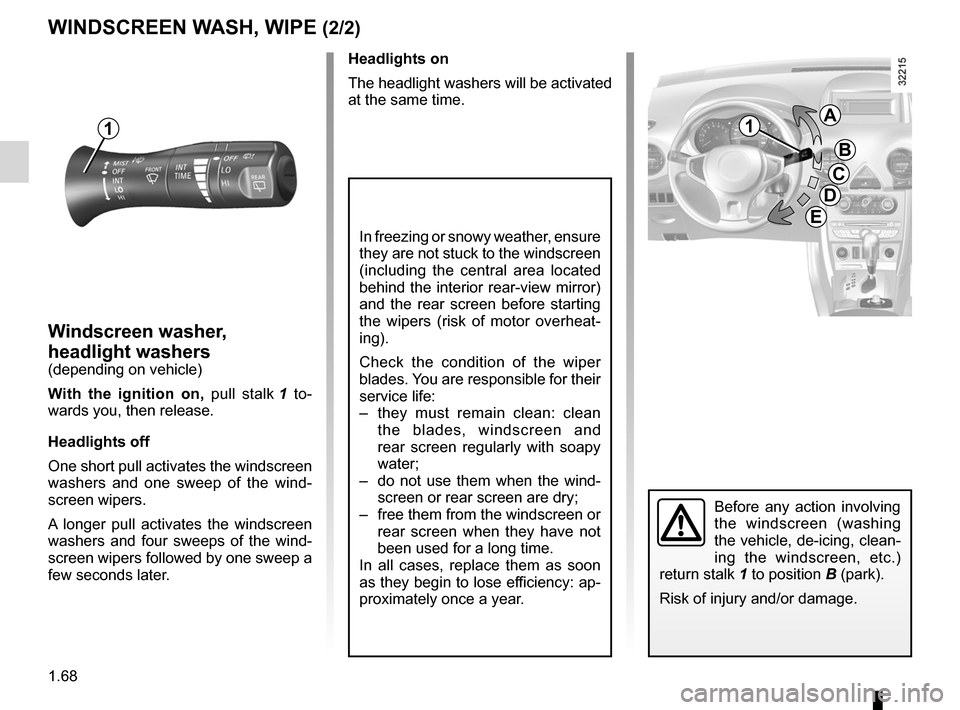

WINdscREEN WAsh, WIpE (2/2)
Windscreen washer,
headlight washers
(depending on vehicle)
With the ignition on, pull stalk 1 to -
wards you, then release.
headlights off
One short pull activates the windscreen
washers and one sweep of the wind -
screen wipers.
A longer pull activates the windscreen
washers and four sweeps of the wind -
screen wipers followed by one sweep a
few seconds later. headlights on
The headlight washers will be activated
at the same time.
1
In freezing or snowy weather, ensure
they are not stuck to the windscreen
(including the central area located
behind the interior rear-view mirror)
and the rear screen before starting
the wipers (risk of motor overheat
-
ing).
Check the condition of the wiper
blades. You are responsible for their
service life:
– they must remain clean: clean
the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In all cases, replace them as soon
as they begin to lose efficiency: ap-
proximately once a year.
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean -
ing the windscreen, etc.)
return stalk 1 to position B (park).
Risk of injury and/or damage.
1A
B
c
d
E
Page 75 of 233
windscreen washer/wiper ..................... (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.69
ENG_UD27147_6
Essuie-vitre, lave-vitre arri re (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Rear windscreen wash/wiper

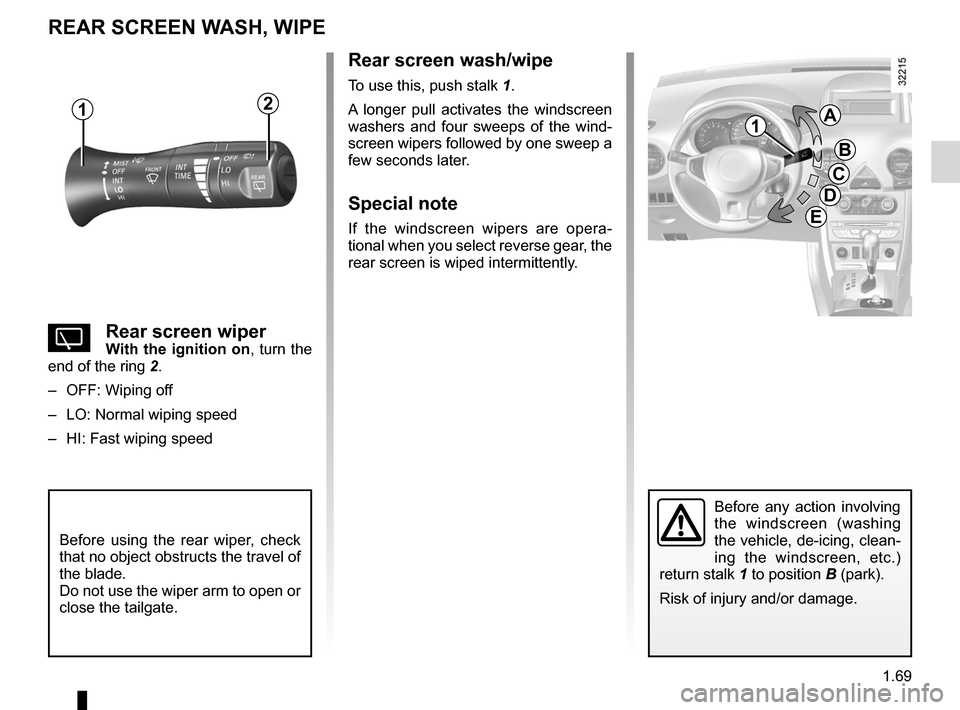

REAR scREEN WAsh, WIpE
YRear screen wiperWith the ignition on, turn the
end of the ring 2.
– OFF: Wiping off
– LO: Normal wiping speed
– HI: Fast wiping speed
Rear screen wash/wipe
To use this, push stalk 1.
A longer pull activates the windscreen
washers and four sweeps of the wind -
screen wipers followed by one sweep a
few seconds later.
special note
If the windscreen wipers are opera -
tional when you select reverse gear, the
rear screen is wiped intermittently.
12
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean -
ing the windscreen, etc.)
return stalk 1 to position B (park).
Risk of injury and/or damage.
1A
B
c
d
E
Before using the rear wiper, check
that no object obstructs the travel of
the blade.
Do not use the wiper arm to open or
close the tailgate.
Page 76 of 233
fuel tank capacity .................................. (up to the end of the DU)
fuel capacity ........................................... (up to the end of the DU)
fuel filling ................................................ (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
fuel tank capacity ........................................... (up to the end of the DU)
fuel filler cap ......................................... (up to the end of the DU)
1.70
ENG_UD23493_6
Réservoir carburant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
Fuel tank

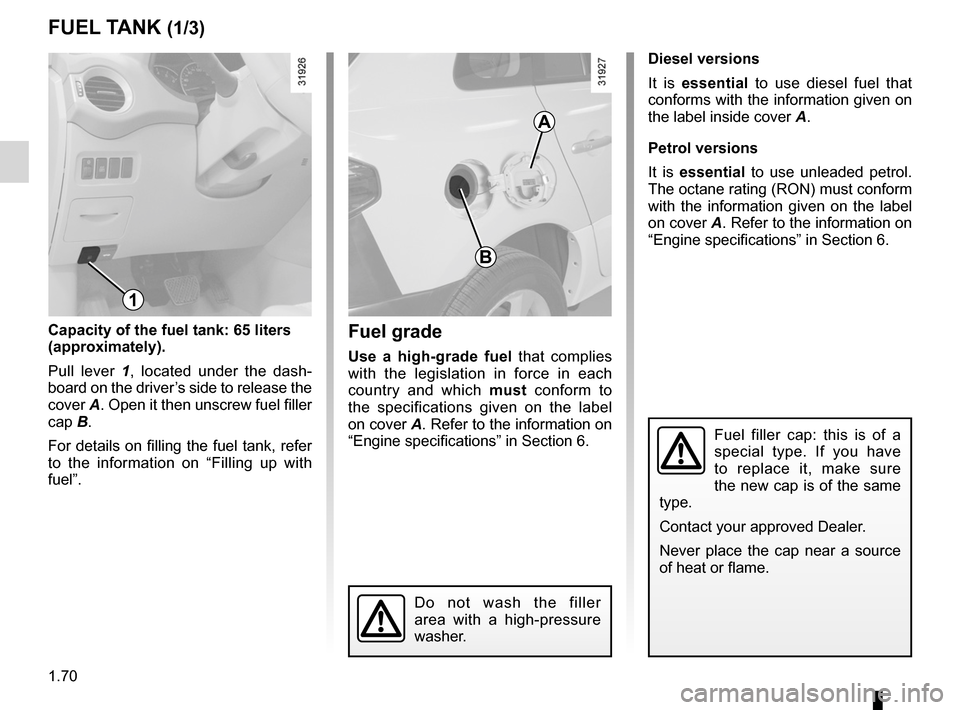

fUEL TANK (1/3)
capacity of the fuel tank: 65 liters
(approximately).
Pull lever 1 , located under the dash -
board on the driver’s side to release the
cover A. Open it then unscrew fuel filler
cap B.
For details on filling the fuel tank, refer
to the information on “Filling up with
fuel”.fuel grade
Use a high-grade fuel that complies
with the legislation in force in each
country and which must conform to
the specifications given on the label
on cover A. Refer to the information on
“Engine specifications” in Section 6.
1
A
B
diesel versions
It is essential to use diesel fuel that
conforms with the information given on
the label inside cover A.
petrol versions
It is essential to use unleaded petrol.
The octane rating (RON) must conform
with the information given on the label
on cover A. Refer to the information on
“Engine specifications” in Section 6.
Do not wash the filler
area with a high-pressure
washer.
Fuel filler cap: this is of a
special type. If you have
to replace it, make sure
the new cap is of the same
type.
Contact your approved Dealer.
Never place the cap near a source
of heat or flame.
Page 77 of 233
JauneNoirNoir texte
1.71
ENG_UD23493_6
Réservoir carburant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
v ehicles running on ethanol -based
fuel
It is essential to use unleaded petrol or
fuel containing a maximum of 85% eth-
anol (E85).
In very cold conditions, it may be very
difficult or even impossible to start the
engine. To avoid this problem, use un-
leaded petrol or, on equipped vehicles,
use the heater integrated in the engine:
connect the special end of the exten -
sion piece supplied into the socket in -
tegrated into the radiator grille and the
other end into a 220v socket for at least
6 hours before starting.
Note: you may notice an increase in
fuel consumption with this type of fuel.
Do not mix even small
amounts of petrol (un -
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
fUEL TANK (2/3)
filling with fuel
Insert the nozzle fully before beginning
to fill the tank (risk of splashback).
Keep the nozzle in this position
throughout the entire filling operation.
When the pump cuts out automatically
at the end of the filling procedure, a
maximum of two further filling attempts
may be made, as there must be suffi -
cient space in the fuel tank to allow for
expansion.
Make sure that no water enters the fuel
tank during filling. The cap and its sur-
round must remain clean.
petrol versions
Using leaded petrol will damage the
antipollution system and may lead to a
loss of warranty.
To ensure that the fuel tank is not filled
with leaded petrol, the fuel tank filler
neck contains a restrictor fitted with a
foolproof system which only allows
the nozzle for unleaded petrol to be
used (at the pump).persistent smell of
fuel
If you notice a persistent
smell of fuel you should:
– stop the vehicle if traffic condi -
tions allow and switch off the igni -
tion;
– switch on the hazard warning
lights and ask your passengers
to leave the vehicle and to keep
away from traffic;
– contact an authorised dealer.
Page 78 of 233
fuel priming bulb ................................... (up to the end of the DU)
fuel repriming ........................................ (up to the end of the DU)
1.72
ENG_UD23493_6
Réservoir carburant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
The engine can then be restarted; if it
still does not run properly, allow it to run
at idle. If the engine does not start after
several attempts, contact an authorised
dealer.
fUEL TANK (3/3)
2
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
Running out of fuel on diesel
versions
After a breakdown caused by com -
pletely running out of fuel, the system
must be reprimed before the engine is
restarted:
– Open the bonnet;
– operate priming bulb 2 several times
and stop when you can feel the pres-
sure.
No modifications what -
soever are permitted on
any part of the fuel supply
system (electronic unit,
wiring, fuel circuit, injector, protec -
tive covers, etc.) as this may be
dangerous (unless undertaken by
qualified Network personnel).
Page 79 of 233
2.1
ENG_UD27164_2
Contents 2 (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
Stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7
Special features of diesel versions fitted with a particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Electronic parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Advice: antipollution and fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.14
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.17
Tyre pressure monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.18
All-wheel drive transmission: 4-wheel drive (4WD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21
Driver correction devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.29
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.32
Parking sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.36
Automatic or continuously variable transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.39
Page 80 of 233
running in .............................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.2
ENG_UD20969_3
Rodage (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_2
Running in
RUNNING IN
Petrol version
For the first 1,200 miles (2,000 km),
do not exceed 78 mph (130 km/h) in
top gear (or 3,000 to 3,500 rpm), and
change gears without over-revving the
engine. Also avoid rapid acceleration
from stationary and harsh braking, as
far as possible.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Diesel version
For the first 900 miles (1,500 km),
do not exceed 2,500 rpm. After com -
pleting this mileage you may drive
faster, although you may only expect
top performance after approximately
3,600 miles (6,000 km).
During the running in period, do not ac-
celerate hard while the engine is still
cold and do not let the engine over-rev.
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Do not tow a trailer for the first
480 miles (800 km) . This may
damage the engine, axles and other
components.
