Dispositifs complémentaires aux ceintures arrière (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
to the rear seat belts
METhOds Of REsTRAINT IN AddITION TO ThE REAR sEAT BELTs
force limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the chest so that it is
at an acceptable level.
– Have the entire restraint system checked following an accident.
– No operation whatsoever is permitted on any part of the system (pre-
tensioners, air bags, computers, wiring) and the system components
must not be reused on any other vehicle, even if identical.
– To avoid incorrect triggering of the system which may cause injury, only quali -
fied personnel from an approved dealer may work on the pretensioner and air
bag system.
– The ignition module electrical specifications may only be tested by a specially
trained technician using special equipment.
– When the vehicle is scrapped, contact an approved dealer for disposal of the
pretensioner and air bag gas generators.

air bag................................................... (up to the end of the DU)
additional methods of restraint side protection ................................ (up to the end of the DU)
methods of restraint in addition to the seat belts
(up to the end of the DU)
1.26
ENG_UD20769_2
Dispositif de protection lat rale (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
side protection
sIdE pROTEcTION dEvIcEs
side air bags
This air bag is fitted to each of the front
seats and is inflated at the sides of
the seats (door side) to protect the oc-
cupants in the event of a severe side
impact.
curtain air bags
These are air bags fitted along the sides
of the vehicle in the ceiling which trigger
along the front and rear side windows
to protect the passengers in case of a
severe side impact.
Warnings concerning the side air bag
– fitting seat covers: seats equipped with an air bag require covers
specifically designed for your vehicle. Contact an approved dealer to find
out if these covers are sold at approved accessory outlets. The use of
any covers other than those designed for your vehicle (and including those de-
signed for another vehicle) may affect the operation of the air bags and reduce
your protection.
– Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the air bag is deployed.
– No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved Dealer.
– These air bags operate through slits in the front seatbacks (door side): never
insert any objects in these slits.

air bag................................................... (up to the end of the DU)
methods of restraint in addition to the seat belts
(up to the end of the DU)
additional methods of restraint ............. (up to the end of the DU)
1.27
ENG_UD20770_2
Dispositifs de retenue complémentaire (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
AddITIONAL METhOds Of REsTRAINT
All of the warnings below are given so that the air bag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when the air bag inflates.
The air bag is designed to complement the action of the seat belt. Both the air bags and seat belts are integral parts of
the same protection system. It is therefore essential to wear your seat belt at all times. If seat belts are not worn, the
occupants of the vehicle are at risk of serious injury in the event of an accident. The risk of minor superficial injuries oc-
curring when the air bag is deployed may also increase, although such minor injuries are always possible with air bags.
If the vehicle should overturn or suffer a rear impact, however severe, the pretensioners and air bags are not always triggered.
Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
– No work or modification whatsoever may be carried out on any part of the air bag system (air bags, pretensioners, compu-
ter, wiring harness, etc.), except by qualified personnel from an approved Dealer.
– To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the air bag system.
– As a safety precaution, have the air bag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
– When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
– When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).

child safety............................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
children ................................................. (up to the end of the DU)
1.28
ENG_UD27170_5
S curit enfants : g n ralit s (X35 - L35 - X45 - H45 - X65 - X81 - X85 - X83 - B95 - D95 - K95 - J95 - R95 - L38 - X38 - X32 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
Child safety: general information
chILd sAfETY : general information (1/2)
carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin -
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10 metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth -
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX anchorage points checked.
To prevent the doors being
opened, use the “Child
safety” device (refer to the
information on “Opening
and closing the doors” in Section 1).
d r i v e r ’s r e s p o n s i b i l i t y
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi -
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RI sK O f d EAT h OR sERIOU s
INJURY.

JauneNoirNoir texte
1.29
ENG_UD27170_5
S curit enfants : g n ralit s (X35 - L35 - X45 - H45 - X65 - X81 - X85 - X83 - B95 - D95 - K95 - J95 - R95 - L38 - X38 - X32 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : general information (2/2)
Using a child seat
The level of protection offered by the
child seat depends on its ability to re -
strain your child and on its installation.
Incorrect installation compromises the
protection it offers the child in the event
of harsh braking or an impact.
Before purchasing a child seat, check
that it complies with the regulations for
the country you are in and that it can
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
are recommended for your vehicle.
Before fitting a child seat, read the
manual and respect its instructions. If
you experience any difficulties during
installation, contact the manufacturer
of the equipment. Keep the instructions
with the seat.Set a good example by always fas-
tening your seat belt and teaching
your child:
– to strap themselves in correctly;
– to always get in and out of the car
at the kerb, away from busy traf-
fic.
Do not use a second-hand child
seat or one without an instruction
manual.
Check that there are no objects in
the vicinity of the child seat which
could impede its operation.
Never leave a child unat -
tended in the vehicle.
Check that your child is
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.

1.30
ENG_UD20772_3
S curit enfants : choix du si ge enfant (X35 - L35 - X45 - H45 - X65 - X77 - X81 - X85 - X91 - X83 - X61 - X77 ph2 - X95 - L38 - E33 - X33 - X38 - X62 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1

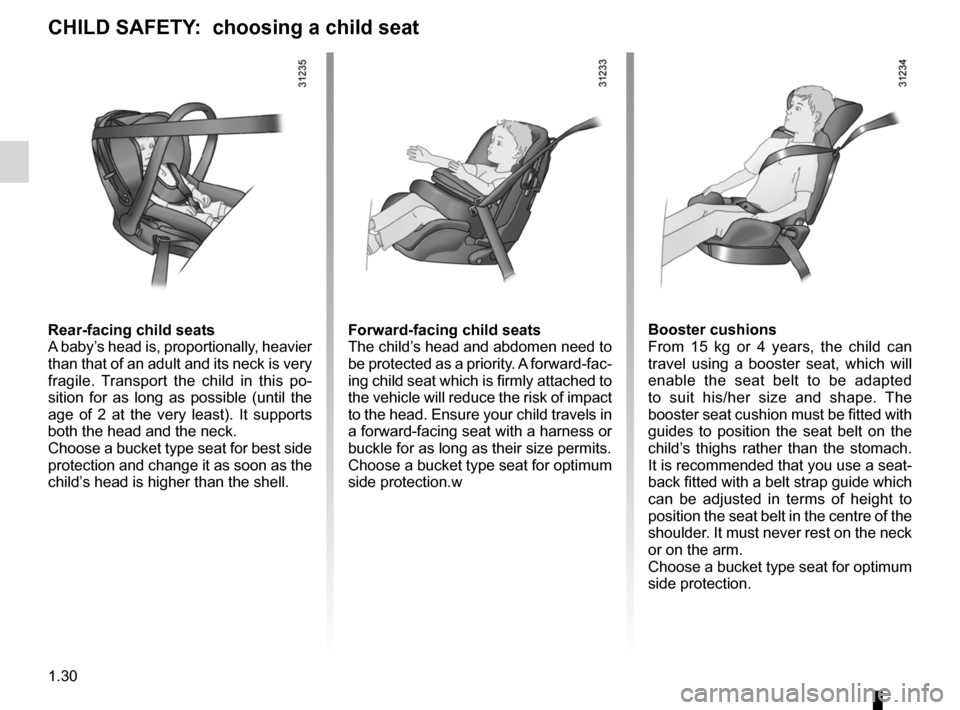

chILd sAfETY : choosing a child seat
Rear-facing child seats
A baby’s head is, proportionally, heavier
than that of an adult and its neck is very
fragile. Transport the child in this po -
sition for as long as possible (until the
age of 2 at the very least). It supports
both the head and the neck.
Choose a bucket type seat for best side
protection and change it as soon as the
child’s head is higher than the shell.forward-facing child seats
The child’s head and abdomen need to
be protected as a priority. A forward-fac-
ing child seat which is firmly attached to
the vehicle will reduce the risk of impact
to the head. Ensure your child travels in
a forward-facing seat with a harness or
buckle for as long as their size permits.
Choose a bucket type seat for optimum
side protection.w Booster cushions
From 15 kg or 4 years, the child can
travel using a booster seat, which will
enable the seat belt to be adapted
to suit his/her size and shape. The
booster seat cushion must be fitted with
guides to position the seat belt on the
child’s thighs rather than the stomach.
It is recommended that you use a seat-
back fitted with a belt strap guide which
can be adjusted in terms of height to
position the seat belt in the centre of the
shoulder. It must never rest on the neck
or on the arm.
Choose a bucket type seat for optimum
side protection.

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.31
ENG_UD23304_4
Sécurité enfants : choix de la fixation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
choosing a child seat mounting
chILd sAfETY : choosing a child seat mounting (1/2)
There are two ways of attaching child
seats: via the seat belt or using the
ISOFIX system.
Attachment via the seat belt
The seat belt must be adjusted to
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re -
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window. Attachment using the IsOfIX
system
Authorised ISOFIX child seats are ap
-
proved in accordance with regulation
ECE-R44 in one of the three following
scenarios:
– universal ISOFIX 3-point forward -
facing seat;
– semi-universal ISOFIX 2-point seat;
– specific.
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
Attach the child seat with the ISOFIX
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings
and, in some cases, a third ring.
Before using an ISOFIX
child seat that you pur -
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve -
hicles which can be fitted with the
seat from the equipment manufac -
turer.
No modifications may be
made to the component
parts of the restraint system
(ISOFIX seat belts, seats
and their mountings) originally fitted.
The seat belt must never
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Consult an approved dealer. Do not
use this seat until the seat belt has
been repaired.
Do not use the child seat
if it may unfasten the seat
belt restraining it: the base
of the seat must not rest on
the buckle and/or catch of the seat
belt.

1.32
ENG_UD23304_4
Sécurité enfants : choix de la fixation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : choosing a child seat mounting (2/2)
The ISOFIX anchorage points have been exclusively designed for child
seats with the ISOFIX system. Never fit a different type of child seat, seat
belt or other objects to these anchorage points.
Check that nothing is obstructing the anchorage points.
If your vehicle has been involved in a road accident, have the ISOFIX anchorage
points checked and replace your child seat.
Check that the seatback
of the forward-facing child
seat is in contact with the
seatback of the vehicle
seat.
In this case, the child seat may not
always rest on the seat base of the
vehicle seat.
1
3
Fit the hook of the strap onto ring 3 and
pull the strap so that the seatback of the
child seat comes into contact with the
top of the seatback on the vehicle seat.
4
The third ring is used to attach the
upper strap on some child seats.
To access it, pass the belt on the child
seat behind the rear bench seatback,
then open flap 4.
The two rings
1 are located between
the seatback and the seat base (behind
a cover) and are identified by a mark -
ing.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat.
2

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.33
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
fitting a child seat
chILd sAfETY : fitting a child seat (1/3)
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat or seats
in front in accordance with the child
seat instructions.
For the safety of the child in the for -
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.
Rear centre seat
Check that the belt is suitable for se -
curing your child seat. Consult an ap -
proved Dealer.
R I sK O f dE AT h O R
s ERIOU s INJURY: before
fitting a rear-facing child
seat to this seat, check
that the air bag has been deacti -
vated (refer to the information on
“Child safety: deactivating/activat -
ing the front passenger air bag” in
Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow -
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
In the front seat
The laws concerning children travel -
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page. Before
fitting a child seat in this seat (if autho-
rised):
– disconnect the air bag (refer to infor-
mation on the following pages);
– lower the seat belt as far as possible;
– move the seat back as far as possi-
ble and tilt the seatback backwards
slightly (at an angle of 25° approxi -
mately);
– on equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.

1.34
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
chILd sAfETY : fitting a child seat (2/3)
child seat attached using the IsOfIX
mounting
ü seat which allows an ISOFIX child
seat to be fitted.
± the rear seats are fitted with an
anchorage point which allows a for -
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The an -
chorage points are located under the
carpet in the luggage compartment,
behind the bench seat.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0 + (less than
13 kg);
– F and G: carrycots in group 0 (less
than 10 kg).
child seat attached using the belt
¬ Seat which allows a standard -
ised “Universal” seat to be fitted using
a seat belt;
− Seat which only allows a rear-
facing standardised “Universal” seat to
be installed using a seat belt.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
child seat installation
diagram
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
RIsK Of dEATh OR sERIOUs INJURY: before fitting a rear-facing child
seat in the front passenger seat, check that the air bag has been deacti-
vated (refer to the information on “Child safety: deactivating/activating the
front passenger air bag” at the end of the paragraph).
