Front headrests/Seats
fRONT hEAdREsTs
To remove the headrest
Raise the headrest as far as possible,
then while pressing button 1, raise the
headrest to release it.
To refit the headrest
Insert the headrest rods into the holes,
with the notches facing forwards.
Hold down button 1 and move the
headrest to the required height.
To raise the headrest
Pull the headrest upwards to the de -
sired height.
To lower the headrest
Press button 1 and guide the headrest
down to the desired height.
Adjusting the angle of the headrest
(depending on vehicle)
Tilt the headrest A forwards or back -
wards to the required position.
1
The headrest is important
for safety. Ensure that it is in
place and in the correct po-
sition: the top of the head -
rest should be as close as possible
to the top of the head and there must
be a minimal distance between the
head and the A headrest.
A

seat belts .............................................. (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
driving position settings ........................................... (up to the end of the DU)
1.17
ENG_UD27269_7
Ceintures de s curit (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Seat belts
sEAT BELTs (1/2)
1
2
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
The shoulder strap 1 should be as close
as possible to the base of the neck but
not on it.
The lap strap 2 should be worn flat over
the thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep -
ing bulky objects under the belts, etc.Seat belts which are incor -
rectly adjusted or twisted
may cause injuries in the
event of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Make sure that the rear bench seat
is securely locked in position so that
the rear seat belts will operate effi -
ciently. Refer to “Rear bench seat”
in Section 3.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving
position
– s it well back in your seat (having
first removed your coat or jacket).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head -
rest. For maximum safety, your head
must be as close as possible to the
headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.33
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
fitting a child seat
chILd sAfETY : fitting a child seat (1/3)
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat or seats
in front in accordance with the child
seat instructions.
For the safety of the child in the for -
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.
Rear centre seat
Check that the belt is suitable for se -
curing your child seat. Consult an ap -
proved Dealer.
R I sK O f dE AT h O R
s ERIOU s INJURY: before
fitting a rear-facing child
seat to this seat, check
that the air bag has been deacti -
vated (refer to the information on
“Child safety: deactivating/activat -
ing the front passenger air bag” in
Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow -
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
In the front seat
The laws concerning children travel -
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page. Before
fitting a child seat in this seat (if autho-
rised):
– disconnect the air bag (refer to infor-
mation on the following pages);
– lower the seat belt as far as possible;
– move the seat back as far as possi-
ble and tilt the seatback backwards
slightly (at an angle of 25° approxi -
mately);
– on equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.

JauneNoirNoir texte
1.35
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : fitting a child seat (3/3)
(5) RIsK Of dEATh OR sERIOUs INJURY: before fitting a rear-facing child seat in the front passenger seat, check
that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front pas-
senger air bag” at the end of the paragraph).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regu-
lations in force are respected.
Type of child seat Weight of
the child seat size
IsOfIX passenger front
seat (1) (5) Rear side seats
Rear centre seat
carrycot fitted across the vehicle
Group 0 < 10 kg
F- G XU - IL (2) U
shell seat/rear-facing seat
Group 0, 0+ and 1 < 13 kg and
9 to 18 kg C, D, E
UU - IL (3) U
forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (4) U
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg X
U (4) U
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUf/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the
door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat or seats in front in
accordance with the child seat instructions.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary, do not push the seat more than halfway back on its runners and do not re-
cline the seatback more than 25°.

3.1
ENG_UD27165_2
Contents 3 (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3

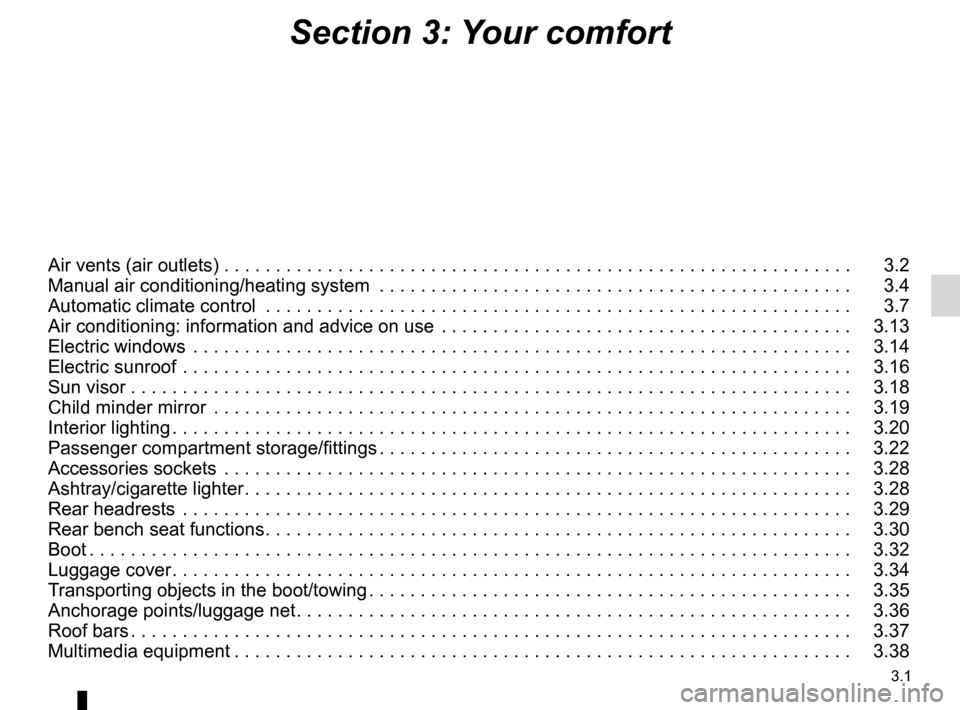

Section 3: Your comfort
Air vents (air outlets) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Manual air conditioning/heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.14
Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.18
Child minder mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Passenger compartment storage/fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22
Accessories sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Ashtray/cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.29
Rear bench seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32
Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.34
Transporting objects in the boot/towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35
Anchorage points/luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.36
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.37
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.38

headrest................................................ (up to the end of the DU)
3.29
ENG_UD23933_3
Appuis-tête arrière (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Rear headrests
REAR hEADRESTS
Position for use
Raise or lower the headrest while pull -
ing it towards the front of the vehicle.
Storage position A
Press tab 1 or 2 and lower the headrest
completely.
w hen the headrest is set at the
lowest position, this is for storage
only: it should not be in this position
when a seat is occupied.To remove the headrest
Press tabs 1 and 2 simultaneously and
remove the headrest.
To refit the headrest
Slide the headrest rods into the holes,
press tabs 1 and 2 simultaneously and
lower the headrest.
Note: to remove or refit the headrest,
the seatback must be tilted. Refer to
“Rear bench seat” in Section 3.
The headrest is an impor -
tant safety component.
Ensure that it is fitted and
positioned correctly.
AA
12

rear seatsfunctions ......................................... (up to the end of the DU)
rear bench seat ..................................... (up to the end of the DU)
3.30
ENG_UD8576_2
Banquette arri re (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Jaune NoirNoir texte
Rear bench seat functions
REAR BENch SEAT FuNcTIoNS (1/2)
When adjusting the seat, always ensure that the seat belt can return to
its original position.
When refitting the seatback, make sure it is correctly locked in place.
2
3
4
5
1
To fold down the rear seats
from inside the passenger
compartment
– lower the headrest;
– move the front seat as far forward as
necessary;
– feed the seat belt into the clip 5;
– pull lever 3: the seat base is raised;
– pull handle 4 and fold down the seat-
back.
Check that no-one, includ -
ing animals, is in the vicin -
ity of the rear bench seat
before pulling handle 1.
Risk of injury.
To fold down the rear
seats from the luggage
compartment
(depending on vehicle)
– lower the headrests;
– move the front seat as far forward as
necessary;
– feed the seat belt into the clip 5;
– use the controls 1.
To return the seat to its
original position
– lift the seatback and return it to its
original position;
– fold down the seat base 2;
– ensure that the seat is correctly
locked in position.
When the seat belt is not being used,
attach it to hook 5.

JauneNoirNoir texte
3.31
ENG_UD8576_2
Banquette arri re (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3

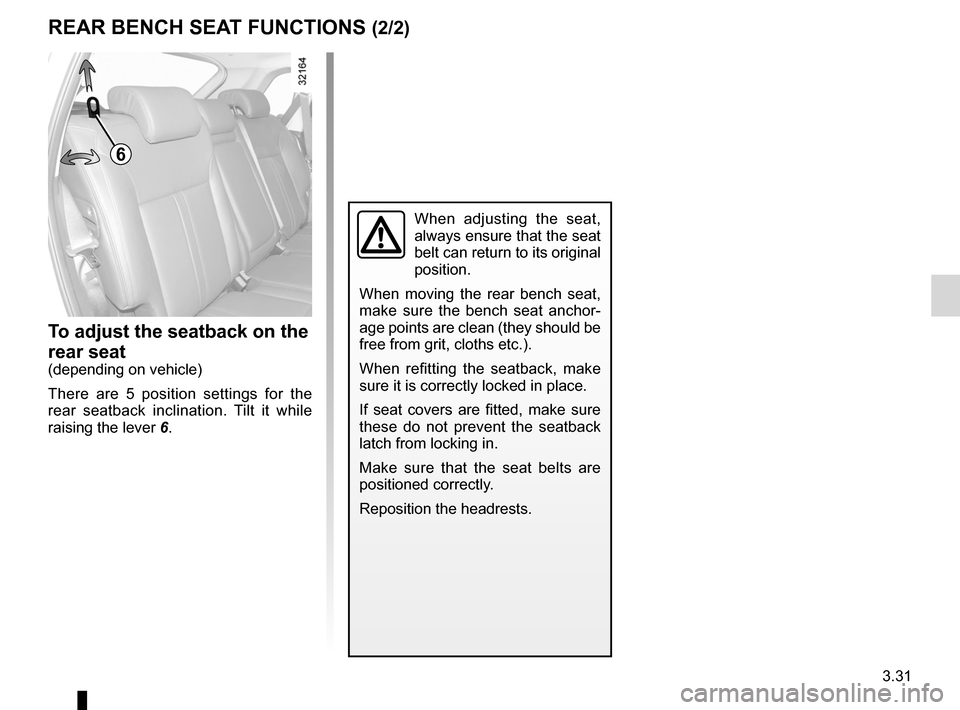

REAR BENch SEAT FuNcTIoNS (2/2)
To adjust the seatback on the
rear seat
(depending on vehicle)
There are 5 position settings for the
rear seatback inclination. Tilt it while
raising the lever 6.
6
When adjusting the seat,
always ensure that the seat
belt can return to its original
position.
When moving the rear bench seat,
make sure the bench seat anchor -
age points are clean (they should be
free from grit, cloths etc.).
When refitting the seatback, make
sure it is correctly locked in place.
If seat covers are fitted, make sure
these do not prevent the seatback
latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

7.2
ENG_UD27169_2
Index (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (2/5)
driver’s position ................................. 1.40 – 1.41, 1.44 → 1.47
driving ................................................ 2.2 → 2.16, 2.18 → 2.41
driving position settings ............................................................. 1.17 – 1.18
e
electric beam height adjustment ........................................ 1.66
electric windows ..................................................... 3.14 – 3.15
electronic parking brake ........................................ 2.10 → 2.13
Electronic Stability Program: ESP .........................2.24 → 2.28
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.5
engine oil ................................................................... 4.4 → 4.6
engine oil level ................................................................... 1.49
engine specifications ........................................................... 6.5
engine start/stop button .............................................. 2.3 – 2.4
environment ....................................................................... 2.17
ESP: Electronic Stability Program .........................2.24 → 2.28
external lights and signals ................................................. 1.66
F
4 wheel drive (4WD) .............................................. 2.21 → 2.23
faults operating faults ................................................ 5.29 → 5.33
filter air filter ........................................................................... 4.9
diesel filter ...................................................................... 4.9
particle filter .......................................................... 1.46, 2.8
passenger compartment filter ........................................ 4.9
fittings .................................................................... 3.22 → 3.27
fog lights ............................................................................ 5.11
front passenger air bag deactivation ................................. 1.36
front seat adjustment electric controls ............................................................ 1.15manual controls
................................................ 1.15 – 1.16
front seats adjustment .......................................................1.14 → 1.16
fuel advice on fuel economy ............................................... 2.14
capacity ............................................................ 1.70 → 1.72
filling ........................................................ 1.46, 1.70 → 1.72
grade ................................................................ 1.70 → 1.72
fuel economy ......................................................... 2.14 → 2.16
fuel filler cap .......................................................... 1.70 → 1.72
fuel level ............................................................................ 1.48
fuel priming bulb ......................................................... 1.72, 2.8
fuel repriming ..................................................................... 1.72
fuel tank capacity ............................................................ 1.70 → 1.72
fuel tank capacity ................................................... 1.70 → 1.72
fuses ....................................................................... 5.18 – 5.19
G
gear lever ............................................................................. 2.9
glove box ........................................................................... 3.22
h
handbrake ............................................................................ 2.9
hands-free telephone integrated control ............................ 3.38
hazard warning lights signal .................................. 1.62 → 1.65
headlight beam adjustment ............................................... 1.66
headlight flashers .............................................................. 1.62
headrest .................................................................... 1.14, 3.29
heating and air conditioning system ........................ 3.7 → 3.13
heating system ........................................................ 3.4 → 3.12
hill start .............................................................................. 2.28
Hill Start Assistance (HSA) ................................................ 2.28
horn ................................................................................... 1.62
horn: flash ............................................................................. 1.62
