Air conditionné automatique (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
AuT oMATIc clIMATE coNTRol (4/4)

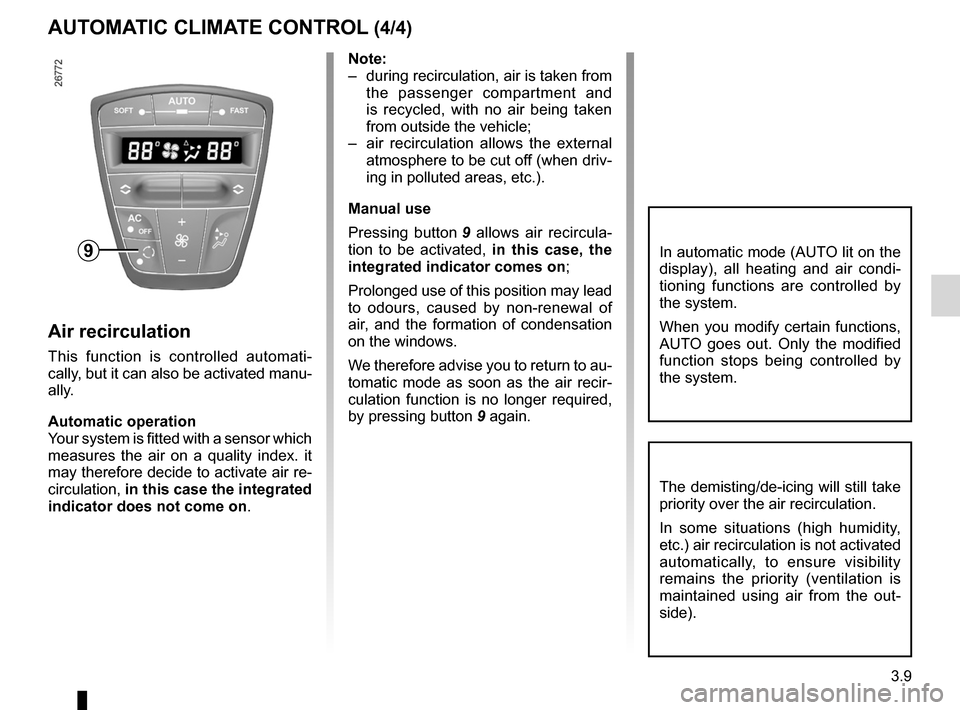

Air recirculation
This function is controlled automati -
cally, but it can also be activated manu-
ally.
Automatic operation
Your system is fitted with a sensor which
measures the air on a quality index. it
may therefore decide to activate air re-
circulation, in this case the integrated
indicator does not come on .Note:
–
during recirculation, air is taken from
the passenger compartment and
is recycled, with no air being taken
from outside the vehicle;
– air recirculation allows the external
atmosphere to be cut off (when driv-
ing in polluted areas, etc.).
Manual use
Pressing button 9 allows air recircula -
tion to be activated, in this case, the
integrated indicator comes on ;
Prolonged use of this position may lead
to odours, caused by non-renewal of
air, and the formation of condensation
on the windows.
We therefore advise you to return to au-
tomatic mode as soon as the air recir-
culation function is no longer required,
by pressing button 9 again.
9
The demisting/de-icing will still take
priority over the air recirculation.
In some situations (high humidity,
etc.) air recirculation is not activated
automatically, to ensure visibility
remains the priority (ventilation is
maintained using air from the out -
side).
In automatic mode (AUTO lit on the
display), all heating and air condi -
tioning functions are controlled by
the system.
When you modify certain functions,
AUTO goes out. Only the modified
function stops being controlled by
the system.

3.10
ENG_UD10081_2
Air conditionné : informations et conseils d’utilisation (X91 - B\
91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3

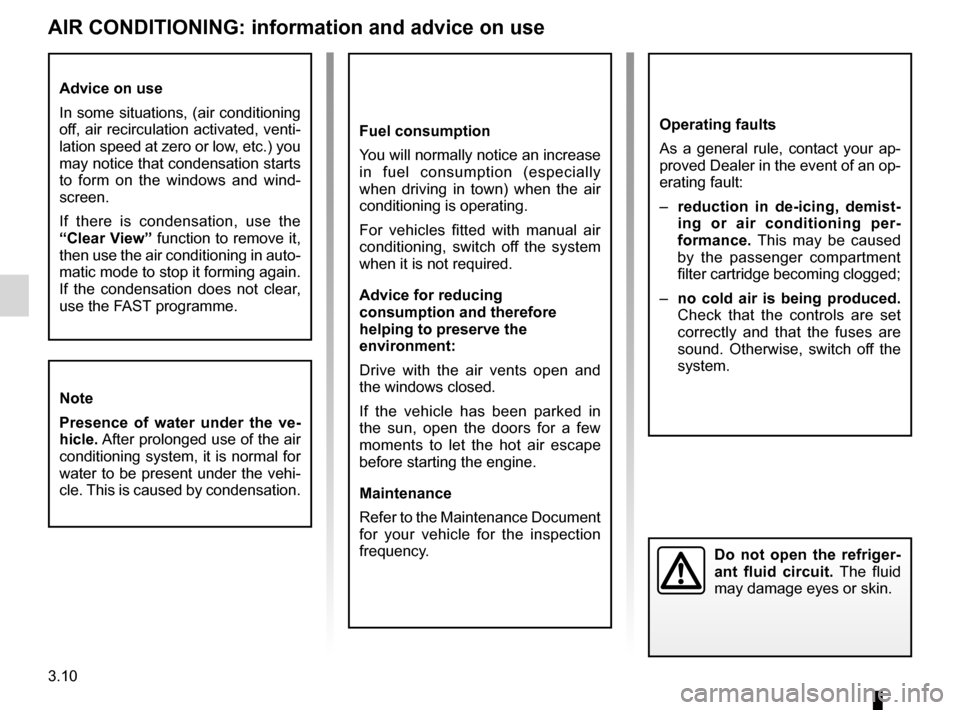

Air conditioning: information and advice on use
AIR coNDITIoNINg: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing
consumption and therefore
helping to preserve the
environment:
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection
frequency.operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault:
– reduction in de-icing, demist -
ing or air conditioning per -
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged;
– no cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Advice on use
In some situations, (air conditioning
off, air recirculation activated, venti-
lation speed at zero or low, etc.) you
may notice that condensation starts
to form on the windows and wind -
screen.
If there is condensation, use the
“clear View” function to remove it,
then use the air conditioning in auto-
matic mode to stop it forming again.
If the condensation does not clear,
use the FAST programme.
Do not open the refriger -
ant fluid circuit. The fluid
may damage eyes or skin.
Note
Presence of water under the ve -
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.

electric windows ................................... (up to the end of the DU)
child safety ............................................................. (current page)
children (safety) ..................................................... (current page)
sunroof .................................................. (up to the end of the DU)
3.11
ENG_UD23646_7
Lève-vitres électriques (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
Electric windows, electric sunroof

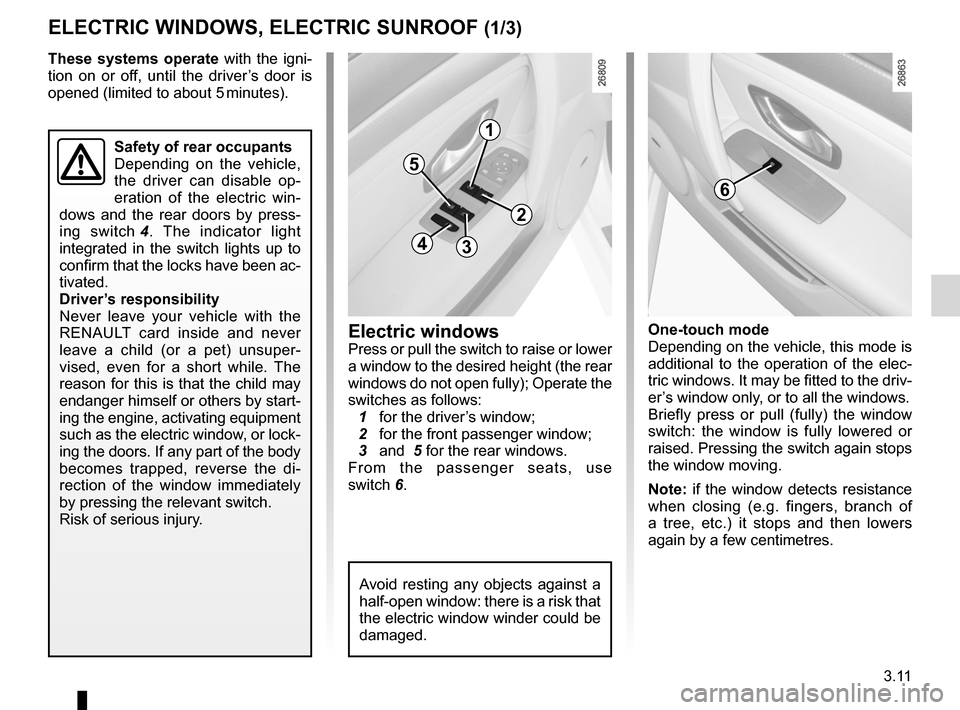

ElEcTRIc WINDoWS, ElEcTRIc SuNRooF (1/3)
These systems operate with the igni -
tion on or off, until the driver’s door is
opened (limited to about 5 minutes).
1
2
34
5
6
Electric windowsPress or pull the switch to raise or lower
a window to the desired height (the rear
windows do not open fully); Operate the
switches as follows:
1 for the driver’s window;
2 for the front passenger window;
3 and 5 for the rear windows.
From the passenger seats, use
switch 6. one-touch mode
Depending on the vehicle, this mode is
additional to the operation of the elec
-
tric windows. It may be fitted to the driv-
er’s window only, or to all the windows.
Briefly press or pull (fully) the window
switch: the window is fully lowered or
raised. Pressing the switch again stops
the window moving.
Note: if the window detects resistance
when closing (e.g. fingers, branch of
a tree, etc.) it stops and then lowers
again by a few centimetres.
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.
Safety of rear occupants
Depending on the vehicle,
the driver can disable op -
eration of the electric win -
dows and the rear doors by press -
ing switch 4 . The indicator light
integrated in the switch lights up to
confirm that the locks have been ac-
tivated.
Driver’s responsibility
Never leave your vehicle with the
RENAULT card inside and never
leave a child (or a pet) unsuper -
vised, even for a short while. The
reason for this is that the child may
endanger himself or others by start-
ing the engine, activating equipment
such as the electric window, or lock-
ing the doors. If any part of the body
becomes trapped, reverse the di -
rection of the window immediately
by pressing the relevant switch.
Risk of serious injury.

3.12
ENG_UD23646_7
Lève-vitres électriques (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
Jaune NoirNoir texte
ElEcTRIc WINDoWS, ElEcTRIc SuNRooF (2/3)

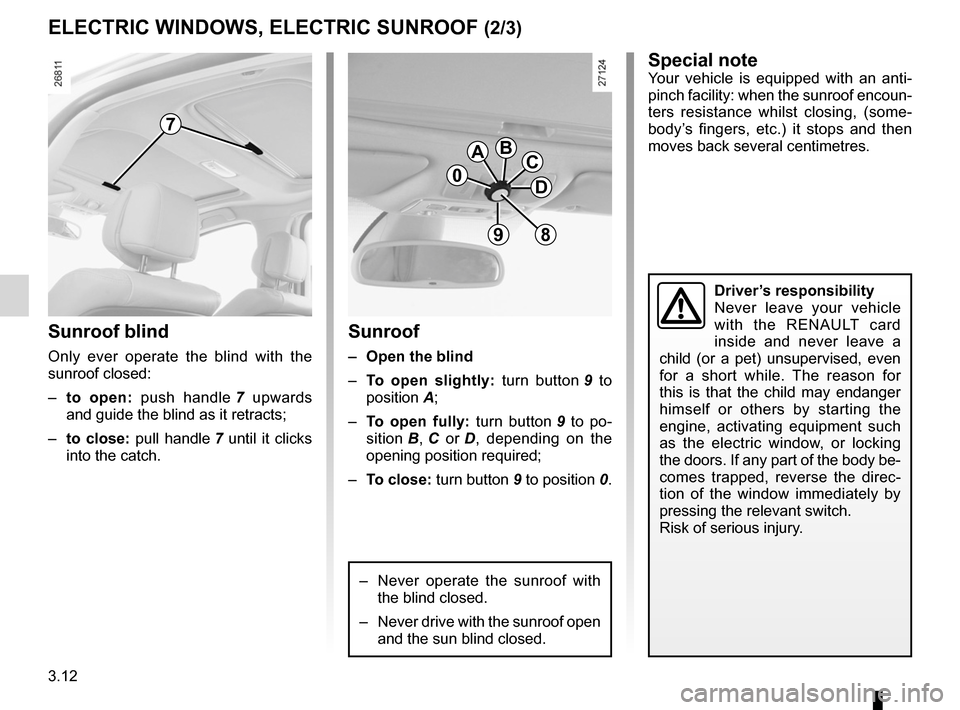

Sunroof
– open the blind
– To open slightly: turn button 9 to
position A;
– To open fully: turn button 9 to po -
sition B , C or D , depending on the
opening position required;
– To close: turn button 9 to position 0.
Sunroof blind
Only ever operate the blind with the
sunroof closed:
– to open: push handle 7 upwards
and guide the blind as it retracts;
– to close: pull handle 7 until it clicks
into the catch.
Special noteYour vehicle is equipped with an anti -
pinch facility: when the sunroof encoun -
ters resistance whilst closing, (some -
body’s fingers, etc.) it stops and then
moves back several centimetres.
– Never operate the sunroof with
the blind closed.
– Never drive with the sunroof open
and the sun blind closed.
7
0
ABc
D
98
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while. The reason for
this is that the child may endanger
himself or others by starting the
engine, activating equipment such
as the electric window, or locking
the doors. If any part of the body be-
comes trapped, reverse the direc -
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.

JauneNoirNoir texte
3.13
ENG_UD23646_7
Lève-vitres électriques (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3

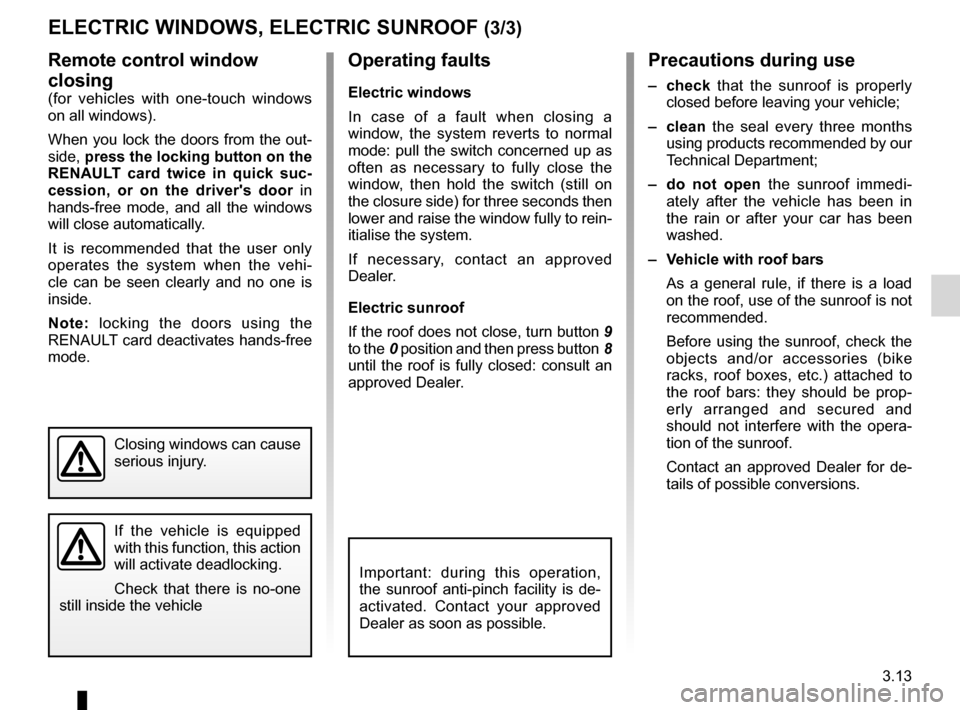

ElEcTRIc WINDoWS, ElEcTRIc SuNRooF (3/3)
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months
using products recommended by our
Technical Department;
– do not open the sunroof immedi -
ately after the vehicle has been in
the rain or after your car has been
washed.
– Vehicle with roof bars
As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop -
erly arranged and secured and
should not interfere with the opera -
tion of the sunroof.
Contact an approved Dealer for de-
tails of possible conversions.
operating faults
Electric windows
In case of a fault when closing a
window, the system reverts to normal
mode: pull the switch concerned up as
often as necessary to fully close the
window, then hold the switch (still on
the closure side) for three seconds then
lower and raise the window fully to rein-
itialise the system.
If necessary, contact an approved
Dealer.
Electric sunroof
If the roof does not close, turn button 9
to the 0 position and then press button 8
until the roof is fully closed: consult an
approved Dealer.
Remote control window
closing
(for vehicles with one-touch windows
on all windows).
When you lock the doors from the out-
side, press the locking button on the
RENA ulT card twice in quick suc -
cession, or on the driver's door in
hands-free mode, and all the windows
will close automatically.
It is recommended that the user only
operates the system when the vehi -
cle can be seen clearly and no one is
inside.
Note: locking the doors using the
RENAULT card deactivates hands-free
mode.
Closing windows can cause
serious injury.
If the vehicle is equipped
with this function, this action
will activate deadlocking.
Check that there is no-one
still inside the vehicle
Important: during this operation,
the sunroof anti-pinch facility is de-
activated. Contact your approved
Dealer as soon as possible.

sun visor ............................................... (up to the end of the DU)
courtesy mirrors .................................... (up to the end of the DU)
sun blinds ............................................. (up to the end of the DU)
sun visor ................................................................ (current page)
3.14
ENG_UD5633_2
Pare-soleils/pare-brise (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3

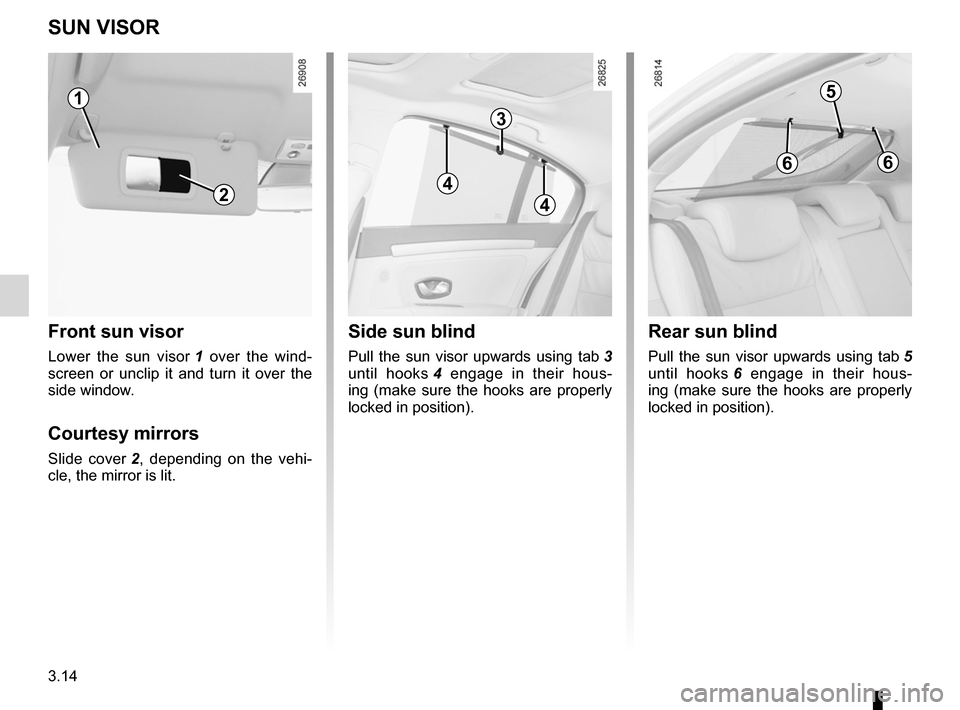

Pare-soleil
SuN VISoR
Front sun visor
Lower the sun visor 1 over the wind -
screen or unclip it and turn it over the
side window.
courtesy mirrors
Slide cover 2 , depending on the vehi -
cle, the mirror is lit.
Side sun blind
Pull the sun visor upwards using tab 3
until hooks 4 engage in their hous -
ing (make sure the hooks are properly
locked in position).
Rear sun blind
Pull the sun visor upwards using tab 5
until hooks 6 engage in their hous -
ing (make sure the hooks are properly
locked in position).
3
1
2
5
66
4
4

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.15
ENG_UD23647_3
Eclairage intérieur (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
Interior lighting
INTERIoR lIghTINg (1/2)
When the doors or luggage com -
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
123
5

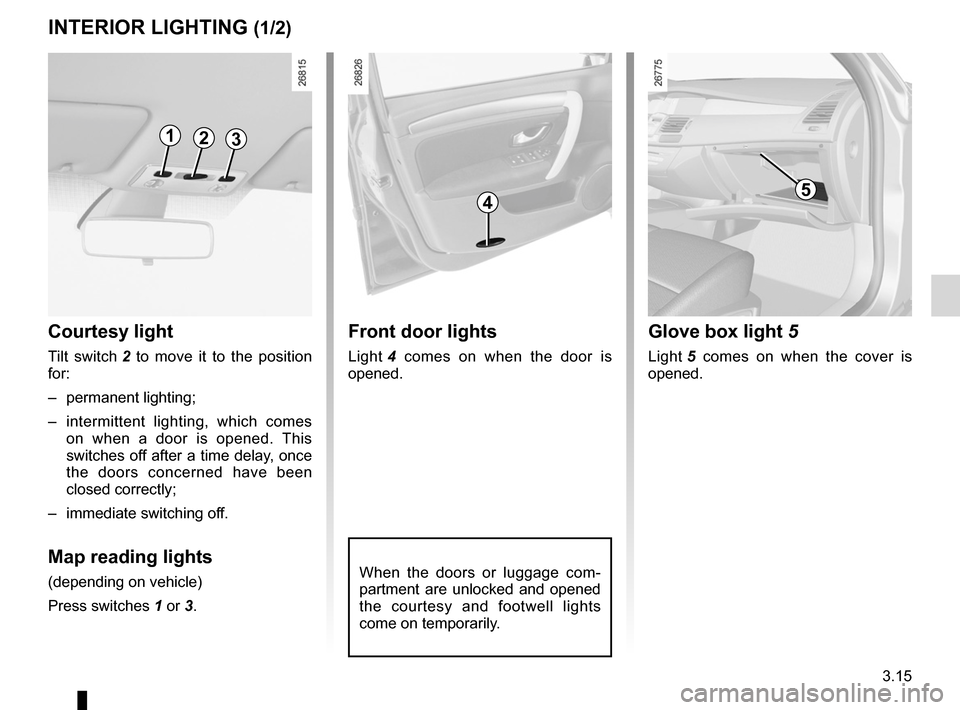

courtesy light
Tilt switch 2 to move it to the position
for:
– permanent lighting;
– intermittent lighting, which comes
on when a door is opened. This
switches off after a time delay, once
the doors concerned have been
closed correctly;
– immediate switching off.
Map reading lights
(depending on vehicle)
Press switches 1 or 3.
Front door lights
Light 4 comes on when the door is
opened.
glove box light 5
Light 5 comes on when the cover is
opened.
4

3.16
ENG_UD23647_3
Eclairage intérieur (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3

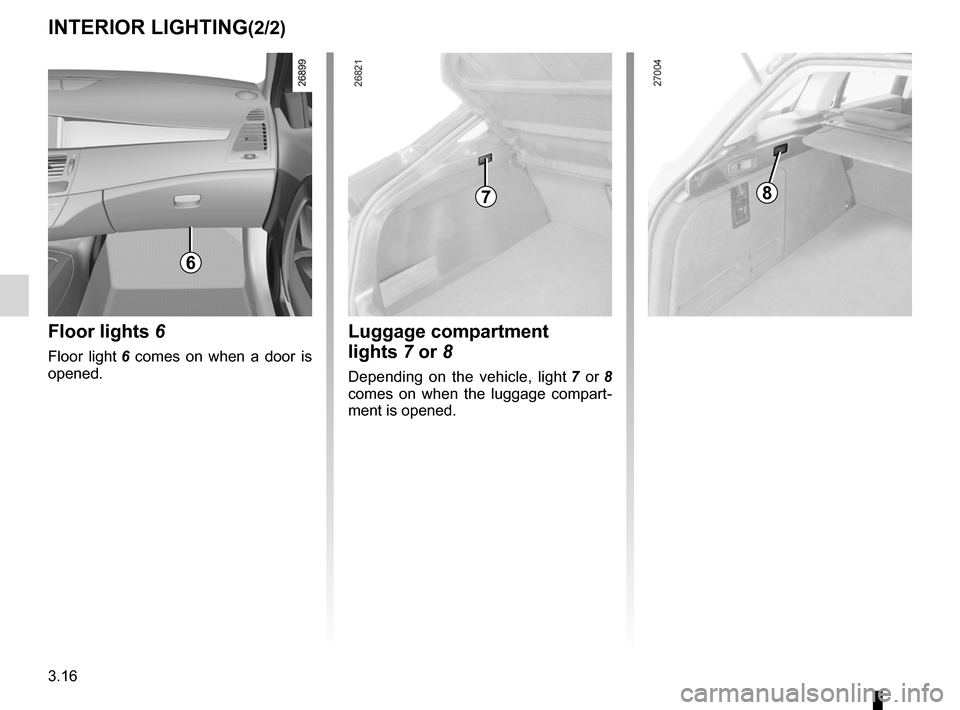

INTERIoR lIghTINg(2/2)
luggage compartment
lights 7 or 8
Depending on the vehicle, light 7 or 8
comes on when the luggage compart -
ment is opened.
78
Floor lights 6
Floor light 6 comes on when a door is
opened.
6

storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
fittings ................................................... (up to the end of the DU)
3.17
ENG_UD20458_1
Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
Passenger compartment storage space and fittings

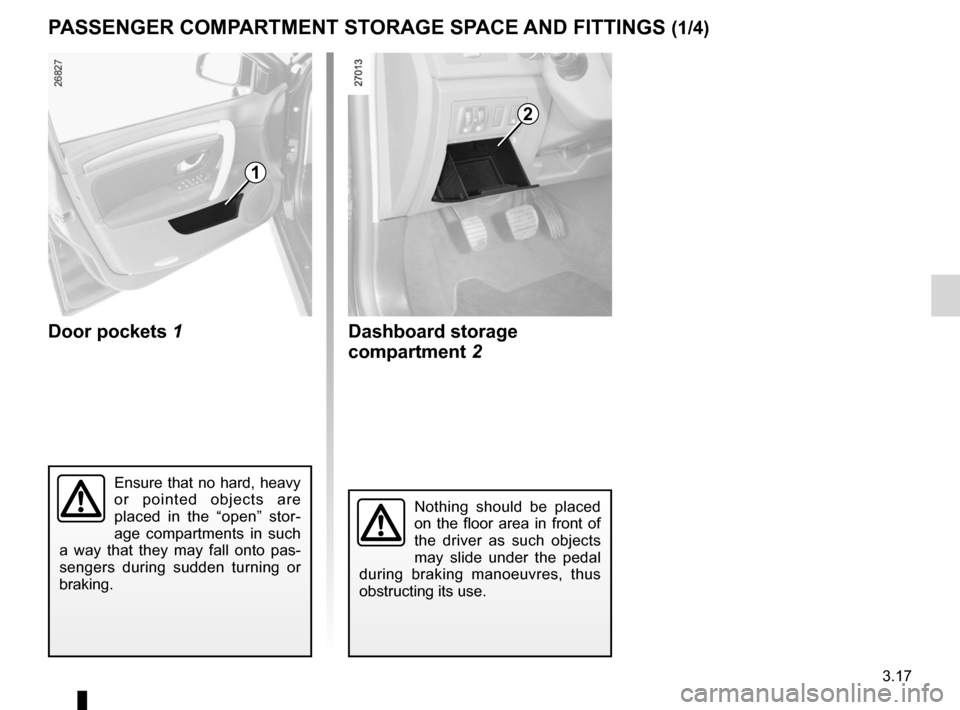

Dashboard storage
compartment 2Door pockets 1
P ASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (1/4)
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor -
age compartments in such
a way that they may fall onto pas -
sengers during sudden turning or
braking.
1
2

armrest:front .................................................................. (current page)
3.18
ENG_UD20458_1
Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)
ENG_NU_936-5_BK91_Renault_3
Jaune NoirNoir texte

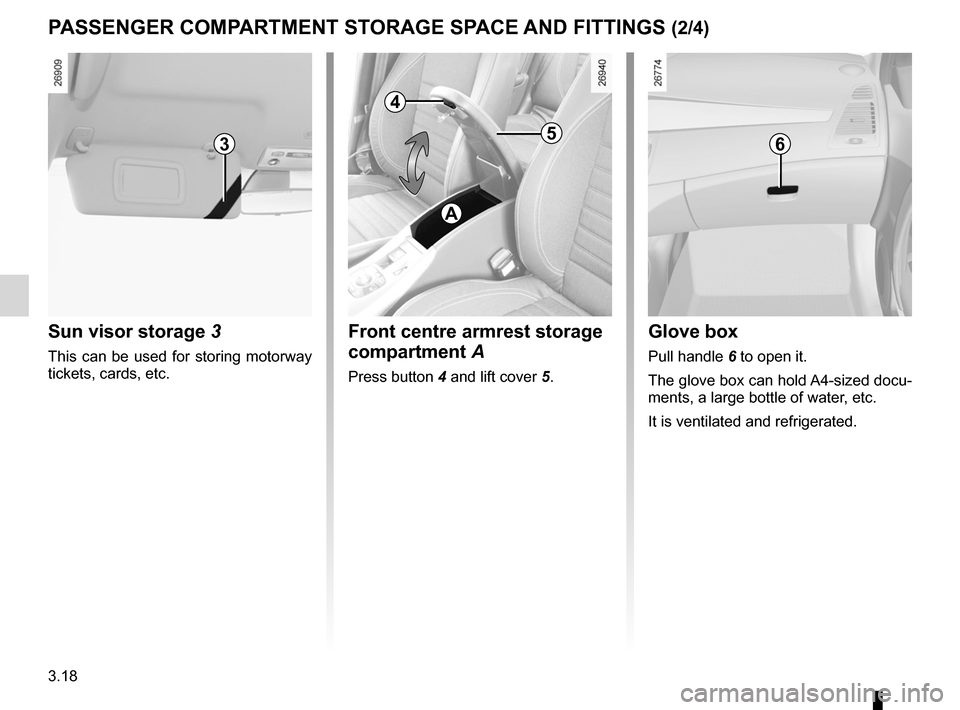

Front centre armrest storage
compartment A
Press button 4 and lift cover 5.
PASSENgER coMPARTMENT ST oRAgE SPAcE AND FITTINgS (2/4)
Sun visor storage 3
This can be used for storing motorway
tickets, cards, etc.
glove box
Pull handle 6 to open it.
The glove box can hold A4-sized docu-
ments, a large bottle of water, etc.
It is ventilated and refrigerated.
4
5
A
36
