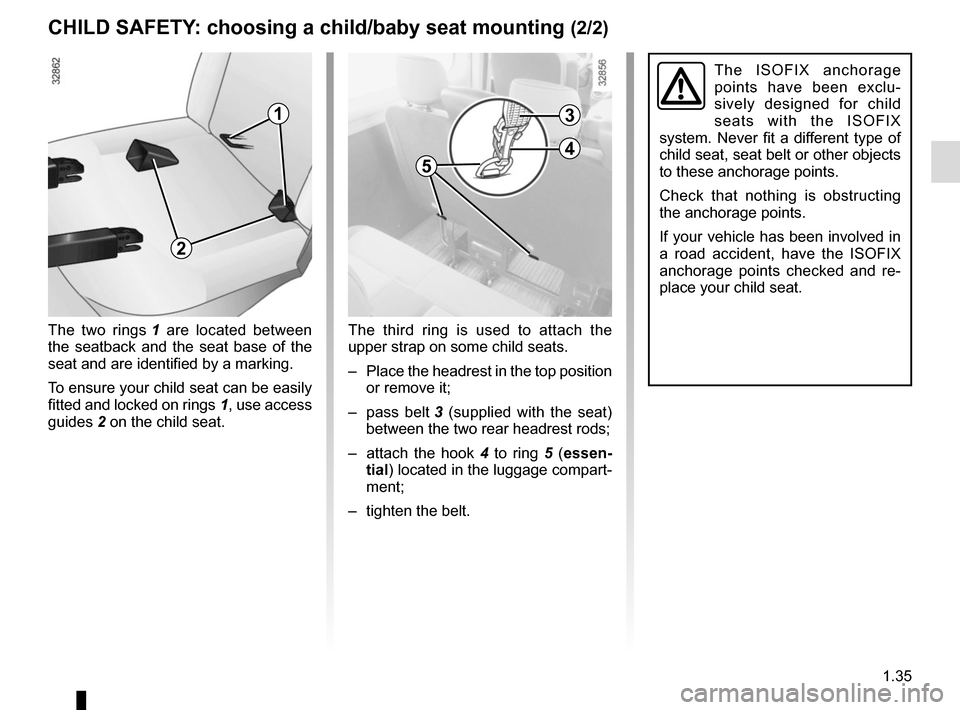

CHILD SAFETY: choosing a child/baby seat mounting (2/2)
The ISOFIX anchorage
points have been exclu-
sively designed for child
seats with the ISOFIX
system. Never fit a different type of
child seat, seat belt or other objects
to these anchorage points.
Check that nothing is obstructing
the anchorage points.
If your vehicle has been involved in
a road accident, have the ISOFIX
anchorage points checked and re-
place your child seat.
The third ring is used to attach the
upper strap on some child seats.
– Place the headrest in the top position or remove it;
– pass belt 3 (supplied with the seat)
between the two rear headrest rods;
– attach the hook 4 to ring 5 (essen-
tial) located in the luggage compart-
ment;
– tighten the belt.
The two rings
1 are located between
the seatback and the seat base of the
seat and are identified by a marking.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat.
1
2
3
4
5

1.36

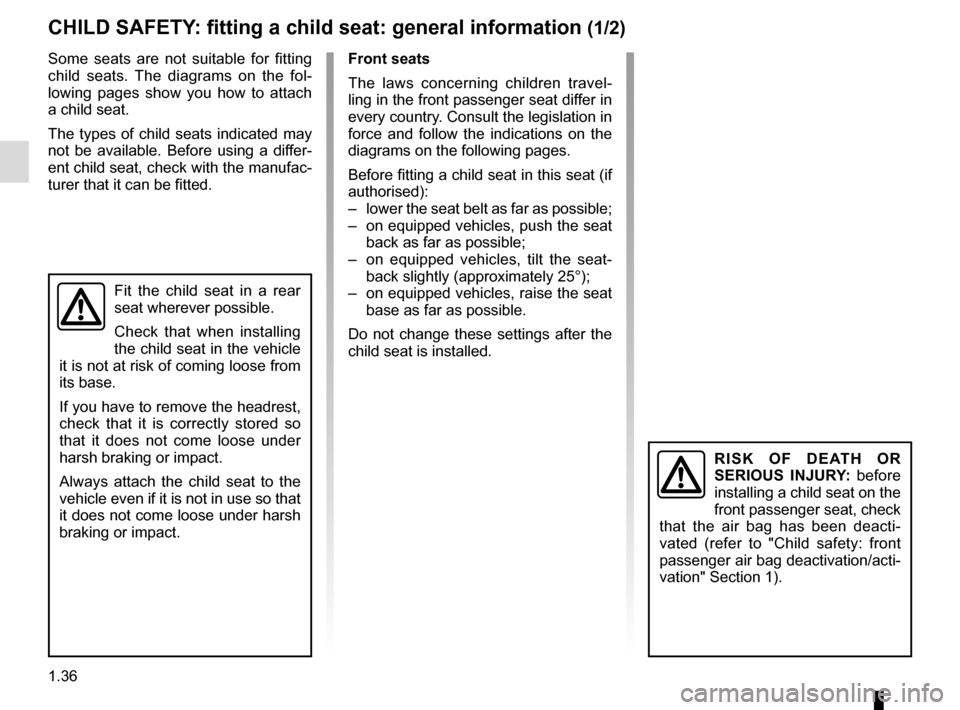

CHILD SAFETY: fitting a child seat: general information (1/2)
Some seats are not suitable for fitting
child seats. The diagrams on the fol-
lowing pages show you how to attach
a child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
Front seats
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagrams on the following pages.
Before fitting a child seat in this seat (if
authorised):
– lower the seat belt as far as possible;
– on equipped vehicles, push the seat back as far as possible;
– on equipped vehicles, tilt the seat- back slightly (approximately 25°);
– on equipped vehicles, raise the seat base as far as possible.
Do not change these settings after the
child seat is installed.
RISK OF DEATH OR
SERIOUS INJURY: before
installing a child seat on the
front passenger seat, check
that the air bag has been deacti-
vated (refer to "Child safety: front
passenger air bag deactivation/acti-
vation" Section 1).

1.37

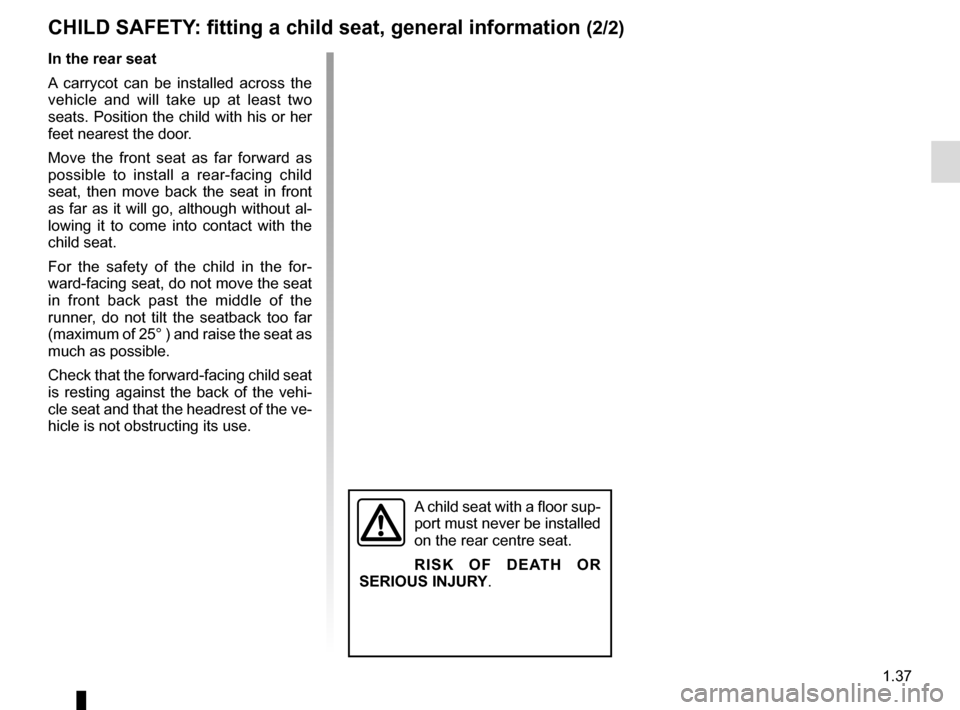

CHILD SAFETY: fitting a child seat, general information (2/2)
A child seat with a floor sup-
port must never be installed
on the rear centre seat.
RISK OF DEATH OR
SERIOUS INJURY.
In the rear seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.

1.38

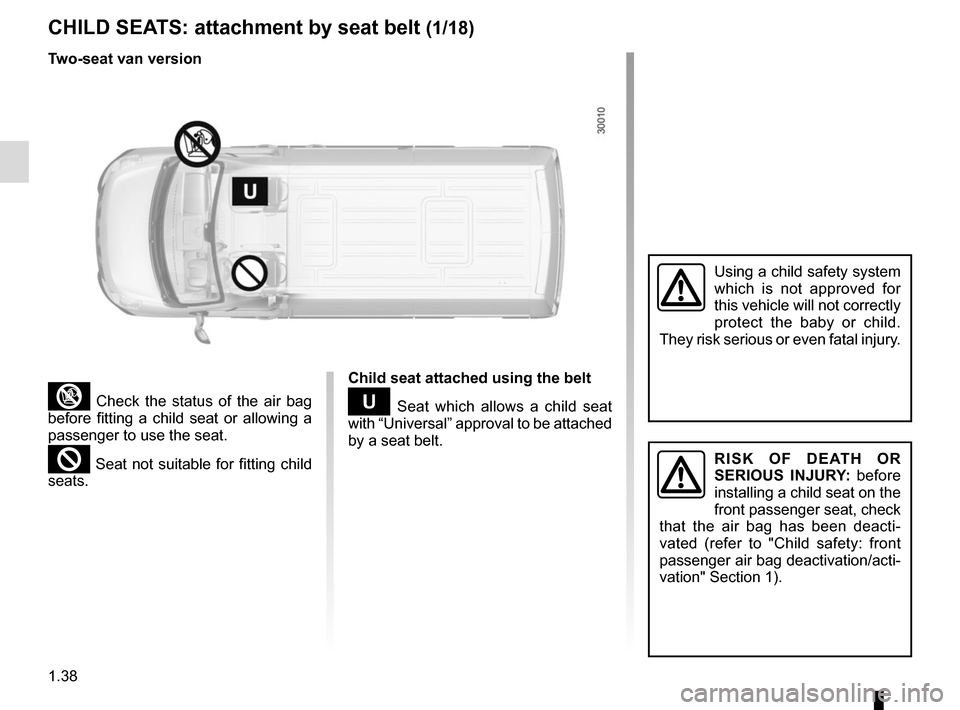

CHILD SEATS: attachment by seat belt (1/18)
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Two-seat van version
RISK OF DEATH OR
SERIOUS INJURY: before
installing a child seat on the
front passenger seat, check
that the air bag has been deacti-
vated (refer to "Child safety: front
passenger air bag deactivation/acti-
vation" Section 1).
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.

1.39
CHILD SEATS: attachment by seat belt (2/18)
Two-seat van versionWITH PASSENGER AIR BAGWITHOUT PASSENGER
AIR BAG
Child seat group Weight of the child Front passenger seatFront passenger seat
Rear-facing shell seat Group 0 or 0 + < 13 kg
U (1) U
Rear-facing seat Group 0+ and 1 < 13 kg and
9 to 18 kg U (1)
U
Forward-facing seat Group 1 9 to 18 kg
U (1) U
Booster seat
Group 2 and 3 15 kg to 25 kg and
22 to 36 kg U (1)
U
U = Seat allowing a child seat with “Universal” approval to be attache\
d by seat belt; check that it can be fitted.
(1) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that \
the
air bag has been deactivated (refer to "Child safety: front passenger a\
ir bag deactivation/activation" Section 1).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.40

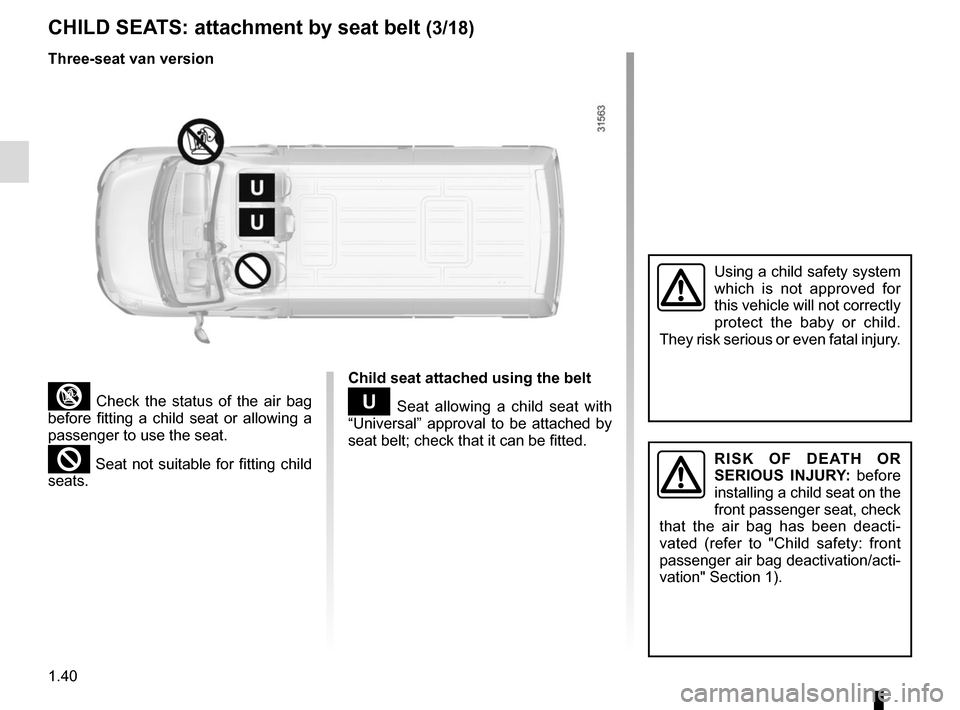

CHILD SEATS: attachment by seat belt (3/18)
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Three-seat van version
RISK OF DEATH OR
SERIOUS INJURY: before
installing a child seat on the
front passenger seat, check
that the air bag has been deacti-
vated (refer to "Child safety: front
passenger air bag deactivation/acti-
vation" Section 1).
Child seat attached using the belt
¬ Seat allowing a child seat with
“Universal” approval to be attached by
seat belt; check that it can be fitted.

1.41
CHILD SEATS: attachment by seat belt (4/18)
Three-seat van versionWITH PASSENGER AIR BAG WITHOUT PASSENGER AIR BAG
Child seat group Weight of the child Central front
passenger seat Side front
passenger seat Central front
passenger seat Side front
passenger seat
Rear-facing shell seat Group 0 or 0 + < 13 kg
U (1)U (1) UU
Rear-facing seat Group 0+ and 1 < 13 kg and
9 to 18 kg U (1)
U (1) UU
Forward-facing seat Group 1 9 to 18 kg
U (1)U (1) UU
Booster seat
Group 2 and 3 15 kg to 25 kg and
22 to 36 kg U (1)
U (1) UU
U = Seat allowing a child seat with “Universal” approval to be attache\
d by seat belt; check that it can be fitted.
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this position, check that th\
e air
bag has been deactivated (refer to the information on “Child safety:\
deactivating/activating the front passenger air bag”
in Section 1).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.42

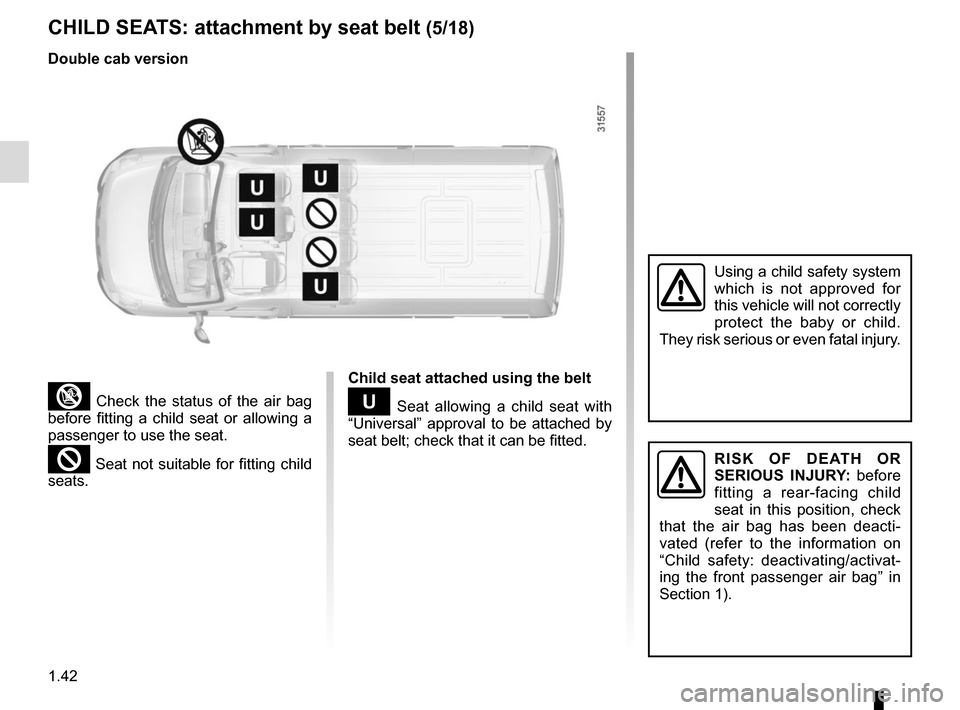

CHILD SEATS: attachment by seat belt (5/18)
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat in this position, check
that the air bag has been deacti-
vated (refer to the information on
“Child safety: deactivating/activat-
ing the front passenger air bag” in
Section 1).
Double cab version
Child seat attached using the belt
¬ Seat allowing a child seat with
“Universal” approval to be attached by
seat belt; check that it can be fitted.

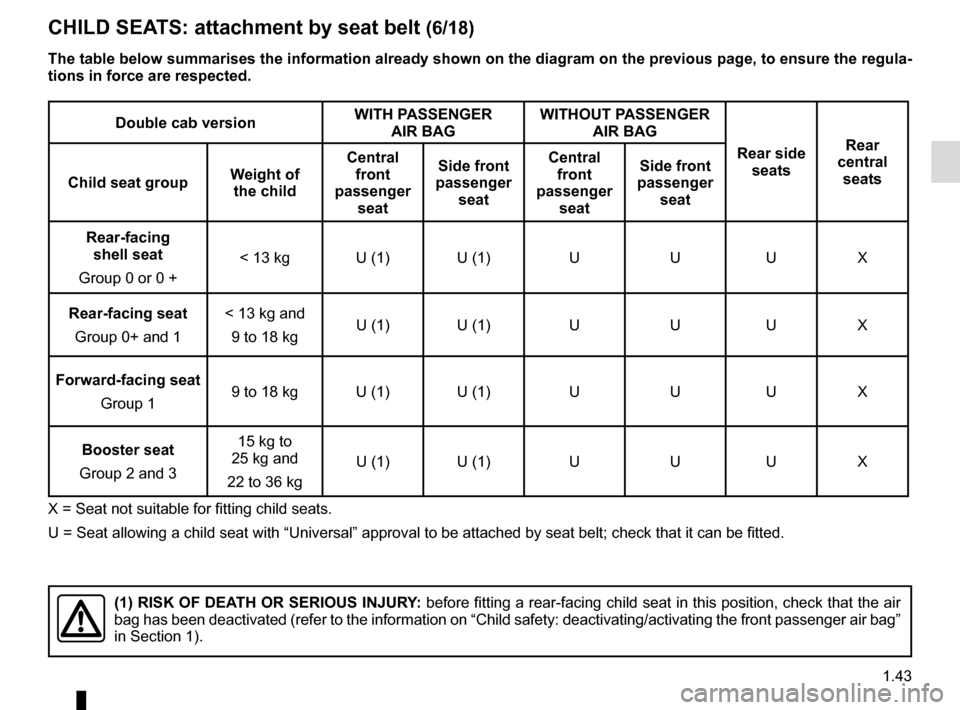

1.43
CHILD SEATS: attachment by seat belt (6/18)
Double cab versionWITH PASSENGER
AIR BAG WITHOUT PASSENGER
AIR BAG
Rear side seats Rear
central seats
Child seat group Weight of
the child Central
front
passenger seat Side front
passenger seat Central
front
passenger seat Side front
passenger seat
Rear-facing shell seat
Group 0 or 0 + < 13 kg U (1) U (1) U U U X
Rear-facing seat Group 0+ and 1 < 13 kg and
9 to 18 kg U (1) U (1) U U U X
Forward-facing seat Group 1 9 to 18 kg U (1) U (1) U U U X
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg U (1) U (1) U U U X
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attache\
d by seat belt; check that it can be fitted.
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this position, check that th\
e air
bag has been deactivated (refer to the information on “Child safety:\
deactivating/activating the front passenger air bag”
in Section 1).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.44

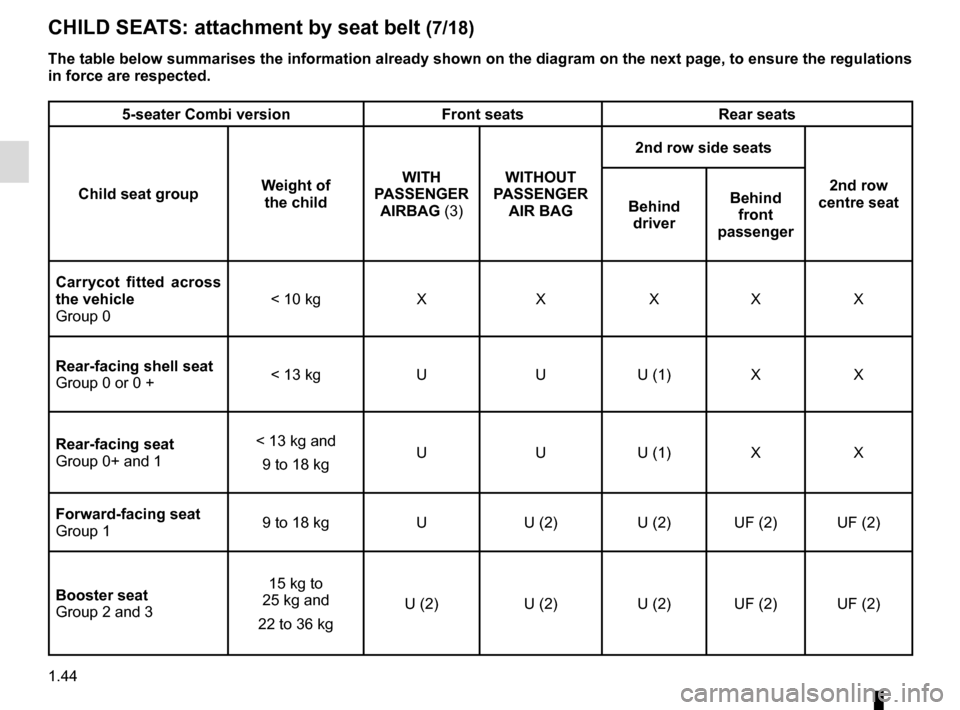

CHILD SEATS: attachment by seat belt (7/18)
5-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child WITH
PASSENGER AIRBAG (3) WITHOUT
PASSENGER AIR BAG 2nd row side seats
2nd row
centre seat
Behind
driver Behind
front
passenger
Carrycot fitted across
the vehicle
Group 0 < 10 kg
XXXX X
Rear-facing shell seat
Group 0 or 0 + < 13 kg
UUU (1) XX
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg U
UU (1) XX
Forward-facing seat
Group 1 9 to 18 kg
UU (2) U (2) UF (2) UF (2)
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg U (2)
U (2)U (2) UF (2) UF (2)
The table below summarises the information already shown on the diagram \
on the next page, to ensure the regulations
in force are respected.
