Page 261 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.5

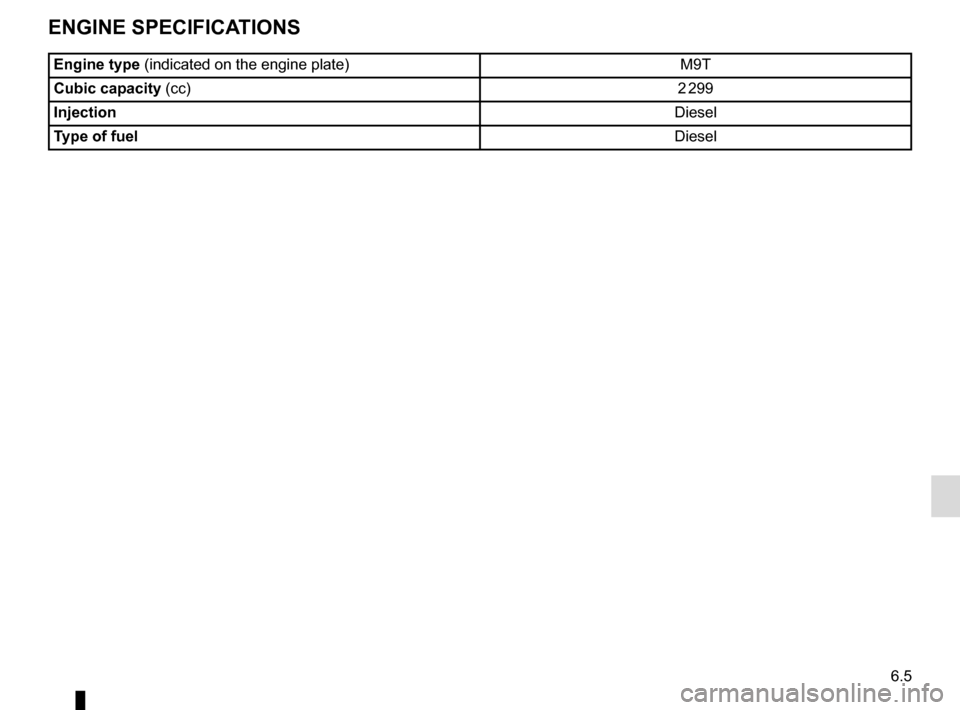

ENGINE SPECIFICATIONS
Engine type (indicated on the engine plate) M9T
Cubic capacity (cc) 2 299
Injection Diesel
Type of fuel Diesel

Page 262 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.6

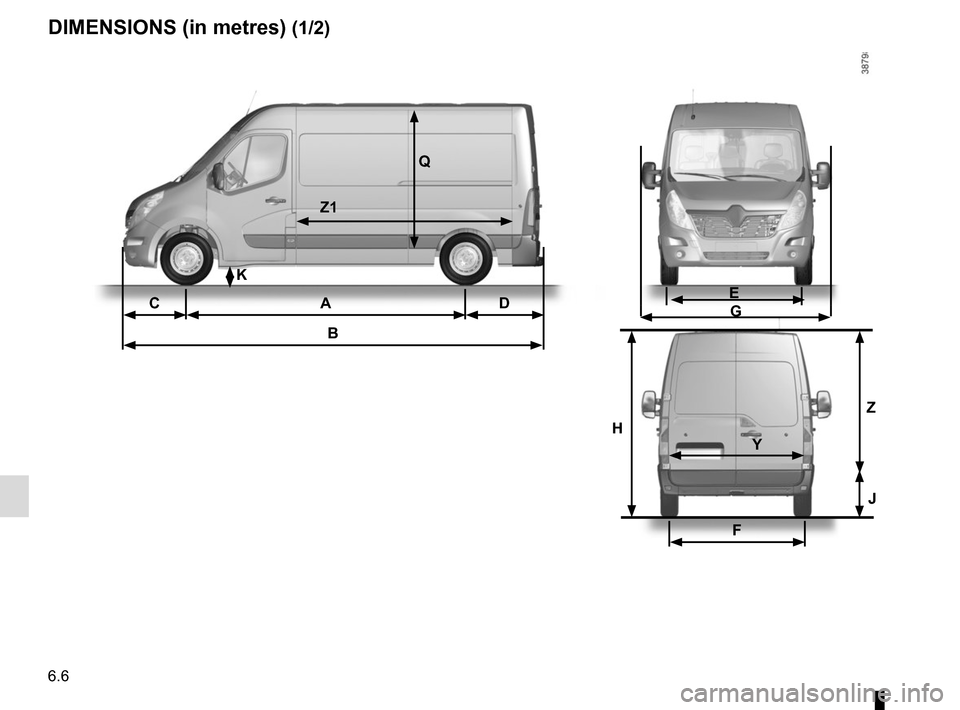

DIMENSIONS (in metres) (1/2)
CA D
B
K
Q
Z1
E G
F
H Z
J
Y

Page 263 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.7

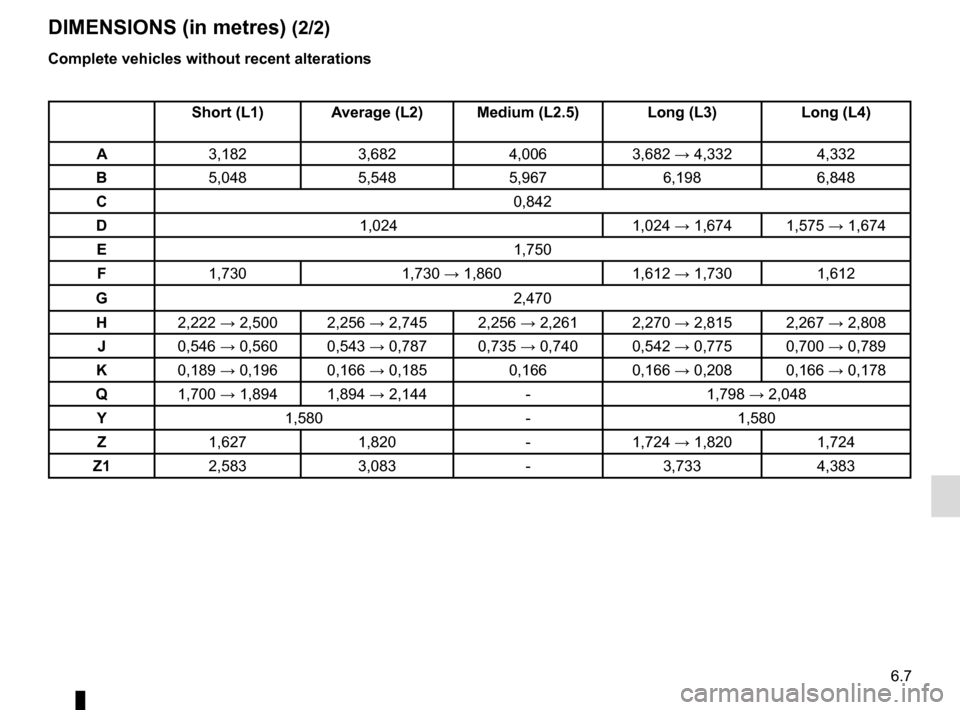

DIMENSIONS (in metres) (2/2)
Complete vehicles without recent alterations
Short (L1) Average (L2) Medium (L2.5) Long (L3)Long (L4)
A 3,182 3,682 4,0063,682 → 4,332 4,332
B 5,048 5,548 5,967 6,19

Page 264 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.8

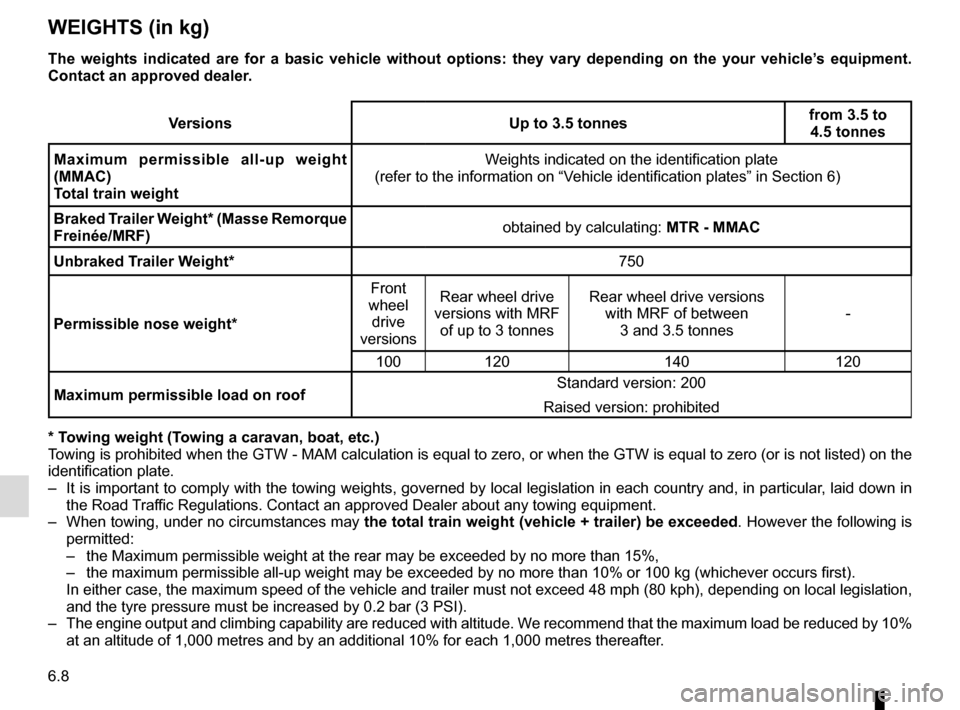

WEIGHTS (in kg)
VersionsUp to 3.5 tonnesfrom 3.5 to
4.5 tonnes
Maximum permissible all-up weight
(MMAC)
Total train weight Weights indicated on the identification plate
(refer to the information

Page 265 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.9

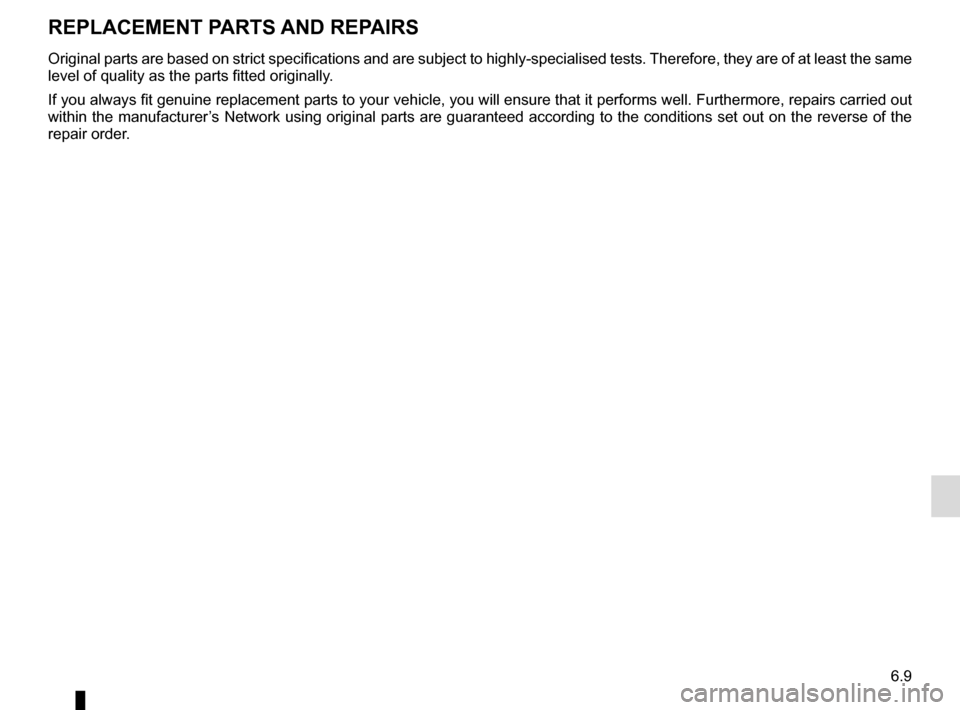

Original parts are based on strict specifications and are subject to hig\
hly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you a

Page 266 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.10
SERVICE SHEETS (1/6)
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service     □
.......................................    □
Anticorrosion check:

Page 267 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.11
SERVICE SHEETS (2/6)
VIN: .......................................................................\
...........
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation:

Page 268 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.12

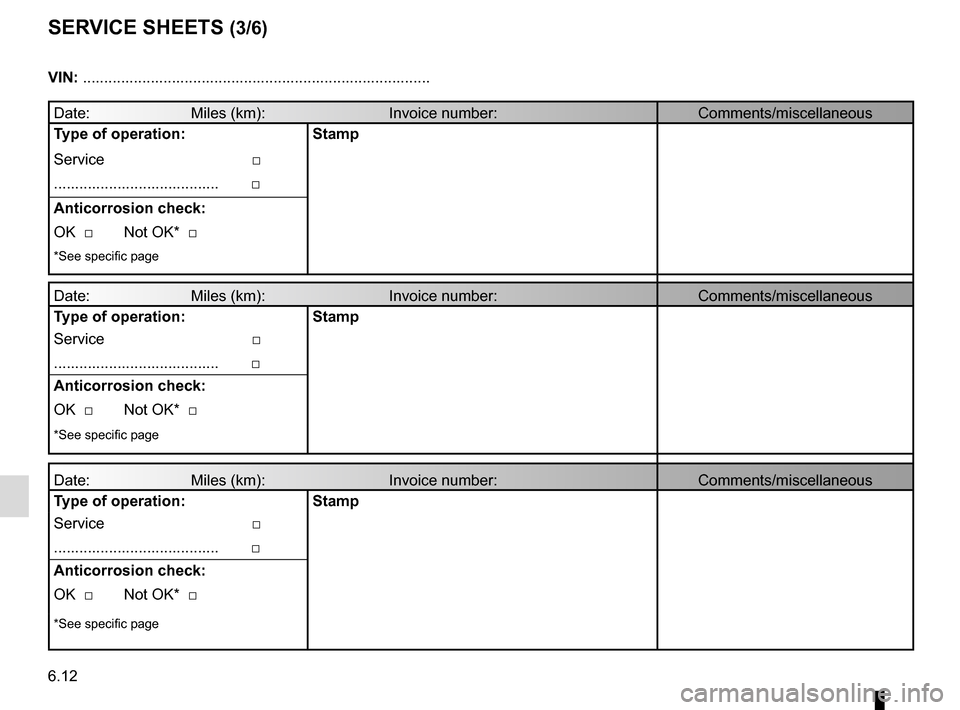

SERVICE SHEETS (3/6)
VIN: .......................................................................\
...........
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation:

Page 269 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.13

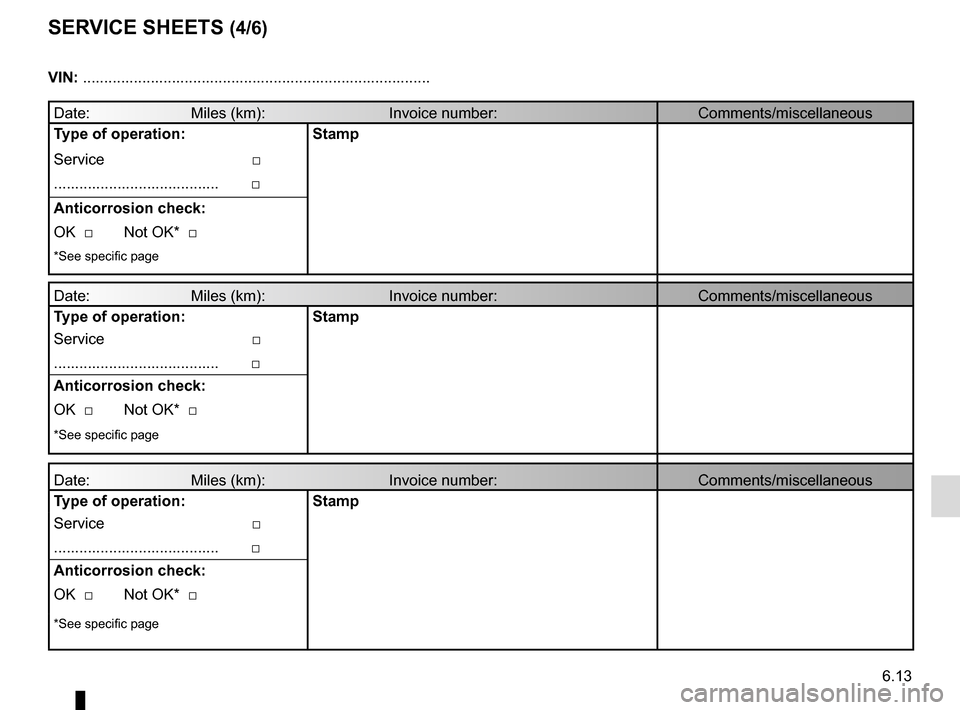

SERVICE SHEETS (4/6)
VIN: .......................................................................\
...........
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation:

Page 270 of 286

RENAULT MASTER 2017 X62 / 2.G Owners Manual 6.14
SERVICE SHEETS (5/6)
VIN: .......................................................................\
...........
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation:
