RENAULT MEGANE COUPE CABRIOLET 2016 X95 / 3.G Owners Manual

3.3

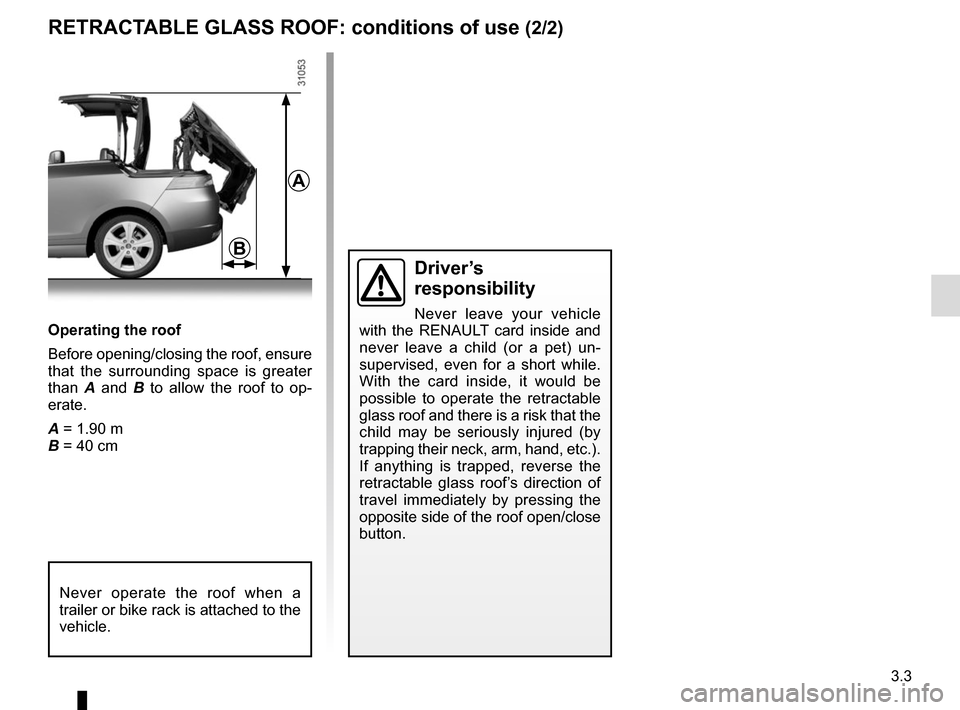

Operating the roof
Before opening/closing the roof, ensure
that the surrounding space is greater
than A and B to allow the roof to op-
erate.
A = 1.90 m
B = 40 cm
Driver’s
responsibility
Never leave your vehicle
with the RENAULT card inside and
never leave a child (or a pet) un-
supervised, even for a short while.
With the card inside, it would be
possible to operate the retractable
glass roof and there is a risk that the
child may be seriously injured (by
trapping their neck, arm, hand, etc.).
If anything is trapped, reverse the
retractable glass roof’s direction of
travel immediately by pressing the
opposite side of the roof open/close
button.
A
B
RETRACTABLE GLASS ROOF: conditions of use (2/2)
Never operate the roof when a
trailer or bike rack is attached to the
vehicle.

3.4

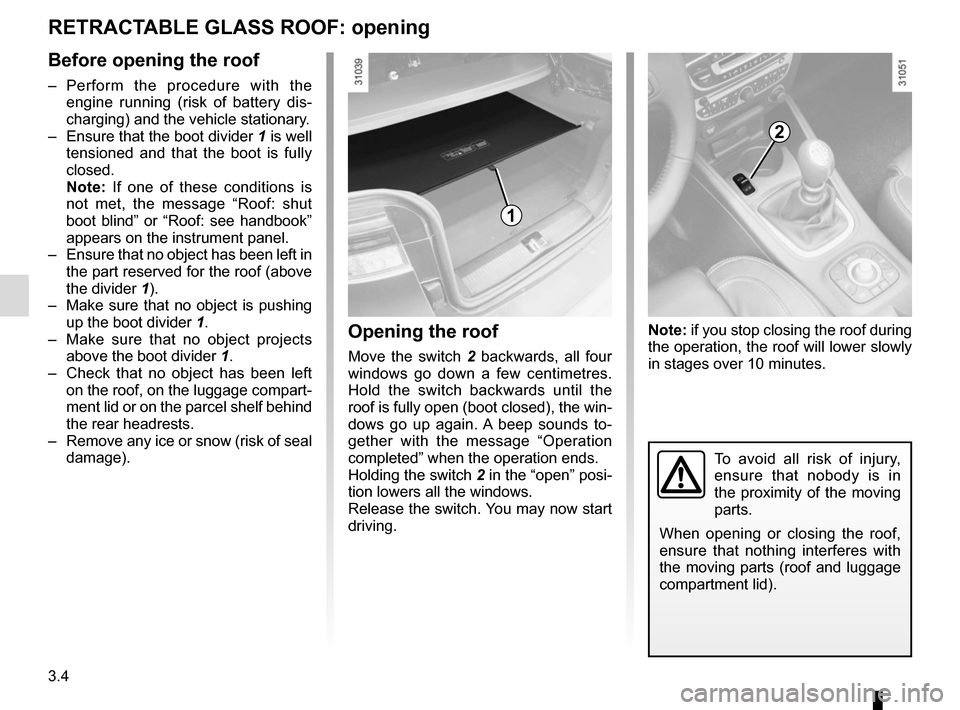

RETRACTABLE GLASS ROOF: opening
Before opening the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the boot divider 1 is well
tensioned and that the boot is fully
closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind” or “Roof: see handbook”
appears on the instrument panel.
– Ensure that no object has been left in the part reserved for the roof (above
the divider 1).
– Make sure that no object is pushing up the boot divider 1.
– Make sure that no object projects above the boot divider 1.
– Check that no object has been left on the roof, on the luggage compart-
ment lid or on the parcel shelf behind
the rear headrests.
– Remove any ice or snow (risk of seal damage).
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
1
2
Opening the roof
Move the switch 2 backwards, all four
windows go down a few centimetres.
Hold the switch backwards until the
roof is fully open (boot closed), the win-
dows go up again. A beep sounds to-
gether with the message “Operation
completed” when the operation ends.
Holding the switch 2 in the “open” posi-
tion lowers all the windows.
Release the switch. You may now start
driving. Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.

3.5

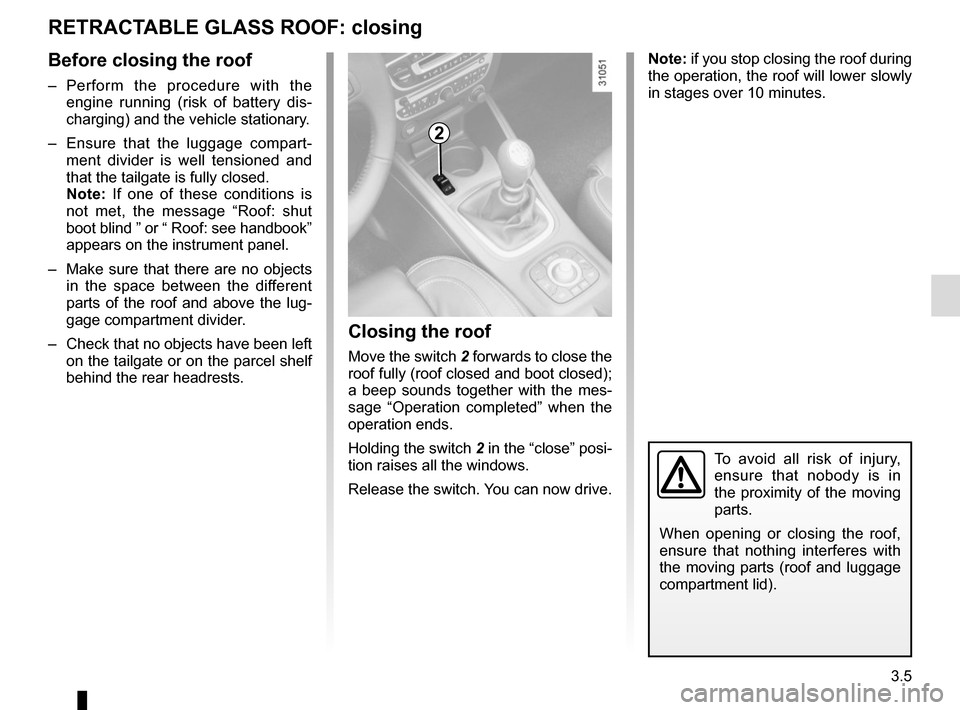

RETRACTABLE GLASS ROOF: closing
Closing the roof
Move the switch 2 forwards to close the
roof fully (roof closed and boot closed);
a beep sounds together with the mes-
sage “Operation completed” when the
operation ends.
Holding the switch 2 in the “close” posi-
tion raises all the windows.
Release the switch. You can now drive.
Before closing the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the luggage compart- ment divider is well tensioned and
that the tailgate is fully closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind ” or “ Roof: see handbook”
appears on the instrument panel.
– Make sure that there are no objects in the space between the different
parts of the roof and above the lug-
gage compartment divider.
– Check that no objects have been left on the tailgate or on the parcel shelf
behind the rear headrests.
2
Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).

3.6
RETRACTABLE GLASS ROOF: operating fault (1/2)
In the event of a fault before
or while opening or closing
the roof
There is a beep and the message
“Check roof See handbook”, accom-
panied by the warning light
© ap-
pears on the instrument panel.
Stop pressing the switch 1.
The roof lowers back slowly in stages.
Safety mode for closing the roof
From the driver’s seat:
– switch off the engine;
– move the switch 1 backwards while
starting the engine. Hold the switch 1
down for 10 seconds (a beep sounds
to warn you);
– open the boot fully by moving the switch 1 backwards and pulling the
switch 2 at the same time;
1
– bring the roof out of the boot by moving the switch 1 forwards and
pulling the switch 2 at the same time;
– position the shelf under the boot by moving the switch 1 backwards and
pressing the switch 2 at the same
time;
– close the boot fully by moving the switch 1 forwards and pressing the
switch 2 at the same time. Hold
these controls down for around
5 seconds once the boot lid is closed.
2
When operating in this
mode, all the sensors are
deactivated and there may
be contact between the var-
ious parts of the roof.

3.7
3
Take the tool 4 out of the tool kit.
– Remove objects from the luggage compartment before closing the tail-
gate;
– close the tailgate manually by push- ing it shut.

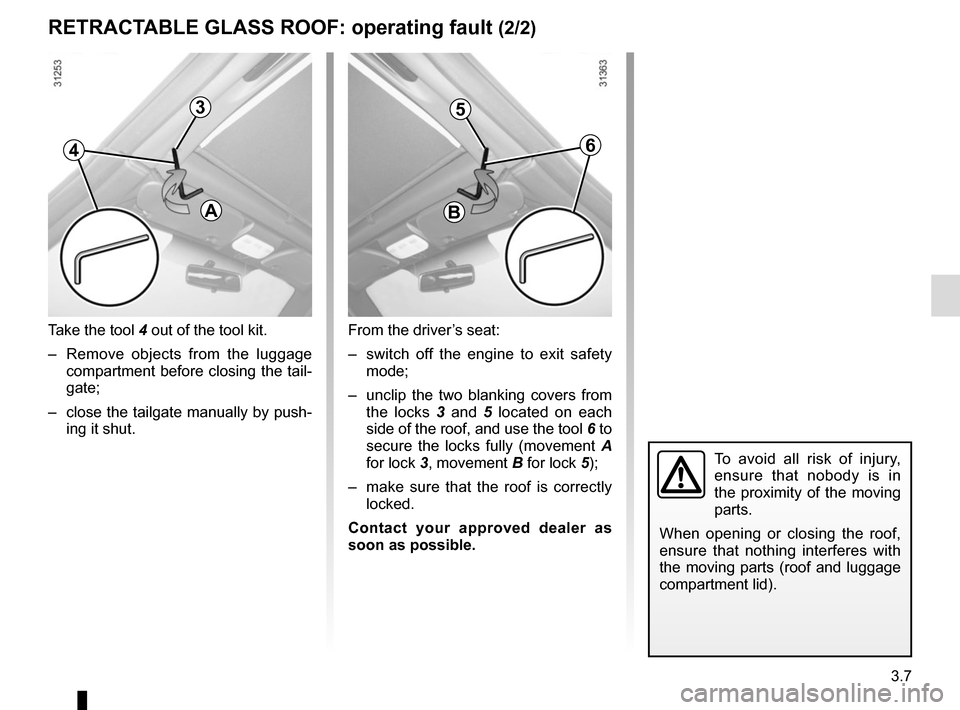

RETRACTABLE GLASS ROOF: operating fault (2/2)
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
AB
4
5
6
From the driver’s seat:
– switch off the engine to exit safety mode;
– unclip the two blanking covers from the locks 3 and 5 located on each
side of the roof, and use the tool 6 to
secure the locks fully (movement A
for lock 3, movement B for lock 5);
– make sure that the roof is correctly locked.
Contact your approved dealer as
soon as possible.

3.8

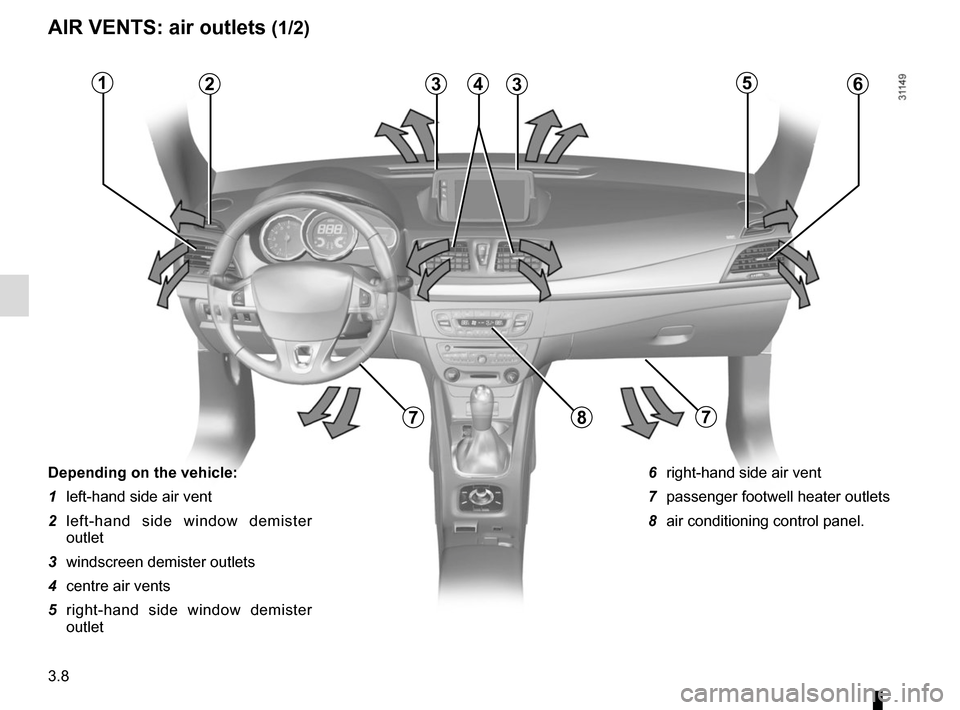

AIR VENTS: air outlets (1/2)
Depending on the vehicle:
1 left-hand side air vent
2 left-hand side window demister outlet
3 windscreen demister outlets
4 centre air vents
5 right-hand side window demister outlet 6 right-hand side air vent
7 passenger footwell heater outlets
8 air conditioning control panel.
136
778
4253

3.9

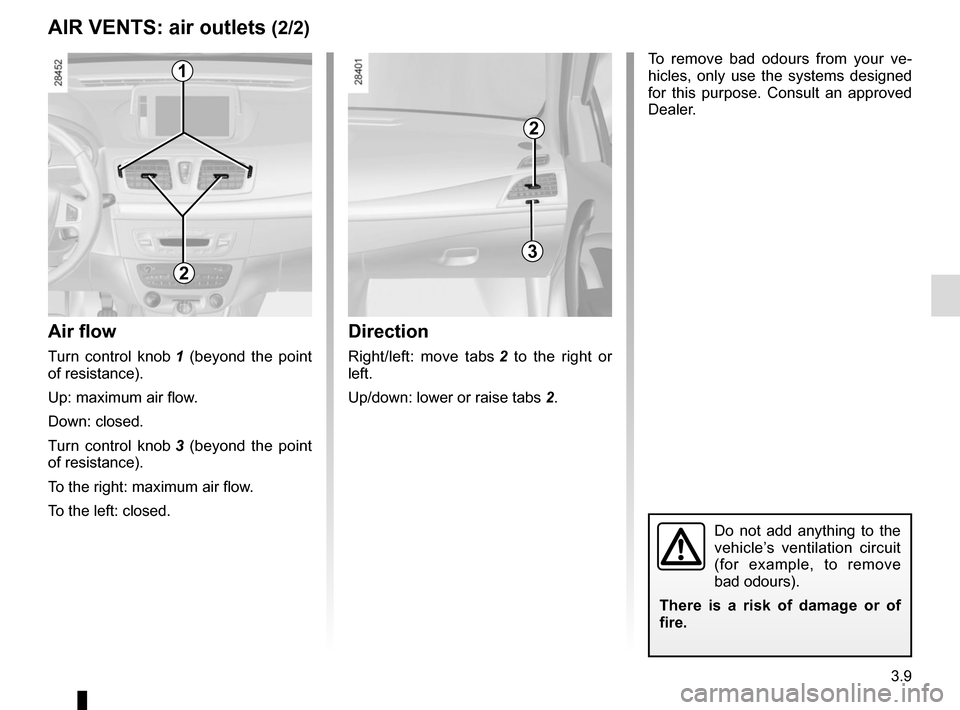

AIR VENTS: air outlets (2/2)
Air flow
Turn control knob 1 (beyond the point
of resistance).
Up: maximum air flow.
Down: closed.
Turn control knob 3 (beyond the point
of resistance).
To the right: maximum air flow.
To the left: closed.
Direction
Right/left: move tabs 2 to the right or
left.
Up/down: lower or raise tabs 2.
2
3
1
2
To remove bad odours from your ve-
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.

3.10

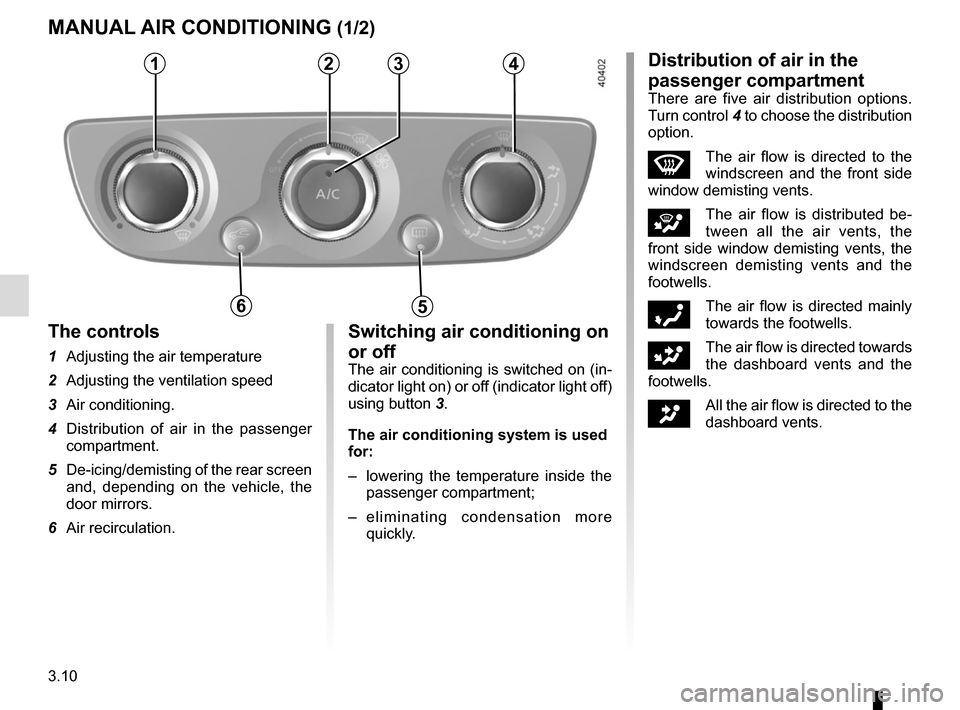

MANUAL AIR CONDITIONING (1/2)
1234
56
The controls
1 Adjusting the air temperature
2 Adjusting the ventilation speed
3 Air conditioning.
4 Distribution of air in the passenger compartment.
5 De-icing/demisting of the rear screen and, depending on the vehicle, the
door mirrors.
6 Air recirculation.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light on) or off (indicator light off)
using button 3.
The air conditioning system is used
for:
– lowering the temperature inside the
passenger compartment;
– eliminating condensation more quickly.
Distribution of air in the
passenger compartment
There are five air distribution options.
Turn control 4 to choose the distribution
option.
WThe air flow is directed to the
windscreen and the front side
window demisting vents.
iThe air flow is distributed be-
tween all the air vents, the
front side window demisting vents, the
windscreen demisting vents and the
footwells.
óThe air flow is directed mainly
towards the footwells.
GThe air flow is directed towards
the dashboard vents and the
footwells.
JAll the air flow is directed to the
dashboard vents.

3.11
Adjusting the ventilation
speed
Turn control 2 clockwise to increase the
air flow in the passenger compartment.
The passenger compartment is ven-
tilated by blown air. The blower deter-
mines how much air enters but vehicle
speed has a slight effect on this.
Switching the air
recirculation on
Press button 6: the integrated indicator
light comes on.
Under these conditions, air is taken
from the passenger compartment and
is recirculated, with no air being taken
from outside the vehicle.
Air recirculation is for:
– isolating the vehicle from the exter- nal atmosphere (driving in polluted
areas, etc.);
– lowering the passenger compart- ment temperature as quickly as pos-
sible. “OFF" position:
the system is deactivated: the ventila-
tion speed for the passenger compart-
ment air is zero (vehicle stationary),
you can however still feel a slight flow
of air when the vehicle is moving.
Recommended demisting option:
Turn controls
1, 2 and 4 to the
W
position.
This is the quickest option for de-icing
and demisting the side windows and
the windscreen.

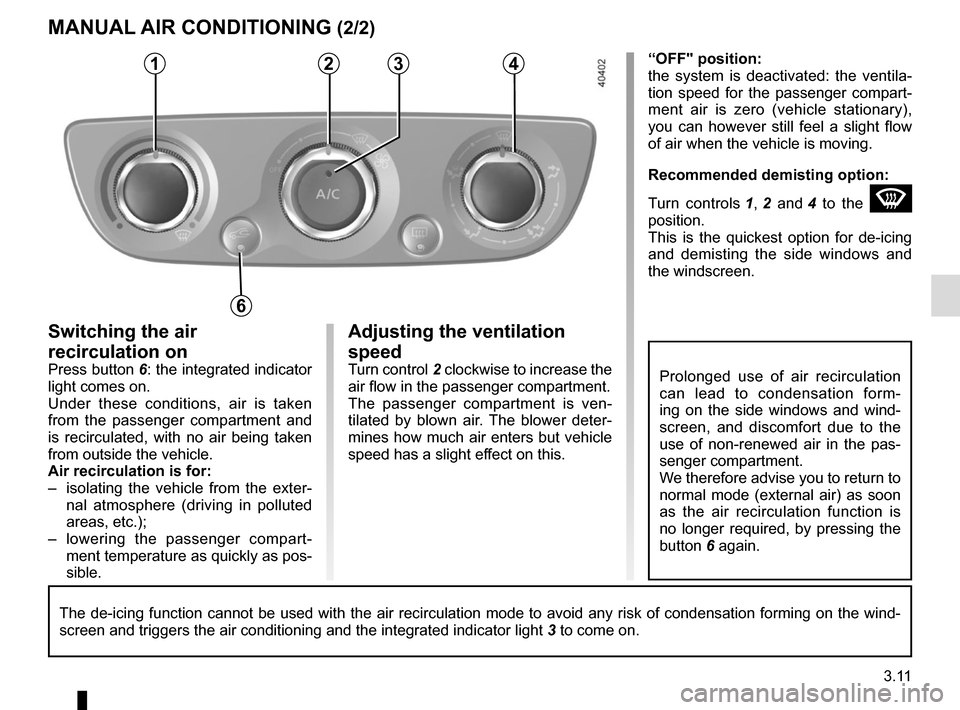

MANUAL AIR CONDITIONING (2/2)
Prolonged use of air recirculation
can lead to condensation form-
ing on the side windows and wind-
screen, and discomfort due to the
use of non-renewed air in the pas-
senger compartment.
We therefore advise you to return to
normal mode (external air) as soon
as the air recirculation function is
no longer required, by pressing the
button 6 again.
The de-icing function cannot be used with the air recirculation mode to \
avoid any risk of condensation forming on the wind-
screen and triggers the air conditioning and the integrated indicator li\
ght 3 to come on.
1234
6

3.12

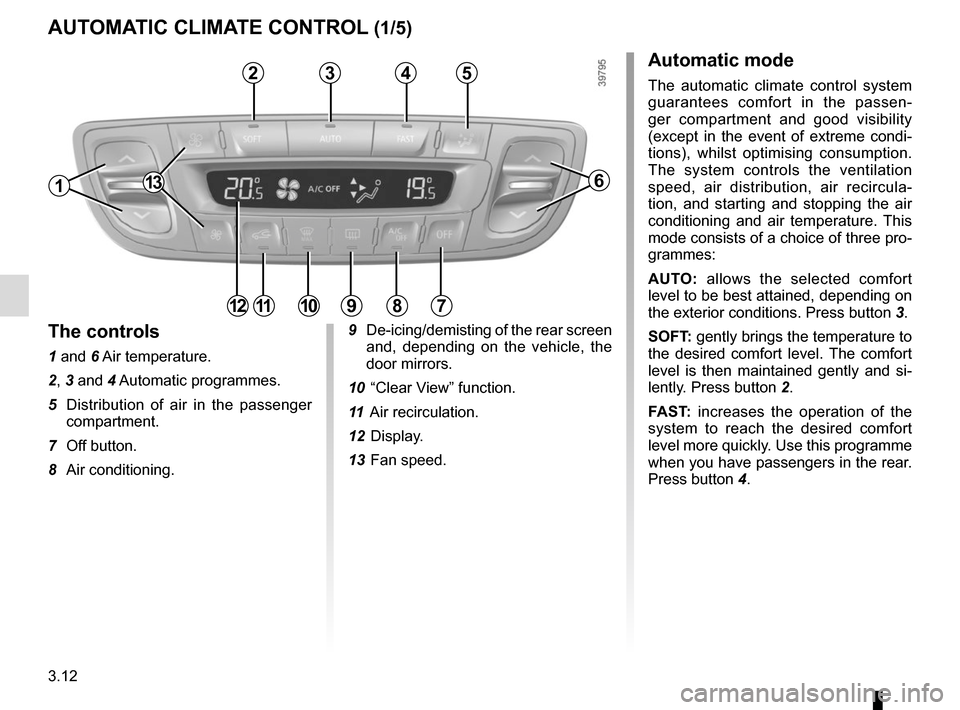

AUTOMATIC CLIMATE CONTROL (1/5)Automatic mode
The automatic climate control system
guarantees comfort in the passen-
ger compartment and good visibility
(except in the event of extreme condi-
tions), whilst optimising consumption.
The system controls the ventilation
speed, air distribution, air recircula-
tion, and starting and stopping the air
conditioning and air temperature. This
mode consists of a choice of three pro-
grammes:
AUTO: allows the selected comfort
level to be best attained, depending on
the exterior conditions. Press button 3.
SOFT: gently brings the temperature to
the desired comfort level. The comfort
level is then maintained gently and si-
lently. Press button 2.
FAST: increases the operation of the
system to reach the desired comfort
level more quickly. Use this programme
when you have passengers in the rear.
Press button 4.
13
4
9 De-icing/demisting of the rear screen
and, depending on the vehicle, the
door mirrors.
10 “Clear View” function.
11 Air recirculation.
12 Display.
13 Fan speed.
6
7891011
32
The controls
1 and 6 Air temperature.
2, 3 and 4 Automatic programmes.
5 Distribution of air in the passenger compartment.
7 Off button.
8 Air conditioning.
12
5
1
