RENAULT MEGANE COUPE CABRIOLET 2016 X95 / 3.G Owners Manual

3.23
Rear centre console storage
compartment 5
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/2)
Glove box
Pull handle 4 to open it.
The glove box can hold A4-sized docu-
ments, a large bottle of water, etc.
4
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
5
Locking the vehicle from the outside
also locks the glove box.

3.24
ASHTRAY, ACCESSORIES SOCKET
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
1
2
Accessories socket 1
It is provided for connecting acces-
sories approved by the Technical
Department with a maximum power of
120 Watts (voltage 12 V).
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
Ashtray 2
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing.

3.25
To open
Press button 1 and lift the luggage
compartment lid.
To close
Lower the luggage compartment lid.
Lower it until it touches the tailgate lock,
without slamming it .
The tailgate closes electrically.
LUGGAGE COMPARTMENT
1
2
Risk of injury
Ensure that there is nothing hindering the closure of the tailgate (chi\
l-
dren’s hands, for example).
Operating faults
If the tailgate cannot be opened, it can
be released manually:
– insert the emergency key in the lock 2;
– turn the key (movement A) then
raise the tailgate.
Close the tailgate by pushing it shut.
A

3.26
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS
Storage under carpet 2(depending on vehicle)
To access storage compartment 2, lift
the luggage compartment carpet.Luggage compartment
divider 4
To separate the rigid roof from the load-
ing area.
Respect the safety instructions on
marking 3:
– do not place any objects on top of di- vider 4;
– make sure that no object is pushing luggage compartment divider 4 up-
wards.
4
3
3
Precautions
Roof closed
Do not touch parcel shelf 1 with the ob-
jects transported.
Roof open
Do not touch the glass sections of the
roof with the objects transported.
1
2

3.27
Always position the hea-
viest items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
Transporting objects in the
luggage compartment
Always position the objects transported
so that the largest surface is against the
partition.
It is advisable to drive with the luggage
compartment divider taut if you wish to
move the retractable glass roof.
Transporting objects on the
roof
The fitting of roof bars is prohibited on
this vehicle.
TRANSPORTING OBJECTS: in the luggage compartment

3.28
TRANSPORTING OBJECTS towbar
A = 1089 mm
Permissible nose weight, maxi-
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
Choice and fitting of towing
equipment
Maximum weight of towing equip-
ment: 22 kg
For fitting and conditions of use,
refer to the equipment’s fitting in-
structions.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local leg-
islation.
A

3.29
With the retractable glass roof open,
wind deflector 1 for window 2 reduces
the movement of air in the passenger
compartment.
Unfolding/folding the
deflector
Unfolding
On equipped vehicles, the deflector is
in the luggage compartment.
– remove the deflector from its storage bag;
– unfold the deflector (movement A);
– hold section 4;
– lower section 3 fully (movement B).
WIND DEFLECTOR
Fitting the net
Position the supports 6 in the hous-
ings 8 and the rods 5 in the holes 7 lo-
cated on each side of the vehicle.
Folding
Lift section 3, fold the deflector in two,
store it in its bag and place it in the lug-
gage compartment.
Do not place any objects on the de-
flector whilst it is in position.
1A
2
3B
5
6
8
7
4
3

3.30
MULTIMEDIA EQUIPMENT
6
Using the telephone
We remind you of the need
to conform to the legislation
in force concerning the use
of such equipment.
Hands-free telephone
integrated control
On equipped vehicles, use micro-
phone 6 and steering column control 5.
1
2
34
5
Multimedia systems
The equipment described below may
or may not be fitted to the vehicle, and
its location may vary, depending on the
vehicle navigation system version.
1 Multimedia display;
2 Radio;
3 Central control;
4 Multimedia sockets;
5 Steering column control;
6 Microphone.
Refer to the equipment instructions
for information on how to operate
this equipment.

4.1
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4general information, use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 4.4
topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 4.6
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9 engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . 4.9
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
windscreen/headlight washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 4.11
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11
Tyre Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.16
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.18

4.2

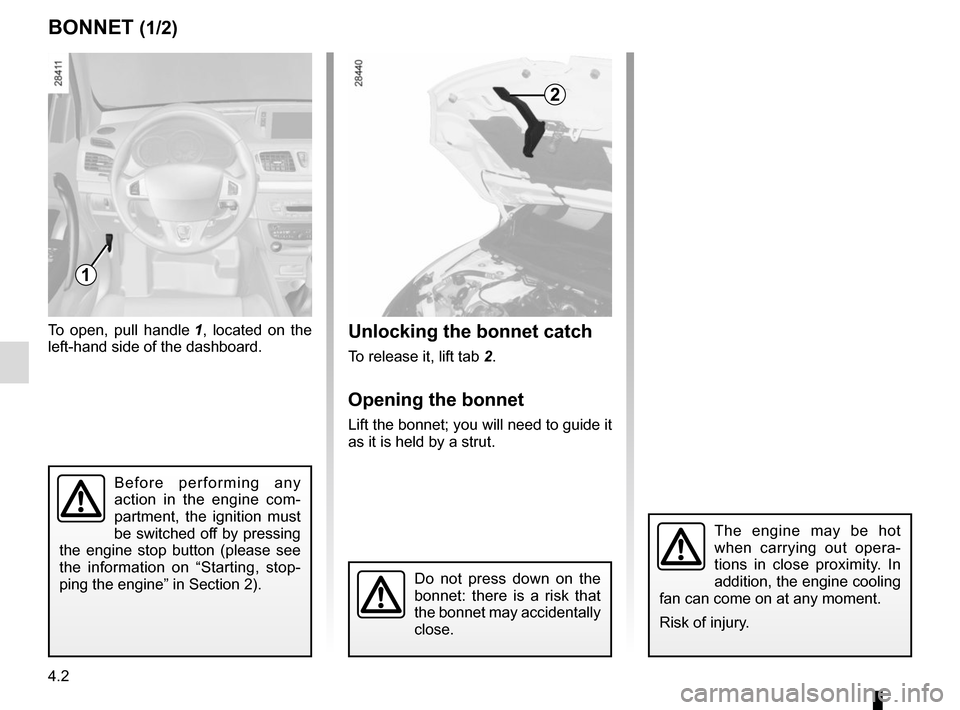

Unlocking the bonnet catch
To release it, lift tab 2.
Opening the bonnet
Lift the bonnet; you will need to guide it
as it is held by a strut.
To open, pull handle
1, located on the
left-hand side of the dashboard.
BONNET (1/2)
2
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
1
Do not press down on the
bonnet: there is a risk that
the bonnet may accidentally
close.
Before performing any
action in the engine com-
partment, the ignition must
be switched off by pressing
the engine stop button (please see
the information on “Starting, stop-
ping the engine” in Section 2).
