RENAULT MEGANE COUPE CABRIOLET 2016 X95 / 3.G Owners Manual
Manufacturer: RENAULT, Model Year: 2016, Model line: MEGANE COUPE CABRIOLET, Model: RENAULT MEGANE COUPE CABRIOLET 2016 X95 / 3.GPages: 242, PDF Size: 5.06 MB
Page 191 of 242

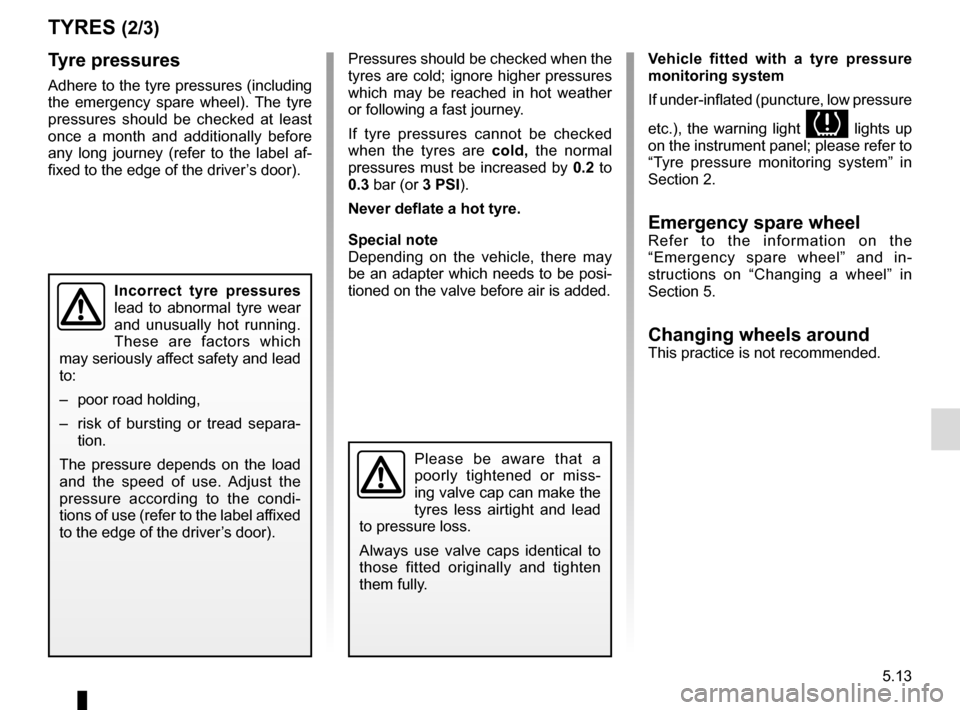

5.13
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door).Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are
cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PSI).
Never deflate a hot tyre.
Special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added. Vehicle fitted with a tyre pressure
monitoring system
If under-inflated (puncture, low pressure
etc.), the warning light
lights up
on the instrument panel; please refer to
“Tyre pressure monitoring system” in
Section 2.
Emergency spare wheelRefer to the information on the
“Emergency spare wheel” and in-
structions on “Changing a wheel” in
Section 5.
Changing wheels aroundThis practice is not recommended.
TYRES (2/3)
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa- tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi-
tions of use (refer to the label affixed
to the edge of the driver’s door).
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Page 192 of 242

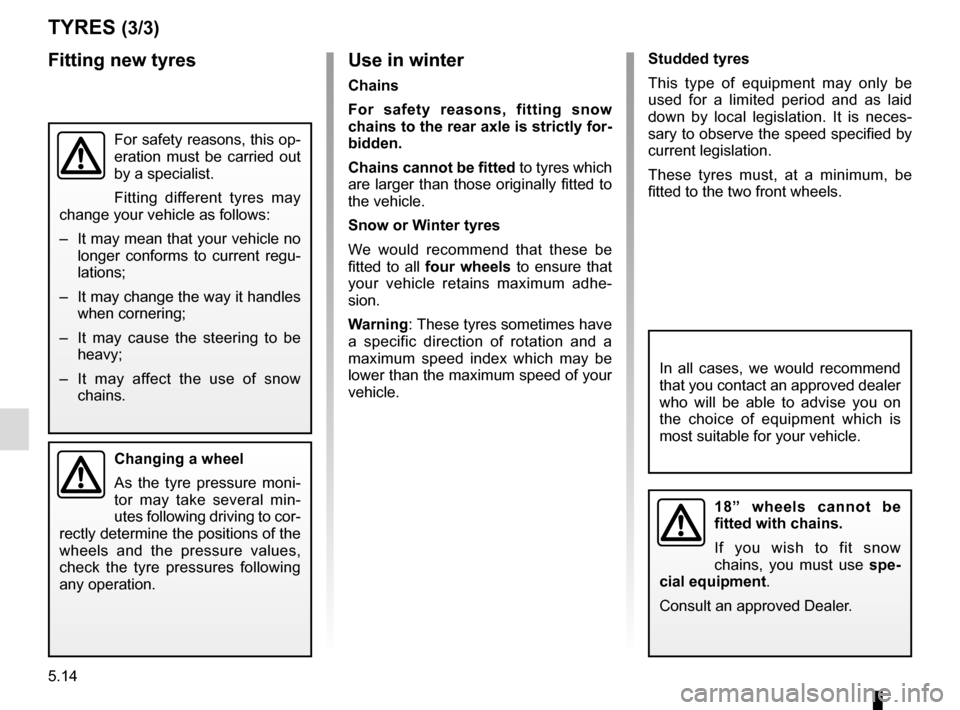

5.14
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning : These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– It may mean that your vehicle no longer conforms to current regu-
lations;
– It may change the way it handles when cornering;
– It may cause the steering to be heavy;
– It may affect the use of snow chains.
TYRES (3/3)
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
Changing a wheel
As the tyre pressure moni-
tor may take several min-
utes following driving to cor-
rectly determine the positions of the
wheels and the pressure values,
check the tyre pressures following
any operation.
18” wheels cannot be
fitted with chains.
If you wish to fit snow
chains, you must use spe-
cial equipment.
Consult an approved Dealer.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces-
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.Fitting new tyres
Page 193 of 242
5.15

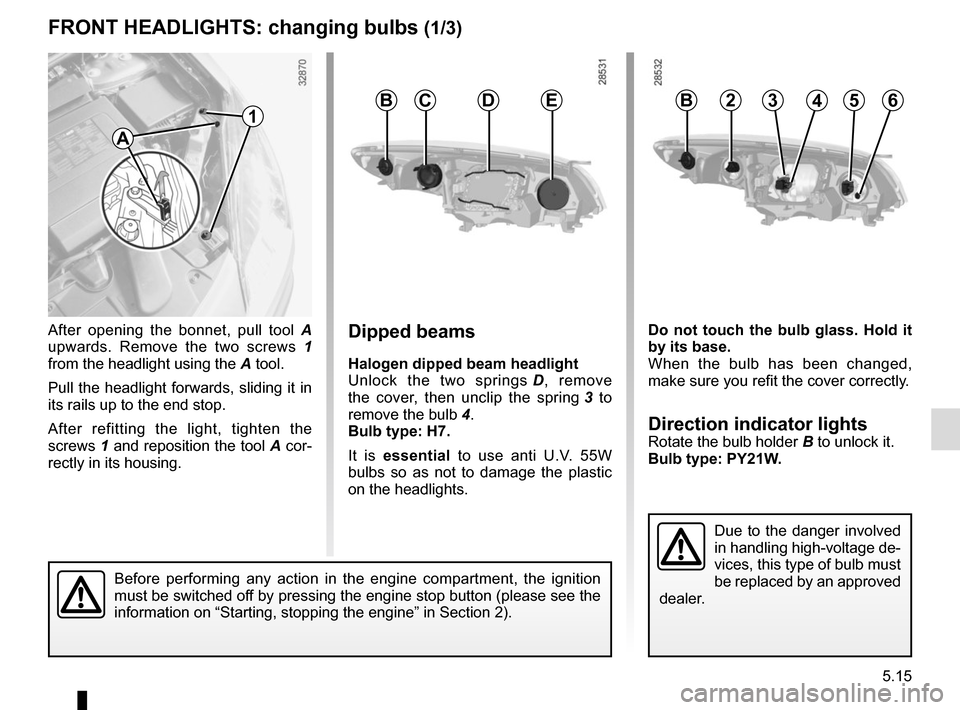

FRONT HEADLIGHTS: changing bulbs (1/3)
After opening the bonnet, pull tool A
upwards. Remove the two screws 1
from the headlight using the A tool.
Pull the headlight forwards, sliding it in
its rails up to the end stop.
After refitting the light, tighten the
screws 1 and reposition the tool A cor-
rectly in its housing.Dipped beams
Halogen dipped beam headlight
Unlock the two springs D, remove
the cover, then unclip the spring 3 to
remove the bulb 4.
Bulb type: H7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
BCDE3245B6
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb type: PY21W.
A
1
Before performing any action in the engine compartment, the ignition
must be switched off by pressing the engine stop button (please see the
information on “Starting, stopping the engine” in Section 2).
Page 194 of 242
5.16
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an appro-
ved dealer containing a set of spare
bulbs and fuses.

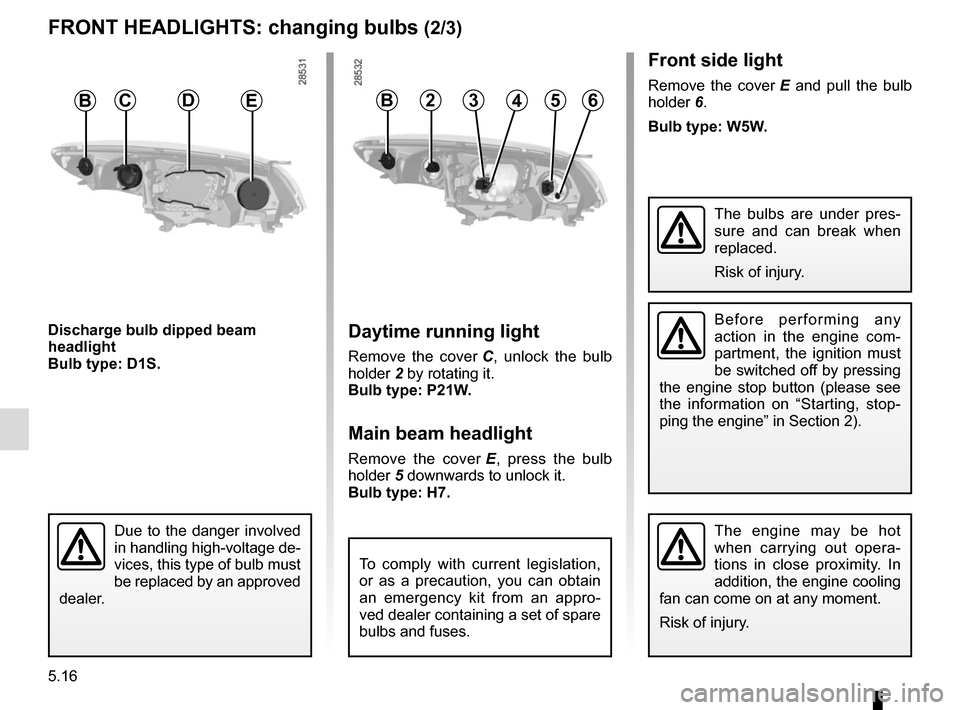

FRONT HEADLIGHTS: changing bulbs (2/3)
Daytime running light
Remove the cover C, unlock the bulb
holder 2 by rotating it.
Bulb type: P21W.
Main beam headlight
Remove the cover E, press the bulb
holder 5 downwards to unlock it.
Bulb type: H7.
BCDE3245B6
Front side light
Remove the cover E and pull the bulb
holder 6.
Bulb type: W5W.
Discharge bulb dipped beam
headlight
Bulb type: D1S.
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Before performing any
action in the engine com-
partment, the ignition must
be switched off by pressing
the engine stop button (please see
the information on “Starting, stop-
ping the engine” in Section 2).
Page 195 of 242
5.17

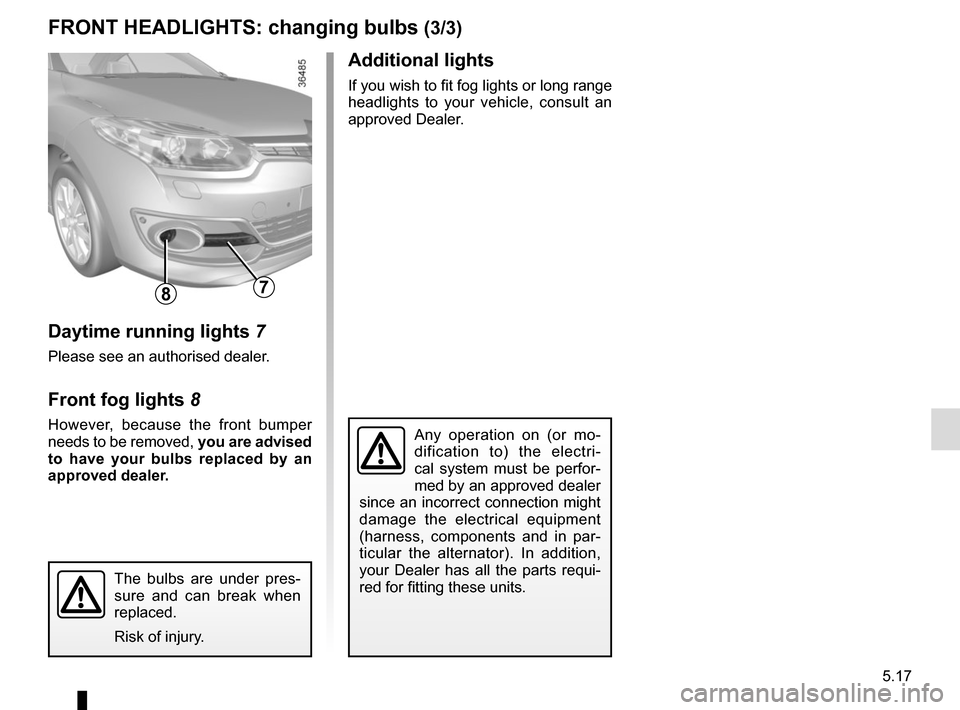

FRONT HEADLIGHTS: changing bulbs (3/3)
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Any operation on (or mo-
dification to) the electri-
cal system must be perfor-
med by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in par-
ticular the alternator). In addition,
your Dealer has all the parts requi-
red for fitting these units.
Daytime running lights 7
Please see an authorised dealer.
Front fog lights 8
However, because the front bumper
needs to be removed, you are advised
to have your bulbs replaced by an
approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
78
Page 196 of 242
5.18

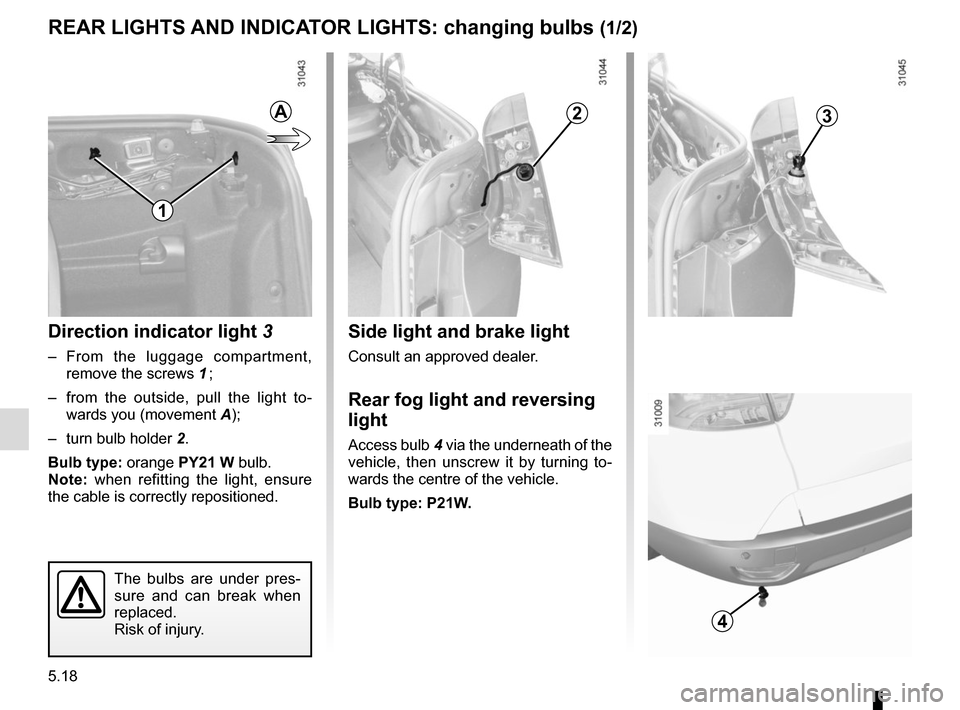

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (1/2)
Direction indicator light 3
– From the luggage compartment,
remove the screws 1 ;
– from the outside, pull the light to- wards you (movement A);
– turn bulb holder 2.
Bulb type: orange PY21 W bulb.
Note: when refitting the light, ensure
the cable is correctly repositioned.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A
1
23
Side light and brake light
Consult an approved dealer.
Rear fog light and reversing
light
Access bulb 4 via the underneath of the
vehicle, then unscrew it by turning to-
wards the centre of the vehicle.
Bulb type: P21W.
4
Page 197 of 242
5.19

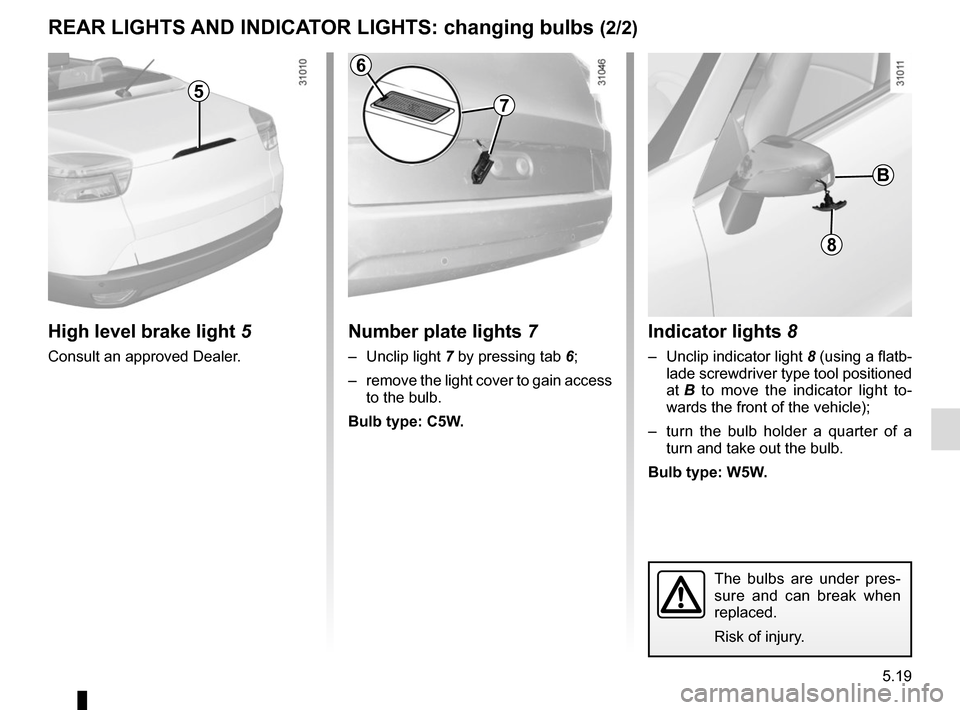

Indicator lights 8
– Unclip indicator light 8 (using a flatb-
lade screwdriver type tool positioned
at B to move the indicator light to-
wards the front of the vehicle);
– turn the bulb holder a quarter of a turn and take out the bulb.
Bulb type: W5W.
REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (2/2)
Number plate lights 7
– Unclip light 7 by pressing tab 6;
– remove the light cover to gain access to the bulb.
Bulb type: C5W.
High level brake light 5
Consult an approved Dealer.
5
8
B
7
6
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Page 198 of 242
5.20
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

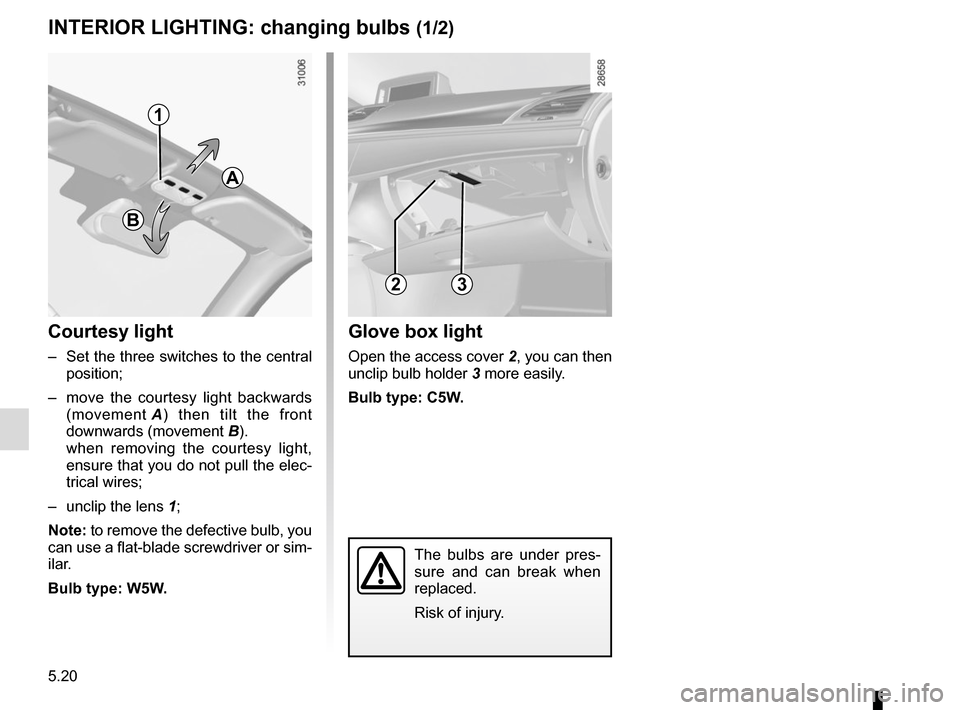

INTERIOR LIGHTING: changing bulbs (1/2)
Courtesy light
– Set the three switches to the central position;
– move the courtesy light backwards (movement A) then tilt the front
downwards (movement B).
when removing the courtesy light, ensure that you do not pull the elec-
trical wires;
– unclip the lens 1;
Note: to remove the defective bulb, you
can use a flat-blade screwdriver or sim-
ilar.
Bulb type: W5W.
Glove box light
Open the access cover 2, you can then
unclip bulb holder 3 more easily.
Bulb type: C5W.
3
B
A
2
1
Page 199 of 242
5.21
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

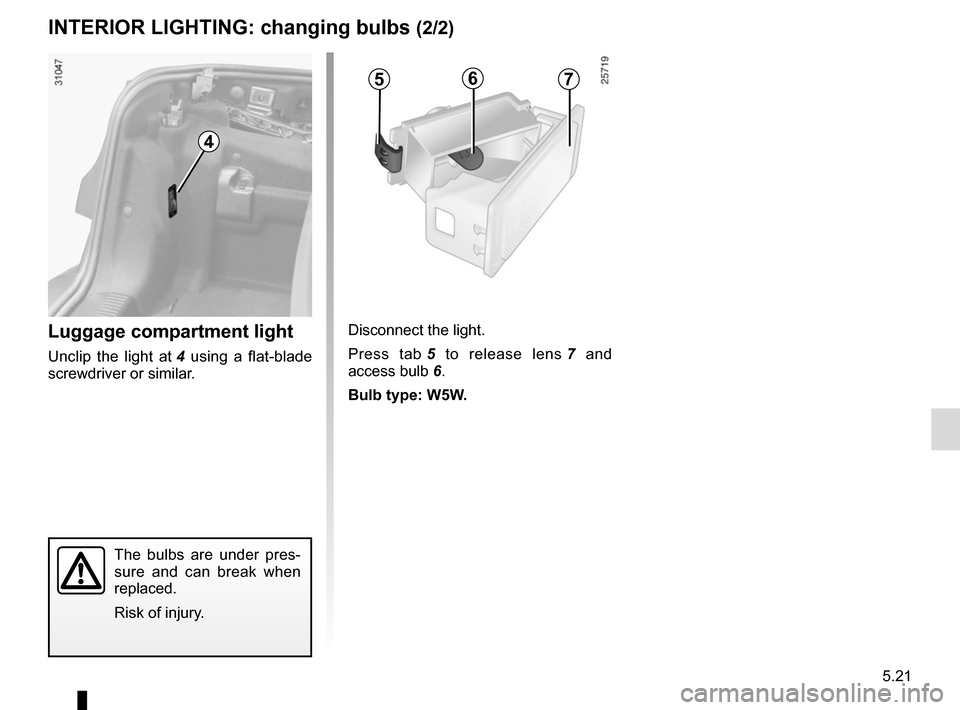

Luggage compartment light
Unclip the light at 4 using a flat-blade
screwdriver or similar. Disconnect the light.
Press tab
5 to release lens 7 and
access bulb 6.
Bulb type: W5W.
INTERIOR LIGHTING: changing bulbs (2/2)
4
567
Page 200 of 242
5.22

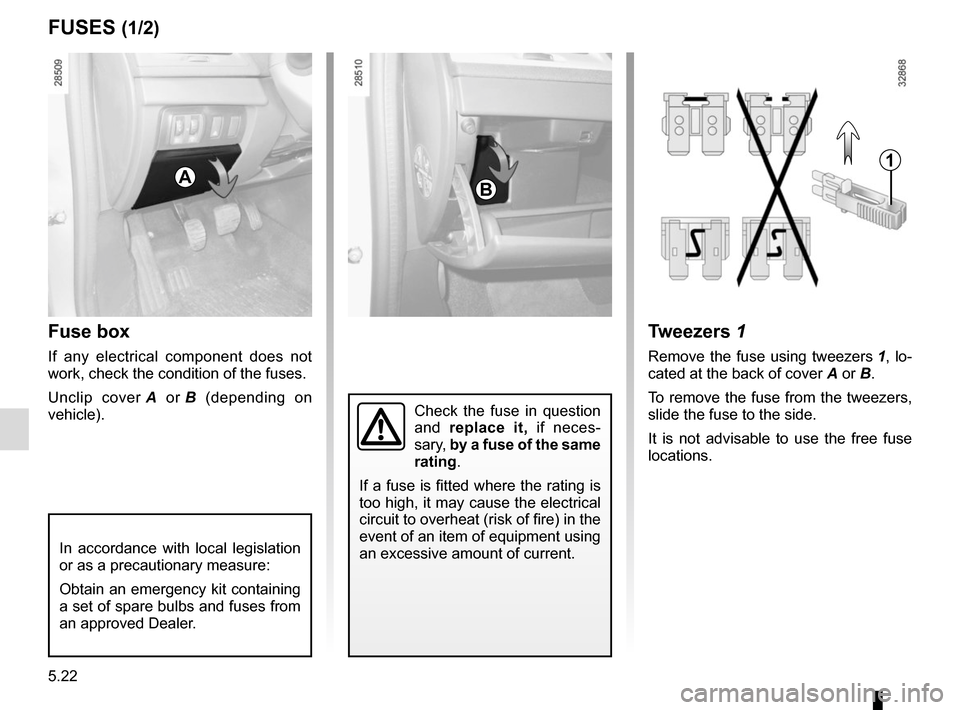

Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip cover A or B (depending on
vehicle).
Tweezers 1
Remove the fuse using tweezers 1, lo-
cated at the back of cover A or B.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
FUSES (1/2)
AB
In accordance with local legislation
or as a precautionary measure:
Obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
1
