Page 8 of 242
locking the doors .................................. (up to the end of the DU)
emergency key ..................................... (up to the end of the DU)
child safety............................................................. (current page)
children (safety) ..................................................... (current page)
RENAULT card use .................................................. (up to the end of the DU)
1.2
ENG_UD21469_2
Cartes RENAULT : généralités (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
Range of the RENAULT cardThis varies according to the surround-
ings. It is important to make sure when
handling the RENAULT card that you
do not lock or unlock the doors by inad-
vertently pressing the buttons.
RENAULT cards: General information, use, deadlocking
RENAULT cARds: general information (1/2)
1 Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3
Switching on the lighting remotely
.
4
Unlocking/locking the tailgate
5
Integrated key
.
s
pecial note
The RENAULT “SERVICE” card, on
equipped vehicles, can be identified
by the word “SERVICE” engraved on
the card. Refer to the information on
the RENAULT “SERVICE” card in sec-
tion
1.
The RENAULT card is used
for:
– locking/unlocking the doors and tail-
gate (doors, tailgate) and the fuel
filler flap (see the following pages);
–
s
witching on the vehicle lighting re-
motely (refer to the following pages);
–
depending
on the vehicle, automati-
cally closing the electric windows
and sunroof remotely (see the infor-
mation on “Electric windows/Electric
sunroof” in Section 3);
–
s
tarting the engine; refer to the in-
formation on “Starting the engine” in
Section 2.

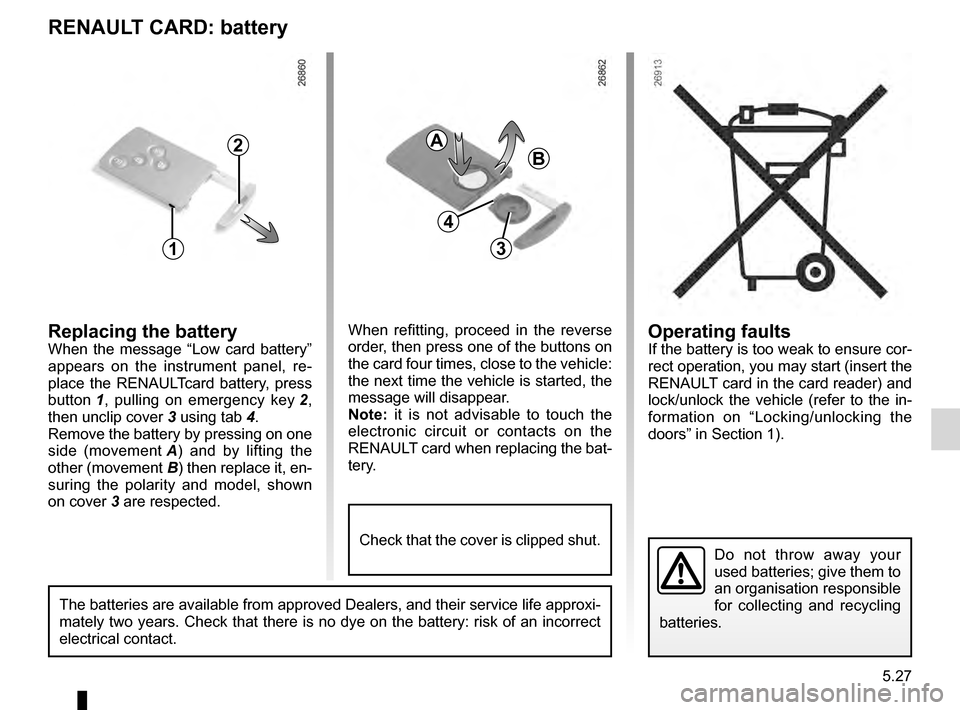

Battery lifeMake sure that the correct battery type
is being used, and that the battery is in
good condition and inserted correctly.
Its service life is approximately two
years: replace it when the message
“Keycard battery low” appears on the
instrument panel (refer to the informa-
tion on the “RENAULT card: battery" in
section 5).
driver’s responsibility
N ever leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
45123
When the battery is flat, you can
still lock/unlock and start your ve-
hicle. Refer to the information on
“Locking/unlocking the doors” in
Section 1 and “Starting the engine”
in Section 2.
Page 9 of 242
JauneNoirNoir texte
1.3
ENG_UD21469_2
Cartes RENAULT : généralités (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
RENAULT cARds: general information (2/2)
Access to key 5
Press button
6
and pull on key
5
then
release the button.
Using the key
Refer to the information on “Locking/
unlocking the doors”.
Once you have accessed the vehicle
using the integrated key, replace it
in its housing in the RENAULT card,
then insert the RENAULT card into
the card reader to start the vehicle.
Integrated key 5
The integrated key is used to lock or
unlock the front left-hand door if the
RENAULT card does not work:
–
w
hen the RENAULT card battery is
drained, flat battery, etc.
–
u
se of devices using the same fre-
quency as the card;
–
if
the vehicle is located in a zone of
high electromagnetic radiation;
Replacement: need for an
additional RENAULT c ard
If you lose your RENAULT card or
require another, you can obtain one
from an approved dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi-
cle and all of its RENAULT cards
to an approved dealer to initialise
the system.
You may use up to four RENAULT
cards per vehicle.
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not keep the RENAULT card in
a place where it could be bent or
damaged accidentally, such as in a
back pocket of a garment.
5
6
Page 18 of 242
opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
unlocking the doors .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.12
ENG_UD23610_5
Verrouillage,déverrouillage des ouvrants (X95 - B95 - D95 - Renault)\
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
LOcKINg/UNLOcKINg THE dOORs (1/2)
Locking/Unlocking the doors
from the outside
This is done using the RENAULT Card;
see the “RENAULT Card” information in
Section 1.
In certain cases, the RENAULT card
may not work:
–
if
the RENAULT card battery is weak,
flat, etc.
–
if
equipment operating on the same
frequency as the card (mobile
phones, etc.) is used;
–
vehicle
located in a high electromag-
netic radiation zone.
It is then possible:
–
t
o use the key integrated into the
card to unlock the front left-hand
door;
–
to lock each of the doors manually;
–
t
o use the interior door locking/un-
locking control (refer to the following
pages).
Using the key integrated in
the RENAULT card
– Remove cover A from the left-hand
door (using the end of key 2 )
in
notch
1;
–
move it upwards to remove cover
A
;
–
i
nsert the key
2
into the lock of the
front left-hand door and lock or
unlock.
Locking the doors manually
Turn screw 3 with the door open (using
the end of the key) and close the door .
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
A
2
3
1
Page 19 of 242
JauneNoirNoir texte
1.13
ENG_UD23610_5
Verrouillage,déverrouillage des ouvrants (X95 - B95 - D95 - Renault)\
ENG_NU_837-8_BDK95_Renault_1
LOcKINg/UNLOcKINg THE dOORs (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If transporting an object with the tail-
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch
4
for more than five sec-
onds to lock the other doors.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch
4 for more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
door and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch
4 informs you
of the status of the doors and tailgate:
–
indicator
light on, the doors and tail-
gate are locked,
–
indicator
light off, the doors and tail-
gate are unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
Never leave your vehicle
with the RENAULT card
inside.
After locking/unlocking the vehicle
or the tailgate only using the but-
tons on the RENAULT card, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
4
driver’s responsibility
I f you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
Page 69 of 242
trip computer and warning system......................... (current page)
warning lights......................................................... (current page)
instrument panel messages................................... (current page)
instrument panel .................................................... (current page)
1.63
ENG_UD23625_1
Ordinateur de bord : messages d’information (X95 - B95 - D95 - K95 -\
Renault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER AN d WARNIN g s Y s TE m : information messages
Examples of messages Interpreting the display selected
“Battery low start engine” Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been
switched off for some time whilst listening to the radio).
“
p lease remove keycard” Request to remove the RENAULT card from the reader when you leave the vehicle.
“
c hecking control functions” Displayed with the ignition on when the vehicle is running self-diagnost\
ics.
“Traction control off” Indicates that you have deactivated the ASR function.
“Turn steeringwheel +
s TART” Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering
column.
“No message available” No warning is stored.
“
s teering wheel
not locked” Indicates that the steering column has not been locked.
“
s top vehicle” Indicates an electronic parking brake fault. Apply the electronic parking brake manually and ensure
that the vehicle is immobilised using a chock.
These can help in the vehicle starting phase, or give information about \
a selection or a driving status.
Examples of information messages are given in the following pages.
Page 70 of 242
trip computer and warning system......................... (current page)
instrument panel messages................................... (current page)
warning lights......................................................... (current page)
instrument panel .................................................... (current page)
1.64
ENG_UD23626_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X95 - B\
95 - D95 - K95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER AN d WARNIN g s Y s TE m : operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpreting the display selected
“
c
lean diesel filter” Indicates the presence of water in the diesel filter.
“
c
heck lighting” Indicates a fault in the directional headlights.
“
c
heck vehicle” Indicates a fault on one of the pedal sensors or in the battery management
system.
“
c
heck airbag” Indicates a fault in the restraint system in addition to the seat belts. In the event
of an accident, it is possible that they may not be triggered.
“
c
heck antipollution system” Indicates a fault in the vehicle’s particle filter system.
“
c
heck injection” Indicates an engine fault.
Page 90 of 242
switching on the vehicle ignition ............................ (current page)
2.4
ENG_UD18932_3
Démarrage / Arrêt moteur avec carte RENAULT mains libres (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_2

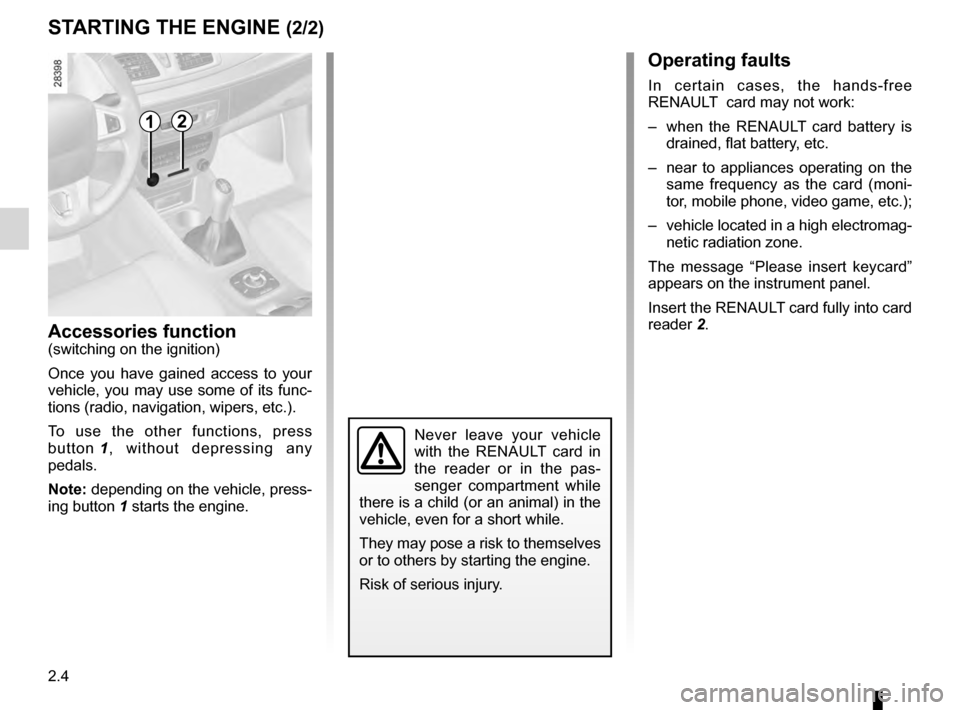

STARTING THE ENGINE (2/2)
Accessories function(switching on the ignition)
Once you have gained access to your
vehicle, you may use some of its func-
tions (radio, navigation, wipers, etc.).
To use the other functions, press
button
1 ,
without depressing any
pedals.
Note: depending on the vehicle, press-
ing button
1 starts the engine.
Operating faults
In certain cases, the hands-free
RENAULT card may not work:
–
w
hen the RENAULT card battery is
drained, flat battery, etc.
–
near
to appliances operating on the
same frequency as the card (moni-
tor, mobile phone, video game, etc.);
–
vehicle
located in a high electromag-
netic radiation zone.
The message “Please insert keycard”
appears on the instrument panel.
Insert the RENAULT card fully into card
reader
2.
Never leave your vehicle
with the RENAULT card in
the reader or in the pas-
senger compartment while
there is a child (or an animal) in the
vehicle, even for a short while.
They may pose a risk to themselves
or to others by starting the engine.
Risk of serious injury.
12
Page 201 of 242
RENAULT cardbattery ............................................. (up to the end of the DU)
RENAULT card battery ......................... (up to the end of the DU)
5.27
ENG_UD21014_4
Carte RENAULT : pile (X45 - H45 - X91 - B91 - K91 - X95 - B95 - D95 - E95 - K95 - J9\
5 - R95 - L38 - X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Operating faultsIf the battery is too weak to ensure cor-
rect operation, you may start (insert the
RENAULT card in the card reader) and
lock/unlock the vehicle (refer to the in-
formation on “Locking/unlocking the
doors” in Section 1).
RENAULT card: battery
renault carD: battery
replacing the batteryWhen the message “Low card battery”
appears on the instrument panel, re-
place the RENAULTcard battery, press
button
1 ,
pulling on emergency key
2,
then unclip cover
3
using tab 4.
Remove the battery by pressing on one
side (movement
A )
and by lifting the
other (movement
B) then replace it, en-
suring the polarity and model, shown
on cover
3 are respected.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
1
2
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the next time the vehicle is started, the
message will disappear.
no
te: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
a
B
3
The batteries are available from approved Dealers, and their service life approxi-
mately two years. Check that there is no dye on the battery: risk of an incorrect
electrical contact.
4
Check that the cover is clipped shut.
Page 207 of 242
operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.33
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5

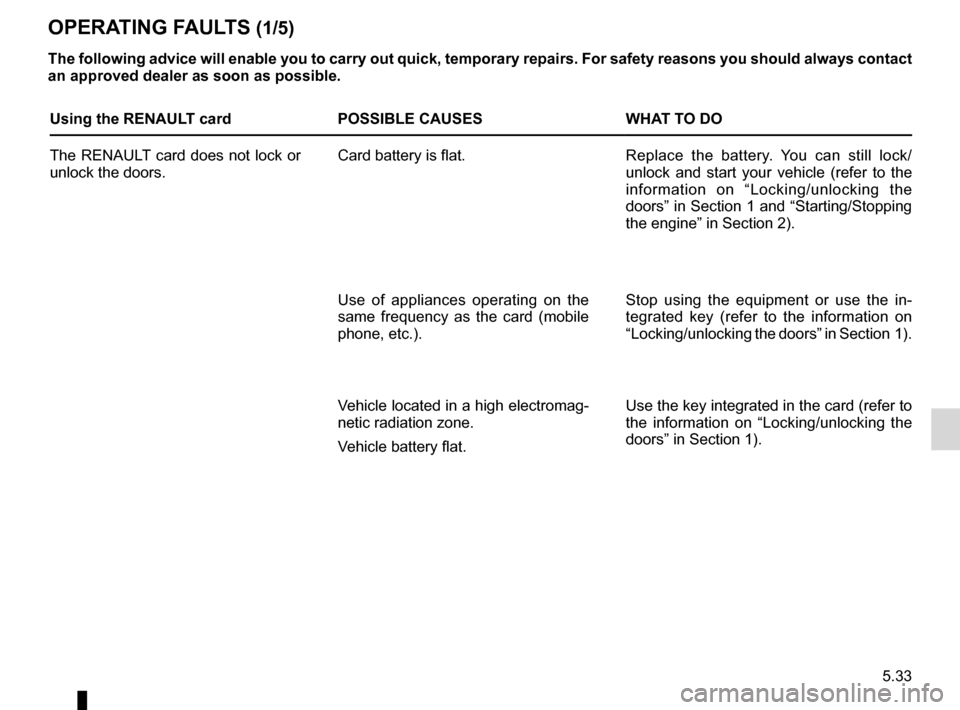

Operating faults
OPeratIng Faul ts (1/5)
the following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
using the renault card PO ss IB le causeswhat tO DO
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
Use of appliances operating on the
same frequency as the card (mobile
phone, etc.). Stop using the equipment or use the in-
tegrated key (refer to the information on
“Locking/unlocking the doors” in Section
1).
Vehicle located in a high electromag-
netic radiation zone.
Vehicle battery flat. Use the key integrated in the card (refer to
the information on “Locking/unlocking the
doors” in Section 1).
