RENAULT SANDERO 2012 Owners Manual

electric windows ................................... (up to the end of the DU)
3.11
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Electric windows

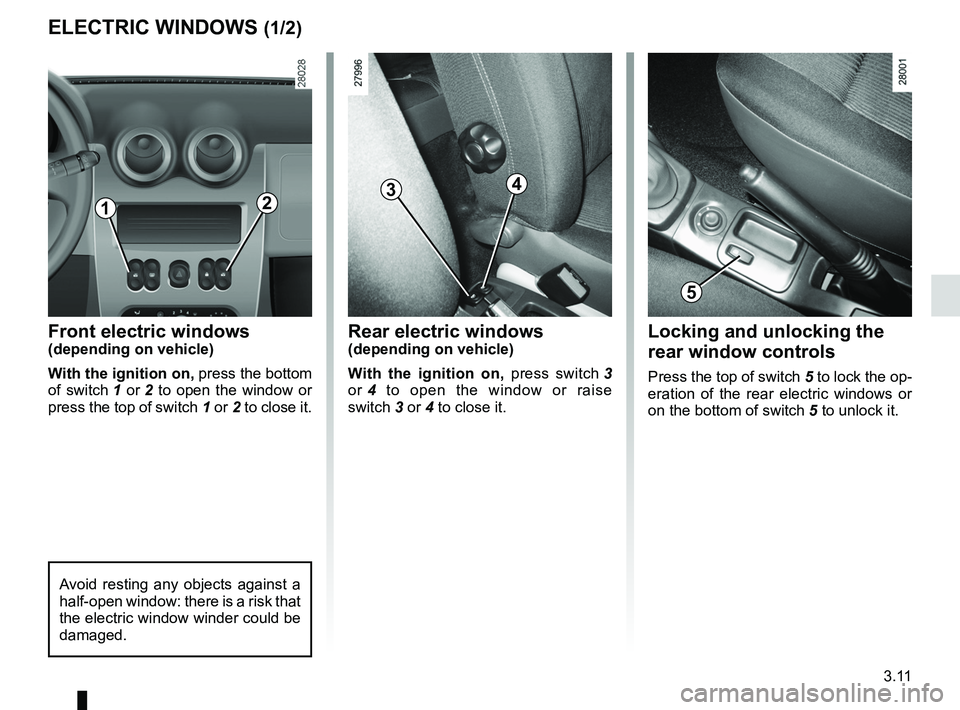

ELECTRIC WINDOWS (1/2)
Front electric windows
(depending on vehicle)
With the ignition on, press the bottom
of switch 1 or 2 to open the window or
press the top of switch 1 or 2 to close it.Rear electric windows(depending on vehicle)
With the ignition on, press switch 3
or 4 to open the window or raise
switch 3 or 4 to close it.Locking and unlocking the
rear window controls
Press the top of switch 5 to lock the op-
eration of the rear electric windows or
on the bottom of switch 5 to unlock it.
1234
5
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.

3.12
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3

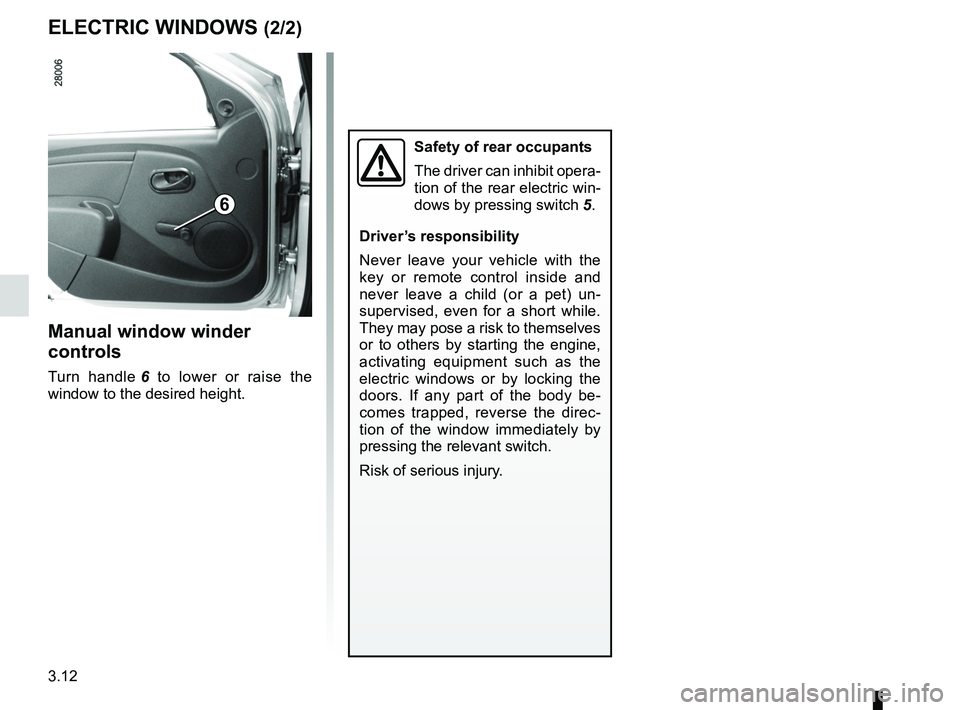

ELECTRIC WINDOWS (2/2)
Manual window winder
controls
Turn handle 6 to lower or raise the
window to the desired height.
Safety of rear occupants
The driver can inhibit opera -
tion of the rear electric win-
dows by pressing switch 5.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un -
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be -
comes trapped, reverse the direc -
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
6

mirrors .................................................. (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
grab handle ............................................................ (current page)
3.13
ENG_UD18247_3
Pare-soleil - Poignée de maintien (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_3
Sun visor/grab handle

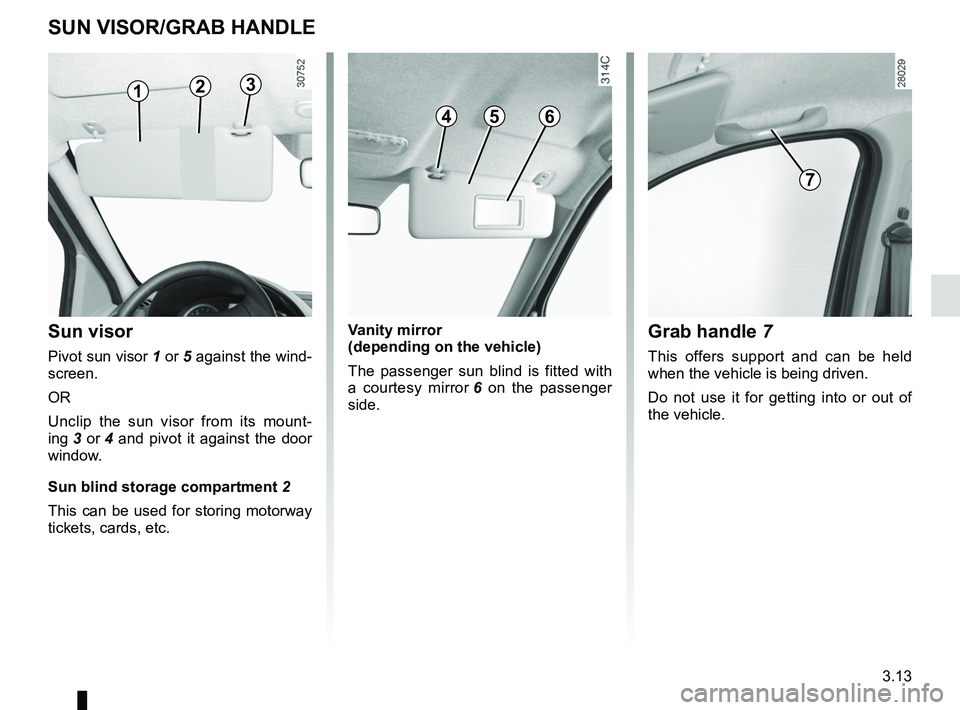

SuN VISOR/GRAB HANDLE
Vanity mirror
(depending on the vehicle)
The passenger sun blind is fitted with
a courtesy mirror 6 on the passenger
side.Grab handle 7
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
7
Sun visor
Pivot sun visor 1 or 5 against the wind -
screen.
OR
Unclip the sun visor from its mount -
ing 3 or 4 and pivot it against the door
window.
Sun blind storage compartment 2
This can be used for storing motorway
tickets, cards, etc.
456
231

cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.14
ENG_UD17918_3
Cendriers - Allume-cigares (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Ashtrays, Cigar lighter, Accessories socket

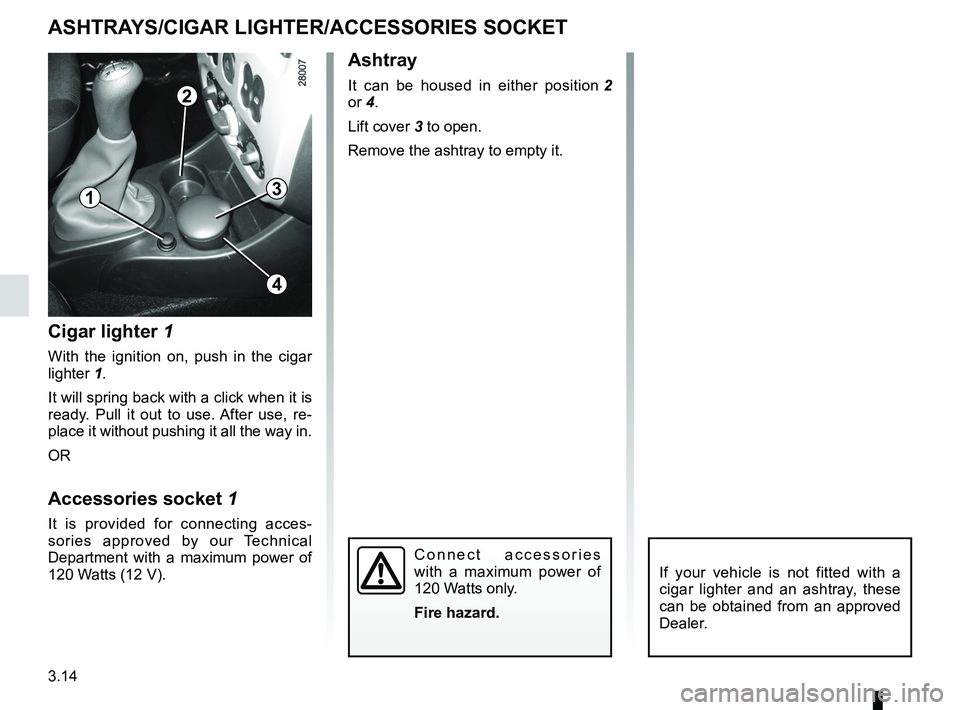

ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCKET
Ashtray
It can be housed in either position 2
or 4.
Lift cover 3 to open.
Remove the ashtray to empty it.
13
4
2
Cigar lighter 1
With the ignition on, push in the cigar
lighter 1.
It will spring back with a click when it is
ready. Pull it out to use. After use, re -
place it without pushing it all the way in.
OR
Accessories socket 1
It is provided for connecting acces -
sories approved by our Technical
Department with a maximum power of
120 Watts (12 V).
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.

storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
glove box ............................................................... (current page)
fittings ................................................... (up to the end of the DU)
3.15
ENG_UD17905_4
Rangements / Aménagement habitacles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Passenger compartment storage space and fittings

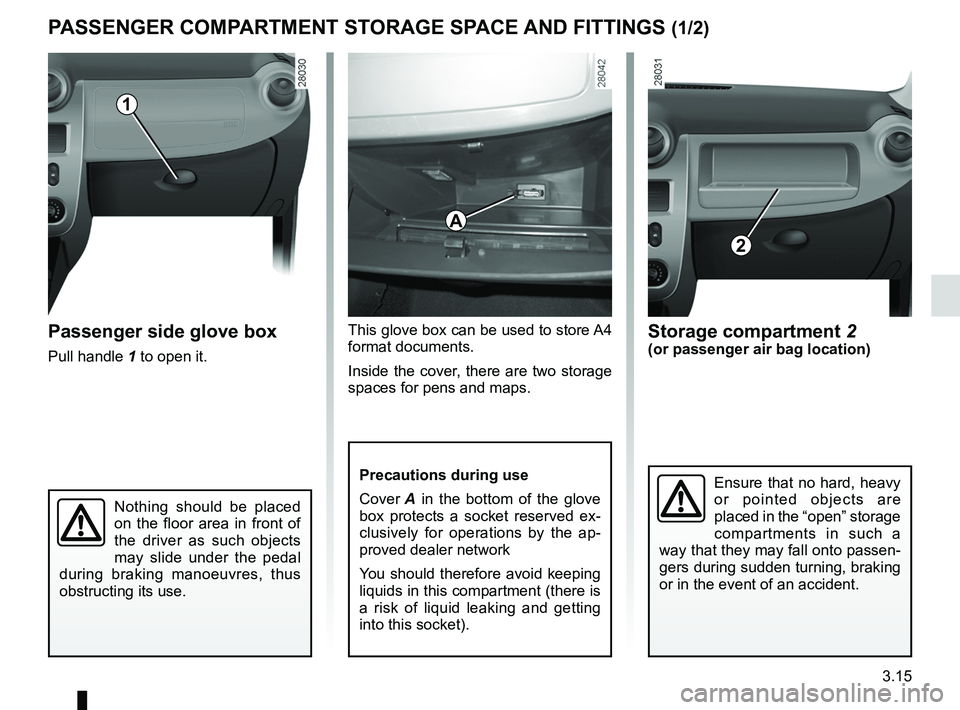

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/2)
Passenger side glove box
Pull handle 1 to open it.
Storage compartment 2(or passenger air bag location)
Precautions during use
Cover A in the bottom of the glove
box protects a socket reserved ex -
clusively for operations by the ap -
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
1
A
2
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.
This glove box can be used to store A4
format documents.
Inside the cover, there are two storage
spaces for pens and maps.

3.16
ENG_UD17905_4
Rangements / Aménagement habitacles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/2)
Centre console storage
compartment 3
(or radio location)
Front door storage
compartments 4Front seat storage
compartments 5
3
4
5
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.

headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
3.17
ENG_UD20454_5
Appuis-tête arrière (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Rear headrests
REAR HEADRESTS
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
Adjusting the height of the
headrests A
Press the tab on catch 1 on each of the
rods on headrest A and simultaneously
slide the headrest.
To remove the headrests A
Press the tabs on the catches 1 and 4
and remove the headrest.
Child headrest storage position B
(depending on the vehicle)
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied. To remove headrest B
Simultaneously press the tabs on
catches
2 and 3 on each of the head -
rest rods, then remove the headrest.
Position for using headrest B
Raise the headrest to the upper stop
to use it in the high position. Press the
tabs on the catches 2 and 3 and lower
the headrest completely. To refit headrests A and
B
Insert the rods into the holes, press the
tabs on both rods and lower the head -
rest.
1
2
3
1
ABA
A
B
A
4
4

3.18
ENG_UD17907_4
Banquette arrière (fonctionnalité) (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Rear bench seat: functions

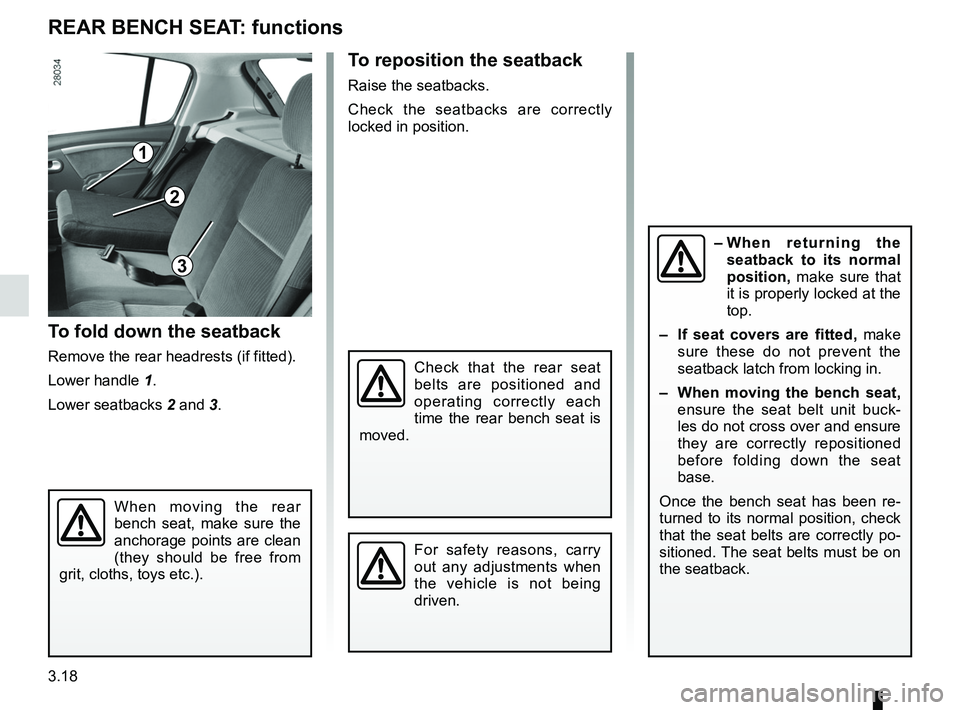

REAR BENCH SEAT: functions
When moving the rear
bench seat, make sure the
anchorage points are clean
(they should be free from
grit, cloths, toys etc.).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
– W h e n r e t u r n i n g t h e
seatback to its normal
position, make sure that
it is properly locked at the
top.
– If seat covers are fitted, make
sure these do not prevent the
seatback latch from locking in.
– When moving the bench seat,
ensure the seat belt unit buck -
les do not cross over and ensure
they are correctly repositioned
before folding down the seat
base.
Once the bench seat has been re -
turned to its normal position, check
that the seat belts are correctly po-
sitioned. The seat belts must be on
the seatback.
To reposition the seatback
Raise the seatbacks.
Check the seatbacks are correctly
locked in position.
To fold down the seatback
Remove the rear headrests (if fitted).
Lower handle 1.
Lower seatbacks 2 and 3.
1
2
3

tailgate ................................................................... (current page)
transporting objects in the luggage compartment ............................ (current page)
3.19
ENG_UD20455_4
Coffre à bagage / transport d’objets dans le coffre (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press button 2 and lift the tail-
gate.
To close, push the luggage compart -
ment lid downwards.
Luggage compartment/Transporting objects in the luggage compartment

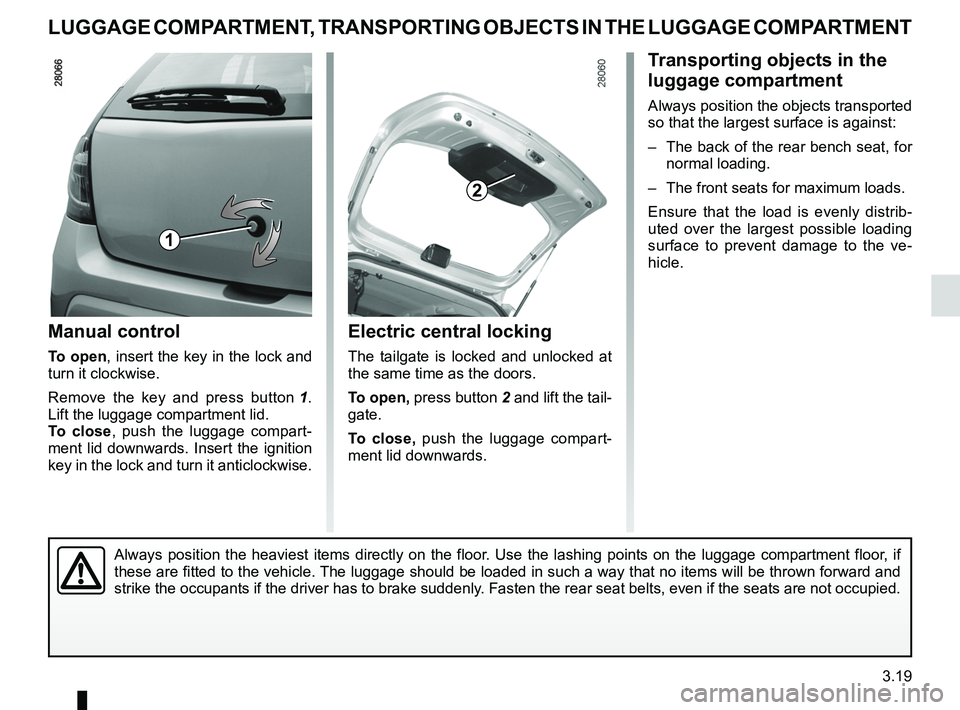

LuGGAGE COMPARTMENT, TRANSPORTING OBJECTS IN THE LuGGAGE COMPARTMENT
Manual control
To open, insert the key in the lock and
turn it clockwise.
Remove the key and press button 1 .
Lift the luggage compartment lid.
To close , push the luggage compart -
ment lid downwards. Insert the ignition
key in the lock and turn it anticlockwise.
Always position the heaviest items directly on the floor. Use the lashing points on the luggage compartment floor, if
these are fitted to the vehicle. The luggage should be loaded in such a way that no items will be thrown forward and
strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.
Transporting objects in the
luggage compartment
Always position the objects transported
so that the largest surface is against:
– The back of the rear bench seat, for
normal loading.
– The front seats for maximum loads.
Ensure that the load is evenly distrib -
uted over the largest possible loading
surface to prevent damage to the ve -
hicle.
1
2

roof bars ............................................... (up to the end of the DU)
roof rack roof bars .......................................... (up to the end of the DU)
3.20
ENG_UD18248_3
Barres de toit (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Roof bars

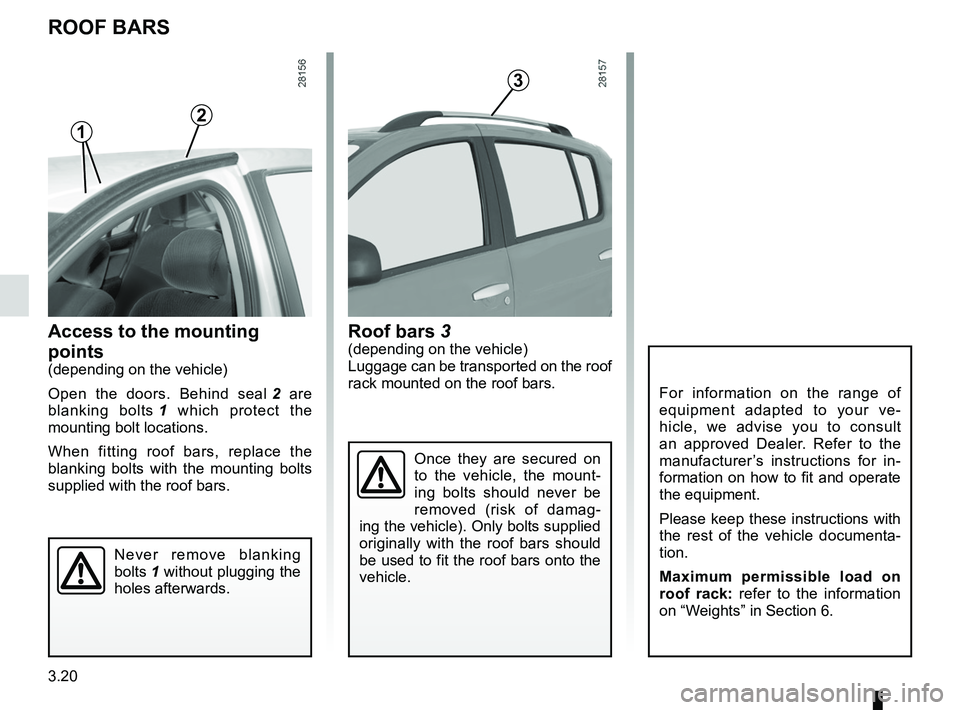

ROOF BARS
Access to the mounting
points
(depending on the vehicle)
Open the doors. Behind seal 2 are
blanking bolts 1 which protect the
mounting bolt locations.
When fitting roof bars, replace the
blanking bolts with the mounting bolts
supplied with the roof bars.
Never remove blanking
bolts 1 without plugging the
holes afterwards.
Once they are secured on
to the vehicle, the mount -
ing bolts should never be
removed (risk of damag -
ing the vehicle). Only bolts supplied
originally with the roof bars should
be used to fit the roof bars onto the
vehicle.
For information on the range of
equipment adapted to your ve -
hicle, we advise you to consult
an approved Dealer. Refer to the
manufacturer ’s instructions for in -
formation on how to fit and operate
the equipment.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: refer to the information
on “Weights” in Section 6.
Roof bars 3(depending on the vehicle)
Luggage can be transported on the roof
rack mounted on the roof bars.
3
21
