87G - 21
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87G
V6 MR-372-J84-87G000$528_eng.mif
UPC
Vdiag No.: 44
MAIN SCREEN
NOTESOnly check conformity after a complete check using the diagnostic tool.
Condition for carrying out this operation: the engine must be running.
Order FunctionParameter or Status
checked or Action Display and notes Fault finding
1Charging circuitET001:Battery warning
lightOFF
Refer to the relevant fault
finding procedure in the
event of a fault. 2Oil pressure
contactET027:Oil pressure
contactOPEN
3GearboxET004:Reverse gear
engagedYES
NO

87G - 22
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87G
V6 MR-372-J84-87G000$528_eng.mif
UPC
Vdiag No.: 44
KEYLESS VEHICLES: Starting the engine
NOTESOnly check conformity after a complete check using the diagnostic tool.
Condition for carrying out this operation: the engine must be running.
Order FunctionParameter or Status
checked or Action Display and Notes Fault finding
1GearboxET004:Reverse gear
engagedYES
NO
Refer to the relevant fault
finding procedure in the
event of a fault. ET005:Manual gearbox
leverNEUTRAL
OUT OF NEUTRAL
NOT SUPPORTED, if
the vehicle is fitted with
an automatic gearbox
2StartingET010:Conditions for
starting the
engine satisfied.YES, if the conditions
for starting the engine
have been met and
after a press on the
engine start button
NO, if the conditions
for starting the engine
have not been met or if
the engine start button
has not been pressed

87G - 23
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87G
V6 MR-372-J84-87G000$528_eng.mif
UPC
Vdiag No.: 44
AIR CONDITIONING: Heating
AIR CONDITIONING: Cold loop
NOTESOnly check conformity after a complete check using the diagnostic tool.
Condition for carrying out the operation: the engine must be running.
Order FunctionParameter or Status
checked or Action Display and notes Fault finding
1StartingPR010:AlternatorIn %
The value varies
according to electricity
consumption.
Refer to the relevant fault
finding method in the event
of a fault.
AC011:Rear
windscreen de-
icingThe heating resistance
for the rear window
and the door mirrors
(if the vehicle is fitted
with door mirrors) must
be supplied with power
and supply heat
Order FunctionParameter or Status
checked or Action Display and notes Fault finding
1Fan assemblyAC009:Low speed fan
unitThe fan must be heard
running at low speed
Refer to the relevant fault
finding procedure in the
event of a fault. AC010:High speed fan
unitThe fan must be heard
running at a high
speed
This command cannot
be used on vehicles
which are not fitted
with climate control
2Air conditioningAC008:Compressor
control(this command is not
permitted when the
engine is running)

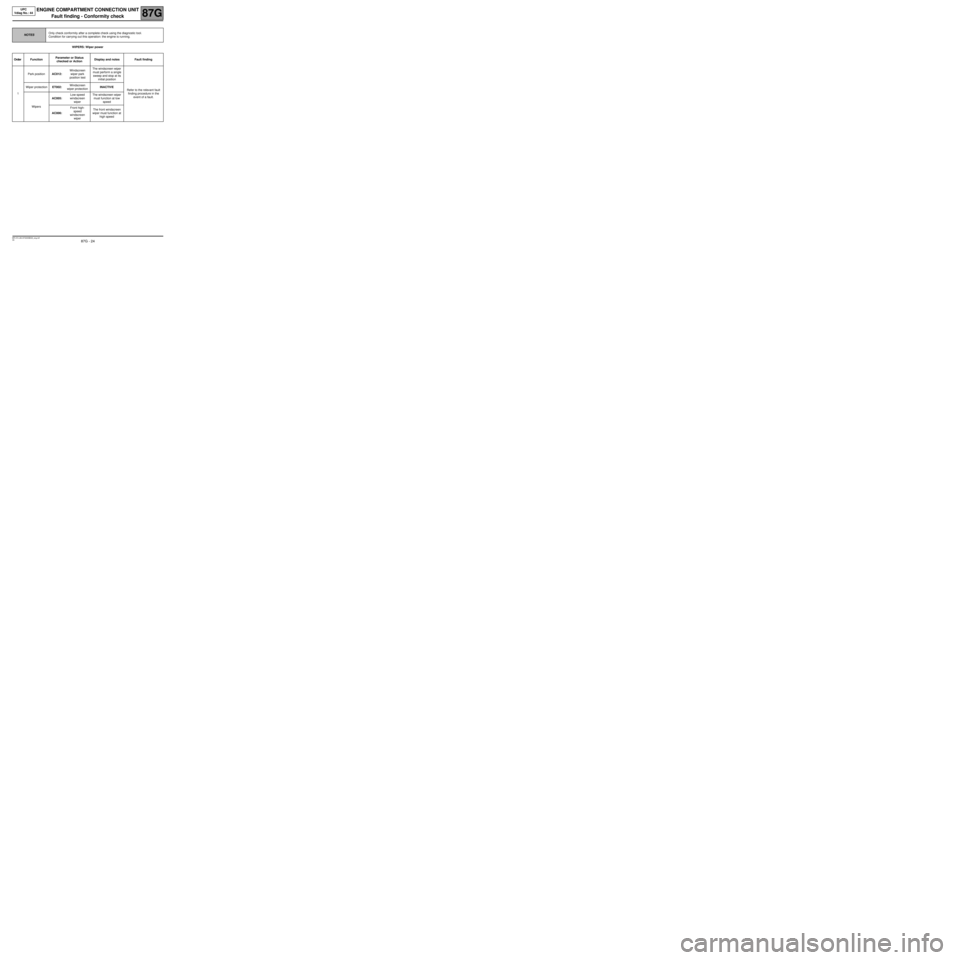

87G - 24
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87G
V6 MR-372-J84-87G000$528_eng.mif
UPC
Vdiag No.: 44
WIPERS: Wiper power
NOTESOnly check conformity after a complete check using the diagnostic tool.
Condition for carrying out this operation: the engine is running.
Order FunctionParameter or Status
checked or Action Display and notes Fault finding
1Park positionAC012:Windscreen
wiper park
position testThe windscreen wiper
must perform a single
sweep and stop at its
initial position
Refer to the relevant fault
finding procedure in the
event of a fault. Wiper protectionET002:Windscreen
wiper protectionINACTIVE
WipersAC005:Low-speed
windscreen
wiperThe windscreen wiper
must function at low
speed
AC006:Front high-
speed
windscreen
wiperThe front windscreen
wiper must function at
high speed

87G - 25
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87G
V6 MR-372-J84-87G000$528_eng.mif
UPC
Vdiag No.: 44
LIGHTING: Lighting power
NOTESOnly check conformity after a complete check using the diagnostic tool.
Condition for carrying out the operation: the engine must be running.
Order FunctionParameter or Status
checked or Action Display and notes Fault finding
1LightingAC003:Side lightsThe front and rear side
lights and the number
plate lights as well as
the controls and
switches inside the
passenger
compartment must
light up.
Refer to the relevant fault
finding procedure in the
event of a fault.
AC002:Dipped beam
headlightsThe dipped beam
headlights must come
on.
AC001:Main beam
headlightsThe main beam
headlights must come
on.
AC004:Front fog lightsThe front fog lights
must come on.

87G - 26
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Status and parameter summary table87G
V6 MR-372-J84-87G000$594_eng.mif
UPC
Vdiag No.: 44ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Status and parameter summary table
Tool status Diagnostic tool title
ET001 BATTERY WARNING LIGHT
ET002 WINDSCREEN WIPER PROTECTION
ET004 REVERSE GEAR ENGAGED
ET005 MANUAL GEARBOX GEAR LEVER POSITION
ET010 START CONDITIONS SATISFIED
ET013 HIGH SPEED FAN ASSEMBLY RELAY CONTROL
ET026 + AFTER IGNITION FEED
ET027 OIL PRESSURE CONTACT
Tool parameter Diagnostic tool title
PR010 ALTERNATOR
MR-372-J84-87G000$594_eng.mif

87G - 27
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87G
V6 MR-372-J84-87G000$660_eng.mif
UPC
Vdiag No.: 44ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
ET001
BATTERY WARNING LIGHT
NOTESCheck that the status is OUT with the engine running and LIT with the engine stopped
and the ignition on.
Check consistency with the instrument panel warning light.
With the engine running, check that the battery voltage is much higher than +12 V.
Perform a fault finding procedure on the charge circuit if necessary.
Check the status and the connection of connector PEM on the UPC and of the connections on the alternator.
Repair if necessary.
Turn off the ignition and ensure that there is insulation against +12 V and continuity in the connection:
UPC connector PEM track 8 Track 1 of the alternator 2-track connector
Repair if necessary.
With the ignition on, ensure that there is insulation against earth and the continuity in the connection:
UPC connector PEM track 8 Track 1 of the alternator 2-track connector
Repair if necessary.
AFTER REPAIRDeal with any other possible faults.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
MR-372-J84-87G000$660_eng.mif

87G - 28
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87G
V6 MR-372-J84-87G000$660_eng.mif
UPC
Vdiag No.: 44
ET002
WINDSCREEN WIPER PROTECTION
NOTESBefore starting, check the operation of the windscreen wiper motor by running
commands AC005 Windscreen wiper at low speed and AC006 Windscreen wiper
at high speedand then check the park position using command AC012 Windscreen
wiper park position.
These statuses are listed in the order of severity or persistance of incorrect wiper
operation.
–if the status is INACTIVE, the wiper function is normal.
–If the status is LOW SPEED, the UPC has detected an abnormal wiper operation on
the higher speed setting for more than 6 seconds (the wiper has stuck or is blocked);
windscreen wiping is therefore forced to operate on the lower speed setting when
the higher speed setting is requested,
–If the status is INTERMITTENT, the wiper function is stopped for 10 seconds
following the detection and persistence of the fault (restrained or blocked),
–If the status is BLOCKED, wiping stops 30 seconds after the malfunction has lasted
for more than 2 minutes.
The status returns to INACTIVE, once the UCH requests a new wiping instruction (by
following the movement of the wiper stalk or by request from the rain sensor).
Make sure that nothing is mechanically blocking movement of the wiper blades (blades stuck, condition and
assembly of the wiper mechanism linkage and no object interfering with the motion of the device).
Check that the wiper mechanism is not seized.
Repair if necessary.
Check the status and the connection of connectors PPH2 and PEH on the UPC and of the windscreen wiper
motor.
Repair if necessary.

87G - 29
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87G
V6 MR-372-J84-87G000$660_eng.mif
UPC
Vdiag No.: 44
ET002
(continued)
Check the insulation against earth and the continuity of the connections:
UPC connector PEH track 6 Track 2 of the windscreen wiper motor connector
UPC PPH2 connector track 1 Track 5 of the windscreen wiper motor connector
UPC connector PPH2 track 2 Track 4 of the windscreen wiper motor connector
Repair if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any other possible faults.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.

87G - 30
ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87G
V6 MR-372-J84-87G000$660_eng.mif
UPC
Vdiag No.: 44
Manual gearbox ET004
REVERSE GEAR ENGAGED
NOTESCheck, and if necessary, replace fuse 5C on the UPC.
Check the status and the connection of the reverse gear switch connector and connector PPM2 on the UPC.
Repair if necessary.
With the ignition on and reverse gear selected, check the presence of +12 V on track 9 of connector PPM2.
If there is a fault, check the insulation against earth and continuity of the connections:
UPC connector PPM2 track 9 Track 1 (track 3 on the ND0 gearbox) of the switch
UPC connector PPM2 track 6 Track 2 (track 1 on gearbox ND0) of the switch
Repair if necessary.
With reverse gear selected, check the continuity between tracks 1 and 2 (or tracks 1 and 3 on gearbox NDO)
of the switch.
Replace the reverse gear switch if necessary.
If the fault is still present, contact the Techline.
