DIESEL INJECTION
Fault finding - System operation13B
V10 MR-372-J84-13B150$094.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4C
a) The computer
– Determines the value of injection pressure necessary for the engine to operate correctly and then controls the
pressure regulator.
– It checks that the pressure value is correct by analysing the value transmitted by the pressure sensor located on
the rail.
– It determines the injection timing required to deliver the right quantity of diesel fuel and the moment when injection
should start.
– Controls each injector electrically and individually after determining these two values.
The flow injected into the engine is determined by:
– the duration of injector control,
– the rail pressure (regulated by the computer),
– the injector opening and closing speed,
– the needle stroke (determined by a constant for the type of injector),
– the nominal hydraulic flow of the injector (specific to each injector).
The computer manages:
– idling regulation,
– exhaust gas flow reinjection to the inlet,
– fuel supply check (advance, flow and rail pressure),
– the fan assembly via the Protection and Switching Unit (centralised coolant temperature management
function),
– the air conditioning (cold loop function),
– the cruise control/speed limiter function,
– the pre-postheating control.
– the fault warning lights via the multiplex network.
The high pressure pump is supplied at low pressure by an integrated low-pressure pump (transfer pump).
It supplies the rail, the pressure of which is controlled by the fuel flow actuator for charging, and for discharging by
the injector valves. This compensates for pressure drops.
The fuel flow actuator enables the high pressure pump to supply the exact quantity of diesel fuel required to maintain
the rail pressure. This component minimises the heat generated and improves engine output.
In order to discharge the rail using the injector valves, the valves are controlled by brief electrical pulses which are:
– short enough not to open the injector (passing through the feedback circuit from the injectors),
– long enough to open the valves and discharge the rail.

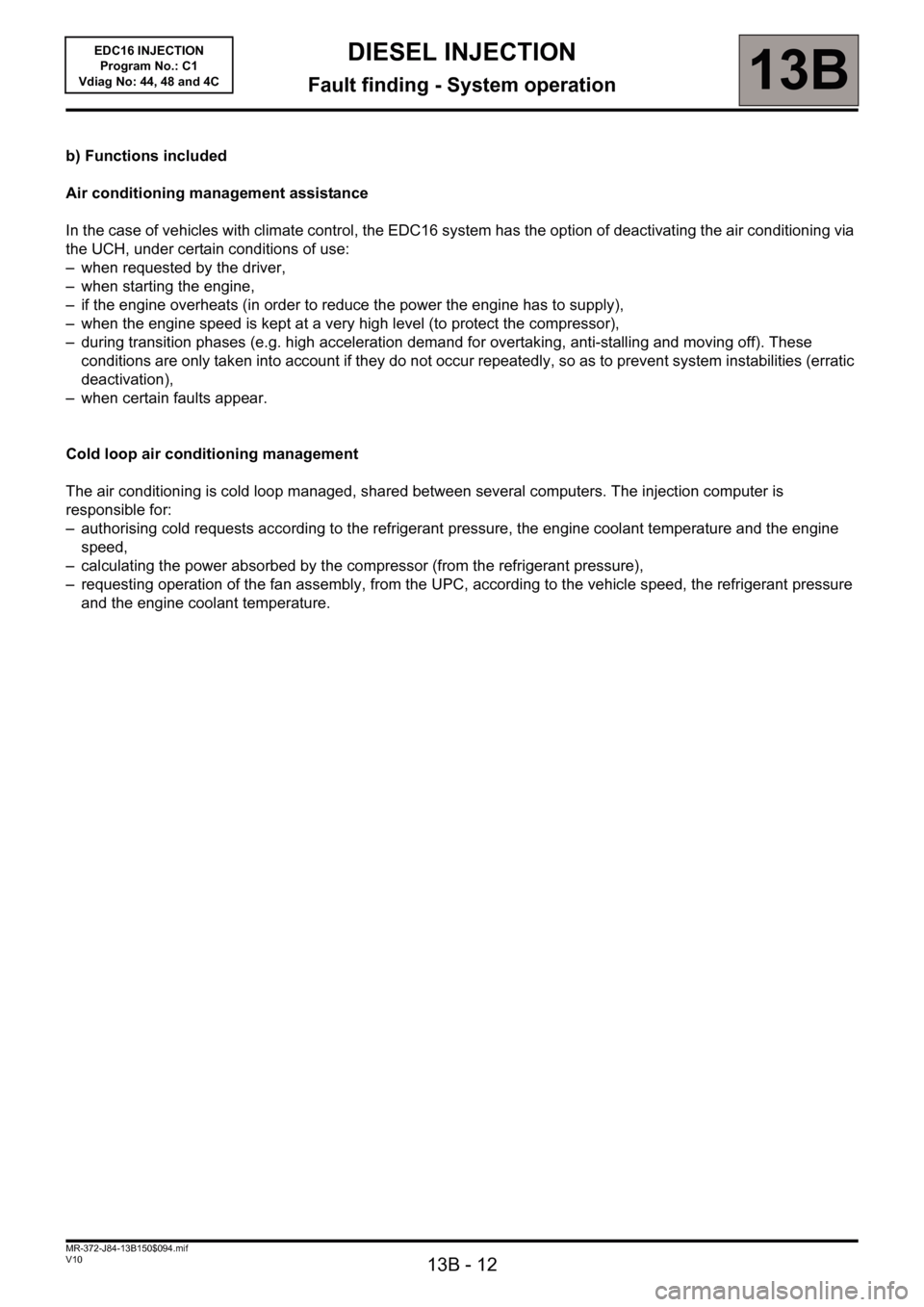

13B - 12
DIESEL INJECTION
Fault finding - System operation13B
V10 MR-372-J84-13B150$094.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4C
b) Functions included
Air conditioning management assistance
In the case of vehicles with climate control, the EDC16 system has the option of deactivating the air conditioning via
the UCH, under certain conditions of use:
– when requested by the driver,
– when starting the engine,
– if the engine overheats (in order to reduce the power the engine has to supply),
– when the engine speed is kept at a very high level (to protect the compressor),
– during transition phases (e.g. high acceleration demand for overtaking, anti-stalling and moving off). These
conditions are only taken into account if they do not occur repeatedly, so as to prevent system instabilities (erratic
deactivation),
– when certain faults appear.
Cold loop air conditioning management
The air conditioning is cold loop managed, shared between several computers. The injection computer is
responsible for:
– authorising cold requests according to the refrigerant pressure, the engine coolant temperature and the engine
speed,
– calculating the power absorbed by the compressor (from the refrigerant pressure),
– requesting operation of the fan assembly, from the UPC, according to the vehicle speed, the refrigerant pressure
and the engine coolant temperature.

13B - 20
DIESEL INJECTION
Fault finding - Replacement of components13B
V10 MR-372-J84-13B150$188.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4CDIESEL INJECTION
Fault finding - Replacement of components
COMPUTER REPLACEMENT OR REPROGRAMMING OPERATIONS
The system can be programmed or reprogrammed via the diagnostic socket using the RENAULT CLIP diagnostic
tool (see Technical Note 3585A).
While the computer is being reprogrammed the engine fan assemblies are automatically triggered).
Operations to be carried out before reprogramming the injection computer:
Before reprogramming the injection computer, move the main Cruise control/Speed limiter switch to the rest position.
The information about the cruise control or the speed limiter displayed on the instrument panel disappears.
Otherwise, if the main switch remains in the cruise control or speed limiter position during and after reprogramming,
the Cruise control/Speed limiter function will not be operational.
To reset the function, proceed as follows:
Vehicle ignition on.
– Position the main switch in rest position (the computer then detects the rest position).
– Position the switch in Cruise control position to activate the Cruise control function.
– Position the switch in Speed limiter position to activate the Speed Limiter function.
Before reprogramming or replacing the computer in After-Sales operations, backup the following data to the
diagnostic tool:
– The IMA codes (individual correction of the injector).
– The engine adaptives (engine speed, and options available on the vehicle).
(this file corresponds to the last save carried out on the tool)
select YES,
When the backup is complete, replace the computer or reprogram, then proceed to the next step,
with command SC003 Backup computer data. IMPORTANT
–Switch on the diagnostic tool (mains or cigarette lighter feed).
–Connect a battery charger.
–Switch off all electrical consumers (lights, interior lights, air conditioning, radio/CD, etc.).
–Wait for the engine to cool (engine coolant temperature below 60 °C and air temperature below 50 °C).
WARNING
A computer without the IMA option can be replaced by a computer with this option. The codes have
therefore not been backed up during command SC003.
In this case, status ET104 "Injector code use" becomes "YES" or "FAULTY", fault DF276 "Injector code
programming" is present, and the engine operates in defect mode.
In this case, run command SC002 Enter injector codes, applying the procedure described in the
interpretation of this command.
MR-372-J84-13B150$188.mif

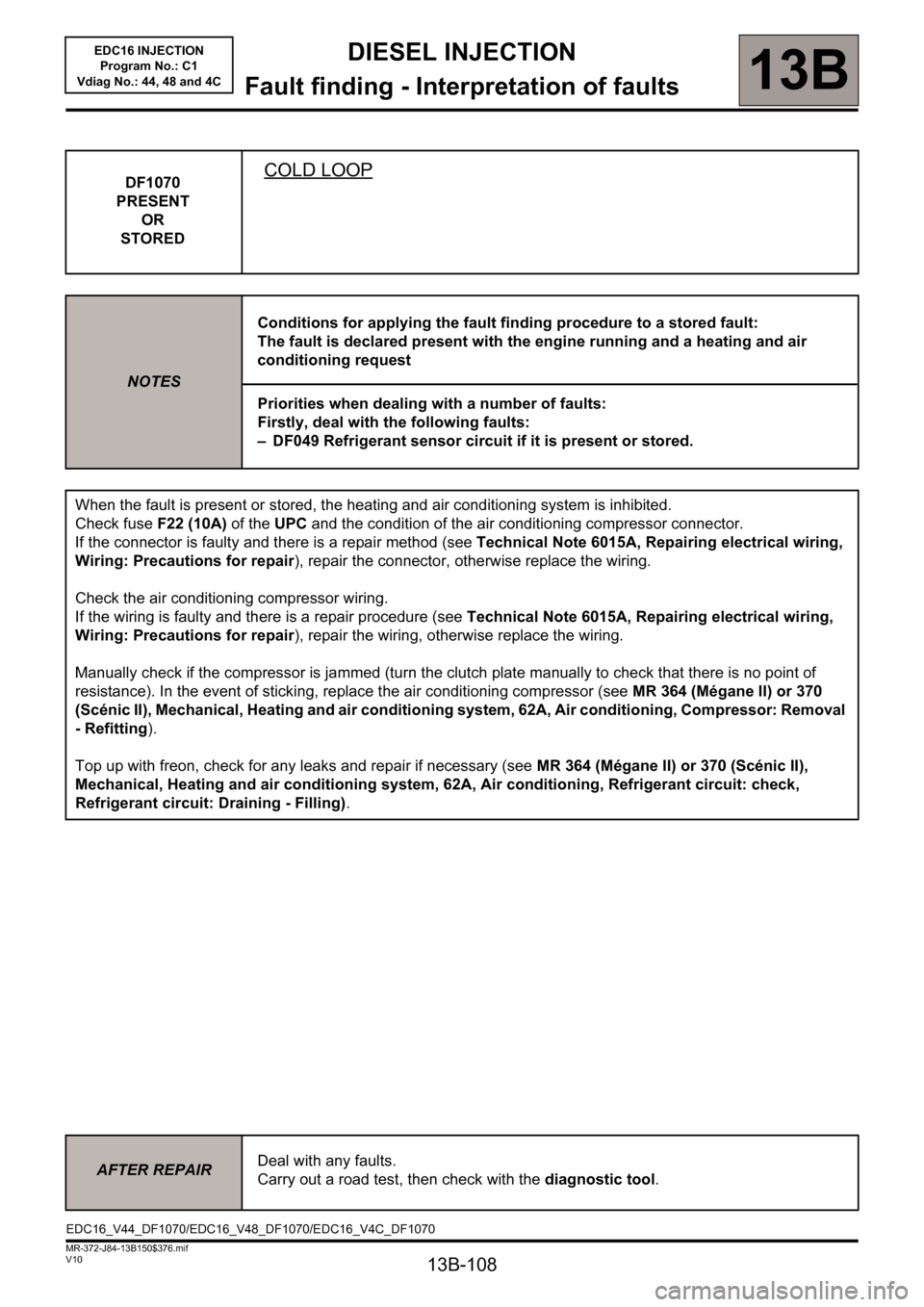

13B-61
DIESEL INJECTION
Fault finding - Interpretation of faults13B
V10 MR-372-J84-13B150$329.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
DF049
PRESENT
OR
STOREDREFRIGERANT SENSOR CIRCUIT
CC.1 : short circuit to + 12 V
CO.0 : open circuit or short circuit to earth
NOTESPriorities when dealing with a number of faults:
Deal with fault DF012 Sensor feed voltage no. 2 first if it is present or stored.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present following a road test, or if the air conditioning is
switched on.
Special notes:
If the fault is present, air conditioning is not authorised.
Use bornier Elé. 1681 for all operations on the injection computer connectors.
CC.1
NOTESNone.
Check the refrigerant pressure sensor connectors.
Check the injection computer connections.
Repair if necessary.
Connect an air conditioning filling station (equipped with a high pressure gauge) to the vehicle.
Display parameter PR037 Refrigerant pressure and compare the value displayed by the filling station.
If the values match, carry out a fault finding procedure as described in the fault finding note for that vehicle.
If the values do not match, check the continuity and insulation against + 12 V of the following connections:
Injection computer, brown 48-track connector B, track F1 Track C refrigerant sensor
connector
Injection computer, brown 48-track connector B, track F3 Track B refrigerant sensor
connector
Injection computer grey 32-track connector C, track C3 Track A refrigerant sensor
connector
Repair if necessary.
If the fault is still present, replace the refrigerant pressure sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by a check with the diagnostic tool.
EDC16_V44_DF049/EDC16_V48_DF049/EDC16_V4C_DF049

13B-62
DIESEL INJECTION
Fault finding - Interpretation of faults13B
V10 MR-372-J84-13B150$329.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
DF049
CONTINUED
CO.0
NOTESNone.
Check the refrigerant pressure sensor connectors.
Check the injection computer connections.
Repair if necessary.
Connect an air conditioning filling station (equipped with a high pressure gauge) to the vehicle.
Display parameter PR037 Refrigerant pressure and compare the value displayed by the filling station.
If the values match, carry out a fault finding procedure as described in the fault finding note for that vehicle.
If the values do not match, check the continuity and insulation against earth of the following connections:
Injection computer, brown 48-track connector B, track F1 Track C refrigerant sensor
connector
Injection computer, brown 48-track connector B, track F3 Track B refrigerant sensor
connector
Injection computer grey 48-track connector C, track C3 Track A refrigerant sensor
connector
Repair if necessary.
If the fault is still present, replace the refrigerant pressure sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by a check with the diagnostic tool.

13B-108
DIESEL INJECTION
Fault finding - Interpretation of faults
13B
V10 MR-372-J84-13B150$376.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
DF1070
PRESENT
OR
STOREDCOLD LOOP
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present with the engine running and a heating and air
conditioning request
Priorities when dealing with a number of faults:
Firstly, deal with the following faults:
– DF049 Refrigerant sensor circuit if it is present or stored.
When the fault is present or stored, the heating and air conditioning system is inhibited.
Check fuse F22 (10A) of the UPC and the condition of the air conditioning compressor connector.
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the air conditioning compressor wiring.
If the wiring is faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Manually check if the compressor is jammed (turn the clutch plate manually to check that there is no point of
resistance). In the event of sticking, replace the air conditioning compressor (see MR 364 (Mégane II) or 370
(Scénic II), Mechanical, Heating and air conditioning system, 62A, Air conditioning, Compressor: Removal
- Refitting).
Top up with freon, check for any leaks and repair if necessary (see MR 364 (Mégane II) or 370 (Scénic II),
Mechanical, Heating and air conditioning system, 62A, Air conditioning, Refrigerant circuit: check,
Refrigerant circuit: Draining - Filling).
AFTER REPAIRDeal with any faults.
Carry out a road test, then check with the diagnostic tool.
EDC16_V44_DF1070/EDC16_V48_DF1070/EDC16_V4C_DF1070

13B-117
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$423.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4C
COLD LOOP
NOTESOnly carry out this conformity check after carrying out a complete check using the
diagnostic tool. The values shown in this conformity check are given as examples.
Test conditions: engine stopped, ignition on.
Order FunctionParameter or Status
Check or ActionDisplay and Notes Fault finding
1Air
conditioning
detectionET079: Air conditioning
presentStates whether the
vehicle is fitted with
air conditioning
or not.
–YES: Air
conditioning is
detected by the
injection computer.
–NO: Air
conditioning is not
detected by the
injection computer.If this is not consistent
with the vehicle
equipment, carry out a test
on the multiplex network and
apply the relevant
procedure.
2 Engine running PR055: Engine speedIndicates the engine's
rotation speed in rpm.In the event of a fault,
consult the interpretation
of fault DF005 Engine
speed sensor circuit.
3 Driver controlET088: Compressor
actuation
requestIgnition on
INACTIVEIf the air conditioning is
authorised, or if the
compressor is being
controlled, refer to the Air
conditioning fault finding
note for the vehicle. ET004: Air conditioning
authorisationNO
4Air
conditioning
speedPR053: Speed requested
by air
conditioningIgnition on
PR053= 0rpmNone
5 Pressure PR037: Refrigerant
pressureIgnition on
PR037 = 0 barIn the event of a fault,
please consult the
interpretation of fault DF049
Refrigerant sensor circuit.
6OutputPR125: Power
consumed by the
air conditioning
compressor
Ignition on
PR125 = 0 WNone

13B - 136
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4CDIESEL INJECTION
Fault finding - Conformity check
COLD LOOP
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as examples.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Air
conditioning
detectionET079: Air conditioning
presentIndicates whether the
vehicle is fitted with
air conditioning or
not.
–YES: Air
conditioning is
detected by the
injection computer.
–NO: Air
conditioning is not
detected by the
injection computer.If this is not consistent
with the vehicle
equipment, carry out a test
on the multiplex network and
apply the relevant
procedure.
2 Engine running PR055: Engine speedIndicates the engine's
speed in rpm
At idling speed
PR055 = 800 rpmIn the event of a fault,
consult the interpretation of
fault DF005 Engine speed
sensor circuit.
3 Driver controlET088: Compressor
actuation
requestACTIVE OR
INACTIVEIf air conditioning is not
authorised, or if the
compressor is never
activated, (See 62A,
Air conditioning). ET004: Air conditioning
authorisationYES or NO
4Air
conditioning
speedPR053: Speed requested
by air
conditioningAt idling speed
PR053 = 900 rpmNone
5 Pressure PR037: Refrigerant
pressure 1< X< 32barIn the event of a fault,
consult the interpretation of
fault DF049 Refrigerant
sensor.
6 Output PR125: Power absorbed
by the air
conditioning
compressorAt idling speed
PR125 = 300 WNone
MR-372-J84-13B150$470.mif

13B - 137
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
COLD LOOP (continued)
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as examples.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
7 Engine coolingET022: Low speed fan
assembly
requestINACTIVE if air
conditioning not
switched onIf the motor-driven fan
assemblies are being
supplied continuously
without the air
conditioning being
active, the injection
system may be in defect
mode.
Carry out a system fault
test and consult the
interpretation of any faults. ET021: High speed fan
assembly
request
ET014: Fan assembly 1
checkRUNNING if air
conditioning is active
ET015: Fan assembly 2
checkRUNNING if
operating
temperature is
reached
8Coolant
temperaturePR064: Coolant
temperatureShows the engine
coolant temperature
in °C
Default value: 119 °CIn the event of a fault,
consult the interpretation
for DF001 "Coolant
temperature sensor
circuit".
9 Vehicle speed PR089: Vehicle speedGives the vehicle
speed in mph. This
parameter is
transmitted by the ABS
computer. This signal
is transmitted to the
injection on the
multiplex network.
With ignition on
PR089 = 0 mph (km/h)In the event of a fault, test
the multiplex network.
Refer to the ABS fault
finding notes for the
interpretation of possible
faults.

13B - 143
DIESEL INJECTION
Fault finding - Conformity check13B
V10 MR-372-J84-13B150$470.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ENGINE COOLING
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as a guide.
Test conditions: engine at idle speed, coolant temperature at > 80°.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Coolant
temperaturePR064:Coolant
temperatureShows the engine coolant
temperature in °C
Default value: 119 °CIn the event of a fault,
consult the
interpretation of DF001
Coolant temperature
sensor circuit.
2 Fan assembliesET022:Low speed
fan assembly
requestINACTIVE if air
conditioning not
switched onIf the fan assemblies
are supplied with the
ignition on, the
injection may be in
defect mode.
Carry out a system fault
test and consult the
interpretation of any
faults. ET021:High speed
fan assembly
request
ET014:Fan assembly
1 checkRUNNING if air
conditioning is active
ET015:Fan assembly
2 checkRUNNING if operating
temperature is reached
3 Sensor feed PR084:Coolant
temperature
sensor
voltageidle speed, engine warm
PR084 = 0.54 V
Safe value: 5 VIn the event of a fault,
consult the
interpretation of DF001
Coolant temperature
sensor circuit.
