Df 129 RENAULT SCENIC 2011 J95 / 3.G Engine And Peripherals Siemens Injection Workshop Manual

13B-21
MR-372-J84-13B050$195.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Function13B
Faults that activate the OBD warning light
PRECAUTIONS/RISKS
The main recommendation regarding the system is:
Never electrically disconnect the injectors with the engine running.
The piezoelectric technology used for the injector system means that the injectors receive a control pulse to open
and another control pulse to close. If the injector is disconnected between these 2 pulses while the engine is
running, i.e. during the actual injection process, the injector will remain open long enough to create very
unfavourable thermodynamic conditions in the cylinder(s) or generate hydraulic pressure which may result in
engine damage. Tool fault Associated DTC Diagnostic tool title
DF003 2226Atmospheric pressure sensor circuit
DF004 0235Turbocharging pressure sensor circuit
DF011 0641Sensor feed no. 1 voltage
DF012 0651Sensor feed voltage no. 2
DF016 0487EGR control circuit
DF026 0201Cylinder 1 injector control circuit
DF027 0202Cylinder 2 injector control circuit
DF028 0203Cylinder 3 injector control circuit
DF029 0204Injector cylinder 4 control circuit
DF038 0606Computer
DF039 0110Inlet air temperature sensor circuit
DF056 0100Air flow sensor circuit
DF129 0101Air flow requested
DF202 2413EGR valve
DF209 0409EGR valve position sensor circuit
DF582 0069Pressure consistency
DF953 2002Particle filter absent
DF991 1205Particle filter injector control circuit
DF1000 242AParticle filter downstream temperature sensor circuit
DF1003 2452Particle filter differential pressure sensor circuit
The injector voltage is very high (much higher than that of conventional injectors)
This voltage can be as much as 150 V.

13B-29
MR-372-J84-13B050$273.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Replacement of components13B
REPLACING THE EGR VALVE (EXHAUST GAS RECIRCULATION VALVE)
After replacing the EGR valve, the computer must store the offset of the new valve (to 0 km), as well as the offset
measured at the time of the last engine cut-off (power-latch). With these data, the computer can detect clogging or
blocking of the EGR valve.
When the valve is replaced, clear the stored offsets so that the program uses the new valve’s offset value. The data
associated with this programming is combined under the EGR programming function.
Procedure to follow after replacement of the EGR valve:
– Select the CLEAR menu.
– Run fault clearing command RZ002 EGR adaptives,
– switch off the ignition,
–wait 30 seconds (auto-supply phase of the computer),
– start the vehicle to allow programming of the EGR valve,
– view parameters PR400 New EGR valve offset and PR129 Last EGR valve offset,
– if the reinitialisation was correctly performed then 0.6 V < PR400 = PR129 < 1.9 V.
REPLACEMENT OF PUMP, INJECTORS, RAIL + RAIL PRESSURE SENSOR OR COMPONENT OF THE LOW
PRESSURE CIRCUIT (DIESEL FILTER etc.).
After replacement of one of these components, carry out clearing using RZ004 Pressure regulation adaptives.
REPLACEMENT OF THE PARTICLE FILTER (Only Vdiag 45, 49, 4D)
After replacement of the particle filter, clear the fault DF308 Clogged particle filter if it is present or stored using
command RZ001 Fault memory. IMPORTANT
It is not possible to try an injection computer coming from the Parts Department because it will no longer be
possible to use it on another vehicle.

13B-32
MR-372-J84-13B050$351.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Fault summary table13B
Tool
faultDiagnostic tool titleAssociated
DTCLevel 1 fault warning
light illuminatedLevel 2 fault warning
light illuminatedOBD warning
light illuminated
DF038Computer 06061.DEF/2.DEF/4.DEF/
5.DEF/6.DEF/7.DEF/
8.DEF/9.DEF/
10.DEF/11.DEF/
12.DEF/13.DEF/
14.DEF/15.DEF/
16.DEF/21.DEF/
22.DEF/23.DEF3.DEF/17.DEF/
18.DEF/19.DEF/
20.DEF15.DEF/
16.DEF/
17.DEF/
18.DEF/
19.DEF/
20.DEF/22.DEF
DF039Inlet air temperature
sensor circuit0110 - -CO.1/CC.0/
1.DEF
DF047Computer feed voltage 0560 - - -
DF049Refrigerant sensor
circuit0530 - - -
DF051Cruise control/speed
limiter function0575 - - -
DF053Rail pressure
regulation function1089 1.DEF/2.DEF 3.DEF/4.DEF/5.DEF -
DF054Turbocharging
solenoid valve control
circuit0045 CO/CC.0/CC.1 - -
DF056Air flowmeter circuit 0100 CO.0/CC.1 - CO.0/CC.1
DF067Damper valve control
circuit0120 CO/CC.0/CC.1 - -
DF070Clutch switch circuit 0830 - - -
DF086Coolant pump relay
control circuit2600 CO/CC.0/CC.1 - -
DF091Vehicle speed signal 0500 - - -
DF097Camshaft sensor
circuit0340 - - -
DF098Fuel temperature
sensor circuit0180 - - -
DF127Brake switch no. 1
circuit0571 - - -
DF129Requested air flow 0101 1.DEF/2.DEF - 1.DEF/2.DEF
DF173Reverse gear signal 0812 - - -

13B-44
MR-372-J84-13B050$390.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of faults
Siemens Injection
SID301 and 304
Vdiag No. 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
DF011
PRESENT
OR
STOREDSENSOR SUPPLY VOLTAGE NO. 1
1. DEF: Signal outside lower limit
2. DEF: Signal outside upper limit
NOTESPriorities when dealing with a number of faults:
If one or more of the following faults are present at the same time:
–DF009 Pedal potentiometer circuit gang 2, check that the pedal sensor
connector is connected correctly.
–DF007 Rail pressure sensor circuit, check that the rail pressure sensor connector
is connected correctly.
–DF056 Air flow sensor circuit, check that the air flow sensor connector is
connected correctly.
–DF209 EGR valve position sensor circuit, check that the EGR valve position
sensor connector is connected correctly.
–DF1003 Particle filter differential pressure sensor circuit, check that the
connector of the particle filter differential pressure sensor is connected correctly.
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present after the ignition has been switched on.
Special notes:
If the fault is present:
– The cruise control/speed limiter is deactivated.
– Power is restricted.
–The level 1 warning light is lit.
–The OBD warning light is lit.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
diagrams Technical Note.
The sensors connected to supply no. 1 are:
–rail pressure sensor, component code1032,
–accelerator pedal potentiometers gang 2 sensor, component code921,
–air flowmeter sensor, component code799,
–EGR valve position sensor, component code 1460.
–particle filter differential pressure sensor, component code 1290.
To locate the potentially defective sensor and/or connection, disconnect one of these sensors and then check
whether the fault becomes stored.
If the fault is still present, start the operation again with each sensor (one by one).
(Wait several seconds between each disconnection to allow the computer to detect the fault)
If the fault is stored after a disconnection, replace the faulty sensor or repair its connection.
Clear the faults created by the multiple disconnections.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_DF011 / SID304_V45_DF011 / SID301_V48_DF011 / SID304_V49_DF011 / SID304_V4D_DF011 / SID301_V4C_DF011

13B-45
MR-372-J84-13B050$390.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of faults
Siemens Injection
SID301 and 304
Vdiag No. 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
DF011
CONTINUED
Check the connection and condition of the connector for the sensors and the injection computer (see MR 392,
385, 364, 370 and 417, Mechanical, 13B, Diesel injection, Diesel injection computer: Removal - Refitting).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair) repair the connector(s); otherwise, replace the wiring.
If the fault is still present when the sensors have been disconnected:
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3LZ between components 1032 and 120,
–3LX between components 1032 and 120,
–3LU between components921 and 120,
–3LV between components 921 and 120,
–3KJ between components 799 and 120,
–3DW between components 799 and 120,
–3GC between components 1460 and 120,
–3GD between components 1460 and 120,
–3YD between components 1290 and 120,
–3AAM between components 1290 and 120.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.

13B-72
MR-372-J84-13B050$429.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of faults
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
DF129
PRESENT
OR
STOREDREQUESTED AIR FLOW
1. DEF: Signal outside lower limit
2. DEF: Signal outside upper limit
3. DEF: Signal inconsistency
NOTESConditions for applying the fault finding procedure to a stored fault:
Apply the fault finding procedure as below.
If the fault is present:
EGR function cut off.
The level 1 and OBD warning lights are lit.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
diagrams Technical Note.
Check the condition of the air filter and replace it if necessary (see MR 392, 385, 364, 370 and 417, Mechanical,
12A, Fuel mixture, Air filter: Removal - Refitting).
Check the entire air supply system and that the pipes from the filter to the inlet manifold are correctly fitted.
Check the connection and condition of the air flowmeter connector, component code 799 (see MR 392, 364, 370
and 417, Mechanical, 12A, Fuel mixture, Air flowmeter: Removal - Refitting).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the connection and condition of the injection computer connector, component code 120 (see MR 392,
385, 364, 370 and 417, Mechanical, 13B, Diesel injection, Diesel injection computer: Removal - Refitting).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
With the ignition on, check for + 5 V on connection 3KJ and earth on connection 3DW of the air flowmeter,
component code 799.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3DV between components 799 and 120,
–3DW between components 799 and 120,
–3KJ between components 799 and 120.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
With the flow sensor connected, the vehicle ignition on and the engine stopped:
Measure the voltage between connections 3DV and 3DW of the air flowmeter, component code 799.
If the voltage is not between 0.3 V and 0.7 V, replace the air flowmeter (see MR 392, 364, 370 and 417,
Mechanical, 12A, Fuel mixture, Air flowmeter: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_DF129 / SID304_V45_DF129 / SID301_V48_DF129 / SID304_V49_DF129 / SID304_V4D_DF129 / SID301_V4C_DF129

13B-114
MR-372-J84-13B050$468.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of faults
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B

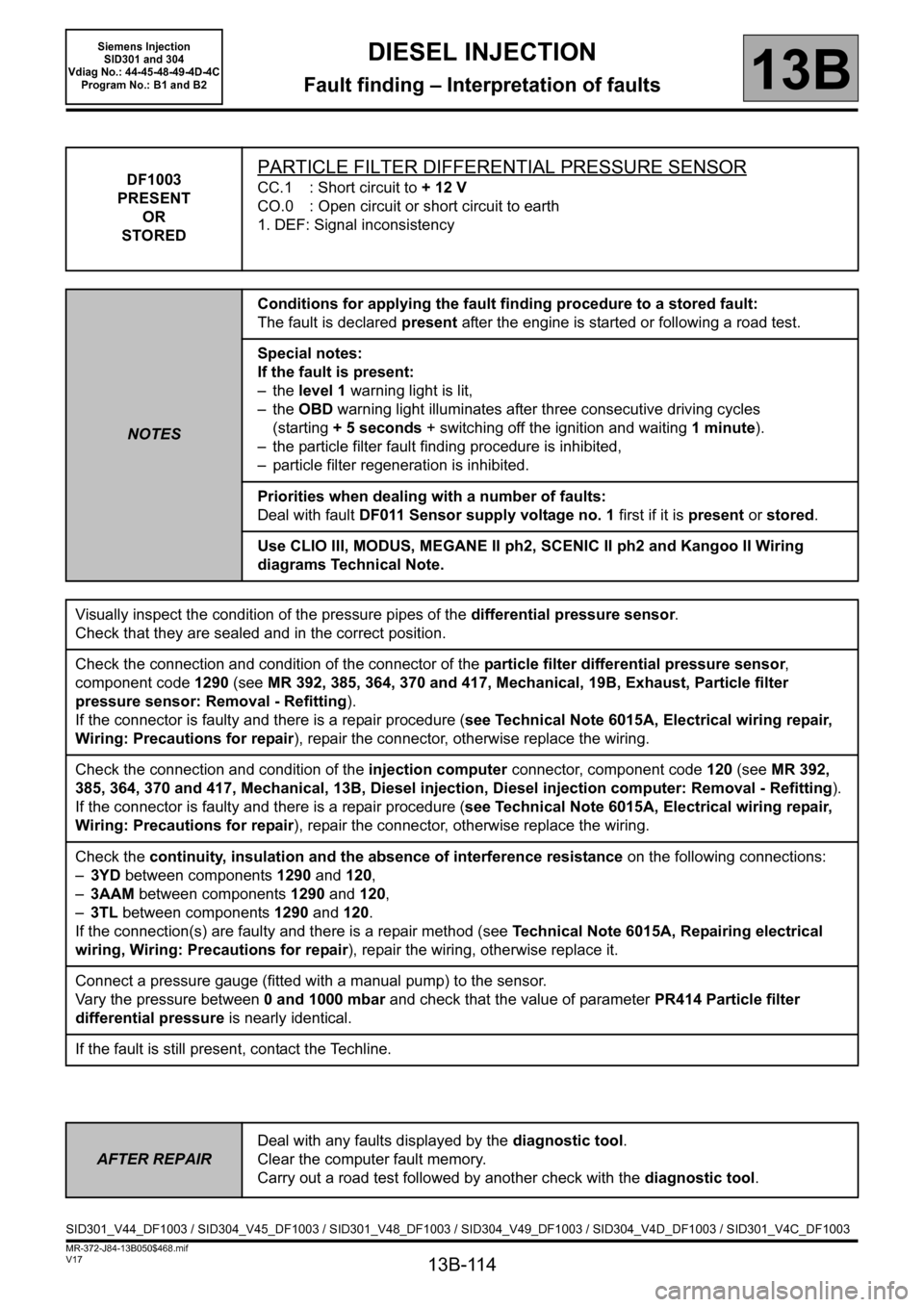

DF1003
PRESENT
OR
STOREDPARTICLE FILTER DIFFERENTIAL PRESSURE SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1. DEF: Signal inconsistency
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
– the level 1 warning light is lit,
– the OBD warning light illuminates after three consecutive driving cycles
(starting + 5 seconds + switching off the ignition and waiting 1 minute).
– the particle filter fault finding procedure is inhibited,
– particle filter regeneration is inhibited.
Priorities when dealing with a number of faults:
Deal with fault DF011 Sensor supply voltage no. 1 first if it is present or stored.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and Kangoo II Wiring
diagrams Technical Note.
Visually inspect the condition of the pressure pipes of the differential pressure sensor.
Check that they are sealed and in the correct position.
Check the connection and condition of the connector of the particle filter differential pressure sensor,
component code 1290 (see MR 392, 385, 364, 370 and 417, Mechanical, 19B, Exhaust, Particle filter
pressure sensor: Removal - Refitting).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the connection and condition of the injection computer connector, component code 120 (see MR 392,
385, 364, 370 and 417, Mechanical, 13B, Diesel injection, Diesel injection computer: Removal - Refitting).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity, insulation and the absence of interference resistance on the following connections:
–3YD between components 1290 and 120,
–3AAM between components 1290 and 120,
–3TL between components 1290 and 120.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Connect a pressure gauge (fitted with a manual pump) to the sensor.
Vary the pressure between
0 and 1000 mbar and check that the value of parameter PR414 Particle filter
differential pressure is nearly identical.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_DF1003 / SID304_V45_DF1003 / SID301_V48_DF1003 / SID304_V49_DF1003 / SID304_V4D_DF1003 / SID301_V4C_DF1003

13B-129
MR-372-J84-13B050$585.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of statuses
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
ET003
ENGINE IMMOBILISER
STATUS DEFINITION"ACTIVE": This status indicates that the immobiliser is active.
"INACTIVE": This status indicates that the immobiliser is not active.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Conformity check: Engine switched off and ignition on or engine running, engine coolant temperature
>80°C
ACTIVE
NOTESIf status ET003 is permanently "ACTIVE", refer to the UCH
fault finding note (see 87B, Passenger compartment
connection unit).
INACTIVE
NOTESWith the ignition on and, when driving, status ET003 should
be "INACTIVE".
If it is not, refer to the UCH diagnostic note (see 87B,
Passenger compartment connection unit).
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID301_V44_ET003/SID304_V45_ET003/SID301_V48_ET003/SID304_V49_ET003/SID304_V4D_ET003/SID301_V4C_ET003

13B-187
MR-372-J84-13B050$663.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Parameter summary table13B
Tool parameter Diagnostic tool title
PR125Power absorbed by the AC* compressor Vdiag 44 and 48 only
PR128First EGR valve offset
PR129Last EGR valve offset
PR130Cruise control setpoint
PR132Air flow
PR171Air flow setpoint for EGR Vdiag 44 and 48 only
PR190Engine idle speed setpoint.
PR224Turbocharging pressure sensor voltage Vdiag 44 and 48 only
PR228Injector control capacitor voltage
PR364Cylinder no. 1 fuel flow correction
PR365Cylinder no. 4 fuel flow correction
PR381Particle filter downstream temperature
Vdiag 4D, 45 and 49 only PR382Particle filter upstream temperature
PR383Weight of soot in the particle filter
PR391Mileage since particle filter replacement
PR400New EGR valve offset
PR405Cylinder no. 2 fuel flow correction
PR406Cylinder no. 3 fuel flow correction
PR412Mileage at last successful regeneration
Vdiag 4D, 45 and 49 only PR414Particle filter diff* pressure
PR415Time since last regeneration
PR513Mileage counter for level 1 warning light
PR514Mileage counter for level 2 warning light
PR634Air flow request
PR667Turbine upstream temperature
Vdiag 4D, 45 and 49 only PR668Turbine upstream temperature sensor voltage
PR669Particle filter diff* press* sens* voltage
PR670Particle filter upstream temp* sens* voltage
PR671Particle filter downstream temp* sens* voltage
PR672Damper valve position setpoint Vdiag 44 and 48 only
*AC: air conditioning system
*diff: differential*sens: sensor
*temp: temperature*press: pressure

13B-221
MR-372-J84-13B050$741.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR128
FIRST EGR VALVE OFFSET
PARAMETER
DEFINITIONThis parameter indicates the closing ratio of the EGR valve for the first offset of the EGR
valve.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
Indicates the percentage ≈ 20%.
PR128 ≈ PR129 Last EGR valve offset, these 2 values should be similar.
In the event of a fault, consult the interpretation of faults DF209 EGR valve position sensor circuit and DF647
EGR valve position regulation.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR128 / SID304_V45_PR128 / SID301_V48_PR128 / SID304_V49_PR128 / SID304_V4D_PR128 / SID301_V4C_PR128
