CONNECTOR A RENAULT SCENIC 2012 J95 / 3.G Engine And Peripherals EDC16CP33 Workshop Manual

13B-236
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF891
PRESENT
OR
STOREDGROUP 1 INJECTORS FEED
CC.0: Short circuit to earth
1.DEF: Faulty connections
NOTESGroup 1 corresponds to injectors 1 and 2.
Conditions for applying the fault finding procedure to a stored fault:
If the fault becomes present after:
– the ignition is switched on,
– the engine is started.
Priorities when dealing with a number of faults:
– DF026 Cylinder 1 injector control circuit
– DF027 Cylinder 2 injector control circuit.
Special notes:
If the fault is present:
– particle filter regeneration is inhibited,
–the level 2 warning light will be lit,
– the engine stops.
Use bornier Elé.1681 for all operations on the engine management computer.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check the condition of the injector connectors (see Wiring Diagram Technical Note, Laguna II ph2, Vel Satis
ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component codes 193, 194).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF891 / EDC16CP33_V1C_DF891 / EDC16CP33_V54_DF891 / EDC16CP33_V20_DF891 / EDC16CP33_V58_DF891 /
EDC16CP33_V5C_DF891 / EDC16CP33_V24_DF891 / EDC16CP33_V04_DF891 / EDC16CP33_V08_DF891 / EDC16CP33_V44_DF891 /
EDC16CP33_V4C_DF891 / EDC16CP33_V34_DF891 / EDC16CP33_V38_DF891 / EDC16CP33_V74_DF891 / EDC16CP33_V28_DF891 /
EDC16CP33_V62_DF891 / EDC16CP33_V26_DF891 / EDC16CP33_V60_DF891
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-238
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF892
PRESENT
OR
STOREDGROUP 2 INJECTORS FEED
CC.0: Short circuit to earth
1.DEF: Faulty connections
NOTESGroup 2 corresponds to injectors 3 and 4.
Conditions for applying the fault finding procedure to a stored fault:
If the fault becomes present after:
– the ignition is switched on,
– the engine is started.
Priorities when dealing with a number of faults:
– DF028 Cylinder 3 injector control circuit
– DF029 Cylinder 4 injector control circuit.
Special notes:
If the fault is present:
– particle filter regeneration is inhibited,
–the level 2 warning light will be lit,
– the engine stops.
Use bornier Elé.1681 for all operations on the engine management computer.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check the condition of the injector connectors (see Wiring Diagram Technical Note, Laguna II ph2, Vel Satis
ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component codes 195, 196).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF892 / EDC16CP33_V1C_DF892 / EDC16CP33_V54_DF892 / EDC16CP33_V20_DF892 / EDC16CP33_V58_DF892 /
EDC16CP33_V5C_DF892 / EDC16CP33_V24_DF892 / EDC16CP33_V04_DF892 / EDC16CP33_V08_DF892 / EDC16CP33_V44_DF892 /
EDC16CP33_V4C_DF892 / EDC16CP33_V34_DF892 / EDC16CP33_V38_DF892 / EDC16CP33_V74_DF892 / EDC16CP33_V28_DF892 /
EDC16CP33_V62_DF892 / EDC16CP33_V26_DF892 / EDC16CP33_V60_DF892
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

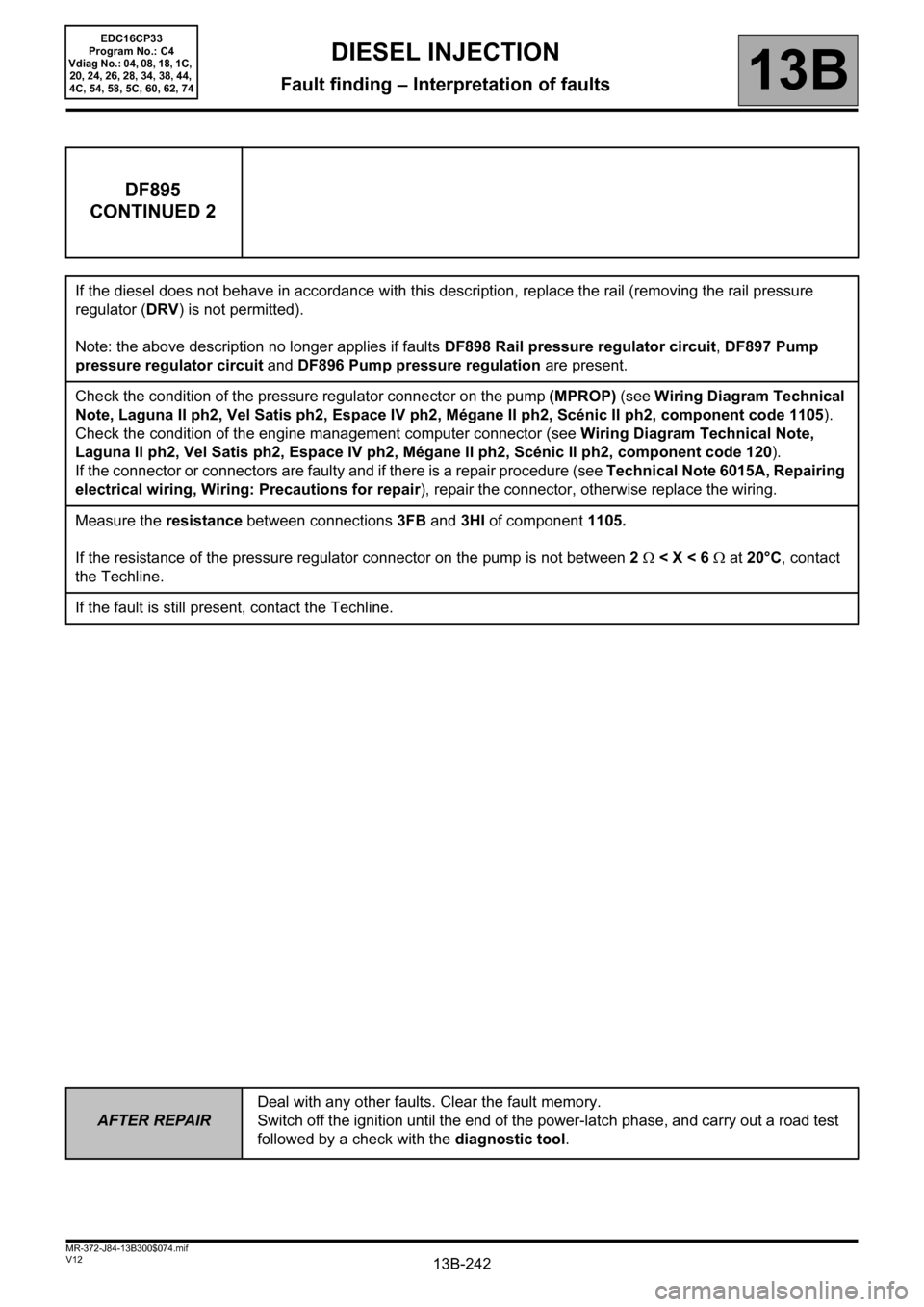

13B-242
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF895
CONTINUED 2
If the diesel does not behave in accordance with this description, replace the rail (removing the rail pressure
regulator (DRV) is not permitted).
Note: the above description no longer applies if faults DF898 Rail pressure regulator circuit, DF897 Pump
pressure regulator circuit and DF896 Pump pressure regulation are present.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3HI of component 1105.
If the resistance of the pressure regulator connector on the pump is not between 2 Ω < X < 6 Ω at 20°C, contact
the Techline.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-244
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF896
CONTINUED
Test the high pressure fuel circuit:
Run scenario SC035 High pressure fuel circuit fault finding.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the condition of the rail pressure regulator connector (DRV) (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1198).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-245
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF897
PRESENT
OR
STOREDPUMP PRESSURE REGULATOR CIRCUITCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault reappears after:
– the ignition is switched on,
– the regulator is controlled using command AC226 Pump pressure regulator.
Special notes:
The fuel flow regulator is built into the high pressure pump.
If the fault is present:
– particle filter regeneration is inhibited,
– the quantity of fuel injected is limited and the engine speed is limited to 3000 rpm:
CO, CC.1, 1.DEF,
– regulation with open loop for fuel flow,
–the level 2 warning light comes on: CC.0: engine stop,
–the level 1 warning light comes on: CO, CC.1, 1.DEF,
– pressure is regulated by the pump pressure regulator (MPROP).
Use bornier Elé. 1681 for all operations on the engine management computer
connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
CO
NOTESNone.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF897 / EDC16CP33_V1C_DF897 / EDC16CP33_V54_DF897 / EDC16CP33_V20_DF897 / EDC16CP33_V58_DF897 /
EDC16CP33_V5C_DF897 / EDC16CP33_V24_DF897 / EDC16CP33_V04_DF897 / EDC16CP33_V08_DF897 / EDC16CP33_V44_DF897 /
EDC16CP33_V4C_DF897 / EDC16CP33_V34_DF897 / EDC16CP33_V38_DF897 / EDC16CP33_V74_DF897 / EDC16CP33_V28_DF897 /
EDC16CP33_V62_DF897 / EDC16CP33_V26_DF897/ EDC16CP33_V60_DF897
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-246
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF897
CONTINUED 1
Measure the resistance between connections 3FB and 3HI of component 1105.
If the resistance of the pressure regulator connector on the pump is less than 1.5 Ω or greater than 1 kΩ, contact
the Techline.
Check the continuity of the following connection:
•3HI between the components 120 and 1105.
Check the +12 V after relay supply to the pump pressure regulator (MPROP) on the following connection:
•3FB of component 1105.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
CC.0
NOTESNone.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3HI of component 1105.
If the resistance of the pressure regulator connector on the pump is less than 1.5 Ω or greater than 1 kΩ, contact
the Techline.
Check the continuity and insulation from earth of the following connection:
•3HI between the components 120 and 1105.
Check the +12 V after relay supply to the pump pressure regulator (MPROP) on the following connection:
•3FB of component 1105.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-247
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF897
CONTINUED 2
CC.1NOTESNone.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3HI of component 1105.
If the resistance of the pressure regulator connector on the pump is less than 1.5 Ω or greater than 1 kΩ, contact
the Techline.
Check the continuity and insulation from + 12 V of the following connection:
•3HI between the components 120 and 1105.
Check the +12 V after relay supply to the pump pressure regulator (MPROP) on the following connection:
•3FB of component 1105.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
1.DEF
NOTESThis fault appears when the computer control section has
overheated.
Check the condition of the pressure regulator connector on the pump (MPROP) (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1105).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-248
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF897
CONTINUED 3
Measure the resistance between connections 3FB and 3HI of component 1105.
If the resistance of the pressure regulator connector on the pump is less than 1.5 Ω or greater than 1 kΩ, contact
the Techline.
Check the continuity and absence of interference resistance on the following connection:
•3HI between the components 120 and 1105.
Check the +12 V after relay supply to the pump pressure regulator (MPROP) on the following connection:
•3FB of component 1105.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-249
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF898
PRESENT
OR
STOREDPRESSURE REGULATOR CIRCUIT ON RAILCO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault reappears after:
– the ignition is switched on,
– the regulator is controlled using command AC225 Rail pressure regulator.
Special notes:
The rail pressure regulator (DRV) is built into the high pressure rail.
The DF898 Rail pressure regulator circuit depends on the pressure regulator on the
rail (DRV).
If the fault is present:
– the quantity of fuel injected is limited and the engine speed is limited to 3000 rpm:
CO, CC.1, 1.DEF,
–the level 2 warning light will be lit,
– the engine stops immediately for CO, CC.1, 1.DEF,
– the engine stops after a few minutes for CC.0,
– the rail pressure is regulated by the pump pressure regulator (MPROP).
Use bornier Elé. 1681 for all operations on the engine management computer
connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
EDC16CP33_V18_DF898 / EDC16CP33_V1C_DF898 / EDC16CP33_V54_DF898 / EDC16CP33_V20_DF898 / EDC16CP33_V58_DF898 /
EDC16CP33_V5C_DF898 / EDC16CP33_V24_DF898 / EDC16CP33_V04_DF898 / EDC16CP33_V08_DF898 / EDC16CP33_V44_DF898 /
EDC16CP33_V4C_DF898 / EDC16CP33_V34_DF898 / EDC16CP33_V38_DF898 / EDC16CP33_V74_DF898 / EDC16CP33_V28_DF898 /
EDC16CP33_V62_DF898 / EDC16CP33_V26_DF898 / EDC16CP33_V60_DF898
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-250
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF898
CONTINUED 1
CONOTESNone.
Check the condition of the rail pressure regulator connector (DRV) (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1198).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3RG of component 1198.
If the resistance of the rail pressure regulator connector is less than 2 Ω or greater than 1 kΩ, contact the Techline.
Check the continuity of the following connection:
•3RG between components 120 and 1198.
Check the +12 V after relay supply to the rail pressure regulator (DRV) on the following connection:
•3FB of component 1198.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
