CONNECTOR A RENAULT SCENIC 2012 J95 / 3.G Engine And Peripherals EDC16CP33 Workshop Manual

13B-251
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF898
CONTINUED 2
CC.0NOTESNone.
Check the condition of the rail pressure regulator connector (DRV) (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1198).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3RG of component 1198.
If the resistance of the rail pressure regulator connector is less than 2 Ω or greater than 1 kΩ, contact the Techline.
Check the continuity and insulation from earth of the following connection:
•3RG between the components 120 and 1198.
Check the +12 V after relay supply to the rail pressure regulator (DRV) on the following connection:
•3FB of component 1198.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-252
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION

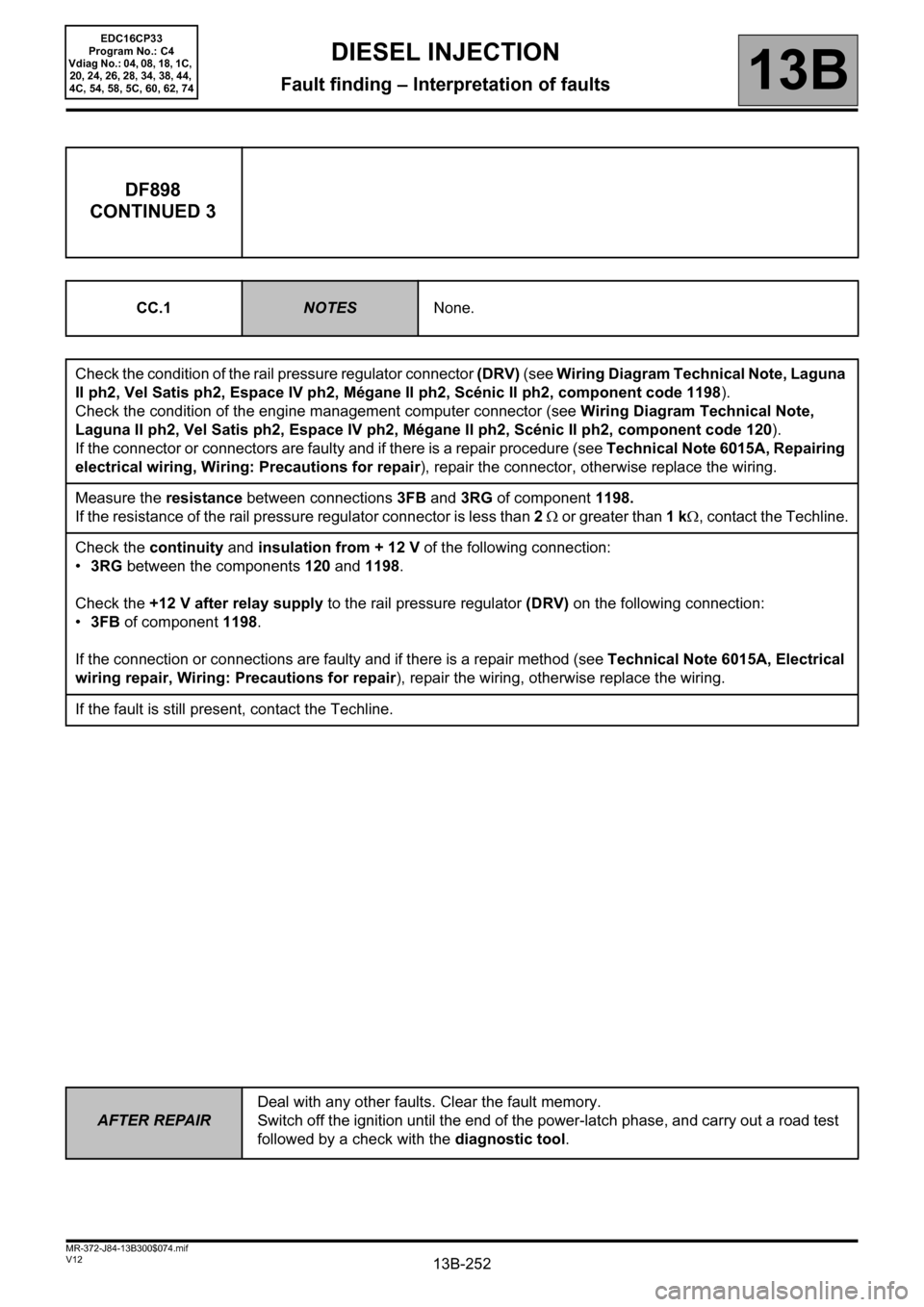

Fault finding – Interpretation of faults13B
DF898
CONTINUED 3
CC.1NOTESNone.
Check the condition of the rail pressure regulator connector (DRV) (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1198).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3RG of component 1198.
If the resistance of the rail pressure regulator connector is less than 2 Ω or greater than 1 kΩ, contact the Techline.
Check the continuity and insulation from + 12 V of the following connection:
•3RG between the components 120 and 1198.
Check the +12 V after relay supply to the rail pressure regulator (DRV) on the following connection:
•3FB of component 1198.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-253
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF898
CONTINUED 4
1.DEFNOTESSpecial notes:
This fault appears when the computer control section has
overheated.
Check the condition of the rail pressure regulator connector (DRV) (see Wiring Diagram Technical Note, Laguna
II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 1198).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3FB and 3RG of component 1198.
If the resistance of the rail pressure regulator connector is less than 2 Ω or greater than 1 kΩ, contact the Techline.
Check the continuity and absence of interference resistance on the following connection:
•3RG between the components 120 and 1198.
Check the +12 V after relay supply to the rail pressure regulator (DRV) on the following connection:
•3FB of component 1198.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-255
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF997
PRESENT
OR
STOREDCONTROL UNIT -> THERMOPLUNGERS CONNECTION
1.DEF: Signal incoherent
NOTESConditions for applying the fault finding procedure to a stored fault:
the fault is declared present after the engine starts.
Special notes:
If the fault is present:
The engine performance is impaired during the particle filter regeneration phase.
Check the condition of the thermoplunger 1, 2, 3 relay mounting connector on the engine fuse box or additional
heater interface unit (see Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2,
Mégane II ph2, Scénic II ph2, component code 1067, 1068, 1069 or 1550).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
Check the condition of the thermoplunger connectors (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component codes 898, 1072, 1073, 1074).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the conformity of the thermoplunger 1, 2, 3 relay (relay removed) or the additional heater interface unit:
– Check the insulation between the following connections:
•BP9 and 3JB of component 1067 or 1550.
•BP91 and 3JAD or 3JD and 3JAC of component 1068 or 1550.
•BP9 and 3JAC or 3JC of component 1069 or 1550.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the continuity of the following connections:
•3JAC or 3JC between component
1069 or 1550,
•3JAD or 3JD and 3JAC between component 1068 or 1550,
•3JA between component 1067 or 1550.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
EDC16CP33_V18_DF997 / EDC16CP33_V1C_DF997 / EDC16CP33_V54_DF997 / EDC16CP33_V20_DF997 / EDC16CP33_V58_DF997 /
EDC16CP33_V5C_DF997 / EDC16CP33_V24_DF997 / EDC16CP33_V28_DF997 / EDC16CP33_V62_DF997 / EDC16CP33_V26_DF997 /
EDC16CP33_V60_DF997
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62

13B-259
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$074.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF1188
PRESENT
OR
STOREDAIR TAKEN INTO THE TURBOCHARGING CIRCUIT
1.DEF: Air leak in the turbocharging circuit
NOTESPriorities when dealing with a number of faults:
– DF004 Turbocharging pressure sensor circuit.
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present with the engine running above 3000 rpm and during the
turbocharger regulation phase (for at least 10 seconds).
Special notes:
If the fault is present:
–the level 1 and OBD warning lights are lit,
– the vehicle performance is reduced,
– engine torque is limited,
– the turbo function is inhibited,
– particle filter regeneration is inhibited,
– the EGR function is inhibited by the engine management computer,
Check the condition of the turbocharging pressure sensor connector (component code 1071).
Check the condition of the turbocharging solenoid valve connector (component code 1475).
Check the condition of the engine management computer connector (component code 120).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity and insulation of the following connections:
•3LQ between components 120 and 1071,
•3LP between components 120 and 1071,
•3LN between components 120 and 1071,
•3MG between the components 120 and 1475.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
EDC16CP33_V20_DF1188 / EDC16CP33_V24_DF1188 / EDC16CP33_V04_DF1188 / EDC16CP33_V08_DF1188 /
EDC16CP33_V44_DF1188 / EDC16CP33_V4C_DF1188 / EDC16CP33_V34_DF1188/ EDC16CP33_V38_DF1188 /
EDC16CP33_V74_DF1188 / EDC16CP33_V60_DF1188 / EDC16CP33_V62_DF1188
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 20, 24,
34, 38, 44, 4C, 60, 62, 74

13B-265V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET001
CONTINUED
If the ignition is not switched on, status ET001 should be ABSENT.
As soon as the ignition is switched on, the computer should be supplied with power. Status ET001 becomes
PRESENT.
If this status remains locked on ABSENT, follow the procedure below:
– Check the condition of fuse FM3 (30A) in the engine fuse and relay box (see MR 395 (Laguna II ph2), 405
(Espace IV ph2) Mechanical, 81C, Fuses, Fuses: List and location of components).
– Check the condition of fuse F18 (15A) in the Protection and Switching Unit (UPC) (see MR364 (Mégane II ph2),
MR370 (Scénic II ph2) Mechanical, 81C, Fuses, Fuses: List and location of components).
Check the continuity and absence of interference resistance on the following connection:
•3AA between components 120 and 983 or 1337.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-268V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET007
CONTINUED
"ACTIVE"
– Check the connection and condition of the preheating unit (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2,
Scénic II ph2, component code 257).
If the connector or connectors are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the connector, otherwise replace the wiring.
If the vehicle starts, postheating has ended and status ET007 remains ACTIVE
during the engine operating phase, refer to the interpretation of faults DF017
Preheating unit control circuit and DF025 Preheating unit diagnostic
connection.
"INACTIVE"If the vehicle does not start, the status remains INACTIVE and preheating does not
start when the ignition is switched on or during the starting phase.
Check the continuity and absence of interference resistance on the following
connections:
•3FY and 3FF between components 120 and 257.
Check the + 12 V battery supply to the preheating unit on the following connection:
•BP35 of component 257.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Conformity check with the engine running and engine coolant temperature > 80°C
"ACTIVE"
then
"INACTIVE"After the engine has been running for a certain period, the status changes from
ACTIVE to INACTIVE.
In the event of a fault, consult the interpretation of fault DF017 Preheating unit
control circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 74

13B-271V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET034
CONTINUED
YES
When the driver depresses the clutch pedal, status ET034 becomes YES until
the ignition is next switched off.
If NO appears despite the clutch pedal being depressed, carry out the following
operations:
– Remove the clutch pedal switch, check the insulation between connections M
and86D of component 675, with the switch in the rest position.
– Repeat this operation with the switch engaged and check the continuity
between the two connections.
If these 2 checks are faulty, replace the switch.
Check the condition of the clutch switch connector (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2,
component code 675).
Check the condition of the engine management computer connector (see Wiring
Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II
ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure
(seeTechnical Note 6015A, Repairing electrical wiring, Wiring: Precautions
for repair), repair the connector, otherwise replace the wiring.
Then check the continuity and absence of interference resistance of the
connection:
•86D between components 120 and 675.
– Check for complete earthing on connectionM of component675.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-275V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 2
"INACTIVE"
When the main button is in rest position (or Neutral), status ET042 Cruise control/
speed limiter is INACTIVE.
If CRUISE CONTROL or SPEED LIMITER appears despite the main switch being in
the rest (or neutral) position, carry out the following operations:
Check the connections of the cruise control/speed limiter main switch.
Check for +12 V after ignition on the switch connector on the following connections:
•AP10 of component 1081 (for Vel Satis ph 2, Laguna II ph2 and Espace IV ph2),
•AP43 of component 1081 (for Mégane II ph2),
•AP43 of component 1546 (for Scénic II ph2).
Disconnect the main switch, and when it is in the rest position, check the insulation
between the following connections:
•AP10 and 3FX of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP10 and 3PD of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3FX of component 1081 (for Mégane II ph2),
•AP43 and 3PD of component 1081 (for Mégane II ph2),
•AP43 and 3FX of component 1546 (for Scénic II ph2),
•AP43 and 3PD of component
1546 (for Scénic II ph2).
With speed limiter selected, check the continuity between the following connections:
•AP10 and 3PD of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3PD of component 1081 (for Mégane II ph2),
•AP43 and 3PD of component 1546 (for Scénic II ph2).
With cruise control selected, check the continuity between the following connections:
•AP10 and 3FX of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3FX of component 1081 (for Mégane II ph2),
•AP43 and 3FX of component 1546 (for Scénic II ph2).
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-277V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 4
LIMITER
When the driver presses the main switch to the speed limiter position, status ET042
Cruise control / speed limiter becomes SPEED LIMITER.
If CRUISE CONTROL or INACTIVE appears although the switch was pressed in
the speed limiter position, carry out the following operations:
Check the connections of the cruise control/speed limiter main switch.
Check for +12 V after ignition on the switch connector on the following connections:
•AP10 of component 1081 (for Vel Satis ph2, Laguna II ph2 and Espace IV ph2),
•AP43 of component 1081 (for Mégane II ph2),
•AP43 of component 1546 (for Scénic II ph2).
Disconnect the main switch, and when it is in the rest position, check the insulation
between the following connections:
•AP10 and 3FX of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP10 and 3PD of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3FX of component 1081 (for Mégane II ph2),
•AP43 and 3PD of component 1081 (for Mégane II ph2),
•AP43 and
3FX of component 1546 (for Scénic II ph2),
•AP43 and 3PD of component 1546 (for Scénic II ph2).
With speed limiter selected, check the continuity between the following connections:
•AP10 and 3PD of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3PD of component 1081 (for Mégane II ph2),
•AP43 and 3PD of component 1546 (for Scénic II ph2).
With cruise control selected, check the continuity between the following connections:
•AP10 and 3FX of component 1081 (for Vel Satis ph2, Laguna II ph2 and
Espace IV ph2),
•AP43 and 3FX of component 1081 (for Mégane II ph2),
•.AP43 and 3FX of component 1546 (for Scénic II ph2).
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
