Page 271 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.3

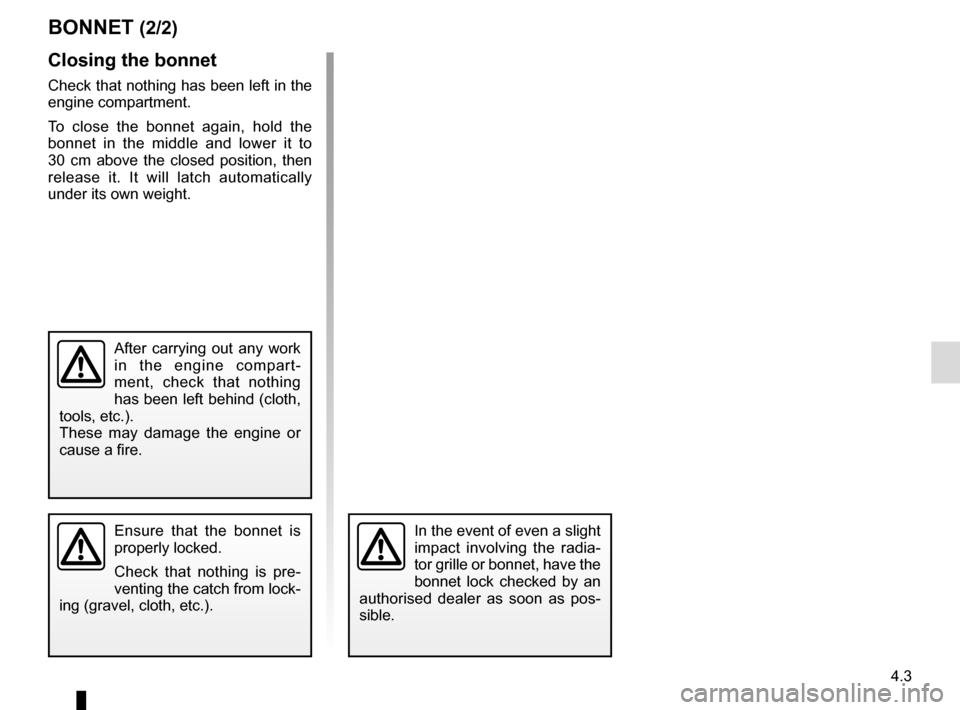

BONNET (2/2)
Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet again, hold the
bonnet in the middle and lower it to
30 cm above the closed posit

Page 272 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.4

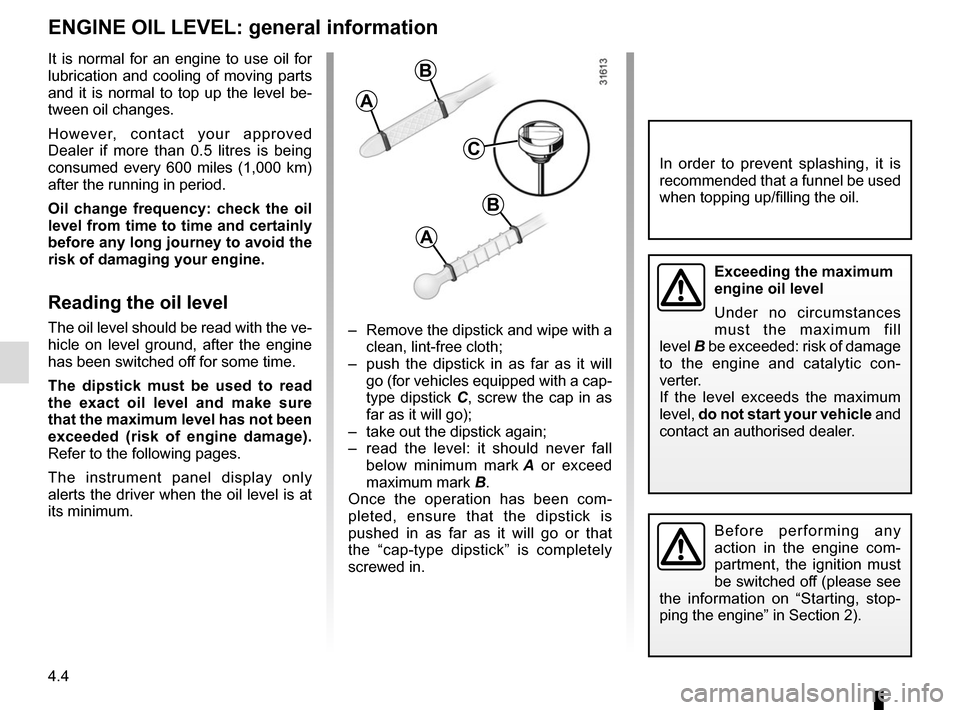

ENGINE OIL LEVEL: general information
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, conta

Page 273 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.5

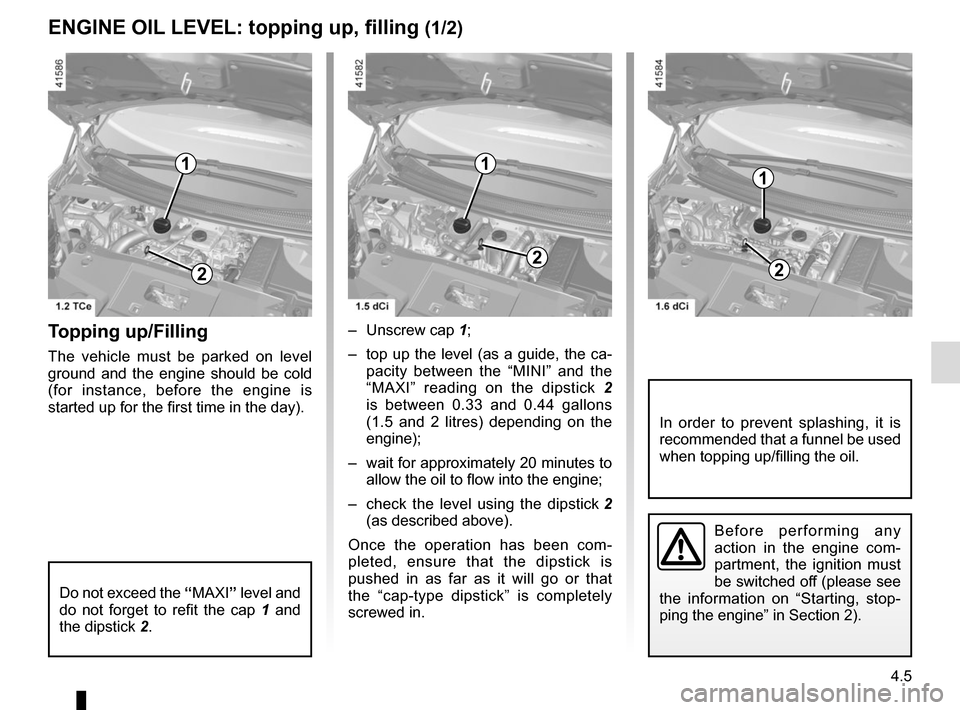

ENGINE OIL LEVEL: topping up, filling (1/2)
Topping up/Filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is
started up for the fi

Page 274 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.6
Engine oil grade
Refer to the Maintenance Service
Booklet for your vehicle.
Never run the engine in an
enclosed space as exhaust
gases are poisonous.
Engine oil change: if you
are changing the

Page 275 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.7
Replacement intervals
Refer to the Maintenance Document for
your vehicle.
Checking intervals
Check the coolant level regularly

(very severe damage is likely to be
caused to the engine if it ru

Page 276 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.8

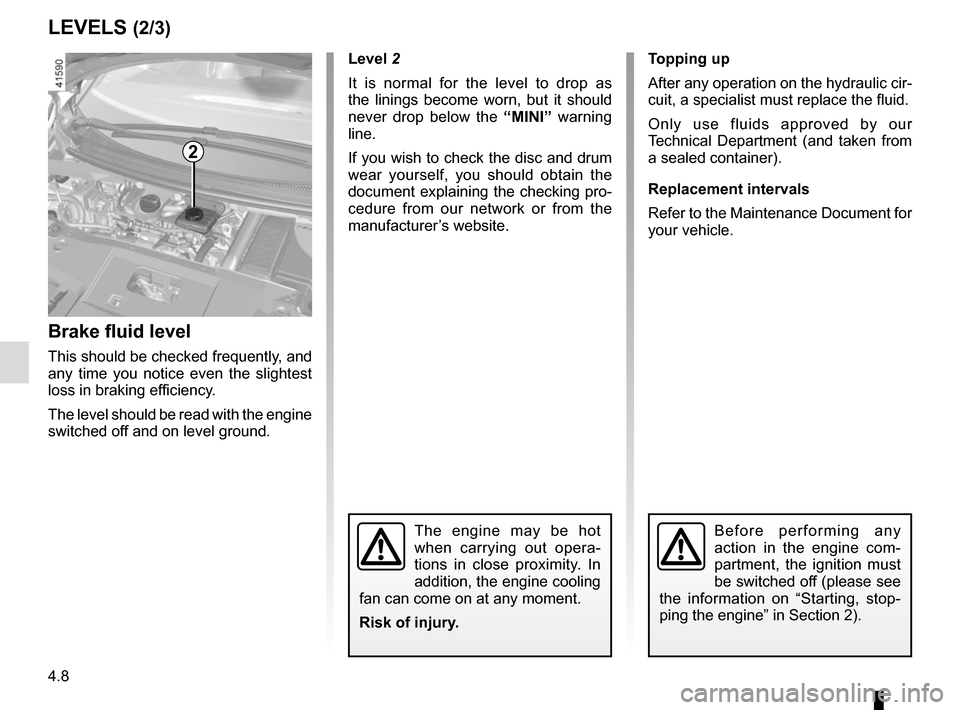

LEVELS (2/3)
Brake fluid level
This should be checked frequently, and
any time you notice even the slightest
loss in braking efficiency.
The level should be read with the engine
switched off an

Page 277 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.9
LEVELS (3/3)/FILTERS
Windscreen/headlight washer
reservoir
Topping up
With the engine switched off, open
cap 3, fill until you can see the fluid,
then refit the cap.
Note: Regularly check the r

Page 278 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.10

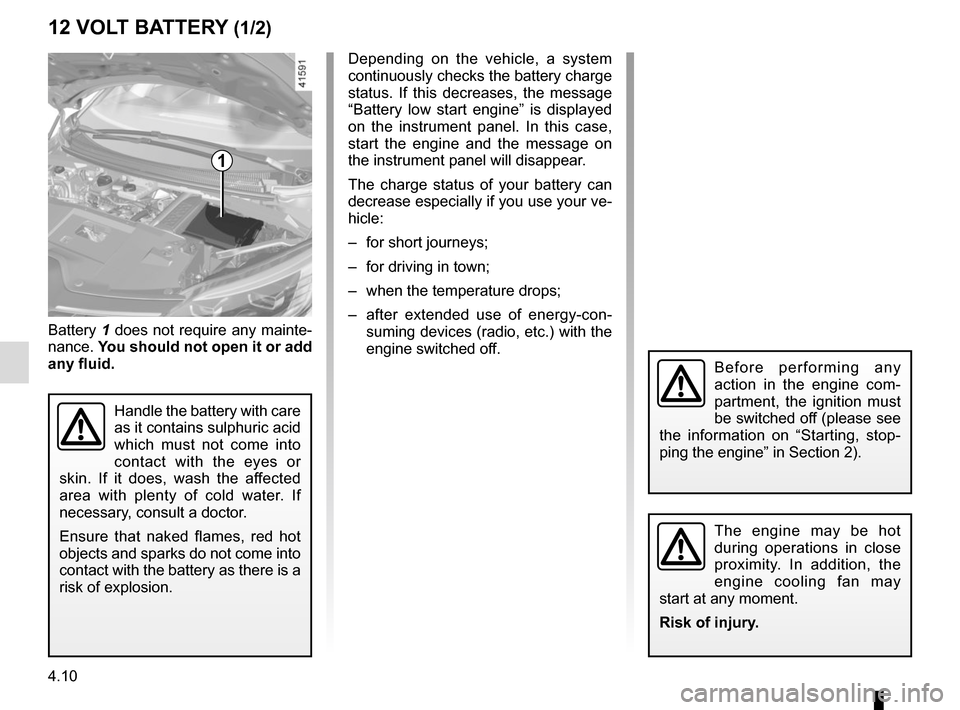

12 VOLT BATTERY (1/2)
1
Battery 1 does not require any mainte-
nance.  You should not open it or add
any fluid.
Handle the battery with care
as it contains sulphuric acid
which must not come i

Page 279 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.11

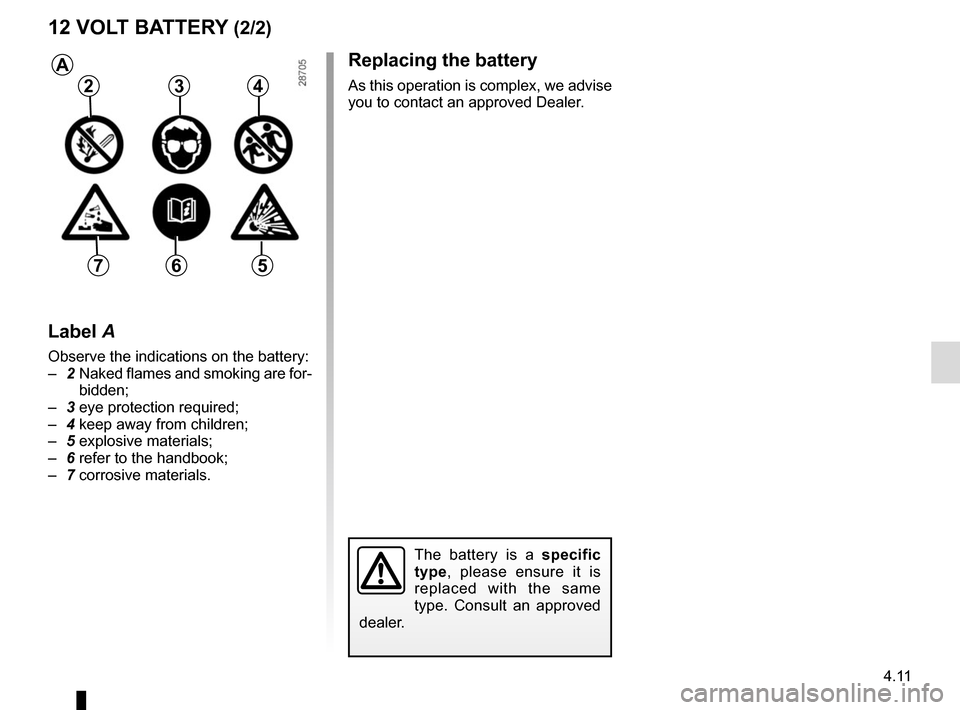

Replacing the battery
As this operation is complex, we advise
you to contact an approved Dealer.
12 VOLT BATTERY (2/2)
The battery is a specific
type, please ensure it is
replaced with the sam

Page 280 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 4.12

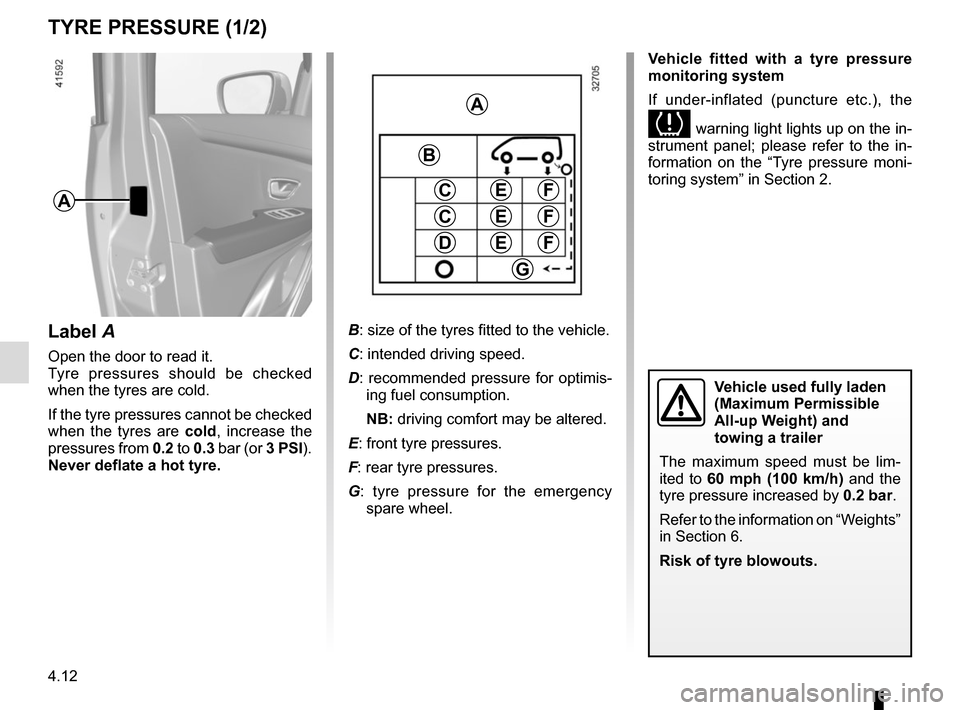

TYRE PRESSURE (1/2)
A
Label A
Open the door to read it.
Tyre pressures should be checked
when the tyres are cold.
If the tyre pressures cannot be checked
when the tyres are cold, increase the
