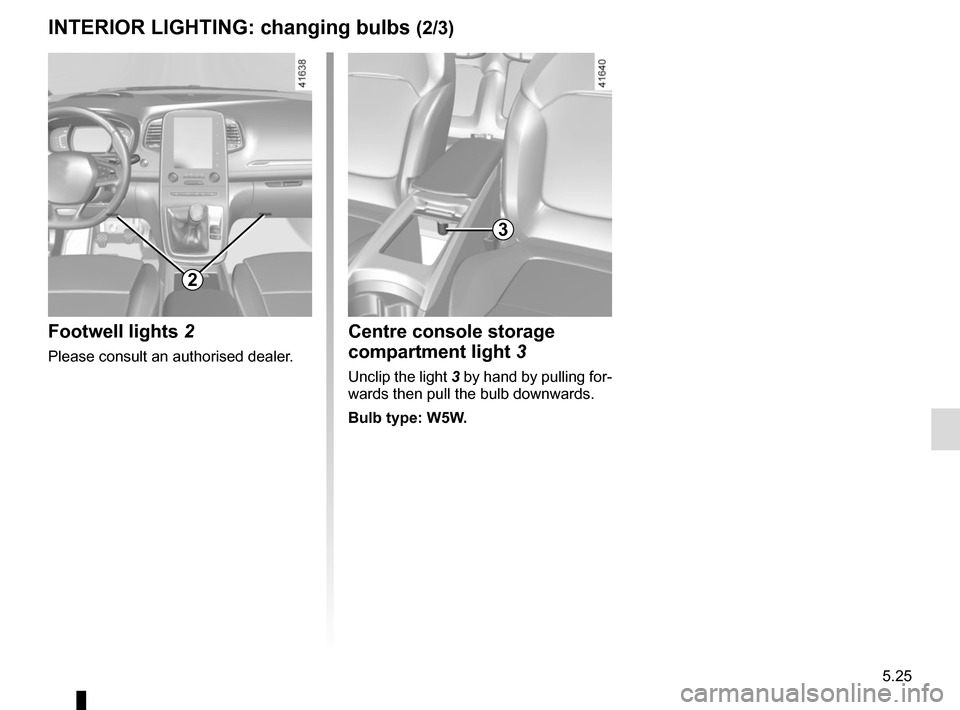

Page 311 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.25
Centre console storage
compartment light 3
Unclip the light 3 by hand by pulling for-
wards then pull the bulb downwards.
Bulb type: W5W.
3
2
Footwell lights  2
Please consult an authorised deal

Page 312 of 358

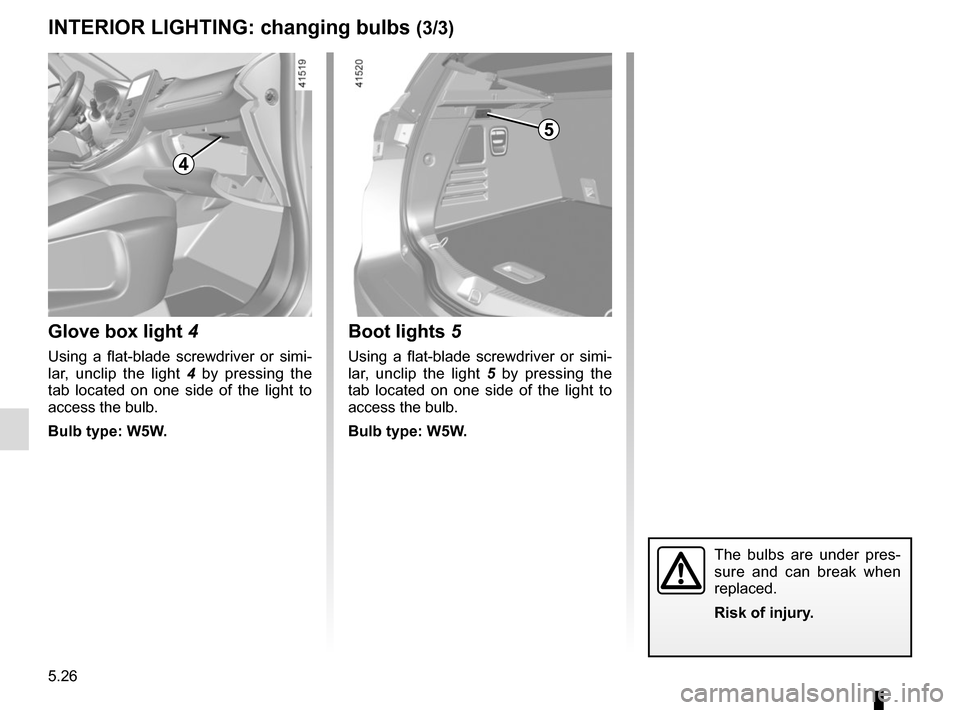

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.26
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
INTERIOR LIGHTING: changing bulbs (3/3)
Boot lights 5
Using a flat-blade screwdriver or simi-
lar, unclip the light  5

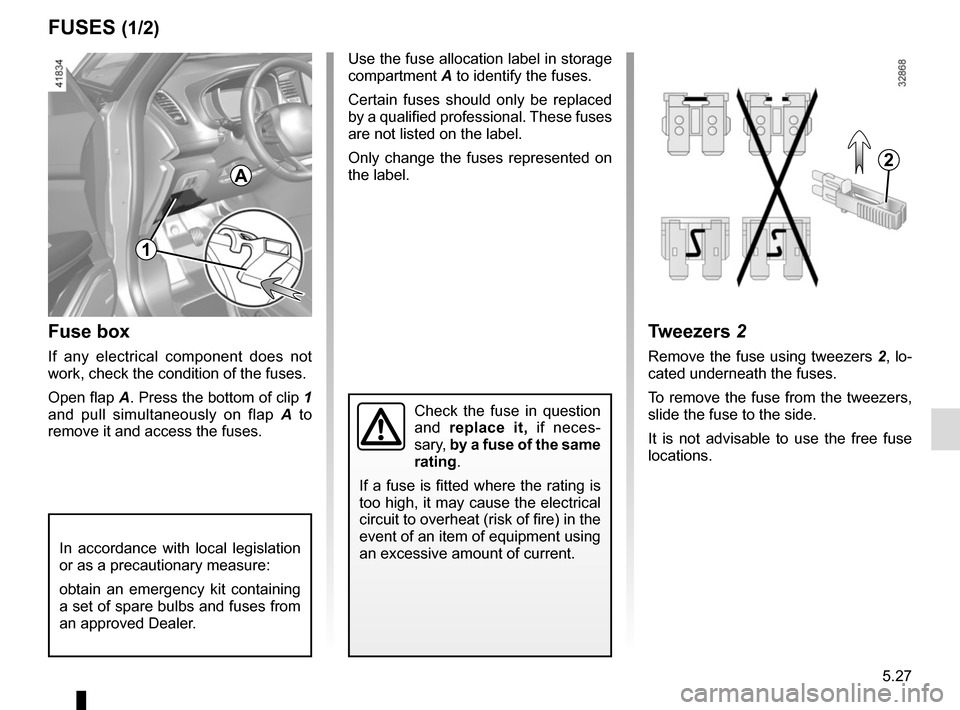

Page 313 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.27
FUSES (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Open flap A. Press the bottom of clip 1
and pull simultaneously on flap  A to
remove it and ac

Page 314 of 358

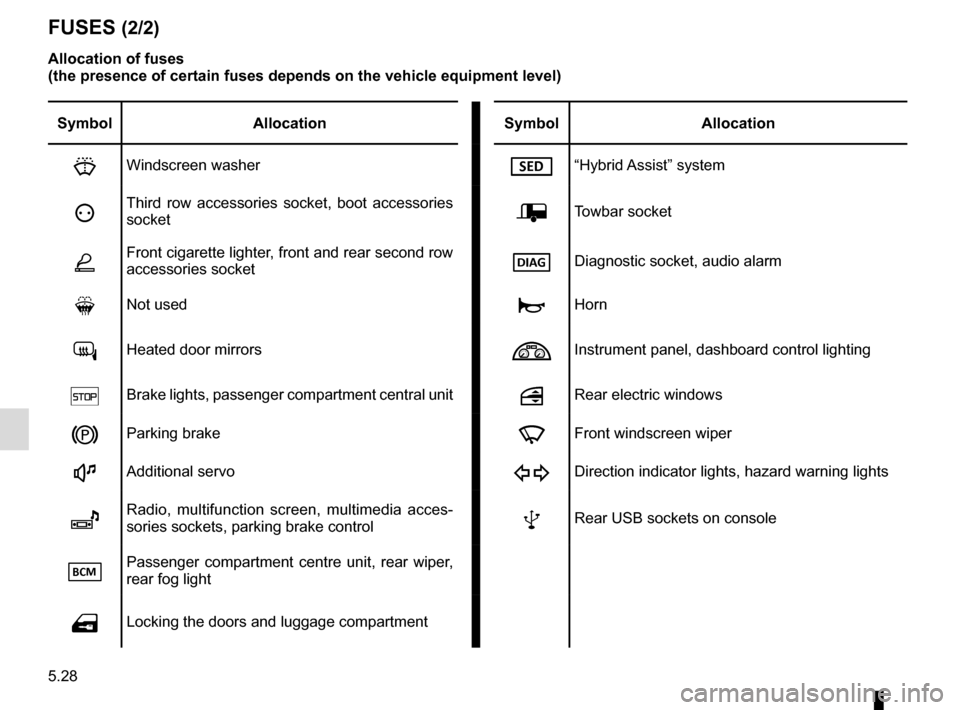

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.28
FUSES (2/2)
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)\
Symbol Allocation SymbolAllocation
HWindscreen washer“Hybrid Assist”  system
ëThi

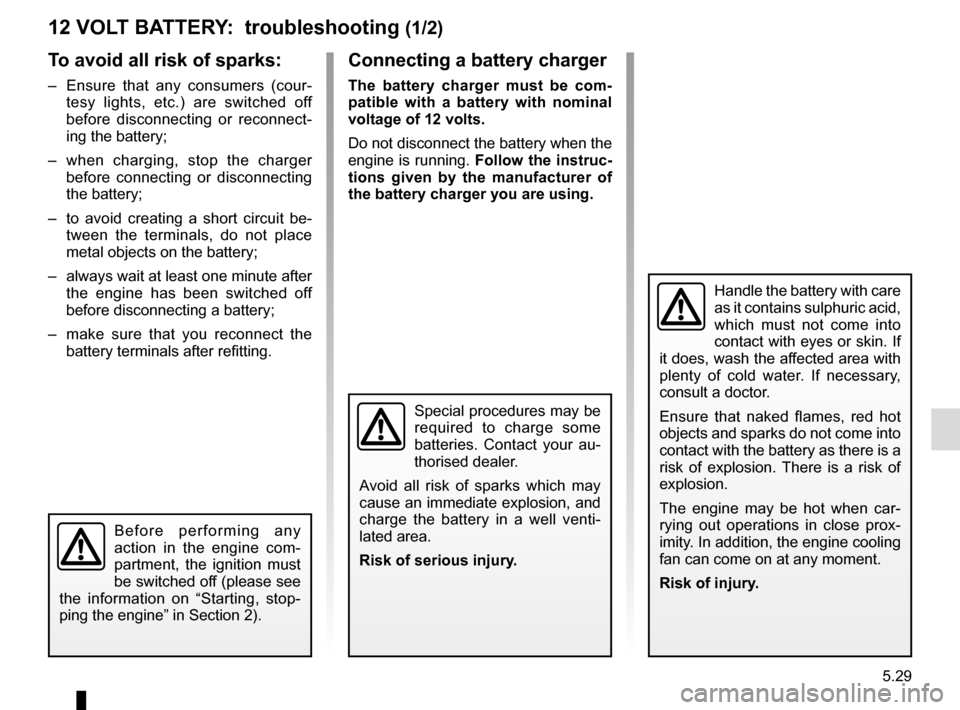

Page 315 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.29
12 VOLT BATTERY:  troubleshooting (1/2)
To avoid all risk of sparks:
–  Ensure that any consumers (cour-tesy lights, etc.) are switched off
before disconnecting or reconnect-
ing the battery;

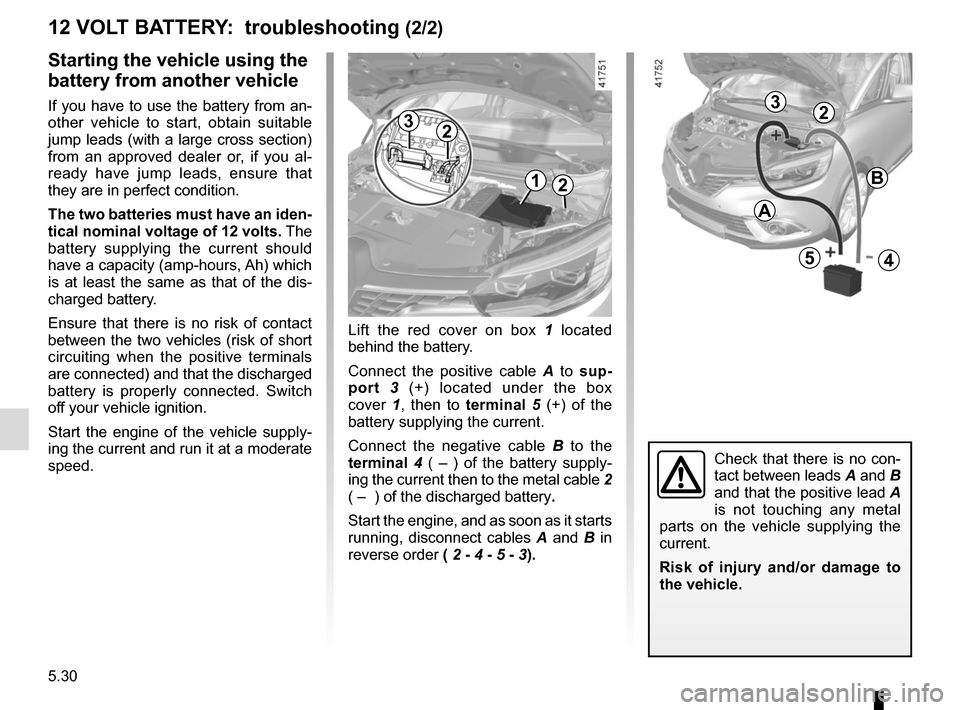

Page 316 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.30
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an appr

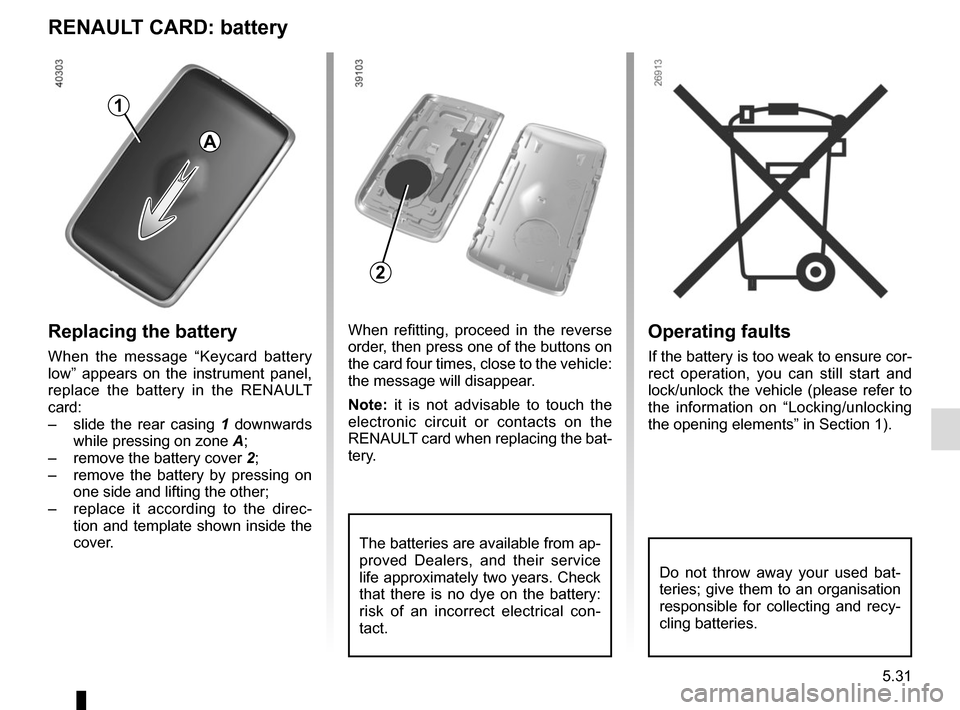

Page 317 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.31
Operating faults
If the battery is too weak to ensure cor-
rect operation, you can still start and
lock/unlock the vehicle (please refer to
the information on “Locking/unlocking
the opening

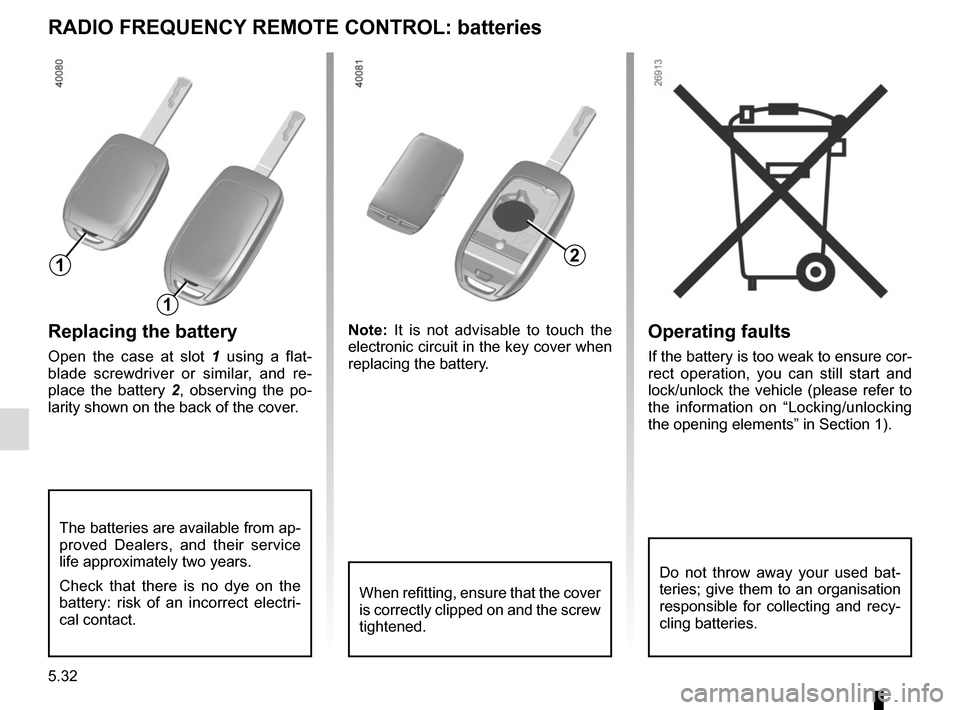

Page 318 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.32
Operating faults
If the battery is too weak to ensure cor-
rect operation, you can still start and
lock/unlock the vehicle (please refer to
the information on “Locking/unlocking
the opening

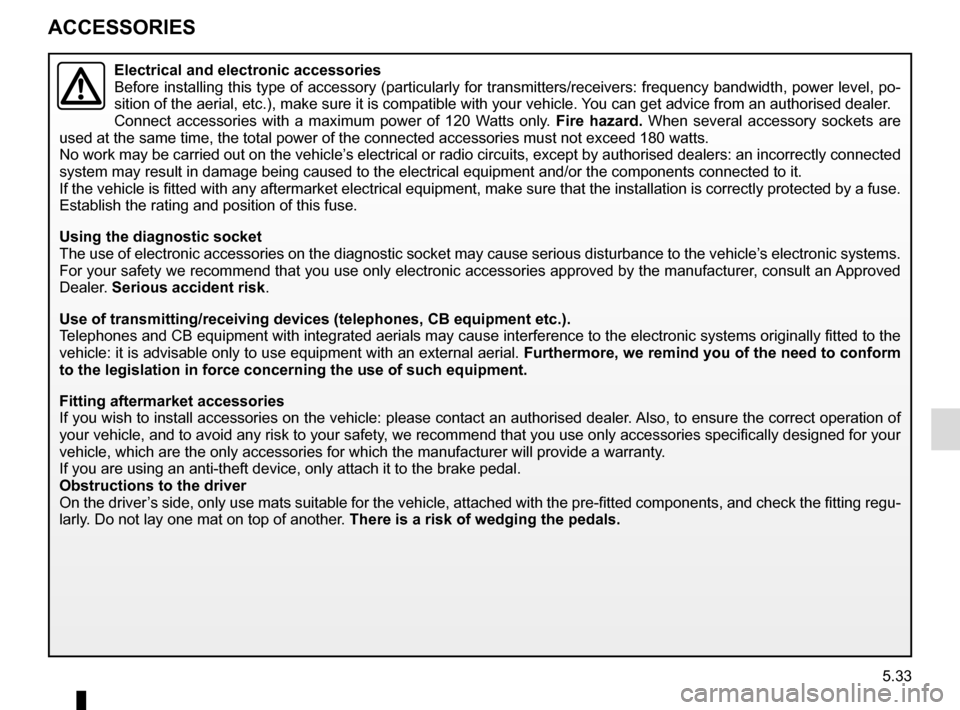

Page 319 of 358

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.33
ACCESSORIES
Electrical and electronic accessories
Before installing this type of accessory (particularly for transmitters\
/receivers: frequency bandwidth, power level, po-
sition of the aerial,

Page 320 of 358

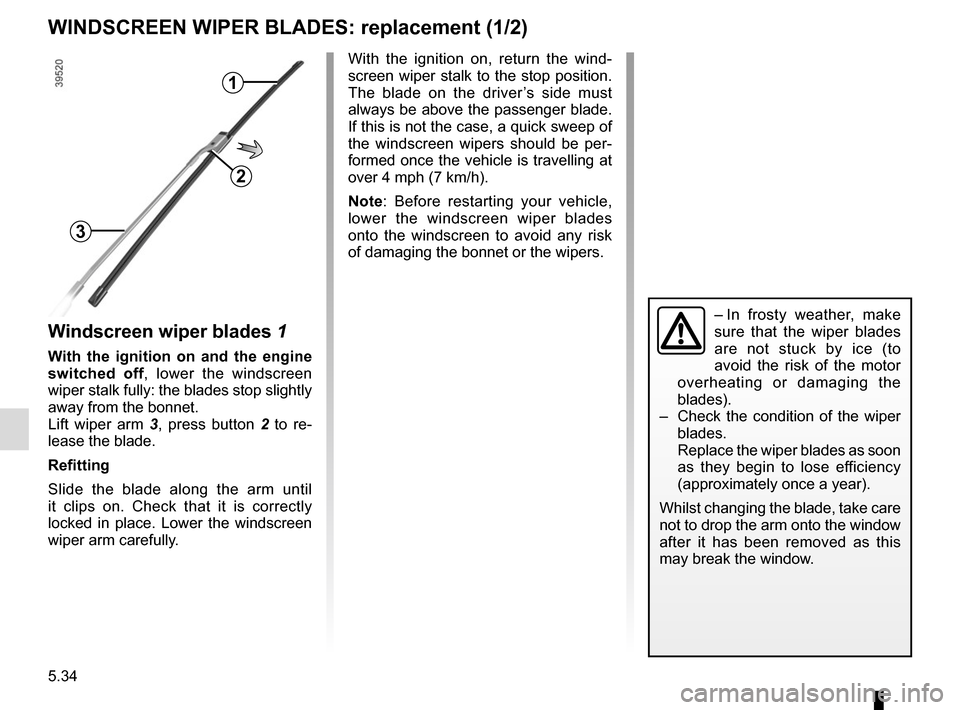

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 5.34
WINDSCREEN WIPER BLADES: replacement (1/2)
Windscreen wiper blades 1
With the ignition on and the engine
switched off, lower the windscreen
wiper stalk fully: the blades stop slightly
away fro
