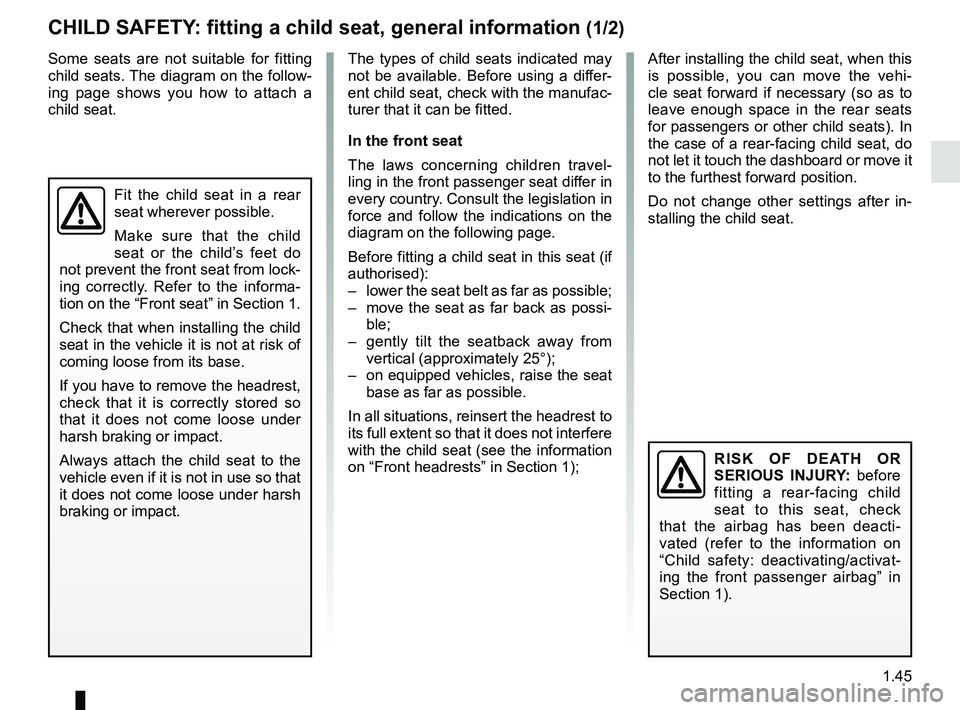

CHILD SAFETY: fitting a child seat, general information (1/2)
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
– lower the seat belt as far as possible;
– move the seat as far back as possi-ble;
– gently tilt the seatback away from vertical (approximately 25°);
– on equipped vehicles, raise the seat base as far as possible.
In all situations, reinsert the headrest to
its full extent so that it does not interfere
with the child seat (see the information
on “Front headrests” in Section 1);
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
Fit the child seat in a rear
seat wherever possible.
Make sure that the child
seat or the child’s feet do
not prevent the front seat from lock-
ing correctly. Refer to the informa-
tion on the “Front seat” in Section 1.
Check that when installing the child
seat in the vehicle it is not at risk of
coming loose from its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat to this seat, check
that the airbag has been deacti-
vated (refer to the information on
“Child safety: deactivating/activat-
ing the front passenger airbag” in
Section 1).
After installing the child seat, when this
is possible, you can move the vehi-
cle seat forward if necessary (so as to
leave enough space in the rear seats
for passengers or other child seats). In
the case of a rear-facing child seat, do
not let it touch the dashboard or move it
to the furthest forward position.
Do not change other settings after in-
stalling the child seat.

1.46

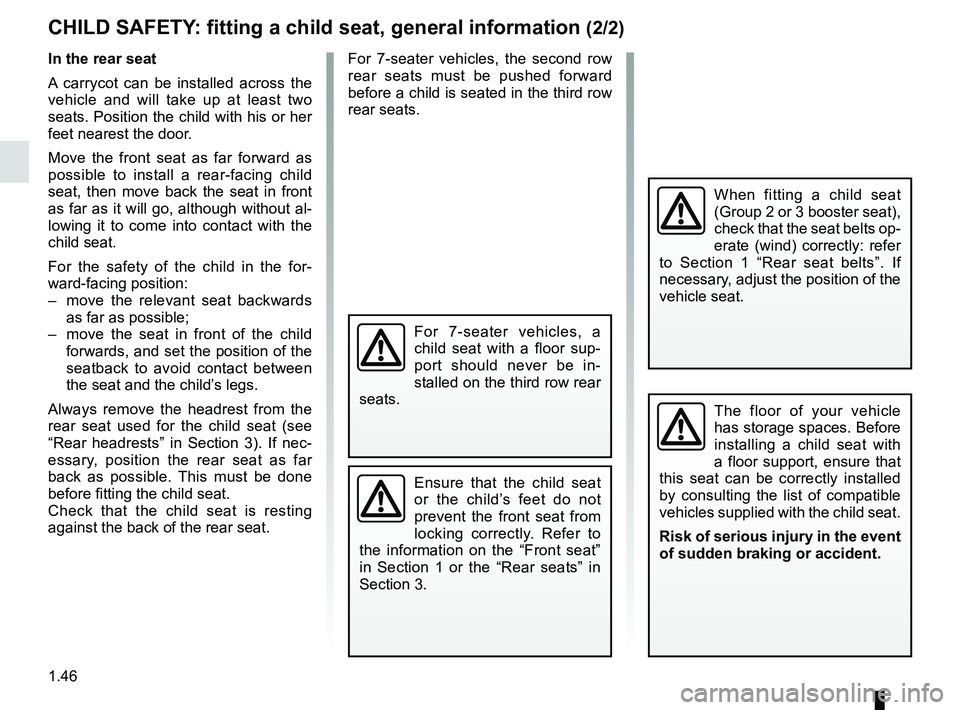

CHILD SAFETY: fitting a child seat, general information (2/2)
In the rear seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing position:
– move the relevant seat backwards as far as possible;
– move the seat in front of the child forwards, and set the position of the
seatback to avoid contact between
the seat and the child’s legs.
Always remove the headrest from the
rear seat used for the child seat (see
“Rear headrests” in Section 3). If nec-
essary, position the rear seat as far
back as possible. This must be done
before fitting the child seat.
Check that the child seat is resting
against the back of the rear seat.
Ensure that the child seat
or the child’s feet do not
prevent the front seat from
locking correctly. Refer to
the information on the “Front seat”
in Section 1 or the “Rear seats” in
Section 3.
The floor of your vehicle
has storage spaces. Before
installing a child seat with
a floor support, ensure that
this seat can be correctly installed
by consulting the list of compatible
vehicles supplied with the child seat.
Risk of serious injury in the event
of sudden braking or accident.
When fitting a child seat
(Group 2 or 3 booster seat),
check that the seat belts op-
erate (wind) correctly: refer
to Section 1 “Rear seat belts”. If
necessary, adjust the position of the
vehicle seat.
For 7-seater vehicles, a
child seat with a floor sup-
port should never be in-
stalled on the third row rear
seats.
For 7-seater vehicles, the second row
rear seats must be pushed forward
before a child is seated in the third row
rear seats.

1.47

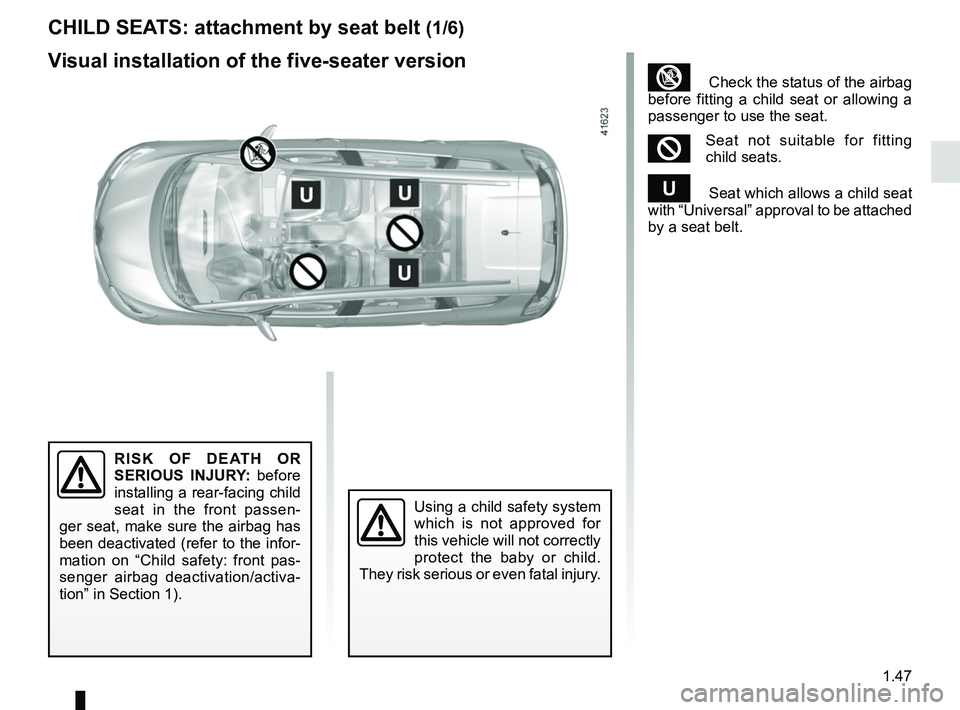

CHILD SEATS: attachment by seat belt (1/6)
Visual installation of the five-seater version
RISK OF DEATH OR
SERIOUS INJURY: before
installing a rear-facing child
seat in the front passen-
ger seat, make sure the airbag has
been deactivated (refer to the infor-
mation on “Child safety: front pas-
senger airbag deactivation/activa-
tion” in Section 1).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
³ Check the status of the airbag
before fitting a child seat or allowing a
passenger to use the seat.
²Seat not suitable for fitting
child seats.
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.

1.48

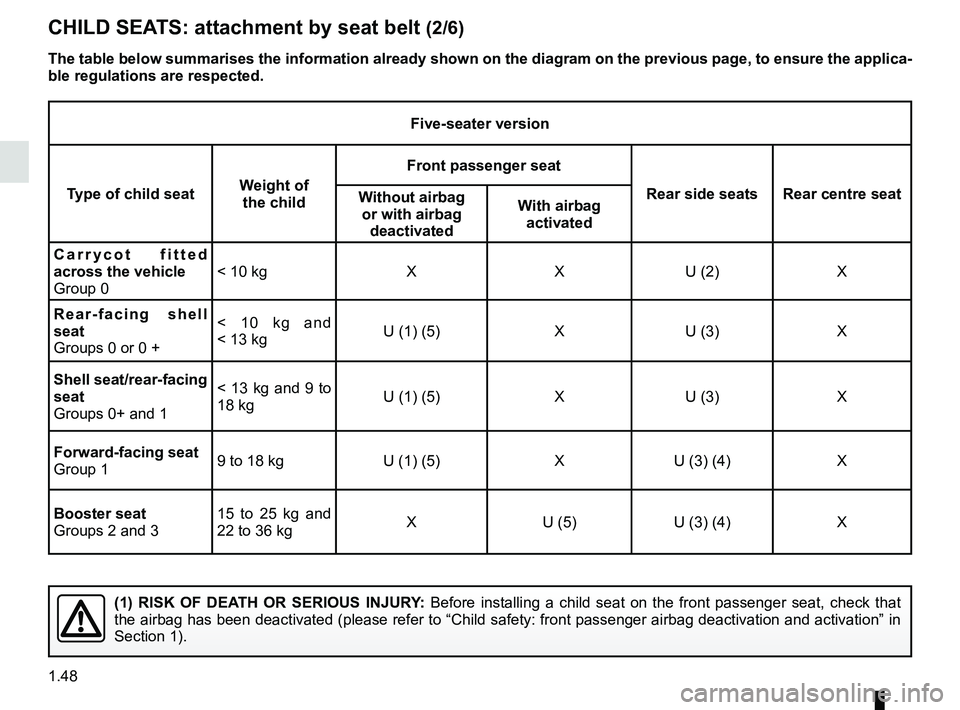

CHILD SEATS: attachment by seat belt (2/6)
Five-seater version
Type of child seat Weight of
the child Front passenger seat
Rear side seats Rear centre seat
Without airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted
across the vehicle
Group 0 < 10 kg X X U (2) X
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and
< 13 kg
U (1) (5) X U (3) X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9 to
18 kg
U (1) (5) X U (3) X
Forward-facing seat
Group 1 9 to 18 kg U (1) (5) X U (3) (4) X
Booster seat
Groups 2 and 3 15 to 25 kg and
22 to 36 kg
X U (5) U (3) (4) X
(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that \
the airbag has been deactivated (please refer to “Child safety: fron\
t passenger airbag deactivation and activation” in
Section 1).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the applica-
ble regulations are respected.

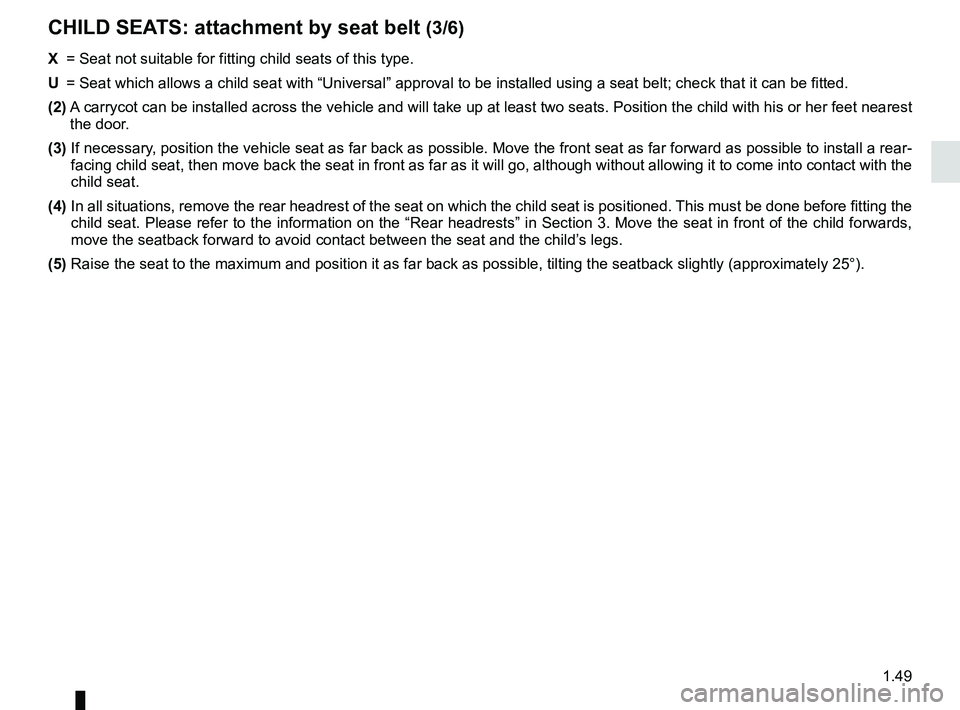

1.49
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
(2) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(3) If necessary, position the vehicle seat as far back as possible. Move the front seat\
as far forward as possible to install a re ar-
facing child seat, then move back the seat in front as far as it will go\
, although without allowing it to come into contact with the
child seat.
(4) In all situations, remove the rear headrest of the seat on which the chi\
ld seat is positioned. This must be done before fitting the
child seat. Please refer to the information on the “Rear headrests”\
in Section 3. Move the seat in front of the child forwards,
move the seatback forward to avoid contact between the seat and the chil\
d’s legs.
(5) Raise the seat to the maximum and position it as far back as possible, \
tilting the seatback slightly (approximately 25°).
CHILD SEATS: attachment by seat belt (3/6)

1.50

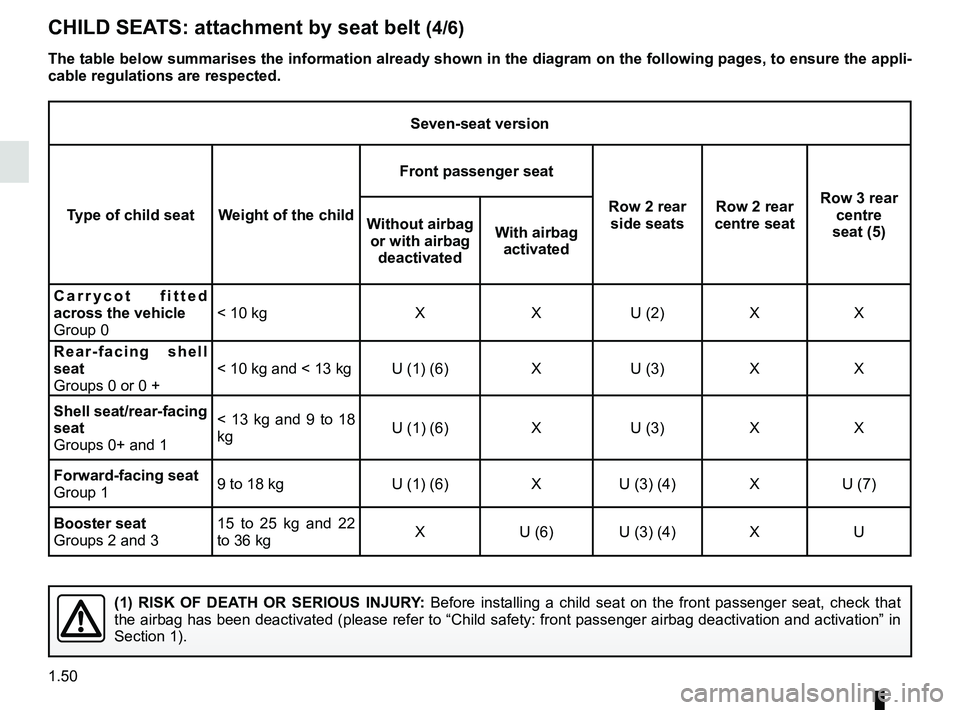

CHILD SEATS: attachment by seat belt (4/6)
Seven-seat version
Type of child seat Weight of the child Front passenger seat
Row 2 rear side seats Row 2 rear
centre seat Row 3 rear
centre
seat (5)
Without
airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted
across the vehicle
Group 0 < 10 kg X X U (2) X X
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and < 13 kg U (1) (6) X U (3) X X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9 to 18
kg
U (1) (6) X U (3) X X
Forward-facing seat
Group 1 9 to 18 kg U (1) (6) X U (3) (4) X U (7)
Booster seat
Groups 2 and 3 15 to 25 kg and 22
to 36 kg
X U (6) U (3) (4) X U
(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that \
the airbag has been deactivated (please refer to “Child safety: fron\
t passenger airbag deactivation and activation” in
Section 1).
The table below summarises the information already shown in the diagram \
on the following pages, to ensure the appli-
cable regulations are respected.

1.51

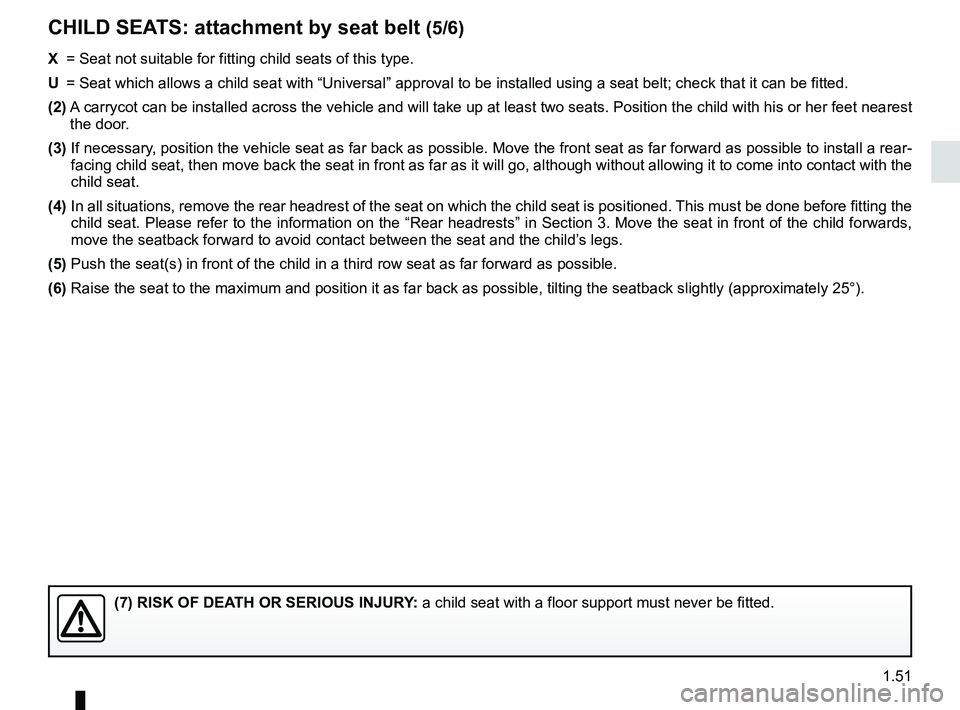

CHILD SEATS: attachment by seat belt (5/6)
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
(2) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(3) If necessary, position the vehicle seat as far back as possible. Move the front seat\
as far forward as possible to install a re ar-
facing child seat, then move back the seat in front as far as it will go\
, although without allowing it to come into contact with the
child seat.
(4) In all situations, remove the rear headrest of the seat on which the chi\
ld seat is positioned. This must be done before fitting the
child seat. Please refer to the information on the “Rear headrests”\
in Section 3. Move the seat in front of the child forwards,
move the seatback forward to avoid contact between the seat and the chil\
d’s legs.
(5) Push the seat(s) in front of the child in a third row seat as far forw\
ard as possible.
(6) Raise the seat to the maximum and position it as far back as possible, t\
ilting the seatback slightly (approximately 25°).
(7) RISK OF DEATH OR SERIOUS INJURY: a child seat with a floor support must never be fitted.

1.52
³ Check the status of the airbag
before fitting a child seat or allowing a
passenger to use the seat.
²Seat not suitable for fitting
child seats.
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
RISK OF DEATH OR
SERIOUS INJURY: before
installing a rear-facing child
seat in the front passen-
ger seat, make sure the airbag has
been deactivated (refer to the infor-
mation on “Child safety: front pas-
senger airbag deactivation/activa-
tion” in Section 1).
CHILD SEATS: attachment by seat belt (6/6)

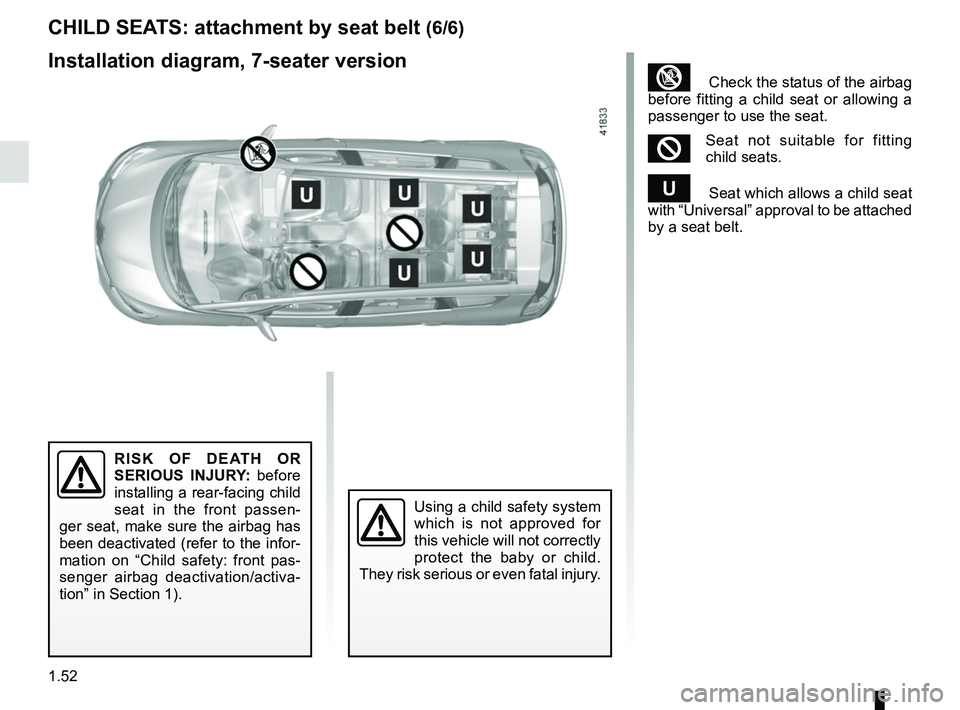

Installation diagram, 7-seater version

1.53

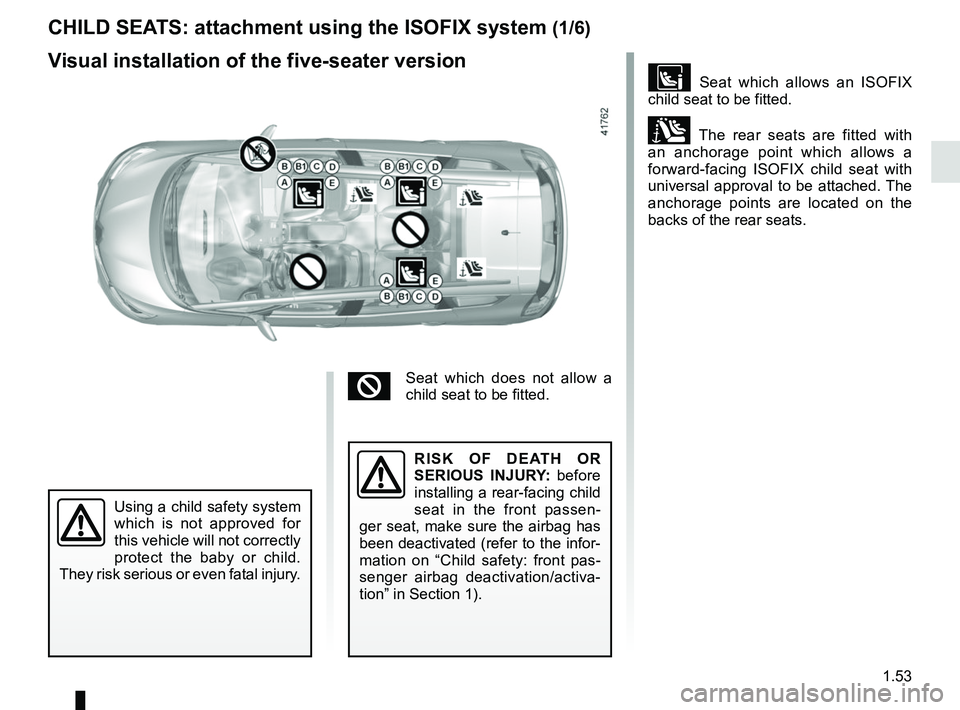

CHILD SEATS: attachment using the ISOFIX system (1/6)
 Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be attached. The
anchorage points are located on the
backs of the rear seats.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
²Seat which does not allow a
child seat to be fitted.
Visual installation of the five-seater version
RISK OF DEATH OR
SERIOUS INJURY: before
installing a rear-facing child
seat in the front passen-
ger seat, make sure the airbag has
been deactivated (refer to the infor-
mation on “Child safety: front pas-
senger airbag deactivation/activa-
tion” in Section 1).

1.54
CHILD SEATS: attachment using the ISOFIX system (2/6)
Five-seater version
Type of child seat Weight of
the child Seat size
ISOFIX Front passenger seat
Rear side seats Rear centre
seat
Without
airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted across
the vehicle
Group 0 < 10 kg
F, GXXXX
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and
< 13 kg
E
IL (1) (4) XIL (2) X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9
to 18 kg
C, D
IL (1) (4) XIL (2) X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 IUF - IL (1) (4) X IUF - IL
(2) (3) X
Booster seat
Groups 2 and 3 15 to 25 kg
and 22 to 36
kg
X IUF - IL (1)
IUF - IL
(2) (3) X
Seat i-Size i-U (1) (4)Xi-U X

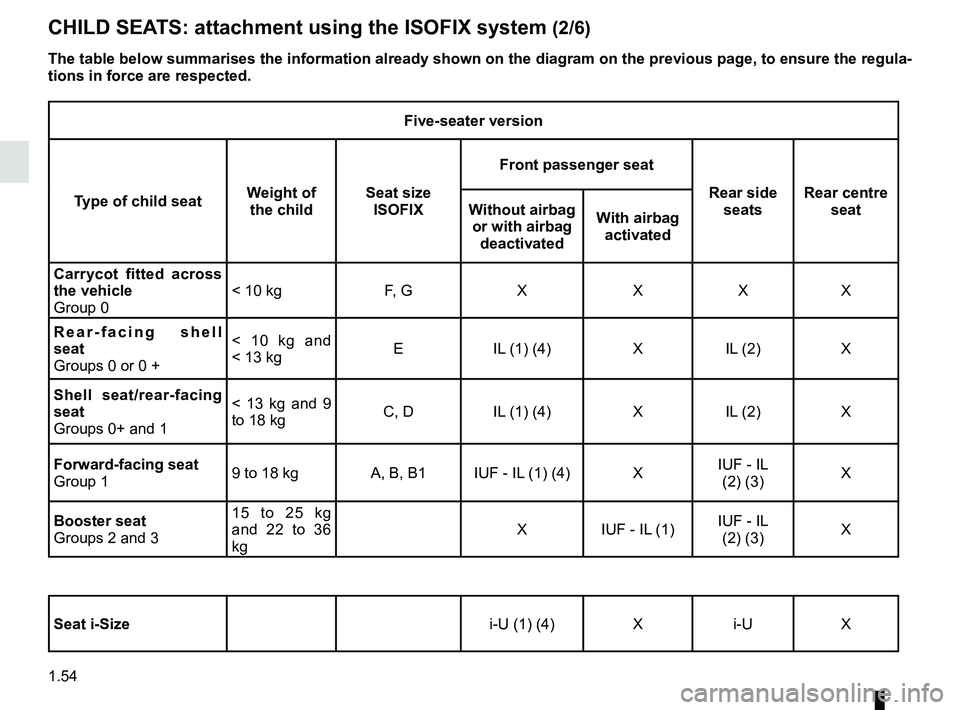

The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.
